TrolMaster Green-X: Complete Guide
How Do I Choose the Right Green-X Greenhouse Controller?
Greenhouse cultivation sits at the boundary between indoor precision and outdoor unpredictability. Every wind event, temperature swing, or sudden cloud cover exerts pressure on internal climate that sealed grow rooms never face. The TrolMaster Green-X platform is engineered for this dynamic, placing outdoor weather data at the center of automated decision-making so the system responds proactively rather than reactively.

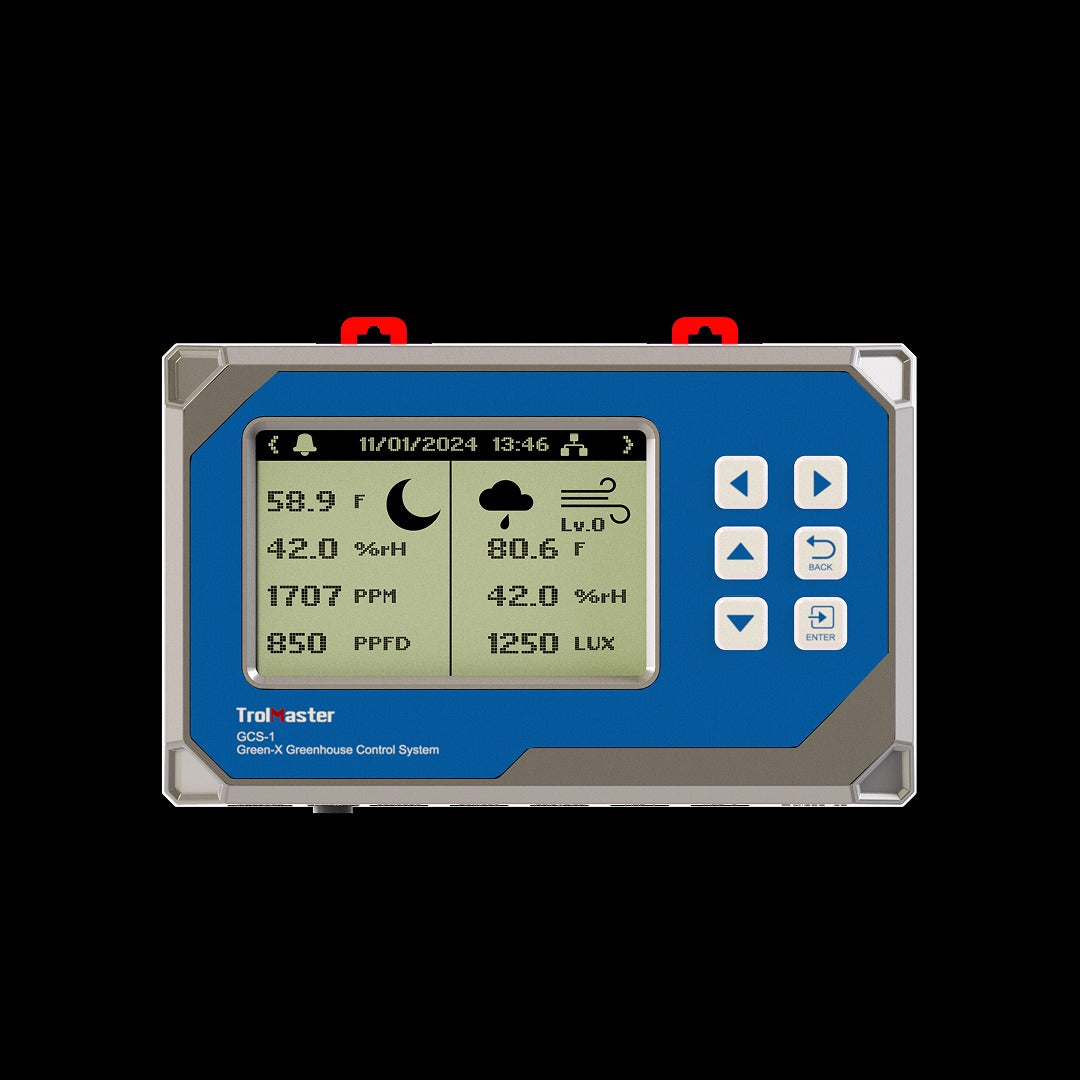

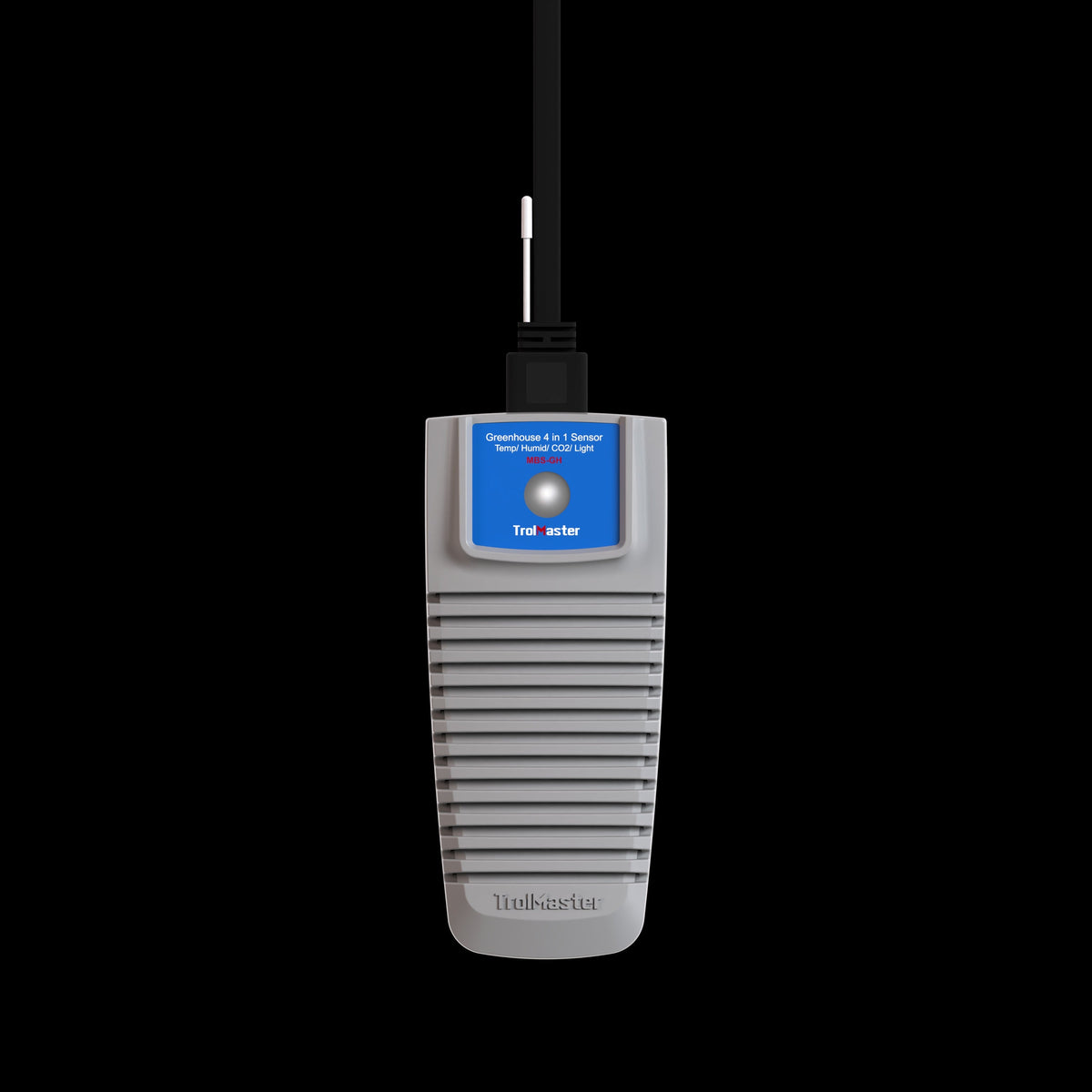

Built around the GCS-1 controller, the Green-X consolidates light management for up to 512 fixtures, climate and CO2 control, curtain and vent motor automation, and up to 96 irrigation outputs into a single modular command center. The system ships with the MBS-GH 4-in-1 sensor for indoor temperature, humidity, CO2, and light intensity readings at crop level. Add the MBS-WS outdoor weather station for wind speed, rainfall, and exterior temperature monitoring that triggers automated curtain closures and heating activation before conditions reach the canopy.
What Green-X Components Do I Need?
What Should I Look for in a Greenhouse Environmental Controller?
- Outdoor weather integration: The MBS-WS feeds real-time wind, rain, and temperature data to the GCS-1, enabling curtain closures and heating activation before external conditions penetrate the structure. Controllers without exterior sensing can only react after internal readings shift.
- Unified control layer: Running separate controllers for lighting, climate, and irrigation creates scheduling conflicts and blind spots. The GCS-1 coordinates all functions from a single decision engine with shared sensor data.
- Motorized curtain automation: The AMC-1 handles industrial AC curtain motors; the DMC-1 covers 24V DC roll-up systems. Both accept automated commands from the GCS-1 when wind or temperature thresholds trigger, closing vents in seconds without manual intervention.
- Photocell-driven mode switching: The MBS-GH sensor detects actual ambient light intensity rather than relying on a fixed clock schedule, so day and night climate programs activate based on real conditions as cloud cover and sun angle shift throughout the day.
- Ecosystem compatibility: The GCS-1 shares TrolMaster's RJ12 wiring standard and device station library with the Hydro-X platform, and connects directly to the Aqua-X irrigation system through the same app interface.
Maintaining precise vapor pressure deficit targets throughout each growth stage is what separates adequate climate stability from optimized crop performance. The grow room temperature and humidity chart provides the stage-specific benchmarks the Green-X is designed to hold.
Related Guides
- TrolMaster vs Vivosun GrowHub vs Mars Hydro
- TrolMaster Hydro-X vs AC Infinity Controller 69 Pro+
- Best Grow Room Controllers for Indoor Growing
- How to Automate Your Grow Room
Frequently Asked Questions
What is the TrolMaster Green-X and how does it differ from the Hydro-X?
The Green-X is a greenhouse-specific environmental automation platform built around the GCS-1 controller. The Hydro-X is designed for sealed indoor grow rooms and tents, managing climate, lighting, and CO2 within a controlled internal environment. The Green-X adds outdoor weather monitoring via the MBS-WS, motorized curtain and ventilation control through the AMC-1 and DMC-1, and scales to 512 grow light fixtures and 96 irrigation outputs from a single controller. Both platforms share TrolMaster's RJ12 wiring standard and app interface, and most device stations and sensors are compatible across both systems.
What does the GCS-1 control and what is included with it?
The GCS-1 manages grow light scheduling and dimming for up to 512 fixtures, climate control via temperature and humidity device stations, CO2 enrichment and ventilation equipment, curtain and vent motor controllers, and up to 96 irrigation outputs through compatible control boards. It ships with the MBS-GH 4-in-1 sensor (temperature, humidity, CO2, light intensity), an RJ12 cable set, a 12V power adapter, and an RJ12 T-splitter. All functions are monitored and adjusted remotely through the TrolMaster app at no subscription cost.
What does the MBS-WS outdoor weather station do, and is it required?

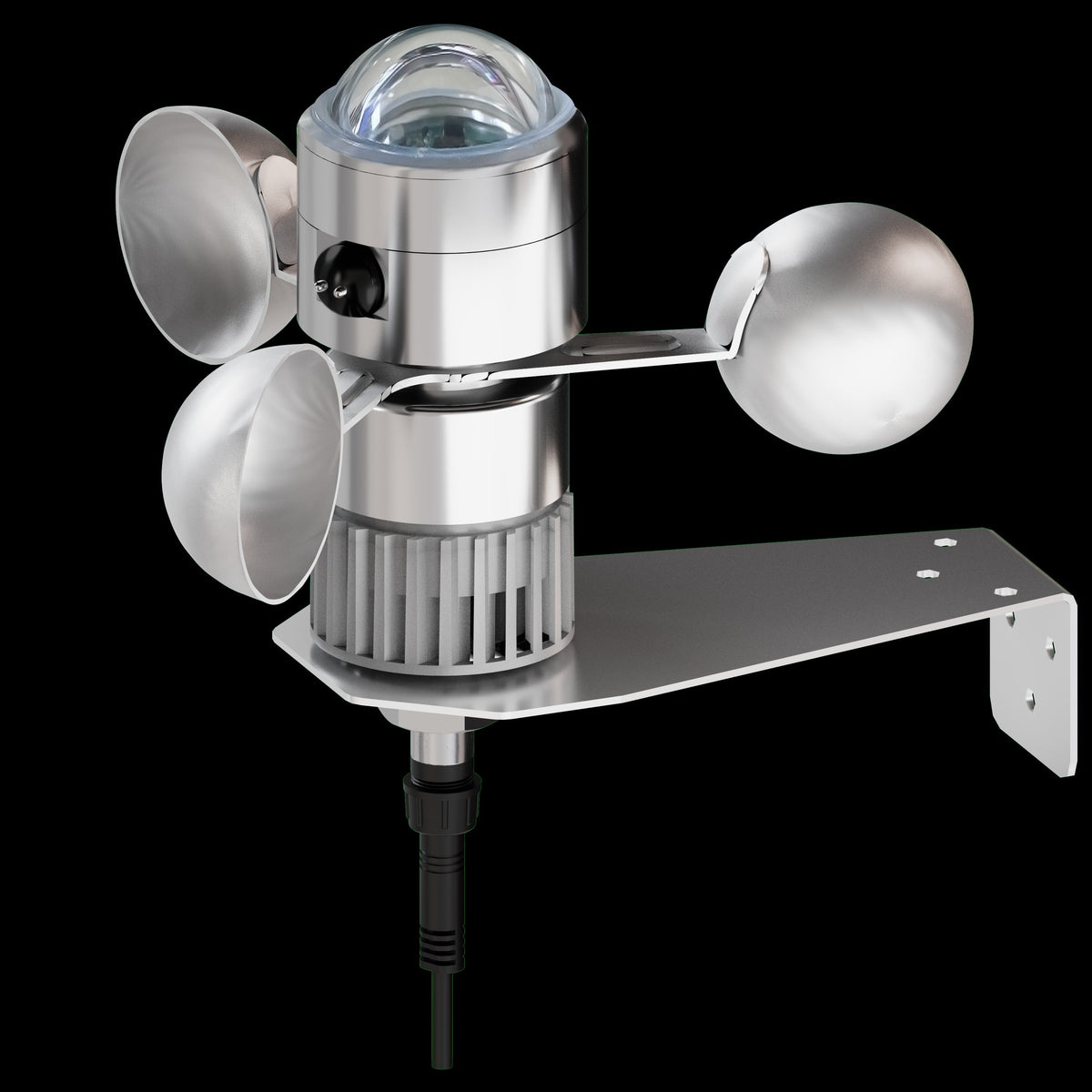

The MBS-WS mounts on the exterior of the greenhouse and monitors outdoor temperature, humidity, wind speed, and rainfall in real time. This data feeds to the GCS-1, enabling automated curtain closures, heater activation, and ventilation changes based on what is happening outside before those conditions affect the internal environment. Without the MBS-WS, the GCS-1 responds only after internal sensor readings shift. It is not required for basic operation but is the component that most fully leverages the Green-X's proactive greenhouse architecture.
What is the difference between the AMC-1 and DMC-1 curtain motor controllers?

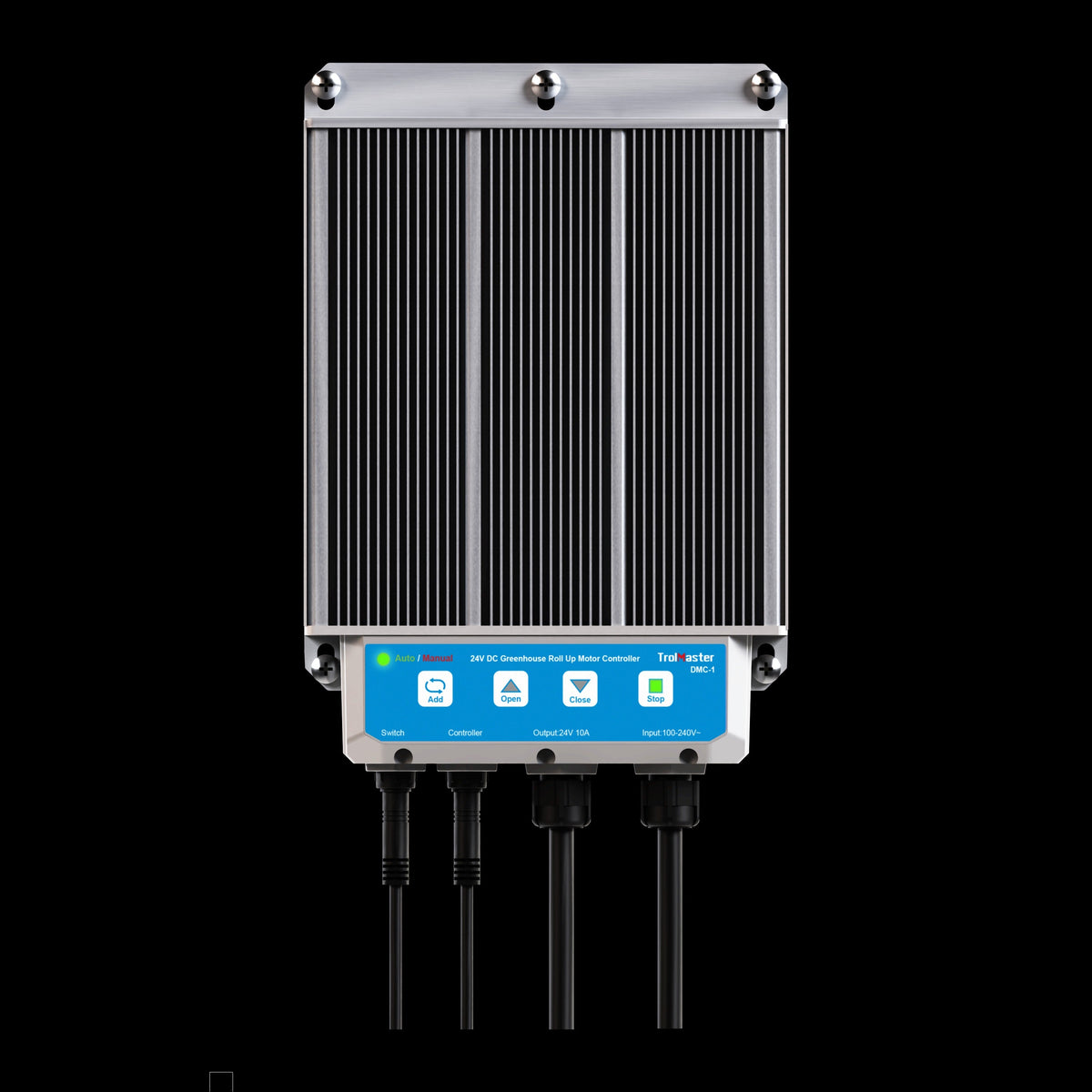

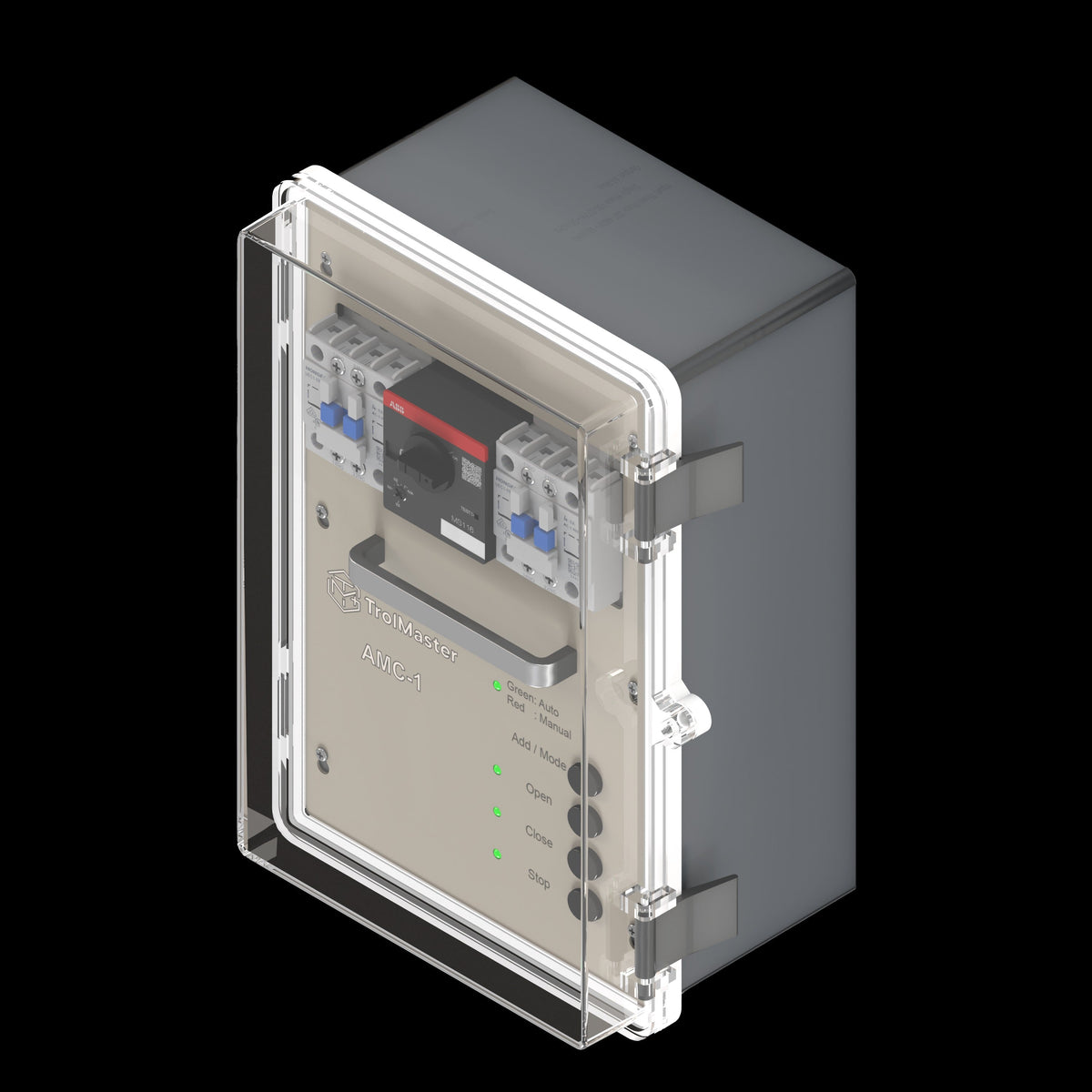

Both integrate motorized curtain and ventilation systems into GCS-1 automation, but they serve different motor types. The AMC-1 drives industrial curtain motors on single-phase power (100-277V) or three-phase power (207-480V) found in large commercial structures. The DMC-1 handles 24V DC motors, the standard drive in most roll-up sidewall and roof ventilation systems. Both support forward and reverse operation, programmable stopping positions, timeout shutoff, and overcurrent protection. The choice depends entirely on the motor voltage your curtain system uses.
How does the MBS-GH sensor's photocell improve greenhouse lighting control?
The MBS-GH includes an integrated photocell that reads ambient light intensity at crop level continuously. Rather than triggering day and night mode transitions on a fixed clock, the GCS-1 uses this reading to switch modes based on actual light levels in the structure. In a supplemental lighting greenhouse where internal light fluctuates with cloud cover, sun angle, and seasonal variation, climate programs, CO2 enrichment, and fan schedules activate based on the real photoperiod the crop experiences rather than a static schedule that drifts from reality as seasons change.
Is the Green-X compatible with the same device stations used in the Hydro-X system?

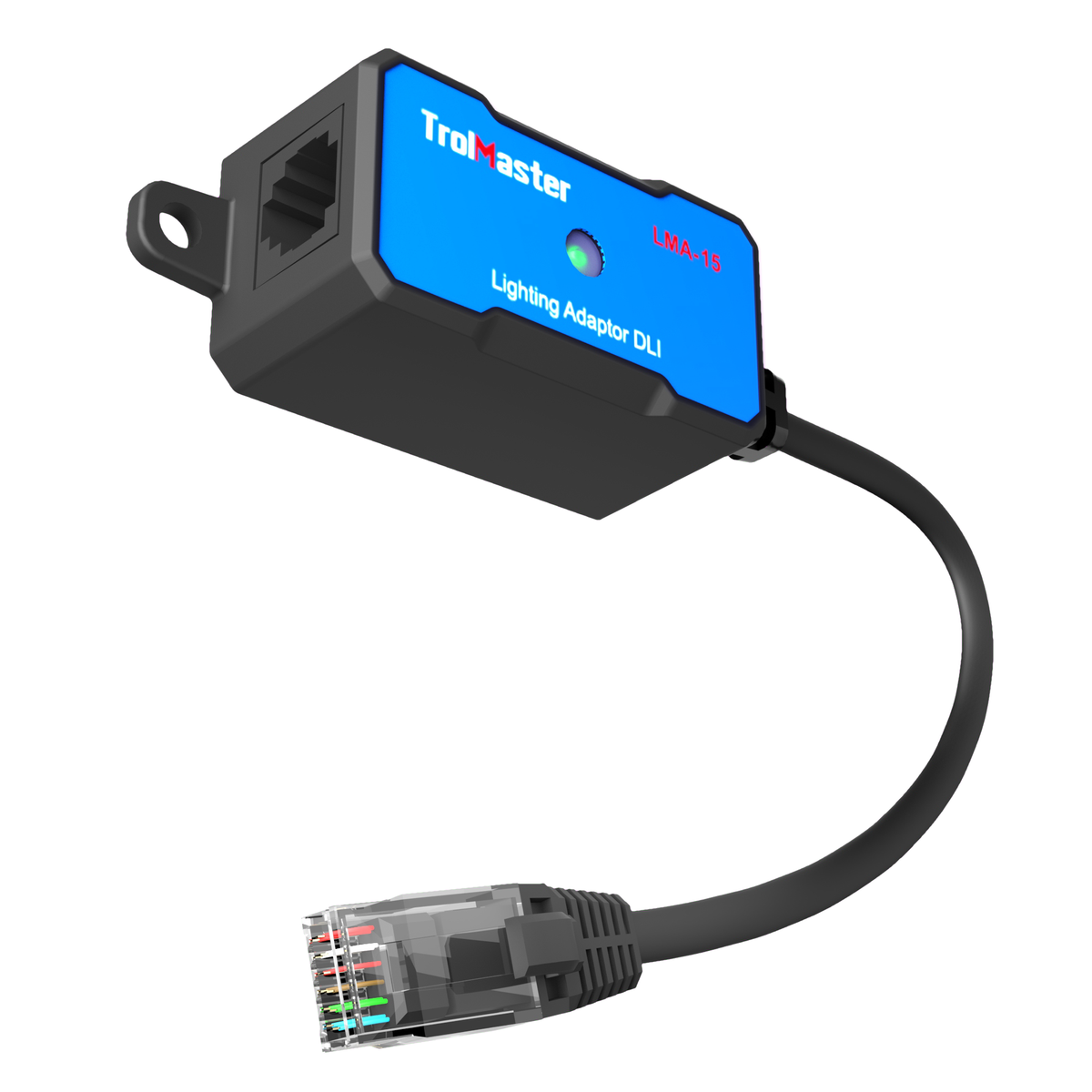

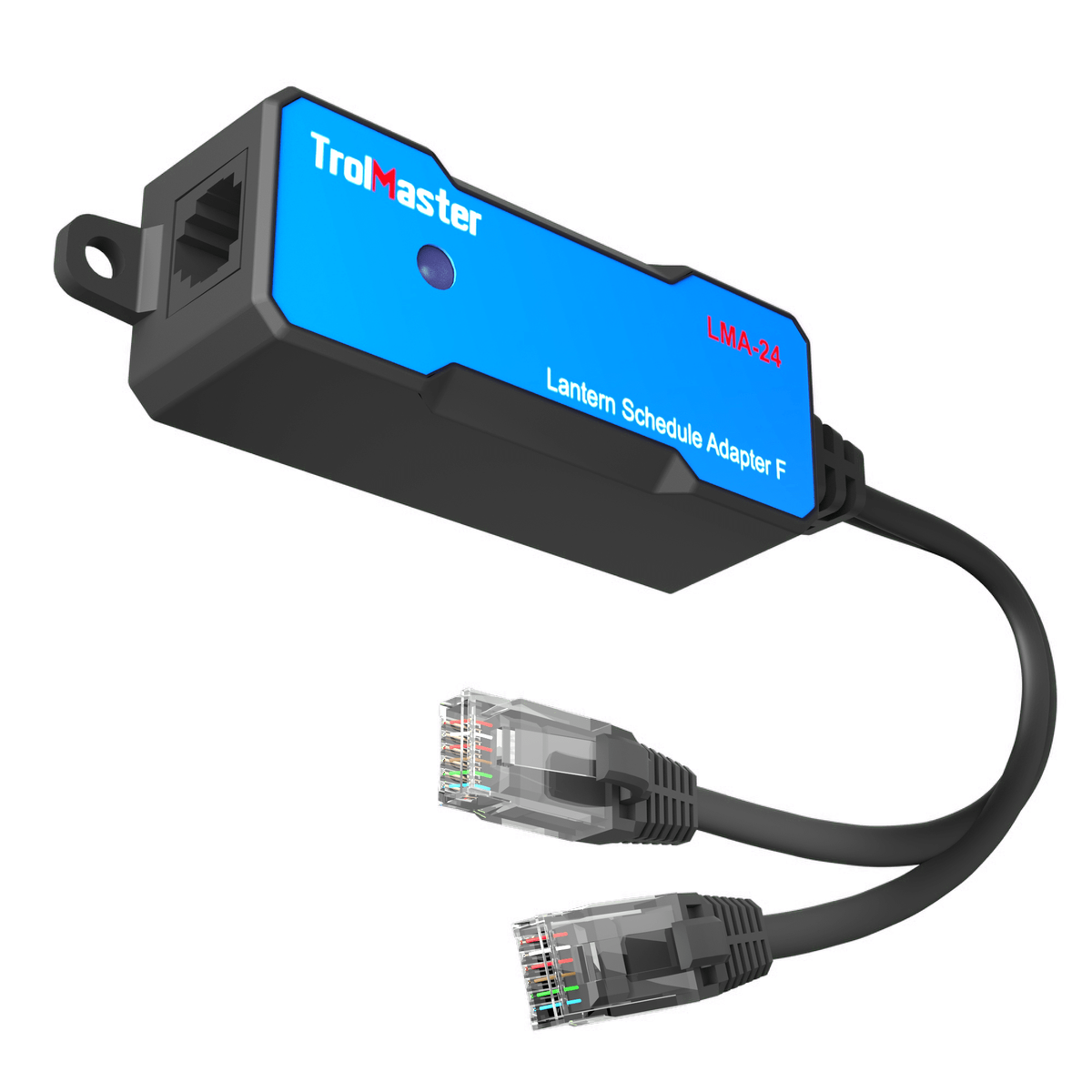

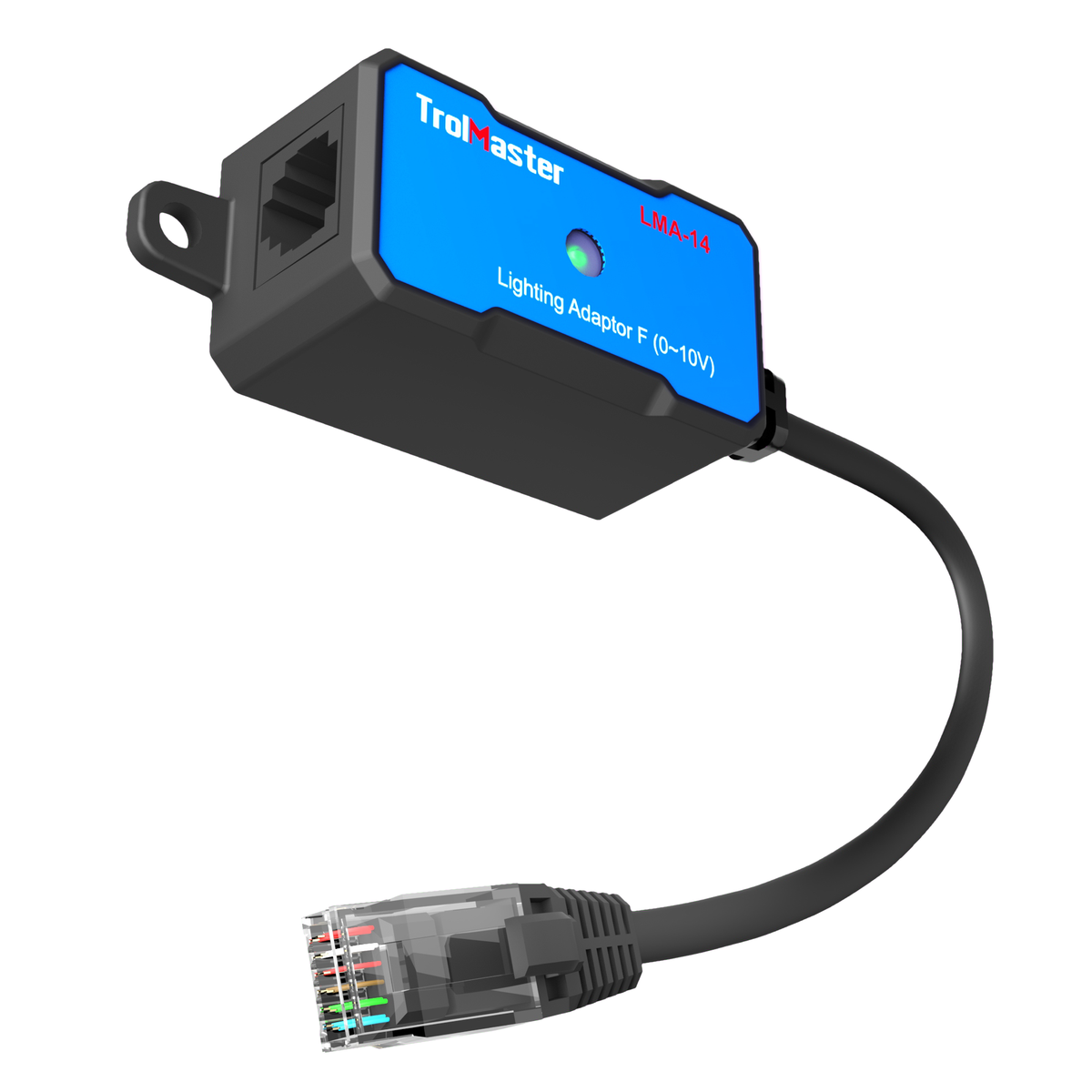

Yes. The GCS-1 is compatible with the majority of TrolMaster's device station and sensor library: DSH-1 and DSH-2 humidity stations, DST-1 and DST-2 temperature stations, DSC-1 CO2 stations, DSD-1 dry contact relays, DSP-1 and DSP-2 timer stations, MBS-SD smoke detectors, and MBS-PAR quantum PAR sensors all connect via the same RJ12 cable standard. The LMA series lighting adapters for P-ballast, D-ballast, Fluence, DLI, and ThinkGrow fixtures are also compatible. Hardware purchased for a Hydro-X system can be redeployed in a Green-X build.
Can the Green-X integrate with irrigation automation and CO2 safety monitoring?

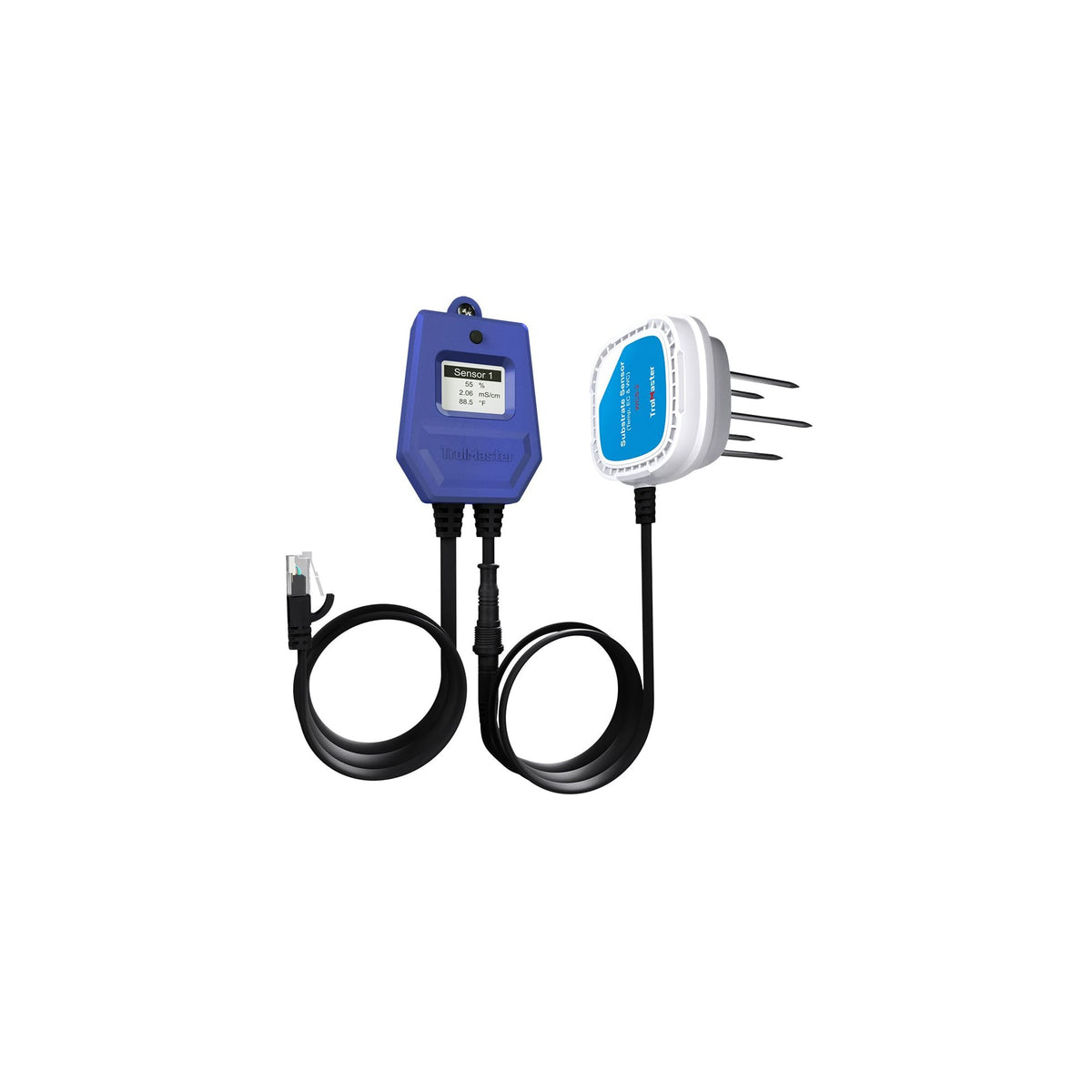

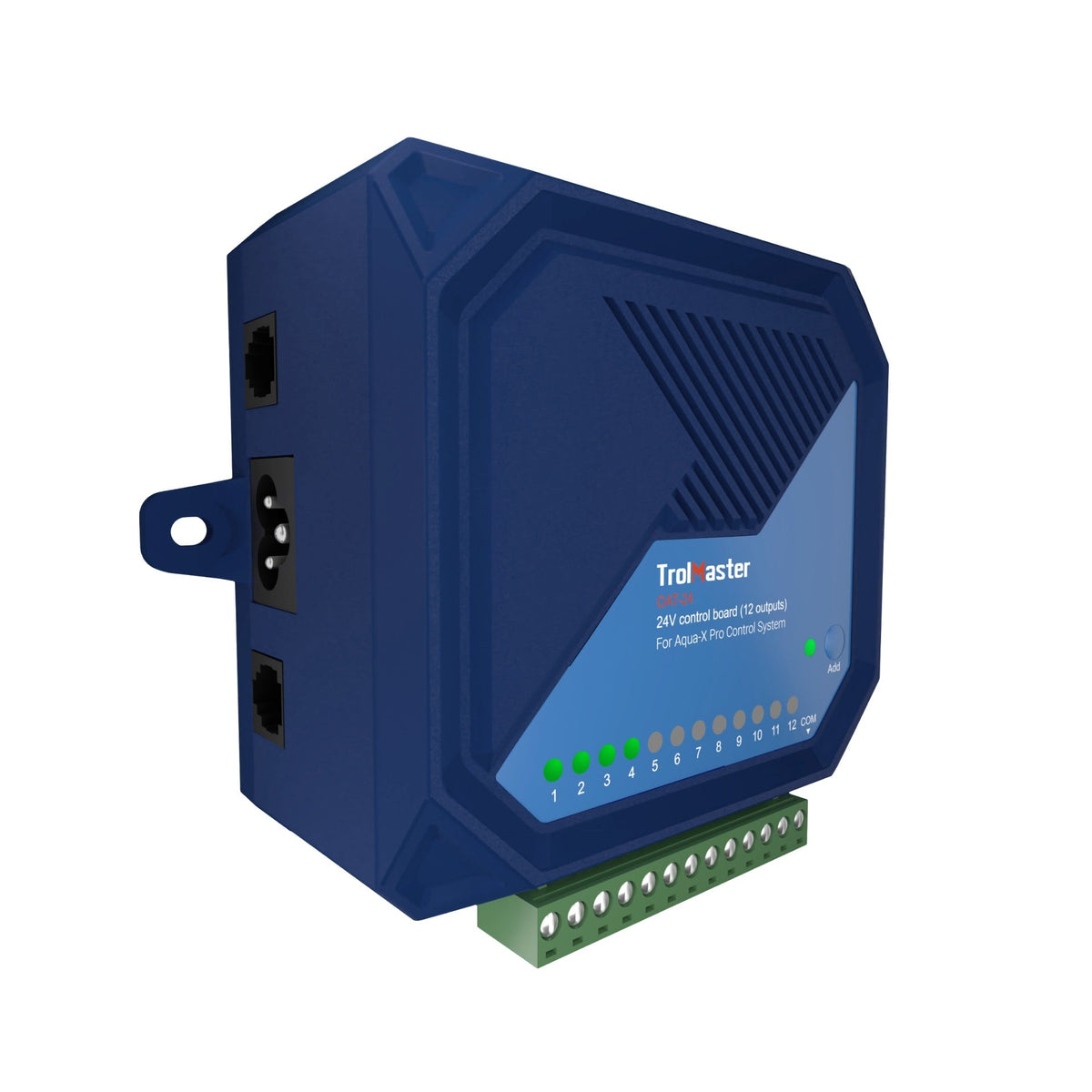

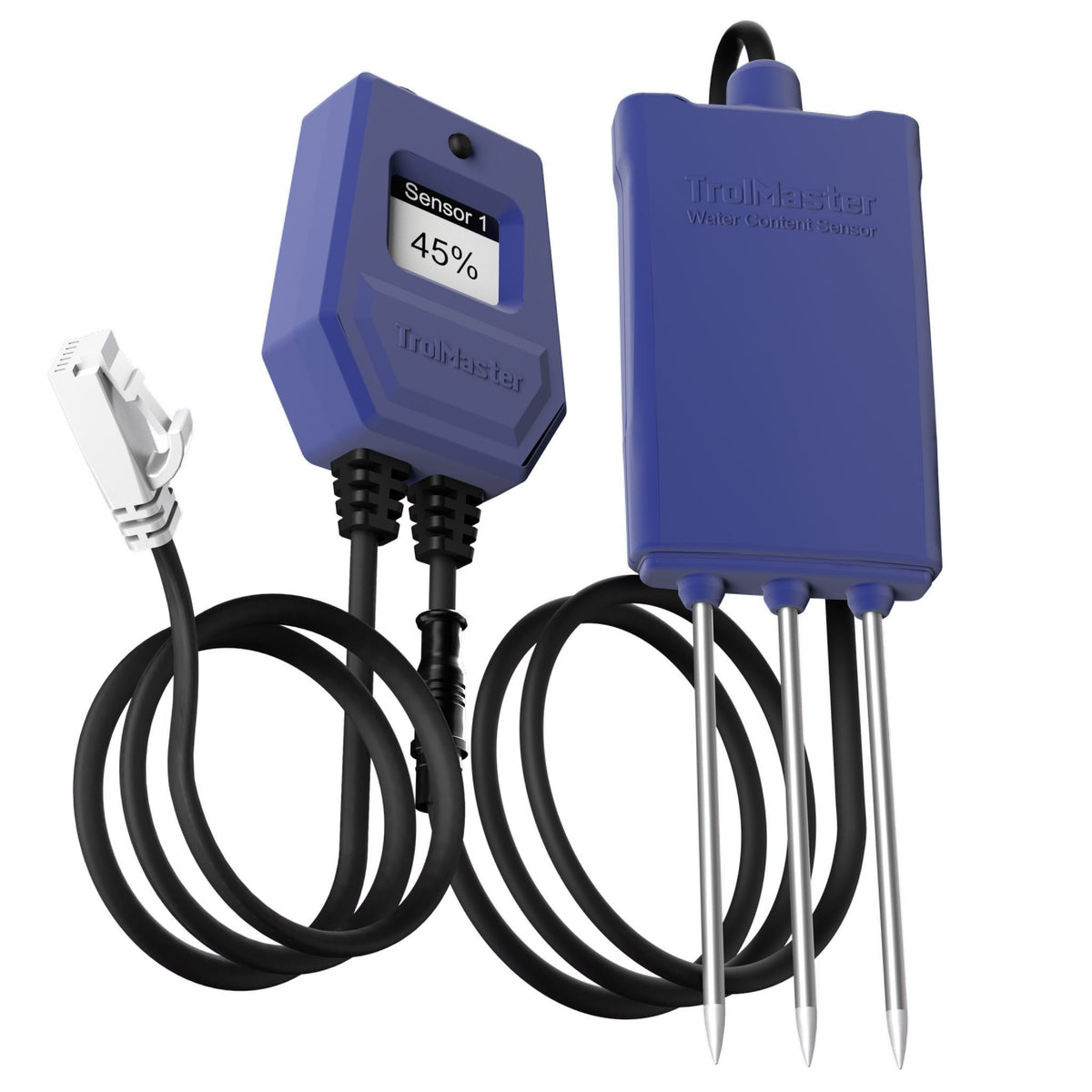

Yes to both. The GCS-1 natively supports up to 96 irrigation outputs through compatible control boards for zone-level scheduling. For substrate-responsive irrigation that triggers based on measured moisture rather than fixed schedules, the Aqua-X platform operates in parallel on the same app interface, adding substrate sensors, reservoir pH and EC monitoring, and leak detection. For CO2 safety, the Carbon-X system provides dedicated alarm stations, automatic shutoff via the DSE-1 emergency stop station, and ventilation activation through the DSC-1 device station. All three platforms share the TrolMaster app.
What warranty does TrolMaster offer on Green-X products?
TrolMaster backs Green-X hardware with a three-year warranty covering mechanical and electronic components under normal operating conditions. This applies to the GCS-1 controller, MBS-GH sensor, MBS-WS weather station, AMC-1, and DMC-1. Components that fail due to abnormal usage, physical damage, improper installation, or operation outside rated specifications are excluded. The rated operating range for sensors is 32-122F at humidity up to 90%. Full warranty terms are available on individual product pages and in the included user manuals.
