- 1 × Device Station Kit (4RS-2)
- 1 × 16ft RJ12 Cable
Ask Sage about this product
TrolMaster 4RS-2 4-Outlet Device Station
starting from 0% interest financing from
/mo.
- Plugs directly into a standard 100-240 VAC wall socket with no hardwiring required
- 3-year warranty on all mechanical and electronic components
- View More Details
Shipping calculated at checkout
Earn 199 points for shopping and get $1.99 off your next order. Join Harvest Club for free.
Over 50,000 Customers
Trust Trimleaf
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
Questions? Talk to a specialist.
Mon to Fri, 9am to 5pm PST
- Over 50,000 CustomersTrust Trimleaf
- Transparent PricingBacked w/ price match guarantee
- 4.8/5 Top Quality Store on Google
- Secure CheckoutSSL encrypted payments
Ask Sage about this product
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
- You are expanding your environmental control system because you want to manage multiple climate devices without creating a messy web of cables and individual modules.
- You are professionalizing your grow room because you need a high-amperage station to run heavy-duty equipment like heaters, AC units, and CO2 generators.
- Four independent device outputs consolidate into a single station using a single RJ12 connection.
- Each of the four outlets provides up to 15A of power to handle heavy-duty equipment.
- The unit plugs directly into a standard wall socket with no hardwiring required for a fast installation.
- Users who swapped out their old cable web say they finally have enough floor space to work comfortably around their equipment.
- Growers running high-output climate gear report that the 15A capacity handles their heaters and chillers without any tripped breakers.

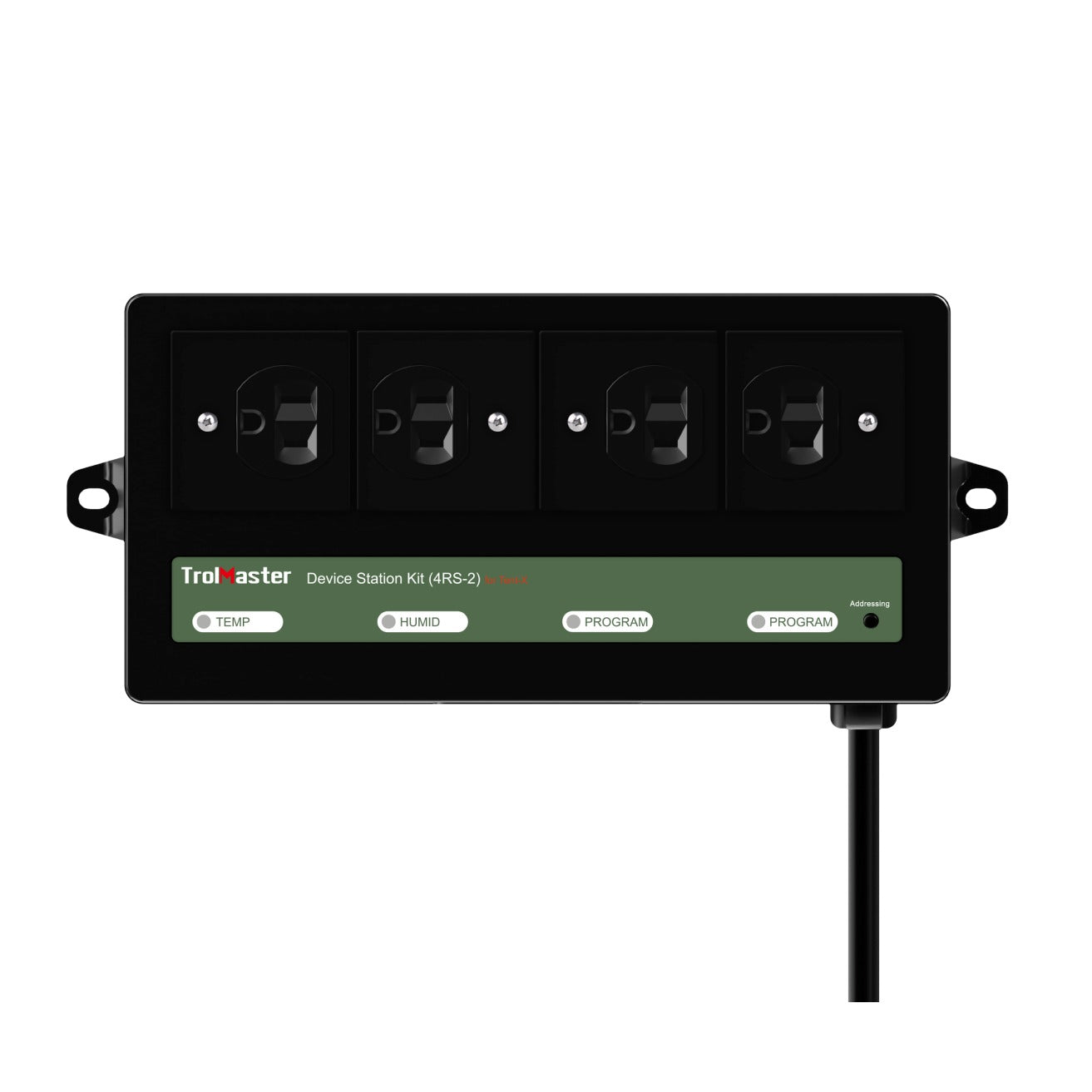

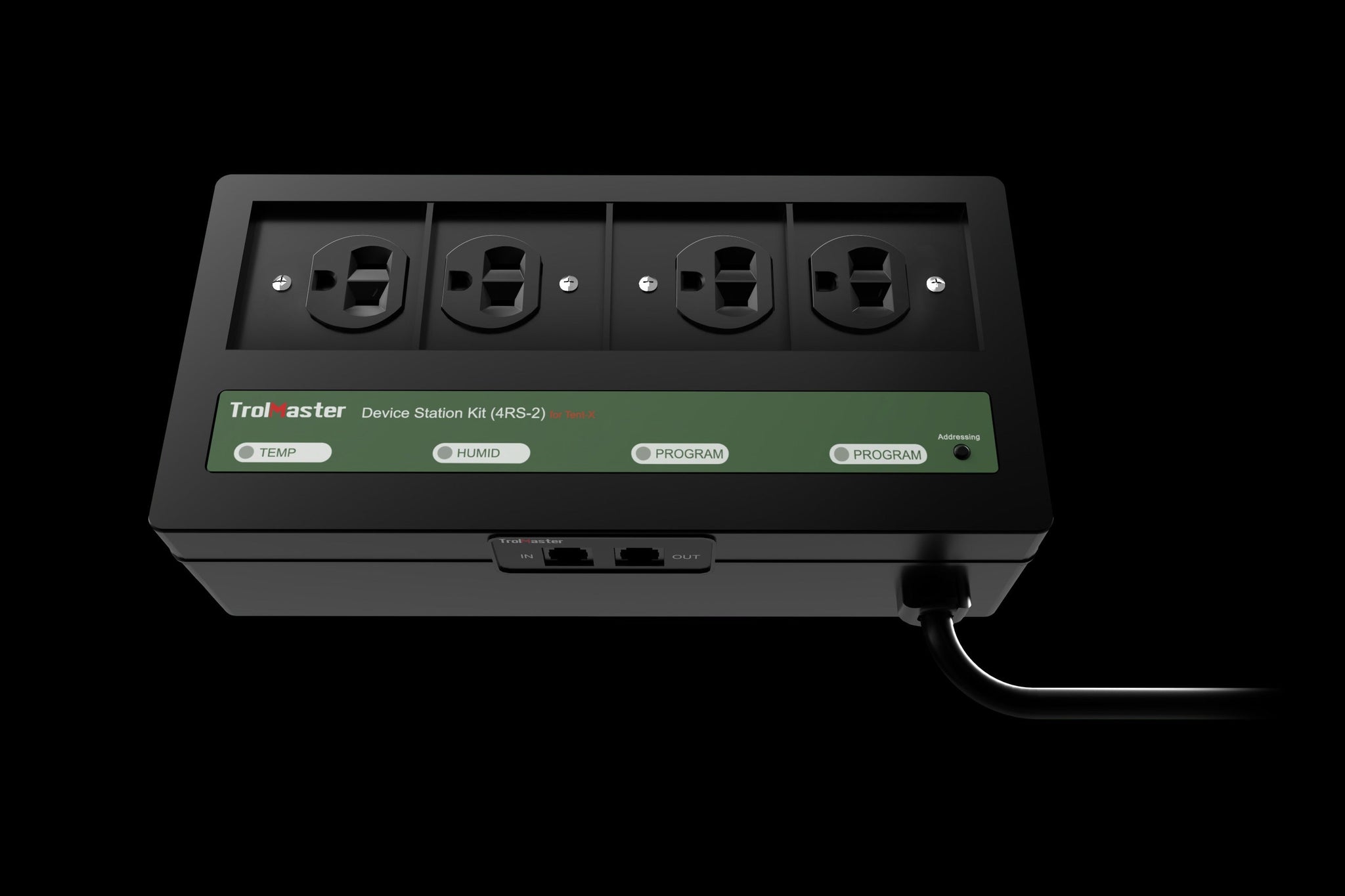

TrolMaster 4RS-2 4-Outlet Device Station
Managing multiple climate devices often leads to a messy web of cables and individual modules that clutter your workspace. The TrolMaster 4RS-2 Environmental Control simplifies your grow room by consolidating four independent device outputs into a single, streamlined station. By utilizing a single RJ12 connection, you can instantly expand your system's capacity without the need for complex wiring or additional hardware, making it an essential upgrade for growers looking to professionalize their setup.
Designed for high-performance environments, this kit allows you to manage temperature, humidity, and timed programs with precision. It integrates seamlessly with your existing TrolMaster Green-X or Tent-X Systems, providing up to 15A of power per outlet. This high-amperage capacity ensures you have the headroom to run heavy-duty equipment like heaters, AC units, and CO2 generators. For advanced safety monitoring, it pairs perfectly with systems like the TrolMaster Carbon-X CDA-1.
Compatibility: TrolMaster Green-X and Tent-X Systems
All Sales Final
What's Included
Features
🔌
4 Pre-Configured Outlets
Ready for temperature, humidity, and program control immediately with DSTx1, DSHx1, and DSPx2 defaults.
⚡
15A Per Output
High-amperage rating handles heaters, fans, and heavy-duty climate equipment across all four channels.
🔗
Single RJ12 Connection
Occupies four device slots on your controller using just one cable to maximize system efficiency.
🛠️
Tool-Free Setup
Plugs directly into a standard wall socket with no hardwiring required for a fast, hassle-free installation.
TrolMaster 4RS-2 Specifications
| Specification | Value |
|---|---|
| Number of Outputs | 4 |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Max Output Voltage | 100–240 VAC, 50/60 Hz |
| Max Output Current | 15A |
| Max Input Current | 15A |
| Default Output Configuration | DSTx1 (Temp), DSHx1 (Humidity), DSPx2 (Program) |
| Controller Slots Used | 4 device module slots |
| Working Environment | Temp 32–104°F (0–40°C), Humidity ≤90% |
| Connection Interface | RJ12 |
| Compatibility | TrolMaster Green-X, Tent-X |
Support & Manuals
Warranty
TrolMaster backs the 4RS-2 with a 3-year warranty from the original date of purchase, covering all mechanical and electronic components under normal operating conditions. Components that fail due to abnormal or improper usage are excluded from this coverage.
FAQs
Which controllers is the 4RS-2 compatible with?
The 4RS-2 is compatible with the TrolMaster Green-X and Tent-X environmental control systems. It connects via standard RJ12 cable and occupies 4 device module slots on the controller, expanding the number of devices you can power and automate from a single system.
What are the default output assignments on the 4RS-2?
The four outputs are pre-configured from left to right as DSTx1 (temperature device station), DSHx1 (humidity device station), and DSPx2 (two program device stations). This default layout covers the most common grow environment device types and is ready to use immediately upon connection.
Can all four outputs run at full 15A simultaneously?
Each of the four outlets is independently rated at 15A. However, total draw across all four outputs is still subject to the capacity of the circuit the 4RS-2 is plugged into. Ensure your wall circuit can support the combined load of all connected devices.
Does the 4RS-2 require any special wiring or tools to install?
No — the 4RS-2 power cable plugs directly into a standard wall socket, and the RJ12 data cable connects straight to your TrolMaster controller. There is no hardwiring or additional hardware required.
Can I use the 4RS-2 instead of purchasing individual DS modules?
Yes — the 4RS-2 is designed as a consolidated alternative to buying four separate DS modules. If you want to minimize cable runs and installation time, the 4RS-2 delivers all four functions in a single kit with one wall connection.
