The Science of Oxygenation in Hydroponics
Oxygen availability in nutrient solutions directly impacts metabolic efficiency at the root level. Air pumps pressurize ambient air through diffusion systems, creating millions of micro-bubbles that maximize surface area for gas exchange. This continuous oxygenation prevents the dissolved oxygen depletion that occurs naturally in stagnant water, particularly in warm environments where oxygen solubility decreases.
Power-Matched Performance for Every Application
Air pump selection hinges on matching wattage and GPH output to your system's total water volume and plant density. Undersized pumps fail to maintain adequate DO levels during peak transpiration periods, while oversized units waste energy without delivering proportional benefits.
-
Eco Air Pump Series (2W-13W): The

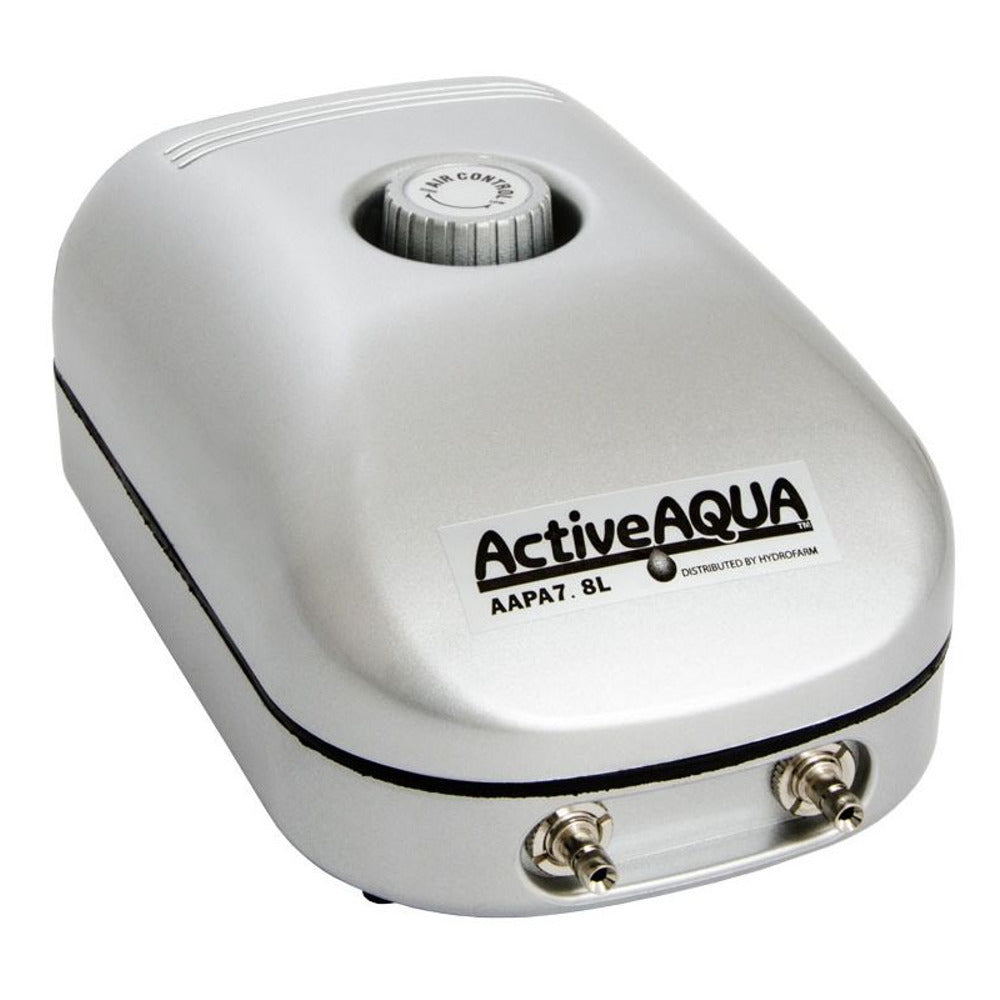

3W model delivers 126 GPH—sufficient for 2-4 DWC buckets or small reservoir supplementation. The

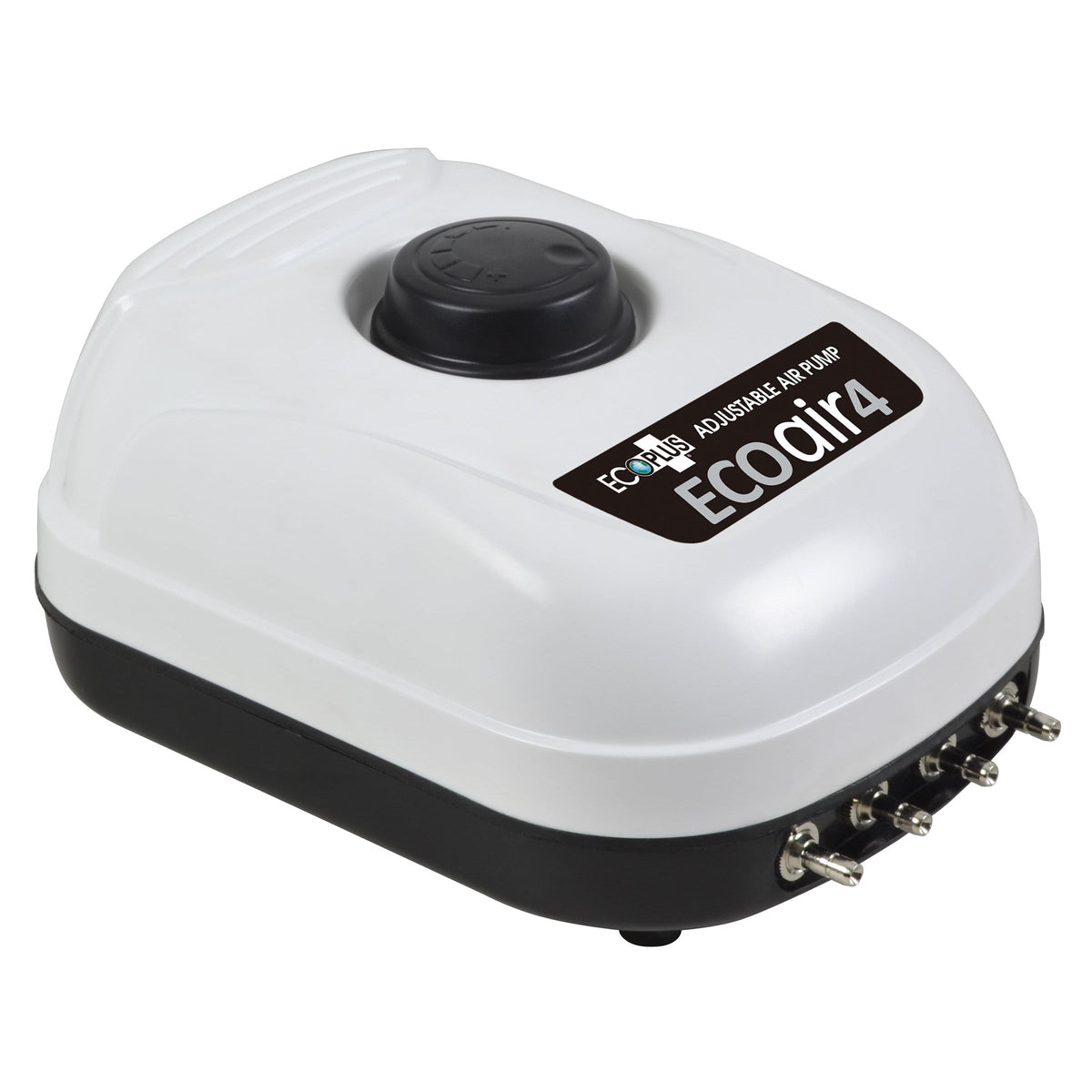

6.5W unit doubles output to 253 GPH for 4-8 site systems. Top-tier

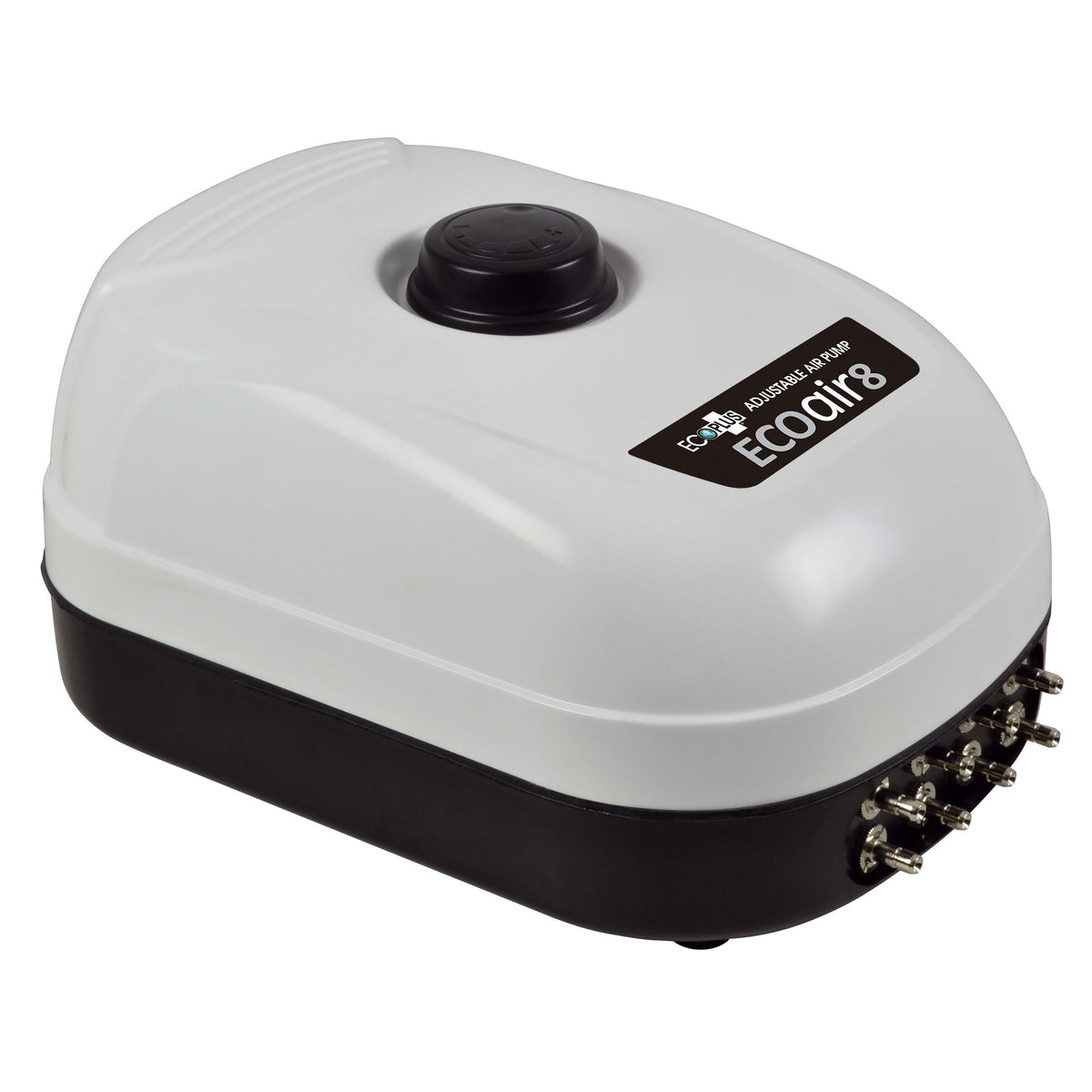

13W pumps generate 380 GPH—ideal for 50-75 gallon reservoirs requiring sustained oxygenation.
-

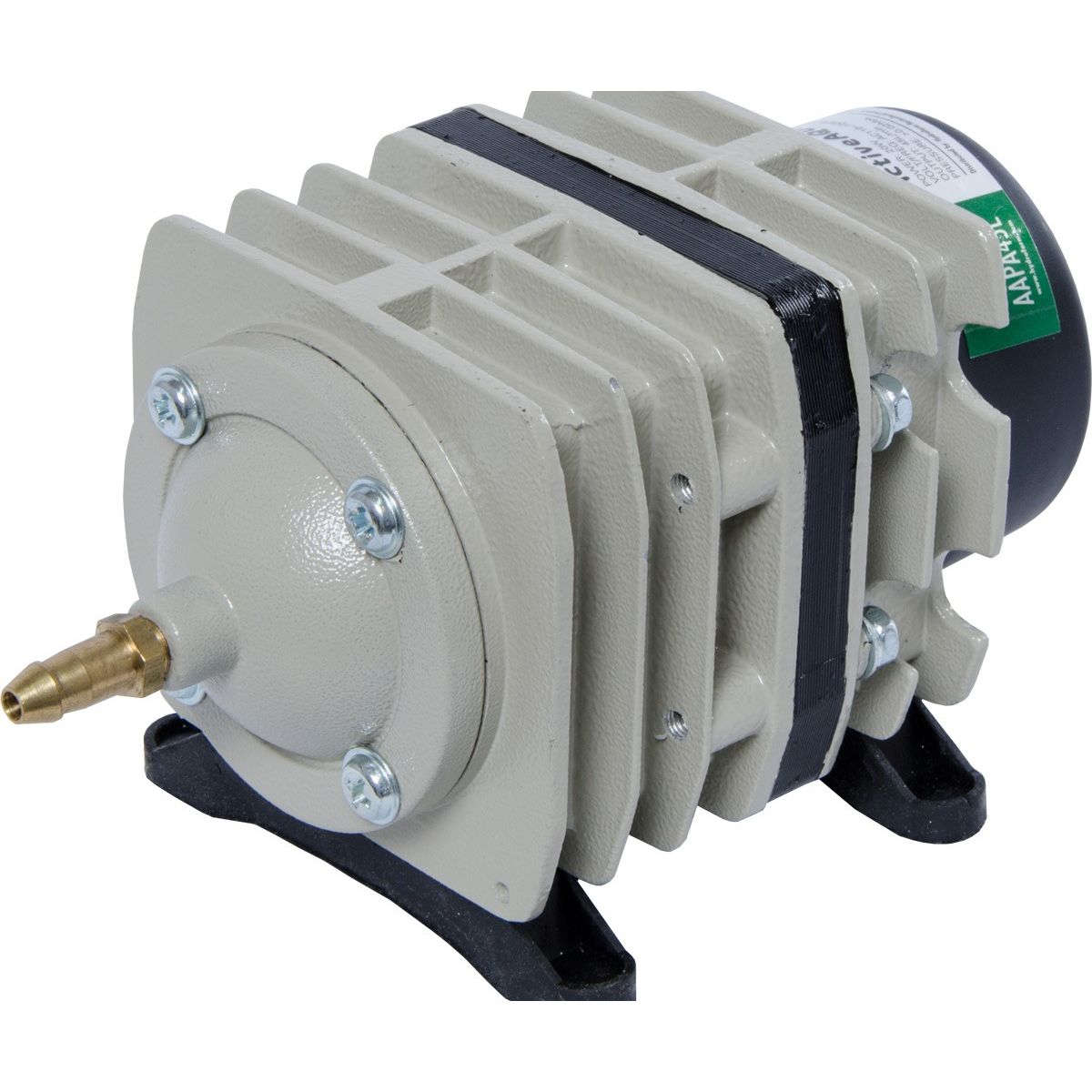

Commercial Air Pump Series (18W-200W): Built for continuous operation under demanding conditions, commercial models feature oversized diaphragms and enhanced thermal management. The

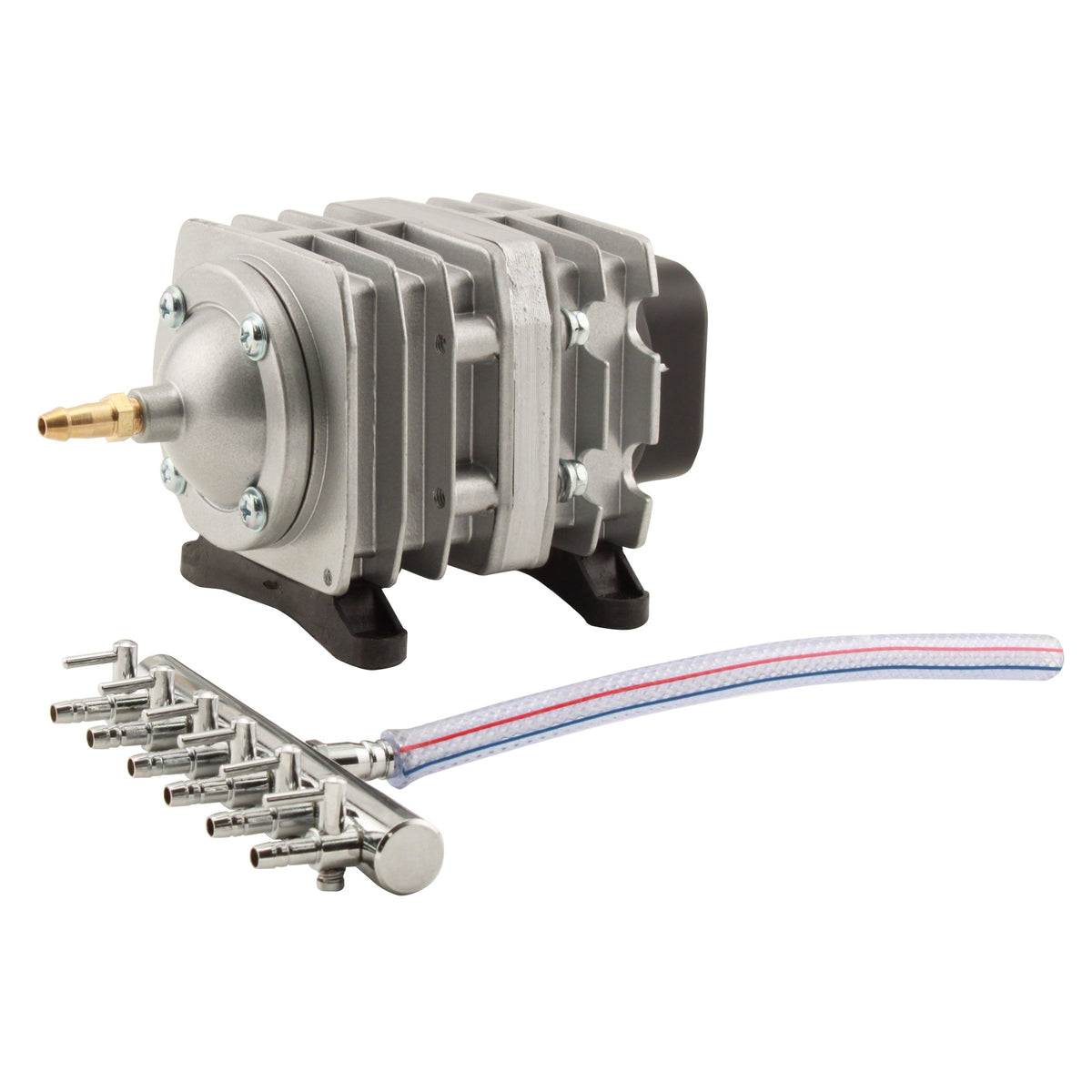

18W pump produces 793 GPH for mid-sized RDWC systems. Scale up to the

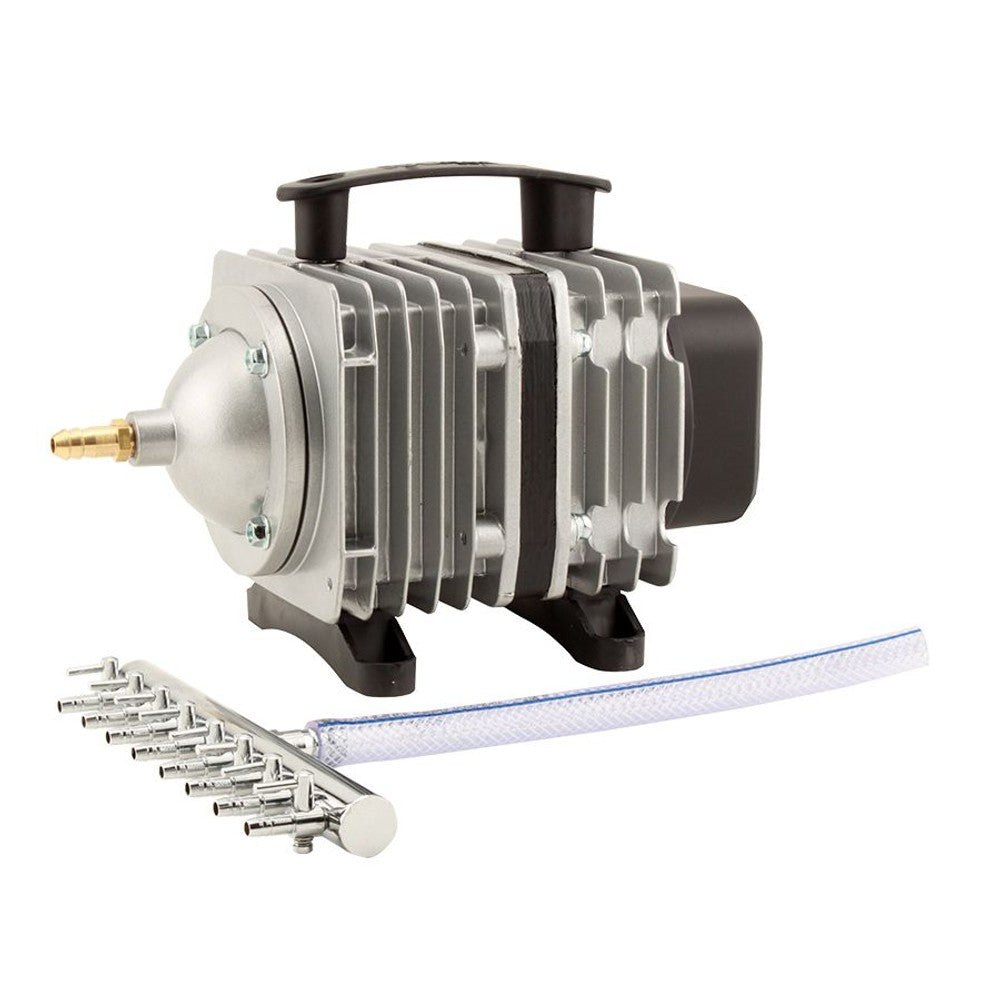

80W model (1300 GPH) for multi-zone cultivation rooms.
-
Diffusion Integration: Air pump effectiveness depends on proper stone selection and placement. Deploy
medium round air stones for standard buckets,
large stones for reservoir oxygenation. Multiple smaller diffusers outperform single large stones by distributing oxygen more uniformly throughout the solution.
Sizing Your Oxygenation System
Calculate required air pump capacity based on reservoir volume and cultivation method. Deep water culture demands higher oxygen delivery than systems with exposed root zones like NFT or aeroponics.
-
Individual DWC Buckets (5-10 Gallons Each): The

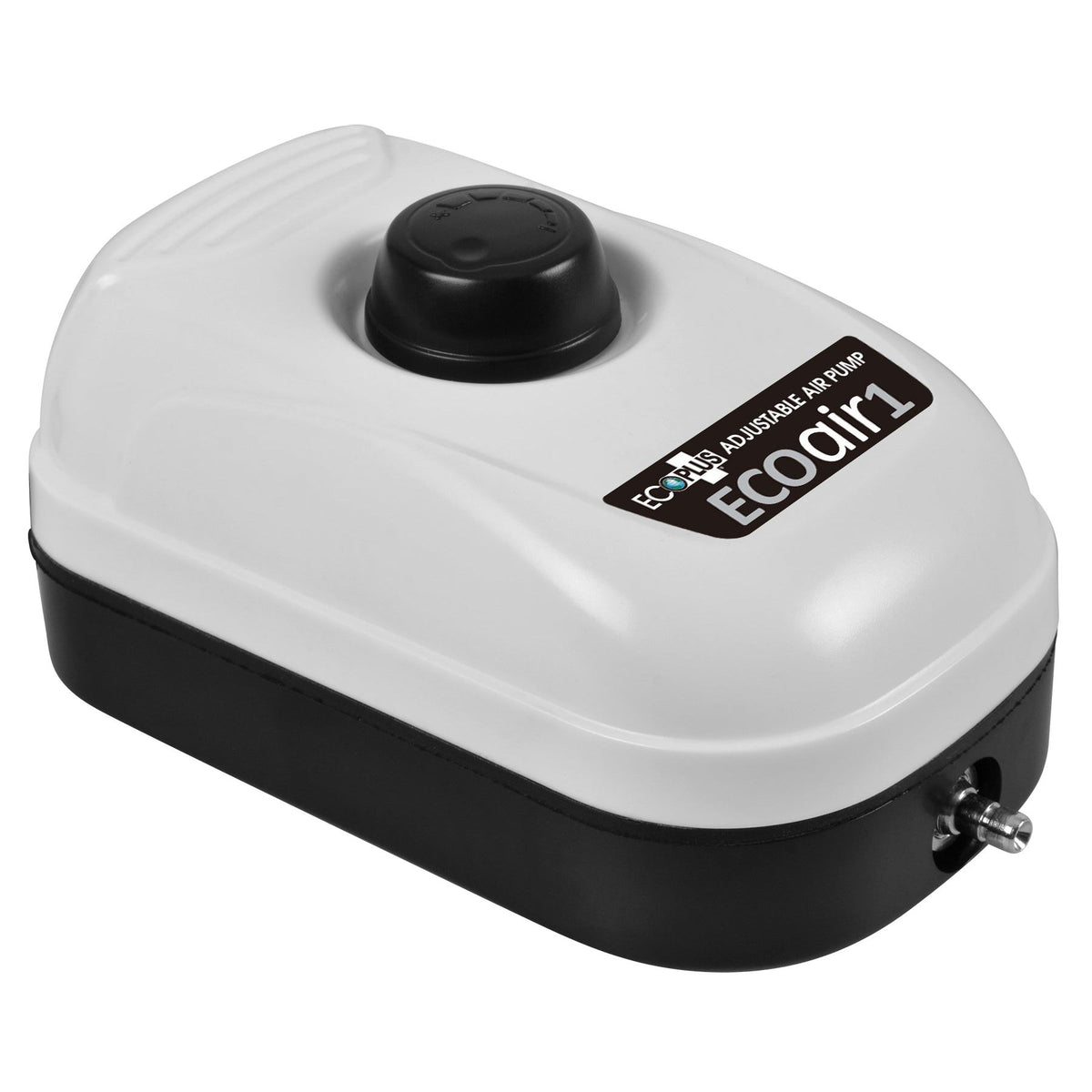

2W Eco Air Pump (44 GPH) handles 1-2 buckets. For 4-6 bucket arrays, deploy the

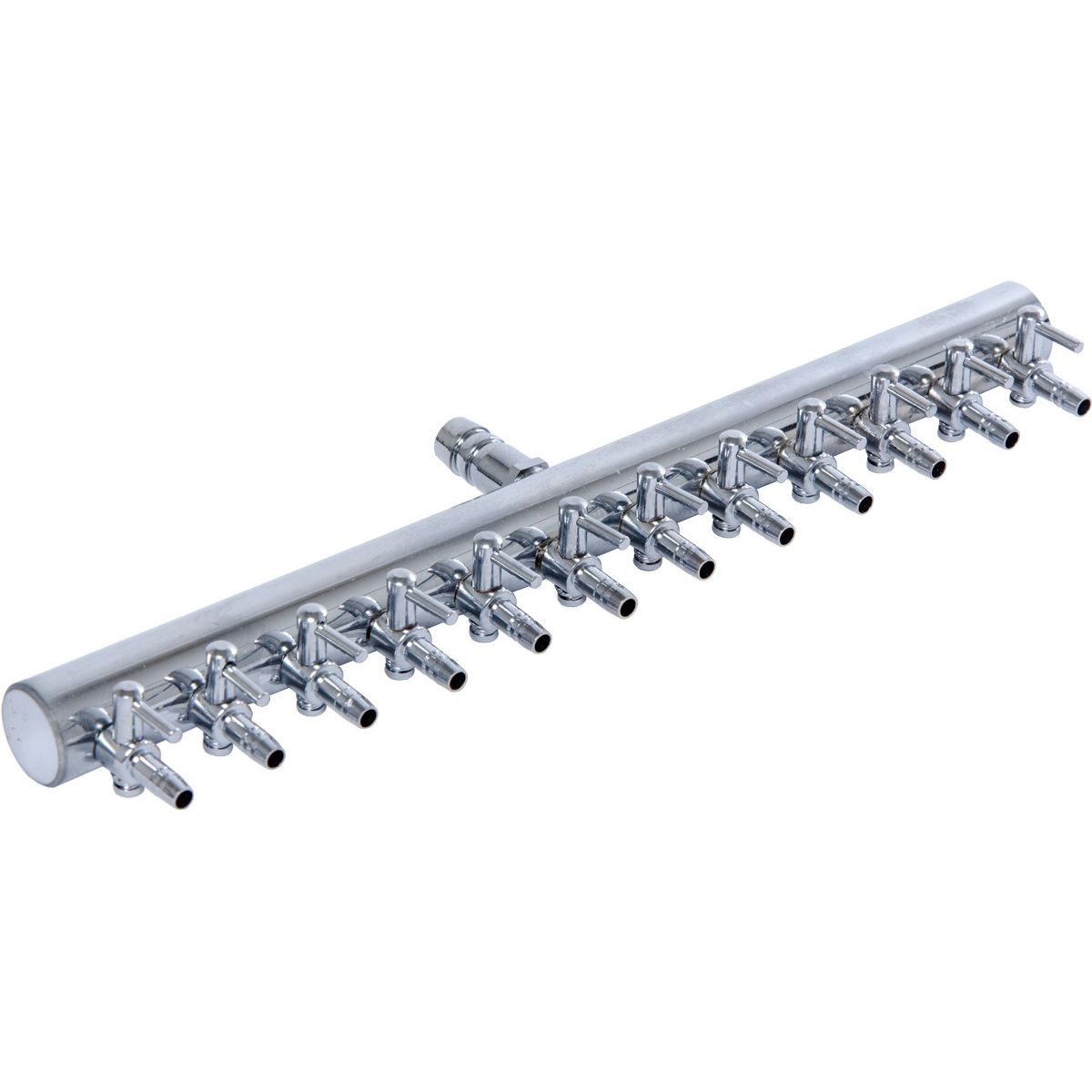

6.5W model with manifold distribution. Each bucket receives dedicated air stone connections for uniform oxygenation.
-
RDWC Systems (50-150 Gallons): Recirculating deep water culture requires aggressive aeration to compensate for constant water movement. The
18W Commercial pump oxygenates 75-100 gallon systems. Larger installations benefit from the

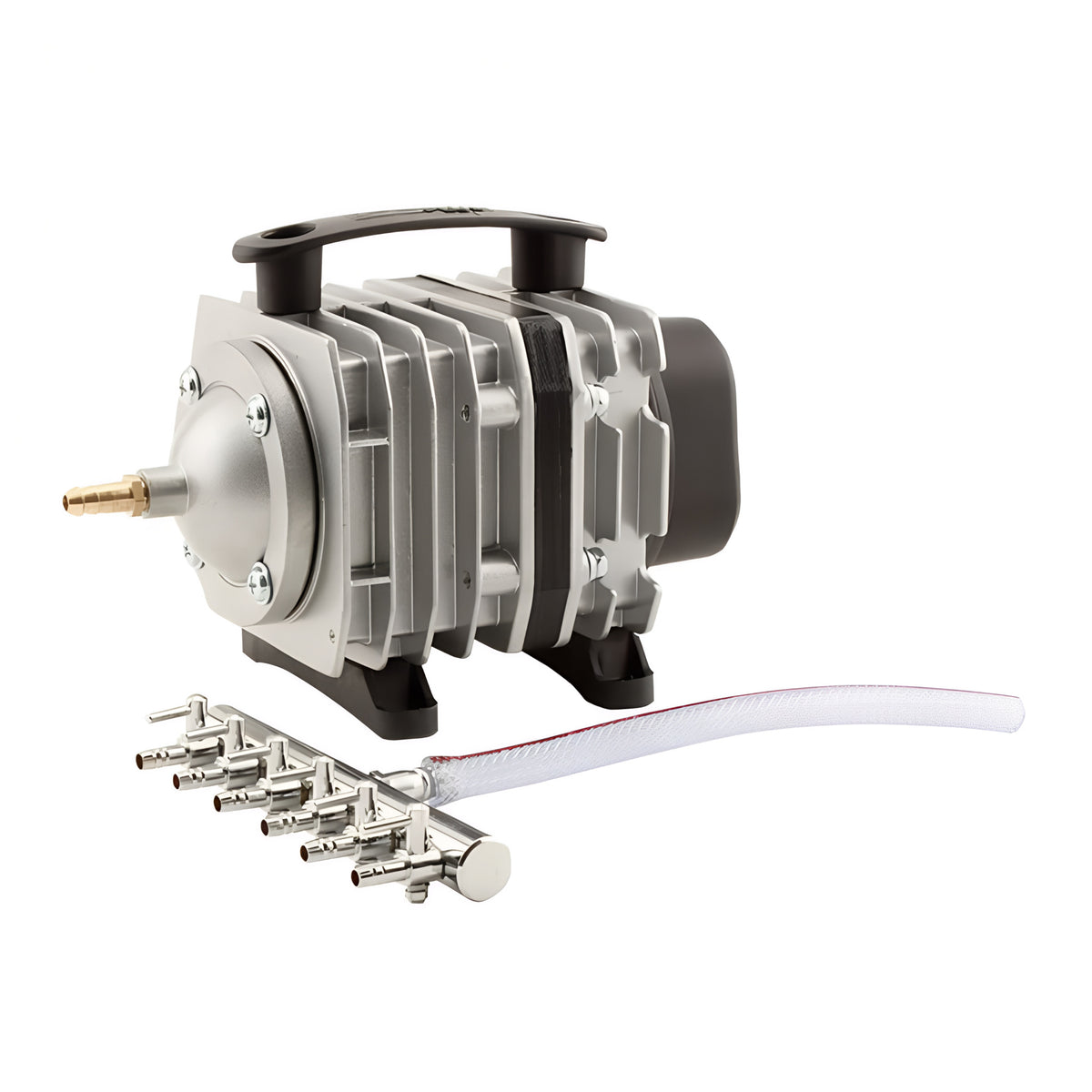

35W model (1030 GPH).
-
Commercial Cultivation (150+ Gallons): High-density plant counts and elevated nutrient temperatures demand maximum oxygen delivery. The

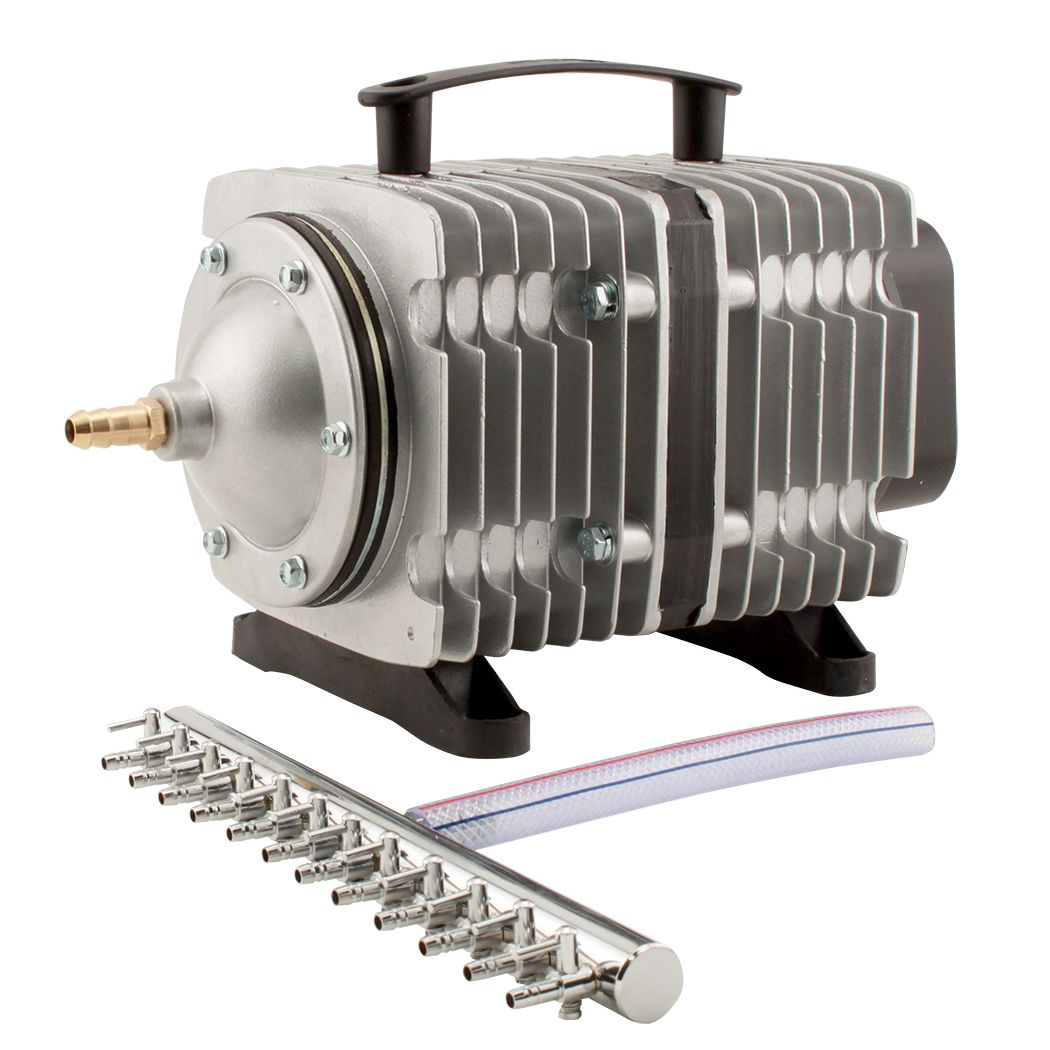

200W Commercial Air Pump supports reservoirs exceeding 300 gallons or multi-room RDWC networks. Consider redundant pump systems for mission-critical operations.
-
System Integration: Complete your oxygenation infrastructure with
circulation pumps for nutrient distribution and
water chillers to maintain optimal dissolved oxygen solubility. Cooler water holds more oxygen—65-68°F provides ideal conditions for root health.
Optimizing Dissolved Oxygen Performance
Proper installation and maintenance protocols maximize air pump efficiency and equipment longevity. Follow these proven practices to sustain peak oxygenation levels throughout crop cycles.
-
Strategic Pump Placement: Mount air pumps above reservoir water level to prevent backflow during power interruptions. Use check valves on each air line as additional protection. Position pumps in climate-controlled spaces—high ambient temperatures reduce pump efficiency and accelerate diaphragm wear.
-
Distribution Strategy: Split high-output pumps across multiple air stones rather than concentrating flow through single diffusers. Eight 2-inch stones provide superior oxygen transfer compared to one 8-inch stone with equivalent flow. This distribution strategy also reduces localized turbulence that can damage delicate root systems.
-
Maintenance Protocols: Replace air stones every 6 months as mineral accumulation reduces porosity and increases back-pressure on pump diaphragms. Inspect tubing quarterly for cracks or UV degradation. Clean pump intake filters monthly in dusty environments to prevent particulate accumulation that restricts airflow.
Air pumps form the critical oxygen delivery infrastructure that separates marginal harvests from maximum yields. The combination of proper sizing, strategic deployment, and consistent maintenance ensures your root systems receive the dissolved oxygen required for vigorous growth. For comprehensive hydroponic infrastructure planning, explore our
complete EcoPlus equipment lineup or review guidance on integrating
water circulation systems with oxygenation equipment.
Frequently Asked Questions
How do I calculate the right air pump size for my DWC system?
Target 0.5-1.0 GPH per gallon of total system volume for standard DWC applications. A 50-gallon RDWC system requires 25-50 GPH minimum, making the 6.5W Eco Air Pump (253 GPH) appropriately sized with capacity for future expansion. Commercial operations benefit from sizing pumps at 1.5-2.0 GPH per gallon to maintain dissolved oxygen above 8 ppm during peak transpiration periods.
What's the difference between Eco Air Pumps and Commercial Air Pumps?
Eco Air Pumps (2W-13W) serve hobbyist and small-scale cultivation with output ranges from 44-380 GPH, suitable for individual DWC buckets and compact reservoir systems. Commercial Air Pumps (18W-200W) deliver 793-3566 GPH through reinforced diaphragms engineered for continuous operation in demanding production environments. Commercial models include enhanced thermal management and vibration dampening for 24/7 reliability in large-scale RDWC arrays.
Can I run one large air stone instead of multiple small stones?
Multiple smaller air stones provide superior oxygen transfer efficiency compared to single large diffusers. Eight 2-inch stones create more total bubble surface area than one 8-inch stone with equivalent airflow, maximizing gas exchange rates. Distributed placement also ensures uniform dissolved oxygen levels throughout the reservoir rather than concentrated oxygenation in one area. This prevents oxygen stratification and dead zones in larger systems.
How does water temperature affect dissolved oxygen levels?
Oxygen solubility decreases as water temperature increases. At 60°F, water holds approximately 11.3 ppm dissolved oxygen at saturation. This drops to 8.3 ppm at 75°F—a 26% reduction. Maintain reservoir temperatures between 65-68°F for optimal oxygen availability. Pair air pumps with water chillers in warm environments to prevent temperature-induced oxygen depletion that compromises root health and invites pathogen proliferation.
Where should I position my air pump relative to my reservoir?
Mount air pumps above reservoir water level—minimum 12 inches higher—to prevent backflow siphoning during power interruptions. Install check valves on each air line as secondary protection against water entering pump chambers. Position pumps in temperature-controlled spaces away from direct heat sources, as elevated ambient temperatures reduce pumping efficiency and accelerate diaphragm degradation. Avoid enclosed cabinets that trap heat generated during operation.
How often should I replace air stones and pump components?

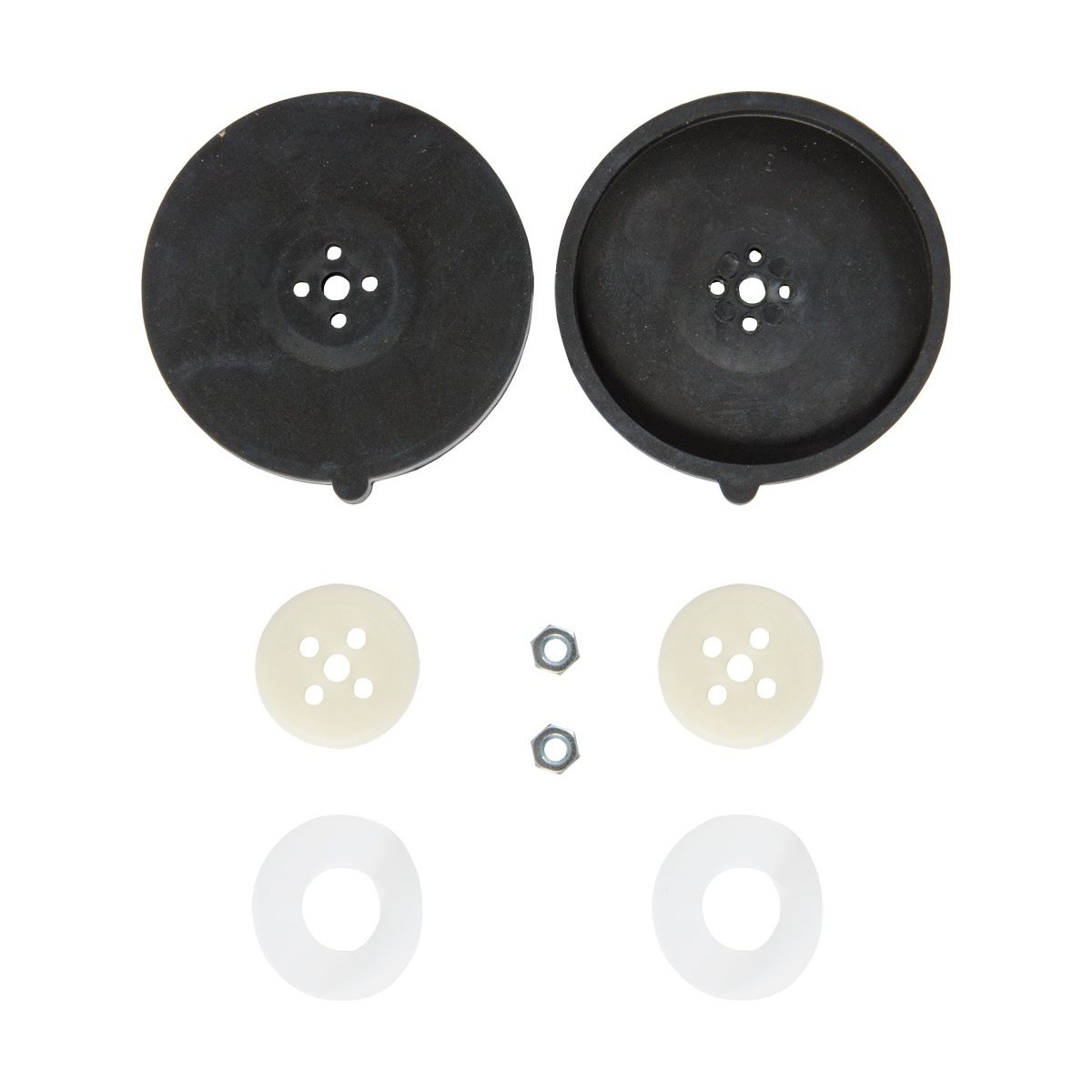

Replace air stones every 6 months as mineral deposits clog pores and reduce oxygen transfer efficiency. Inspect air tubing quarterly for cracks, particularly in environments with UV exposure or temperature fluctuations. Commercial Air Pump diaphragms typically require replacement annually under continuous operation, though proper maintenance extends service intervals. Monitor for reduced output or increased noise—both indicate impending diaphragm failure requiring immediate replacement.
Can air pumps run continuously, or do they need rest periods?
Air pumps must operate continuously in active hydroponic systems to maintain dissolved oxygen levels above critical thresholds. Root systems consume oxygen 24/7, and interruptions lasting just 2-4 hours can drop DO below 5 ppm—triggering anaerobic conditions and root stress. Commercial models feature thermal management designed for uninterrupted operation. Eco Air Pumps handle continuous duty in properly ventilated spaces, though heat buildup in confined areas may reduce longevity.
Do I still need an air pump if I have water circulation pumps?
Water circulation alone provides insufficient oxygenation for healthy root development. Circulation pumps move nutrient solution but create minimal air-water interface for gas exchange. Air pumps actively inject oxygen through fine bubble diffusion, achieving the 8+ ppm dissolved oxygen levels required for optimal root function. DWC and RDWC systems absolutely require dedicated air pumps—water movement supplements but cannot replace active aeration.
