Buyer's Guide
Horticulture Lighting Group: Complete Guide
Quantum Board Technology Engineered to Maximize the Canopy
Indoor cultivation demands light that reaches the lower canopy — not just the top. HLG's Quantum Board design spreads hundreds of low-wattage Samsung LEDs across a large surface area, delivering measurable photon uniformity and passive thermal management in a single architecture. The result is a fixture that runs cooler, lasts longer, and converts more electricity into usable plant growth than conventional COB or single-emitter designs.
Why Quantum Boards Outperform Conventional LED Formats
Traditional COB and chip-on-board emitters concentrate heat and photon output into small points. HLG's Quantum Board architecture redistributes that energy load, enabling industry-benchmark efficacy figures and mechanical simplicity that directly benefits the cultivator.
- Passive Cooling, No Mechanical Failure Points: No cooling fans means no moving parts to fail mid-cycle. The Diablo series dissipates heat through the board substrate itself, stabilizing canopy temperatures without adding airflow demand to the grow environment.
- Integrated Reflectors for Deep Canopy Penetration: Each Diablo Quantum Board ships with integrated reflectors that redirect photons past the top fan leaves toward lower nodes. Side branches and lower sites that once produced airy popcorn buds develop into harvestable, resin-dense weight.
- Network-Level Light Control at Scale: For facilities running multiple HLG fixtures, the HLG GrowFlux Access Point Controller enables centralized dimming, scheduling, and monitoring across up to 1,000 compatible devices — reducing the need for manual intervention at every fixture.
Matching the Right HLG Fixture to the Operation
HLG produces fixtures for every stage of cultivation, from propagation through commercial flowering. Selecting the right model begins with canopy footprint, growth stage priority, and whether the facility runs dedicated veg cycles or full-cycle production.
- Propagation and Small-Space Full Cycle: The HLG 65 V2 delivers 10,000+ lumens at 65 watts, purpose-built for cloning nurseries and early vegetative stages. Growers running full-cycle cultivation in a compact 2×2 footprint can step up to the HLG 100 V2, which supports seed-to-harvest production on 95 watts using 192 Samsung LM301H LEDs.
- Dedicated Veg Chambers and Commercial Flowering: The HLG 250 VEG Pro uses QB288 Quantum Boards with a broad blue-dominant spectrum and 600 PPF output, optimized for high-throughput propagation and dedicated vegetative chambers. Operations scaling into flowering production can move to the HLG 350 Diablo, which replaces a 600W HID on just 330 watts across a 3×5 flowering footprint.
- Commercial Flagship and Ecosystem Control: The HLG 750 Diablo X delivers photon efficacy exceeding 3 µmol/J across a 5×5 flowering footprint using four advanced Diablo X Quantum Boards — the top-tier choice for operators pushing high-PPFD cultivation. Automated scheduling and group dimming for entire HLG installations is handled through the Grow Light Controllers available at Trimleaf.
Getting the Most from HLG's Quantum Board Architecture
Selecting the right fixture is only the first variable. Dialing in hang height, ramp schedules, and supplemental spectrum use determines whether the hardware performs at its documented efficacy figures or leaves yield potential on the table.
- Ramp the Intensity Gradually: At transplant, set dimmable HLG fixtures to 50–60% output and increase by 10% every three to five days. Abrupt exposure to full PPF triggers photooxidative stress in young canopies, stalling development rather than accelerating it.
- Target VPD-Adjusted PPFD, Not Just Lux: HLG fixtures enable growers to push PPFD above 1,000 µmol/m²/s during peak flower. At those intensities, vapor pressure deficit management becomes critical — CO₂ enrichment and tighter humidity control unlock the yield response that high-efficacy fixtures are engineered to produce.

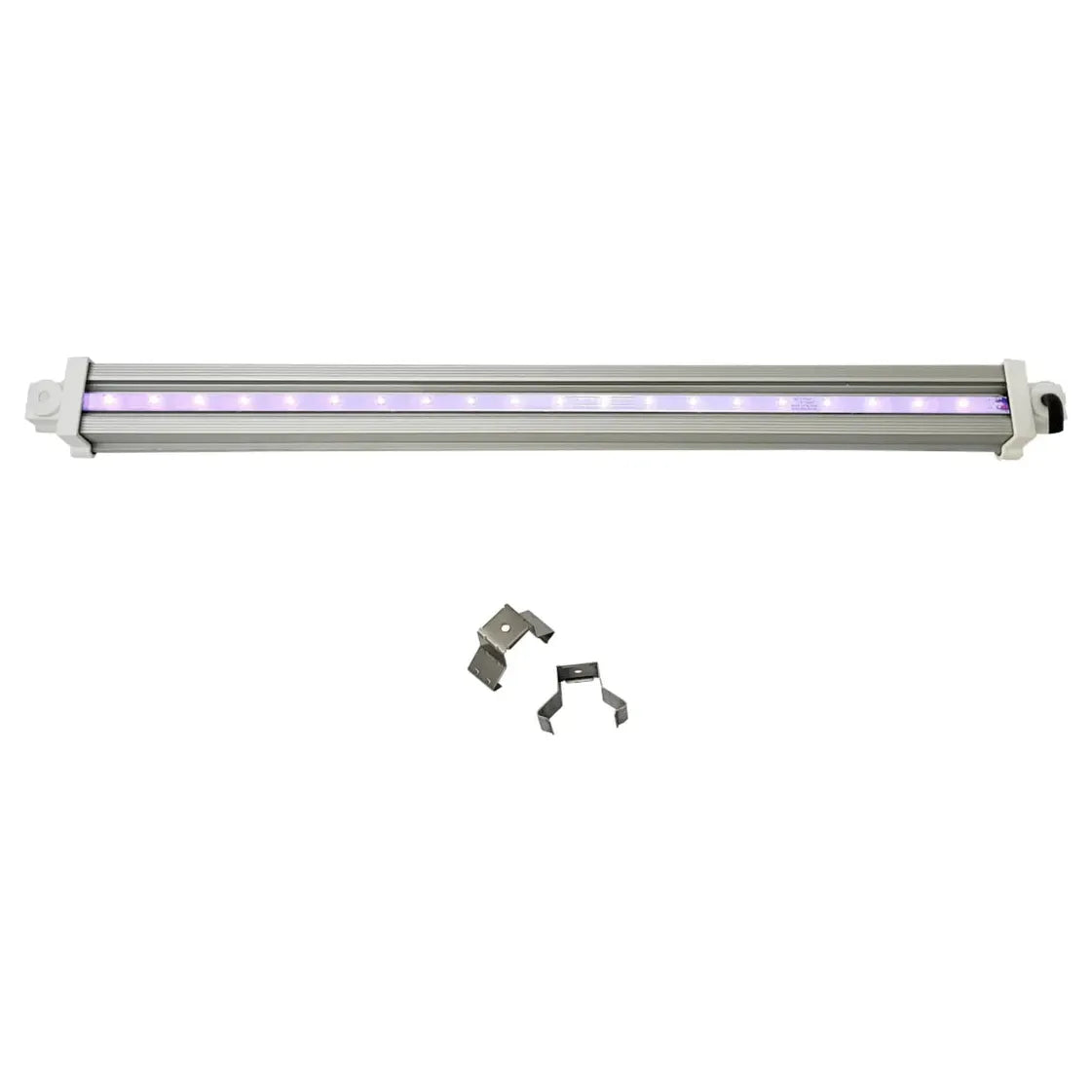

- Layer UVA Supplementation in Late Flower: The HLG 30 UVA Supplement Bar provides targeted UVA delivery during the final three to four weeks of flowering — driving terpene and cannabinoid expression that the primary white spectrum cannot produce on its own. Run it on a separate timer for a six-to-eight hour daily UVA window without extending the photoperiod.
Understanding the engineering decisions behind HLG's Quantum Board platform helps growers make accurate comparisons against competing formats. The in-depth article The Innovation Behind HLG Quantum Boards breaks down the diode architecture, thermal design, and efficacy data that define why this technology has set the standard for indoor cultivation lighting.
Frequently Asked Questions
What makes HLG's Quantum Board technology different from other LED grow light designs?
HLG's Quantum Boards use a large circuit board populated with dozens of small, high-efficiency Samsung LEDs rather than concentrating output into a single COB emitter or tight diode cluster. This spread-array design produces a more uniform PPFD map across the footprint, dissipates heat through the board substrate without cooling fans, and allows higher photon efficacy figures than traditional chip-on-board architectures. The passive thermal management also means fewer mechanical failure points over the life of the fixture.
Which HLG fixture is recommended for a standard 5×5 grow tent?
For a 5×5 flowering footprint, both the HLG 750 Diablo and HLG 750 Diablo X are purpose-built options. The 750 Diablo uses four Diablo Quantum Boards with a plant-centric white spectrum and deep red integration, producing over 2056 PPF at 2.88 µmol/J efficacy. The 750 Diablo X uses an updated Diablo X board configuration that pushes photon efficacy above 3 µmol/J, making it the better choice for operations targeting very high PPFD canopy levels or CO₂-enriched environments. Both fixtures operate with passive cooling and ship with dimmable power supplies.
Do HLG grow lights require cooling fans or active ventilation inside the fixture?
No. HLG's Quantum Board architecture uses passive cooling — heat transfers through the aluminum heat sink and board substrate without fans. This design eliminates a common failure point in grow light maintenance and produces near-silent operation. Growers should still ensure adequate room-level ventilation and airflow to manage ambient temperatures, but the fixtures themselves generate significantly less radiant heat than HID alternatives and do not rely on internal fans to stay within operating temperature.
What is the difference between the HLG 350 Diablo and the HLG 750 Diablo?
The HLG 350 Diablo uses two Diablo Quantum Boards and draws 330 watts, targeting a 3×5 flowering footprint as a direct replacement for 600W HID systems. It produces 2.80 PPF per watt and suits smaller grow tents, dedicated flowering chambers, or commercial veg rows. The HLG 750 Diablo uses four Diablo Quantum Boards and draws approximately 715 watts, covering a 5×5 footprint at 2056 PPF and 2.88 µmol/J efficacy. For growers scaling beyond a single 3×5 space, the 750 Diablo provides substantially more output without requiring multiple fixtures.
What is the difference between the HLG 750 Diablo, 750 Diablo X, and 750 Diablo ES?

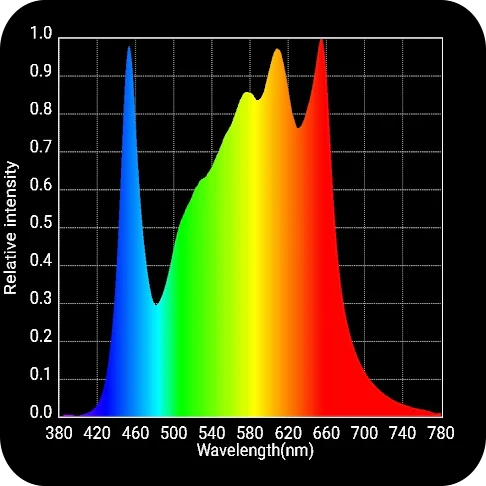

All three fixtures target the same 5×5 commercial footprint but differ in board configuration and spectral profile. The 750 Diablo uses standard Diablo Quantum Boards with a white-dominant full spectrum and 660nm deep red integration. The 750 Diablo X uses Diablo X boards with an updated diode configuration that achieves photon efficacy above 3 µmol/J — the preferred choice for high-PPFD flowering. The 750 Diablo ES (Enhanced Spectrum) incorporates an adjusted spectral ratio tuned for operations where specific wavelength balance impacts cannabinoid and terpene production. Growers selecting between the three should consider whether raw efficacy or spectral tuning is the primary optimization target for their facility.
Can HLG grow lights be integrated with a lighting controller for automated scheduling?
Yes. Most dimmable HLG fixtures support 0-10V and RJ control signals, making them compatible with third-party grow light controllers for scheduling and dimming automation. For facilities running multiple HLG units, the HLG GrowFlux Access Point Controller provides a dedicated networking solution that manages up to 1,000 compatible fixtures from a single access point — enabling group dimming, on/off scheduling, and remote monitoring across the full installation. Trimleaf also carries a broader range of grow light controllers compatible with various 0-10V fixtures.
What is the HLG GrowFlux Access Point Controller and which operations need it?
The HLG GrowFlux Access Point is a network hub that connects compatible HLG fixtures over a wireless mesh system with a 500-foot range and capacity for up to 1,000 devices. It enables centralized group dimming, lighting schedules, and real-time monitoring without requiring physical access to each fixture. It is most relevant for commercial cultivation facilities running large fixture counts across multiple rooms, where managing individual lights manually creates significant labor overhead. Hobbyist and small-tent growers typically don't require it — the built-in manual dimmer on fixtures like the 350 Diablo and 750 Diablo covers single-room intensity control.
What does the HLG 30 UVA Supplement Bar do for cannabis plants?
The HLG 30 UVA Supplement Bar provides targeted ultraviolet-A light to complement a primary full-spectrum fixture during the final weeks of flowering. UVA exposure triggers a stress response in cannabis plants that upregulates terpene, flavonoid, and cannabinoid production — compounds responsible for aroma, flavor, and potency profiles. Most broad-spectrum white LED fixtures, including HLG's core Diablo lineup, do not output significant UVA. Running the 30 UVA Bar on a dedicated timer for six to eight hours daily during late flower delivers this spectral layer without extending the photoperiod, making it a targeted finishing tool for quality-focused cultivators.
