Grow Light Controllers: Complete Guide
How Do I Choose a Grow Light Controller for My Grow Room?
Grow light controllers automate photoperiod scheduling, intensity dimming, and in RS-485 systems, coordinated spectrum control across every fixture simultaneously. The most important decision is matching the controller's protocol to your fixture's control port: 0-10V analog, RS-485, or RJ12/RJ45 digital. Using the wrong protocol means the controller has no communication path to the light.
What Is the Difference Between a 0-10V Dimmer and an RS-485 Master Controller?

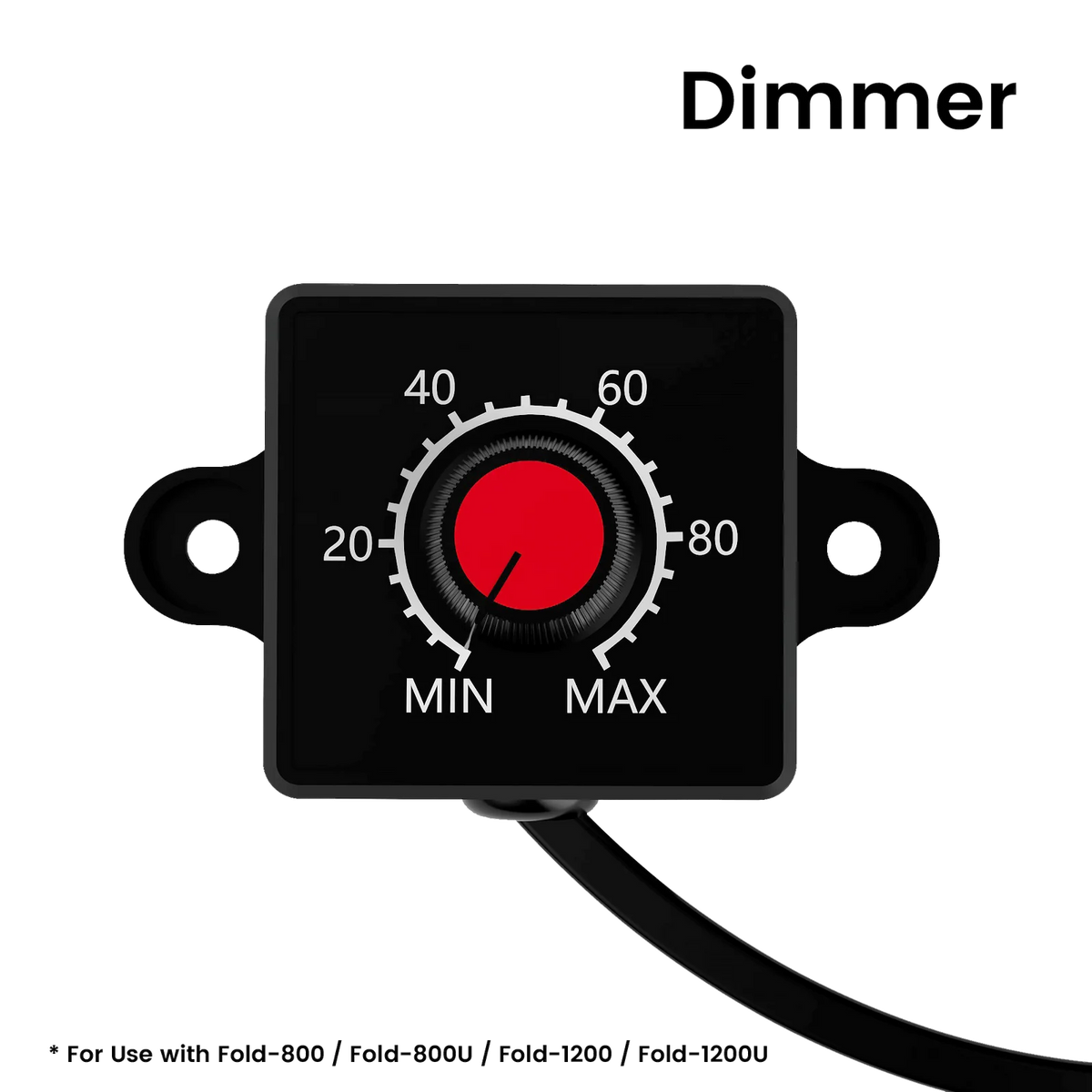

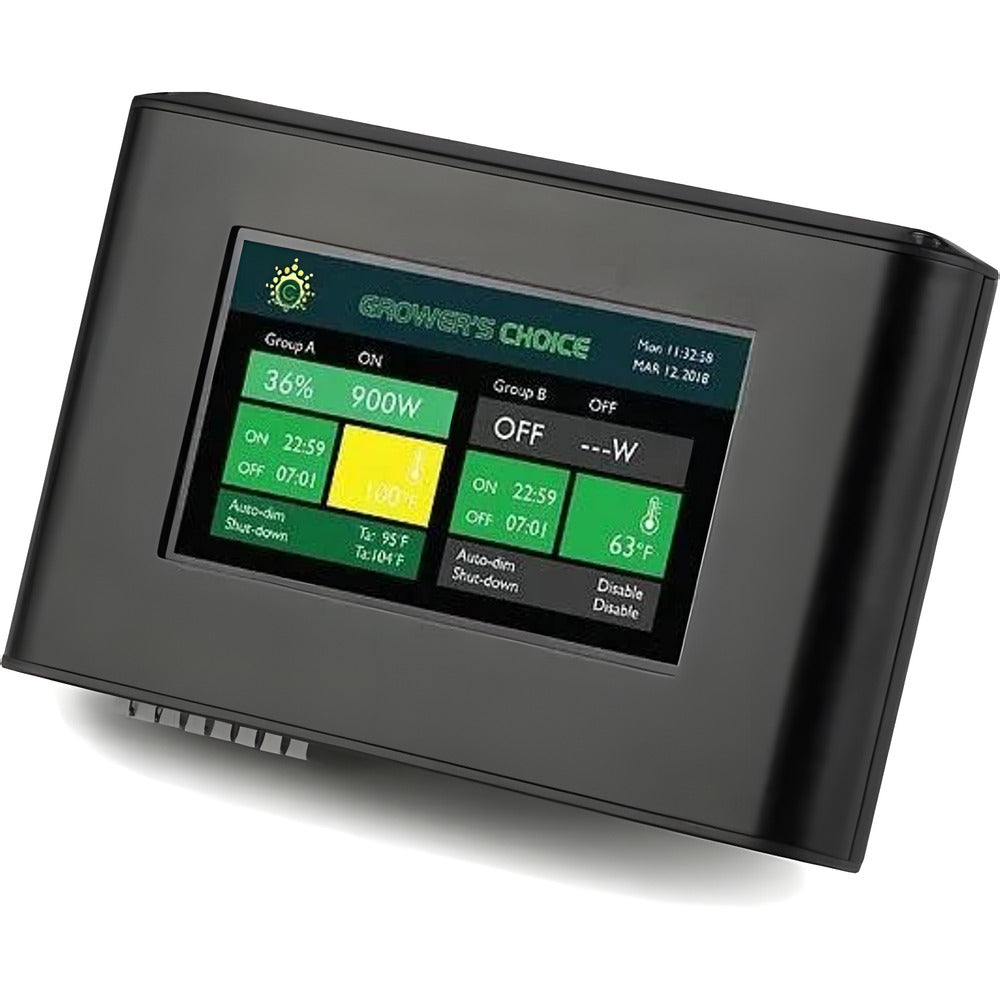

A 0-10V signal adjusts a single fixture's intensity using an analog voltage between 0 and 10 volts. It works with most LED drivers and is the simplest way to add dimming without investing in a digital system. RS-485 is a serial data bus that can address hundreds of fixtures individually, run DLI-based schedules, simulate sunrise/sunset ramps, and control spectrum channels on multi-band LEDs. RS-485 controllers are typically brand-specific: the Gavita EL3 communicates with Gavita fixtures; the Grower's Choice Master Controller works with Grower's Choice RS-485 lights. For rooms with mixed-brand 0-10V fixtures, the HLG GrowFlux Access Point from Horticulture Lighting Group bridges 0-10V signals to centralized control.
How Many Fixtures Determines Which Controller Type You Need
Single-tent operations with one or two fixtures rarely need the overhead of a full RS-485 master. Larger rooms benefit from centralized scheduling and the ability to adjust every light from one interface.
What Should I Verify Before Purchasing?
- Control port type on your fixture: 0-10V jack, RJ12, or RJ45
- Maximum fixture count per channel and per system
- Brand compatibility for RS-485 systems
- Whether you need DLI scheduling, sunrise simulation, or temperature-triggered dimming
- Integration with your climate control system, if you run one
For rooms where heat is a factor, pairing a light controller with an environmental controller lets you throttle output automatically when room temperature spikes. Browse LED grow lights to confirm your fixture's control protocol before choosing a controller.
Related Guides
- Best LED Grow Lights for Indoor Growing
- LED Grow Lights: A Comprehensive Buyer's Guide
- What to Look for When Buying LED Grow Lights
A timer switches power on and off on a fixed schedule. A grow light controller communicates with the fixture's control port to adjust intensity, run DLI schedules, and in RS-485 systems, coordinate multiple fixtures at once. Controllers don't replace timers for basic on/off cycling, but they add the dimming and scheduling precision that timers can't provide.
Check your fixture's spec sheet for its control port. A 0-10V port works with an analog dimmer. An RS-485 or RJ12/RJ45 port requires a brand-compatible RS-485 master controller. Using a 0-10V dimmer on a fixture that only has RS-485 ports won't work, and vice versa. When in doubt, check the driver label on the back of the fixture.
Generally no. RS-485 controllers use brand-specific communication protocols. The Gavita EL3 works with Gavita fixtures; the Grower's Choice Master Controller works with Grower's Choice RS-485 lights. Mixing brands on a single RS-485 bus typically results in communication errors. If you run a mixed-brand room, a 0-10V approach or a signal bridge like the HLG GrowFlux is more practical.
DLI (Daily Light Integral) is the total photon delivery to the canopy over 24 hours, measured in mol/m²/day. Vegetative growth typically targets 20-40 mol/m²/day; flowering targets 40-65 mol/m²/day. DLI scheduling lets the controller ramp intensity throughout the photoperiod to hit a cumulative target without overloading plants during peak afternoon temperatures. It is most useful in commercial operations with tightly controlled yield targets.
Direct yield impact evidence is mixed, but it consistently reduces stress at light transitions. Abrupt 0-to-100% light onset can cause stomatal shock in sensitive cultivars. Gradual 15-60 minute ramps let the plant's physiology adjust. Many commercial operations include it as a low-cost insurance policy rather than a proven yield driver.
Some controllers support temperature-triggered dimming, where a room temperature sensor signals the controller to reduce intensity when a threshold is exceeded. Gavita's EL3 and certain Grower's Choice systems support this. For rooms that regularly hit high temps, pairing a light controller with an environmental controller gives you automated protection without manual intervention.
