Electric Rosin Presses

Why Electric: Automation, Repeatability, and the End of Pressure Guesswork

Every hydraulic rosin press requires an operator to build and sustain pressure manually — and manual pressure is inherently inconsistent. Two operators using the same press on the same material will pump at different rates, hold at different forces, and produce different yields. Electric presses eliminate that variable entirely. Once a pressure profile is programmed, the machine executes it identically every cycle. For extractors who care about data — and for facilities where multiple operators must produce the same output — this is the defining advantage of the electric format.

Understanding the Product Landscape: Pure Electric vs. Hybrid

The catalog includes both fully electric presses and hybrid units that combine an electric motor with a hydraulic or pneumatic ram. The distinction matters for how pressure builds and how the unit integrates into an existing workflow.

• Pure Electric (Motor-Driven Actuator): The Rosineer Presso Pro, Dulytek VE2.5, Dulytek Elite DE10K, and both NugSmasher IQ and NugSmasher IQ Pro use an electric motor to drive the ram directly. These units require no hydraulic fluid maintenance and produce noticeably quieter operation than pneumatic setups. The NugSmasher IQ's CNC actuator reports pressure in three digital PSI modes simultaneously; the IQ Pro adds WiFi and Bluetooth remote monitoring, a lockout system for recipe protection, and six 160W heating elements across the 10×7" plates for edge-to-edge thermal uniformity at 114-gram batch capacity.
• Hybrid (Electric Motor + Hydraulic/Pneumatic Ram): The Dulytek DW8000, Rosineer Auto Hybrid, and Dulytek DE40K use an electric motor to drive a hydraulic or pneumatic cylinder. These hybrid units share the automation advantage of pure electric presses — consistent, push-button pressure build-up — while benefiting from the high-force density of hydraulic or pneumatic rams. The DE40K's 30mm thick aluminum plates maintain thermal mass through high-volume back-to-back runs that would cause thinner plates to exhibit temperature drift, and its DripTech tilting frame moves oil off the plates immediately after the press to prevent heat degradation of terpenes.

Selecting the Right Scale for the Operation

The electric format spans a wider price range than any other rosin press category because the automation, data infrastructure, and plate capacity scale dramatically between personal and commercial tiers. Understanding where each unit sits in that spectrum prevents both over-investment and under-capacity.

• Personal & Home Lab — 1 to 2.5 Tons: The Rosineer Presso Pro weighs 15.6 lbs and fits in a cupboard — the right choice for personal extraction in a shared living space where noise, footprint, and discretion all matter. The Dulytek VE2.5 adds 2.5 tons of force with 3×4.8" plates, operates in vertical or horizontal orientation, and includes built-in side clips that prevent parchment shift during pressing — a feature that eliminates one of the most common beginner errors.

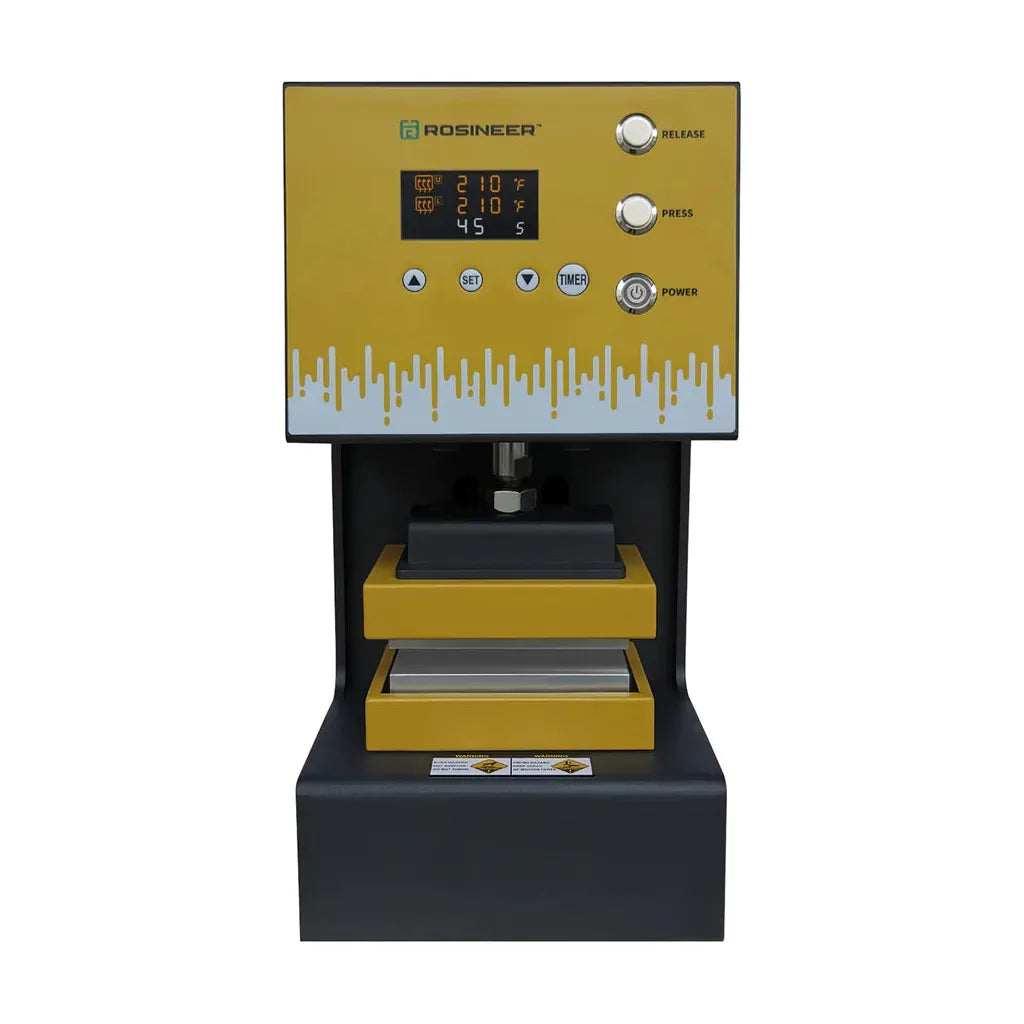

• Serious Home & Small Production — 4 to 5 Tons: The Dulytek DW8000 (3×5" plates, 110V/220V compatible) and Rosineer Auto Hybrid (insulated 3×5" plates, push-button ram) are the entry point for extractors processing regular batches of 12 grams or more. The Dulytek Elite DE10K steps up to 5 tons with stainless steel plates and operates significantly quieter than any pneumatic alternative at this tonnage range. At this tier, bundle versions of the DW8000 pair the press with a cold collection plate, pre-press mold, and parchment — streamlining the first-run setup without separate accessory sourcing.

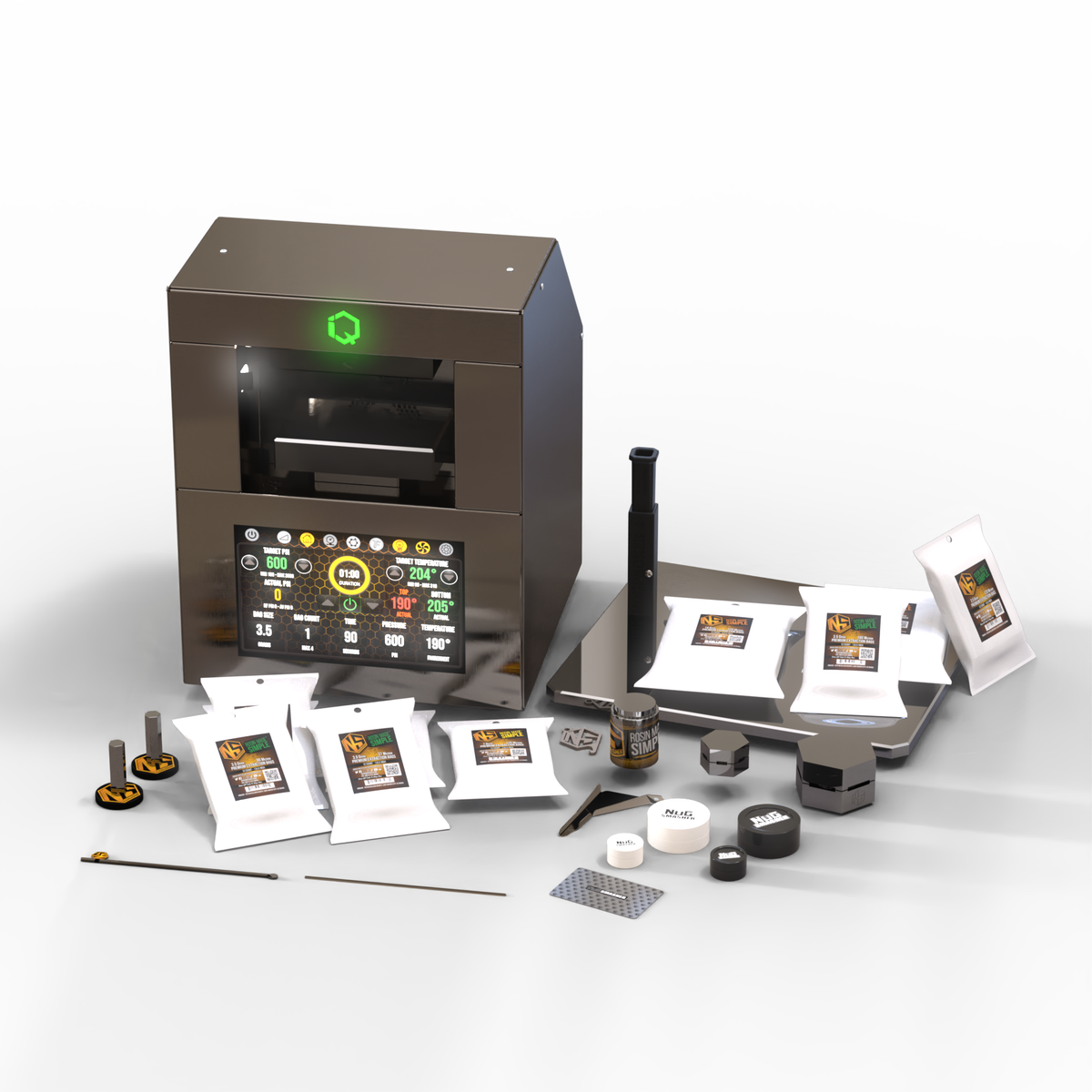

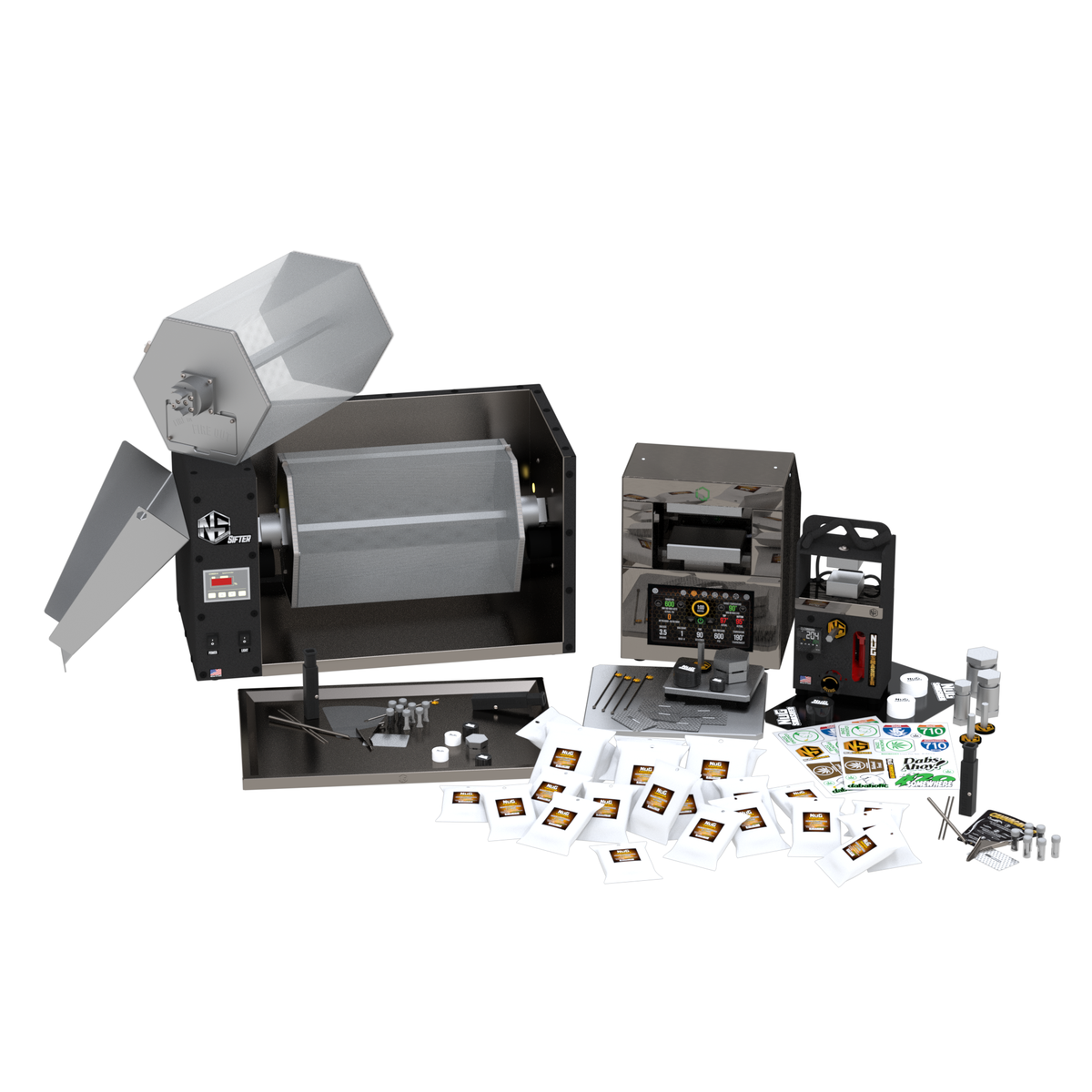

• Professional Extraction Lab — 4 Ton Smart: The NugSmasher IQ occupies a distinct position: 4 tons of CNC-controlled force with a 10.1" touchscreen that displays live PSI, built-in LED illumination that eliminates shadows during oil flow, and a lifetime warranty on the entire unit. For labs that need documented extraction consistency — the same pressure curve on batch 1 and batch 100 — the IQ's digital precision and recipe repeatability justify the investment over mid-tier hydraulic units of comparable tonnage. Available as a standalone press or in Basic, Essentials, Master, and Extractor Choice bundles with progressively complete accessory kits.

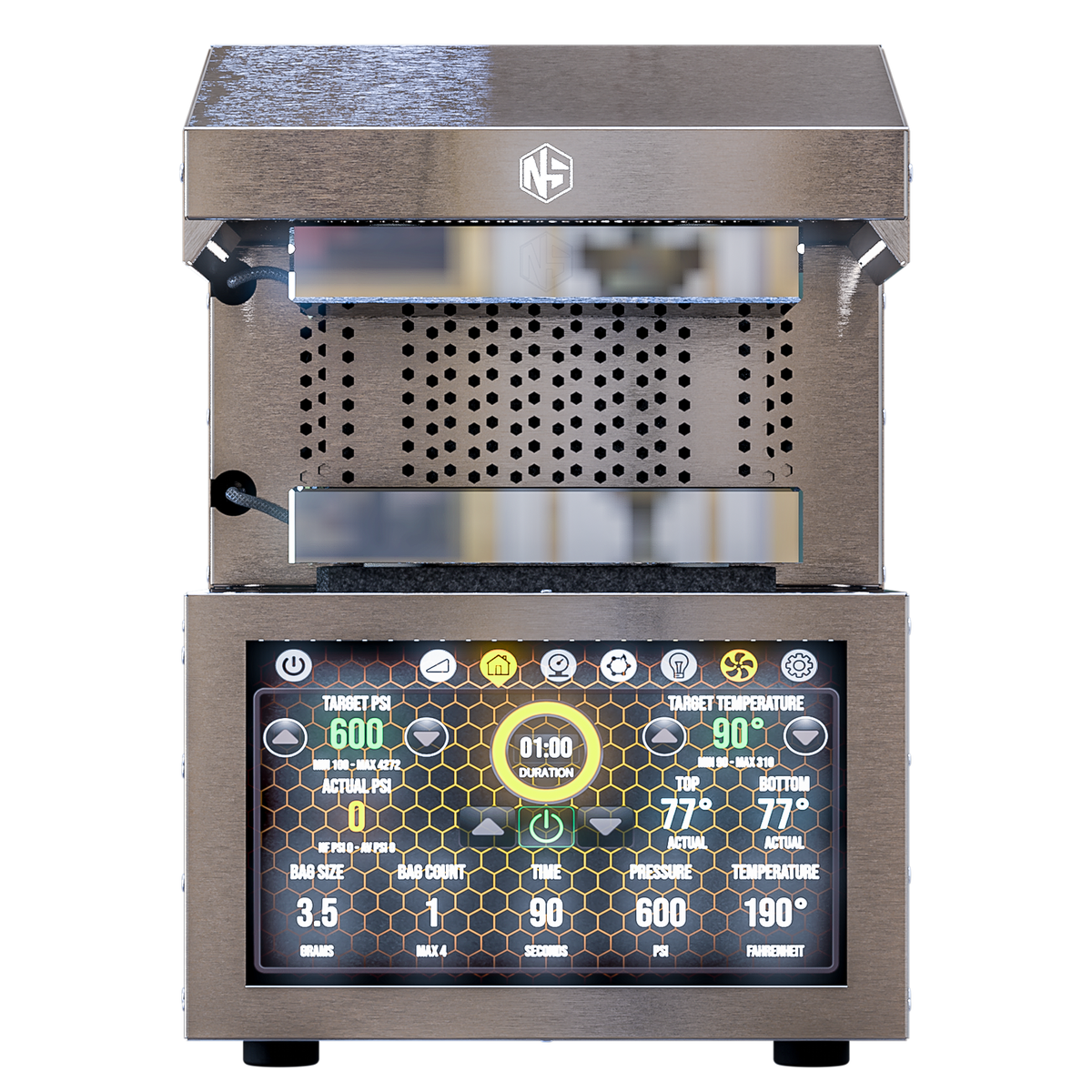

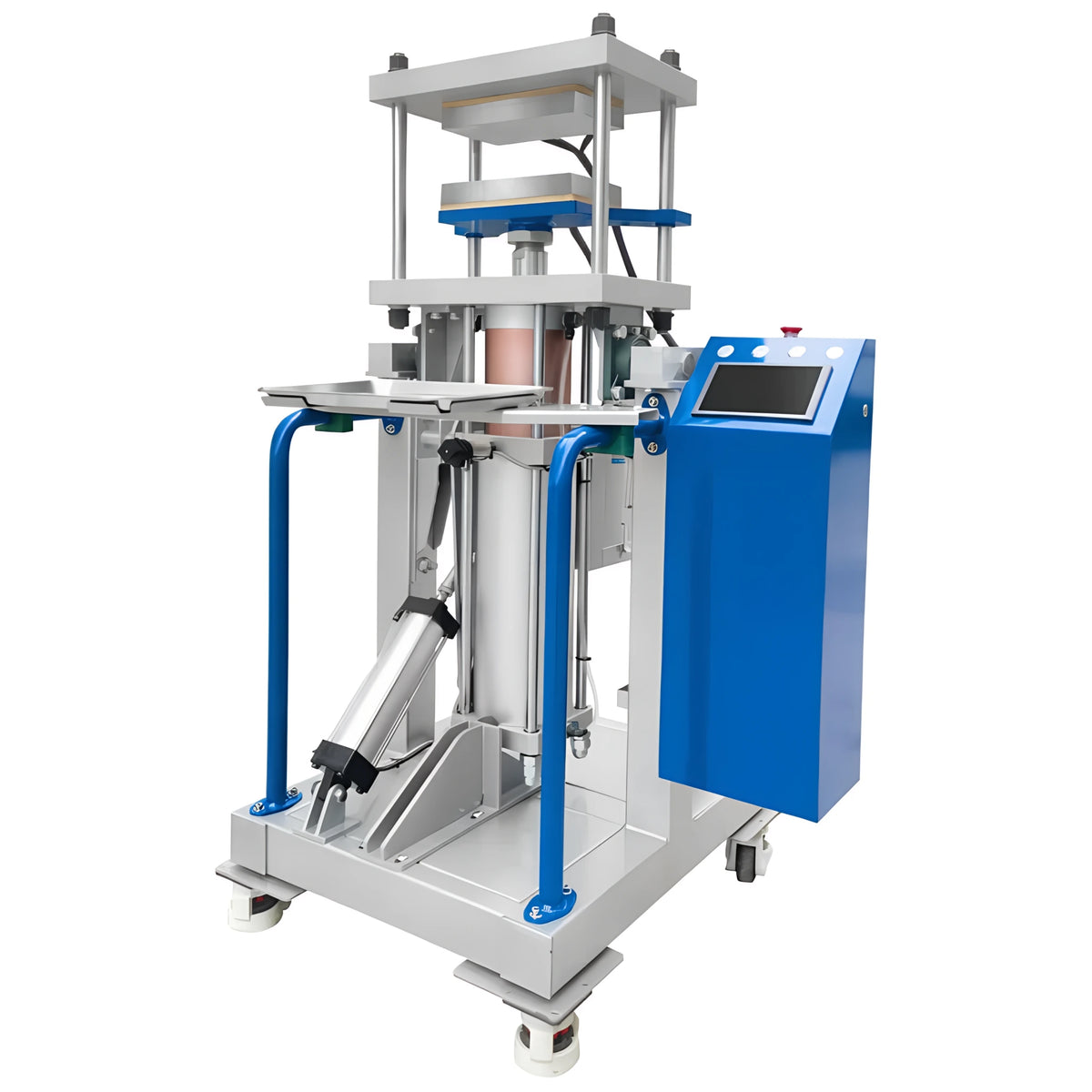

• Commercial & Licensed Production — 20 Tons: The Dulytek DE40K (10×6" plates, 70g per cycle, DripTech tilting) and NugSmasher IQ Pro (13.3" touchscreen, WiFi/Bluetooth remote monitoring, 114g per cycle, Alchemist Lockout for recipe protection) address commercial-scale throughput. The IQ Pro's lockout feature prevents operators from deviating from programmed extraction recipes — a critical control for facilities where consistency across shifts is a compliance or quality standard.
• Accessory Tip: Electric presses require the same consumables as any other format. Match filter bags to plate dimensions and micron requirements, and use pre-press molds to compact material into a uniform puck before loading — this distributes pressure evenly across the full plate surface and is particularly important at the consistent ramp rates electric actuators apply. Complete rosin press accessory kits bundle all consumables in one purchase for new operators setting up a station from scratch.

Getting the Most From an Electric Rosin Press

Electric presses generate consistent mechanical force — but extraction quality still depends on temperature protocol, material preparation, and collection speed. These practices apply across every electric unit in the catalog.

• Pre-Heat to Full Temperature Before Loading: Electric plates take time to stabilize at target temperature. Loading material while the plates are still climbing causes the first few seconds of pressing to occur at a lower-than-intended temperature, reducing flow and yield. Allow the plates to reach and hold the target for at least 2–3 minutes before beginning the press cycle — particularly important on the larger 10×7" plates of the IQ Pro, which have greater thermal mass to stabilize.
• Use the Pressure Ramp, Not Max Immediate Force: The advantage of CNC electric actuation is the ability to ramp pressure gradually — starting low to allow the material to warm and soften, then increasing to full pressure as flow begins. Applying maximum force immediately collapses the bag before the material has time to move, increasing blowout risk. Most NugSmasher IQ and Dulytek DE10K units allow programmable ramp profiles; use them.
• Collect Oil Immediately After the Press: Even without a tilting DripTech mechanism, freshly pressed oil sitting on 200°F+ plates continues to cook. On pure electric units without a tilt function, collect parchment and oil within 5–10 seconds of opening the plates. On the DE40K with DripTech, the tilting frame handles this automatically — another reason the gravity-assist mechanism earns its place at production scale.

For extractors evaluating the full format landscape before committing to a purchase, Trimleaf also carries the complete range of hydraulic rosin presses and pneumatic rosin presses. The Trimleaf deep-dive on the NugSmasher IQ Pro covers the commercial-tier electric press in full detail for operators evaluating that specific investment.
