Buyer's Guide
XTrays: Complete Guide
Build Flood-and-Drain Infrastructure That Doesn't Become the Weak Link
Ebb and flow remains the preferred irrigation method for high-density commercial cultivation — but only when the hardware is dimensionally stable, chemically inert, and structurally reliable across thousands of flood cycles. XTrays designs its entire product ecosystem around that single performance standard.
Canadian ABS, Not HIPS: Why Material Selection Defines Long-Term Performance
Most flood tables on the market use HIPS (high-impact polystyrene) — a low-cost material that becomes brittle, warps under heat load, and degrades with repeated chemical exposure. XTrays chooses Canadian ABS for its flood table construction, a fundamentally superior thermoplastic that maintains dimensional accuracy through temperature fluctuations and resists the nutrient solutions that destroy cheaper alternatives. This isn't an incremental improvement — it determines whether a table holds its drain geometry after two years of operation or begins channeling runoff to the wrong corner of the room.

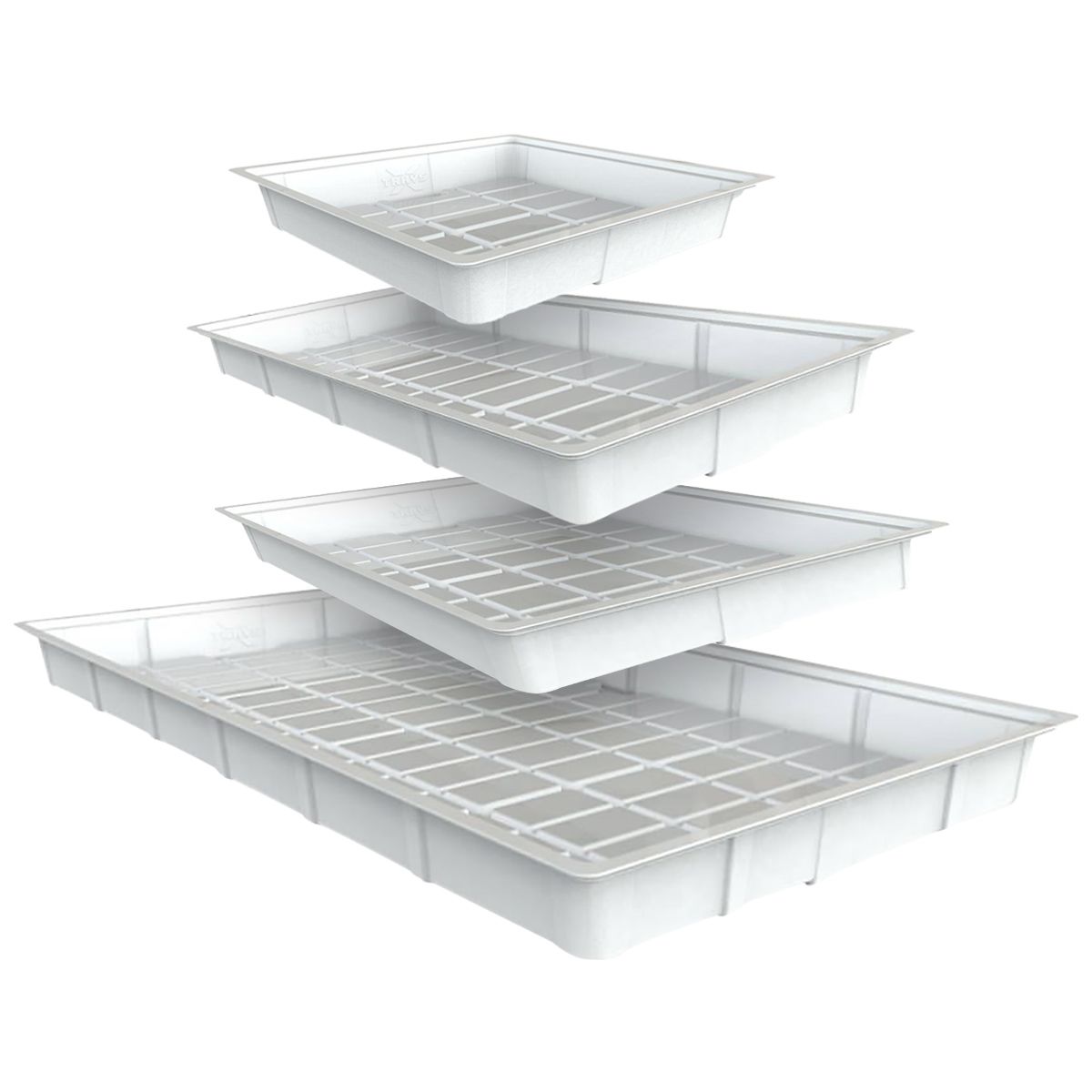

- Dimensionally stable flood tables: The XTrays Classic Flood Table is manufactured from Canadian ABS and available in sizes from 3' x 3' through commercial dimensions, maintaining precise slope geometry to ensure complete drain-back on every cycle — no pooling, no anaerobic zones.
- Closed reservoir systems: The XTrays Classic Reservoir pairs with the flood table to form a sealed nutrient circuit. Paired with the reservoir lid, the system eliminates evaporative loss and light penetration — both primary drivers of algae growth and nutrient concentration drift in open systems.
- High-capacity backup reservoir: For operations running multiple benches off a shared supply, the XTrays 70-Gallon Econo Reservoir provides buffer volume that keeps flood cycle timing consistent even during peak demand periods.
Canopy Optimization: Rolling Bench vs. Fixed Table
The choice between a fixed flood table on static legs and a rolling bench system directly determines usable canopy square footage — and in most commercial rooms, the math strongly favors rolling infrastructure. Fixed benches require permanent aisles between every row; rolling benches consolidate into a single working aisle that shifts as needed, recovering 20–30% of floor space for productive canopy.
- Entry-level flood table setup: The Classic Flood Table on standard legs suits dedicated rooms where fixed position is acceptable — mother rooms, propagation areas, and single-bench grow spaces. Size selection follows canopy target: a 4' x 8' table supports a dense 32-square-foot footprint under a single light fixture.

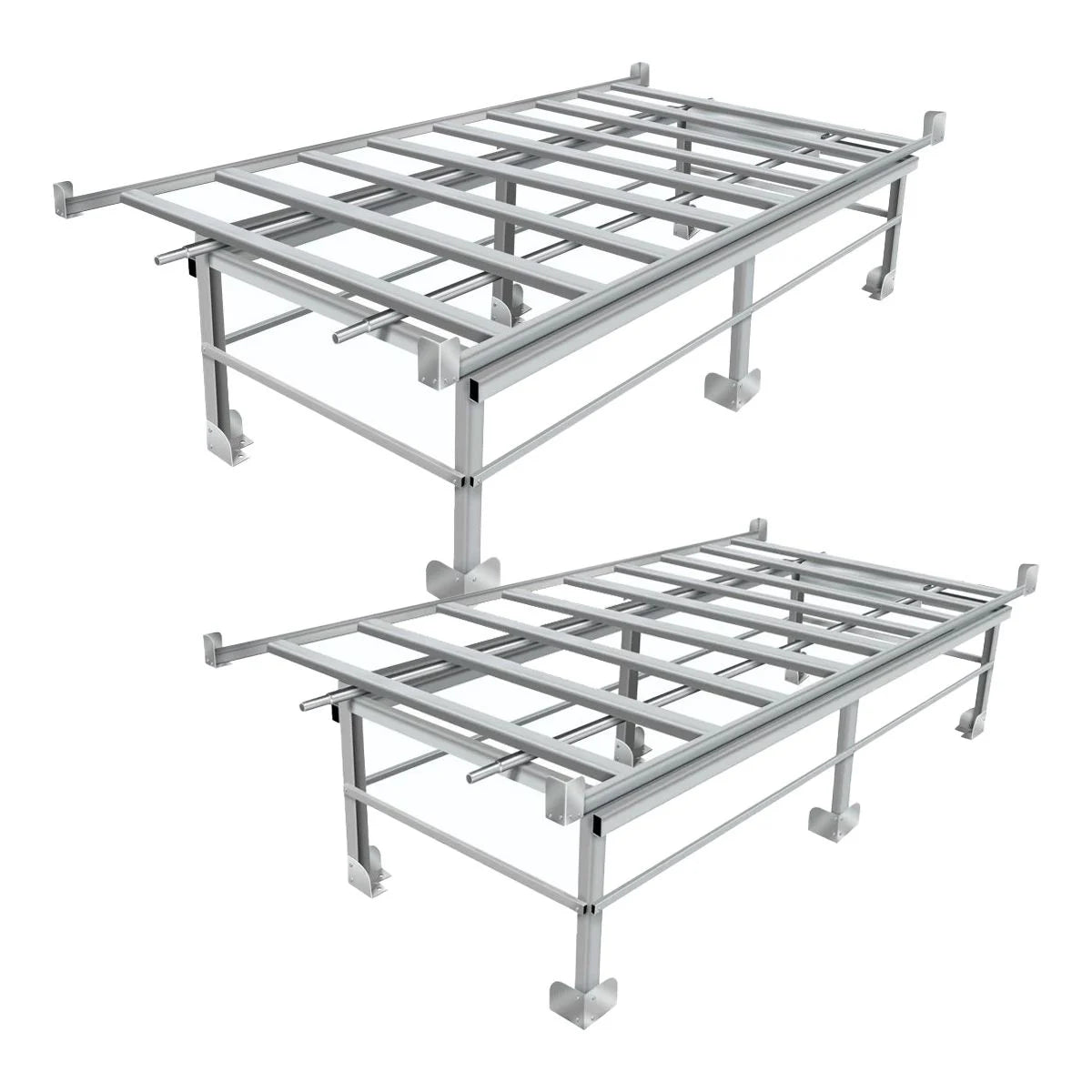

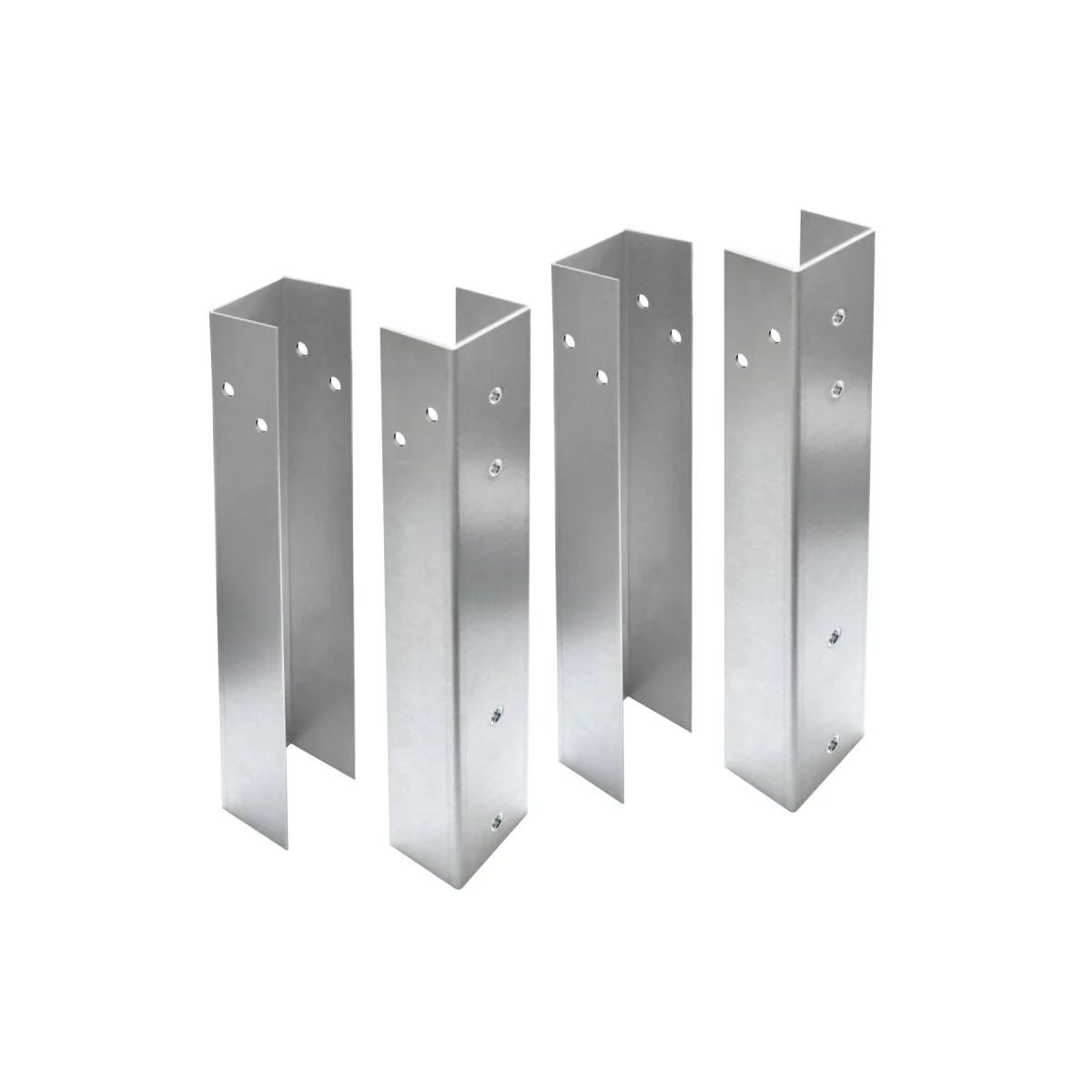

- Commercial rolling bench configuration: The XTrays Rolling Bench mounts the flood table on a rolling frame for full aisle-consolidation capability in multi-bench rooms. The 4' x 8' configuration integrates directly with the Classic Flood Table and Classic Reservoir for a complete, self-contained flood-and-drain module. For rooms requiring custom working height, the 12" bench leg kit extends leg height beyond the standard 26" shipping dimension.

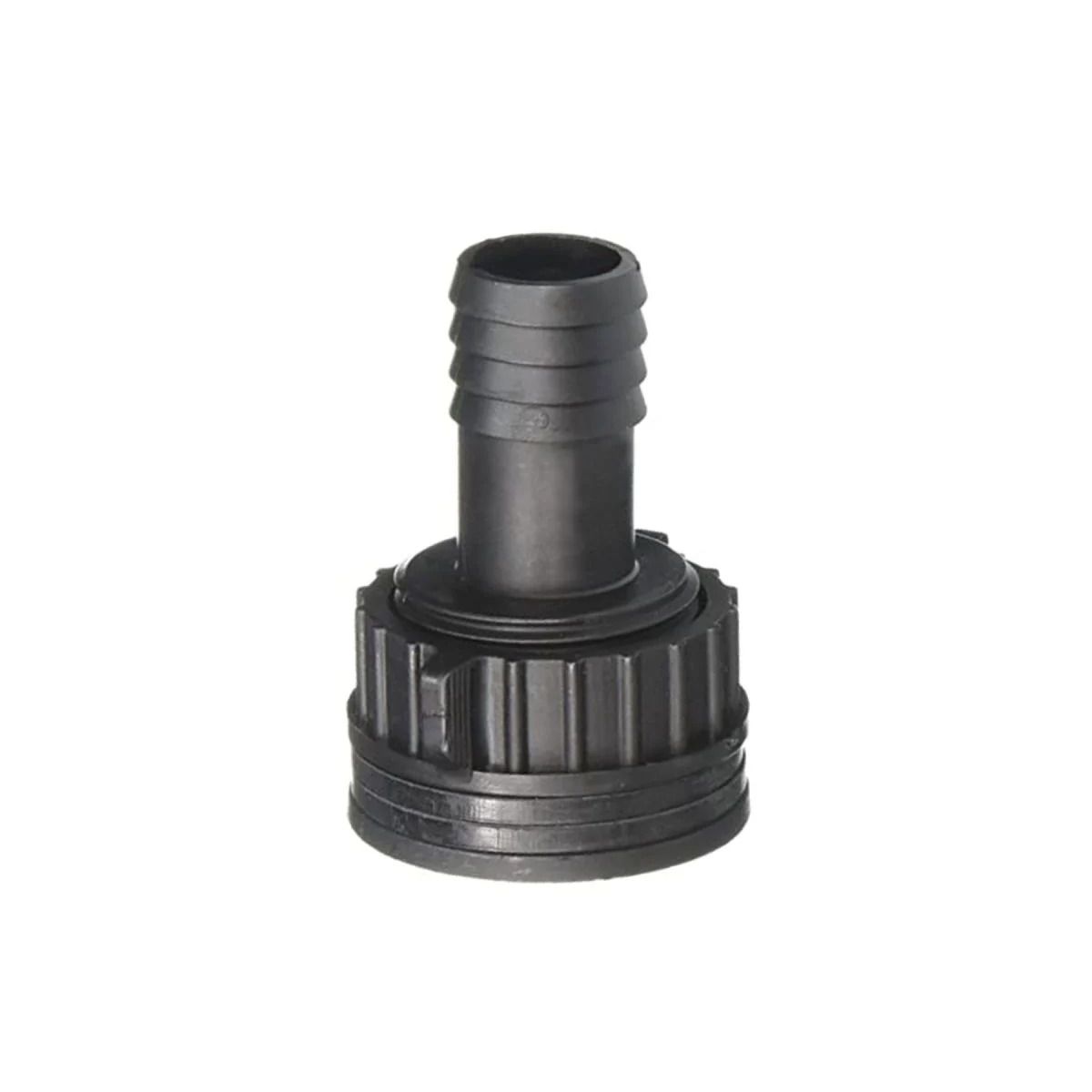

- Drainage integrity: XTrays flood tables require properly fitted drain hardware to complete the nutrient return circuit. The 3/4" drain fittings provide the tub outlet connection, while the drain fitting screens prevent media particles from entering the reservoir and fouling pumps. Both components ship as 10-piece packs — sufficient for multi-table buildouts. For complete ebb and flow system components, including controllers and pumps, browse the dedicated category.
Maximizing System Reliability Across the Grow Cycle
Hardware quality determines baseline performance — but operational practices determine whether that baseline holds through a full season.
- Flood cycle frequency: Ebb and flow systems perform best when flood duration and frequency match substrate type. Fast-draining media like clay pebbles typically require more frequent cycles; rockwool and coco retain moisture longer and tolerate less frequent flooding. Matching cycle timing to media prevents both over-saturation and drought stress at the root zone.
- Reservoir management: Nutrient concentration drifts predictably in sealed systems as plants uptake water faster than dissolved solids — a process called reservoir depletion. Monitoring EC and pH at every reservoir refill, rather than only at top-off events, keeps the nutrient profile consistent and prevents deficiency cascades mid-cycle.

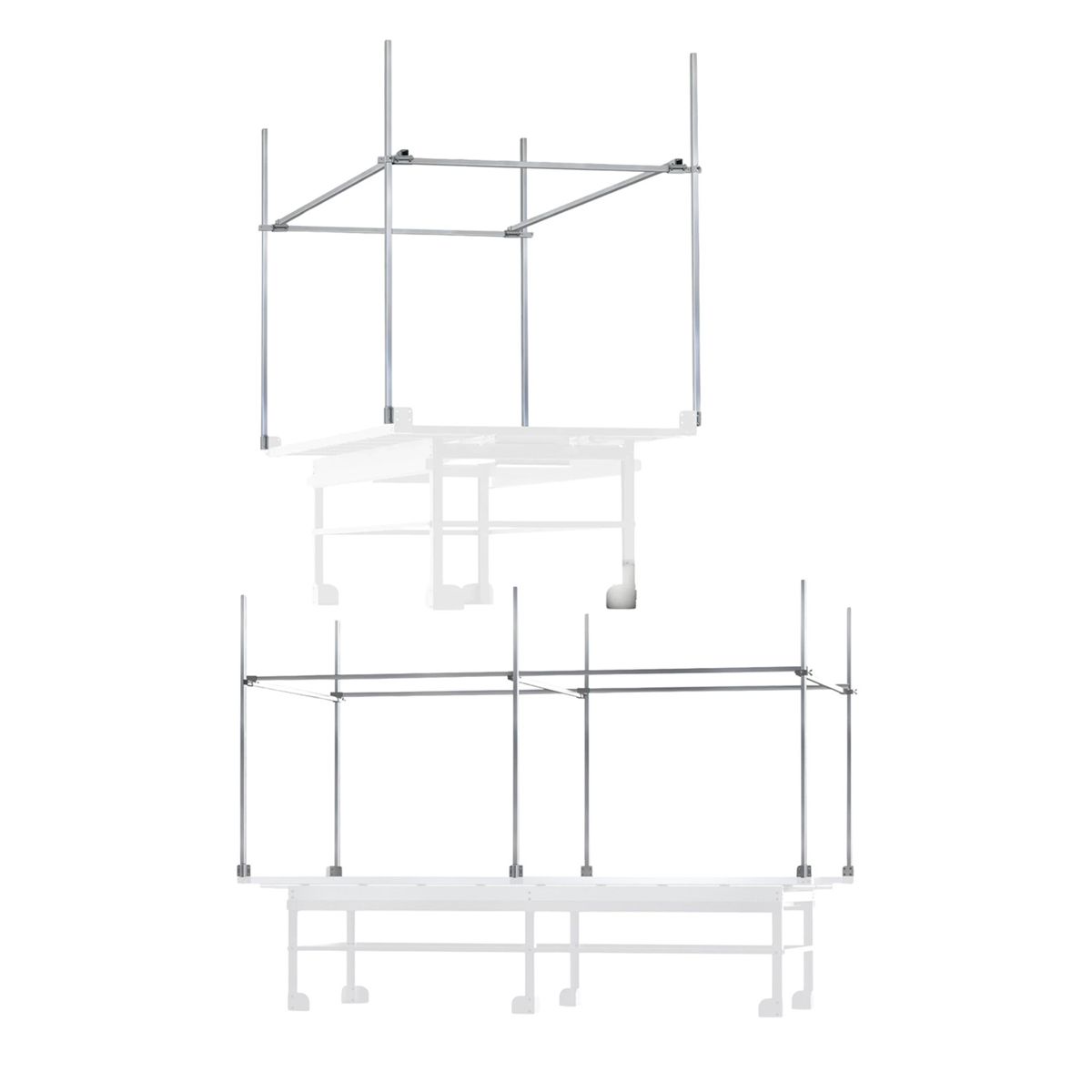

- Canopy support under bench: As plants develop weight in the flowering stage, unsupported stems in high-density bench configurations create airflow obstruction and uneven light exposure. The XTrays Trellis Netting Support System mounts directly over the flood table footprint in 4' x 8' and 5' x 10' configurations, training canopy into even horizontal planes without external frame structures.
Understanding the full agronomic case for flood-and-drain cultivation — from nutrient delivery efficiency to root zone oxygen dynamics — provides the context needed to spec the right system for a given room size and crop. For a broader primer on the methodology, see the 7 Big Advantages of Hydroponics guide. For companion propagation equipment to feed benches with rooted, uniform starts, browse the full propagation category.
Frequently Asked Questions
Why does XTrays use Canadian ABS instead of HIPS for flood table construction?
Most flood tables on the market use HIPS (high-impact polystyrene), which is inexpensive but degrades under repeated chemical exposure and becomes brittle with temperature fluctuations. Canadian ABS is a superior thermoplastic that maintains dimensional stability under thermal load and resists the nutrient solutions used in ebb and flow systems. Over a two-to-three year operating horizon, ABS construction preserves the precise drain slope geometry the table was manufactured with — preventing the pooling and incomplete drain-back that develops in warped HIPS tables over time.
What sizes does the XTrays Classic Flood Table come in?
The XTrays Classic Flood Table is available in multiple sizes, ranging from 3' x 3' for dedicated propagation or single-plant setups up to larger commercial dimensions suited for full-bench configurations. Size selection should correspond to the light fixture footprint above the canopy — a 4' x 8' table pairs efficiently with a single 1000W-class bar fixture running a 4' x 8' bloom footprint. All size variants use the same Canadian ABS construction and accept XTrays drain fittings and reservoir components.
How does a rolling bench recover grow room floor space compared to fixed benches?
Fixed bench configurations require a permanent aisle between every row of benches — space that produces no canopy. A rolling bench system consolidates all benches into a single working aisle that shifts laterally as needed, eliminating the dead aisles between rows. In a typical multi-bench room, this configuration recovers 20–30% of total floor area and converts it to productive canopy. The XTrays Rolling Bench integrates directly with the Classic Flood Table and Classic Reservoir to form a complete, moveable flood-and-drain module within that space-efficient layout.
Does the XTrays reservoir lid make a meaningful difference in system performance?
Yes — open reservoirs lose solution to evaporation, which concentrates dissolved salts and raises EC beyond target parameters between refill events. They also admit light, which accelerates algae growth on interior surfaces and in the nutrient solution itself. The XTrays White Reservoir Lid seals the reservoir against both mechanisms. In rooms with significant heat load or between-cycle intervals longer than 24 hours, using a sealed lid noticeably reduces the frequency of corrective EC and pH adjustments needed to maintain consistent nutrient delivery.
Why do drain fitting screens matter in a flood table system?

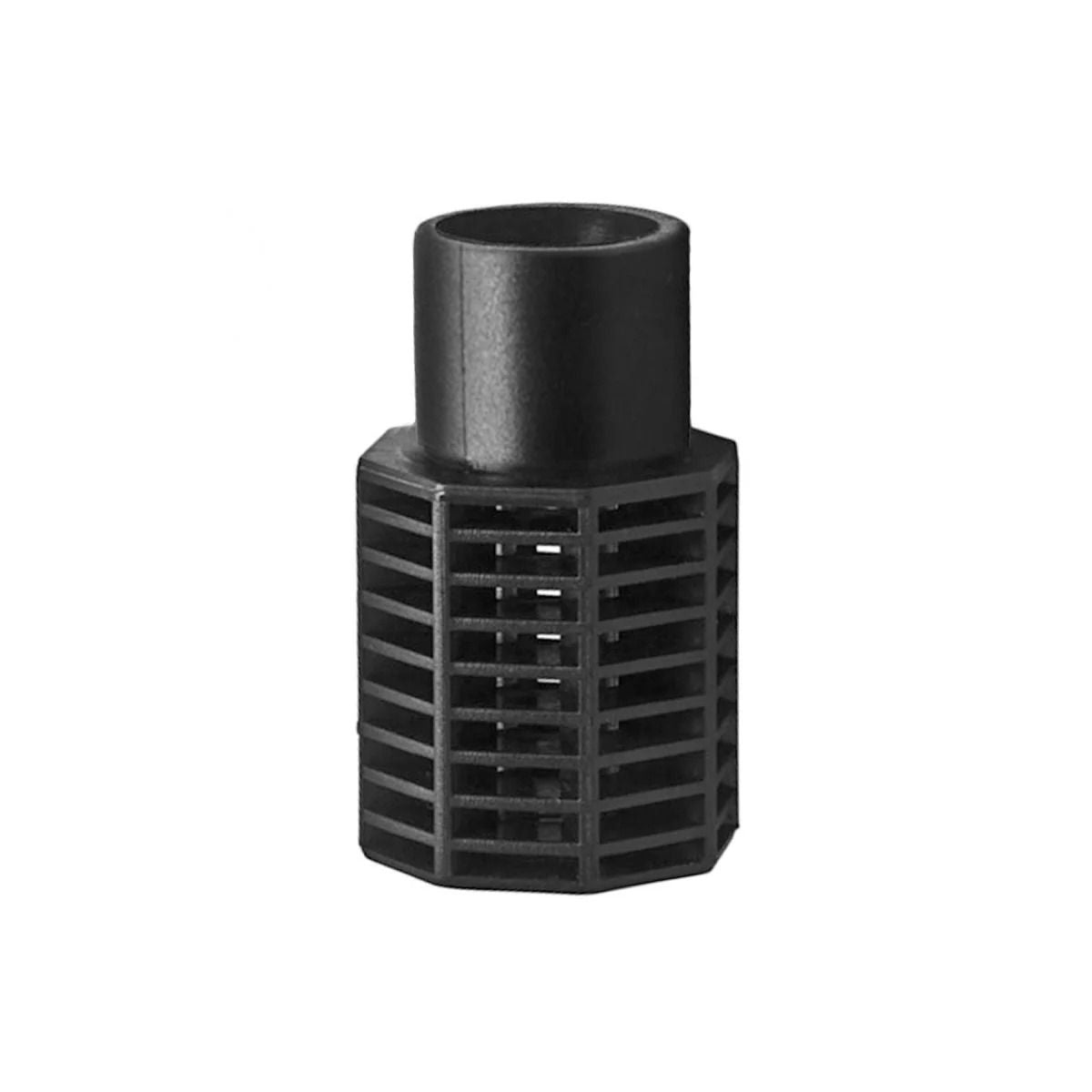

In ebb and flow systems, the drain fitting is the point where nutrient solution re-enters the return line toward the reservoir. Without a screen at the drain outlet, loose growing media — clay pebbles, rockwool fibers, coco particles — pass into the drain line and accumulate in pump intakes and reservoir hardware. The XTrays Drain Fitting Screen (Not Threaded) catches this debris at the source, before it reaches the reservoir and pump assembly. Keeping the drain screened extends pump life and prevents blockages that disrupt flood cycle timing.
When should a grower choose the 70-Gallon Econo Reservoir over the Classic Reservoir?
The XTrays 70-Gallon Econo Reservoir suits operations running multiple flood tables or rolling benches off a shared nutrient supply. Larger reservoir volume provides two key advantages: it buffers concentration changes between refill events (larger volume dilutes plant uptake effects more gradually), and it maintains sufficient supply for simultaneous flood cycles across multiple tables without running the reservoir too low. The Classic Reservoir is better suited to single-table or compact room configurations where total system volume is smaller and the reservoir can be accessed and monitored easily.
What does the XTrays Trellis Netting Support System attach to?
The XTrays Trellis Netting Support System is designed to mount directly over the flood table footprint — specifically the 4' x 8' and 5' x 10' dimensions — without requiring a separate external frame structure. It positions trellis netting at canopy height to train stems into a flat, even horizontal plane as plants develop. This keeps the canopy at a consistent distance from the light fixture, improves airflow through the plant structure, and prevents lateral stem collapse as bud weight increases in late flowering. The system integrates into the XTrays bench footprint without obstructing access to the flood table surface for maintenance.
Can XTrays flood tables be used in propagation as well as full-cycle production?
Yes. The 3' x 3' Classic Flood Table configuration is well suited for dedicated propagation rooms, where uniform moisture delivery across a tray of rooting cubes or clones is critical during the first week of root development. Ebb and flow flooding delivers nutrient solution to all media simultaneously and drains completely — avoiding the overwatering risk of hand-watering in propagation. For operations transitioning clones directly onto production benches, using the same flood-and-drain infrastructure in propagation ensures plants are acclimated to the irrigation delivery method before they reach the flowering room.
