Preserving Molecular Integrity Through Controlled Sublimation
Traditional drying destroys heat-sensitive compounds. Laboratory lyophilization operates at vacuum pressures below 0.01 mbar, converting frozen moisture directly to vapor without passing through the liquid phase—protecting cannabinoids, terpenes, proteins, and pharmaceutical compounds from thermal degradation.
Programmable Control for Validated Processes
Research environments require repeatable protocols and audit trails. Modern laboratory freeze dryers eliminate the guesswork of traditional preservation methods through advanced automation and data logging.
-
Edwards Vacuum Technology: The
Xiros 2's mechanical booster system achieves vacuum levels below 0.01 mbar—the threshold where sublimation efficiency maximizes and processing time minimizes. This industrial-grade vacuum architecture surpasses standard pump configurations found in home units.
-
Touchscreen Protocol Management: Store custom temperature curves, set team permissions, and track activity logs directly through the 5-inch interface. This eliminates manual recordkeeping for GMP compliance and research documentation.
-
Anti-Suck Valve Protection: Power interruptions destroy vacuum integrity in standard systems. Laboratory models maintain chamber conditions during outages, protecting multi-day pharmaceutical runs from contamination and process failure.
Matching Capacity to Application Scale
Processing volume determines equipment selection. Laboratory operations span from R&D sample testing to pilot-scale production, requiring different shelf configurations and ice capacities.
Optimizing Lyophilization for Different Materials
Material composition dictates freeze-dry parameters. Botanical extracts, pharmaceutical compounds, and biological samples each require tailored approaches to achieve stability without degradation.
-
Temperature Precision: Cannabis cultivators processing freshly harvested flower need rapid freezing to lock in terpenes before volatile compounds evaporate. Liquid nitrogen capability reaches -45°C condenser temperatures, creating the thermal gradient necessary for terpene preservation—a feature distinguishing laboratory models from consumer units.
-
Vacuum Depth Matters: Pharmaceutical proteins denature above specific pressure thresholds. The sub-0.01 mbar vacuum levels in laboratory systems prevent protein unfolding during primary drying, maintaining bioactivity that standard vacuum pumps cannot achieve.
-
Shelf Life Extension: Properly lyophilized botanicals maintain cannabinoid profiles and terpene ratios for years when stored correctly. This makes laboratory freeze dryers essential for research institutions conducting long-term stability studies or commercial processors building inventory for seasonal demand fluctuations.
Understanding these parameters transforms freeze-drying from a preservation step into a precision process. For deeper insights into sublimation science and validated protocols, explore our guide on
understanding lyophilization principles.
Frequently Asked Questions
What differentiates laboratory freeze dryers from home preservation units?
Laboratory freeze dryers achieve vacuum pressures below 0.01 mbar using Edwards-grade vacuum systems with mechanical boosters—significantly deeper than consumer models. They feature programmable touchscreen controllers with data logging for GMP compliance, anti-suck valve protection to maintain vacuum during power interruptions, and liquid nitrogen capability for specialized applications requiring condenser temperatures down to -45°C. These systems also include team permission settings and activity tracking for research validation protocols.
Which applications require laboratory-grade lyophilization equipment?
Pharmaceutical research processing proteins, vaccines, or biologics requires validated temperature control and vacuum depth to prevent denaturation. Cannabis extraction laboratories use lyophilizers to preserve terpene profiles in fresh-frozen material. University research programs conducting stability studies need programmable protocols and data logging. Any application where compound degradation impacts research validity or product efficacy benefits from laboratory-grade equipment with precision control and documentation capabilities.
How does shelf configuration impact processing efficiency?

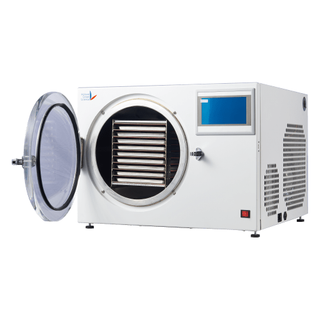

Shelf spacing determines sample capacity and heat transfer efficiency. The Xiros Mikro's modular design allows switching between 5, 7, or 9 shelf configurations to match sample geometry—wider spacing for irregular botanical material, tighter spacing for standardized vials. The Xiros 2's fixed 51mm spacing accommodates pharmaceutical vials in validated arrangements. More shelves increase batch size but may extend cycle time if chamber refrigeration cannot maintain uniform temperature across all levels.
What maintenance requirements should laboratories plan for?
Edwards vacuum pumps require oil changes every 40-60 operating hours depending on material moisture content. Monitor the sight glass for oil clarity and level. Replace vacuum pump oil filters quarterly to prevent contamination buildup. Inspect door gaskets monthly for seal integrity—vacuum leaks extend cycle times and compromise results. The environmental HFC refrigerant systems require annual professional inspection. Budget for replacement trays as materials may warp after extended high-temperature use, and keep spare gaskets and clamps on hand to minimize downtime.
When is liquid nitrogen freezing capability necessary?
Standard HFC refrigeration reaching -45°C condenser temperature handles most applications including pharmaceutical proteins and standard botanical processing. Liquid nitrogen becomes necessary for ultra-rapid freezing of highly volatile terpene-rich cannabis extracts, temperature-sensitive biological samples requiring cryogenic preservation, or research protocols specifying freezing rates faster than mechanical refrigeration achieves. The infrastructure investment only makes sense when sample degradation during conventional freezing compromises research or product quality.
How do programmable controllers improve research outcomes?
Programmable touchscreens eliminate operator variability by storing validated temperature and vacuum protocols. Labs can save up to 120 custom recipes with specific ramp rates, hold times, and endpoint criteria. Team permission settings prevent unauthorized protocol modifications that invalidate research batches. Activity logs provide audit trails for regulatory compliance and research publication documentation. This automation reduces training requirements for new staff and ensures consistent results across multiple operators.
What warranty coverage and support does Holland Green Science provide?
Holland Green Science offers a limited 2-year warranty covering manufacturing defects and component failures under normal operation. The warranty excludes operator error, abuse, or damage from improper use. Maintaining proper operation and following maintenance schedules preserves warranty coverage. Systems include comprehensive manuals, and technical support assists with protocol optimization. As laboratory equipment represents significant capital investment, verify warranty terms and establish a relationship with authorized service providers before installation.
Can laboratory freeze dryers process food alongside research samples?
While technically capable, laboratories should maintain dedicated equipment for food versus research applications to prevent cross-contamination and maintain GMP compliance. The programmable controls and vacuum precision in laboratory models can process food more efficiently than consumer units, but certification requirements and insurance considerations typically mandate equipment segregation. Facilities processing both should invest in separate systems or implement rigorous cleaning validation protocols between application types.
