Buyer's Guide
Water Management: Complete Guide
Control Your Feed Water Chemistry Before It Controls Your Crop
Every dissolved solid, mineral, and chlorine compound in unfiltered tap water competes with the nutrient program a grower spent weeks dialing in. Commercial reverse osmosis removes 98.5% of TDS at the source, giving nutrient formulas a neutral, predictable baseline to work from. The Axeon N-Series delivers that baseline at industrial output levels — pre-plumbed, pre-wired, and factory-tested on a powder-coated aluminum frame, with the AX-8000 Computer Controller automating real-time TDS monitoring, pressure management, and flush cycles so the system runs without constant operator intervention.
The Complete Water Purification Stack: Pre-Treatment, RO, and Automation
A commercial RO system is the centerpiece of a water management build — but it cannot operate in isolation. The XE1-Series thin-film composite membranes that power every Axeon N-Series unit require dechlorinated feed water at 0 ppm free chlorine. Without a qualified carbon pre-treatment stage upstream, membrane degradation begins with the first cycle. Properly spec'd installations treat the RO system, pre-filters, and automation accessories as a single integrated system, not independent components.
- Carbon Pre-Treatment (Mandatory for Municipal Sources): The Axeon Carbon 1252 dechlorinates feed water for N-Series installations through 6,000 GPD output. Higher-capacity builds — N-8000 through N-16000 — step up to the Axeon Carbon 1665, which handles the feed volume those larger membrane arrays demand. Both systems run on 110V and install upstream of the RO unit as a permanent part of the water treatment line.
- Antiscalant Protection for Hard Water Sources: In facilities pulling from high-mineral well or municipal sources, dissolved calcium carbonate and silica accumulate on membrane surfaces over time, restricting flow and accelerating TDS rejection decline. Axeon S-200 Membrane Antiscalant inhibits scale formation at the membrane surface, extending element service life and maintaining rated rejection performance between scheduled maintenance intervals.
- Automated Production and Tank Management: The AX-8000 controller's Tank Level Input accepts a shutoff signal from the Axeon Big Switch Float Switch, halting RO production automatically when the storage tank reaches capacity. Facilities requiring automated antiscalant or pH-adjustment dosing can add the Axeon 15 GPD Chemical Injection System — a 30-gallon tank and metering pump assembly that doses treatment chemistry into the feed line on a controlled, repeatable schedule.
Matching RO Output to Facility Water Demand
Undersizing a commercial RO system creates the same irrigation shortfall risk as the bad feed water it was meant to solve. The N-Series scales cleanly across six output tiers, with system recovery rates improving meaningfully from the entry-level to the high-capacity models — a critical consideration in facilities managing water costs or waste disposal constraints.
- Single-Room and Phased Builds (2,000–4,000 GPD): The N-2000 at 1.39 GPM continuous output is the correct starting point for facilities in initial buildout phases or operations with a single primary cultivation space. Its 32% system recovery reflects the single-membrane architecture — effective for the application, with a direct platform upgrade to higher-recovery N-Series models when canopy and water demand expand.
- Multi-Room and Full-Facility Demand (6,000–16,000 GPD): Facilities running multiple flowering rooms, high-frequency drip irrigation, and large reservoir volumes need multi-membrane array systems where recovery efficiency justifies the capital step-up. N-Series models from the N-6000 onward push system recovery to 58–65%, converting more of every feed gallon into usable purified output and sending less to drain — a meaningful difference at the daily volumes commercial operations consume.
- Downstream System Integration: Purified permeate output feeds into whatever reservoir, RDWC, or recirculating system a facility runs. The Axeon water management stack sits at the head of that workflow — see the full range of commercial hydroponic growing systems available at Trimleaf for the infrastructure that Axeon-purified water feeds into.
What Happens After the RO System: Post-Purification Protocol
Commercial RO systems eliminate dissolved solids — including minerals that plants actively need. Operating on unmodified permeate without addressing post-purification chemistry is one of the most common causes of secondary nutrient deficiency in facilities that have otherwise dialed in their primary nutrient programs.
- Mineral Supplementation Is Not Optional on RO Water: Thin-film composite membranes strip calcium, magnesium, and iron along with the TDS they were installed to remove. Plants fed exclusively on high-purity permeate without mineral replacement will present calcium and magnesium deficiencies regardless of how well the macro nutrient ratios are dialed in. Reintroducing these elements through a purpose-built supplement is standard protocol — not a corrective measure.
- Use Permeate TDS as a Maintenance Trigger, Not a Calendar: The AX-8000's real-time TDS monitoring eliminates guesswork on membrane replacement timing. Rather than scheduling changes on fixed intervals, track the permeate TDS readout over time. A sustained upward trend — not single-reading spikes — indicates genuine rejection efficiency decline and signals that element replacement or a maintenance flush is due.
- Size Storage Tank Capacity to Buffer Peak Demand: Connecting an N-Series system directly to an irrigation line without a buffer tank forces the pump to start-stop cycle with every irrigation event. A properly sized storage tank lets the RO system run in continuous production mode, delivers stable pressure to downstream irrigation infrastructure, and ensures reservoir levels never drop during back-to-back feed cycles at peak canopy demand.
Completing the post-RO protocol — mineral supplementation, TDS-triggered maintenance, and buffered tank storage — closes the loop from purified water to a controlled root zone. FloraFlex Cal+Mag+Iron handles the mineral reintroduction step in a single liquid dose formulated specifically for RO-fed hydroponic and soilless media systems. For the full nutrient program those systems run on, see the nutrients available at Trimleaf.
Frequently Asked Questions
Why does commercial cultivation require dedicated water management equipment?
Municipal and well water sources vary widely in dissolved solids content, chlorine levels, hardness, and mineral load — none of which are visible and all of which affect plant nutrition. High TDS feed water introduces competing ions that interfere with nutrient uptake, causes mineral deposits to accumulate in drip emitters and irrigation lines, and makes EC targets unreliable because the baseline water contribution to EC is unpredictable. At commercial scale, where a single crop cycle represents significant labor, energy, and input costs, feed water variability is an operational risk. A dedicated RO and pre-treatment system eliminates that risk by producing a consistent, nearly TDS-free baseline that nutrient programs can be built on accurately.
What does the Axeon N-Series Water Management category include beyond the RO systems themselves?
The Water Management category covers the complete Axeon purification stack: six N-Series commercial RO systems (2,000–16,000 GPD), carbon pre-filtration systems for municipal dechlorination, zeolite pre-filtration for ammonia removal, sediment pre-filters, XE1-Series and HF5-Series replacement membrane elements, S-200 Membrane Antiscalant for scale inhibition in hard-water applications, Big Switch Float Switches for automated tank-level shutoff, chemical injection systems for automated chemistry dosing, and a protective cover for the N-Series frame. The category is designed so that every component of a complete commercial water treatment installation — from pre-treatment through automation — is sourced in one place.
Is a carbon pre-filter required before every Axeon N-Series RO system?
Yes — for any facility connected to a chlorinated municipal water source, a carbon pre-treatment stage is a hard requirement, not an optional upgrade. The XE1-Series thin-film composite membrane elements used in all N-Series systems have a maximum free chlorine tolerance of 0 ppm. Even brief exposure to chlorinated feed water begins degrading the membrane polymer, accelerating TDS rejection decline and shortening element service life. The
Axeon Carbon 1252 covers installations through 6,000 GPD; the
Axeon Carbon 1665 is sized for higher-output systems. Both install upstream of the RO unit as a permanent part of the feed water line.
How do I calculate the right N-Series output tier for my facility?
Start with total daily water consumption across all irrigation events — reservoir top-offs, mid-cycle feeds, and flush volumes — then add a 20–30% buffer to account for concentrate (reject water) volume the system sends to drain and for production gaps during scheduled maintenance. The N-Series models also vary in system recovery rate: the N-2000 recovers 32% of feed water as purified permeate, while the N-8000 and above reach 65% recovery. At high daily volumes, a 65% recovery system uses significantly less feed water to produce the same permeate output, which matters in facilities managing water costs or wastewater disposal. Also confirm 220V single-phase power availability and circuit capacity — N-2000 and N-4000 draw 8.5 amps; models from the N-6000 upward draw 11.0 amps.
What is the role of antiscalant in a commercial RO installation?
Antiscalant is a chemical treatment dosed into the feed water stream before it contacts the RO membranes. It works by inhibiting the crystallization and precipitation of dissolved minerals — particularly calcium carbonate, calcium sulfate, and silica — that would otherwise accumulate on the membrane surface as water concentrates during the rejection process. As scale deposits build, they restrict flow, raise operating pressure, and reduce rejection efficiency. In facilities with moderately hard to hard source water, antiscalant use is a cost-effective way to extend membrane element service life and maintain rated performance between planned maintenance intervals.
Axeon S-200 Membrane Antiscalant is formulated for use with the XE1-Series elements in N-Series installations.
Why do plants grown on RO water develop calcium and magnesium deficiencies?
RO membranes reject dissolved ions without distinguishing between contaminants and nutrients. Calcium, magnesium, and iron — all essential plant nutrients — are removed from the water column alongside chlorides, sulfates, and other dissolved solids the system was installed to strip out. Growers used to working with hard tap water often rely on the incidental calcium and magnesium content of their source water to partially meet plant requirements. On high-purity RO permeate, that contribution disappears. The result is secondary deficiencies that present as interveinal chlorosis, tip burn, and structural weakness, even when the primary macro nutrient program appears correct. Supplementing RO water with a dedicated calcium-magnesium-iron product before use is standard practice in commercial RO-fed systems — not an afterthought.
What is the chemical injection system used for in a water management setup?
A chemical injection system doses a treatment solution into the feed water line at a controlled, repeatable rate using a metering pump. In RO installations, the most common application is antiscalant dosing — continuously introducing a low concentration of scale inhibitor into the feed water upstream of the membranes on a schedule matched to the system's flow rate. It can also be used for pH adjustment of the feed water or post-treatment water conditioning. The

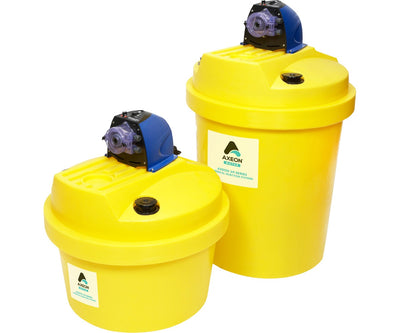

Axeon 15 GPD Chemical Injection System includes a 30-gallon solution tank and a metering pump assembly, replacing manual chemical addition with automated, consistent dosing that scales with the system's daily output.
How does the AX-8000 controller manage N-Series operation without constant monitoring?
The AX-8000 Computer Controller handles four categories of autonomous operation. First, it continuously monitors feed water TDS and temperature and triggers a pre-treatment lockout if either falls outside the specified safe operating range — protecting membrane elements before a degraded water event causes measurable damage. Second, it runs automated feed flush cycles that clear mineral concentration from the membrane surface on a programmed schedule, reducing scale accumulation between manual maintenance intervals. Third, it manages low and high pressure alarms that alert operators when hydraulic conditions deviate from the operating baseline, catching pump or line issues before they cause downtime. Fourth, its Tank Level Input accepts a float switch signal to shut off production automatically when a connected storage tank reaches capacity, preventing unnecessary pump cycling under a full-tank condition.
