- 1x CO2 Alarm System (CDA-1)
- 2x 16ft RJ12 Cable
- 1x 12V Power Adapter
TrolMaster Carbon-X CO2 Alarm System（CDA-1）
starting from 0% interest financing from
/mo.
- Supports up to 13 zones and 40 controlled outputs for facility wide coverage
- Dual level logic triggers localized alarms before activating emergency ventilation
- Runs on standard 100 to 240VAC power and operates in environments up to 122 degrees
- 3-year warranty on mechanical and electronic components
- View More Details
Earn 522 points for shopping and get $5.22 off your next order. Join Harvest Club for free.
Free Shipping On Most Items*
To the lower 48
Transparent Pricing
Backed w/ price match guarantee
4.81/5 Rating
1930+ verified reviews
Secure Checkout
SSL encrypted payments
More in this Series
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are installing a multi-zone system because localized CO2 leaks often go unnoticed in a large facility.
- You are adding automated shut-offs because manual valves are too slow to react during a high-CO2 event.
What We Found
- The RJ12 cable system makes adding sensors much faster than dealing with traditional industrial hardwiring.
- Supporting 13 zones from a single controller provides more coverage per dollar than other systems we have stocked.
- The dual alarm levels prevent total gas loss by triggering ventilation only when the first shutdown stage fails.
What Users Say
- Facilities that installed this system passed local building inspections without the usual back and forth on compliance.
- Staff feel more secure in high rooms knowing the system triggers localized alerts before levels become hazardous.
- Operators say the automated shutdown saved their entire CO2 supply when a solenoid failed in a closed room.

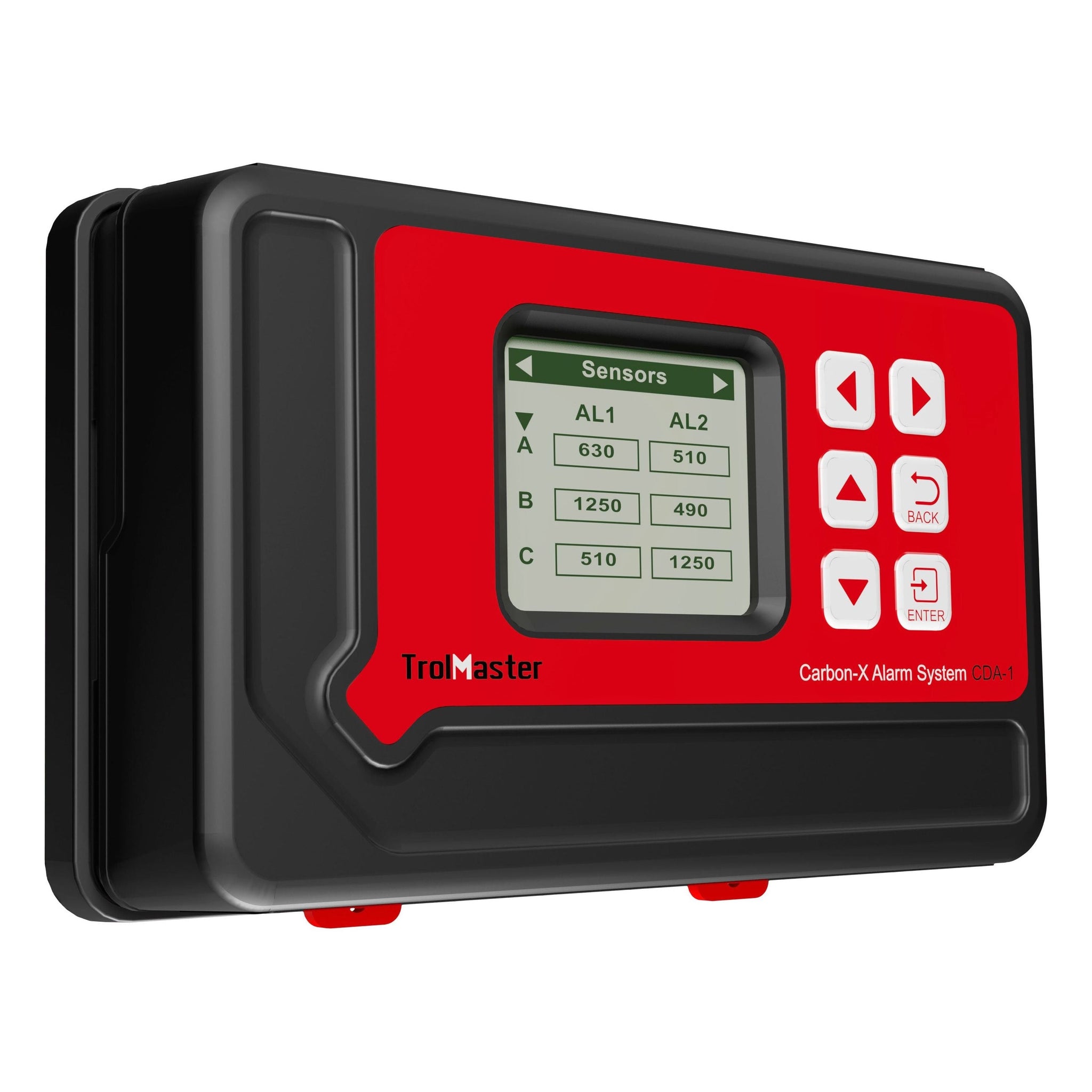

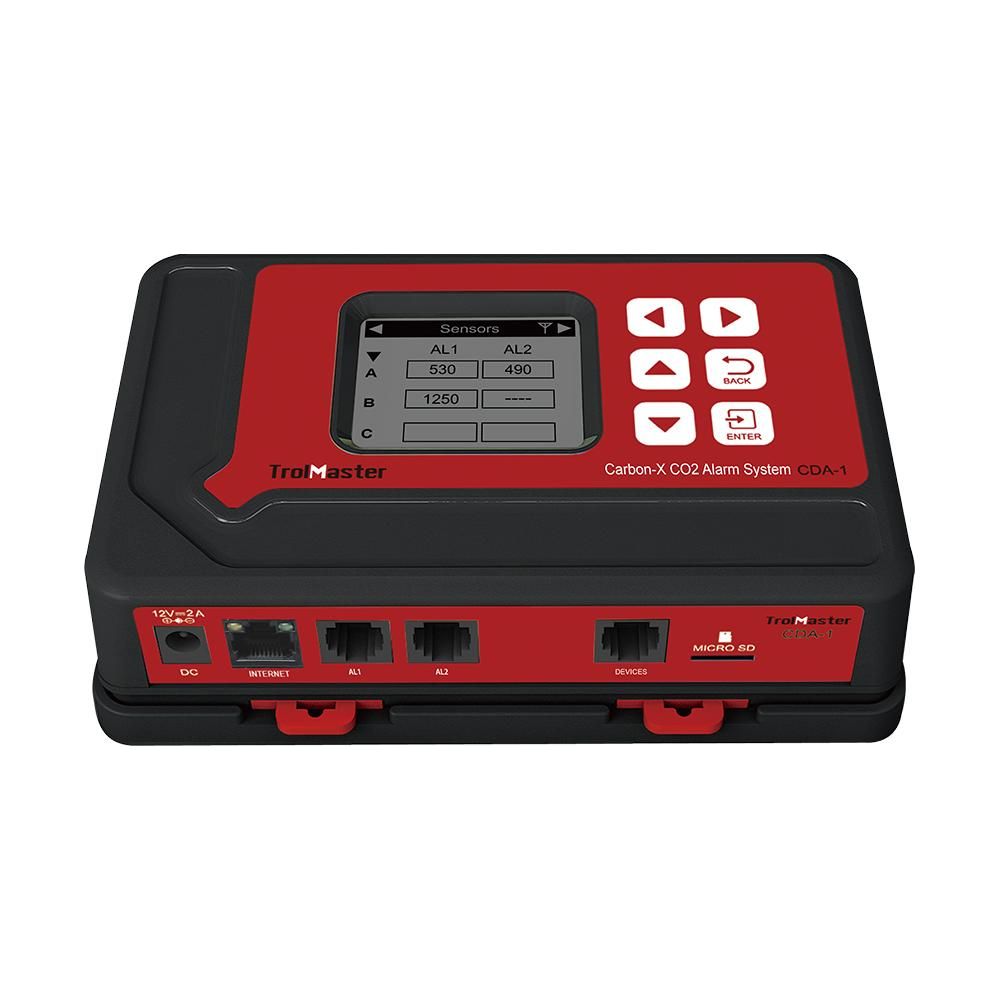

TrolMaster Carbon-X CO2 Alarm System（CDA-1）
While enriching your grow space with CO2 can significantly boost plant yields, it introduces critical safety risks that must be managed with precision. High concentrations of CO2 are hazardous to both personnel and plants, making a reliable, automated monitoring system an essential component of any professional environmental control strategy.
The TrolMaster Carbon-X CO2 Alarm System (CDA-1) is a high-performance, modular solution designed to provide comprehensive protection across your entire facility. Supporting up to 13 individual monitoring zones, this system integrates seamlessly with the TrolMaster Carbon-X MBS-K30 CO2 Sensor and various alert modules from the TrolMaster Carbon-X line, such as the TrolMaster Carbon-X AS-1 CO2 Alarm Control. This ensures full compliance with occupational safety codes while maintaining a secure environment for your team and your crops.
What's Included
Features
🛡️
Employee Safety
Complies with strict safety standards, providing instant alarms and interventions to purge excess CO2.
🏢
Multi-Zone Monitoring
Monitor and trigger localized alarms in up to 13 separate areas using the modular CDA-1 controller.
🚨
Dual Alarm Levels
Features two distinct levels of intervention, including valve shutdowns and emergency ventilation activation.
🔗
Advanced Integration
Connects with alarm stations, emergency stops, and visual indicators for a complete safety network.
🛑
Automated Response
Instantly shuts down CO2 sources to prevent hazardous accumulation within your cultivation space.
✅
Professional Compliance
Designed to meet high occupational safety standards for commercial greenhouse and indoor grow operations.
TrolMaster Carbon-X CO2 Specifications
| Specification | Value |
|---|---|
| Input Voltage | 100-240VAC, 50/60Hz |
| Max Sensors | 13 pcs per Alarm channel |
| Max controlled output | 40 pcs |
| Working Environment | Temperature 32-122°F, Humidity<=90% |
| Package Dimensions | 275mm(L) x 164mm(W) x 62mm(H) |
Support & Manuals
Warranty
TrolMaster uses only high-quality components. Under normal operating conditions, mechanical and electronic components are covered by a three-year warranty from the original date of purchase. Components that fail due to abnormal usage or environmental damage are excluded from this coverage.
FAQs
How many zones can the CDA-1 monitor?
The CDA-1 is a modular system capable of monitoring up to 13 separate zones, making it ideal for large commercial facilities with multiple grow rooms.
Can the Carbon-X alert emergency services?
Yes, the system can be configured to trigger external alarms and integrate with building safety systems to alert emergency services if CO2 levels exceed critical safety limits.
Are the CO2 sensors included with the CDA-1?
No, the CDA-1 acts as the central control unit. Sensors like the TrolMaster Carbon-X MBS-K30 CO2 Sensor must be purchased separately based on your zone requirements.
What automated actions does the system take during an alarm?
The system can instantly deactivate CO2 solenoid valves, activate high-powered exhaust fans, and trigger audible/visual alerts via stations like the TrolMaster Carbon-X AS-1.
Does this system ensure compliance with local safety codes?
Yes, the Carbon-X system is specifically designed to help cultivation facilities meet occupational health and safety regulations regarding the use of supplemental CO2.
What is the standard warranty period?
TrolMaster provides a three-year warranty on all mechanical and electronic components of the CDA-1 system under normal operating conditions.
