TrolMaster Carbon-X: Complete Guide
How Do I Choose the Right Carbon-X CO2 Safety System?
The TrolMaster Carbon-X is a dedicated CO2 safety monitoring and response system for cultivation facilities running supplemental CO2 enrichment. It is not a general-purpose environmental controller. It continuously monitors CO2 concentrations, alerts personnel before they enter a hazardous space, shuts off the CO2 source automatically when concentrations reach critical thresholds, and activates ventilation to clear the room. Every component connects to the CDA-1 central hub via RJ12 cable on the same bus standard used across all TrolMaster platforms.
What Carbon-X Components Do I Need?
A single-room setup pairs the CDA-1 with one MBS-K30 sensor at knee height, one alarm station at the room entry, and one DSE-1 to cut the CO2 supply valve on a fault event. Multi-room facilities add alarm stations at each entry point and a DSC-1 to automate ventilation as a second response layer after the DSE-1 cuts CO2. The CDA-1 manages up to 13 monitoring zones from a single controller.
What Should I Look for in a CO2 Monitoring System?

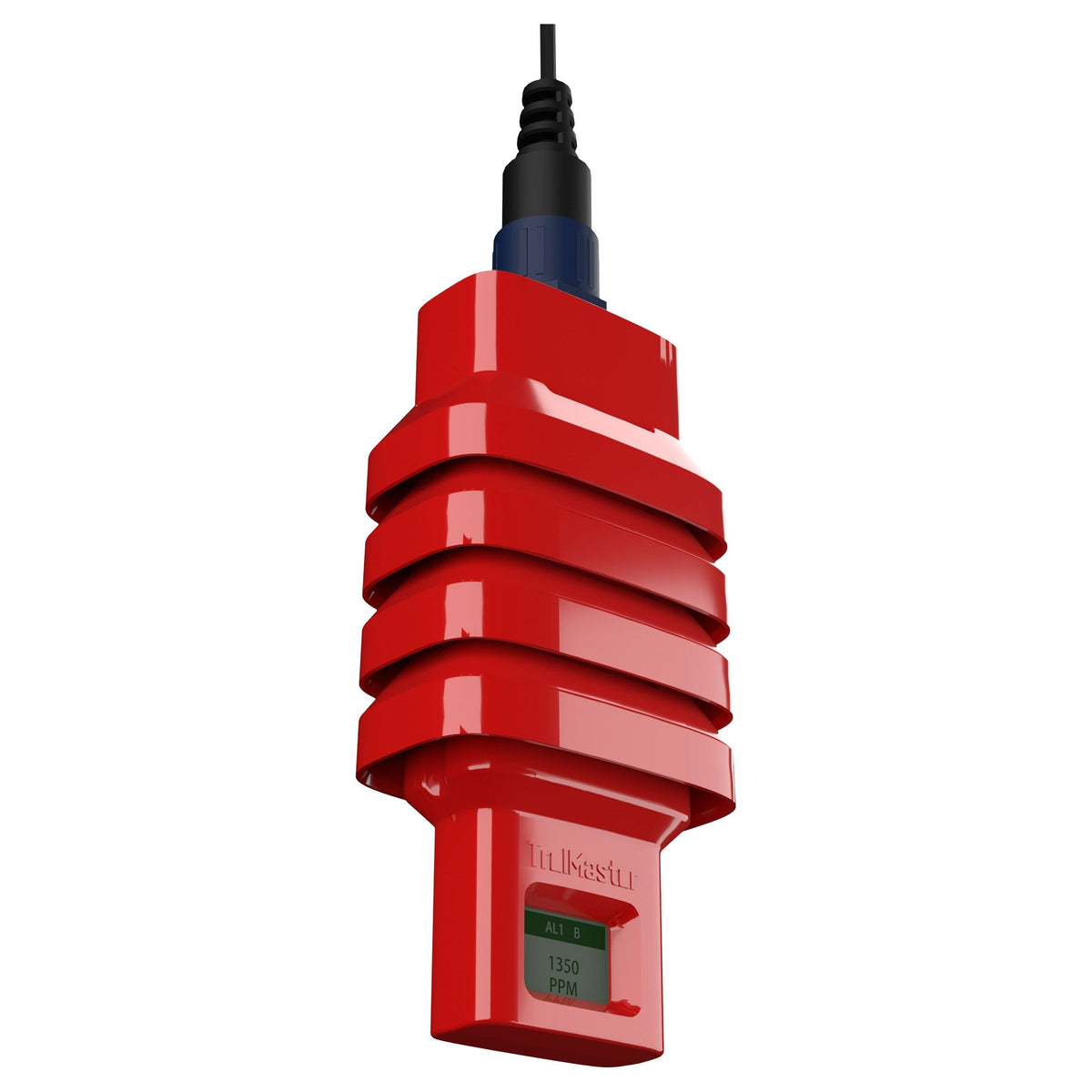

- High-range sensor accuracy: Standard grow room CO2 monitors top out at 2,000 to 5,000 ppm, which is calibrated for enrichment optimization, not safety. Equipment failures (stuck solenoids, ruptured lines, burner malfunctions) can push concentrations well beyond those levels in a sealed room within minutes. The MBS-K30 reads up to 30,000 ppm, giving the CDA-1 accurate data across the full spectrum of possible CO2 events.
- Automatic source shutoff: Alarm stations warn personnel who are about to enter, but they do not stop the CO2 from accumulating. The DSE-1 is a normally-closed relay that cuts power to the CO2 solenoid the same second the threshold is crossed, removing the source without manual intervention. For any facility where CO2 runs unattended, automatic shutoff is a required component.
- Layered ventilation response: Removing the CO2 source alone does not clear an enriched room. The DSC-1 completes the response loop by activating exhaust fans when the CDA-1 triggers a CO2 event, actively drawing the accumulated gas out of the space rather than waiting for passive dissipation.
- OSHA-aware alarm thresholds: OSHA sets an 8-hour permissible exposure limit of 5,000 ppm for CO2. Concentrations above that level impair cognitive function, and levels above 40,000 ppm are life-threatening. The Carbon-X alarm and shutoff thresholds should be configured well below the OSHA ceiling so the system responds before personnel exposure becomes a regulatory or health issue.
- Environmental integration: Facilities running a Hydro-X environmental controller alongside the Carbon-X see CO2 safety alerts in the same TrolMaster app dashboard that manages temperature, humidity, and irrigation data, consolidating monitoring into a single notification layer.
CO2 enrichment amplifies yields only when the broader environment is controlled precisely enough to run it consistently. The complete grow room setup guide covers how CO2 supplementation fits within the broader environmental stack, including ventilation sizing, dehumidification capacity, and the sequencing of automation layers that professional facilities build before scaling enrichment.
Related Guides
- How to Set Up TrolMaster CO2 Monitoring with Carbon-X
- Best CO2 Controllers for Grow Rooms
- TrolMaster Sensors Explained
- How to Automate Your Grow Room
Frequently Asked Questions
What is the TrolMaster Carbon-X and what problem does it solve?
The Carbon-X is a dedicated CO2 safety monitoring and response system for cultivation facilities running supplemental CO2 enrichment. It continuously monitors CO2 concentrations via the MBS-K30 sensor, alerts personnel through visual and audible alarm stations before they enter a hazardous space, automatically shuts off the CO2 supply via the DSE-1 emergency stop station, and activates ventilation equipment through the DSC-1 device station, all triggered and coordinated by the CDA-1 central hub.
What is the CDA-1 and what does it control?

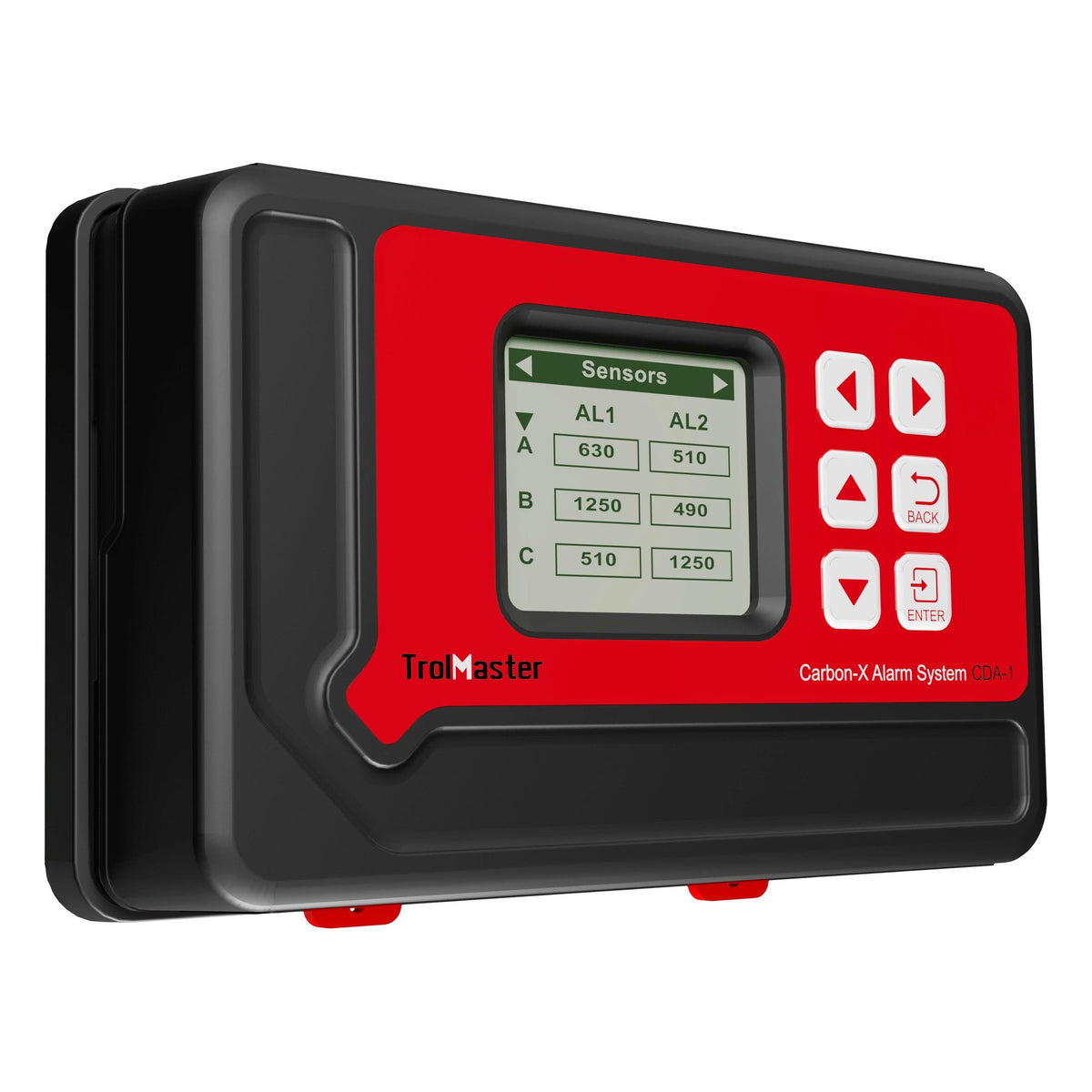

The CDA-1 is the central control hub of the Carbon-X system. It receives real-time data from connected MBS-K30 CO2 sensors, processes threshold events, and coordinates all downstream responses: triggering alarm stations, activating the DSE-1 emergency stop, enabling the DSC-1 ventilation device station, and sending app notifications. The CDA-1 supports up to 13 monitoring zones from a single unit and communicates through RJ12 cables using the same bus architecture as other TrolMaster platforms.
What is the difference between the AS-1, AS-3, and AS-4 alarm stations?

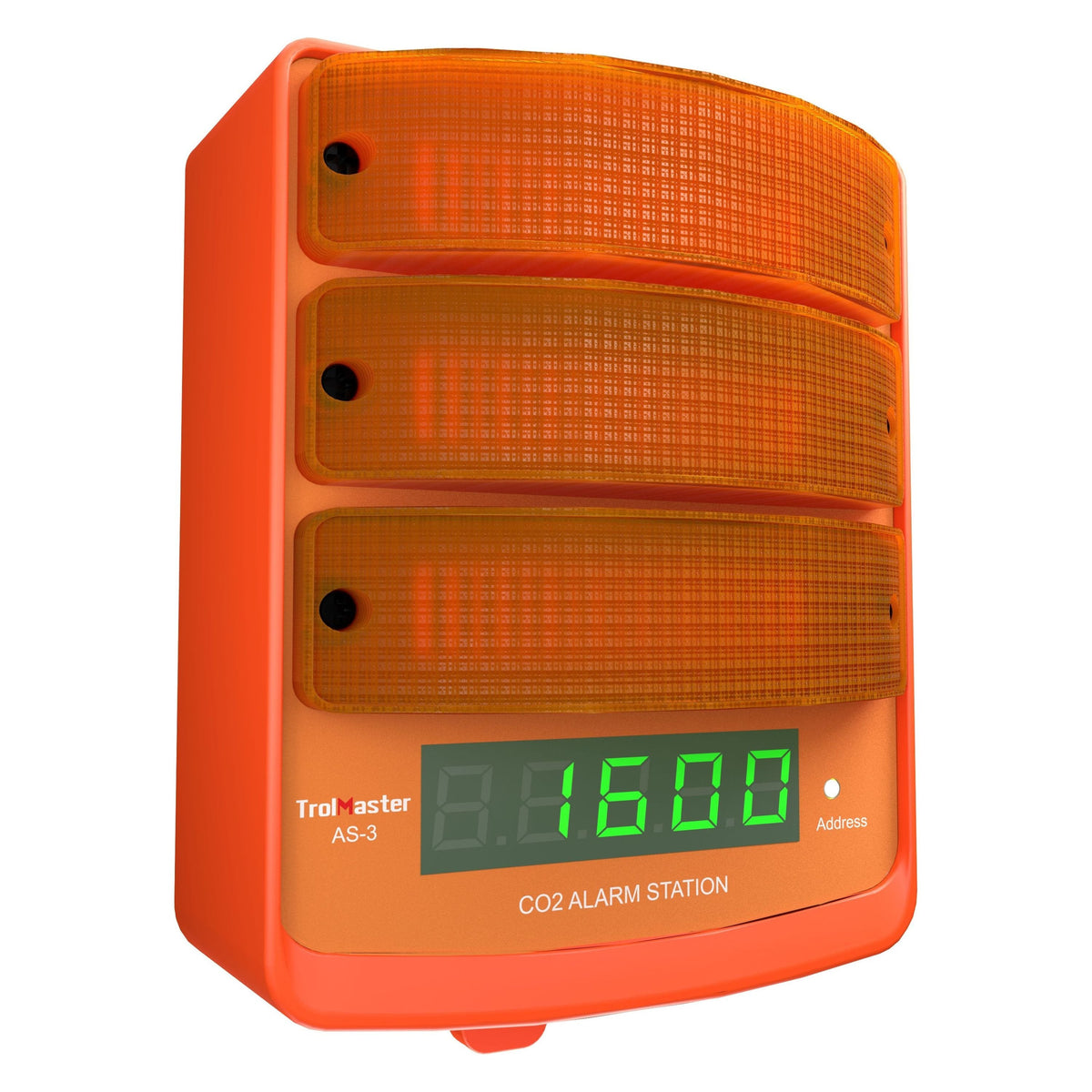

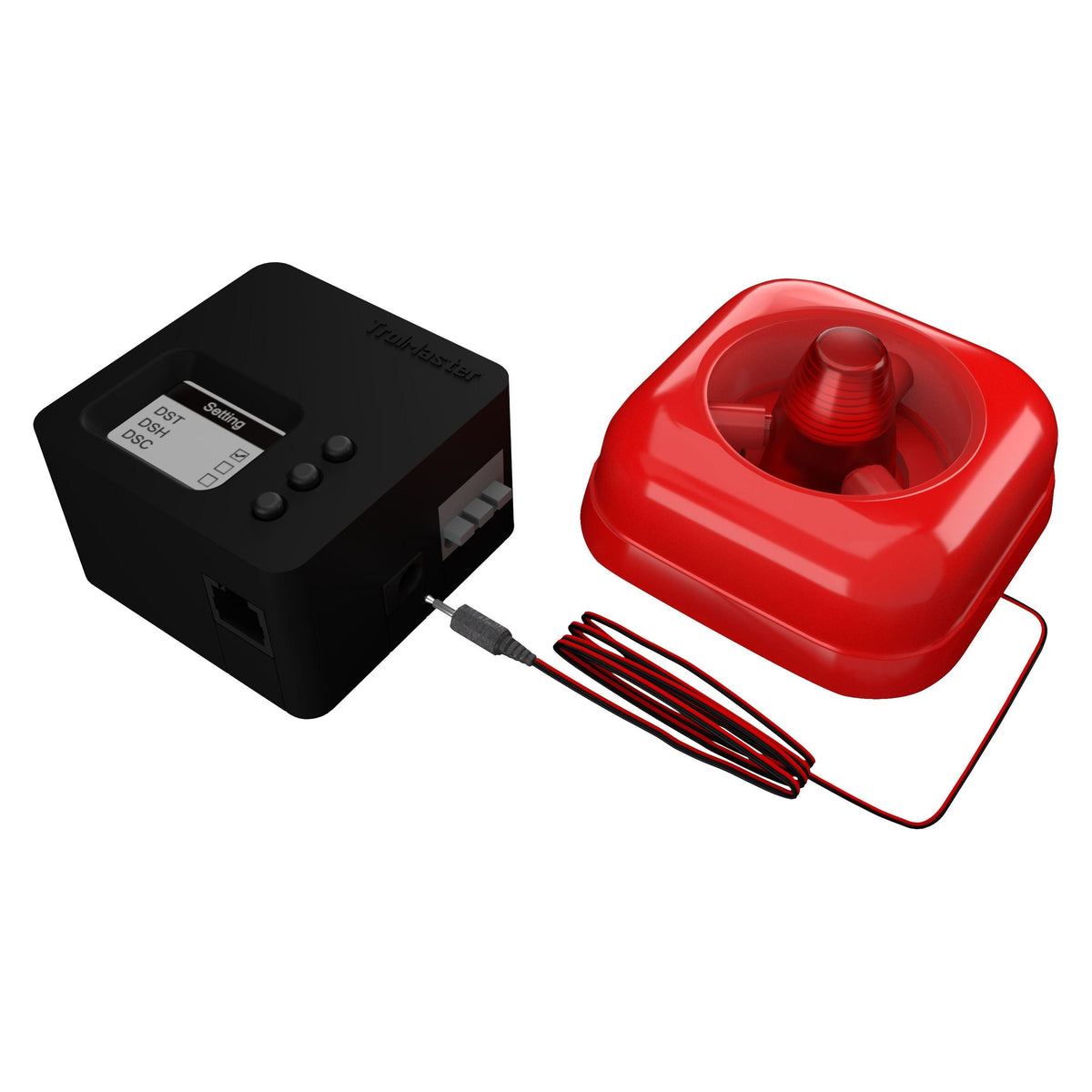

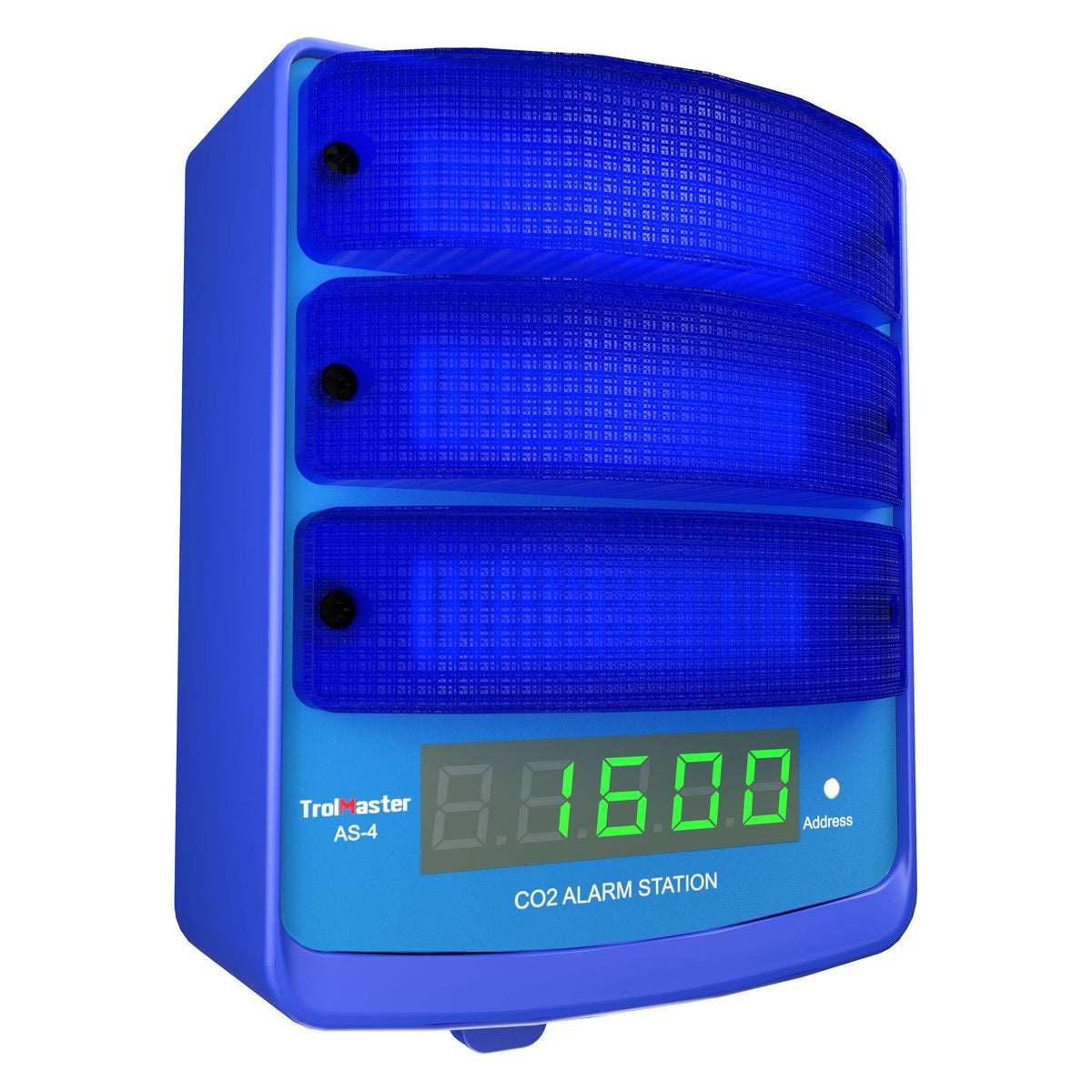

All alarm stations provide audible and visual CO2 warnings at room entry points, but they differ in output type. The AS-1 delivers a combined siren and visual alert. The AS-3 adds a high-visibility amber beacon for facilities where ambient noise makes an audible-only alarm unreliable. The AS-4 uses a blue beacon configuration, useful in multi-room facilities that use color-coded zone warnings to differentiate hazard types. The choice depends on facility safety protocol and ambient noise levels.
How does the DSE-1 emergency stop station work?
The DSE-1 is a normally-closed relay that keeps your CO2 solenoid valve energized during normal operation and cuts power to it the moment the CDA-1 detects a CO2 fault condition. This eliminates the failure mode where a manual shutoff is needed during an active emergency. The CO2 source is removed the same second the threshold is crossed. Alarm stations warn personnel about to enter, but only the DSE-1 stops the gas from continuing to accumulate.
Why does the MBS-K30 sensor measure CO2 up to 30,000 ppm when growing levels are around 1,500 ppm?
Standard CO2 monitors measure up to 2,000 to 5,000 ppm, a range calibrated for enrichment optimization, not safety. Equipment failures such as a stuck solenoid, ruptured line, or burner malfunction can push concentrations dramatically beyond enrichment levels in a sealed room within minutes. A sensor that saturates at 5,000 ppm cannot distinguish between a room at 1,500 ppm and one at 20,000 ppm. The MBS-K30 extended range ensures the CDA-1 receives accurate readings across the full spectrum of possible CO2 events.
Does the Carbon-X integrate with the TrolMaster Hydro-X environmental control system?
Yes. The Carbon-X operates on the same RJ12 bus architecture as the Hydro-X and shares the TrolMaster app interface. CO2 safety alerts appear in the same dashboard alongside temperature, humidity, and lighting data. The two platforms operate independently, but facilities running both benefit from consolidated monitoring and a single notification layer across environmental control and CO2 safety.
Where should the MBS-K30 CO2 sensor be positioned for safety monitoring?
CO2 is approximately 1.5 times denser than air and accumulates at floor level first in a sealed environment. For safety monitoring, mount the MBS-K30 at approximately knee height (18 to 24 inches above the floor) rather than at canopy height. This lower placement detects accumulation events earlier, giving the CDA-1 more response time. Facilities running both enrichment management and safety monitoring should use two sensors: one at canopy height for enrichment and one at floor level for safety. Avoid mounting near air vents, fans, or doorways where airflow disrupts readings.
What warranty does TrolMaster offer on Carbon-X products?
TrolMaster covers Carbon-X hardware with a three-year warranty on mechanical and electronic components under normal operating conditions. This applies to the CDA-1 hub, MBS-K30 sensor, alarm stations, DSE-1 emergency stop station, DSC-1 device station, and associated accessories. Components that fail due to abnormal usage, improper installation, or operation outside the rated environmental specifications are excluded from coverage.
