How Do I Choose the Right Aqua-X Irrigation Controller?
The
TrolMaster Aqua-X line includes three irrigation controllers built on the same modular RJ12 bus architecture. All three connect to valve boards, substrate sensors, pH/EC probes, and leak detectors, and all three are managed through the TrolMaster app. The difference is scale: zone count, sensor capacity, and interface sophistication increase as the facility grows from a single room to a multi-zone commercial operation.
What Aqua-X Tier Fits My Irrigation Needs?
| Feature |
NFS-1 |
NFS-2 (Pro) |
NFS-3 (Plus) |
| Display |
LCD |
10" Touchscreen |
7" Touchscreen |
| Zone / Device Capacity |
30 zones |
300 pumps + 300 solenoids |
240 devices |
| Sensor Capacity |
8 WCS + 1 AMP-2 |
50 nutrient + 50 medium |
25 individual sensors |
| Volume-Based Feeding |
No |
Yes (DFM-1) |
No |
| Crop Steering (VWC triggers) |
No |
Yes |
Yes |
| Best For |
Single-room, up to 30 zones |
Large commercial, precision dosing |
Mid-to-large facility, crop steering focus |
The

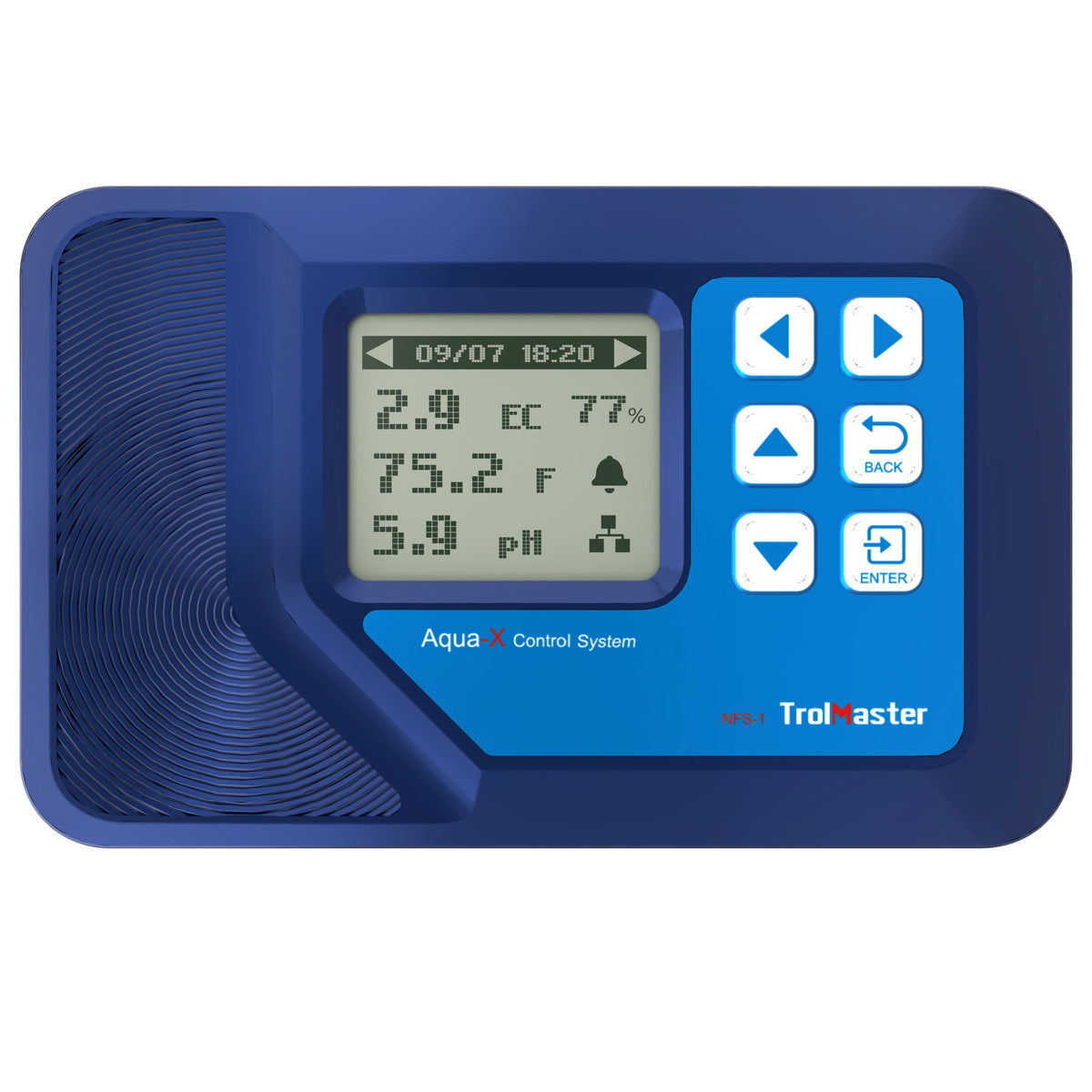

NFS-1 handles up to 30 independently scheduled irrigation zones and supports pH, EC, and substrate moisture monitoring through add-on sensor boards and probes. For single-room grows and small commercial setups, it covers the full automation stack without the overhead of a touchscreen interface. The

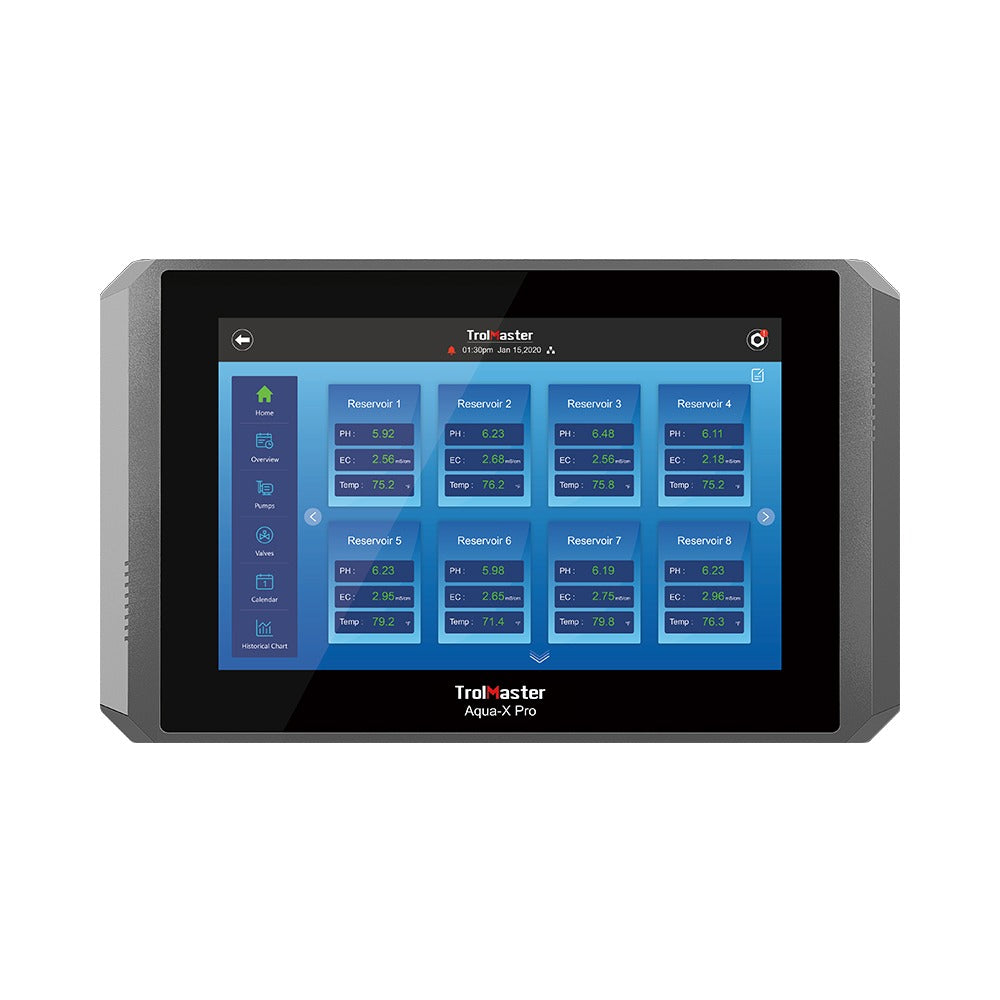

NFS-2 (Pro) scales to 300 pumps and 300 solenoids with a 10-inch touchscreen, volume-based feeding via the DFM-1 flow meter, and capacity for 100 sensors across nutrient and medium monitoring. The

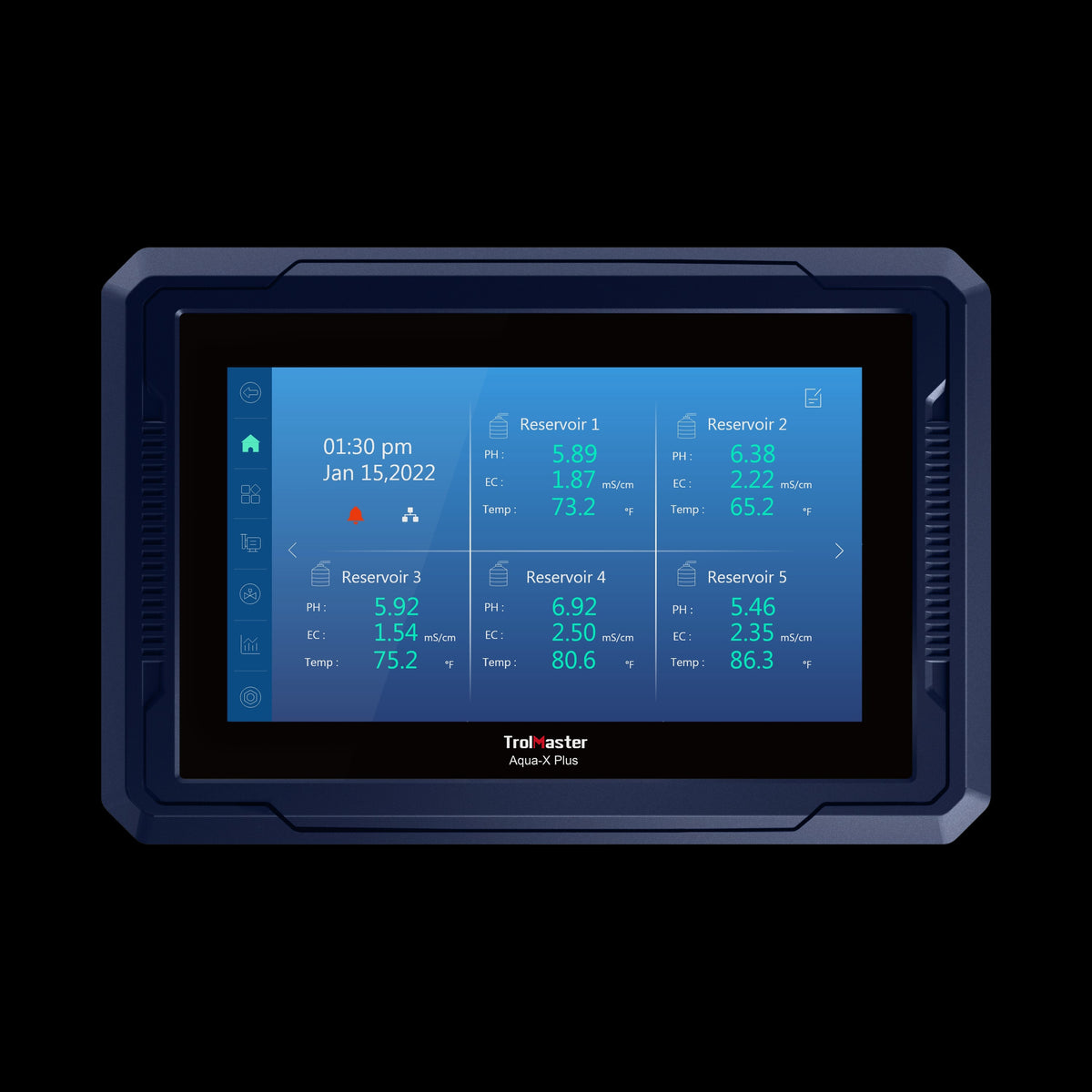

NFS-3 (Plus) supports 240 devices and 25 sensors with a 7-inch touchscreen, and adds automated crop steering by triggering irrigation events based on real-time substrate dry-back percentages.
What Should I Look for in an Automated Irrigation System?
-
Substrate-driven triggers over fixed timers: A system that fires irrigation events based on measured water content in the growing medium eliminates the guesswork of clock-based schedules. The Aqua-X pairs WCS substrate sensors with the controller to trigger feeds at the optimal saturation threshold for each cultivar and container size.
-

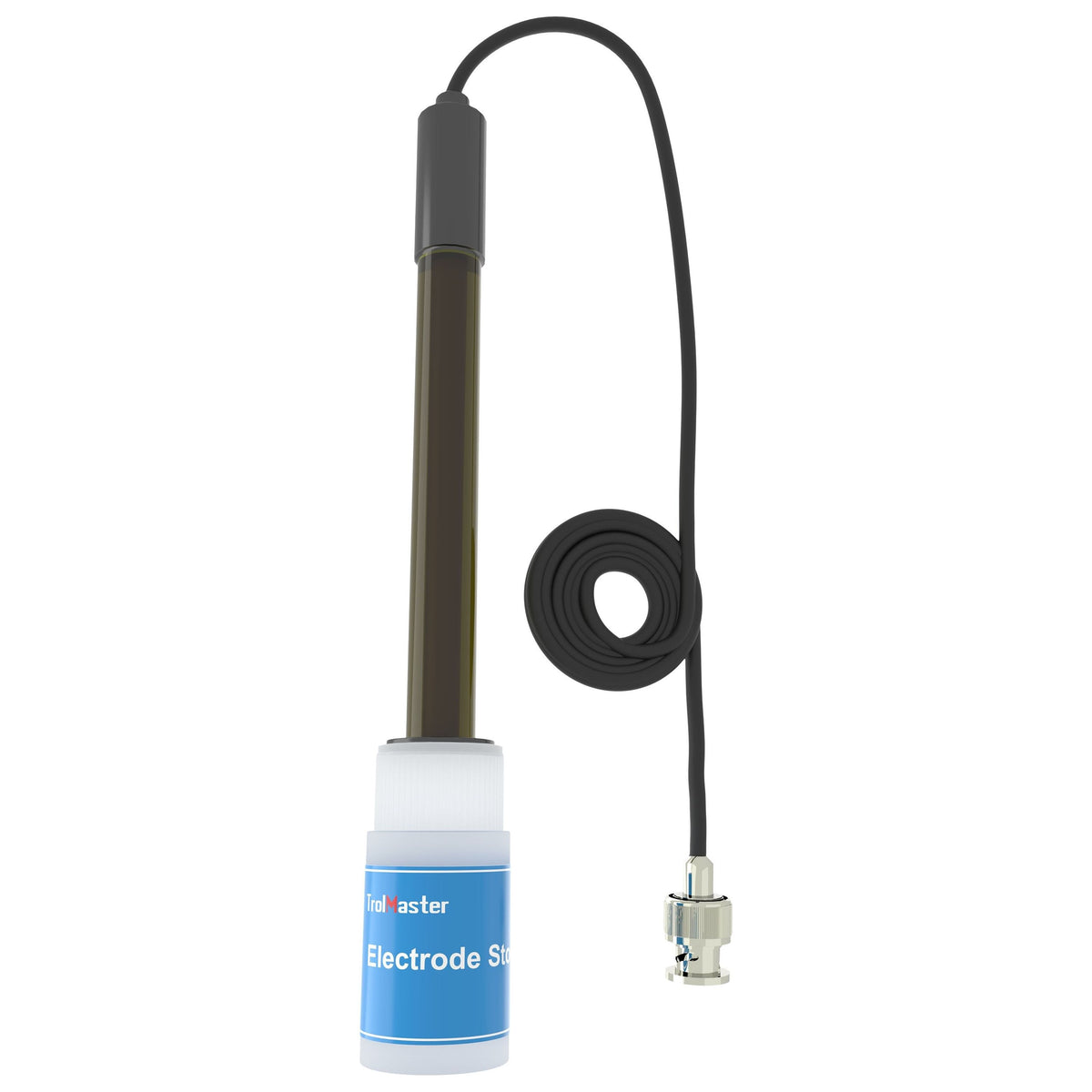

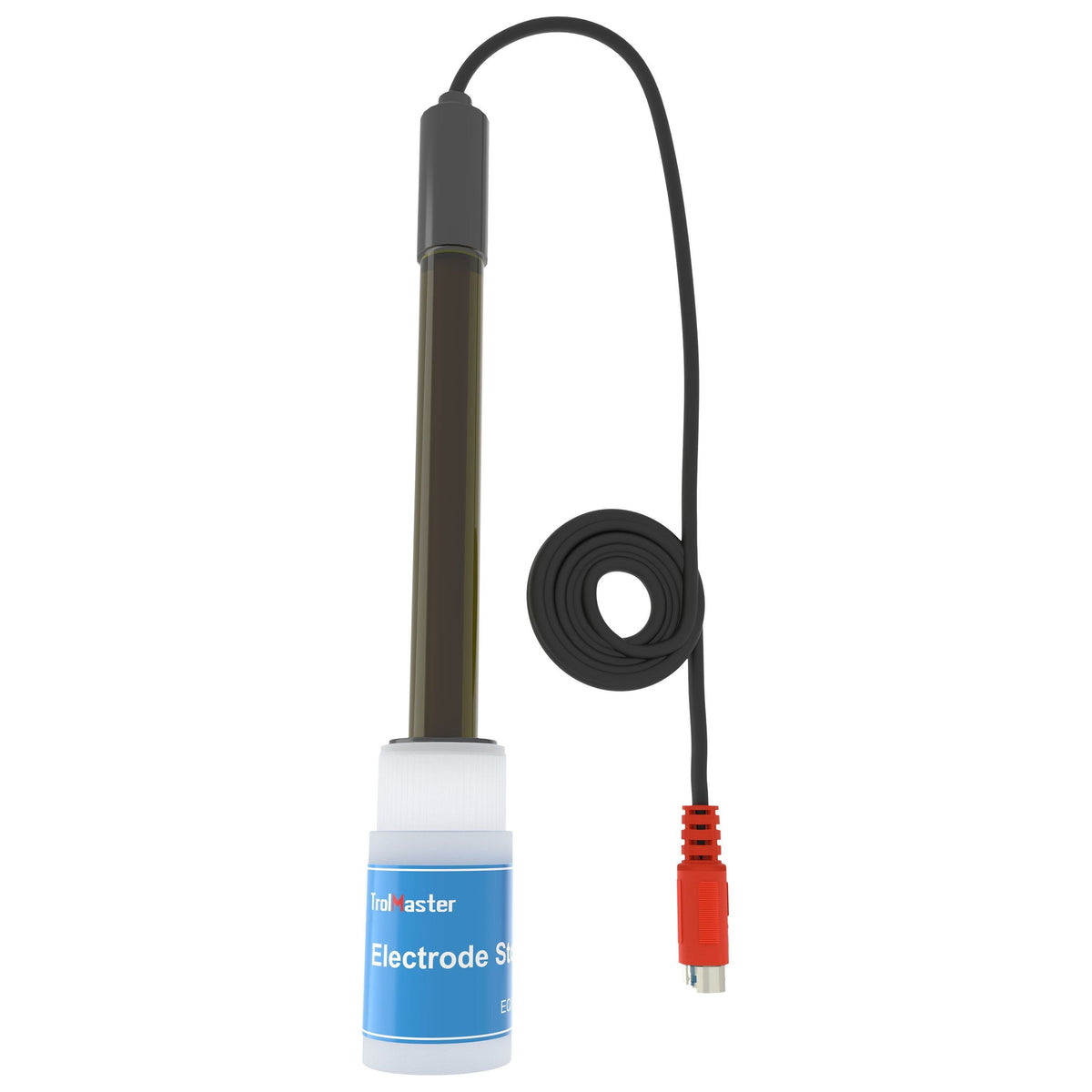

Nutrient solution monitoring: pH and EC drift between feed events, and catching that drift before it reaches the root zone requires continuous reservoir sensing. The AMP sensor boards connect pH, EC, and temperature probes to the controller and push alerts when values leave the target range.
-
Leak detection coverage: Water damage in a sealed grow environment compounds quickly. The WD-1 leak detectors (up to 30 per NFS-1) monitor floor-level moisture at reservoir perimeters, table drain points, and manifold routes, sending immediate app notifications when water is detected.
-
Scalable zone architecture: A modular system that adds valve boards and sensor capacity without replacing the controller protects the initial investment as the facility expands. All three Aqua-X tiers use the same RJ12 bus and the same accessory ecosystem.
-
Environmental integration: Irrigation demand shifts with temperature, humidity, and VPD. Facilities running a
Hydro-X environmental controller alongside the Aqua-X manage both systems through the same TrolMaster app, so transpiration-driven feed adjustments stay coordinated with the environmental data producing them.
Irrigation automation is one layer within a broader environmental control strategy. The
complete grow room setup guide covers how automated fertigation integrates with lighting, VPD management, and CO2 enrichment to build a data-driven cultivation environment from the ground up.
Related Guides
Frequently Asked Questions
What is the TrolMaster Aqua-X and how does it differ from a standard irrigation timer?
The Aqua-X is a professional irrigation automation platform that replaces fixed-schedule timers with sensor-driven irrigation decisions. Standard timers fire feed events at predetermined intervals regardless of actual substrate moisture or solution chemistry. The Aqua-X controller connects to substrate water content sensors, pH and EC probes, and environmental data from the Hydro-X system, using real-time readings to trigger irrigation when the plant and medium require it, not when a clock says to.
How many irrigation zones can one Aqua-X controller manage?
The NFS-1 supports up to 30 independently controlled zones via OA6-24 valve boards. The NFS-3 (Plus) expands to 240 total devices, and the NFS-2 (Pro) handles up to 300 pumps and 300 solenoids for the largest commercial operations. All three tiers manage connected devices through a single app interface.
What is the difference between the OA6-24 and OA6-110 control boards?
Both are six-outlet valve control boards that connect to the Aqua-X controller. The OA6-24 controls 24V AC solenoid valves, which is the standard voltage for most horticultural drip, flood-and-drain, and NFT systems. The OA6-110 controls 120V AC devices for operations running line-voltage solenoid valves or small pumps. Both boards can operate simultaneously on the same controller to accommodate mixed equipment.

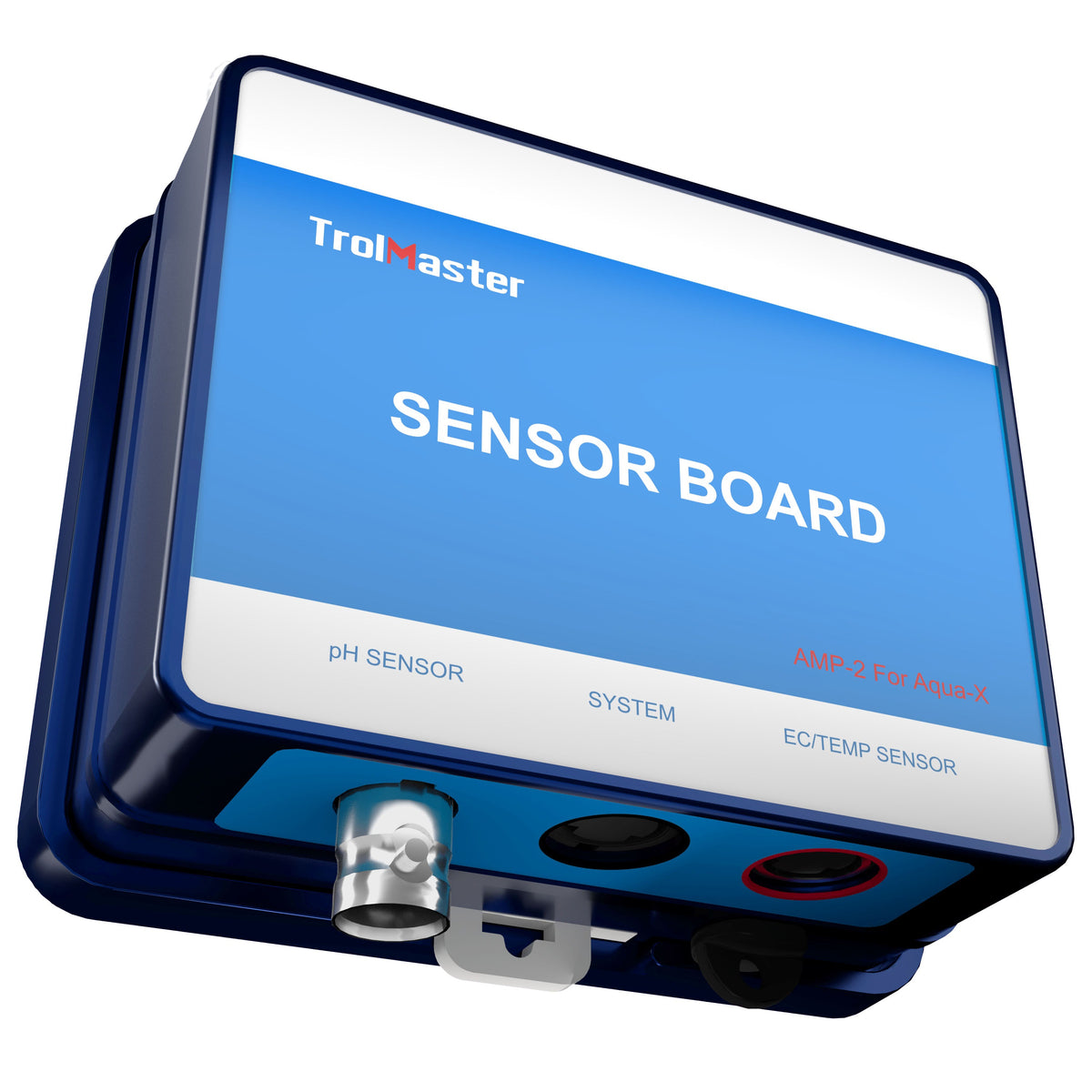

What does the AMP sensor board do, and do I need it?
The AMP sensor board is the interface that connects pH, EC, and temperature probes to the controller. Without it, the system manages irrigation scheduling and valve control but has no visibility into nutrient solution quality. With the AMP installed and probes connected, the controller monitors pH and EC continuously and pushes alerts when either parameter drifts outside the configured range. For recirculating hydroponic, NFT, or DWC setups, the AMP board is an essential component rather than an optional upgrade.
How does the WCS-1 substrate sensor improve irrigation decisions?

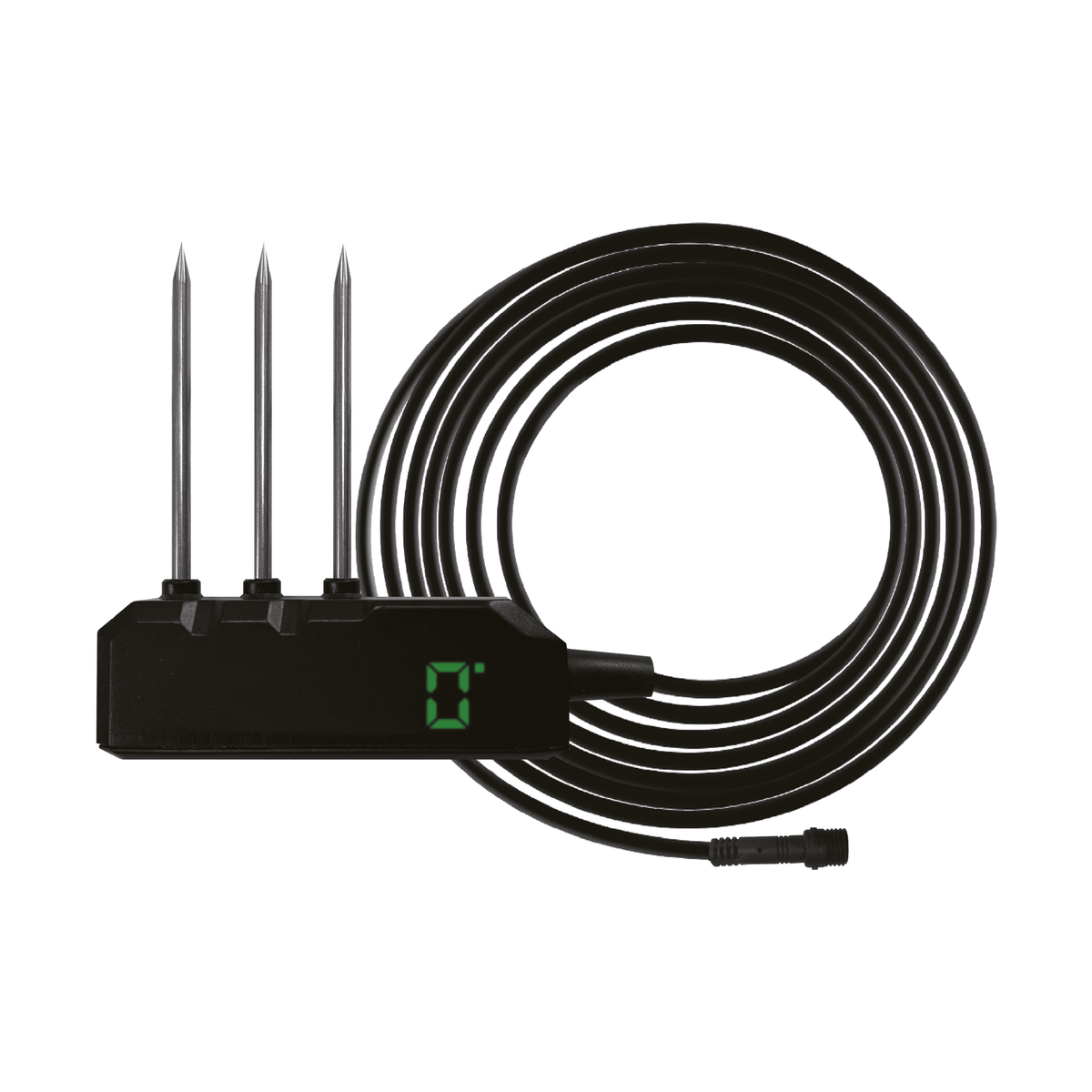

The WCS-1 measures real-time water content and nutrient concentration directly within the growing medium and feeds that data continuously to the controller. In substrate-based cultivation (coco, rockwool, peat, or amended soil), the dry-down rate varies with canopy size, temperature, humidity, and light intensity. The WCS-1 lets the controller trigger irrigation precisely when the medium reaches the optimal saturation threshold, eliminating both overwatering and drought stress cycles.
Does the Aqua-X integrate with the TrolMaster Hydro-X environmental control system?
Yes. The Aqua-X operates on the same RJ12 bus architecture as the Hydro-X and shares the TrolMaster app interface. Environmental data from the Hydro-X (temperature, humidity, VPD) appears alongside irrigation status in the same dashboard. The two systems operate independently, but the shared app and wiring standard make them natural complements for complete grow room automation.
What is the WD-1 water detector and how many can connect to one controller?
The WD-1 is a floor-level leak detection sensor that sends an immediate app alert when moisture is detected. Up to 30 WD-1 units connect to a single NFS-1 controller, providing comprehensive floor coverage across commercial facilities. Each unit installs at the lowest point in a zone where pooling water would first accumulate, such as below flood table drain points or reservoir bases.
What warranty does TrolMaster offer on Aqua-X products?
TrolMaster covers Aqua-X hardware with a three-year warranty on mechanical and electronic components under normal operating conditions. This applies to the controller, valve boards, sensor boards, substrate sensors, leak detectors, and associated accessories. pH and EC probes are consumable components subject to calibration drift and should be treated as serviceable items within the system.
