TrolMaster Aero-Fan: Complete Guide
How Do I Choose the Right Aero-Fan for My Grow Space?
Airflow in a controlled grow environment serves two distinct functions: exchanging stale air for fresh intake through the duct system, and circulating air within the canopy to eliminate humidity pockets and heat stratification. The TrolMaster Aero-Fan series covers both roles with EC motor fans that accept direct digital speed commands from any compatible controller, eliminating the need for external VFDs or relay-based on/off switching.
Every Aero-Fan includes an ECS-7 cable for plug-and-play integration with Hydro-X, Green-X, and Tent-X controllers. When the connected controller detects a temperature rise or VPD shift, it sends a proportional speed adjustment to the fan in real time, no manual intervention required. EC motors also run more efficiently than traditional AC motors at partial speed, reducing power consumption during periods when full output is unnecessary.
What Aero-Fan Size Fits My Setup?
The V-series inline duct fans handle air exchange, moving fresh air in and exhausting heat, humidity, and CO2-depleted air out through the duct system. The HE-20 series circulation fans solve the separate problem of air movement within the canopy, breaking up stagnant microclimates that inline exhaust cannot reach. Large production rooms typically require both types working together.
What Should I Look for in a Grow Room Ventilation Fan?
- CFM matched to room volume: Target a full air exchange every 1-3 minutes. A 10x10x8 room (800 cu ft) needs at least 270-800 CFM depending on heat load, carbon filter restriction, and duct length. Oversize slightly for sealed rooms running CO2 enrichment.
- EC motor efficiency: EC motors maintain efficiency across the full speed range, unlike AC motors that waste energy at partial speeds. At 50% output, an EC fan draws significantly less power than an AC fan throttled by an external controller.
- Controller integration: The included ECS-7 cable connects directly to Hydro-X and Green-X controllers, enabling sensor-driven proportional speed adjustment. Without controller integration, fans run at fixed speed or require a standalone FRC-1/FRC-2 speed controller.
- Noise at operating speed: Fans sized correctly for the space run at partial speed most of the time, which reduces noise considerably. Metal Pro variants (V-10M, V-12M, HE-20M) eliminate the resonance and vibration that plastic housings develop under sustained load.
- Build quality for continuous operation: Standard models suit intermittent or moderate-duty cycles. For facilities running fans 24/7, Metal Pro all-metal housings with auto-sensing 100-277VAC inputs are the appropriate specification.
Dialing in the right fan speed for each growth stage depends on maintaining stage-specific temperature and humidity targets. The grow room temperature and humidity chart covers the VPD benchmarks that determine when and how aggressively ventilation should respond to canopy conditions.
Related Guides
- TrolMaster LMA Adapter Compatibility Guide
- How to Automate Your Grow Room
- TrolMaster Sensors Explained
- Complete Guide to Grow Room Controllers
Frequently Asked Questions
What makes TrolMaster Aero-Fan different from standard inline grow room fans?
The key difference is the EC motor architecture and native TrolMaster controller integration. Standard inline fans use AC motors that run at a fixed speed or require an external Variable Frequency Drive for proportional speed control. Aero-Fan EC motors accept direct digital speed commands via the included ECS-7 cable, connecting plug-and-play to Hydro-X, Green-X, and Tent-X controllers without additional hardware. A connected controller can modulate fan speed proportionally in real time based on live sensor data rather than switching the fan fully on or off. EC motors also operate more efficiently at partial speed, reducing power consumption when full output is not required.
Which Aero-Fan inline duct fan should I choose for my grow space?

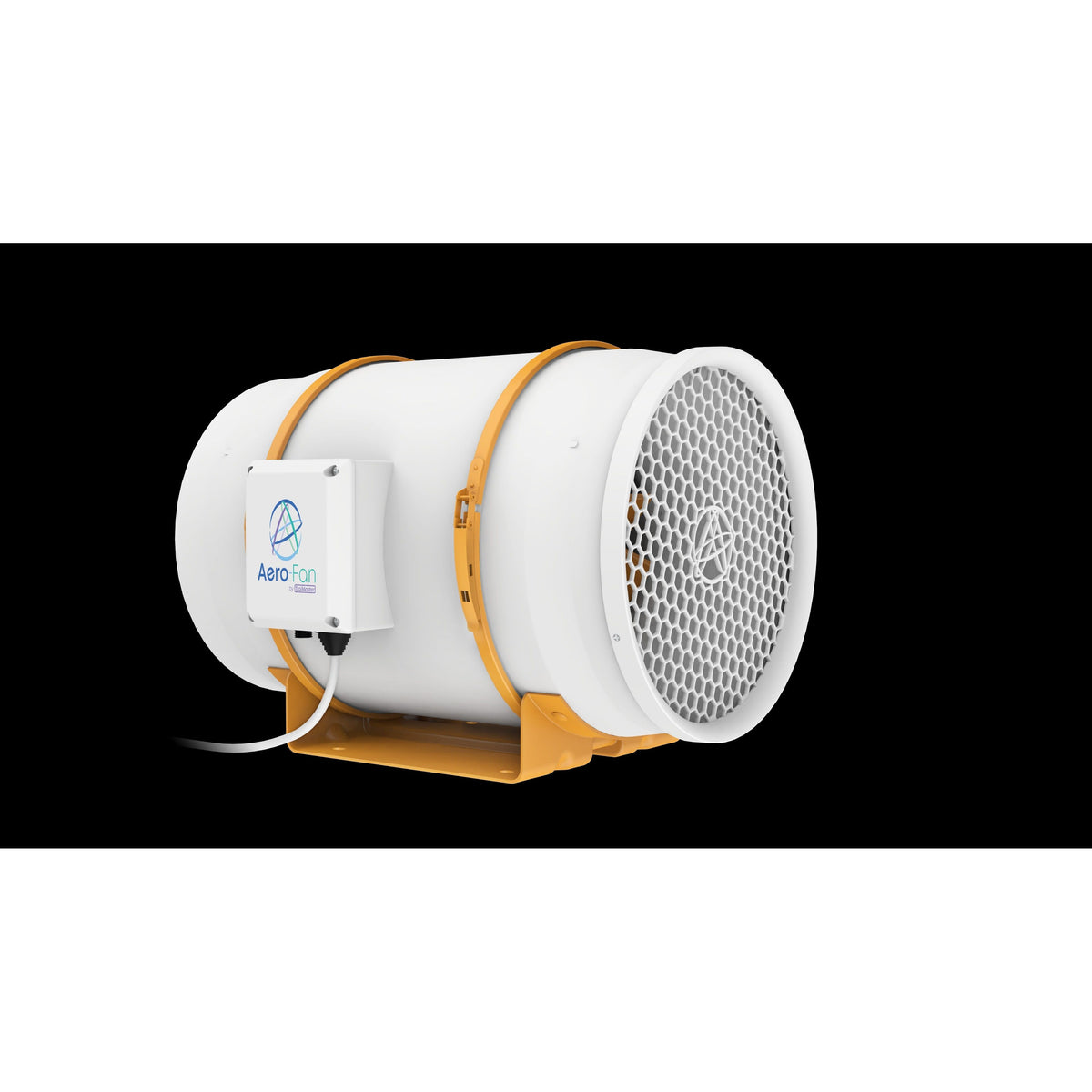

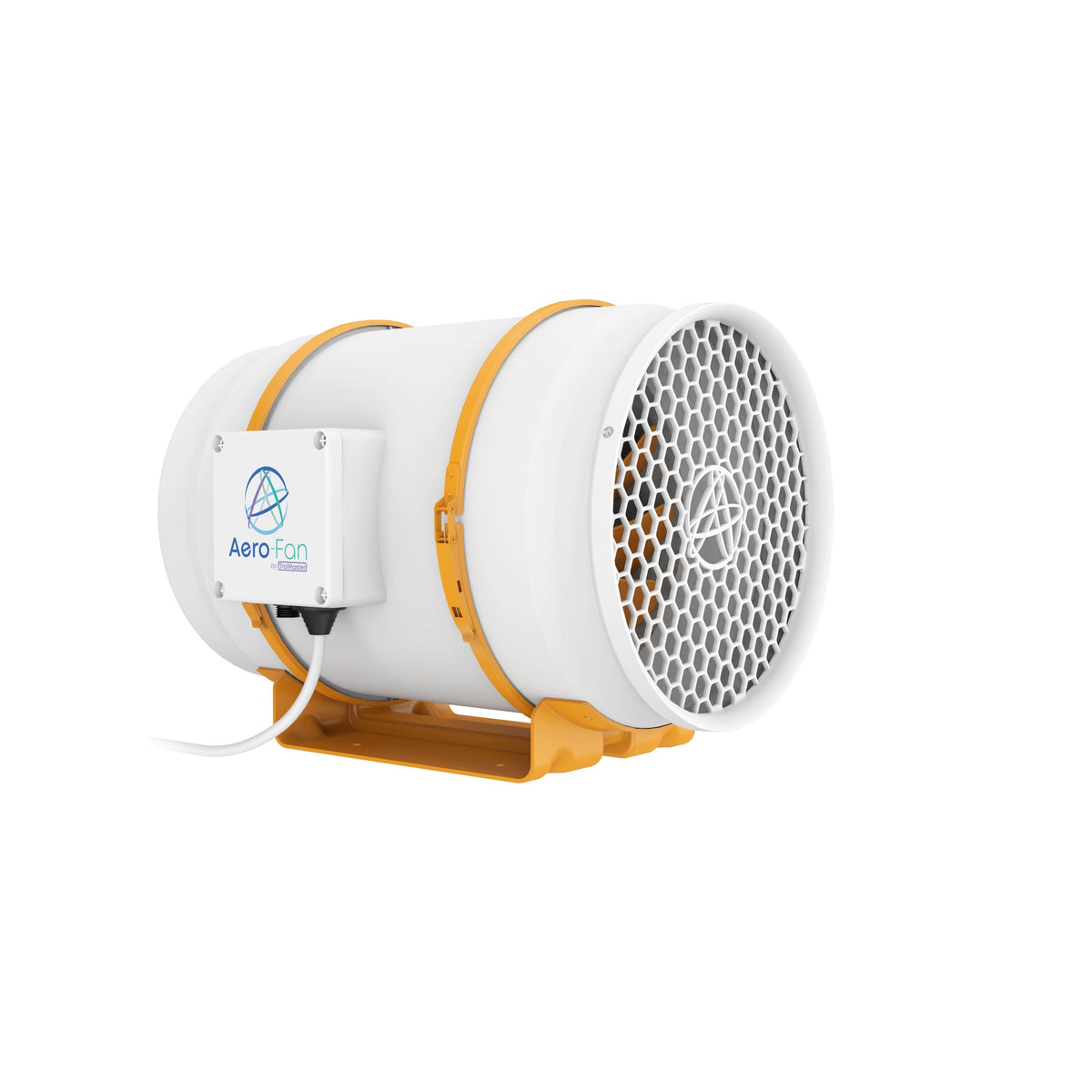

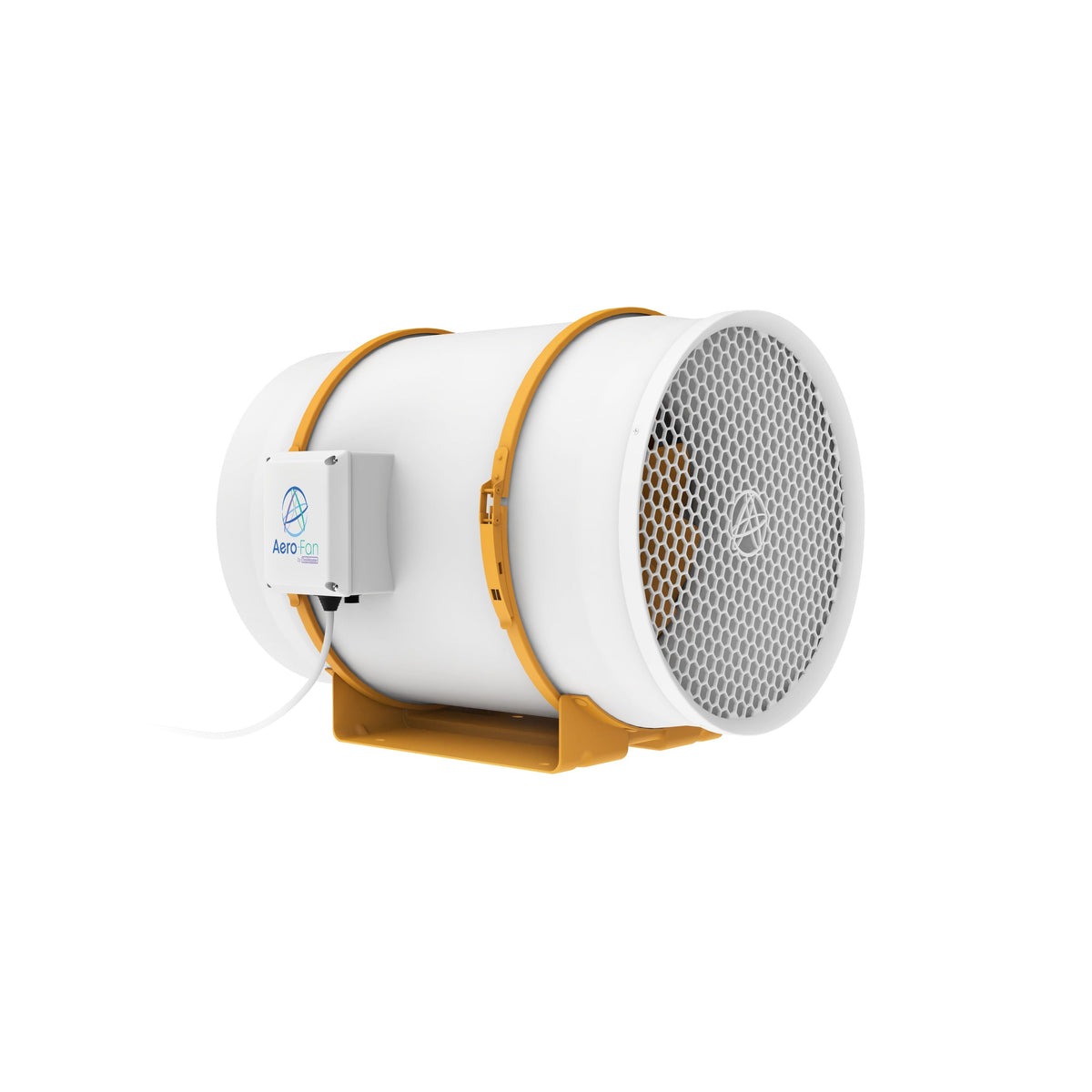

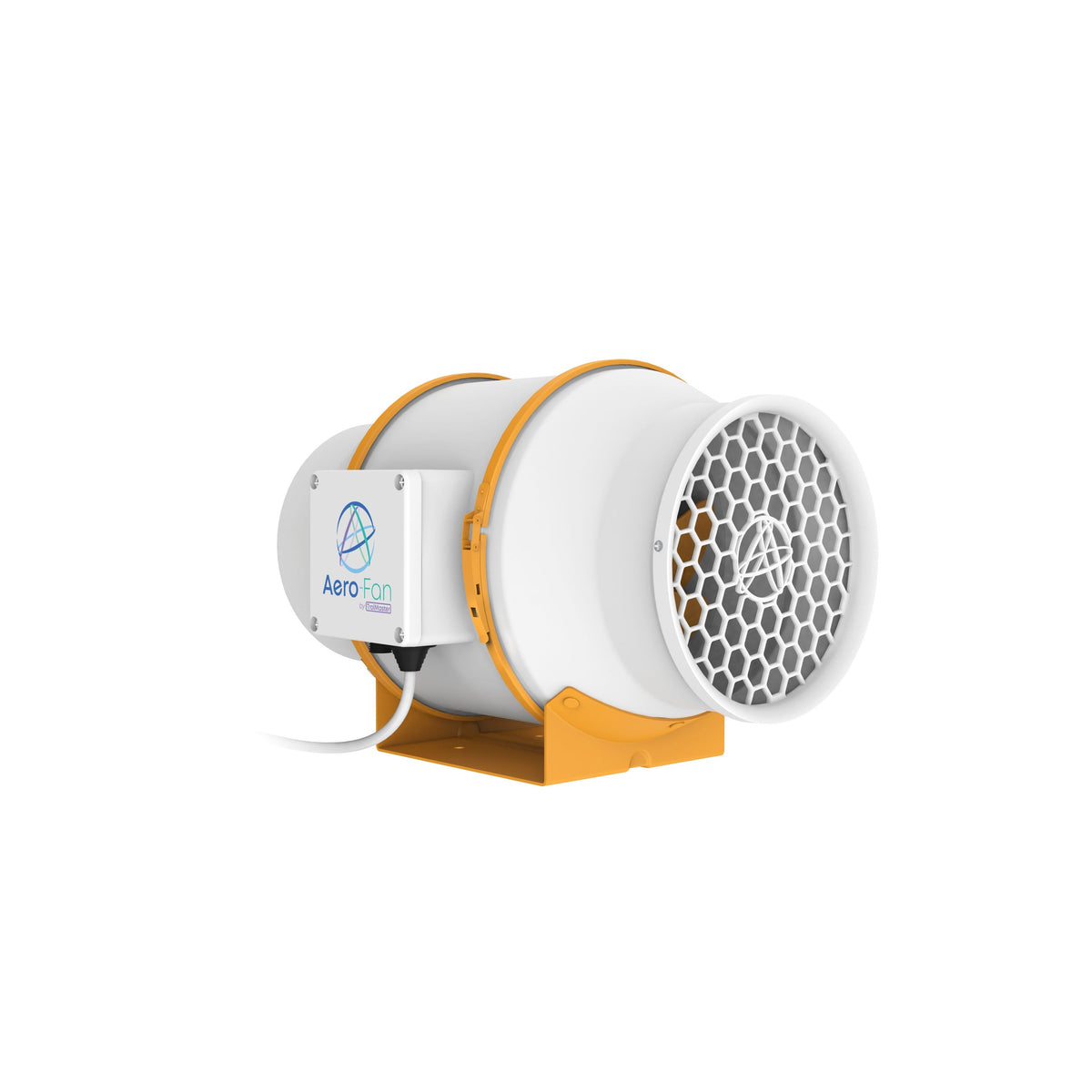

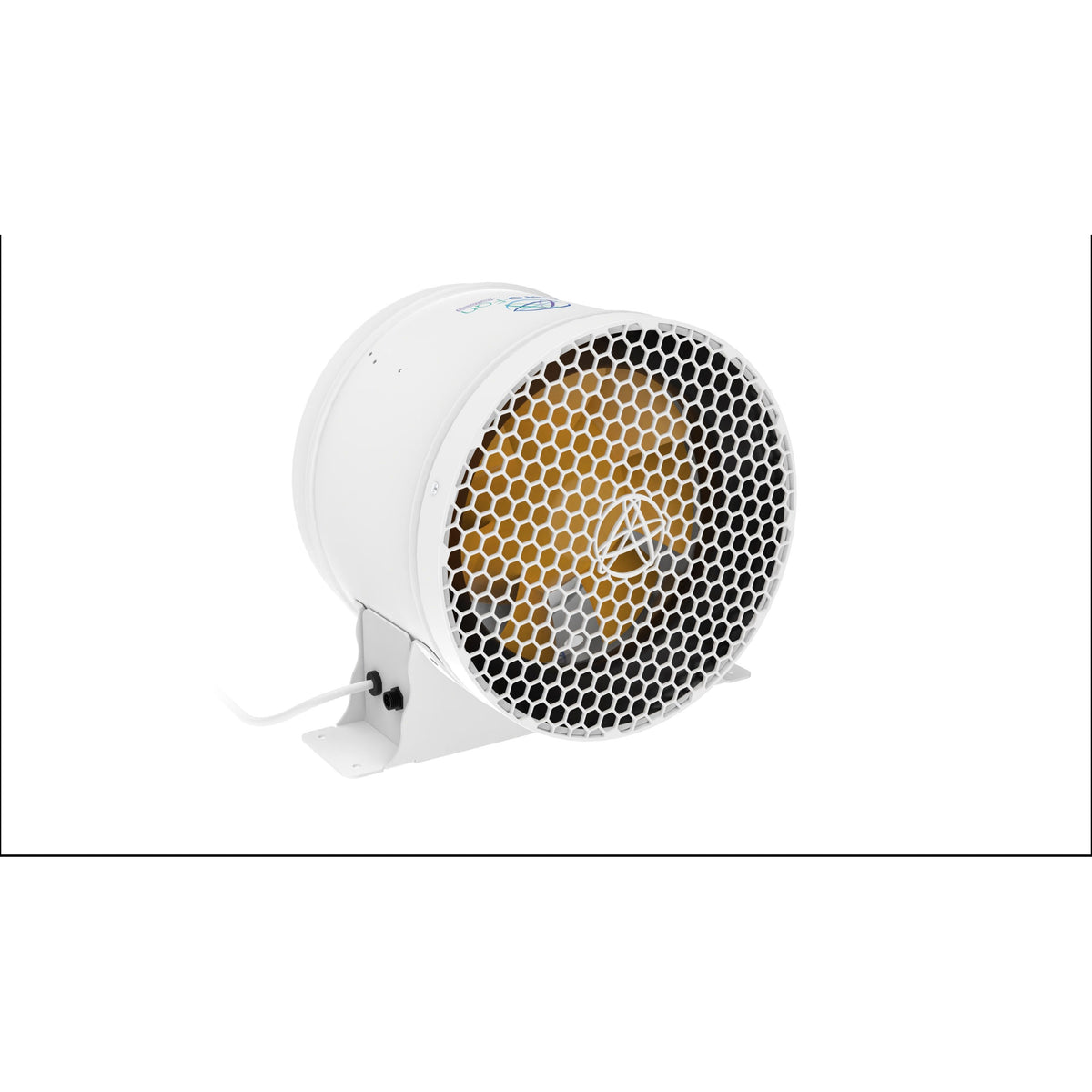

The V-6 at 360 CFM covers single grow tents and small rooms with 6-inch duct systems. The V-8 at 684 CFM suits medium rooms and larger tents where longer duct runs or carbon filters create higher static pressure. The V-10 at 971 CFM handles mid-size production rooms. For large commercial facilities, the V-12 reaches 1,180 CFM and the V-12M Metal Pro delivers 1,579 CFM in an all-metal housing rated for continuous 24/7 operation. Metal Pro variants (V-10M, V-12M) are the correct choice for permanent installations where plastic housings develop vibration and structural fatigue under sustained load. All models share the same EC motor platform and ECS-7 controller integration.
What is the difference between the HE-20 and HE-20M, and do I need both inline and circulation fans?

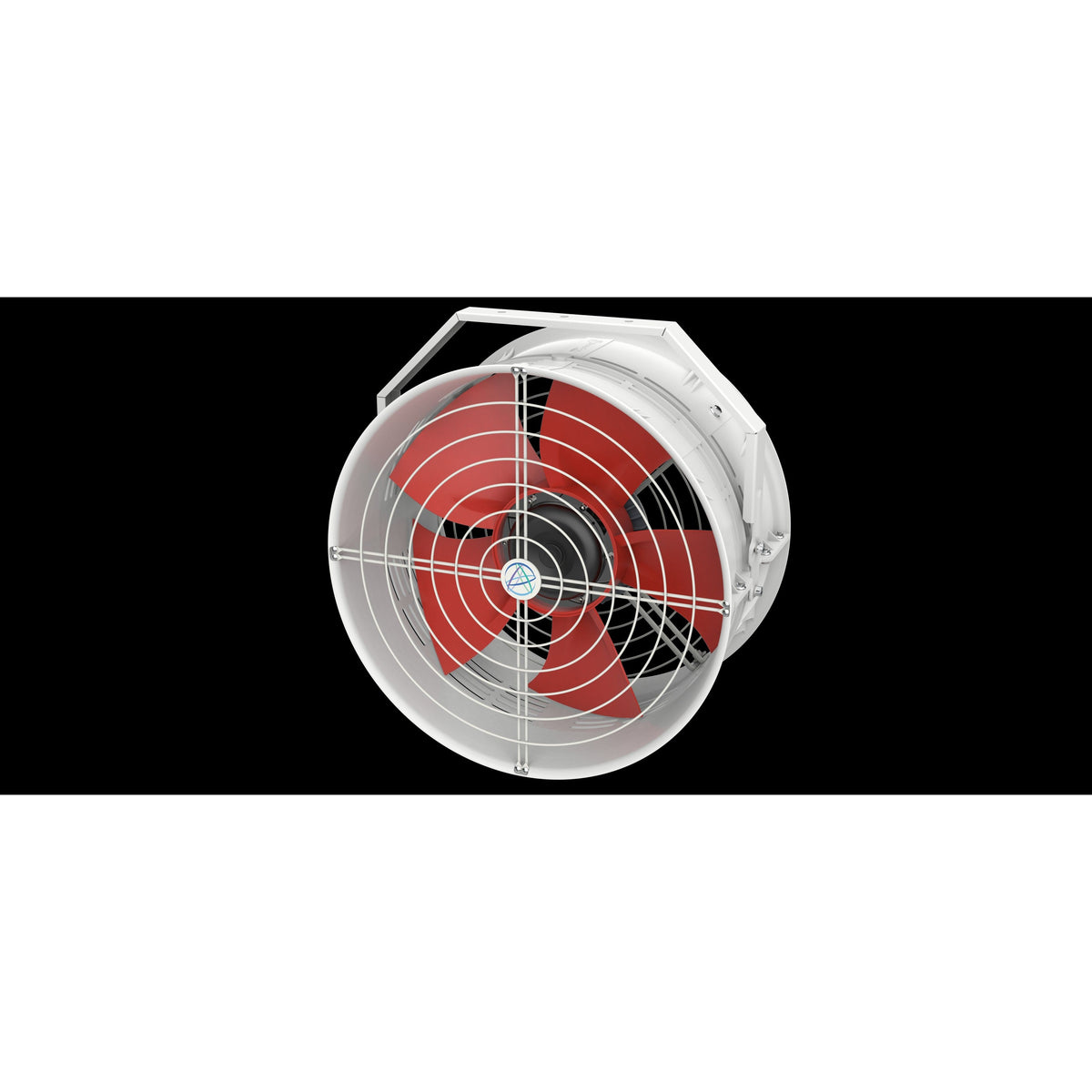

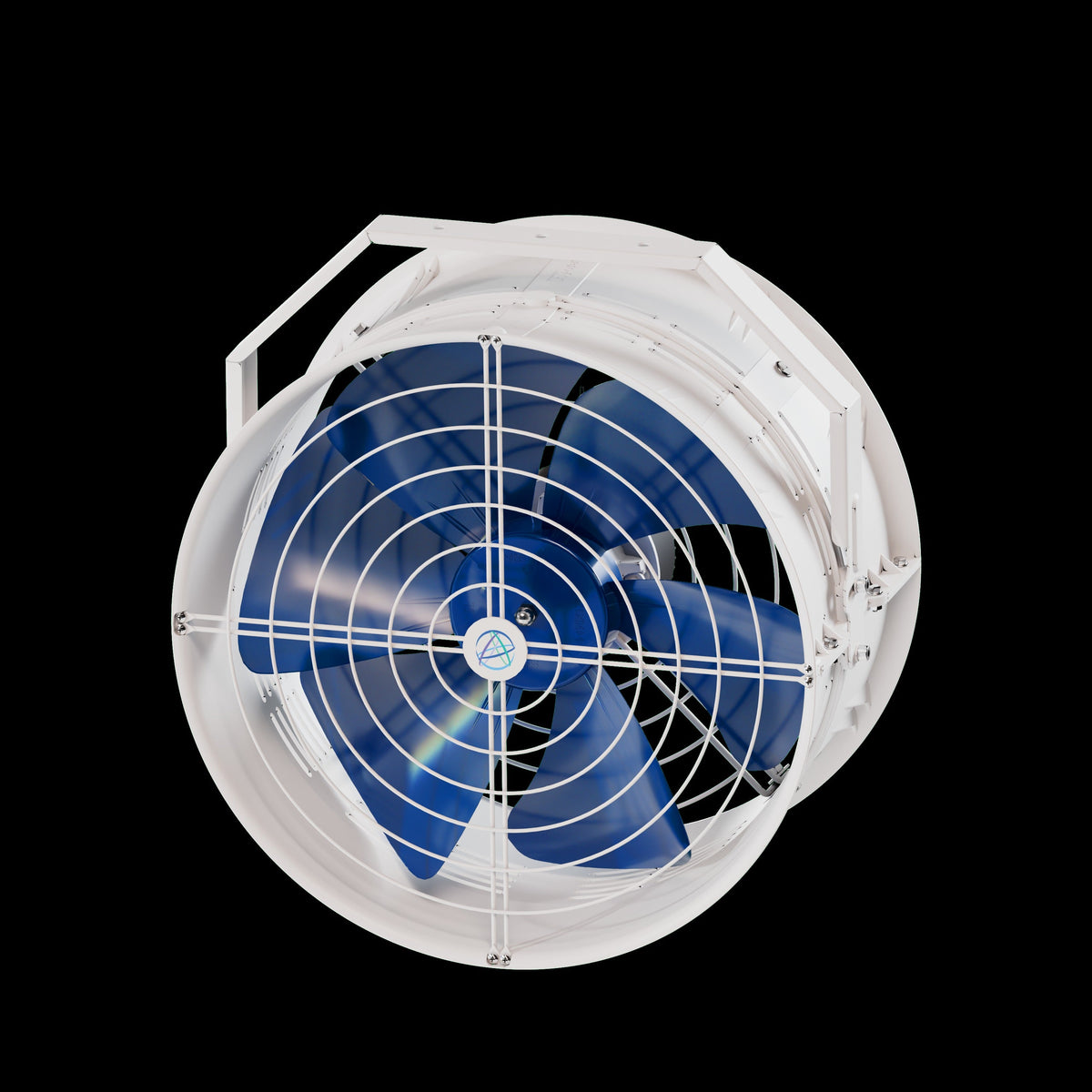

Both are 20-inch high-velocity circulation fans, not inline duct fans. The HE-20 delivers 3,986 CFM with an IP66-rated housing. The HE-20M steps up to 4,980 CFM in an all-metal IP66 enclosure rated to a 50,000-hour MTTF, designed for permanent commercial installations. Inline duct fans handle air exchange, moving fresh air in and stale air out. Circulation fans move air within the canopy, breaking up humidity pockets and heat stratification that inline exhaust cannot address. Large grow rooms typically require both: the V-series for air exchange and the HE-20 series for canopy-level circulation.
What is the ECS-7 cable and do all Aero-Fan fans include it?
The ECS-7 is the connection cable that establishes digital communication between an Aero-Fan EC fan and a compatible TrolMaster controller such as the Hydro-X or Green-X. With it connected, the controller sends speed commands directly to the fan motor based on live sensor data, enabling automated proportional speed control without VFD hardware. Every V-series inline duct fan and both HE-20 series circulation fans include an ECS-7 cable in the box. Fans can also operate standalone without a controller, running at fixed speed or via the FRC-1/FRC-2 standalone speed controllers.

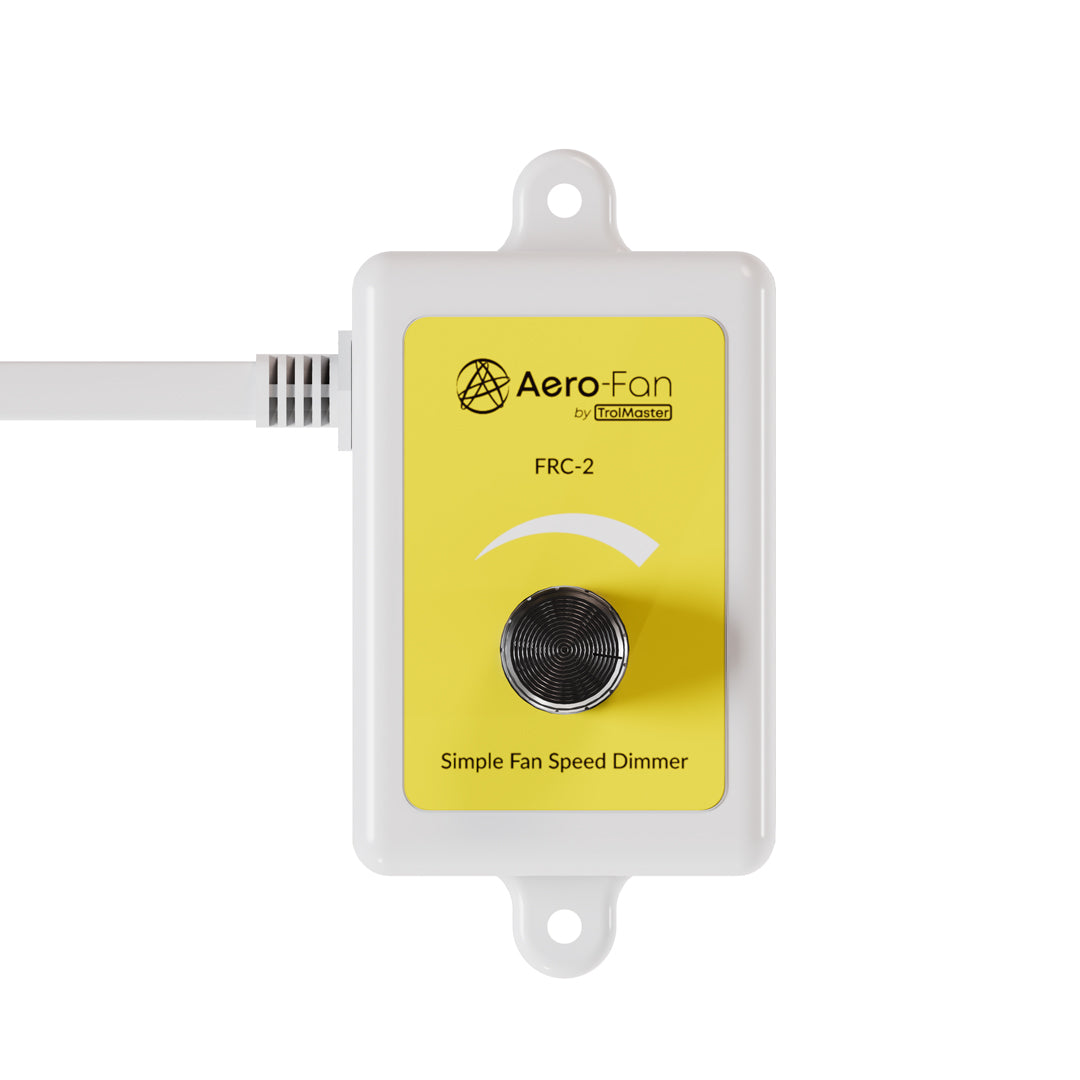

What is the difference between the FRC-1 and FRC-2 fan speed controllers?
Both are standalone speed controllers for Aero-Fan EC fans that operate without a full TrolMaster environmental controller. The FRC-2 is a manual speed dimmer providing continuously variable 0-100% control via an onboard knob. A single FRC-2 can control multiple daisy-chained fans simultaneously. The FRC-1 adds automated day/night switching: program independent speed targets for light-on and light-off periods, and the FRC-1 executes transitions at the scheduled times. Neither responds to live sensor data. For sensor-driven speed control, direct Hydro-X or Green-X integration via the ECS-7 cable is required.
What are the AB-6 and AB-8 air boosters, and when do I need them?

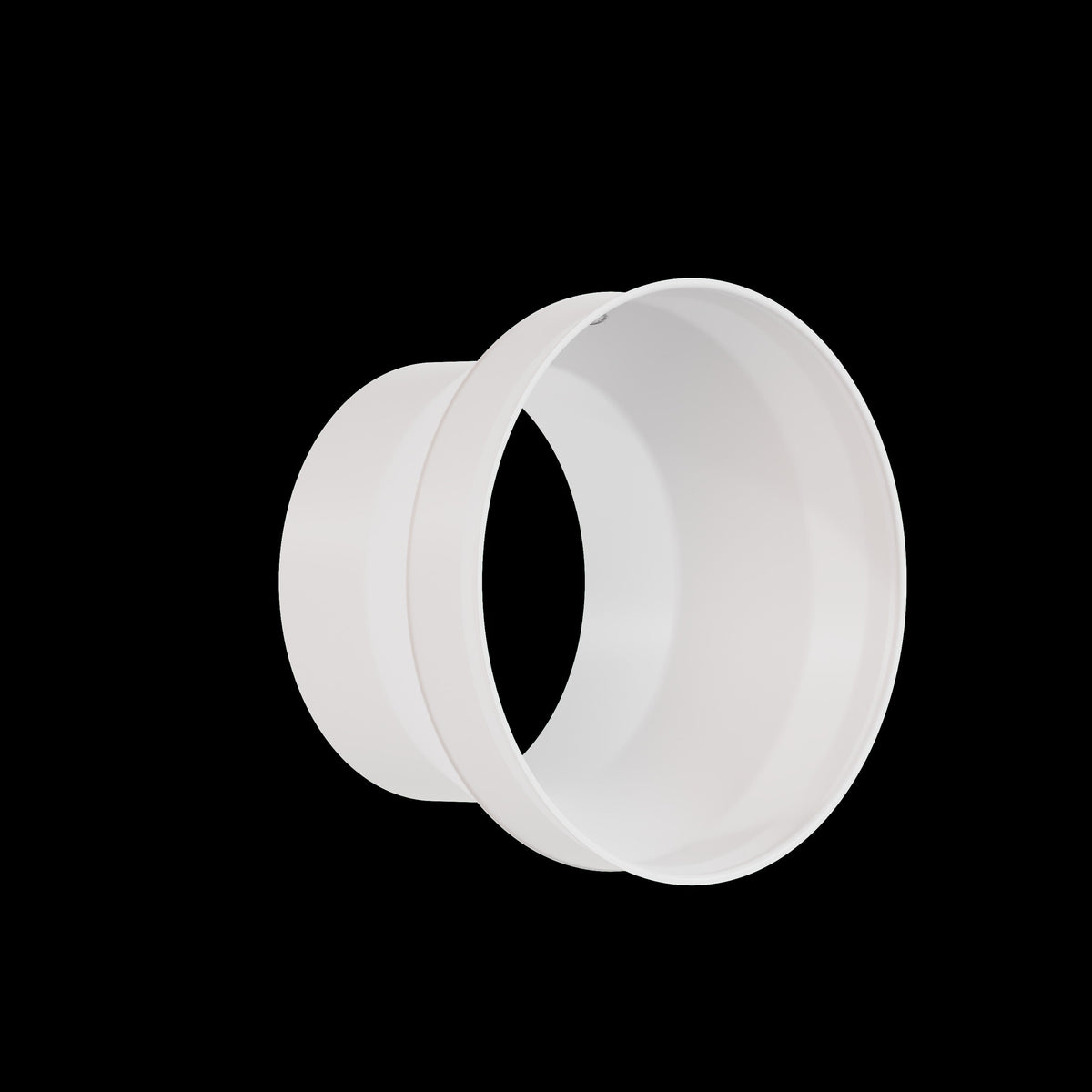

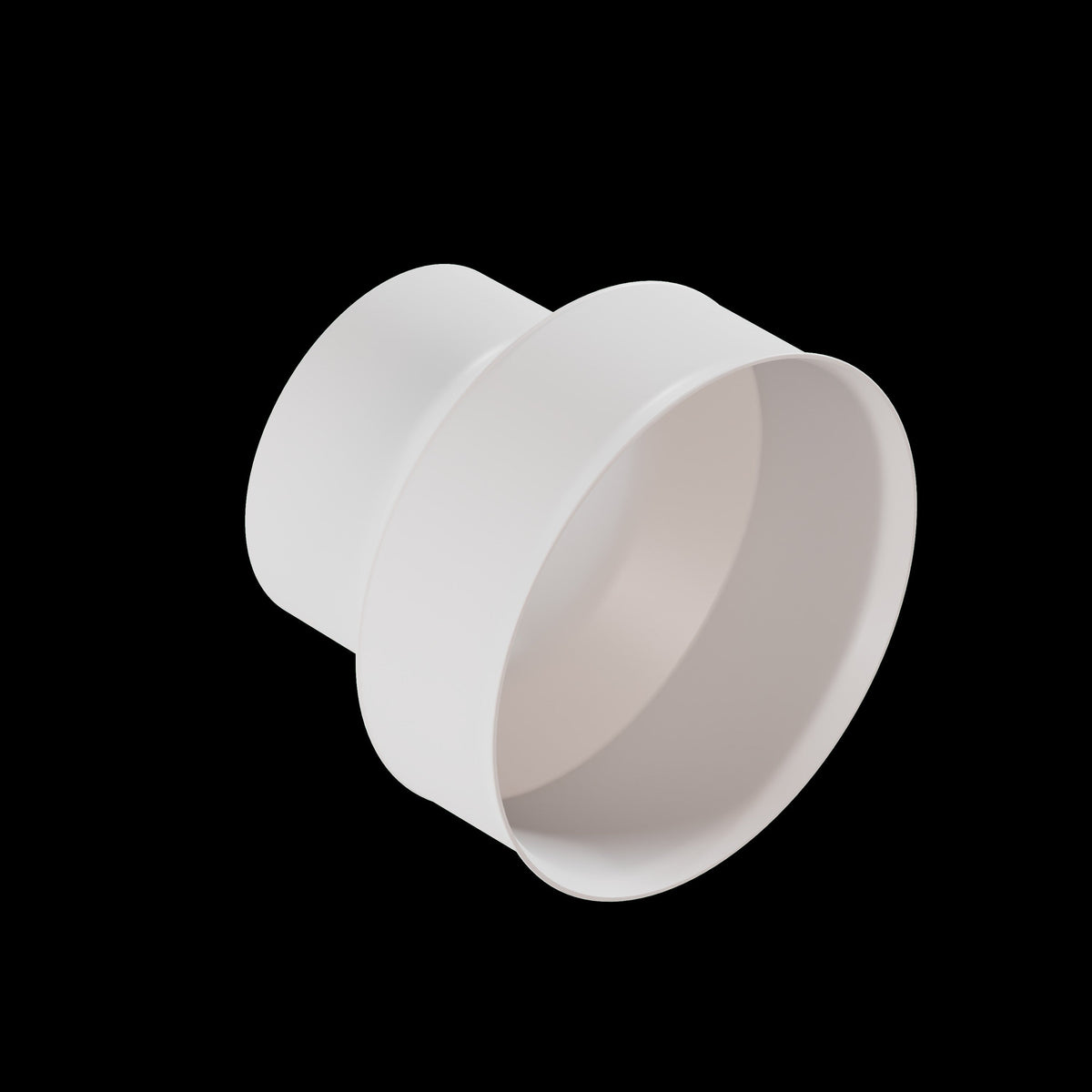

The AB-6 and AB-8 are precision-fit reducer fittings that create an airtight seal at the duct-to-fan junction for the V-6 and V-8 respectively. Without a proper reducer, air escapes through the gap between the duct and fan flange, reducing effective airflow and creating turbulence at the intake. They are most valuable in high-static-pressure setups with long duct runs, restrictive carbon filters, or sealed room configurations where every CFM matters. For standard short-run tent exhausts where pressure differentials are low, the improvement is marginal.

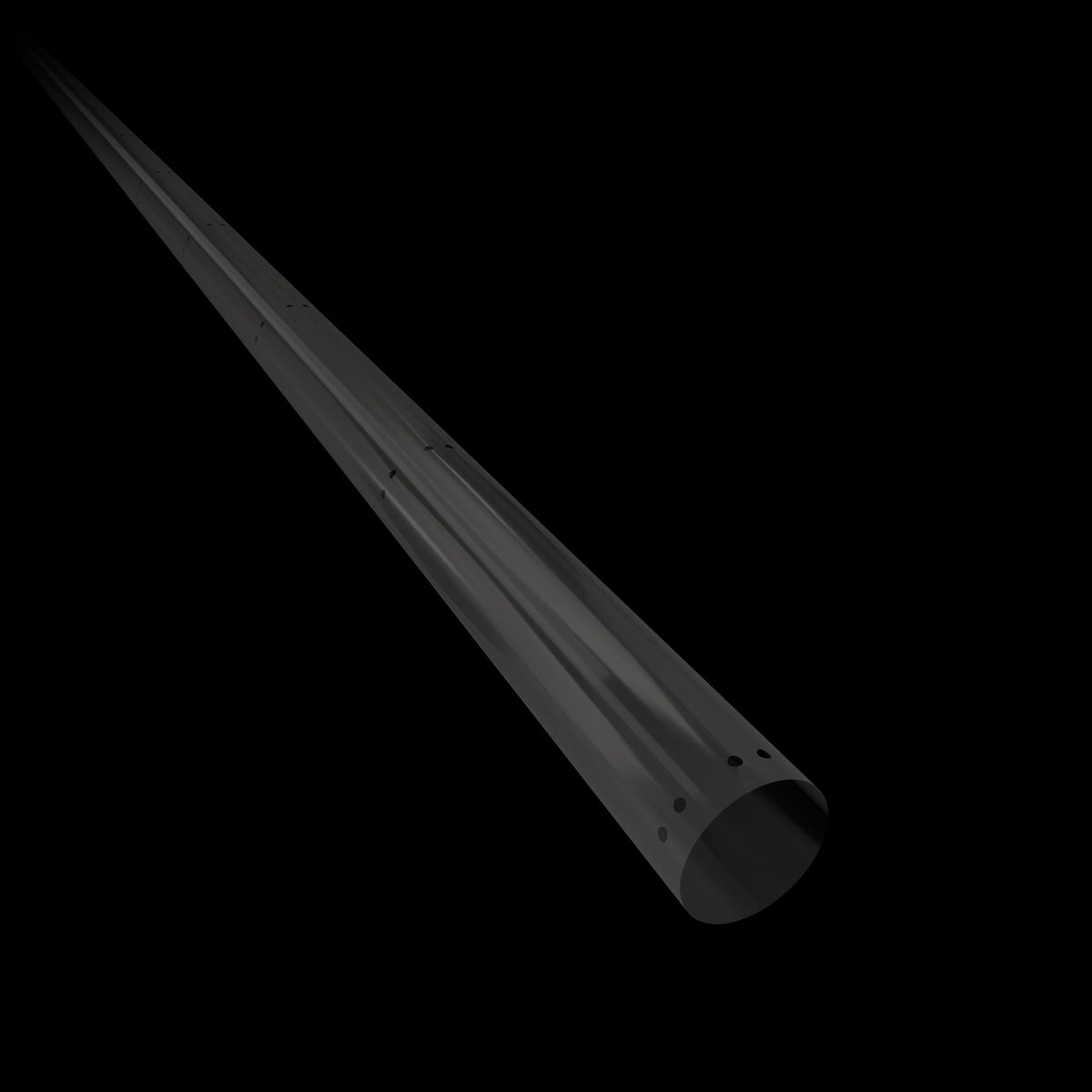

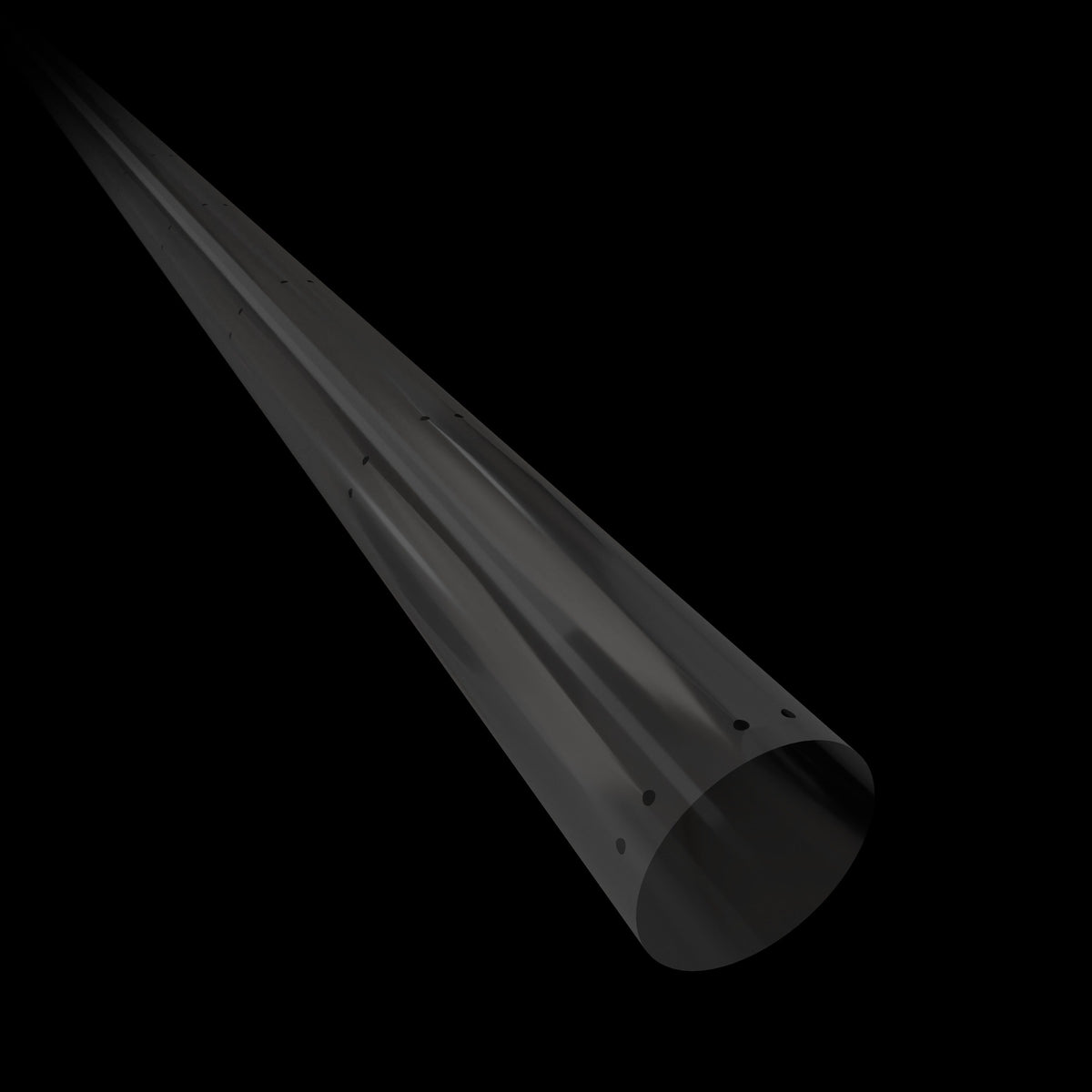

What are the PS-4 and PS-6 poly air socks used for?
The PS-4 and PS-6 are 400-foot LDPE poly air sock distribution tubes for the V-6 and V-8 respectively. They replace standard round duct termination with a fabric tube that diffuses air through precisely spaced outlets along its full length, delivering a uniform breeze to every point along the canopy row. This solves the microclimate problem that concentrated duct output creates in long cultivation rows, where plants nearest the outlet receive high-velocity air while plants at the far end accumulate heat and humidity. Constructed from odorless, mold-resistant low-density polyethylene for high-humidity grow environments.
What warranty does TrolMaster offer on Aero-Fan products?
TrolMaster covers Aero-Fan hardware, including V-series inline fans, HE-20 series circulation fans, FRC-1 and FRC-2 speed controllers, and AB-series air boosters, with a three-year warranty on mechanical and electronic components under normal operating conditions. The HE-20M carries an additional MTTF specification of 50,000 hours, reflecting the motor's rated operational life under continuous load. Components that fail due to abnormal usage, physical damage, or operation outside rated specifications are excluded. Maximum ambient temperature is 104F at humidity up to 90%.
