- 1x 10 Inch Inline Duct Ventilation Fan
- 1x ECS-7 Cable

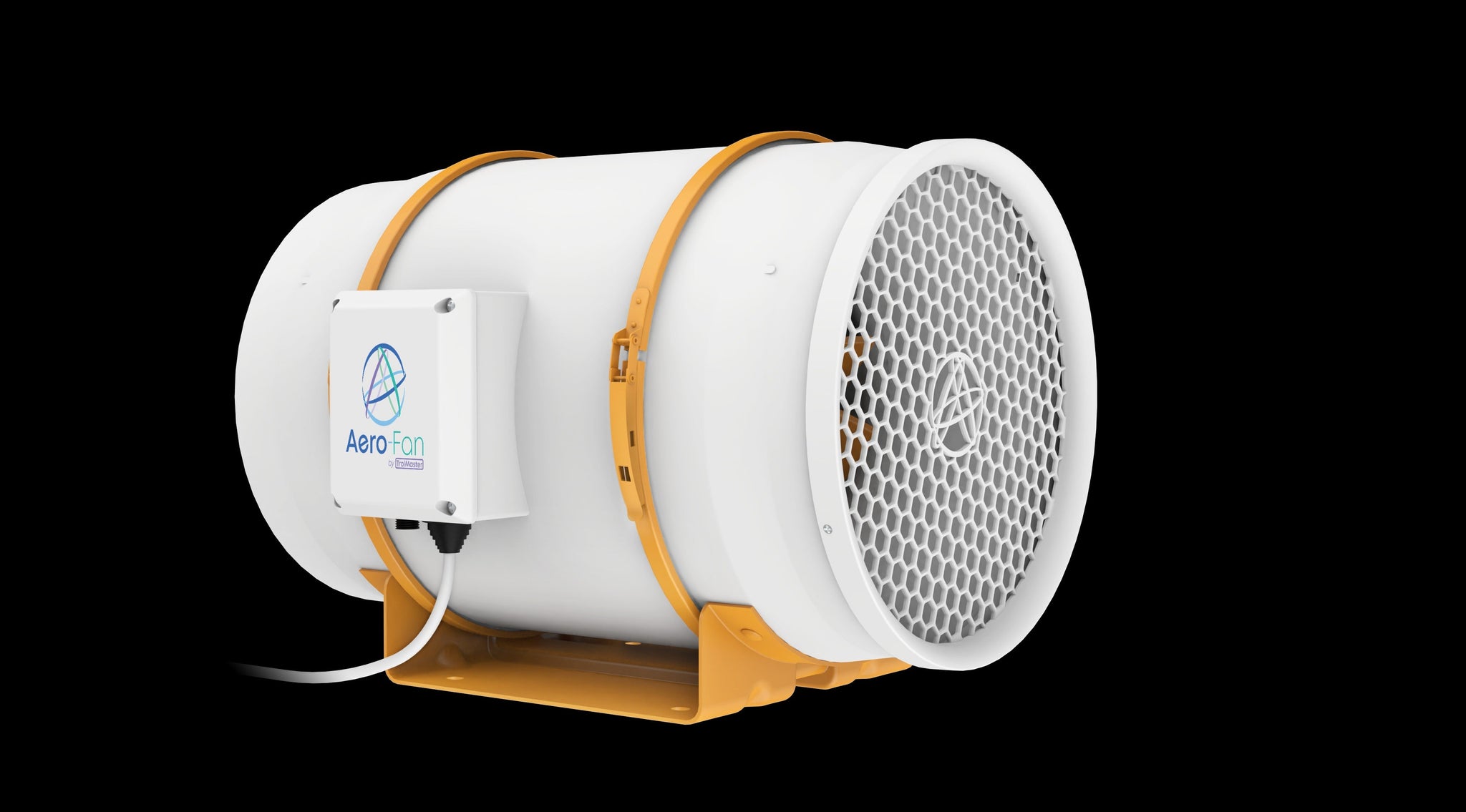

TrolMaster Aero-Fan V-10 10" Inline Duct Fan
starting from 0% interest financing from
/mo.
- Delivers up to 971 CFM through a specialized 10-blade motor
- Maintains 956 Pa of maximum static air pressure
- Features 100 to 277VAC auto-sensing operating voltage at 50 or 60 Hz
- 3-year warranty for all products except one year warranty for sensor probes from the purchase day.
- View More Details
Shipping calculated at checkout
Earn 278 points for shopping and get $2.78 off your next order. Join Harvest Club for free.
Over 50,000 Customers
Trust Trimleaf
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
Questions? Talk to a specialist.
Mon to Fri, 9am to 5pm PST
- Over 50,000 CustomersTrust Trimleaf
- Transparent PricingBacked w/ price match guarantee
- 4.8/5 Top Quality Store on Google
- Secure CheckoutSSL encrypted payments
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
- You are managing a commercial production room because standard ventilation fans fail to maintain stable airflow under heavy static pressure.
- You are exhausting air through long duct runs and carbon filters because this high performance ventilation fan delivers up to 971 CFM.
- The 10-blade motor delivers up to 971 CFM and 956 Pa of static pressure, handling large rooms and carbon filters with ease.
- Automatic voltage sensing allows the fan to self-adjust to your facility's power supply without manual switching.
- The included ECS-7 cable provides direct integration with TrolMaster ecosystems for automated speed control.
- Operators who integrated these into their climate controller say the automated speed adjustments significantly reduced their daily manual workload.
- Users with long ducting runs say that switching to this fan stabilized their environmental readings by maintaining consistent airflow against static pressure.
TrolMaster Aero-Fan V-10 10" Inline Duct Fan
Maintaining ideal atmospheric conditions in a commercial-scale grow facility requires more than just standard fans; it demands a ventilation system capable of overcoming the heavy static pressure created by long duct runs and large carbon filters. The TrolMaster Aero-Fan V-10 Ventilation Fan is the high-performance solution for large-footprint operations, engineered to provide consistent, high-volume airflow where lesser fans fail. Its robust design ensures that your environment remains stable even under the most demanding production schedules.
Delivering a massive 971 CFM via its specialized 10-blade motor, the V-10 is the most powerful unit in the Aero-Fan lineup, outperforming the Aero-Fan V-8 for high-resistance setups. With its 100–277VAC auto-sensing capability and included ECS-7 cable, it integrates seamlessly with TrolMaster environmental controllers, providing growers with a fully automated, plug-and-play solution for precision climate management. For even larger spaces, the Aero-Fan V-12 is also available to meet extreme airflow requirements.
All Sales Final
What's Included
Features
💨
971 CFM High-Airflow Motor
The 10-blade motor delivers up to 971 CFM and 956 Pa of static pressure, handling large rooms and carbon filters with ease.
🔋
100–277VAC Auto-Sensing
Automatic voltage sensing allows the fan to self-adjust to your facility's power supply without manual switching.
🎛️
Native Control
Includes an ECS-7 cable for direct integration with TrolMaster ecosystems for automated speed control.
🔩
Mounting Plate Included
Ships with an easy-to-apply mounting plate for secure and simplified installation into existing duct systems.
Specifications
| Specification | Value |
|---|---|
| Operating Voltage | 100–277VAC, 50/60 Hz |
| Rated Current | 2.7A Max |
| Rated Input Power | 268W Max |
| Number of Blades | 10 |
| Max Airflow | 971 CFM |
| Max Static Pressure | 956 Pa |
| Rotation Direction | CCW |
| IP Rating | IP44 |
| Operating Temperature | -4–140°F (-20–60°C) |
| Mean Time To Failure (MTTF) | 50,000 Hours @ 25°C |
| Dimensions | 15.31 × 11.26 × 9.70 in |
| Net Weight | 14.33 lbs (6.5 kg) |
Support & Manuals
FAQs
How does the V-10 integrate with TrolMaster controllers?
The V-10 includes an ECS-7 cable that connects directly to TrolMaster environmental controllers such as the Green-X, Hydro-X, or Tent-X. Once connected, the controller can automate fan speed and scheduling as part of a broader environmental program without requiring additional relay hardware.
Can the V-10 be used without a TrolMaster controller?
Yes. The V-10 operates as a standalone inline duct fan and can be installed in any standard 10-inch duct system independently of a TrolMaster controller. The ECS-7 cable enables controller integration, but it is not required for basic operation.
What voltage does the V-10 require?
The V-10 features automatic voltage sensing across 100–277VAC at 50/60 Hz, making it compatible with both standard 120V residential wiring and 208/240V commercial facility power. No manual voltage switching is needed.
How does the V-10 compare to other Aero-Fans?
The V-10 delivers 971 CFM at 956 Pa of static pressure, making it the most powerful option in the lineup. It is designed for large commercial grow rooms and multi-room exhaust systems where airflow resistance is high.
What is the expected lifespan?
TrolMaster rates the V-10 motor at a Mean Time To Failure (MTTF) of 50,000 hours at 25°C. At continuous operation, this equates to over five years of runtime.
Is the V-10 suitable for humid environments?
Yes. The V-10 carries an IP44 ingress protection rating, protecting it against water splashing from any direction, making it ideal for the humidity levels found in indoor grow environments.
