- 1x 8 Inch Inline Duct Ventilation Fan
- 1x ECS-7 Cable
TrolMaster Aero-Fan V-8 Ventilation Fan
starting from 0% interest financing from
/mo.
- Delivers 684 CFM of airflow via a high-capacity 10-blade motor
- EC motor architecture accepts direct digital speed commands through the included ECS-7 cable
- Auto-sensing 100 to 277VAC power input works for both home and commercial facility voltages
- View More Details
Earn 198 points for shopping and get $1.98 off your next order. Join Harvest Club for free.
Free Shipping On Most Items*
To the lower 48
Transparent Pricing
Backed w/ price match guarantee
4.81/5 Rating
1930+ verified reviews
Secure Checkout
SSL encrypted payments
More in this Series
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are automating your exhaust because manual speed adjustments cannot keep up with heat spikes from your lighting.
- You are adding a high-pressure fan because your current exhaust chokes when pulling through a dense carbon filter.
- You are scaling your climate system because managing multiple individual fan controllers is wasting your time.
What We Found
- We noticed the 10-blade motor holds its CFM much better than the 6-inch version once you attach a heavy filter.
- Having the ECS-7 cable in the box is a huge win since it saves you a separate trip for a TrolMaster adapter.
- The mounting plate is actually solid, it does not vibrate or rattle like the flimsy clips on cheaper inline fans.
What Users Say
- Users who linked this to a Hydro-X say they stopped seeing leaf wilt because the fan ramps up as soon as VPD climbs.
- Growers tell us the automated dark cycle speed reduction finally solved their nightly humidity spike problems.
TrolMaster Aero-Fan V-8 Ventilation Fan

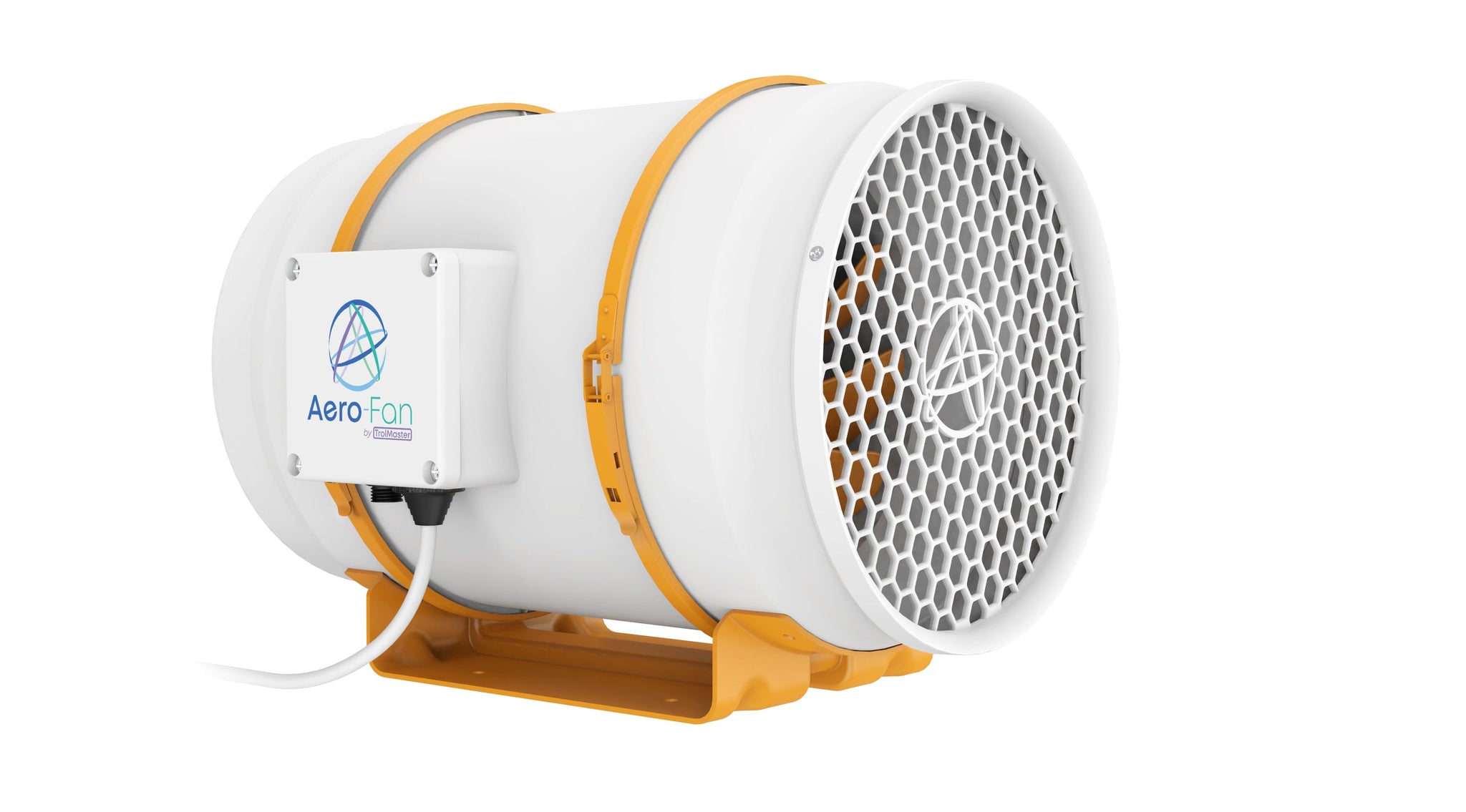

Larger grow rooms and intensive indoor gardens demand airflow that standard fans simply cannot maintain under static pressure. The TrolMaster Aero-Fan V-8 is an 8-inch inline duct fan engineered specifically to overcome the resistance of long duct runs and high-density carbon filters. By providing a powerful solution for CO2 replenishment and heat extraction, the V-8 ensures your environment stays within the optimal range for peak plant performance.
Equipped with a high-efficiency 10-blade motor, this fan delivers up to 684 CFM of airflow, nearly doubling the capacity of the TrolMaster Aero-Fan V-6 Ventilation Fan. Its auto-sensing voltage input (100–277VAC) makes it a versatile choice for both residential and commercial facilities. When paired with a TrolMaster ECS-10 Environmental Control or other environmental controllers via the included ECS-7 cable, the V-8 becomes a fully automated component of your climate management system.
What's Included
Features
💨
684 CFM Airflow
High-capacity 10-blade motor handles large rooms and restrictive filters with ease.
🔋
Universal Voltage
Auto-sensing 100–277VAC power input works across residential and commercial setups.
🔩
Easy Installation
Includes a dedicated mounting plate for secure and rapid installation into ducting.
Specifications
| Specification | Value |
|---|---|
| Operating Voltage | 100–277VAC, 50/60 Hz |
| Rated Current | 1.8A Max |
| Rated Input Power | 182W Max |
| Number of Blades | 10 |
| Max Airflow | 684 CFM |
| Max Static Pressure | 735 Pa |
| Rotation Direction | CCW |
| IP Rating | IP44 |
| Operating Temp | -4–140°F (-20–60°C) |
| MTTF | 50,000 Hours @ 25°C |
| Dimensions | 12.09 × 9.57 × 7.80 in |
| Net Weight | 6.83 lbs (3.1 kg) |
Support & Manuals
FAQs
How does the V-8 integrate with TrolMaster controllers?
The V-8 includes an ECS-7 cable that connects directly to TrolMaster systems like the Hydro-X or Tent-X. This allows the controller to manage fan speed and scheduling based on real-time sensor data.
Can this fan be used as a standalone unit?
Yes, the V-8 functions as a high-performance standalone inline fan. While the ECS-7 cable allows for smart integration, it is not required for standard operation.
Is the V-8 compatible with 240V power?
Absolutely. The fan features auto-sensing voltage ranging from 100V to 277VAC, making it compatible with both residential 120V and commercial 240V/277V power sources.
What is the difference between the V-8 and the V-6?
The V-8 is an 8-inch fan delivering 684 CFM, whereas the V-6 is a 6-inch fan delivering 360 CFM. The V-8 is better suited for larger environments and more restrictive ducting setups.
Is it safe for humid environments?
Yes, the V-8 has an IP44 rating, providing protection against water splashing and solid objects, making it ideal for the humidity levels found in grow rooms.
