- 1x 12 Inch Inline Duct Ventilation Fan
- 1x ECS-7 Cable

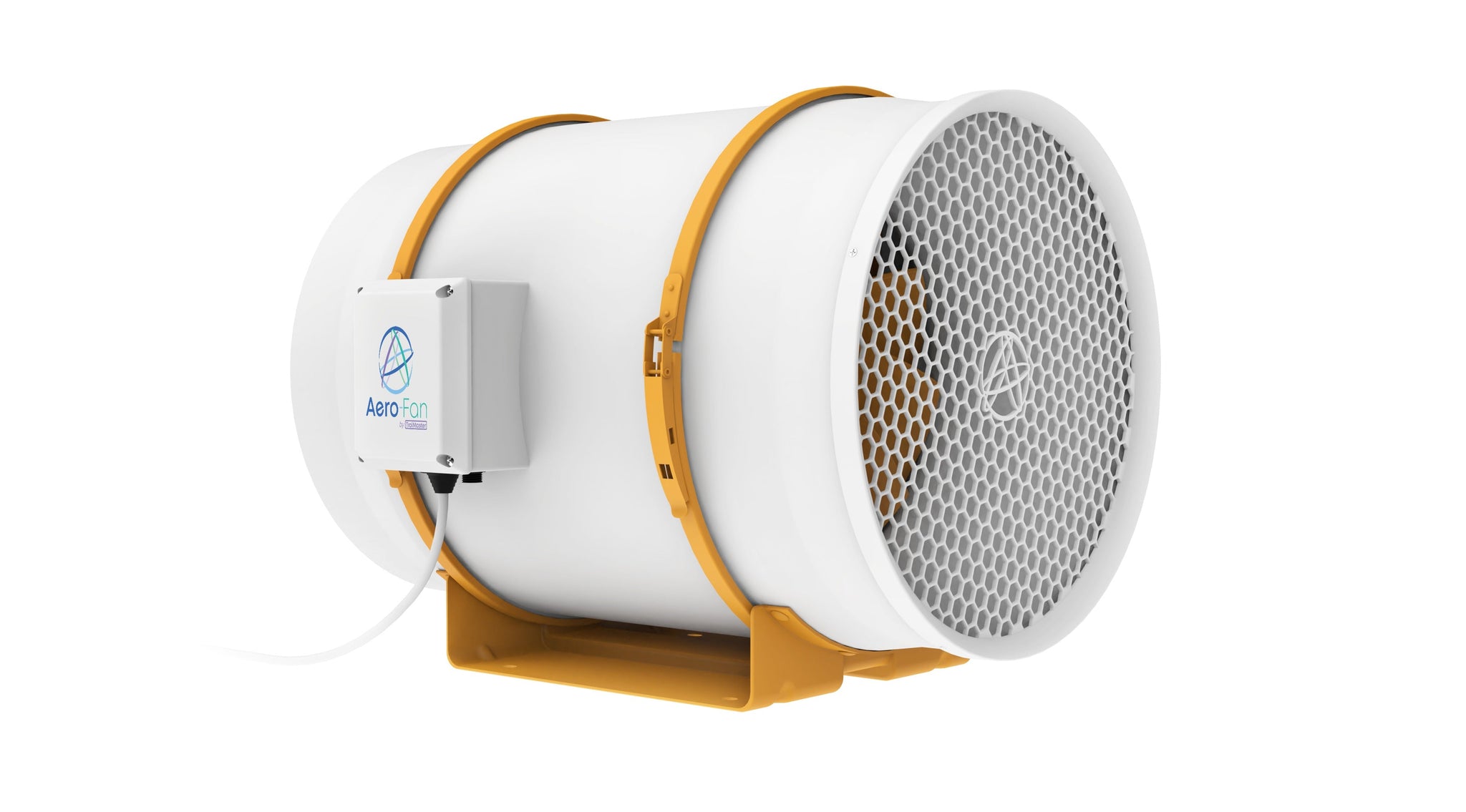

TrolMaster Aero-Fan V-12 12" Inline Duct Fan
starting from 0% interest financing from
/mo.
- 1,180 CFM peak airflow capacity for high-volume exhaust and intake systems
- 779 Pa max static pressure supports demanding ventilation setups
- 100 to 277VAC auto-sensing voltage for residential or commercial wiring
- 3-year warranty for all products except one year warranty for sensor probes from the purchase day.
- View More Details
Shipping calculated at checkout
Earn 369 points for shopping and get $3.69 off your next order. Join Harvest Club for free.
Over 50,000 Customers
Trust Trimleaf
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
Questions? Talk to a specialist.
Mon to Fri, 9am to 5pm PST
- Over 50,000 CustomersTrust Trimleaf
- Transparent PricingBacked w/ price match guarantee
- 4.8/5 Top Quality Store on Google
- Secure CheckoutSSL encrypted payments
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
- You are upgrading your facility exhaust because large-scale cultivation spaces struggle with maintaining consistent air exchange and managing heat loads.
- You are eliminating stagnant air pockets because high-canopy environments require professional-grade ventilation to promote healthy plant transpiration.
- The 8-blade motor delivers 779 Pa of static pressure, which supports high-volume exhaust in demanding setups.
- Automatic voltage sensing across 100 to 277VAC allows for seamless installation in residential or commercial facilities.
- The included ECS-7 cable enables direct integration with Green-X, Hydro-X, or Tent-X ecosystems.
- Users managing large rooms say they stopped fighting hot spots after integrating this fan with their environment controller.
- Growers who run these 24/7 say the EC motor stability has ended the vibration issues they used to see with their older plastic housings.
TrolMaster Aero-Fan V-12 12" Inline Duct Fan
Large-scale cultivation facilities often struggle with maintaining consistent air exchange and managing heat loads in high-canopy environments. The TrolMaster Aero-Fan V-12 is the ultimate solution, engineered specifically as a high-volume ventilation fan that delivers professional-grade performance for commercial exhaust and intake systems. This 12-inch powerhouse ensures your facility maintains optimal atmospheric conditions, preventing stagnant air pockets and promoting healthy plant transpiration.
As the flagship of the TrolMaster Aero-Fan series, the V-12 provides a massive 1,180 CFM airflow capacity, ensuring your environmental control strategy remains robust even in the most demanding setups. With its energy-efficient 8-blade motor and auto-sensing voltage capabilities, it offers the perfect balance of power and reliability for growers who refuse to compromise on air quality. When integrated into your TrolMaster ecosystem, it provides unmatched automation and precision for your garden.
All Sales Final
What's Included
Features
💨
1,180 CFM Peak Airflow
The 8-blade motor delivers the highest output in the series with 779 Pa of static pressure for high-volume exhaust.
🔋
100–277VAC Auto-Sensing
Automatic voltage sensing across 100–277VAC allows for seamless installation in residential or commercial facilities.
🎛️
Native Control
Includes an ECS-7 cable for direct integration with Green-X, Hydro-X, or Tent-X ecosystems.
🔩
Mounting Plate Included
Ships with a heavy-duty mounting plate to simplify secure installation into your existing ductwork.
Specifications
| Specification | Value |
|---|---|
| Operating Voltage | 100–277VAC, 50/60 Hz |
| Rated Current | 2.6A Max |
| Rated Input Power | 268W Max |
| Number of Blades | 8 |
| Max Airflow | 1,180 CFM |
| Max Static Pressure | 779 Pa |
| Rotation Direction | CCW |
| IP Rating | IP44 |
| Operating Temperature | -4–140°F (-20–60°C) |
| MTTF | 50,000 Hours @ 25°C |
| Dimensions | 17.87 × 14.06 × 12.26 in |
| Net Weight | 17.64 lbs (8.0 kg) |
Support & Manuals
FAQs
How does the V-12 integrate with TrolMaster controllers?
The V-12 includes an ECS-7 cable that connects directly to TrolMaster environmental controllers. Once connected, the controller can automate fan speed and scheduling as part of a broader environmental program without requiring additional relay hardware.
Can the V-12 be used without a TrolMaster controller?
Yes. The V-12 operates as a standalone inline duct fan and can be installed in any standard 12-inch duct system independently. The ECS-7 cable enables controller integration, but it is not required for basic operation.
What voltage does the V-12 require?
The V-12 features automatic voltage sensing across 100–277VAC at 50/60 Hz, making it compatible with both standard 120V residential wiring and 208/240V commercial facility power without manual switching.
How does the V-12 compare to other Aero-Fan models?
The V-12 delivers 1,180 CFM, the highest airflow in the lineup. By comparison, the Aero-Fan V-10 outputs 971 CFM, the Aero-Fan V-8 outputs 684 CFM, and the Aero-Fan V-6 outputs 360 CFM.
What is the expected lifespan of the motor?
TrolMaster rates the V-12 motor at a Mean Time To Failure (MTTF) of 50,000 hours at 25°C, providing over five years of continuous, reliable runtime.
