TrolMaster Aero-Fan V-10M 10" Metal Pro Inline Duct Fan
starting from 0% interest financing from
/mo.
- 1,014 CFM airflow at 210W maximum power draw
- All-metal housing for 24/7 commercial operation
- Auto-sensing voltage range from 100 to 277VAC
- 3-year warranty for all products except one year warranty for sensor probes from the purchase day.
- View More Details
Shipping calculated at checkout
Earn 303 points for shopping and get $3.03 off your next order. Join Harvest Club for free.
Over 50,000 Customers
Trust Trimleaf
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
Questions? Talk to a specialist.
Mon to Fri, 9am to 5pm PST
- Over 50,000 CustomersTrust Trimleaf
- Transparent PricingBacked w/ price match guarantee
- 4.8/5 Top Quality Store on Google
- Secure CheckoutSSL encrypted payments
Ask Sage about this product
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
- You are upgrading your ventilation system because your current plastic fans keep cracking and vibrating under 24/7 load.
- You are integrating your climate control because you need precise, automated airflow adjustments that respond to sensor data.
- The all-metal housing provides the rigidity required to stop the vibration issues seen with standard plastic-body fans.
- The included ECS-7 cable allows the unit to receive direct speed commands from your existing controller.
- Growers who swapped out their plastic fans say they finally stopped hearing the resonance rattling through their ductwork.
- Users managing large rooms report they saved hours of manual adjustments by letting their controller handle the fan speeds.

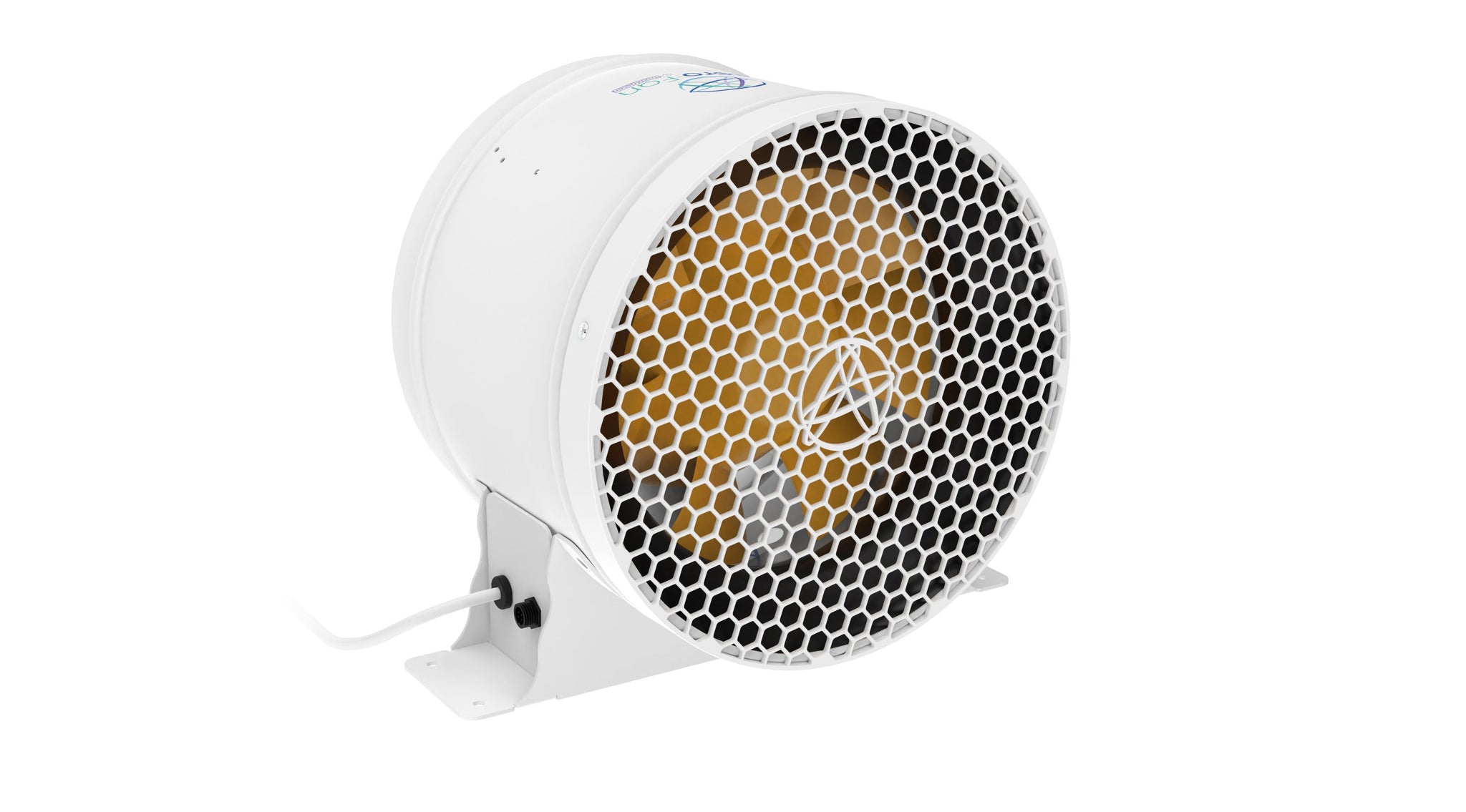

TrolMaster Aero-Fan V-10M 10" Metal Pro Inline Duct Fan
Maintaining a perfect environment in a professional grow facility requires more than just basic airflow; it requires equipment built for the long-haul rigors of 24/7 operation. Many standard plastic-housing fans lack the structural integrity needed for permanent commercial setups, often leading to vibrations and premature wear. The TrolMaster Aero-Fan V-10M solves this problem with its pro-grade, all-metal housing, providing maximum durability and structural rigidity for demanding environmental control systems.
This 10-inch Pro Model sets a new standard for efficiency, delivering an impressive 1,014 CFM at just 210W. This makes it significantly more efficient per CFM than the standard TrolMaster Aero-Fan V-10 Ventilation Fan. Designed to integrate natively with the TrolMaster ecosystem, it includes an ECS-7 cable for direct connection to controllers like the TrolMaster Green-X DMC-1 Greenhouse Control or the Tent-X system, allowing for fully automated speed management and precise climate optimization.
All Sales Final
What's Included
Features
🏗️
All-Metal Pro Housing
Constructed with high-grade metal for superior durability and rigidity in permanent commercial installations.
💨
1,014 CFM Efficiency
High-output 7-blade motor delivers massive airflow while drawing only 210W for maximum energy savings.
🔋
Auto-Sensing Voltage
Automatically adjusts to power supplies from 100–277VAC, suitable for both residential and commercial facilities.
🎛️
Native Control
Plug-and-play integration with TrolMaster controllers via the included ECS-7 cable for automated speed scheduling.
🔩
Mounting Plate
Ships with a dedicated mounting plate to simplify secure installation into your existing ducting system.
Specifications
| Specification | Value |
|---|---|
| Operating Voltage | 100–277VAC, 50/60 Hz |
| Rated Current | 1.94A Max |
| Rated Input Power | 210W Max |
| Number of Blades | 7 |
| Max Airflow | 1,014 CFM |
| Max Static Pressure | 770 Pa |
| Rotation Direction | CCW |
| IP Rating | IP44 |
| Operating Temperature | -4–140°F (-20–60°C) |
| MTTF | 50,000 Hours @ 25°C |
| Dimensions | 13.78 × 12.20 × 9.65 in |
| Net Weight | 9.94 lbs (4.51 kg) |
Support & Manuals
FAQs
What makes the V-10M different from the standard V-10?
The V-10M is the Pro Model variant featuring an all-metal housing for greater durability. It is also more energy-efficient, drawing only 210W compared to the standard V-10's 268W, while delivering higher airflow.
How does the V-10M integrate with TrolMaster controllers?
The V-10M includes an ECS-7 cable that connects directly to TrolMaster controllers. This allows the controller to automate fan speed and scheduling based on your environmental settings.
Can the V-10M be used without a TrolMaster controller?
Yes, the V-10M can operate as a standalone high-performance inline duct fan. The TrolMaster connection is optional for those who want centralized environmental automation.
What voltage does the V-10M require?
It features auto-sensing voltage from 100V to 277V, making it compatible with standard 120V residential outlets as well as 208V/240V/277V commercial power systems.
What is the expected lifespan of this fan?
The V-10M is rated for a Mean Time To Failure (MTTF) of 50,000 hours, which is over 5.7 years of continuous 24/7 operation.
Is the V-10M suitable for humid grow environments?
Yes, it carries an IP44 rating, providing protection against water splashes and solid objects, making it ideal for the high-humidity conditions of an indoor garden.
