- 1 x DSD-1
- 1 x Alarm Station
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
TrolMaster Carbon-X AS-1 CO2 Alarm Control
starting from 0% interest financing from
/mo.
- Dry contact output handles up to 6A at 250VAC for linking to external sirens or fans
- DSD-1 device station comes standard for immediate integration with Carbon-X sensors
- Universal 100 to 240 VAC power input works with most standard facility electrical setups
- 3-year warranty on mechanical and electronic components
- View More Details
Earn 124 points for shopping and get $1.24 off your next order. Join Harvest Club for free.
Free Shipping On Most Items*
To the lower 48
Transparent Pricing
Backed w/ price match guarantee
4.81/5 Rating
1930+ verified reviews
Secure Checkout
SSL encrypted payments
More in this Series
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are installing a secondary alarm because your main sensors might be out of sight during routine maintenance tasks.
- You are adding external notification stations because you need to know CO2 levels are safe before entering the room.
- You are integrating the DSD-1 module because your current safety setup lacks the dry-contact output for exhaust fans.
What We Found
- The audible alarm is loud enough to hear through heavy insulated doors, making it reliable for large facilities.
- We found the plug and play RJ12 connections make it easy to swap locations without redoing your entire wiring.
What Users Say
- Operators tell us they finally passed fire marshal inspections after adding these visible alarm stations.
- Users who installed these outside every exit say they stopped worrying about staff safety during high cycles.

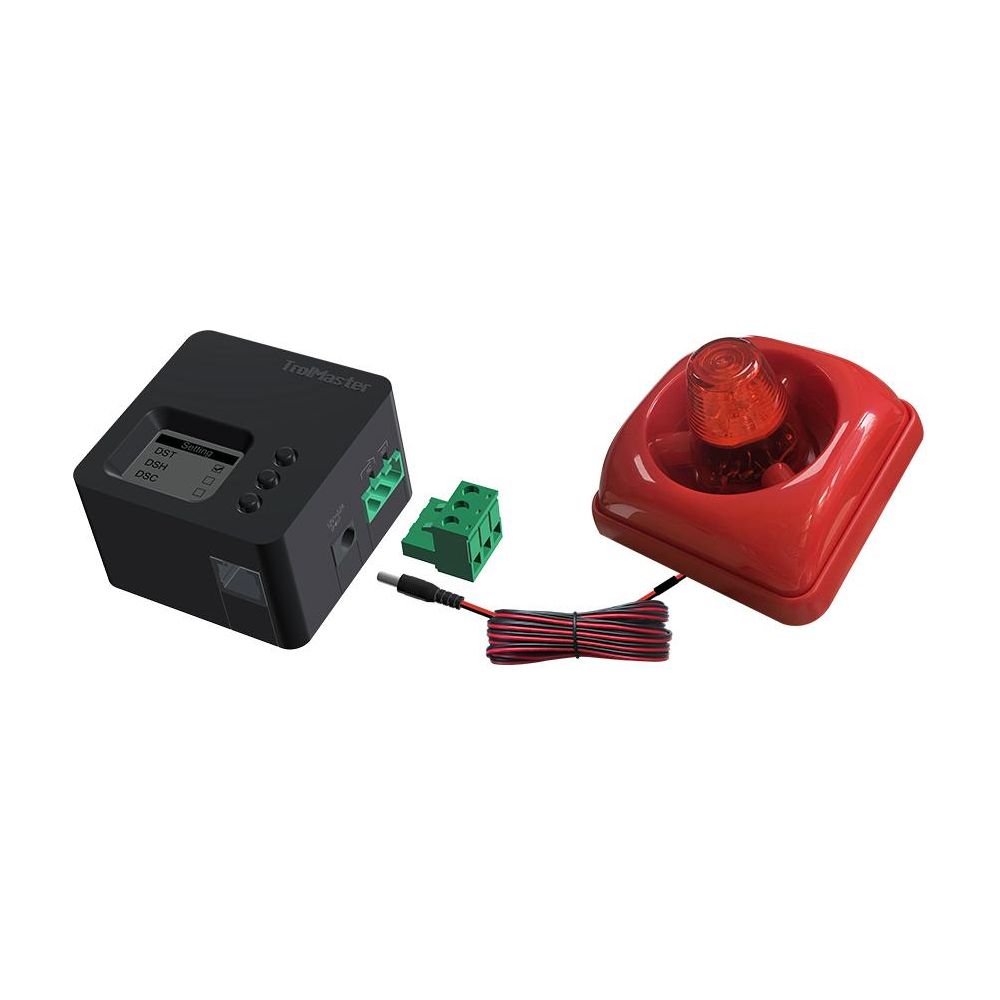

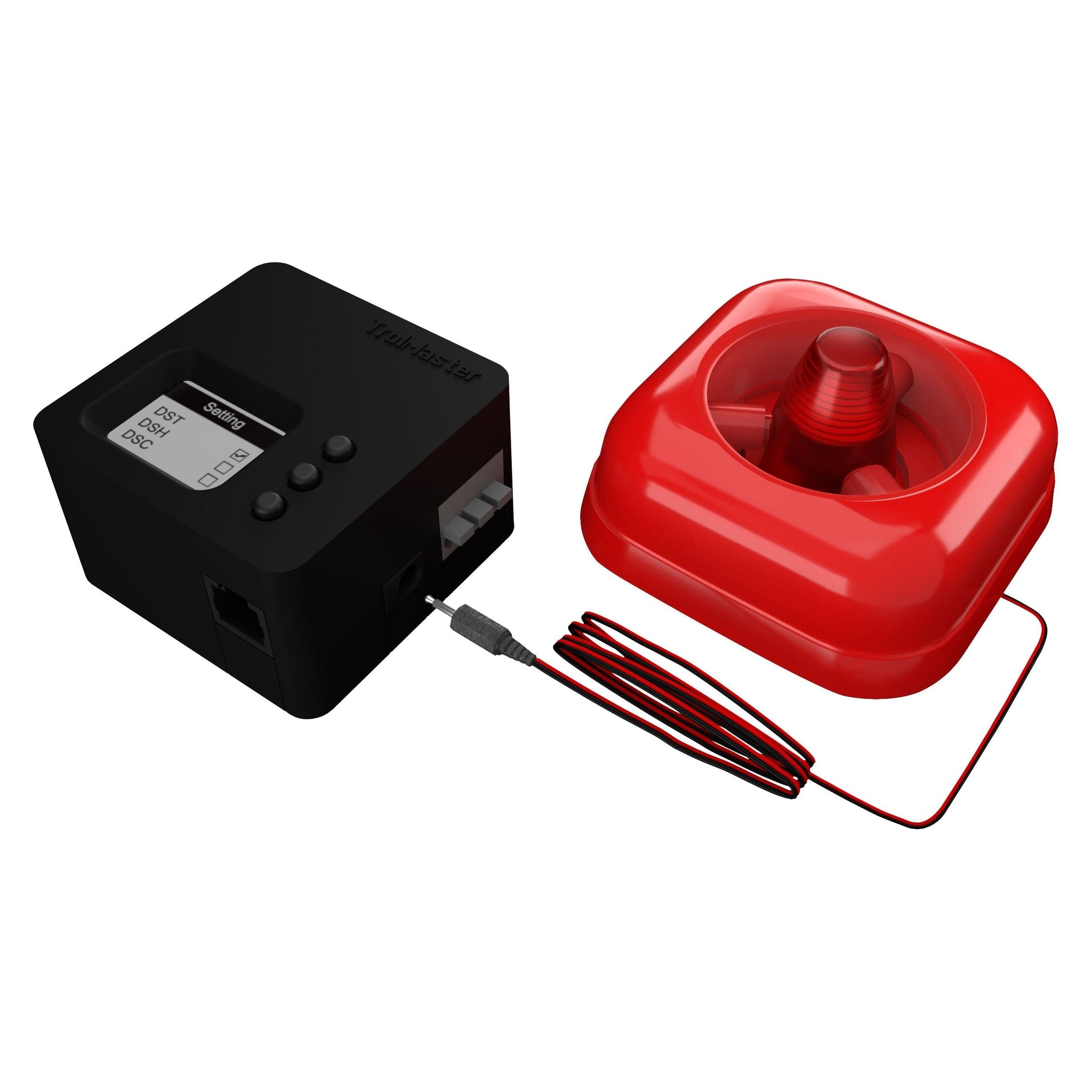

TrolMaster Carbon-X AS-1 CO2 Alarm Control
Maintaining safe CO2 levels is critical for both plant health and worker safety in any commercial cultivation environment. The TrolMaster Carbon-X AS-1 CO2 Alarm Control provides a reliable, automated solution to monitor these levels, acting as a failsafe that alerts you the moment concentrations exceed your pre-defined safety thresholds. By integrating this station into your environmental control strategy, you ensure a secure workplace without sacrificing atmospheric optimization.
Designed for maximum versatility, the AS-1 can be mounted either inside or outside the monitored zone to provide clear notification where it's needed most. As a key component of the TrolMaster Carbon-X CO2 Alarm System（CDA-1）, it features both audible and visible alarms, ensuring that no alert goes unnoticed. Whether you are managing a single room or a complex facility, the AS-1 offers the plug-and-play reliability required for professional CO2 monitoring.
What's Included
Features
🚨
Audio-Visual Alarm
Instant audible and visual notifications when CO2 levels reach critical safety thresholds.
🔌
Plug and Play
Sets up quickly and easily without the need for complex electrical installations or wiring.
🔗
Sensor Linkage
Can be linked to low and high-level sensors to cover all possible safety scenarios.
🛠️
DSD-1 Included
Comes standard with the DSD-1 device station for immediate system integration.
Specifications
| Specification | Value |
|---|---|
| Input Voltage | 100~240 VAC, 50/60Hz |
| Output Current | 24V 0.2A |
| Dry Contact Output | 30VDC/250VAC, 6A |
| Working Environments | Temperature 32-122°F, Humidity <=90% |
| Package Dimensions | 160mm(L) x 80mm(W) x 90mm(H) |
Support & Manuals
Warranty
TrolMaster only uses high-quality components. Under normal operating conditions, the mechanical and electronic components are covered by a three-year warranty from the original date of purchase. Components that have failed due to abnormal usage are excluded from this warranty.
FAQs
What is the primary function of the AS-1?
The AS-1 is designed to provide immediate audio and visual alerts if CO2 levels in your grow room exceed the safety thresholds set on your controller.
Where should I install the AS-1 station?
It can be mounted either inside or outside the room being monitored, depending on where you need the alarm notification to be most visible and audible.
Is the AS-1 compatible with other TrolMaster sensors?
Yes, it can be linked to both low and high-level CO2 sensors, such as the MBS-K30, to provide comprehensive coverage.
Does this unit require professional electrical installation?
No, the AS-1 features a plug-and-play design using standard RJ12 cables, making installation straightforward for any user.
Can I use the AS-1 as a standalone device?
The AS-1 is designed to work as part of the Carbon-X system and requires a main controller to function correctly.
