- 1 × Device Station (DSP-2)
- 1 × 16ft RJ12 Cable
- 1 × 4ft RJ12 Cable
- 1 × RJ12 T-Splitter
TrolMaster DSP-2 240V Program Timer Device Station
starting from 0% interest financing from
/mo.
- Supports any device on 100; 240 VAC at up to 10 amps.
- One-button addressing links the module to the controller instantly.
- Plug and play setup includes both RJ12 cables and a T-splitter.
- 3-year warranty on all mechanical and electronic components
- View More Details
Shipping calculated at checkout
Earn 87 points for shopping and get $0.87 off your next order. Join Harvest Club for free.
Over 50,000 Customers
Trust Trimleaf
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
Questions? Talk to a specialist.
Mon to Fri, 9am to 5pm PST
- Over 50,000 CustomersTrust Trimleaf
- Transparent PricingBacked w/ price match guarantee
- 4.8/5 Top Quality Store on Google
- Secure CheckoutSSL encrypted payments
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
- You are adding timed device control because your dosing pumps or UV sterilizers need to run on a set schedule without manual intervention.
- You are upgrading your environmental controller setup because your current power modules do not support the specific voltage requirements of your gear.
- The LED status light is handy because it confirms if your device is actively powered or currently off.
- Using the RJ12 connection means you can link this module to your system in seconds without needing any tools.
- Growers who integrated their circulation equipment report they no longer worry about manual daily toggling.
- Users who swapped to these modules say the easy address button made their whole system expansion move much faster.

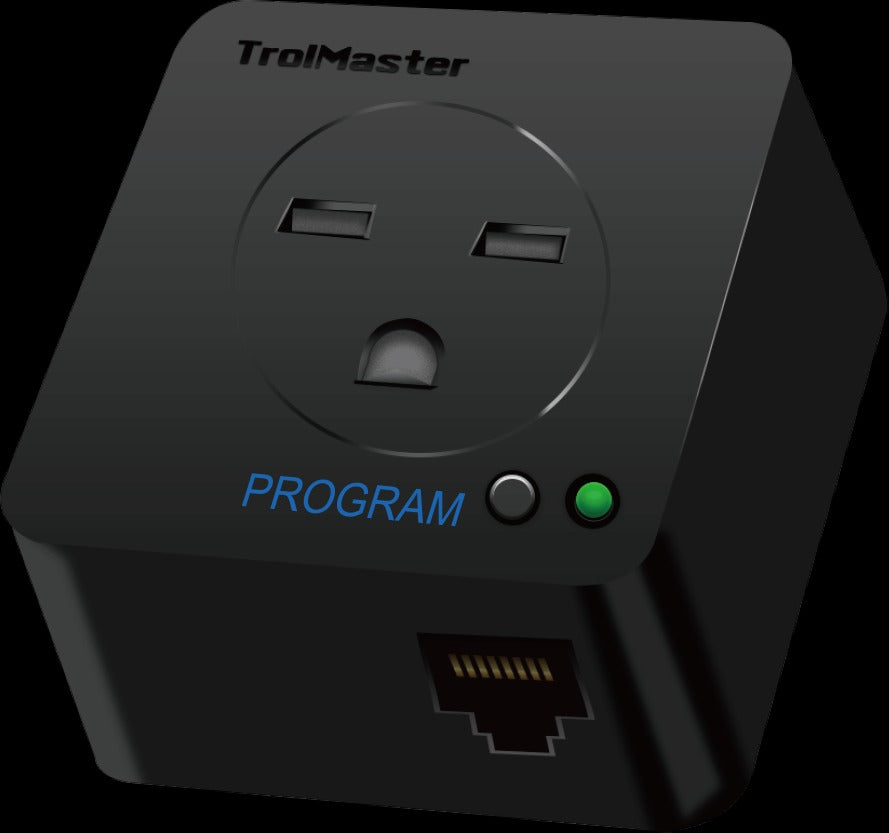

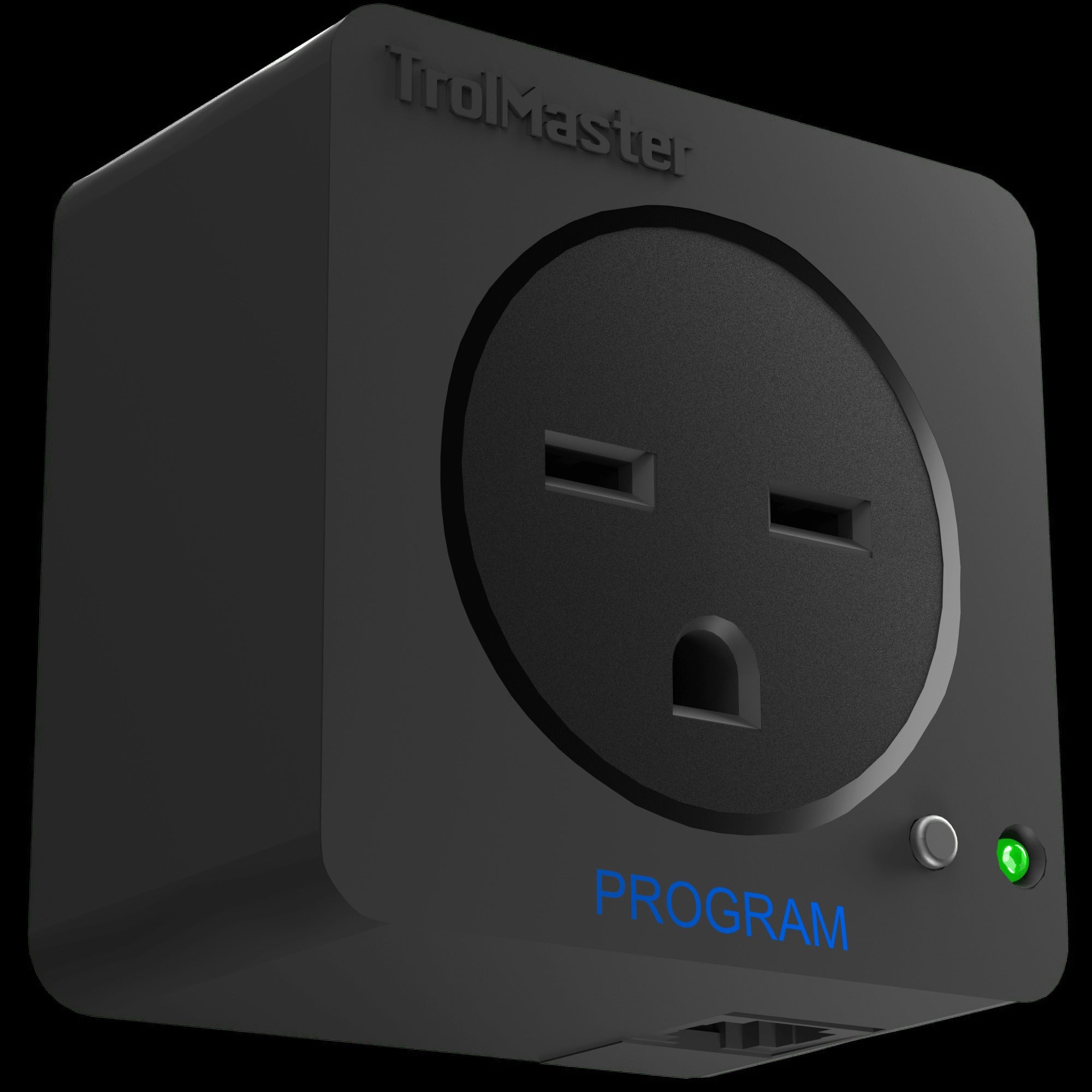

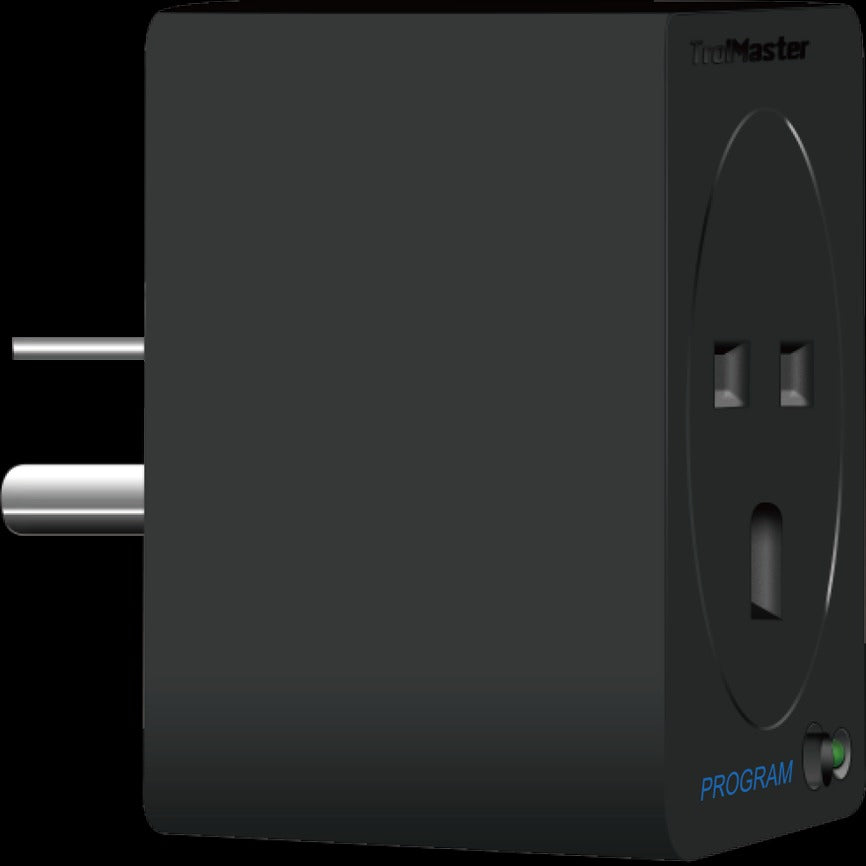

TrolMaster DSP-2 240V Program Timer Device Station
Time-activated devices need a trigger that fires precisely on schedule — every cycle, without exception. The TrolMaster DSP-2 240V Program Device Station is a multi-function timer module that connects any time-driven device into your TrolMaster Hydro-X or Aqua-X controller, putting its on/off schedule under full programmatic control. Designed for setups running on dedicated 240V circuits, the DSP-2 supports any device on 100–240 VAC at up to 10 amps — covering dosing pumps, UV sterilizers, circulation equipment, lighting, and more across any standard electrical system worldwide.
Like all DS-type modules, setup is immediate: connect via RJ12, press once to address, and the controller manages scheduling from that point forward. A colour-coded LED confirms status at a glance, and the manual override button lets you toggle the connected device on or off directly without touching the controller.
Compatibility: TrolMaster Aqua-X, Hydro-X, Green-X, and Tent-X Systems
All Sales Final
What's Included
Features
⏱️
Multi-Function Timer
Programs time-activated devices to switch on and off precisely on schedule — no manual triggering or separate timer hardware needed.
⚡
240V Circuit Ready
Designed for 240V-focused setups. Supports 100–240 VAC at up to 10A — compatible with time-activated devices on any standard electrical system.
💡
LED Status Indicator
Colour-coded LED shows connection, activity, and overload status at a glance — no guessing required.
📍
One-Button Addressing
Press the onboard button to link the module to your controller instantly. Hold it to manually override on/off.
🔌
Plug & Play Setup
Both RJ12 cables and a T-splitter included. Integrates into any TrolMaster system in minutes — no wiring or tools required.
TrolMaster DSP-2 Specifications
| Specification | Value |
|---|---|
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Output Voltage | 100–240 VAC, 50/60 Hz |
| Output Current | 10A |
| Working Environment | Temperature 32–122°F (0–50°C), Humidity ≤90% |
| Package Dimensions | 85mm (L) × 80mm (W) × 90mm (H) |
| Gross Weight | 0.34 kg |
| Compatibility | TrolMaster Aqua-X, Hydro-X, Green-X, Tent-X |
Support & Manuals
Warranty
TrolMaster backs the DSP-2 with a 3-year warranty from the original date of purchase, covering all mechanical and electronic components under normal operating conditions. Components that fail due to abnormal or improper usage are excluded from this coverage.
FAQs
What is the difference between the DSP-1 and the DSP-2?
Both the TrolMaster DSP-1 and DSP-2 are program device stations that control time-activated devices via your TrolMaster controller, and both share the same 100–240 VAC input range and 10A output rating. The DSP-2 is the 240V-designated variant, intended for growers running dedicated 240V circuits who want a device station matched to their electrical setup. Functionally they operate identically within the TrolMaster ecosystem.
What types of devices can I control with the DSP-2?
The DSP-2 is suited for any device that operates on a time-based schedule rather than responding to environmental sensor readings. Common applications include dosing pumps, UV sterilizers, circulation fans, agitation equipment, and supplemental lighting — anything running on 100–240 VAC at up to 10 amps that needs to switch on and off at programmed intervals.
How is the DSP-2 different from the DST-2 or DSH-2?
The DST-2 and DSH-2 are sensor-driven device stations — they switch connected devices on or off in response to real-time temperature or humidity readings from the controller. The DSP-2 is program-driven — it controls devices based purely on time schedules you define, making it the right choice for equipment that needs to run at fixed intervals regardless of what the environment is doing at that moment.
How do I address (link) the DSP-2 to my controller?
After connecting the DSP-2 via RJ12 cable, press the small button on the module once to link it to your TrolMaster controller. The LED will confirm the result — fast blinking green means unaddressed, slow blinking green means addressed and standing by for controller commands.
Can I manually override the DSP-2 without changing the programmed schedule?
Yes. Press and hold the button on the DSP-2 to manually toggle the connected device on or off directly from the module. This override is useful during setup, testing, or maintenance and does not alter the programmed schedule stored on the controller.
What do the LED blink patterns on the DSP-2 indicate?
- Fast blinking green: Module not yet addressed to the controller, or connection lost. Press the button to link it.
- Slow blinking green: Module addressed and connected — device currently OFF.
- Solid green: Module addressed, connected, and device currently ON.
- Blinking red: Module overloaded. Unplug from wall to reset, then verify connected device is within the 10A limit.
Which TrolMaster controllers is the DSP-2 compatible with?
The DSP-2 is compatible with the full TrolMaster environmental control lineup: Aqua-X, Hydro-X, Green-X, and Tent-X. It connects via the standard RJ12 interface shared across all TrolMaster DS-type modules, making it a versatile addition to any existing TrolMaster setup regardless of which controller platform you run.
