- 1 × Device Station (DSH-2)
- 1 × 16ft RJ12 Cable
- 1 × 4ft RJ12 Cable
- 1 × RJ12 T-Splitter
Ask Sage about this product
TrolMaster DSH-2 240V Humidity Device Station
starting from 0% interest financing from
/mo.
- Supports up to 10 amps of output current for heavy-duty gear
- 240 VAC input voltage designed for high-capacity devices
- Operating temperature range between 32 and 122 degrees Fahrenheit
- 3-year warranty on all mechanical and electronic components
- View More Details
Shipping calculated at checkout
Earn 87 points for shopping and get $0.87 off your next order. Join Harvest Club for free.
Over 50,000 Customers
Trust Trimleaf
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
Questions? Talk to a specialist.
Mon to Fri, 9am to 5pm PST
- Over 50,000 CustomersTrust Trimleaf
- Transparent PricingBacked w/ price match guarantee
- 4.8/5 Top Quality Store on Google
- Secure CheckoutSSL encrypted payments
Ask Sage about this product
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
- You are integrating a high-capacity 240V humidifier into your environmental setup because standard controllers struggle with high-voltage loads.
- You are expanding a large-scale facility or upgrading a specialized room because you need precise, automated humidity management.
- The 240V dedicated input is designed specifically for high-capacity humidifiers and dehumidifiers.
- The one-button addressing lets you instantly link the module to your controller or use manual override.
- The colour-coded LED shows connection, activity, and overload status at a glance.
- Users managing large rooms report that moving their high-capacity dehumidifiers to this station stopped the constant tripping of their circuit breakers.
- Growers who consolidated their environmental equipment say their control room setup is cleaner and much easier to maintain.

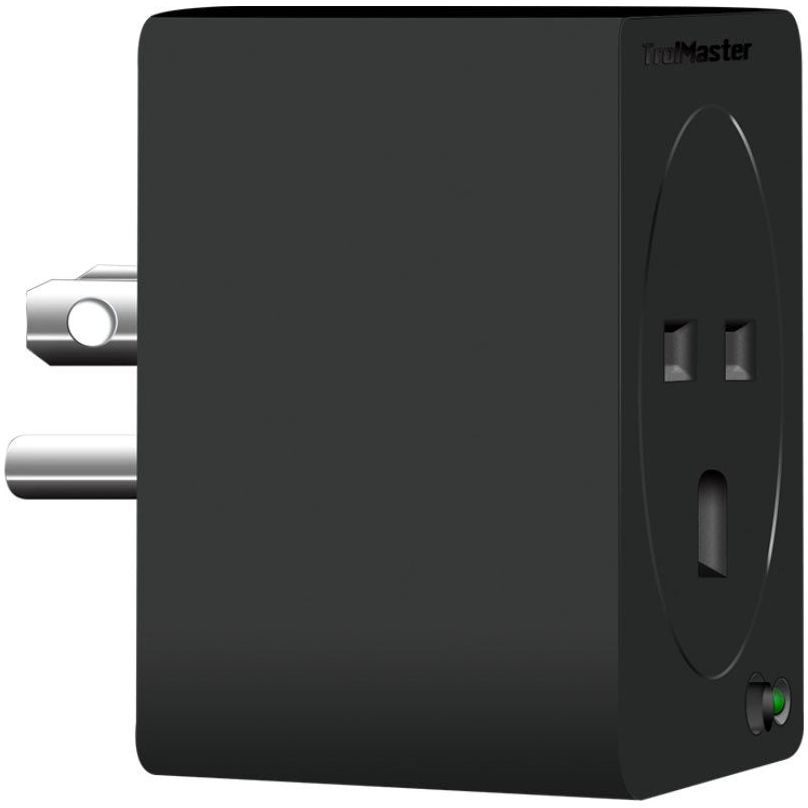

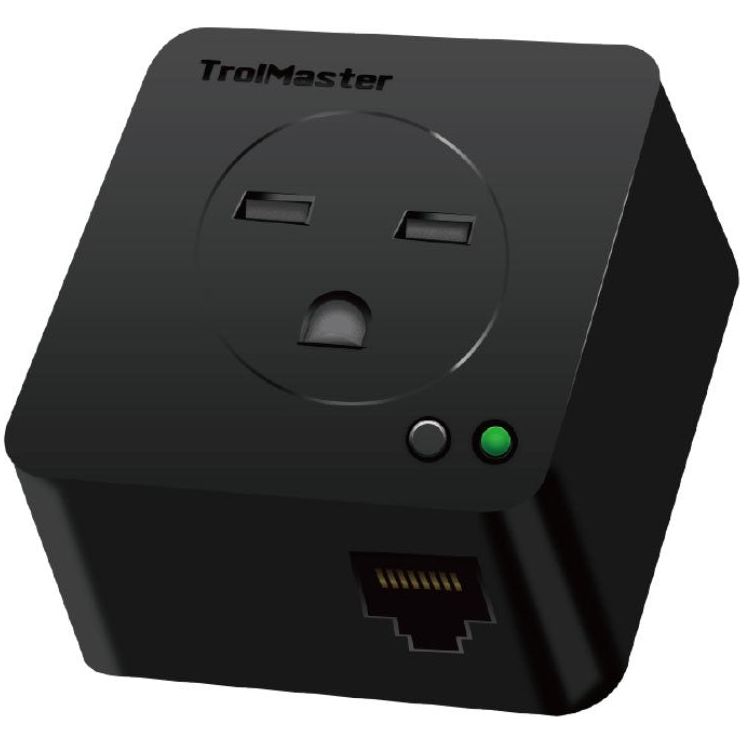

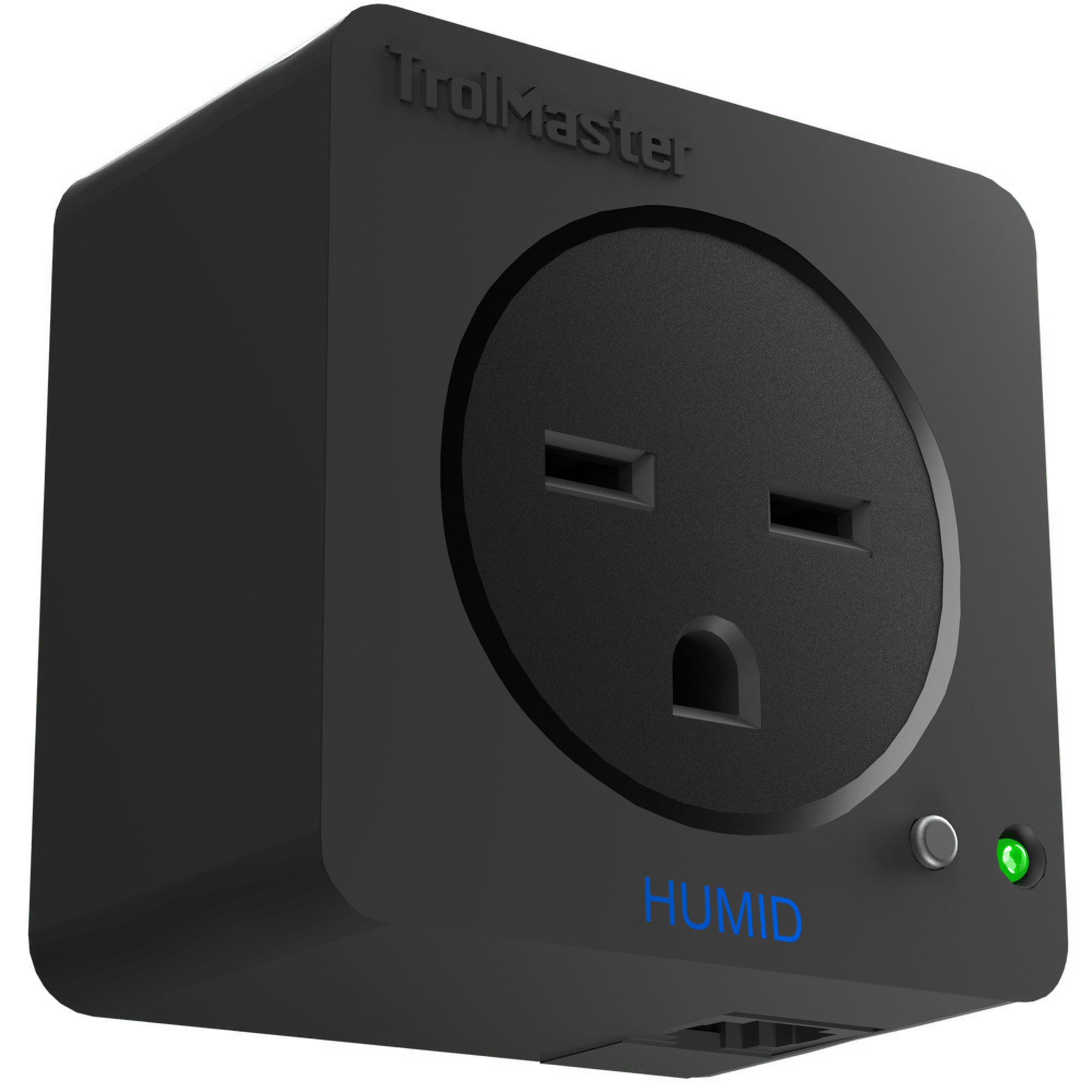

TrolMaster DSH-2 240V Humidity Device Station

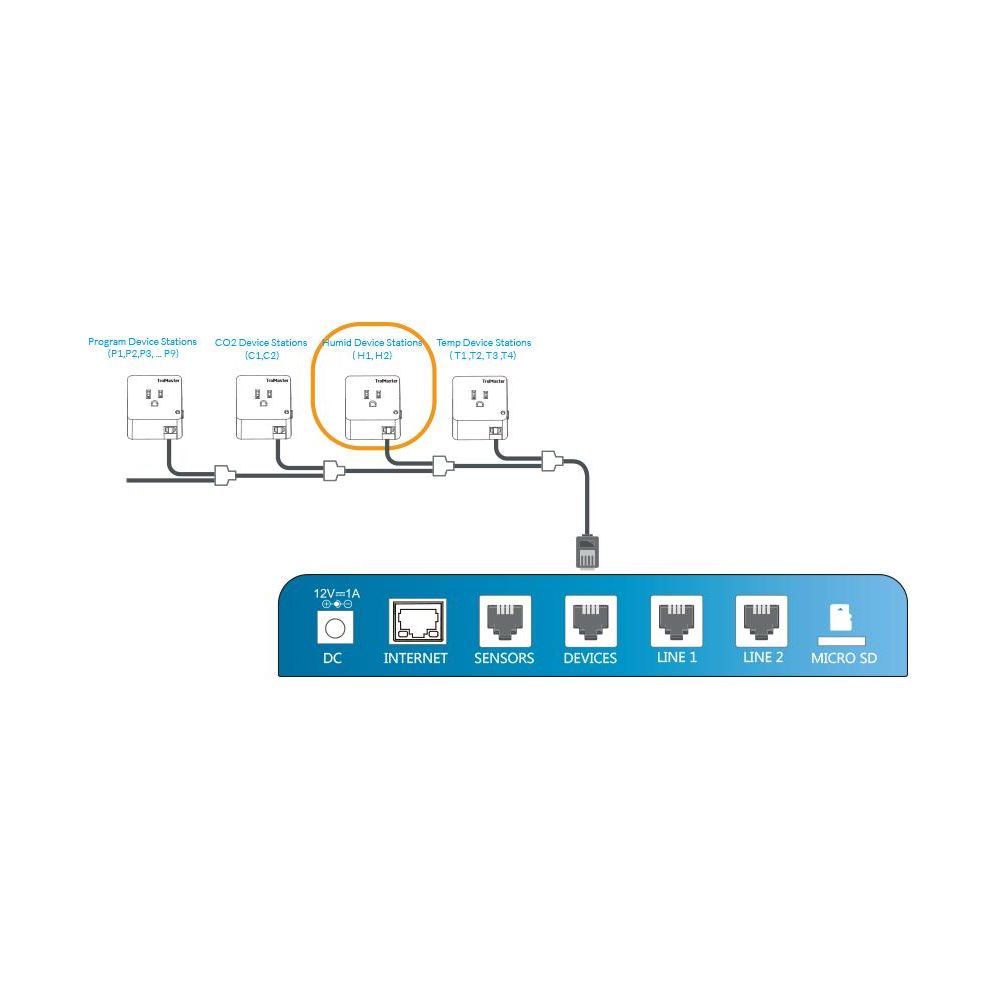

Commercial grow environments often rely on high-capacity equipment that demands dedicated power. Standard controllers often struggle with high-voltage loads, but the TrolMaster 240V DSH-2 is engineered specifically to bridge that gap, providing precise, automated humidity management for your most powerful equipment. This station allows you to integrate any 240V humidifying or dehumidifying device directly into your existing TrolMaster Hydro-X HCS-1 Grow Tent Control setup.
By supporting up to 10 amps, it ensures that even heavy-duty gear operates in perfect sync with your environmental parameters without the need for complex wiring or external adapters. Whether you are expanding a large-scale facility or upgrading a specialized room, adding a TrolMaster DSH-1 or this high-voltage DSH-2 variant ensures your humidity levels remain within the optimal range for maximum crop health.
Compatibility: TrolMaster Hydro-X, Green-X, and Tent-X Systems
⚠️ When controlling a dehumidifier, ensure the unit draws less than 7 amps to avoid triggering current overload on the DSH-2.
All Sales Final
What's Included
Features
⚡
240V Dedicated Input
Designed specifically for 240V circuits—ideal for high-capacity humidifiers and dehumidifiers.
💡
LED Status Indicator
Colour-coded LED shows connection, activity, and overload status at a glance.
📍
One-Button Addressing
Instantly link the module to your controller or use manual override with a single press.
🔌
Plug & Play Setup
Includes RJ12 cables and a T-splitter for fast, tool-free integration into your system.
TrolMaster DSH-2 Specifications
| Specification | Value |
|---|---|
| Input Voltage | 240 VAC, 50/60 Hz |
| Output Voltage | 100–240 VAC, 50/60 Hz |
| Output Current | 10A (7A max recommended for dehumidifiers) |
| Working Environment | Temperature 32–122°F (0–50°C), Humidity ≤90% |
| Package Dimensions | 85mm (L) × 80mm (W) × 90mm (H) |
| Gross Weight | 0.34 kg |
| Compatibility | TrolMaster Hydro-X, Green-X, Tent-X |
Support & Manuals
Warranty
TrolMaster backs the DSH-2 with a 3-year warranty from the original date of purchase, covering all mechanical and electronic components under normal operating conditions. Components that fail due to abnormal or improper usage are excluded from this coverage.
FAQs
What is the difference between the DSH-1 and the DSH-2?
The primary difference is the voltage requirement. While the DSH-1 is a universal module, the DSH-2 is designed specifically for dedicated 240V circuits. This makes it ideal for commercial-grade dehumidifiers and humidifiers that require higher voltage to operate efficiently.
What devices can I control with the DSH-2?
You can control any humidifier or dehumidifier that runs on 240 VAC and draws up to 10 amps. However, for dehumidifiers specifically, we recommend a maximum draw of 7 amps to ensure longevity and prevent overload protection triggers.
What do the LED status lights indicate?
Fast blinking green means the module is waiting to be addressed. Slow blinking green means it is connected and standing by. Solid green indicates the device is currently active. Blinking red indicates an overload; simply unplug the unit to reset.
How do I address the DSH-2 to my controller?
Connect the station via the provided RJ12 cable and press the addressing button once. Your TrolMaster controller will recognize the device instantly. You can also hold this button to manually toggle the power to the connected device.
Can I use the DSH-2 with any TrolMaster system?
Yes, the DSH-2 is fully compatible with the Hydro-X, Green-X, and Tent-X control systems, allowing for seamless integration into your existing environmental automation setup.
