The Holland Green Science Xiros Mikro is a programmable lyophilizer: heated shelves, published shelf temperatures of -35 C to +60 C, and up to 16 drying steps you write yourself. The Harvest Right pharmaceutical units are automated cabinets that run the cycle for you, sized by ice holding capacity. Trimleaf carries both, so the real question is which control model fits your work.
What Actually Separates These Two Machines?
Control, not capacity. The Xiros Mikro publishes shelf temperatures of -35 C to +60 C and runs up to 16 programmable steps you define. Harvest Right publishes no shelf temperature for its pharmaceutical line and runs the cycle automatically instead. The two also rate capacity in different units, kilograms of ice against gallons, so no spec compares cleanly without conversion.
That unit mismatch is worth pausing on. Holland Green Science rates the Xiros Mikro by ice condenser capacity in kilograms with a 24 hour extraction rate; Harvest Right rates its pharmaceutical line by ice holding capacity in gallons and litres. Neither publishes the other's unit, so any direct comparison is approximate and should be labelled as one.
The deeper split is control. The Xiros Mikro gives you manual or automatic operation with programmable recipes. Harvest Right describes its pharmaceutical units as having built in intelligence that manages the freeze drying process automatically. One machine asks you to define the process; the other takes it off your hands. That difference drives everything below, and it is the honest basis for choosing.
Xiros Mikro vs Harvest Right Pharmaceutical: The Specs Side by Side
Every figure below is published by that machine's own manufacturer, in that manufacturer's own units. Blank entries are not omissions on our part: they are specs the manufacturer does not publish, and a comparison that invented them would be worse than one that leaves them empty.
How Much Can Each One Actually Process?
Holland Green Science publishes an 8 kg ice condenser capacity for the Xiros Mikro, with an 11 litre condenser volume, and rates it to pull 4 kg of ice out of product in 24 hours. It also gives a typical product capacity of 9.6 kg at 80 percent moisture content, which is the figure most people actually want, because it describes wet product going in rather than ice coming out.
Harvest Right sizes its pharmaceutical units by ice holding capacity instead: 0.90 gallons (3.4 L) on the Small, 1.5 gallons (5.7 L) on the Medium, and 2.7 gallons (10.2 L) on the Large. Since a kilogram of ice is roughly a litre, the Xiros condenser lands somewhere near the Large Pharmaceutical on holding capacity, though that is a rough conversion rather than a spec either manufacturer stands behind. Treat it as a ballpark, not a tiebreaker.
The honest read is that these machines occupy the same broad capacity band, and capacity is the wrong axis to decide on. What differs is the shelf pack.

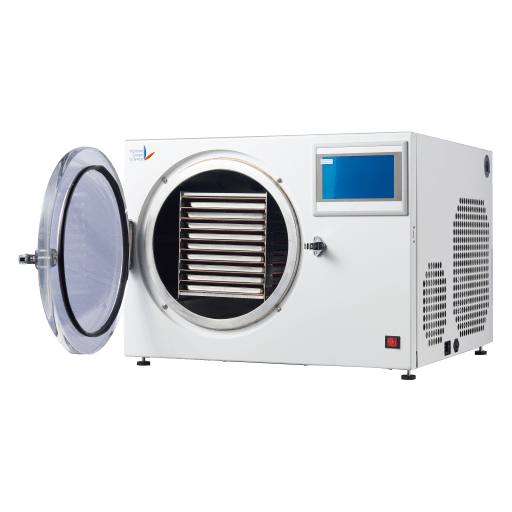

The Xiros ships with five heated aluminium shelves and five stainless trays, and the entire stack swaps plug and play to three, seven or nine shelves, so one machine covers several batch geometries. The Harvest Right tray count is fixed by the cabinet you buy: five, six or eight trays depending on size.
Which One Gives You Control Over the Cycle?
This is where the two machines genuinely diverge, and it is the section worth reading twice if your product is sensitive.
The Xiros Mikro publishes a condenser temperature of -40 C, a minimum shelf temperature of -35 C for freezing, and a maximum shelf temperature of +60 C for drying. Those heated shelves are what make the programmable side real.
You get manual or automatic operation, up to 16 steps per recipe, four stored recipe buttons and a 5 inch colour touchscreen, with USB and RS232C interfaces for pulling data off the machine. If you are developing a process and need to hold a shelf at a specific temperature for a specific stretch, that capability is published and it is on the machine.
Harvest Right does not publish a shelf or chamber temperature for its pharmaceutical line, and I want to be direct about what that means rather than filling the gap with a plausible number. It means you cannot plan a temperature-specific protocol around a published spec.
The pharmaceutical units are designed to make that unnecessary. Harvest Right describes them as having built in intelligence that manages the process automatically, and says the ideal vacuum pressure and drying temperature is maintained for each material. For a lab that wants consistent results without writing recipes, that is a feature, not a shortfall.
My advice for anyone choosing between them: if a regulator, a client or a validation protocol will ever ask you what shelf temperature you held and for how long, buy the machine that publishes shelf temperatures and lets you set them. If nobody will ask, the automated cabinet is less work.
What About Noise, Refrigerant and the Vacuum Pump?
Noise is the spec most often compared badly, so here is what each figure actually measures. Holland Green Science publishes 54 dB(A) for the Xiros Mikro cabinet excluding the vacuum pump.
Harvest Right publishes no decibel rating for its freeze dryer cabinet at all; the 52 decibel figure on its pharmaceutical page belongs to the Premier vacuum pump that ships with the unit, not to the cabinet. Separately, Utah State University Extension measured 62 to 67 decibels on a home freeze dryer once the vacuum pump kicks in. Three numbers, three different things measured, and no valid head-to-head among them.
On refrigerant, the Xiros Mikro publishes R290. Harvest Right publishes no refrigerant for the pharmaceutical line, so there is nothing to compare it against.
The pump is a separate purchase on both sides and belongs in your budget from the start. Holland Green Science recommends a scroll dry oil free pump for the Xiros Mikro, and we stock the Anemos Oil-Free Pump for that role alongside the Aether 8 Eco.
On the Harvest Right side the Premier oil pump is the standard pairing, with an oil free option for anyone who would rather not manage oil changes. Holland Green Science points to low maintenance and quieter operation as the reasons for its scroll dry recommendation, and Harvest Right notes its oil free pump needs no oil changes. An oil free pump costs more up front and removes a recurring maintenance job; that trade is the same on both machines.
Warranty and What Is Actually In Stock
Holland Green Science is inconsistent here, and you should know that before you weigh it: its Xiros Mikro web page lists a Commercial Grade 1 Year Warranty while its own brochure for the same machine lists a Commercial Grade 2 Year Warranty. Confirm the term in writing at the point of sale rather than relying on either figure.
Harvest Right's pharmaceutical bundle page states a three year limited warranty. Even taking the longer Holland Green Science figure, Harvest Right publishes the longer term.
On availability, all three Xiros Mikro configurations are currently in stock, as are the Small and Medium Pharmaceutical units. The Large Pharmaceutical is currently out of stock, so if you have sized your work to that cabinet, plan around the wait rather than assuming it ships today.
Both lines sit in our pharmaceutical grade freeze dryers range, and if you are still deciding whether a benchtop unit or a larger floor machine suits the work, the broader commercial and scientific freeze dryers range spans both. The full Harvest Right range, home units included, sits under Harvest Right freeze dryers.
So Which One Should You Buy?
Buy the Xiros Mikro if you need to define the process: published shelf temperatures you can set, 16 programmable steps, swappable shelf stacks and data off the machine over USB. It suits process development, sensitive materials and any workflow where somebody will eventually ask what you held the shelf at.
Buy a Harvest Right pharmaceutical unit if you want consistent output without authoring recipes, and value the longer published warranty term. It suits a lab or small business running similar material batch after batch, where the machine managing itself is the point.
I have watched buyers talk themselves into the programmable machine and then run the same automatic cycle for two years. If that is honestly you, the automated cabinet is the better purchase and the cheaper one. Cycle length is the one thing neither manufacturer pins down, and Utah State University Extension's 20 to 40 hour typical batch time remains the only sourced figure worth planning around.
Frequently Asked Questions
- Is the Xiros Mikro a laboratory grade freeze dryer?
- It is a benchtop lyophilizer built for laboratory and production use, with published shelf temperatures of -35 C to +60 C, a -40 C condenser, and programmable recipes of up to 16 steps. Holland Green Science lists the Xiros Mikro as CE certified in its brochure. Neither manufacturer publishes a cGMP or 21 CFR Part 11 compliance claim for these machines, so treat "laboratory grade" as a description of capability and scope rather than a validated regulatory status.
- Does the Harvest Right pharmaceutical freeze dryer let you set shelf temperature?
- Harvest Right does not publish a shelf or chamber temperature for its pharmaceutical line, and describes those units as managing the drying temperature and vacuum pressure automatically. Programmable thermal treatment and drying steps belong to Harvest Right's separate scientific line, not the pharmaceutical units.
- How do you compare 8 kg of ice capacity against 2.7 gallons?
- You convert carefully and label it as an estimate. A kilogram of ice is approximately a litre, so the Xiros Mikro's 8 kg condenser is roughly comparable to the Large Pharmaceutical's 10.2 litre holding capacity. Neither manufacturer publishes the other's unit, so this is a ballpark for sizing rather than a specification.
- How many trays does each machine hold?
- The Xiros Mikro ships with a five heated aluminium shelf stack and five stainless trays, and the stack swaps plug and play to three, seven or nine shelves. Harvest Right pharmaceutical tray counts are fixed per cabinet: five on the Small, six on the Medium and eight on the Large.
- Which is quieter?
- There is no valid comparison, because the two manufacturers measure different things. Holland Green Science publishes 54 dB(A) for the Xiros Mikro cabinet excluding the pump. Harvest Right publishes no cabinet rating and gives 52 decibels for the Premier vacuum pump included with the unit. Utah State University Extension separately measured 62 to 67 decibels on a home unit once its vacuum pump starts.
- Do I need to buy a vacuum pump separately?
- Yes, on both machines, and it should be in your budget from the start. Holland Green Science recommends a scroll dry oil free pump for the Xiros Mikro. An oil free pump costs more initially but removes the recurring oil change. Holland Green Science cites low maintenance and quiet operation as the reasons it recommends a scroll dry pump for this machine.
- How long does a freeze drying cycle take?
- Neither manufacturer publishes a cycle time for these machines. Utah State University Extension reports a typical batch time of 20 to 40 hours, citing Harvest Right. The Xiros Mikro's rating of 4 kg of ice in 24 hours is an extraction rate, not a cycle length, and the two should not be confused.
