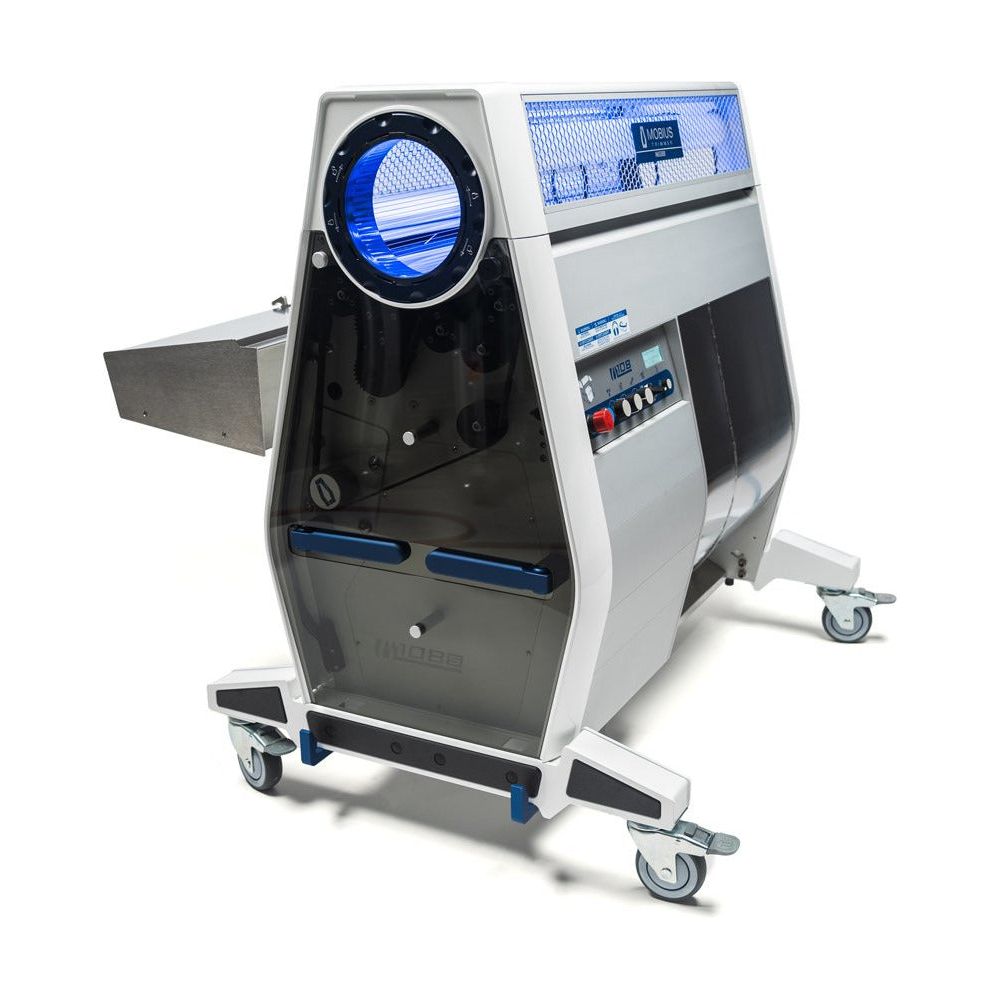

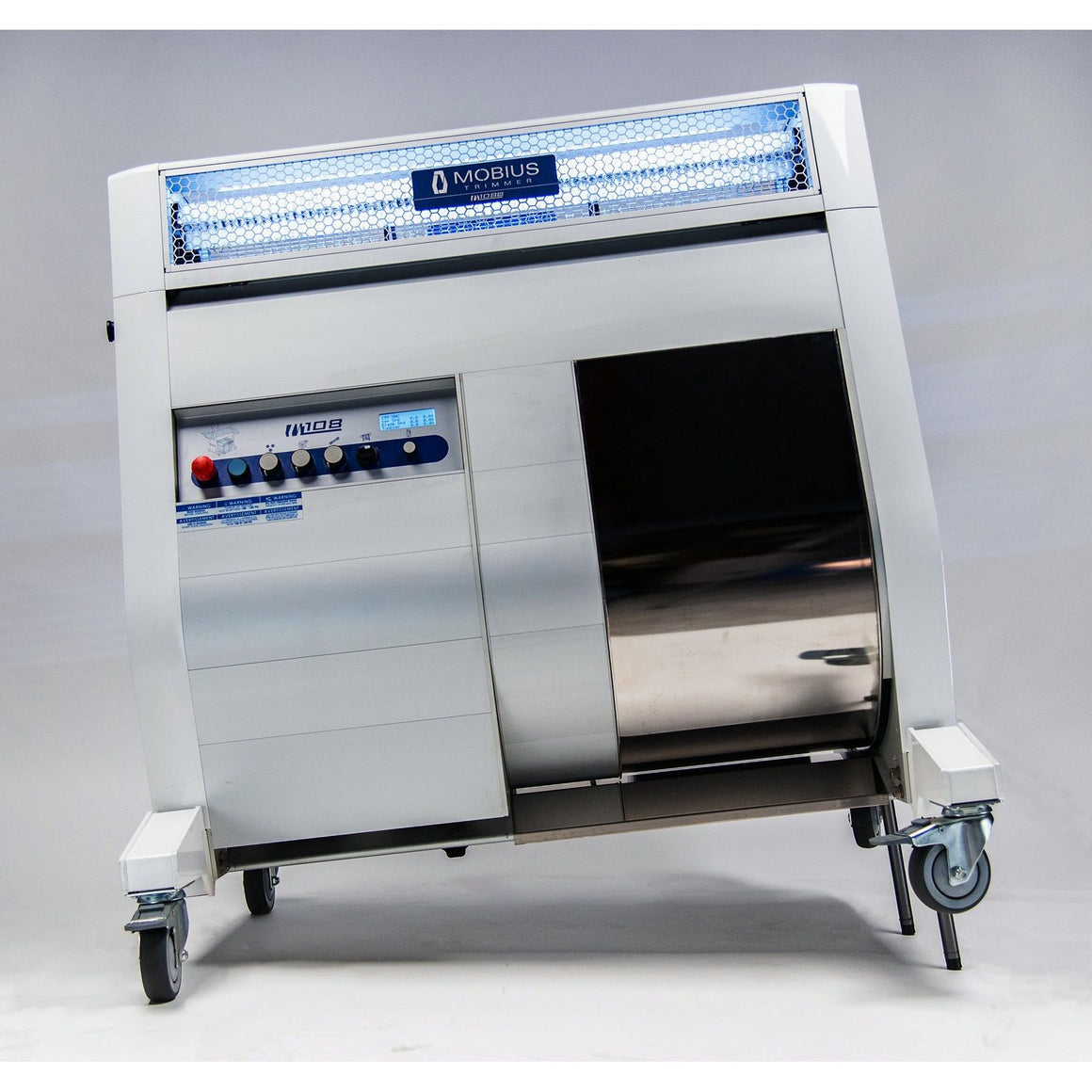

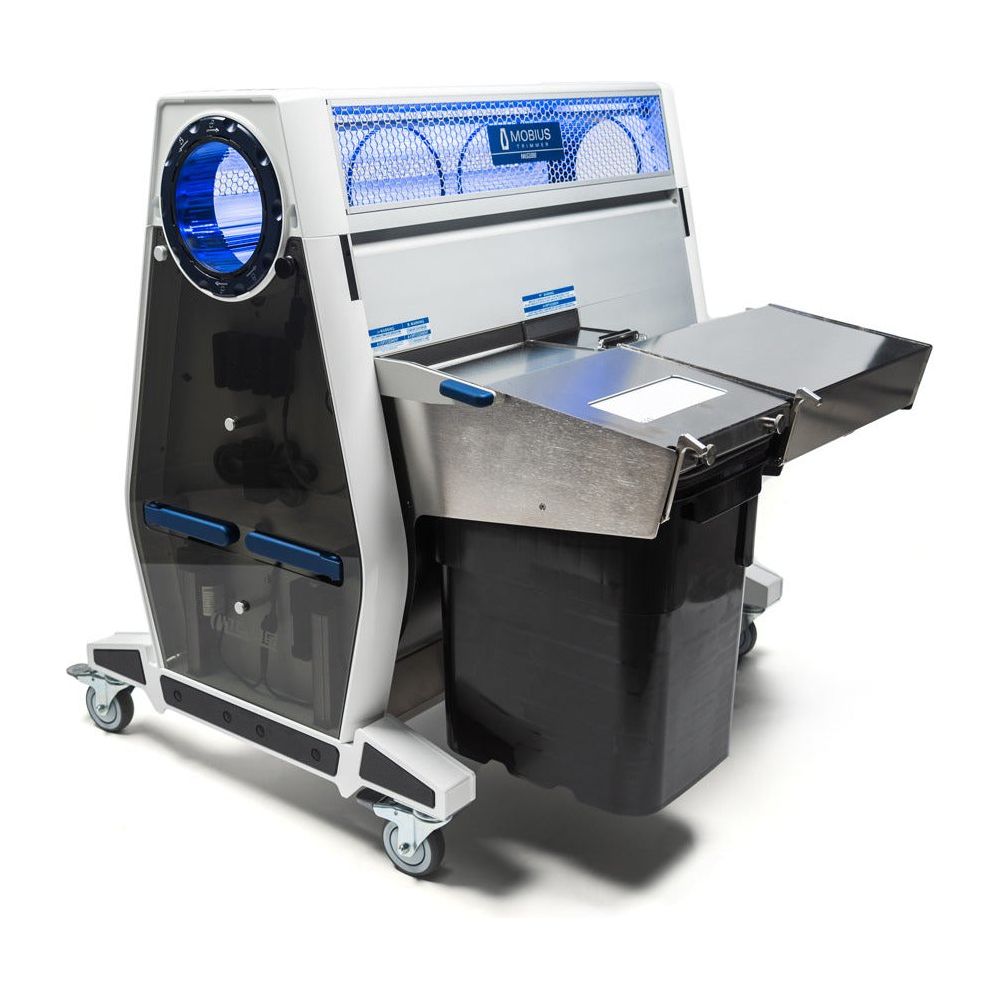

Mobius M108S Wet & Dry Bud Trimming Machine

The Mobius M108S automatic bud trimming machine is a revolutionary trimmer aimed at changing the trimming habit of growers.

The M108S uses the proprietary AirThread Tension Tumbler, an innovative tumbler design that minimizes impacts on your buds while getting the best cuts.

The AirThread tumbler of the M108S is made of a 300-foot aircraft-grade stainless steel cable that makes it flexible, yet dent-proof from possible impact.

The unique design of the tumbler allows better exposure to the blades, and maintains a gentle treatment of buds.

In tandem with the AirThread, the M108S uses TriFlex blades that rival scissors when it comes to precision. It can handle up to 120 pounds of wet and 60 pounds of dry buds with its nitride blade cartridges that provide 108 inches of blade length.

The M108S uses variable speed drives that let it adapt to different bud densities without swapping out tumblers. It is supported by built-in vacuums and collectors, which remove the need to purchase additional equipment for collecting trimmings.

The M108S comes out of the box with two (2) tumblers, two (2) trim toes, an infeed hopper, an outfeed chute, and spring jack. If you want more power, you can use it in tandem with another M108S to double the outputs.

The M108S complies with GMP standards and is easy to clean. A one-year warranty backs the trimmer for your peace of mind.

Features

Durable Tumbler

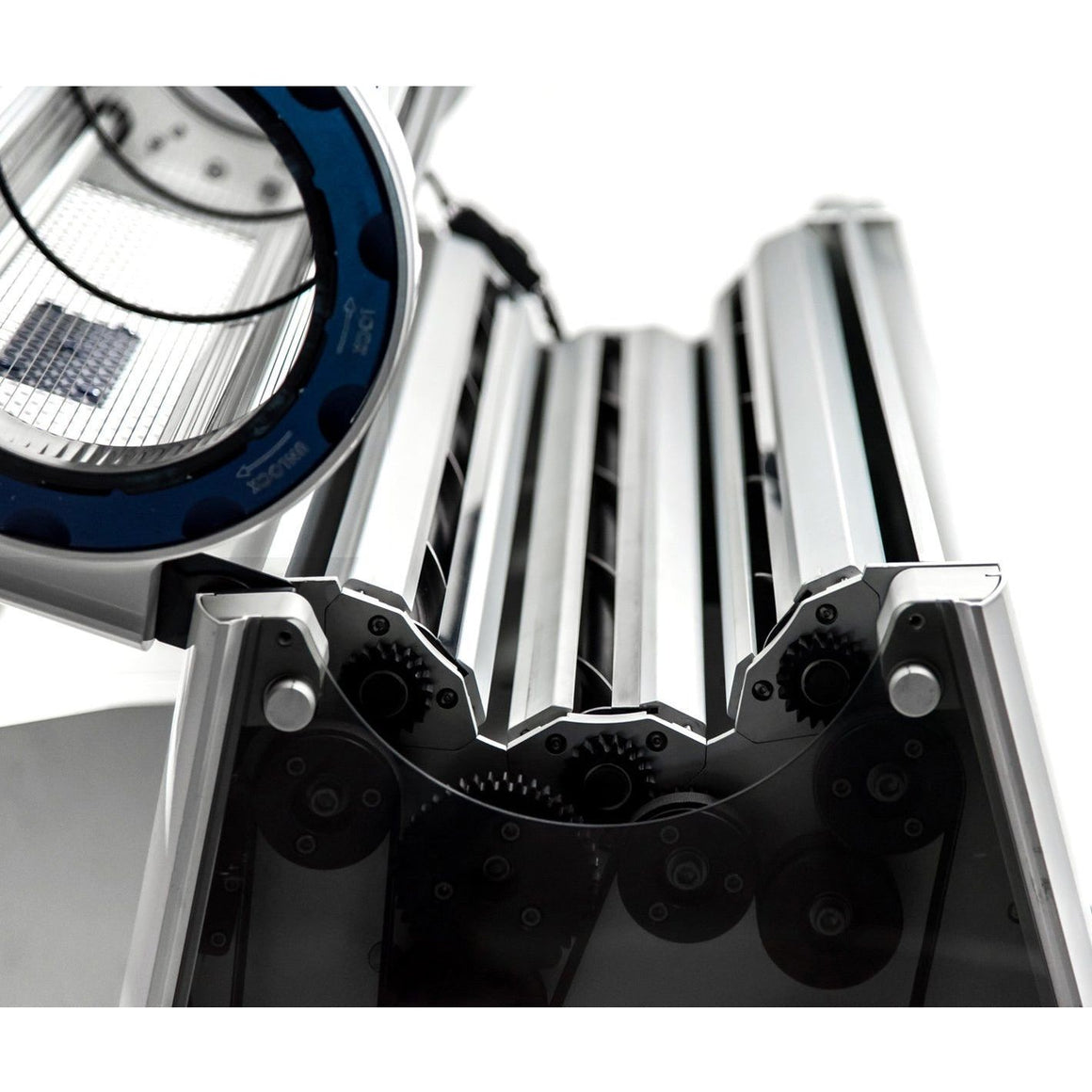

The M108S uses the proprietary AirThread Tension Tumbler, a rust-proof and dent-proof tumbler made of aircraft-grade stainless steel cable, weaved into a cylinder.

More Blade Exposure, Less Impact

The Tumbler of the M108S gives buds more exposure to the blades, and less tumbler rotation for a gentle handling.

Scissor Precision

The TriFlex blades and Nitride blade cartridges of the M108S, lets you cut 120 pounds wet and 60 pounds dry in an hour.

Variable Speed Control

The M108S can handle different bud densities with one tumbler set, thanks to the Variable Speed Controls.

Built-in Collectors

The M108S has built-in collectors, so you don’t need to buy one. No more unsightly hoses and movable parts to handle the trimmings.

Complies with the Highest Standards

The M108S complies with GMP and Health Canada standards.

Highlights

Trims 120 pounds wet and 60 pounds dry
AirThread Tension Tumbler
Tri-Flex Blades
Nitride Cartridge Blades
Variable Speed Control
Built-in Vacuums and Collectors
All accessories included
GMP-compliant
Comes with one-year warranty

Key Features

Tumbler offers 50% more access to cutting blades than any other trimmer
Dent-proof, rust-proof tumbler trims wet or dry
3 case-hardened blades offer 108” of cut length
All-in-one design: Fully integrated trim separator and vacuum
User-controllable tumbler speed, blade speed, vacuum power, and tilt

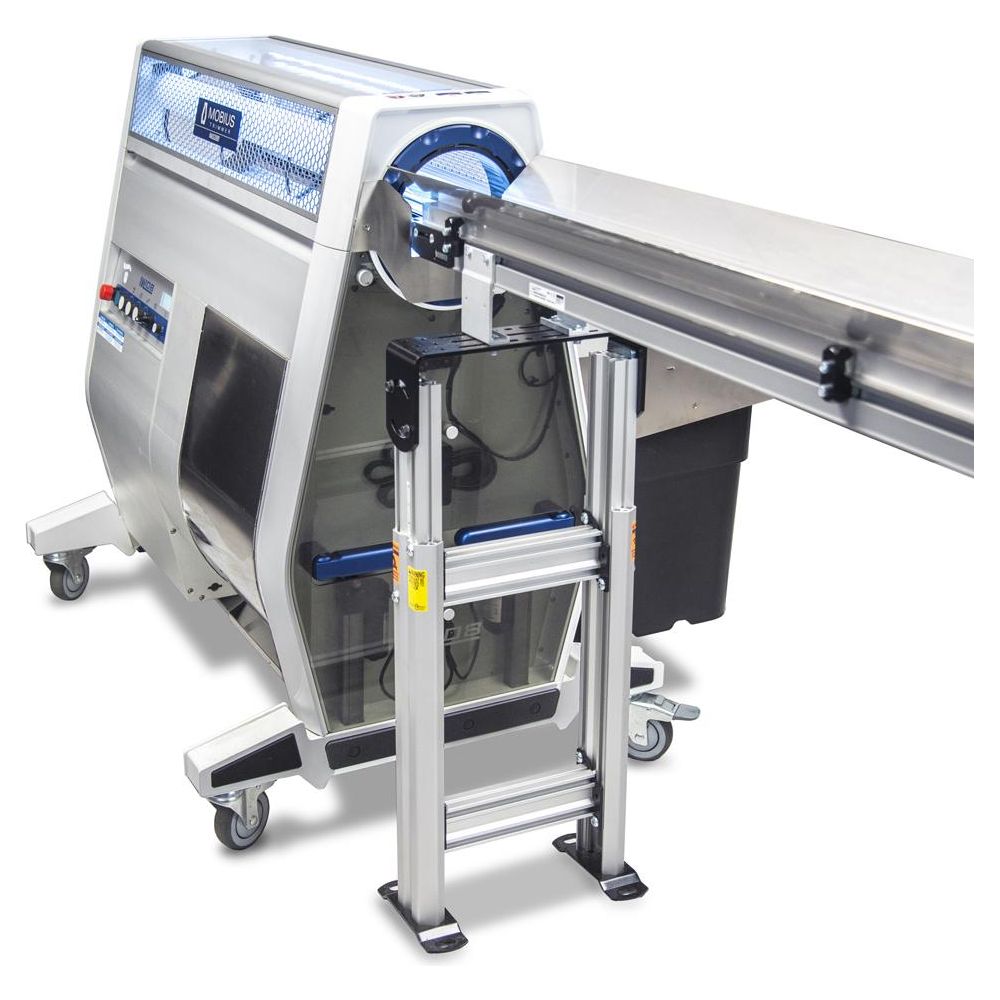

Run two units in tandem for more than double the output
Easy to clean and GMP-ready

Mobius M180S Trimmer Breakdown

Why Mobius M108S ?

AirThread Tension Tumbler
TriFlex Blade System
Integrated Separation System
Variable Function System

These key componets are what separates the Mobius M108S from any other trimming machine in the world.

What Is Included

1 Mobius M108S Trimmer
1 Spring Jack
1 Input Hopper
2 Trim Tote With Gasket
1 Belt
1 Conveyor Override Puck Set
1 Electric Box Filter Bracket
2 Airthread Tension Tumbler
1 Hand Pump
1 Output Chute
1 Tandem Lock Set
1 Power Cord 15'
2 Electrical Box Filters
Instructions and Reference Posters

Specifications

Descriprion	Specification
Trim Methodology	THROUGHPUT
Wet/Dry Capable	YES
Construction	ANODIZED ALUMINUM & 304 STAINLESS STEEL
Speed Adjustment	1-11
Number Of Blades	3
Blade Treatment	NITRIDED
Power Requirements	3 PHASE, 208V, 30AMPS
Vacuum Motor	5HP
Tumbler Motor	1/8HP
Cutter Motor	3/4HP
Tool-less Disassembly	YES
Tandem Ready	YES
Integrated Tilt Angle	YES
Fits Through 32' Door	YES
Tumbler Diameter	8″
Tumbler Length	36″
Width	43″
Length	43.5″
Length: (with shrouds in place):	77.5″
Height:	47″
Weight:	450LBS
Warranty:	1 YEAR
Certifications:	ETL (CSA & UL EQUIVALENT)

Care & Maintenance

Cleaning Regulations

Cleaning Solutions

Storage & Cleaning

6-Point Inspection

Preventive Maintenance

Tumbler Inspection

Gasket Installation

Downloads

User Manual

Cut Sheet

Set-Up Diagram

Tech Specs

Material Specs

Warranty

No warranty on consumable parts, including blades/blade bars, tumbler, fan housing filter bag, brush-bar, filters, trim tote gasket, die plates, rolls, and screens.

Warranty coverage for one (1) year or 1,000 operating hours, whichever occurs first, on motors, electrical components, and remainder of machine components.

The warranty period begins on the date the equipment is received by the customer. Any damage that occurs during shipping will be the responsibility of Eteros Technologies.

The above terms are valid if Mobius equipment is used and maintained as directed. If the equipment is modified in any way, all terms of this warranty are void. This warranty does not apply to cosmetic damage, such as scratches or general wear and tear

All sales final.
