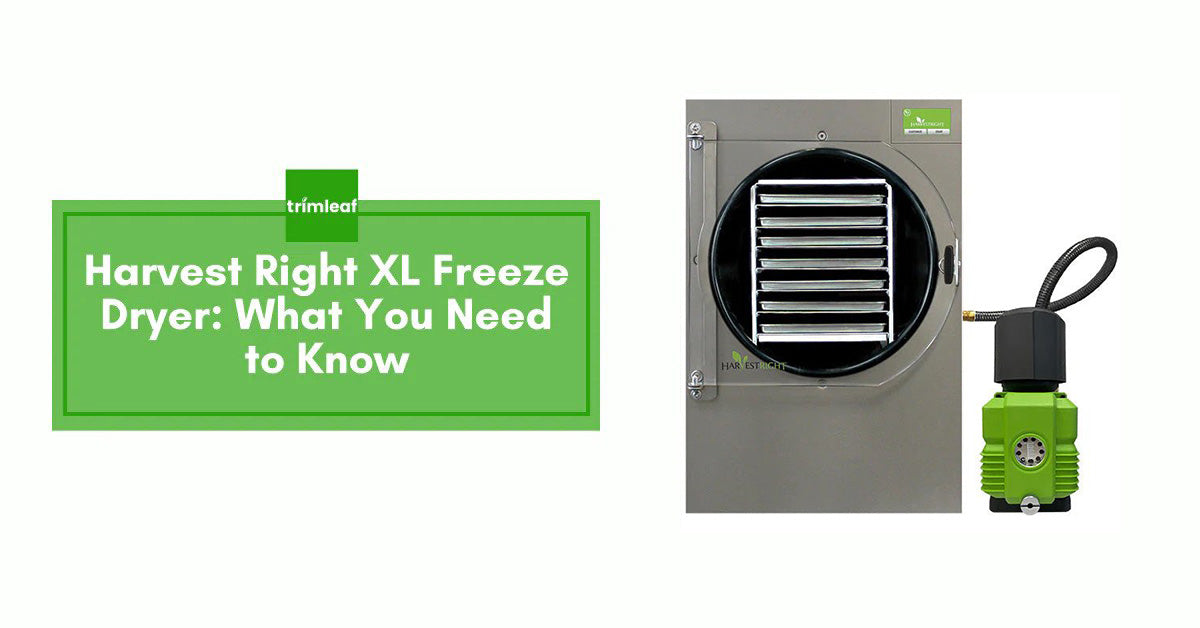

Harvest Right XL Freeze Dryer: What You Need to Know

The Harvest Right X-Large is the biggest machine in the home Pro line: seven stainless trays, 2,251 square inches of tray space, and 40 to 50 lbs of fresh food per batch. Harvest Right rates it for up to 10,000 lbs of fresh food a year, which assumes you run it four times a week for fifty weeks. It weighs 258 lbs, stands 35.6 inches tall, and is sold in one finish, stainless steel.

What Makes the XL Different From the Rest of the Home Line?

Tray count and tray area, mostly. The X-Large carries seven trays against the Large's six, but the jump in usable area is much bigger than that one extra tray suggests: 2,251 square inches versus 1,107. The XL roughly doubles the Large's tray space, and the batch rating follows, moving from 18 to 27 lbs up to 40 to 50 lbs.

That is the number worth sitting with. Going Small to Medium to Large walks you up in steps of a few pounds a batch. Going Large to X-Large nearly doubles what you can put through the machine in one cycle, and cycle length does not scale with load the way tray space does, so the extra capacity mostly turns into fewer runs rather than longer ones.

Two smaller differences matter at purchase time. The X-Large ships only in stainless steel, so the powder-coated versus stainless choice that exists at every other size does not exist here. And like the Large, it ships with the XL Premier Industrial Vacuum Pump rather than the Small Premier or the standard Premier Industrial pump that come with the two smaller sizes, so budget bench space for a pump that sits separately from the cabinet.

Harvest Right Home Freeze Dryer Sizes Compared

Model	Trays	Fresh food per batch	Tray space	Weight	From
Small Pro	4	6 to 10 lbs	434 sq in	91 lbs	$1,695
Medium Pro	5	10 to 15 lbs	675 sq in	119 lbs	$2,395
Large Pro	6	18 to 27 lbs	1,107 sq in	143 lbs	$3,095
X-Large Pro	7	40 to 50 lbs	2,251 sq in	258 lbs	$4,995

Harvest Right publishes an annual figure for each size as well: up to 1,800 lbs a year for the Small, 3,000 for the Medium, 5,000 for the Large and 10,000 for the X-Large. Read the manufacturer's own qualifier alongside it, because it does a lot of work. Every one of those numbers assumes you run the machine four times a week, fifty weeks a year. That is a real production schedule, not a household one, and I would treat the annual figures as a ceiling rather than a plan.

How Much Space and Power Does the XL Actually Need?

The cabinet is 24.3 inches wide, 37.4 inches deep and 35.6 inches tall, and it weighs 258 lbs before you put anything in it. Depth is the dimension that surprises people: at over three feet front to back, the X-Large will overhang a standard 24 inch counter, so it wants a dedicated stand or a heavy bench built for the weight. It also needs to be elevated rather than set on the floor, and that is a general requirement for home freeze dryers rather than an XL quirk.

Utah State University Extension is explicit that a home freeze dryer cannot sit on the floor, both so the ice melt tubing can drain into a container beneath it and so you can reach the vacuum pump and the unit's switches. Plan for the pump as a separate item too, and leave clearance around the whole assembly, because the pump throws out heat.

On power, Harvest Right lists every home Pro size, the X-Large included, in both a 110V and a 220V configuration. Anyone telling you the home line is 110V only is reading half the spec sheet. For the 110V build, Harvest Right specifies a 110 volt NEMA 5-20 outlet on a dedicated 20 amp circuit, which is the detail to hand your electrician before the pallet arrives rather than after. Confirm the requirement against the manual for the configuration you actually order, since the 220V build is a different proposition.

Two hundred and fifty-eight pounds also means this is not a machine you reposition on a whim. Decide where it lives before delivery, and decide with the noise in mind.

How Loud Is It, and How Long Does a Batch Take?

Harvest Right does not publish a decibel rating for the home line, and I would be sceptical of any retailer that quotes one as a manufacturer spec. The closest thing to an independent measurement comes from Utah State University Extension, which reports that when the vacuum pump turns on the noise level is 62 to 67 decibels, against a vacuum cleaner at 70 dB. That is conversation-interrupting rather than deafening, and it is the main reason owners talk about putting these machines in a garage, a basement or a utility room rather than a kitchen.

Cycle time works the same way: no manufacturer source publishes a duration for the X-Large specifically. Utah State University Extension gives a typical batch time of 20 to 40 hours, citing Harvest Right, and notes that dense and high-sugar foods run longer, with fresh pineapple taking 48 to 52 hours. Treat that as the shape of the commitment rather than a number you can schedule against. What the XL changes is not the length of a run but how many runs it takes to clear a harvest.

Which Pump Should You Order With It?

The X-Large is configurable two ways. The standard build ships with the XL Premier Industrial oil pump, and Harvest Right's maintenance note is to replace the vacuum pump oil every 20 to 30 batches, a job it puts at about two minutes. The alternative is the oil-free pump, listed as zero maintenance with no oil or filter changes. The X-Large is sold as a single product with the pump as a configurable option, so the two builds are priced separately on its product page.

This is the one configuration decision I would not rush, because it is the trade-off owners argue about most. The oil pump is not difficult to live with, and a two minute job every 20 to 30 batches is a light obligation if you run the machine occasionally.

But that interval is counted in batches, not months, so your run rate sets how often it comes around. A household putting a few batches a year through a Small may go a very long time between oil changes. An X-Large owner running the machine hard reaches 20 to 30 batches far sooner, and that is the case where removing the maintenance step entirely is worth paying for.

If you are buying the biggest machine in the line because you intend to run it hard, the pump that needs the least attention is the consistent choice. We cover the decision in more depth in our look at whether the Harvest Right oil-free pump is worth it.

What Comes in the Box?

The X-Large bundle is complete enough to run a first batch the day it lands. Harvest Right includes the X-Large Pro freeze dryer, the XL Premier Industrial vacuum pump, vacuum pump oil, an oil filter, a set of seven stainless steel trays, a guide to freeze drying, 50 Mylar bags, 50 oxygen absorbers and an impulse sealer.

The starter counts of Mylar bags and oxygen absorbers are exactly that, a starter: 50 of each against a chamber that takes 40 to 50 lbs of fresh food per batch. Plan on restocking bags, absorbers and sealing supplies as a running cost rather than a one-off. The X-Large accessory kit is the buy-it-once version of that layer: a full set of seven trays, seven tray lids and seven silicone mats sized for the X-Large chamber, plus 100 each of the 10 by 14 inch and 8 by 12 inch Mylar bags, 100 oxygen absorbers and two quarts of pump oil.

Who Is the X-Large Actually For?

The honest answer is that the X-Large is for people with a volume problem, not a preference for the biggest model. A large garden, a side of beef, a hunting season, a market stall, a household genuinely building multi-year storage: those produce more food at once than a six-tray machine clears in a reasonable stretch, and that is the case the XL solves.

It is worth knowing which way owner regret runs here, because it is not symmetrical. Across the owner communities, buyers who went one size down from what they were considering say they regret it, and I have yet to see the reverse, an owner arguing they should have bought smaller. Freeze drying tends to expand to fill the machine you own, and the constraint people hit is batch size rather than the purchase price they were protecting.

That does not make the X-Large the right answer for everyone, but it does mean that if you are genuinely torn between the Large and the X-Large, the evidence from people who have already made that call leans one direction.

Where I would stop short of the XL: if the machine has to live in a shared living space, if 37 inches of depth does not fit anywhere sensible, or if you are still finding out whether freeze drying suits you. The Large Pro is a serious machine in its own right, and the size ladder above is worth walking properly before committing.

Our Harvest Right freeze dryer size guide works through that decision against household size and harvest volume, and every size in the ladder sits alongside the rest of the home and commercial freeze dryers we stock if you want to compare footprints against other builds. The full Harvest Right range, including the pharmaceutical and commercial units that sit above the home line, is a separate decision covered in the pharma comparison below.

What About Warranty and Support?

Harvest Right covers freeze dryers and both vacuum pump types under a full one-year warranty from the original ship date, covering repair or replacement of any part defective in workmanship or material. Years two and three carry a limited warranty covering the compressor, condenser and evaporator, with the remedy written against the sealed refrigeration system as a whole, tubing included. Both terms apply to the continental 48 states, so a US buyer gets the standard structure rather than the separate limited warranty Harvest Right applies to Alaska, Hawaii, Canada and Puerto Rico.

Read the consumer responsibilities before you need them: under the years two and three limited warranty, diagnostic charges for determining defects and any transportation and delivery costs required because of service fall to you.

Being straight about the rest: the faults owners report in the first year or two are consistent and specific, and they cluster on the vacuum pump, the door seal or a vacuum leak, and the electrical harness or a fuse. The base rate is thin, and the counterweight is real, since multi-unit owners running thousands of hours report no failures at all.

The recurring complaint in the owner communities is less about the hardware than about what support costs once a fault is diagnosed. Owners describe escalated support carrying a fee on machines that are still young, and describe out-of-warranty repair meaning the unit goes back to the manufacturer at their expense, which the warranty terms above bear out: transportation and delivery costs for service are the consumer's from year two.

That is worth knowing before you buy, and it is the part of the ownership experience where buying through a dealer who will coordinate a claim with you is worth something.

Frequently Asked Questions

How much food does the Harvest Right XL freeze dryer hold?

The X-Large takes 40 to 50 lbs of fresh food per batch across seven stainless steel trays, giving 2,251 square inches of tray space. Harvest Right rates it for up to 10,000 lbs of fresh food per year, on the stated assumption that the machine runs four times a week for fifty weeks.

What are the dimensions and weight of the Harvest Right XL?

The cabinet measures 24.3 inches wide by 37.4 inches deep by 35.6 inches tall and weighs 258 lbs. The depth is the figure that catches people out, since it overhangs a standard counter, and the vacuum pump sits separately and needs its own space and clearance for heat.

Does the Harvest Right XL need a special electrical circuit?

Harvest Right lists the X-Large in both a 110V and a 220V configuration, so the home line is not 110V only. For the 110V build, Harvest Right specifies a 110 volt NEMA 5-20 outlet on a dedicated 20 amp circuit. Confirm the requirement for the configuration you order before delivery rather than after.

How long does a batch take in the XL?

No manufacturer source publishes a cycle time for the X-Large specifically. Utah State University Extension reports a typical batch time of 20 to 40 hours, citing Harvest Right, with dense and high-sugar foods running longer, and fresh pineapple taking 48 to 52 hours. The X-Large changes how many runs a harvest needs, not how long one run takes.

Is the Harvest Right XL loud?

Harvest Right publishes no decibel rating for the home line. Utah State University Extension reports 62 to 67 decibels when the vacuum pump runs, compared with 70 dB for a vacuum cleaner. That is why most owners site these machines in a garage, basement or utility room rather than a kitchen.

Does the XL come in a black or powder-coated finish?

No. The X-Large is sold in stainless steel only. Every smaller home size is offered in both a powder-coated and a stainless steel finish, and that choice changes the cabinet finish rather than the tray count or the batch capacity.

Should I buy the XL or the Large?

The X-Large roughly doubles the Large's tray space, 2,251 square inches against 1,107, and takes 40 to 50 lbs per batch against 18 to 27 lbs. Choose the Large if space or a shared living area constrains you. Choose the X-Large if your harvests genuinely arrive faster than a six-tray machine clears them, which is the situation owners most often say they underestimated.
