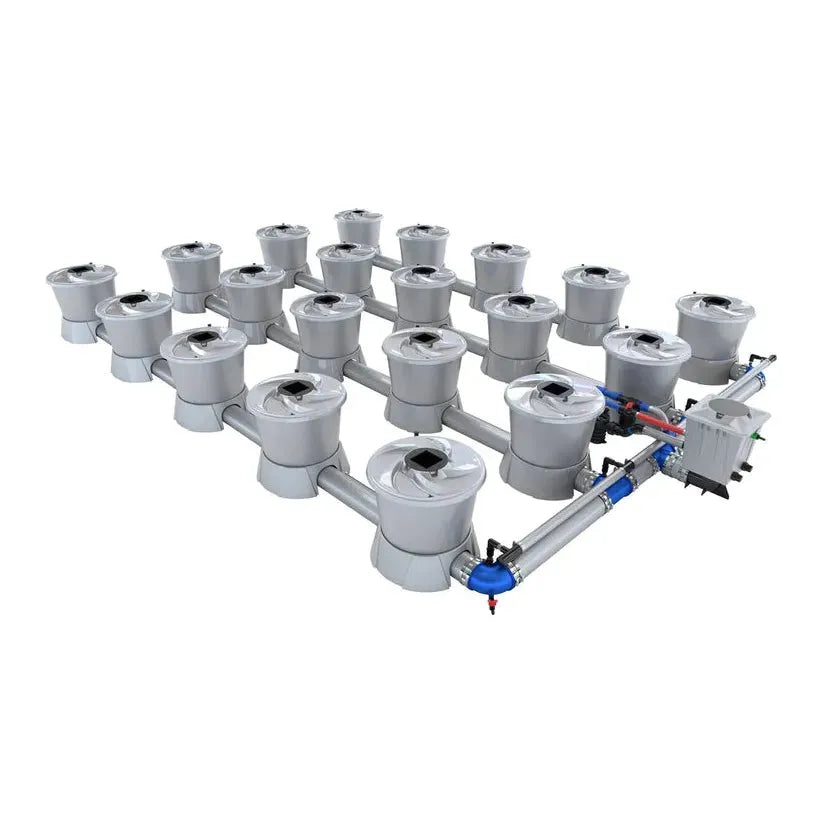

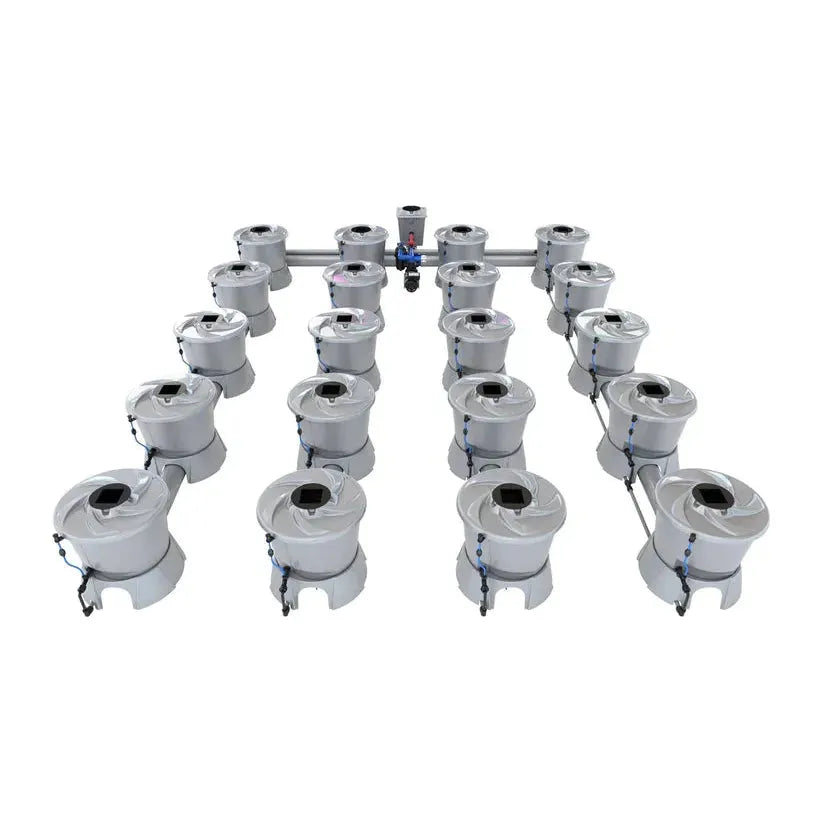

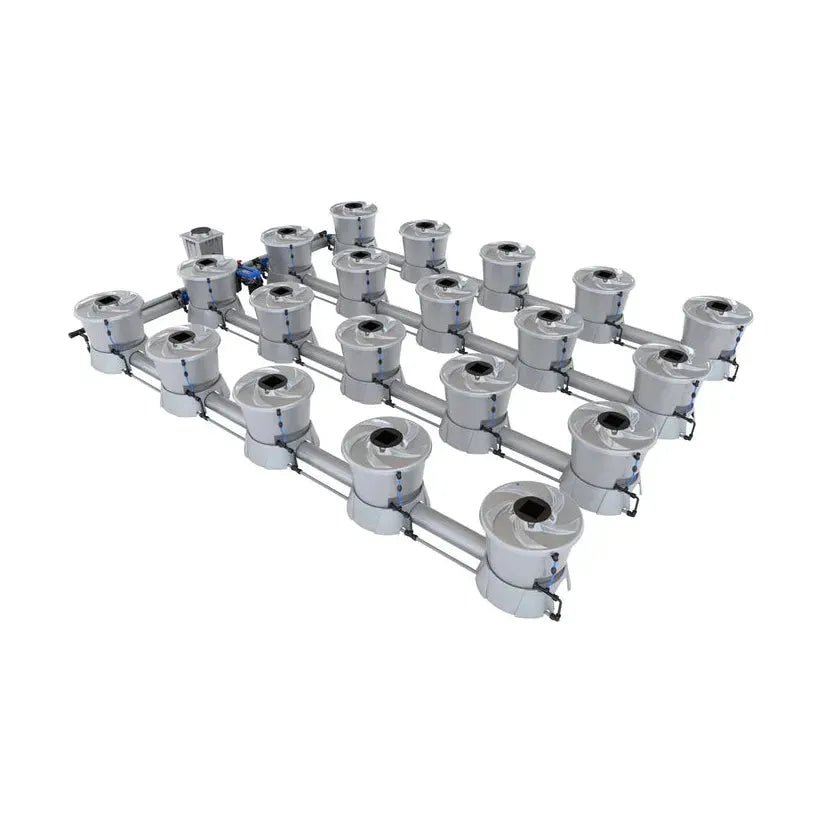

Alien Hydroponics V-System 20 Pot Deep Water Culture System

Transform your indoor gardening experience for the better with the Alien Hydroponics V-System Deep Water Culture Kit.

The V-System deep water culture hydroponic system is made to improve how you grow plants in confined spaces with cutting-edge features for optimal plant health and maximum yields.

This hydroponic kit uses the Venturi Valve Technology to ensure proper oxygenation in the root zones of your plants. There is no need to deal with clogged airstones or complicated air pumps, as the V-System Kit creates a powerful whirlpool vortex to distribute the nutrients to your plants equally.

The V-System hydroponic bucket system also features a modular design. You can customize the bucket layout as your garden evolves.

As a safety feature, the V-System hydroponic kit has a temperature control to ensure cooler water temperatures and reduce the risk of root rot.

Alien Hydroponics V-System 20 Pot Features

Venturi Valve Technology

The V-System deep water culture kit uses Venturi Valve Technology to ensure healthier root zones by optimizing oxygenation.

Temperature Control

Reduce root rot chances with the built-in temperature control of the V-Sys hydroponic kit.

Modular Design

When you’re ready to expand your system, you can customize the layout up to four rows with ten pots in each row for optimal distribution in each pot.

Equal Nutrient Distribution

The V-System hydroponic kit ensures equal nutrient distribution so all plants grow healthy.

Alien Hydroponics V-System 20 Pot Highlights

15 gallon (58L) V-POT
20 V-Pots
Four rows
1100-watt Jet-Stream Vortex pump - 2-Row
1500-watt Jet-Stream Vortex pump - 4-Row
Total-drainage bases
Venturi injectors
Five-inch spiral tubing
Five-inch Dual-Flow fittings
Integrated filtration
T304 Stainless clamps
Push-fit feed connections
Expandable up to four rows, ten pots per row

What is Included in the Alien Hydroponics V-System 20 Pot?

▼2 Row Configuration

1x V-SYSTEM Vortex Water Pump 1500W 240V 22500 l/h
20x V-Pot 58L
20x V-Pot Base
20x V-Pot Lid
20x V-Pot Lid Inspection Cover
20x Square Net Pot
20x V-Pot Clip
20x Air Filter for V-SYSTEM Venturi, 6mm
20x Silencer for Venturi
20x Venturi Fitting
20x Venturi Air Inlet Pipe 6mm Blue (2X 4")
21x Nut 5"
21x Washer 5" Green Silicone
46x 5" Stainless Steel Clamp
1x Distribution Tee 50mm
2x DM Push-Fit Elbow 28mm V-SYSTEM
20x DM Push-Fit Tee 28-15mm V-SYSTEM
1x 1/2" Drain Cap Fitting
1x Drain Tap 1/2"-16mm Barb
2x Elbow 5" Barbed with Drain Point
3x Elbow 5" Threaded Dual-Flow
1x Filter Manifold Complete 50mm-2"
1x Float Valve
1x V-SYSTEM Header Pot 20L 50mm
1x Silver Lid
1x Header Pot Blank
1x Hosetail 16mm-3/4" Female Green
20x Venturi Inlet Fitting for 28mm Pipe
20x Pipe 28mm White Rigid 1 Meter - Venturi Feed
3x Pipe 50mm Silver 1 Meter
21x Pipe 5" Silver Spiral 80cm
1x Tee 5" Barbed
18x Tee Threaded 5" Dual-Flow
2x Threaded Tank Connector 1"
1x Vortex Pump Inlet Manifold 50mm
2x 1" Cap for Chiller Connections
1x 50mm Straight Dual Flow Fitting
1x Elbow 50mm Barbed
1x Terminal Manifold Left 50mm
1x Terminal Manifold Right 50mm
48x 28mm Insert for 28mm Rigid Pipe
2x 28mm Push-Fit Stop End
10x Clamp Size 4
1x 8mm Screwdriver for 5" Clamp
1x Wrench 5"
1x Wrench for Float Valve
1x 8mm Socket for 5" Clamp
1x Pipe Cutter 50mm
5x Silicone Grease - Food Grade

◄4 Row Configuration

1x V-SYSTEM Vortex Water Pump 1100W 120V 17700 l/h
20x V-Pot 58L
20x V-Pot Base
20x V-Pot Lid
20x V-Pot Lid Inspection Cover
20x Square Net Pot
20x V-Pot Clip
20x Air Filter for V-SYSTEM Venturi, 6mm
20x Silencer for Venturi
20x Venturi Fitting
20x Venturi Air Inlet Pipe 6mm Blue (2X 4")
20x Venturi Inlet Fitting for 22mm Pipe
21x Nut 5"
21x Washer 5" Green Silicone
50x 5" Stainless Steel Clamp
1x Distribution Tee 40mm
4x DM Push-Fit Elbow 22-15mm V-SYSTEM
4x DM Push-Fit Elbow 22mm V-SYSTEM
16x DM Push-Fit Tee 22-15mm V-SYSTEM
1x Drain Cap 1/2"
1x Drain Tap 1/2"-16mm Barb
2x Elbow 5" Barbed with Drain Point
5x Elbow 5" Threaded Dual-Flow
1x Filter Manifold, Complete 40mm
1x Float Valve
1x V-SYSTEM Header Pot 20L 40mm
1x Silver Lid
1x Header Pot Blank
1x Hosetail 16mm-3/4" Female Green
20x Pipe 22mm Rigid 1 Meter - Venturi Feed
1x Pipe 32mm Red 1 Meter Spiral
5x Pipe 40mm Silver 1 Meter Spiral
22x Pipe 5" Spiral 80cm
3x Tee 5" Barbed
16x Tee Threaded 5" Dual-Flow
2x Threaded Tank Connector 1"
1x Vortex Pump Inlet Manifold40mm long
2x 1" Cap for Chiller Connections
1x T/Connector Straight 32mm
1x T/Connector Straight 40mm
1x Terminal Manifold Left
1x Terminal Manifold Right
48x 22mm Insert for 22mm Rigid Pipe
2x Clamp Size 2
12x Clamp Size 3
1x 8mm Screwdriver for 5" Clamp
1x Wrench 5"
1x Wrench for Float Valve
1x 8mm Socket for 5" Clamp
1x Pipe Cutter 50mm
5x Silicone Grease - Food Grade

Alien Hydroponics V-System 20 Pot Specifications

▼2 Row Configuration

Number of pots:	20
Number of rows:	2
Kit total fluid volume:	329.7 gallons (1248 L)
Minimum assembled size (can space pots more widely for a larger footprint):
Length:	19' 8.6" (236.6 inches / 6010 mm)
Width:	3' 11.2" (47.2 inches / 1200 mm)
Water Pump Included with the Kit:
Model:	V-SYSTEM Vortex Water Pump 1500W 240V 22500 l/h
Wattage:	1500 watts
Flow Rate:	5944 gal/hr (22500 L/hr)
Recommended water chiller minimum capacity:	528 gallons (2000 L)

◄4 Row Configuration

Number of pots:	20
Number of rows:	4
Kit total fluid volume:	327.0 gallons (1238 L)
Minimum assembled size (can space pots more widely for a larger footprint):
Length:	12' 1.3" (145.3 inches / 3690 mm)
Width:	5' 9.3" (69.3 inches / 1760 mm)
Water Pump Included with the Kit:
Model:	V-SYSTEM Vortex Water Pump 1100W 120V 17700 l/h
Wattage:	1100 watts
Flow Rate:	4676 gal/hr (17700 L/hr)
Recommended water chiller minimum capacity:	528 gallons (2000 L)

Alien Hydroponics V-System 20 Pot Manual

Alien Hydroponics V-System 20 Pot Instruction Manual

Alien Hydroponics V-System 20 Pot Technical Drawing

Alien Hydroponics V-System 20 Warranty

Alien Hydroponics provides a 3-year warranty for all parts and a standard 1-year warranty for pumps.
