Alien Hydroponics V-System DWC

Alien Hydroponics V-System DWC - 24 Pot

Transform your indoor gardening experience for the better with the Alien Hydroponics V-System Deep Water Culture Kit.

The V-System deep water culture hydroponic system is made to improve how you grow plants in confined spaces with cutting-edge features for optimal plant health and maximum yields.

This hydroponic kit uses the Venturi Valve Technology to ensure proper oxygenation in the root zones of your plants. There is no need to deal with clogged airstones or complicated air pumps, as the V-System Kit creates a powerful whirlpool vortex to distribute the nutrients to your plants equally.

The V-System hydroponic bucket system also features a modular design. You can customize the bucket layout as your garden evolves.

As a safety feature, the V-System hydroponic kit has a temperature control to ensure cooler water temperatures and reduce the risk of root rot.

Alien Hydroponics V-System 24 Pot Features

Venturi Valve Technology

The V-System deep water culture kit uses Venturi Valve Technology to ensure healthier root zones by optimizing oxygenation.

Temperature Control

Reduce root rot chances with the built-in temperature control of the V-Sys hydroponic kit.

Modular Design

When you’re ready to expand your system, you can customize the layout up to four rows with ten pots in each row for optimal distribution in each pot.

Equal Nutrient Distribution

The V-System hydroponic kit ensures equal nutrient distribution so all plants grow healthy.

Alien Hydroponics V-System 20 Pot Highlights

15 gallon (58L) V-POT
20 V-Pots
1500-watt Jet-Stream Vortex pump
Total-drainage bases
Venturi injectors
Five-inch spiral tubing
Five-inch Dual-Flow fittings
Integrated filtration
T304 Stainless clamps
Push-fit feed connections
Expandable up to four rows, ten pots per row

What is Included in the Alien Hydroponics V-System 24 Pot?

▼3 Row Configuration 1x V-SYSTEM Vortex Water Pump 1500W 240V 22500 l/h 24x V-Pot 58L 24x V-Pot Base 24x V-Pot Lid 24x V-Pot Lid Inspection Cover 24x Square Net Pot 24x V-Pot Clip 24x Air Filter for V-SYSTEM Venturi, 6mm 24x Silencer for Venturi 24x Venturi Fitting 24x Venturi Air Inlet Pipe 6mm Blue (2X 4") 25x Nut 5" 25x Washer 5" Green Silicone 56x 5" Stainless Steel Clamp 1x Distribution Tee 50mm 3x DM Push-Fit Elbow 28mm V-SYSTEM 24x DM Push-Fit Tee 28-15mm V-SYSTEM 1x 1/2" Drain Cap Fitting 1x Drain Tap 1/2"-16mm Barb 2x Elbow 5" Barbed with Drain Point 4x Elbow 5" Threaded Dual-Flow 1x Filter Manifold Complete 50mm-2" 1x Float Valve 1x V-SYSTEM Header Pot 20L 50mm 1x Silver Lid 1x Header Pot Blank 1x Hosetail 16mm-3/4" Female Green 24x Venturi Inlet Fitting for 28mm Pipe 24x Pipe 28mm White Rigid 1 Meter - Venturi Feed 5x Pipe 50mm Silver 1 Meter 26x Pipe 5" Silver Spiral 80cm 2x Tee 5" Barbed 21x Tee Threaded 5" Dual-Flow 2x Threaded Tank Connector 1" 1x Vortex Pump Inlet Manifold 50mm 2x 1" Cap for Chiller Connections 1x 50mm Straight Dual Flow Fitting 1x Elbow 50mm Barbed 1x Terminal Manifold Left 50mm 1x Terminal Manifold Center 50mm 1x Terminal Manifold Right 50mm 60x 28mm Insert for 28mm Rigid Pipe 3x 28mm Push-Fit Stop End 12x Clamp Size 4 1x 8mm Screwdriver for 5" Clamp 1x Wrench 5" 1x Wrench for Float Valve 1x 8mm Socket for 5" Clamp 1x Pipe Cutter 50mm 6x Silicone Grease - Food Grade

◄4 Row Configuration

1x V-SYSTEM Vortex Water Pump 1500W 240V 22500 l/h
24x V-Pot 58L
24x V-Pot Base
24x V-Pot Lid
24x V-Pot Lid Inspection Cover
24x Square Net Pot
24x V-Pot Clip
24x Air Filter for V-SYSTEM Venturi, 6mm
24x Silencer for Venturi
24x Venturi Fitting
24x Venturi Air Inlet Pipe 6mm Blue (2X 4")
25x Nut 5"
25x Washer 5" Green Silicone
58x 5" Stainless Steel Clamp
1x Distribution Tee 50mm
4x DM Push-Fit Elbow 28mm V-SYSTEM
24x DM Push-Fit Tee 28-15mm V-SYSTEM
1x 1/2" Drain Cap Fitting
1x Drain Tap 1/2"-16mm Barb
2x Elbow 5" Barbed with Drain Point
5x Elbow 5" Threaded Dual-Flow
1x Filter Manifold Complete 50mm-2"
1x Float Valve
1x V-SYSTEM Header Pot 20L 50mm
1x Silver Lid
1x Header Pot Blank
1x Hosetail 16mm-3/4" Female Green
24x Venturi Inlet Fitting for 28mm Pipe
24x Pipe 28mm White Rigid 1 Meter - Venturi Feed
6x Pipe 50mm Silver 1 Meter
27x Pipe 5" Silver Spiral 80cm
3x Tee 5" Barbed
20x Tee Threaded 5" Dual-Flow
2x Threaded Tank Connector 1"
1x Vortex Pump Inlet Manifold 50mm
2x 1" Cap for Chiller Connections
1x 50mm Straight Dual Flow Fitting
1x Elbow 50mm Barbed
1x Terminal Manifold Left 50mm
2x Terminal Manifold Center 50mm
1x Terminal Manifold Right 50mm
64x 28mm Insert for 28mm Rigid Pipe
4x 28mm Push-Fit Stop End
14x Clamp Size 4
1x 8mm Screwdriver for 5" Clamp
1x Wrench 5"
1x Wrench for Float Valve
1x 8mm Socket for 5" Clamp
1x Pipe Cutter 50mm
6x Silicone Grease - Food Grade

Alien Hydroponics V-System 24 Pot Specifications

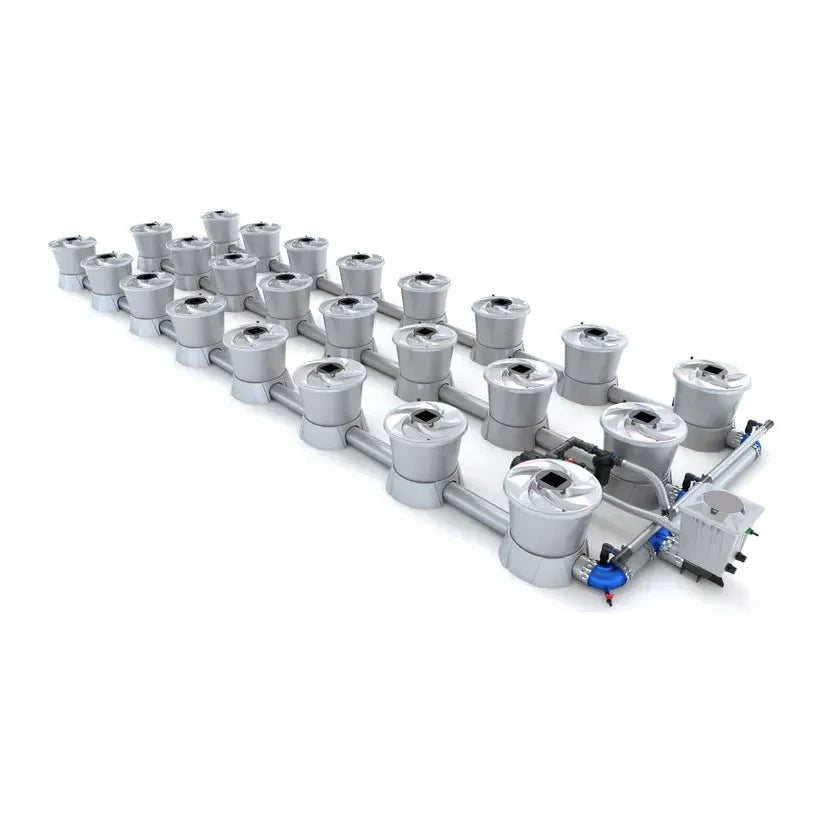

▼3 Row Configuration

Number of pots:	20
Number of rows:	3
Kit total fluid volume:	329.0 gallons (1248 L)
Minimum assembled size (can space pots more widely for a larger footprint):
Length:	15' 10.9" (190.9 inches / 4850 mm
Width:	5' 9.3" (69.3 inches / 1760 mm)
Water Pump Included with the Kit:
Model:	V-SYSTEM Vortex Water Pump 1500W 240V 22500 l/h
Wattage:	1500 watts
Flow Rate:	5944 gal/hr (22500 L/hr)
Recommended water chiller minimum capacity:	660 gallons (2000 L)

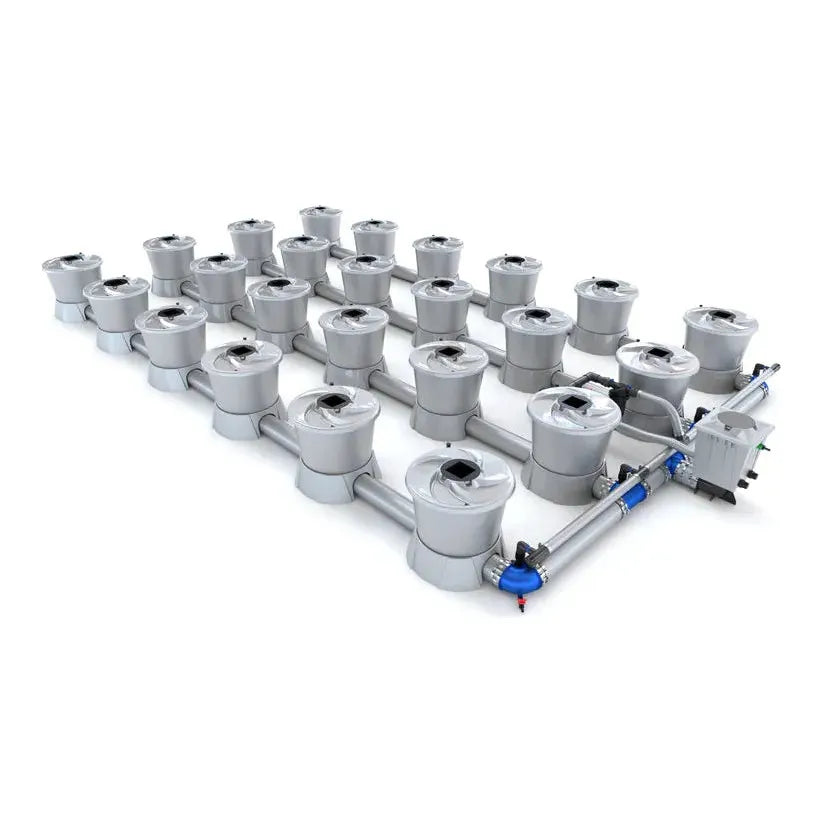

◄4 Row Configuration

Number of pots:	24
Number of rows:	4
Kit total fluid volume:	392.6gallons (1486 L)
Minimum assembled size (can space pots more widely for a larger footprint):
Length:	10' 2.4" (122.4 inches / 3110 mm)
Width:	7' 6.6" (90.6 inches / 2300 mm))
Water Pump Included with the Kit:
Model:	V-SYSTEM Vortex Water Pump 1500W 240V 17700 l/h
Wattage:	1500 watts
Flow Rate:	5944 gal/hr (22500 L/hr)
Recommended water chiller minimum capacity:	660 gallons (2000 L)

Alien Hydroponics V-System 24 Pot Manual

Alien Hydroponics V-System 24 Pot Instruction Manual

Alien Hydroponics V-System 24 Pot Technical Drawing

Alien Hydroponics V-System 24 Warranty

Alien Hydroponics provides a 3-year warranty for all parts and a standard 1-year warranty for pumps.
