Vivosun 5 Gal DWC Hydroponic System - 8 Bucket Kit

Official VIVOSUN Dealer Model: WEB-DWC-0003
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
  • Eight independent, light-blocked 5-gallon reservoirs run from a single pump
  • Dual 8-outlet manifolds split air between air stones and top-feed drip lines
  • 1-year limited manufacturer warranty
  • View More Details

Earn 219 points for shopping and get $2.19 off your next order. Join Harvest Club for free.

Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
Free Shipping On Most Items* To the lower 48
Transparent Pricing Backed w/ price match guarantee
Secure Checkout SSL encrypted payments

Questions? Talk to a specialist.

Mon to Fri, 9am to 5pm PST

Call (360) 800-5535
  • Free Shipping On Most Items*To the lower 48
  • Transparent PricingBacked w/ price match guarantee
  • 4.8/5 Top Quality Store on Google
  • Secure CheckoutSSL encrypted payments

Send Us a Message

Are you looking for a quote?
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Highlights

  • You are managing multiple plants in separate reservoirs because you want to run an independent nutrient program for each site.
  • You are expanding your indoor growing space because a centralized air supply can feed up to eight buckets from one pump.

  • The dark bucket bodies block light completely to keep algae from forming inside the reservoirs.
  • A 1-to-2 splitter sends pump output to two 8-outlet air diffusers.

  • Growers who upgraded from smaller configurations say running eight buckets from one pump cleared up major floor clutter
  • Users tracking reservoir levels say the external floating red ball tubes saved them from opening every lid to check water

Vivosun 5 Gal DWC Hydroponic System - 8 Bucket Kit

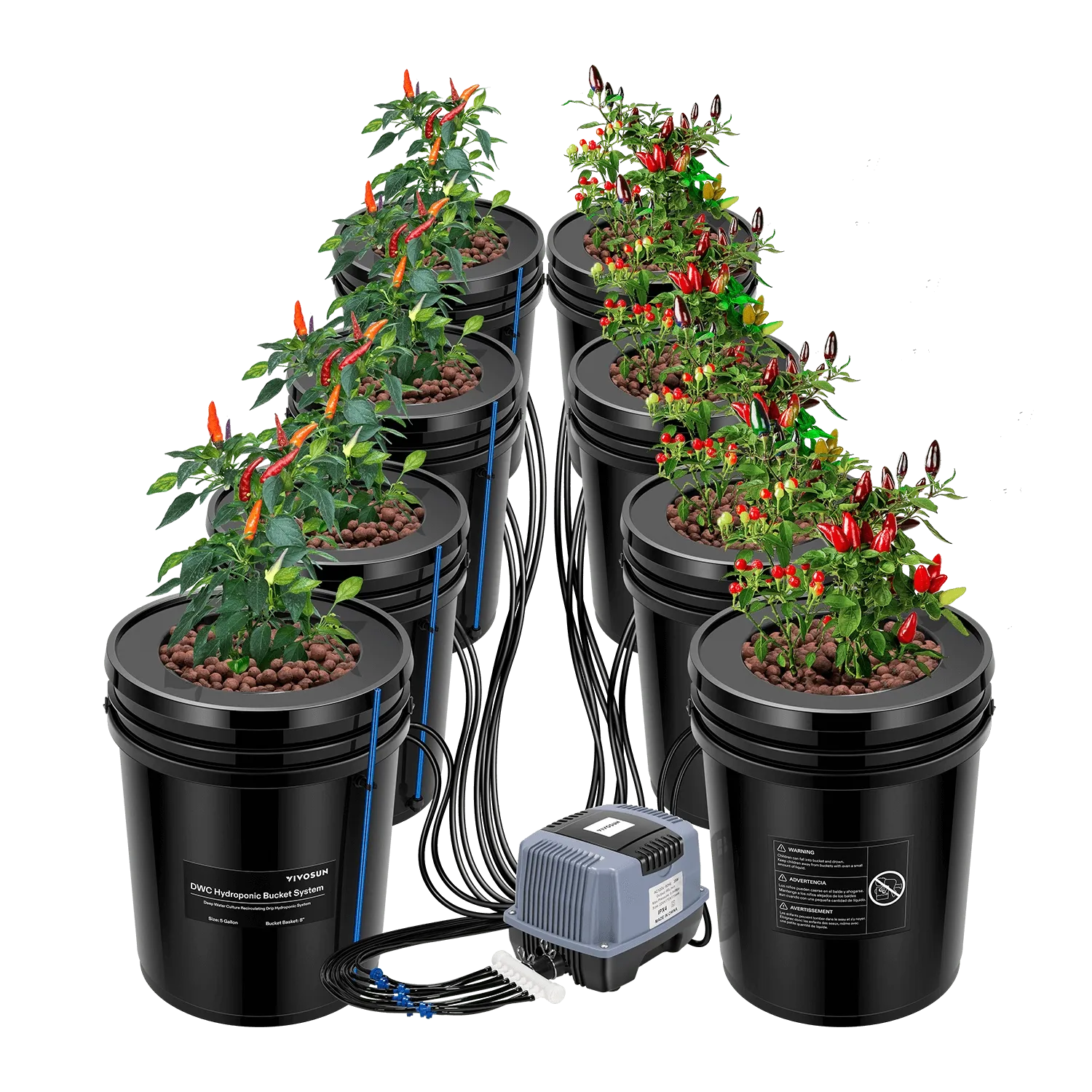

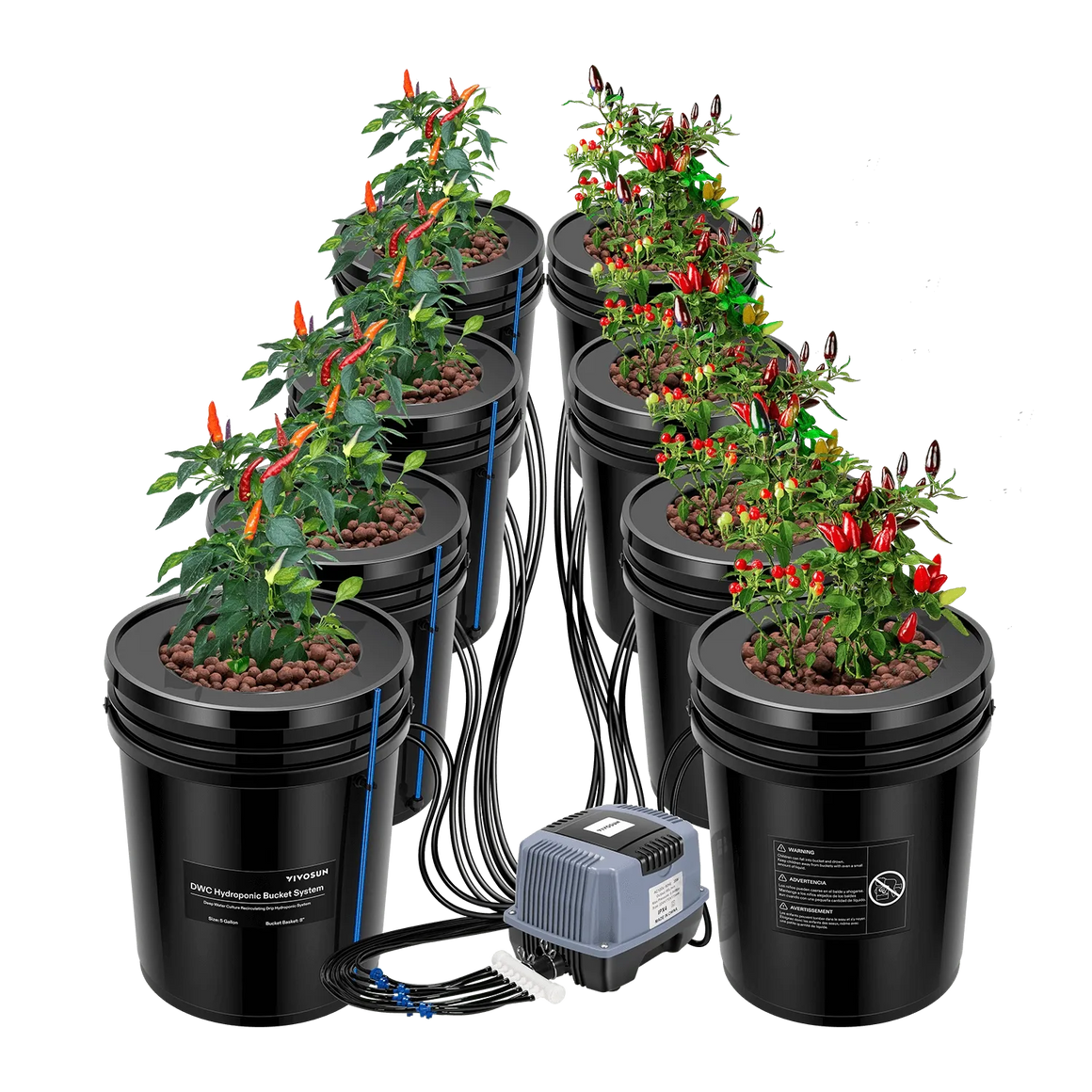

Scaling a hydroponic grow to eight plants usually means stacking multiple small pumps and running a maze of airlines that are hard to balance. While smaller configurations like the 2 bucket kit or 4 bucket kit are excellent for smaller spaces, the Vivosun 5 Gal DWC Hydroponic System 8 Bucket Kit runs eight independent, light-blocked 5-gallon reservoirs from a single 35W air pump. It delivers 60 L/min of adjustable output at under 40 dB, so you can grow up to eight plants, each on its own nutrient program, from one centralized air supply.

Air distribution is split into two dedicated manifolds. A 1-to-2 splitter sends pump output to two 8-outlet air diffusers. One feeds the eight air stones that oxygenate each reservoir, and the other drives the eight drip lines that lift nutrient solution up through each water inlet tube to its top-feed drip ring. An air regulator on the drip side lets you balance drip volume against aeration across the whole system, and 16 inline check valves prevent backflow toward the pump.

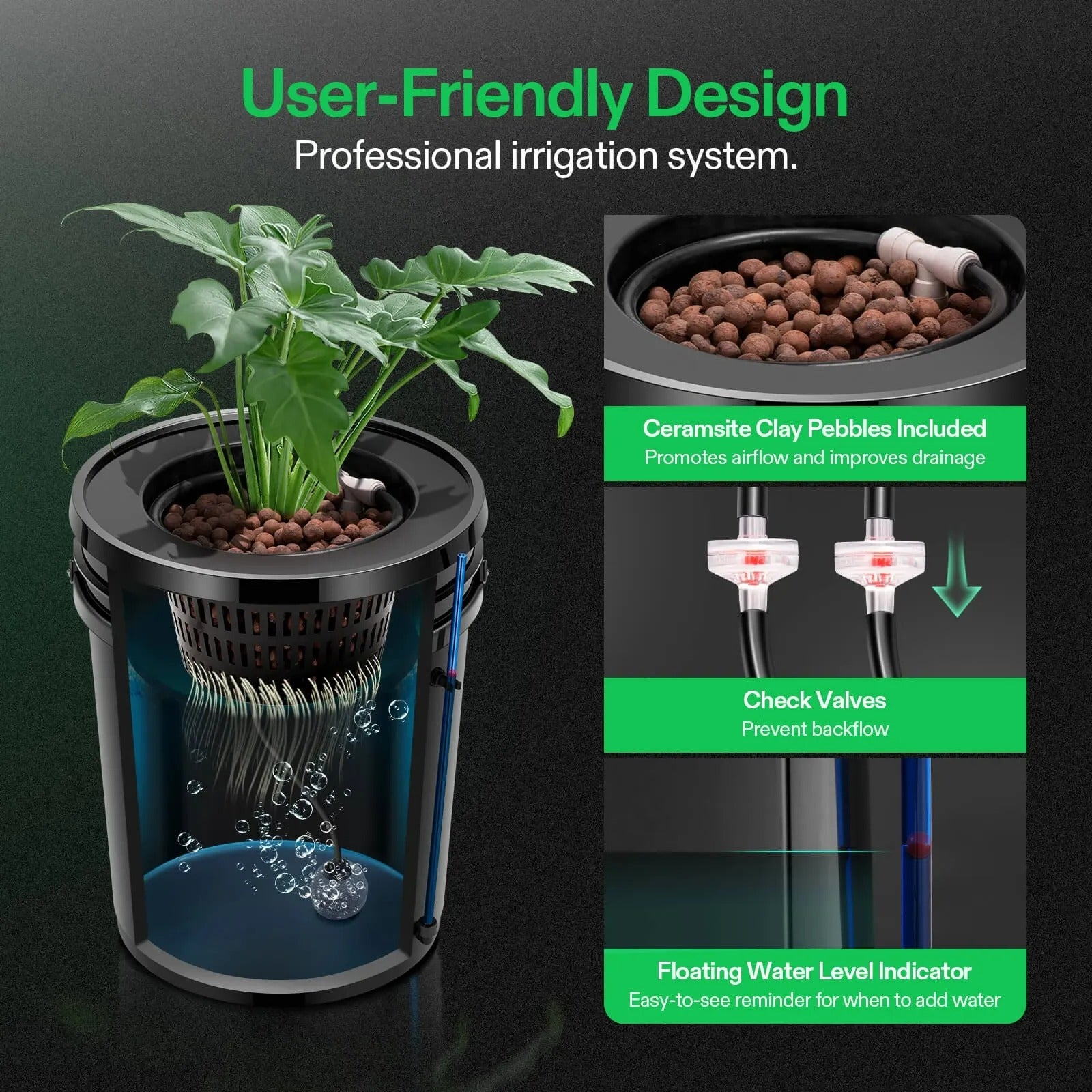

Each black, light-blocking bucket includes a lid with an 8″ net basket, a pack of clay pebbles, and an external water level tube with a floating red ball, so you can check all eight reservoirs at a glance. A 24 m roll of 1/4″ tubing gives you plenty of length to arrange the buckets in a grow room or large tent. For growers seeking a more integrated, cabinet-style experience, the VGrow 4-gallon DWC kit provides an alternative all-in-one approach. The Vivosun 8 Bucket Kit is designed for indoor use and works best with seedlings or cuttings that have already started rooting.

Features

🪣
8 Light-Blocked Buckets

Independent 5-gallon reservoirs let each of eight plants run its own nutrient program.

🫧

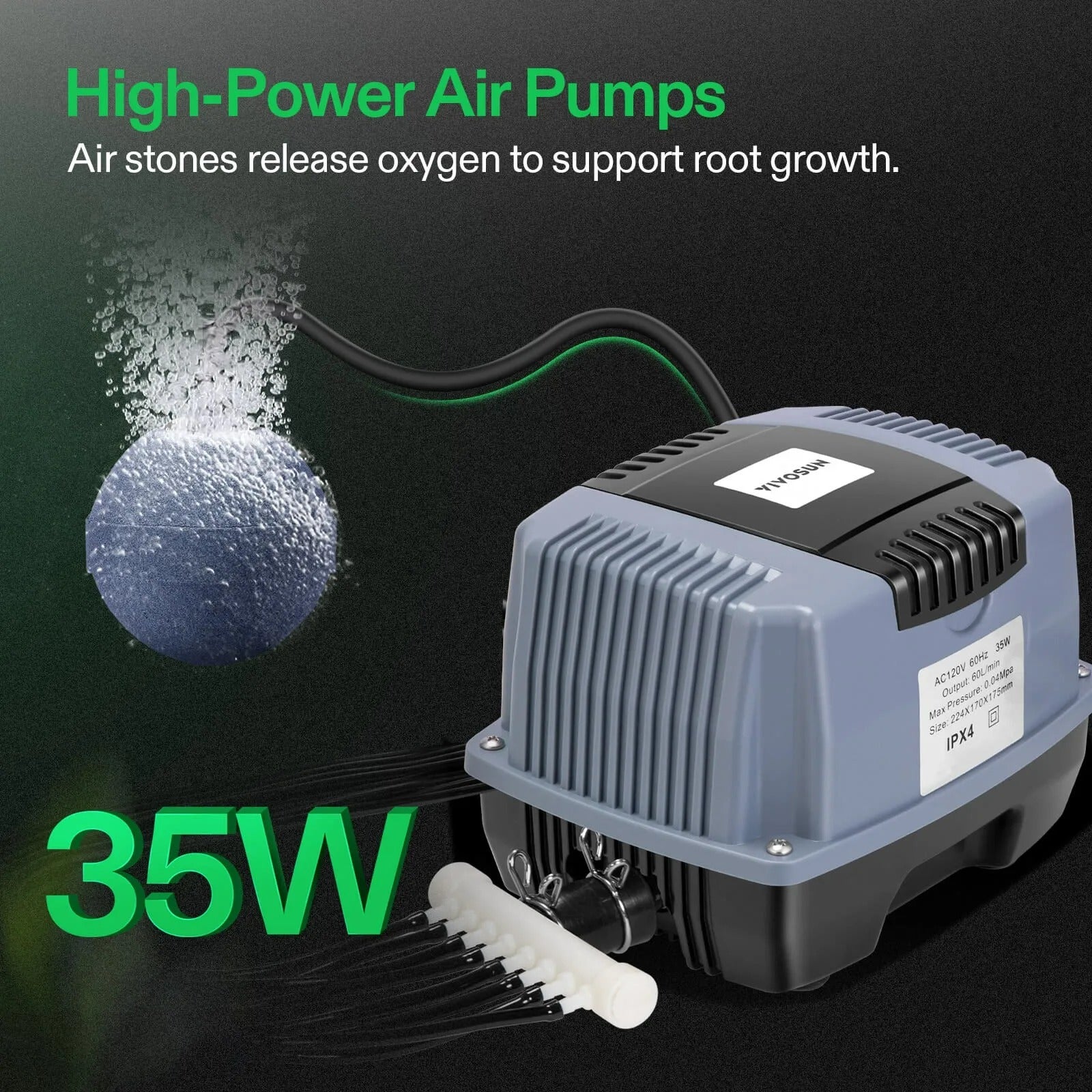

35W 60 L/min Air Pump

One adjustable pump supplies all 16 air lines while running under 40 dB.

🔀
Dual 8-Outlet Manifolds

A 1-to-2 splitter feeds separate diffusers for air stones and drip lines.

🎛️
Central Drip Air Regulator

Balance drip volume against aeration across all eight buckets from one point.

💧

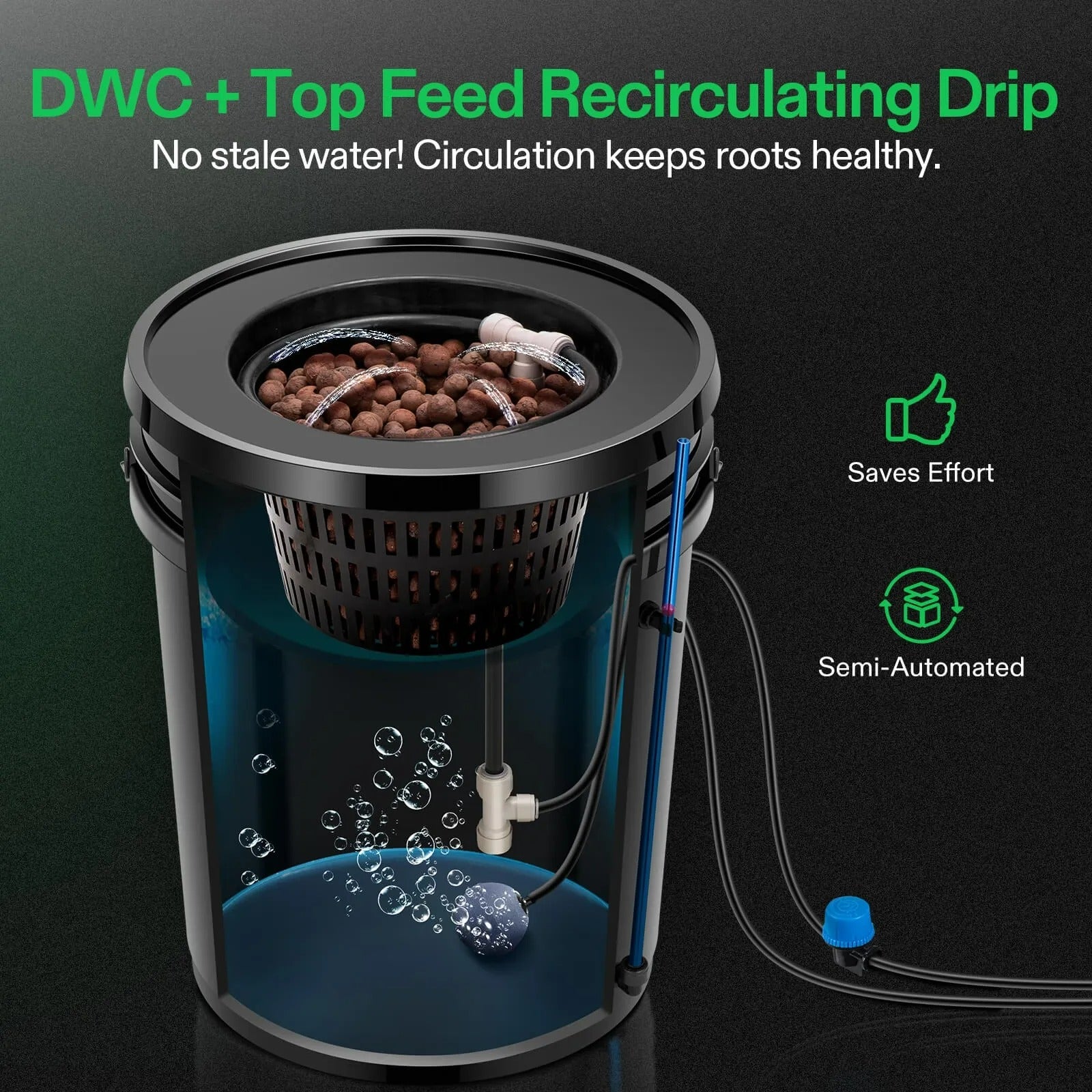

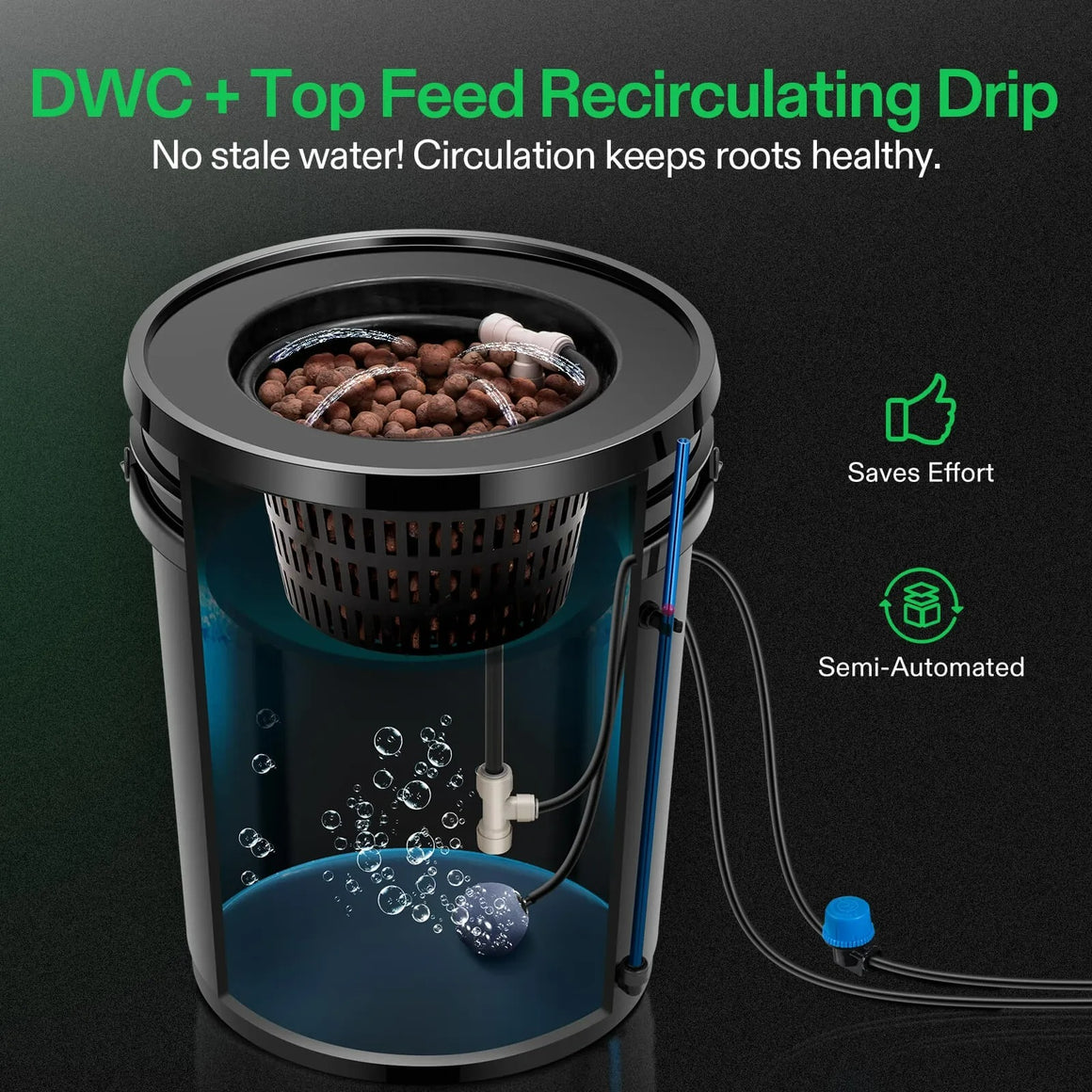

DWC + Top Feed Drip

Oxygenated reservoir below, recirculating drip ring above. Similar top-feed mechanics are also found in the single bucket DWC kit for focused plant care.

🔁
16 Inline Check Valves

Every air line is protected against nutrient solution flowing back to the pump.

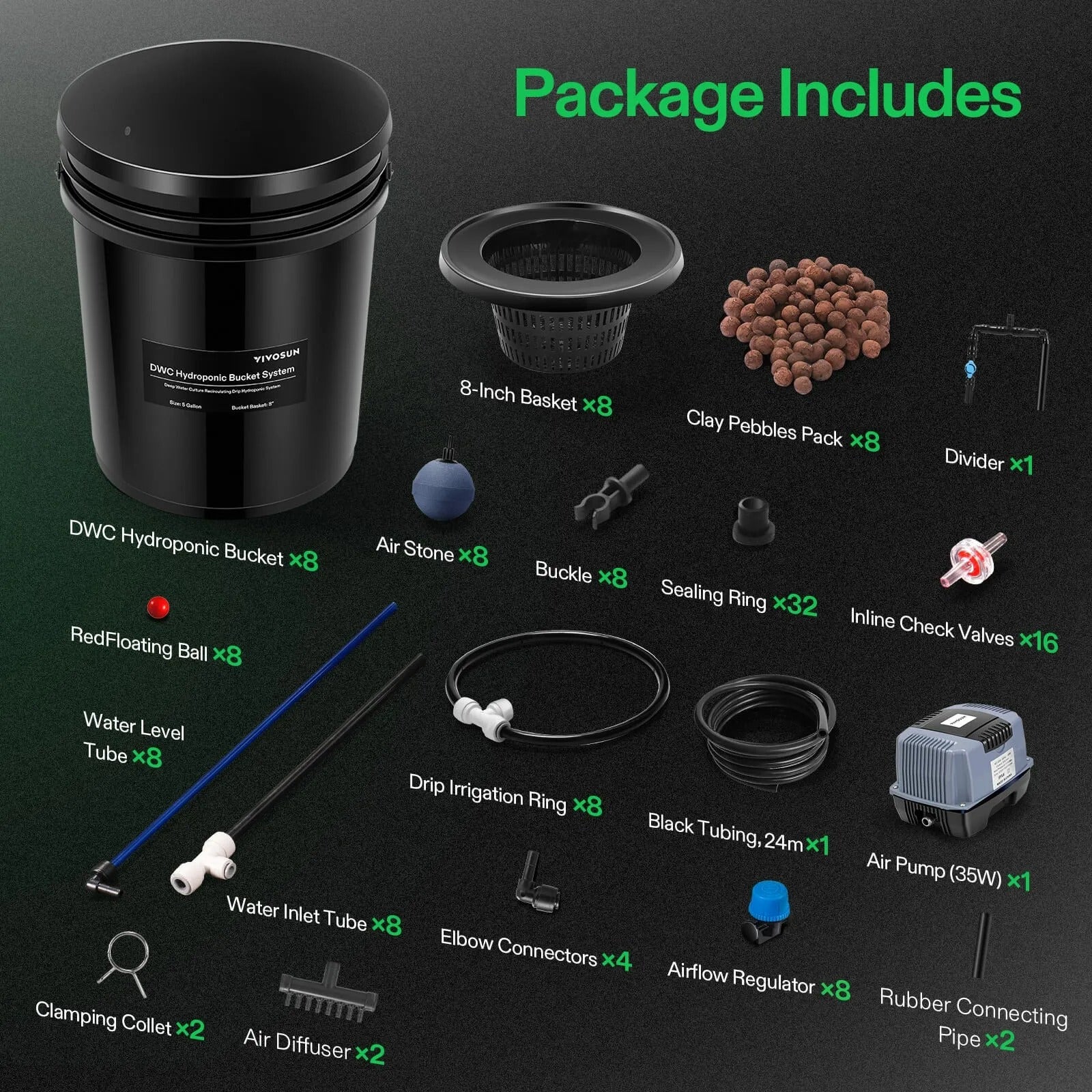

What's Included

  • 8x Light-Blocked 5-Gallon Grow Bucket
  • 8x Lid with 8″ Net Basket
  • 8x Clay Pebbles Pack
  • 1x Air Pump (35W)
  • 1x 1-to-2 Air Splitter
  • 2x 8-Outlet Air Diffuser
  • 2x Clamping Collet
  • 1x Rubber Connecting Pipe
  • 1x Black Tubing, 1/4″ (6 mm), 24 m
  • 8x Air Stone
  • 16x Inline Check Valve
  • 8x Drip Irrigation Ring (3/8″)
  • 8x Water Inlet Tube
  • 8x Water Level Tube
  • 8x Red Floating Ball
  • 8x Buckle
  • 32x Sealing Ring
  • 1x Instruction Booklet

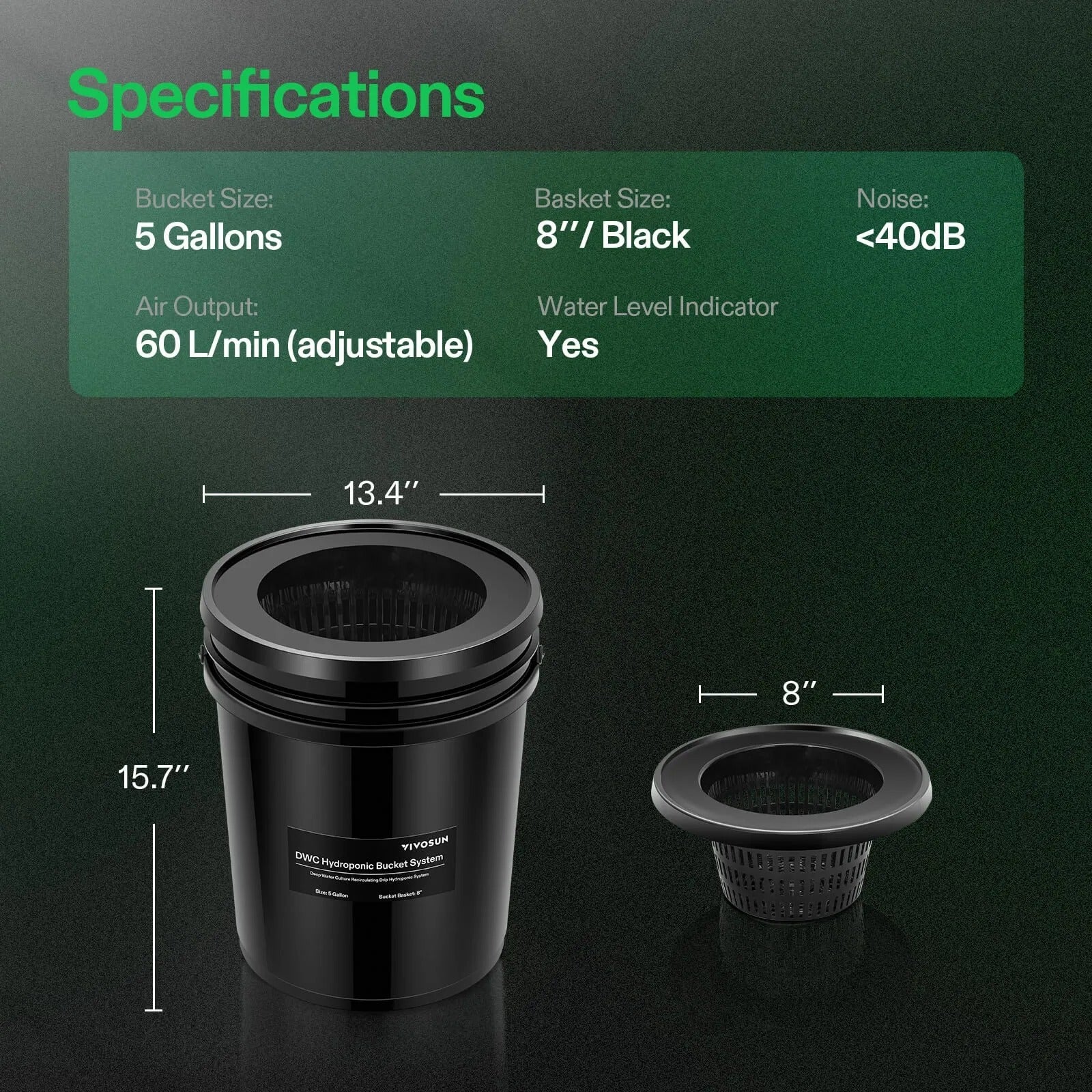

Specifications

Specification Value
System Type Deep Water Culture (DWC) with top feed drip ring
Plant Sites 8 (independent buckets)
Bucket Capacity 5 gallons each, black, light-blocked
Bucket Dimensions Ø30 × 38 cm (11.8″ × 15″)
Net Basket 8″, black
Air Pump Output 60 L/min, adjustable
Power Input 35W max, 120V/60Hz
Plug Type NEMA 1-15P
Noise Level <40 dB
Air Distribution 1-to-2 splitter feeding two 8-outlet diffusers (air stones + drip lines)
Tubing 1/4″ (6 mm) black tubing, 24 m
Water Level Indicator External tube with floating red ball
Initial Fill Level Approx. 24 cm (9.5″)
Operating Temperature 10–40°C (50–104°F)
Storage Temperature −10–50°C (14–122°F)
Intended Use Indoor only

Warranty

The Vivosun 5 Gal DWC Hydroponic System - 8 Bucket Kit is covered by a 1-year limited manufacturer warranty from the original date of purchase.

Frequently Asked Questions

How does one pump supply all eight buckets?+

The pump connects to a 1-to-2 splitter that feeds two 8-outlet air diffusers. One diffuser sends a line to each bucket's air stone for aeration. The other sends a line to each bucket's water inlet tube, where rising air lifts nutrient solution to the drip ring.

How do I install the check valves?+

After connecting all 16 air tubes to the two diffusers, cut each tube near its diffuser and insert an inline check valve. Follow the airflow arrow on each valve so air flows from the pump toward the bucket. The valves prevent solution from flowing back into the lines.

How do I balance drip flow and aeration?+

Use the air regulator on the line feeding the drip-irrigation diffuser to control how much air goes to the drip lines relative to the air stones. You can also adjust the pump's overall output for more spray volume and more oxygenation throughout the system.

How much water goes in each bucket?+

With the power off, fill each bucket with clean water or a low-concentration nutrient solution to about 24 cm (9.5″), approximately the lower part of the basket. Each bucket's floating red ball shows when its level drops.

Should the air pump stay on around the clock?+

Yes. Vivosun recommends keeping the pump on continuously, because both drip irrigation and reservoir oxygenation stop in all eight buckets when it's off.

Why does a drip ring spray in bursts or stop?+

Intermittent spraying is normal for this air-driven drip design. If a ring stops flowing, move the clay pebbles aside to check that its outlet isn't blocked, then cover the ring again. Once the pebbles are fully moistened, they create an even root environment.

What are the power requirements?+

The air pump draws up to 35W on 120V/60Hz power with a standard NEMA 1-15P plug. It's a customized pump, so Vivosun advises against replacing it with another brand's pump. If your setup requires separate water movement, Vivosun offers various submersible options like the 800GPH water pump for nutrient mixing.

Can I use the 8 Bucket Kit outdoors?+

No. The system is designed for indoor use only. Avoid placing it near heat sources, in hot and humid environments, or anywhere below 4°C.

Can I transplant seeds or unrooted cuttings directly?+

The system is designed for seedlings and cuttings that have already started rooting. Root them first in a propagation setup, then place them in the net baskets so their roots sit below the drip ring.
