THROUGH THE Cultivator's LENS Hands-On Evaluation

  • You are starting your first hydroponic setup because building a multi-site system feels like too much of a gamble
  • You are looking to test a single plant variety because you need to understand how it reacts before scaling up

  • The pump adjustment knob lets you manage flow rate carefully as your plants transition from seedlings to bloom
  • The blue tube indicator is a simple way to track water levels without having to open the reservoir and disturb roots

  • Users who keep their bucket in small tents report that the quiet pump keeps noise levels well below their fan output
  • Growers who struggled with seedling moisture levels say the top-feed drip ring effectively keeps clay pebbles damp

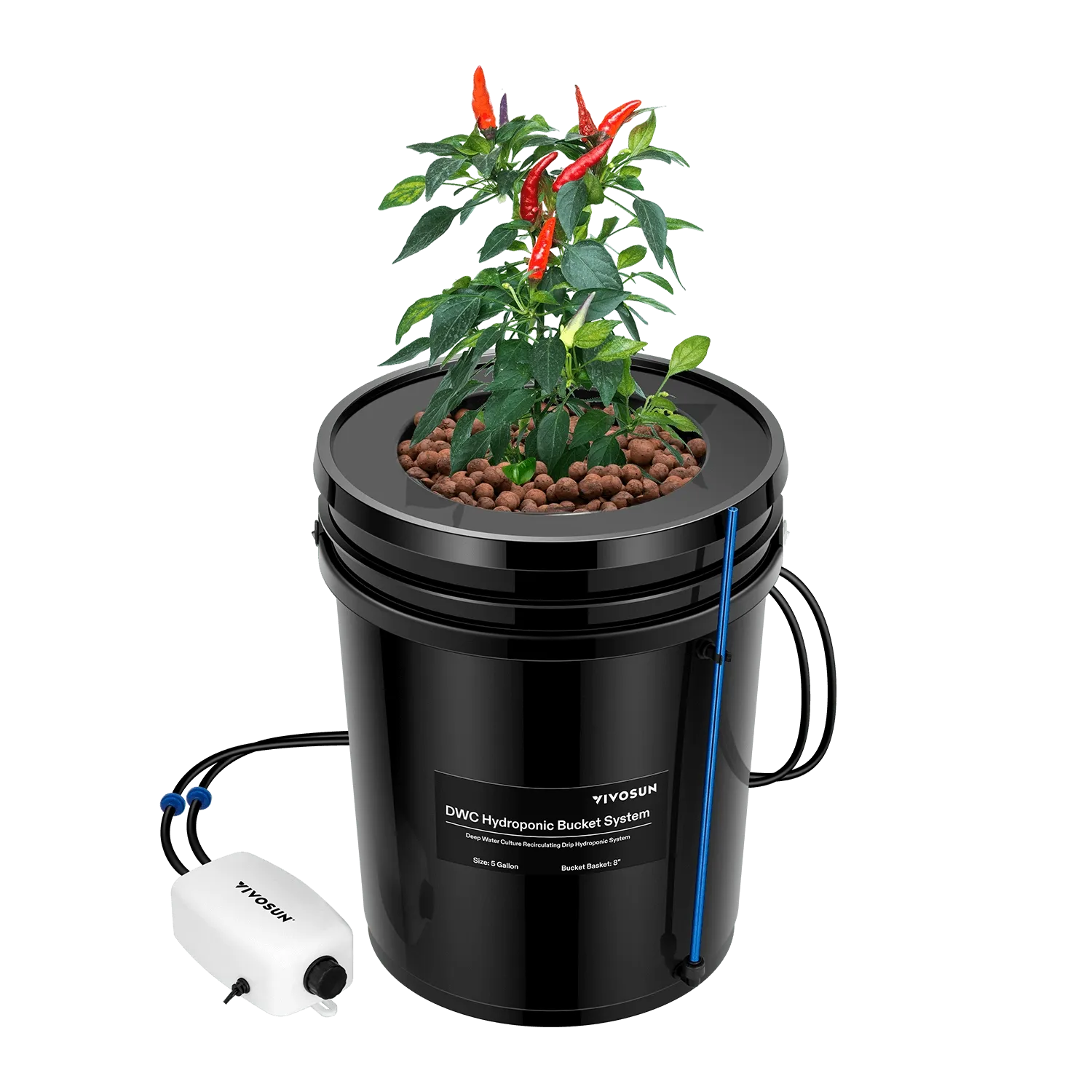

Vivosun 5 Gal DWC Hydroponic System - Single Bucket Kit

Trying hydroponics for the first time shouldn't mean building a multi-site system before you know how one plant responds. The Vivosun 5 Gallon DWC Hydroponic Bucket System gives you a complete one-plant setup. It pairs deep water culture with a recirculating top-feed drip ring in a single 5-gallon bucket, powered by a quiet 7 L/min air pump that runs under 40 dB.

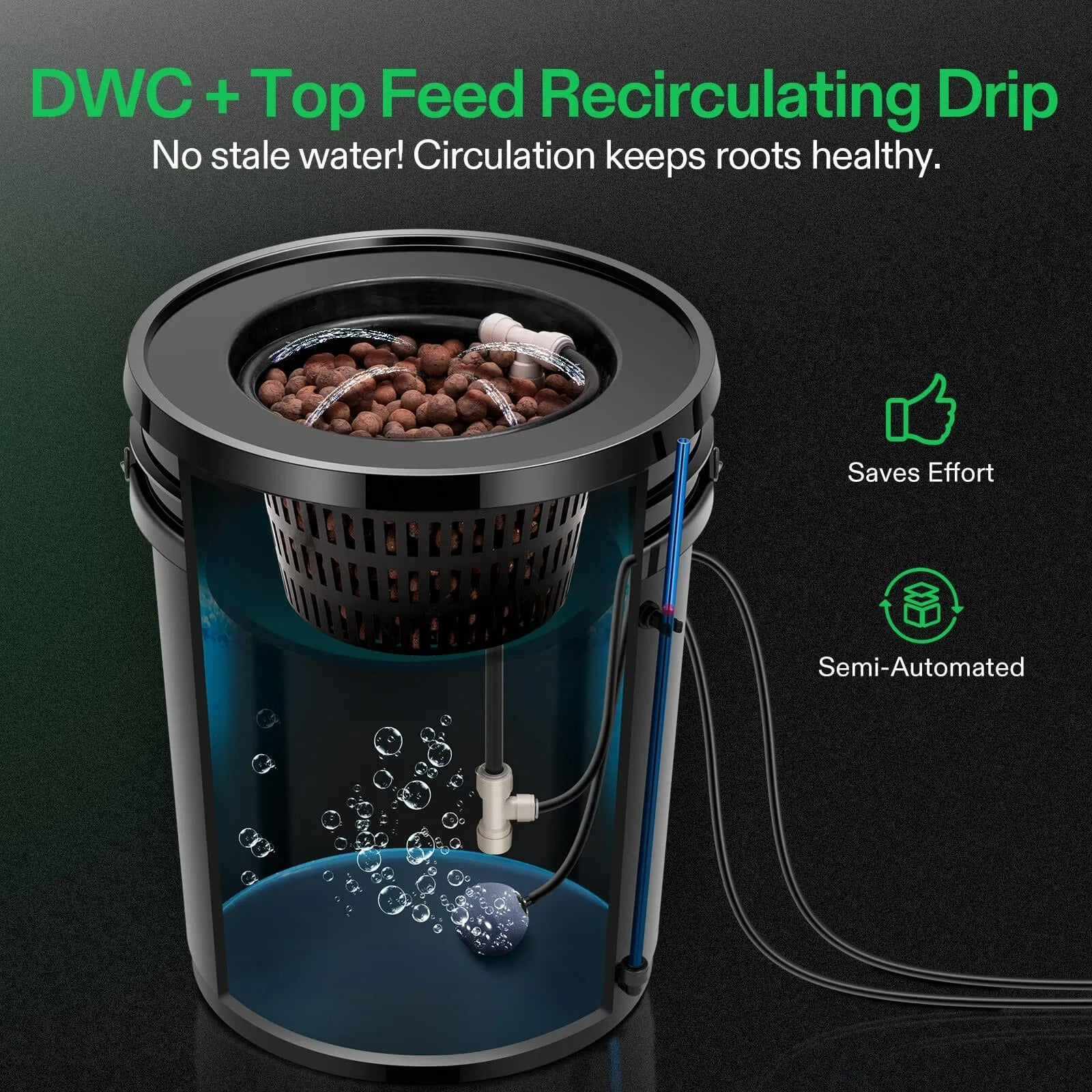

The one air pump does two jobs. One air line feeds a ball air stone at the bottom of the bucket to oxygenate the nutrient solution around the roots. The second line drives the drip ring through the water inlet tube, lifting solution up and spraying it over the clay pebbles so young roots stay moist before they reach the reservoir. Inline check valves prevent backflow toward the pump. The pump's +/− knob lets you dial in more bubbles or more drip as your plant grows.

The 8″ grooved net basket holds the included ceramsite clay pebbles, which support the plant and keep air moving around the upper roots. A floating red ball in the blue water level tube shows when it's time to top up. At 13.4″ wide and 15.7″ tall, the Vivosun single bucket kit fits easily in a grow tent, greenhouse, balcony, or garden. It suits fruits, vegetables, flowers, and other crops started from rooted seedlings or cuttings.

Features

💧
DWC + Top Feed Drip

Reservoir below and recirculating drip ring above keep roots fed and moist.

🫧

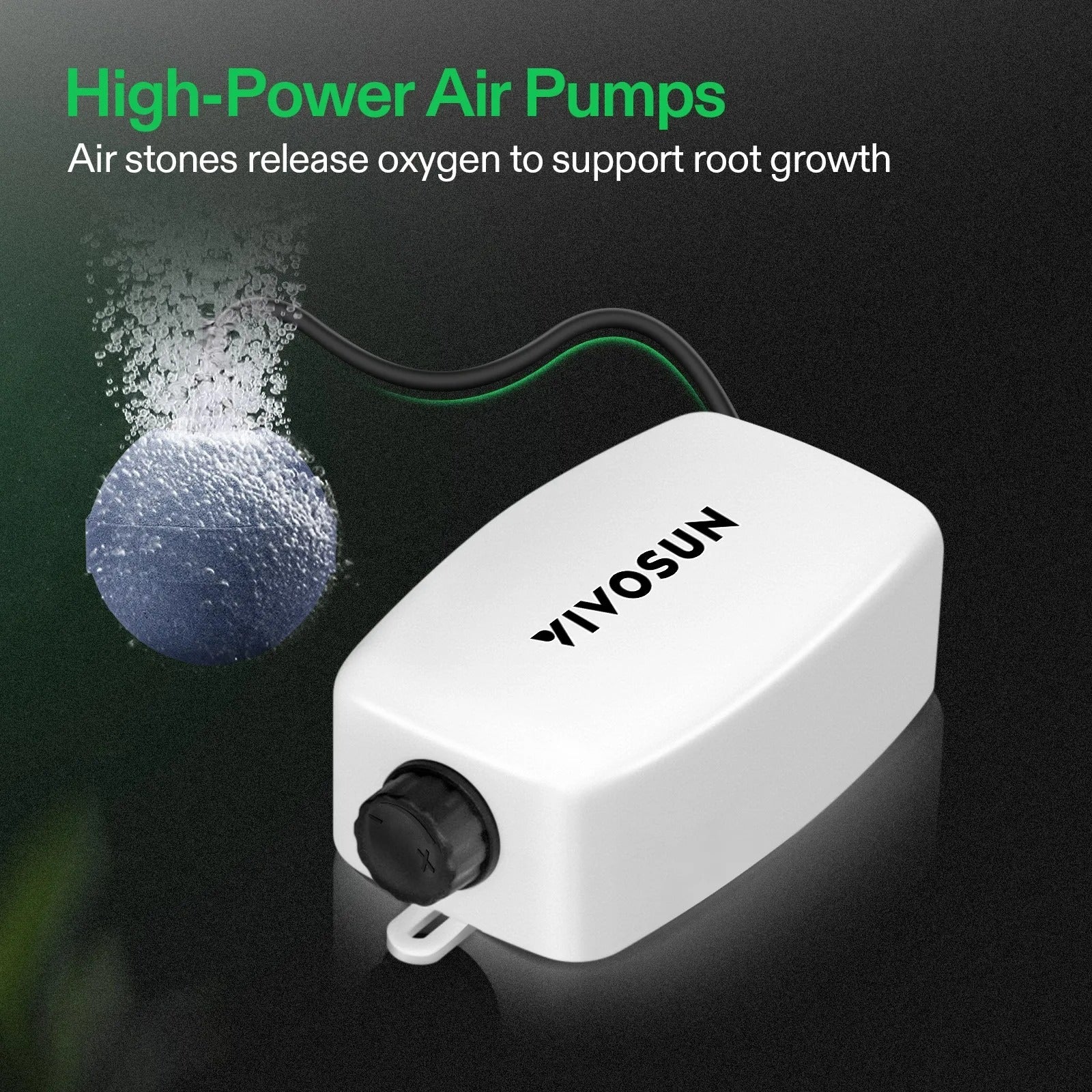

7 L/min Adjustable Pump

Quiet 8W air pump runs under 40 dB and powers both aeration and drip.

🔁

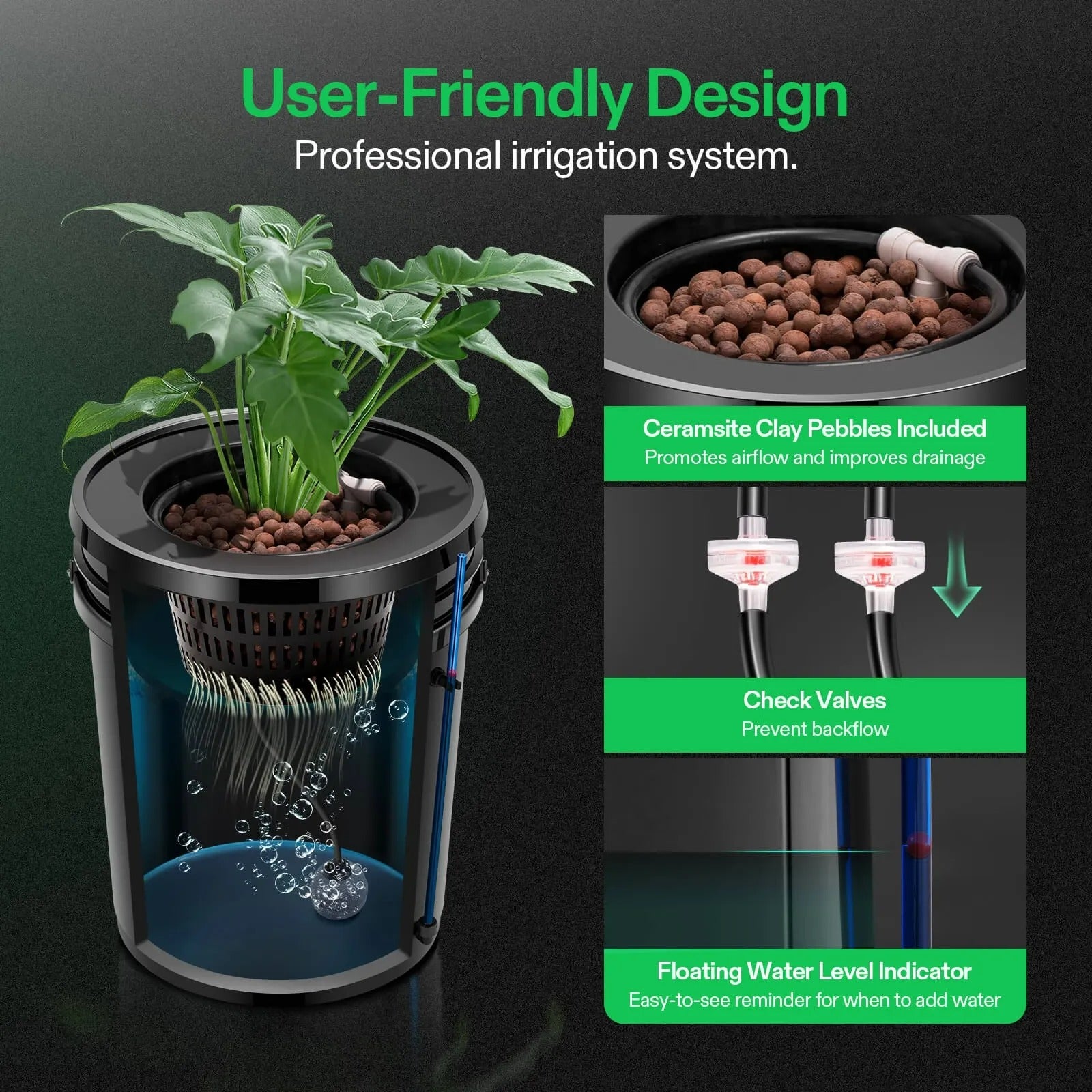

Inline Check Valves

Two check valves keep solution from flowing back toward the pump.

🔴
Floating Level Indicator

Red ball in the water level tube shows at a glance when to add solution.

🧺

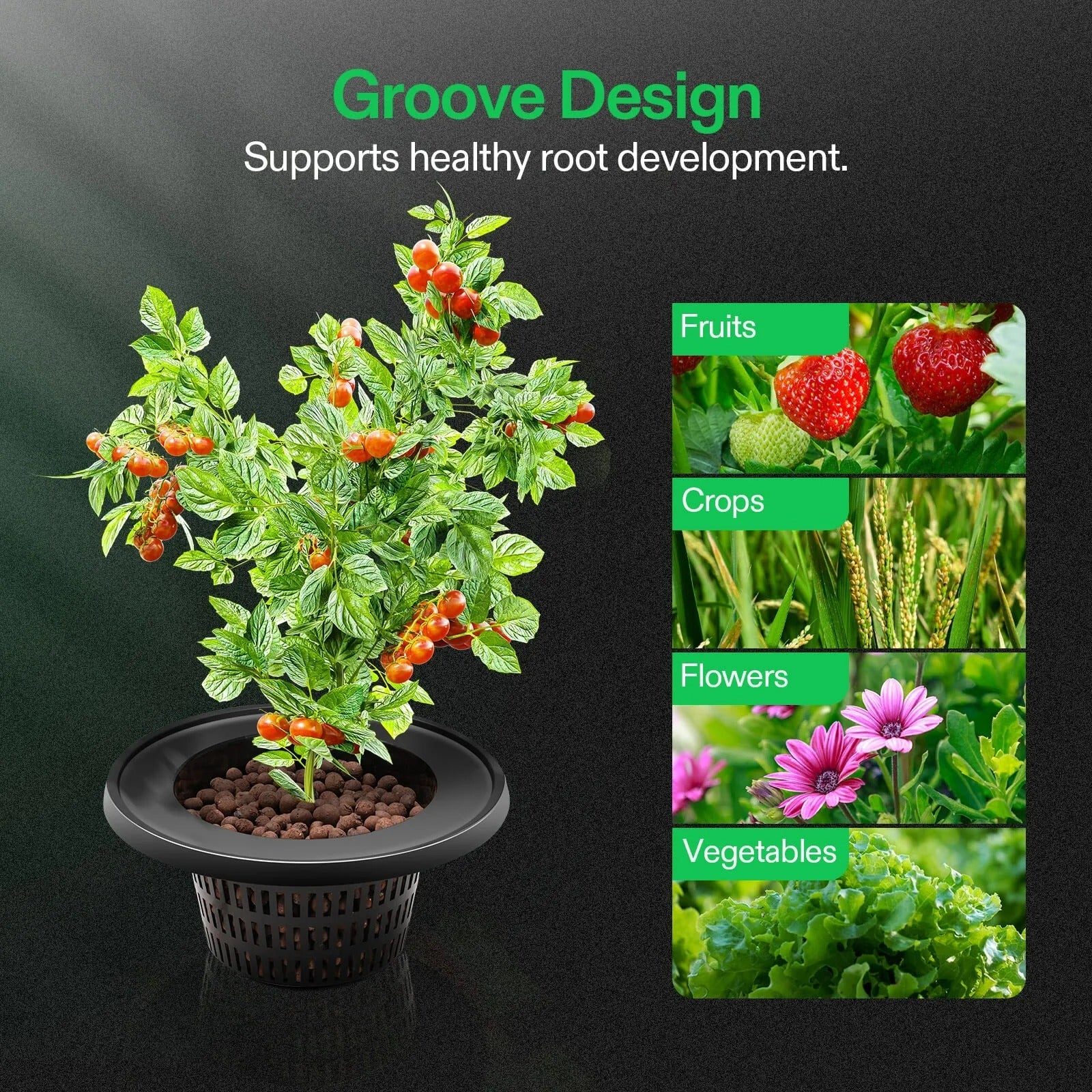

8″ Grooved Net Basket

Groove design and clay pebbles support the plant and promote healthy roots.

🌱
One-Plant Starter Setup

Complete single-bucket kit sized for tents, balconies, gardens, and greenhouses.

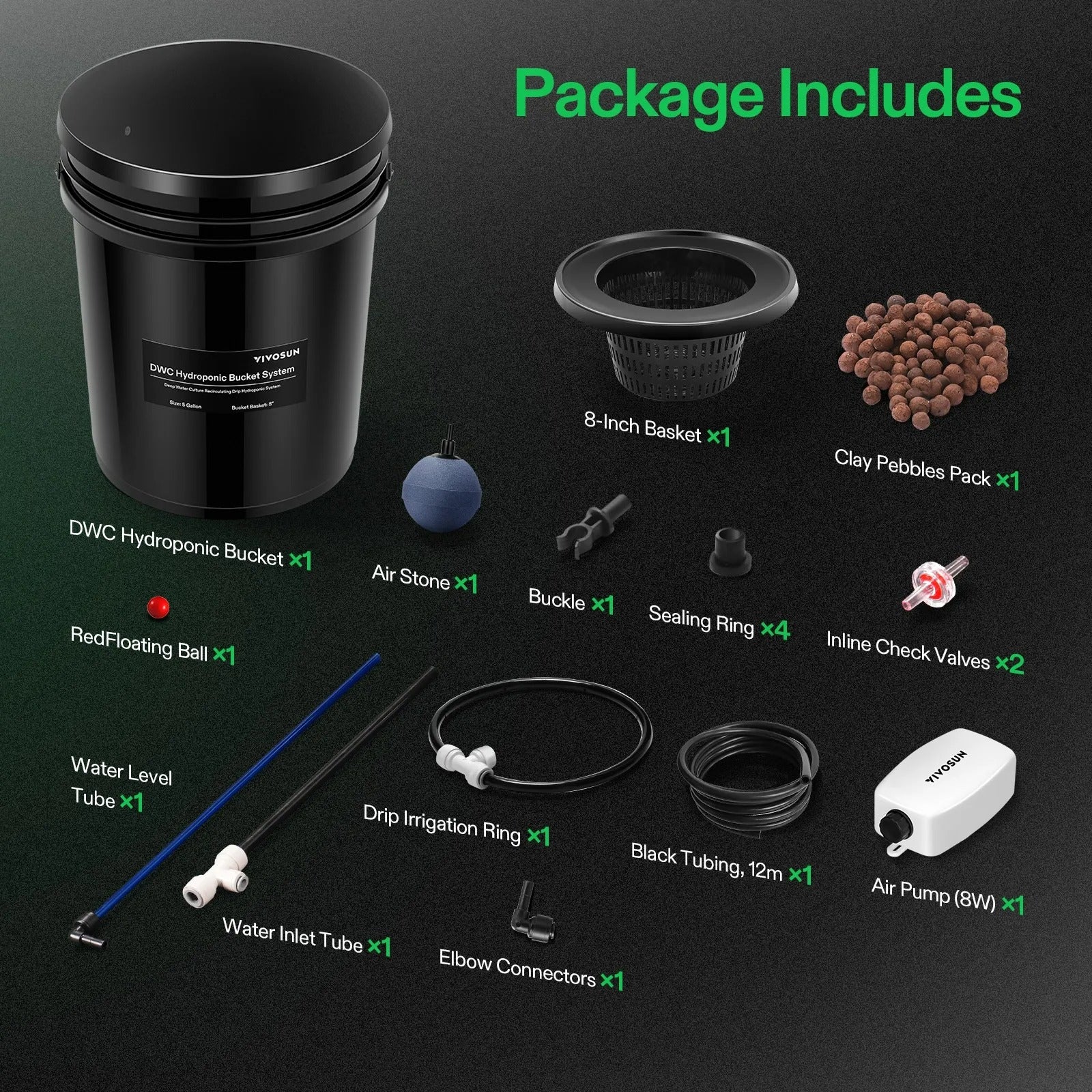

What's Included

  • 1x DWC Hydroponic Bucket (5 Gallon)
  • 1x 8″ Net Basket
  • 1x Clay Pebbles Pack
  • 1x Air Pump (8W)
  • 1x Air Stone
  • 1x Black Tubing (12 m)
  • 2x Inline Check Valve
  • 1x Drip Irrigation Ring
  • 1x Water Inlet Tube
  • 1x Water Level Tube
  • 1x Red Floating Ball
  • 4x Sealing Ring
  • 1x Buckle
  • 1x Elbow Connector
  • 1x Instruction Booklet

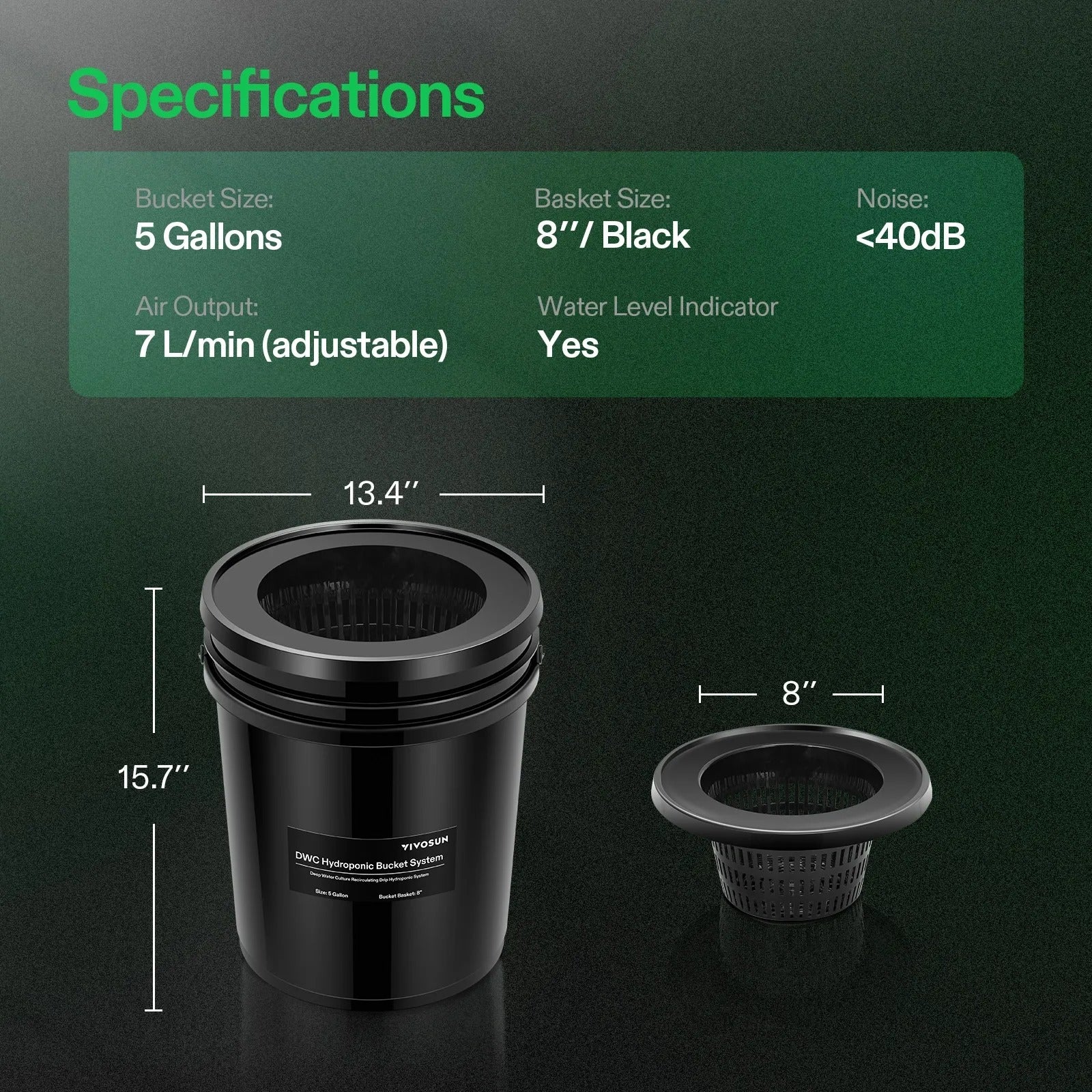

Specifications

Specification Value
System Type Deep Water Culture (DWC) with top feed recirculating drip
Plant Sites 1
Bucket Capacity 5 gallons
Bucket Dimensions 13.4″ Diameter × 15.7″ Height
Net Basket 8″, black
Air Pump Output 7 L/min, adjustable
Air Pump Power 8W
Noise Level <40 dB
Water Level Indicator Floating red ball
Grow Medium Ceramsite clay pebbles (included)
Initial Fill Level Approx. 9.5″ (24 cm)

Frequently Asked Questions

How do I set up the Vivosun single bucket DWC kit? +

Cut the black tubing into two equal lengths. Run one through the top of the bucket into the water inlet tube's tee fitting to power the drip ring, and connect the other to the air stone. Fit an inline check valve on each line near the pump, with the "IN" side facing the pump, then connect both to the pump outlet.

How much water do I add? +

With the power off, fill the bucket with clean water or a low-concentration nutrient solution to about 9.5″ (24 cm), roughly the lower part of the basket. The floating red ball in the water level tube shows the level as it drops.

How do I plant in the net basket? +

Add washed clay pebbles to the basket and set your seedling so its roots sit below the drip irrigation ring. Cover the ring fully with another layer of pebbles, making sure none block the ring's outlet, then plug in the pump.

How do I adjust bubbles and drip flow? +

Turn the +/− knob on the air pump. Raising the output increases both drip spray volume and oxygenation of the nutrient solution, so adjust until you see steady bubbles and consistent drip over the pebbles.

The drip ring sprays intermittently. Is that normal? +

Yes, intermittent spraying is normal for this air-driven drip system. If flow stops, check that clay pebbles aren't blocking the ring's outlet. After a period of operation, the pebbles become fully moistened and create an even root environment.

Should the air pump stay on all the time? +

Yes. Vivosun recommends keeping the air pump running continuously, since both the drip irrigation and the reservoir oxygenation stop when it's off.

Can I start seeds directly in the bucket? +

The system is ideal for seedlings and rooted cuttings. For the best results, root seeds or clones first in a propagation setup, then transplant them into the net basket.

How do I disconnect the black tubing from the water inlet tube? +

Once connected, the tubing and water inlet tube fitting hold firmly. To separate them, press the gray bump on the fitting and pull the tubing out.
