- 1 × Mini Controller Cabinet (SCC-4)
- 1 × GCS-1 Power Cable
- 1 × HCS-1 / NFS-1 / CDA-1 / TCS-1 Power Cable
- 3 × Mounting Back Plate
- 3 × 1.6ft RJ12 Cable
Ask Sage about this product
TrolMaster SCC-4 Mini Controller Cabinet
starting from 0% interest financing from
/mo.
- Houses up to 6 DSR-1 Relay Stations and 1 main controller
- Integrated RJ12 splitter boards with 17 ports for clean signal routing
- Supports 100 to 277V power grids with a 60A maximum current output
- 3-year warranty on all mechanical and electronic components
- View More Details
Earn 417 points for shopping and get $4.17 off your next order. Join Harvest Club for free.
Free Shipping On Most Items*
To the lower 48
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
Ask Sage about this product
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are consolidating your control wall because the tangled mess of RJ12 cables makes simple maintenance a headache.
- You are moving your gear into a sealed enclosure because dust and humidity in the room threaten your electronics.
What We Found
- The cooling fan is surprisingly quiet even when it ramps up to protect those six internal relay stations.
- We noticed the built-in splitter boards save you from buying and zip-tying five separate RJ12 hubs to the wall.
What Users Say
- Buyers who consolidated their gear say they finally passed inspections without the fire marshal flagging messy wiring.
- Users who enclosed their gear say they stopped worrying about water splashes during high pressure cleaning cycles.
TrolMaster SCC-4 Mini Controller Cabinet
Scattered modules and exposed wiring are a major risk in high-performance grow rooms. The TrolMaster SCC-4 Mini Controller Cabinet provides a centralized, professional solution for organizing and protecting your environmental controllers. By consolidating your hardware into a single, IP53-rated enclosure, you eliminate clutter and safeguard your investment against dust, moisture, and accidental damage in demanding greenhouse control applications.

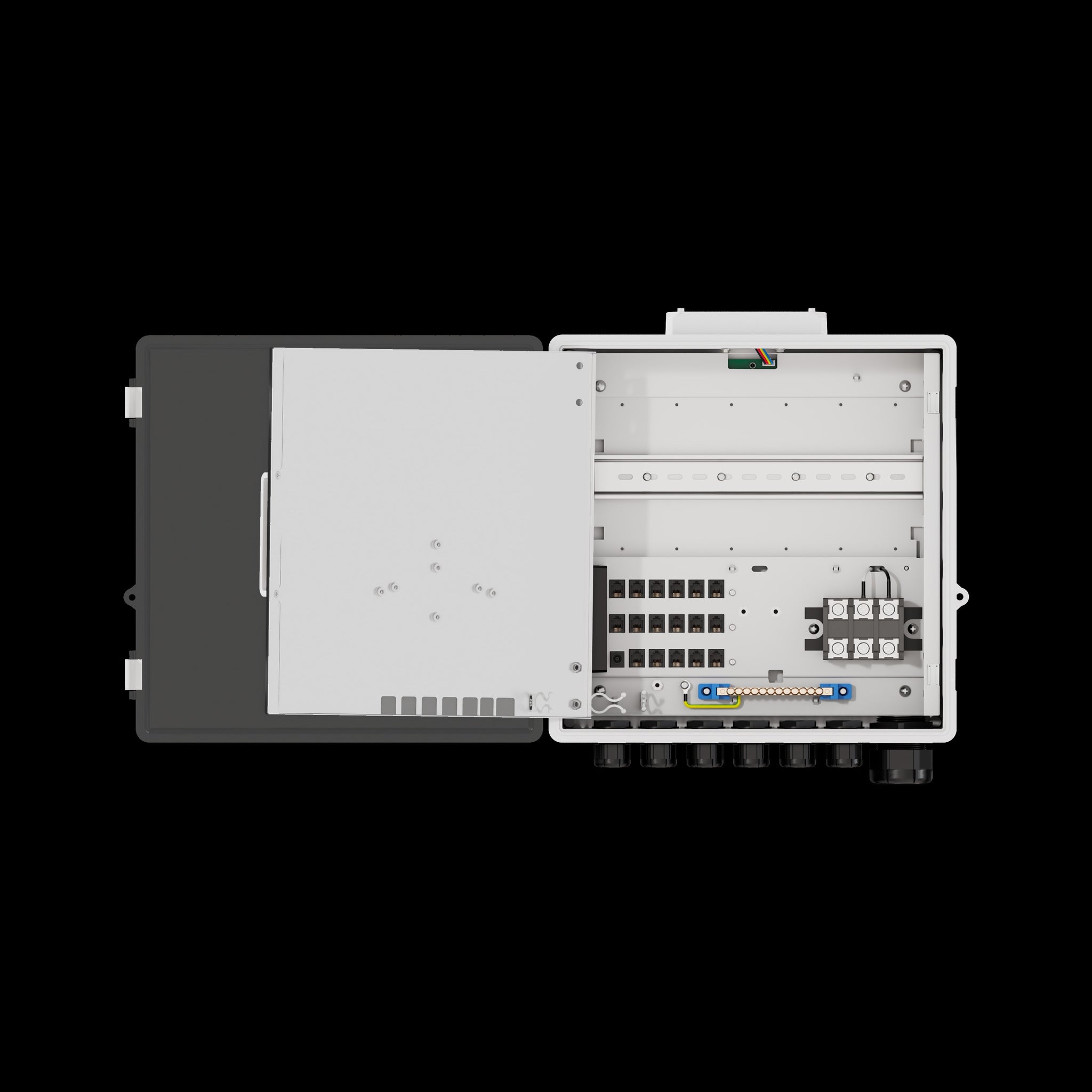

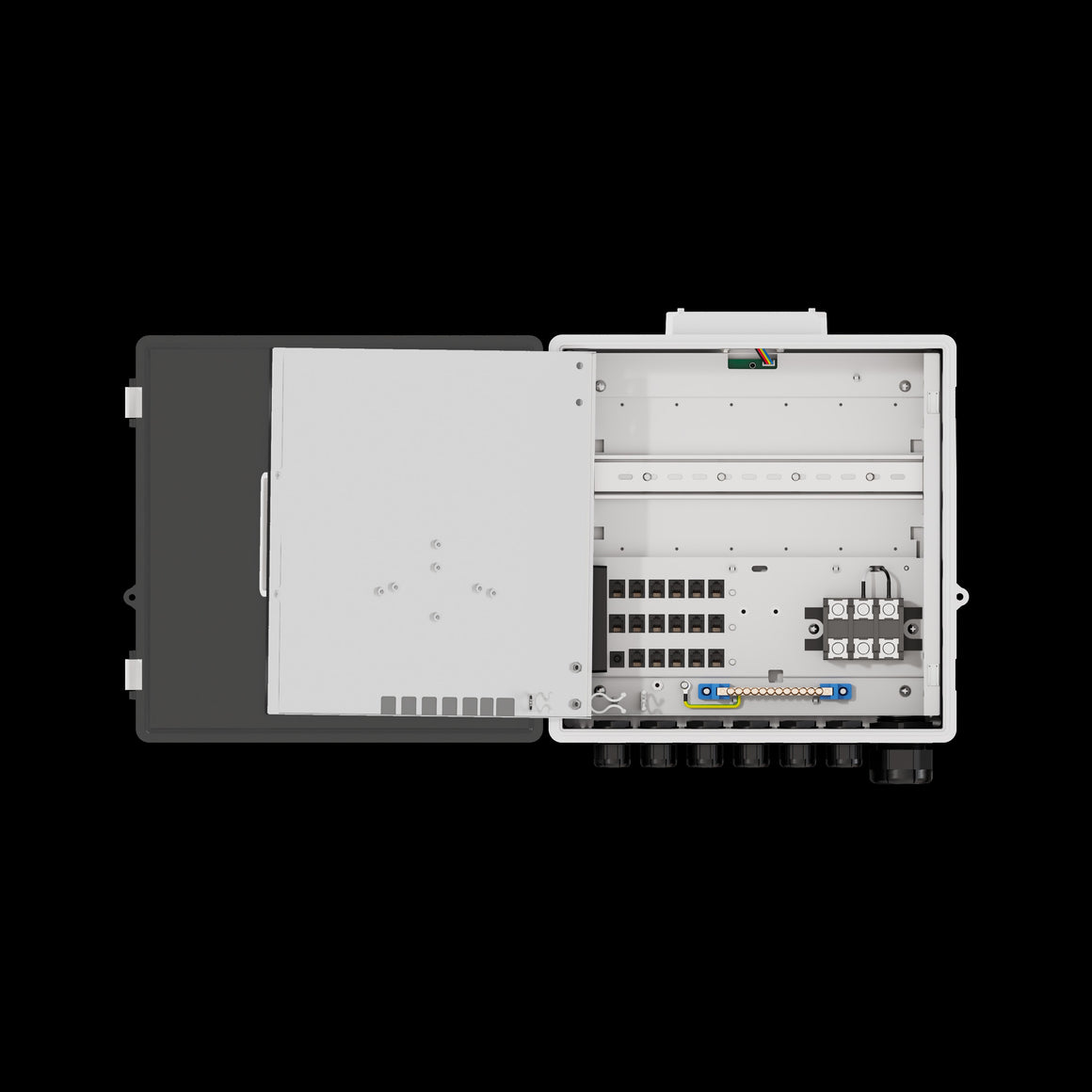

This cabinet is designed to house a main controller alongside up to six DSR-1 Relay Device Stations. Featuring an intelligent cooling fan that scales with internal temperature and built-in RJ12 splitter boards, it simplifies complex wiring configurations. It is compatible with the full TrolMaster lineup — Green-X, Hydro-X, Aqua-X, Carbon-X, and Tent-X — and supports 100–277V input to ensure seamless integration into any residential or commercial power grid.
Compatibility: TrolMaster Green-X, Hydro-X, Aqua-X, Carbon-X, and Tent-X Systems
What's Included
Features
🛡️

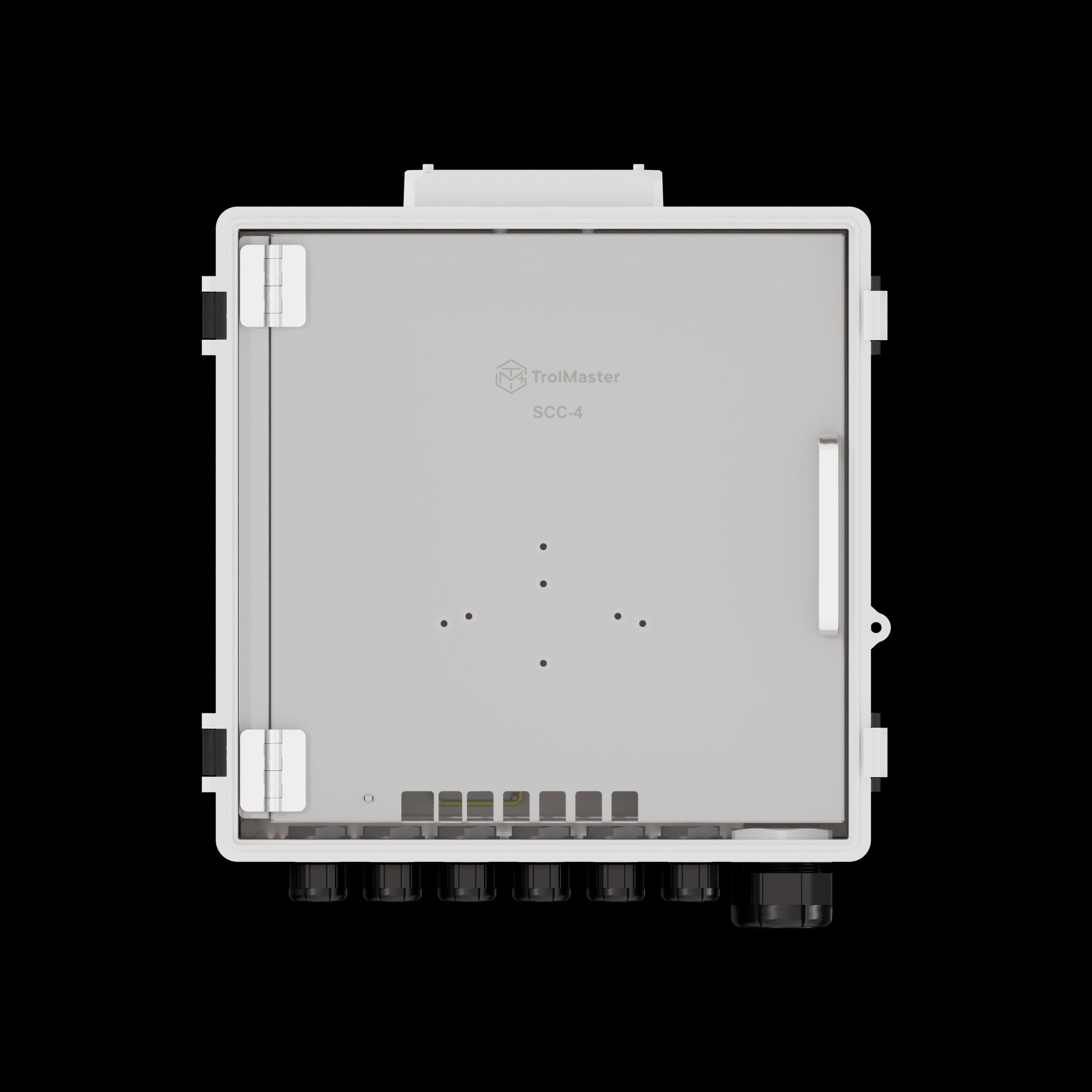

IP53 Rated Enclosure
IP53-rated protection shields internal controller hardware and wiring from dust and water spray in active grow environments.
🌬️

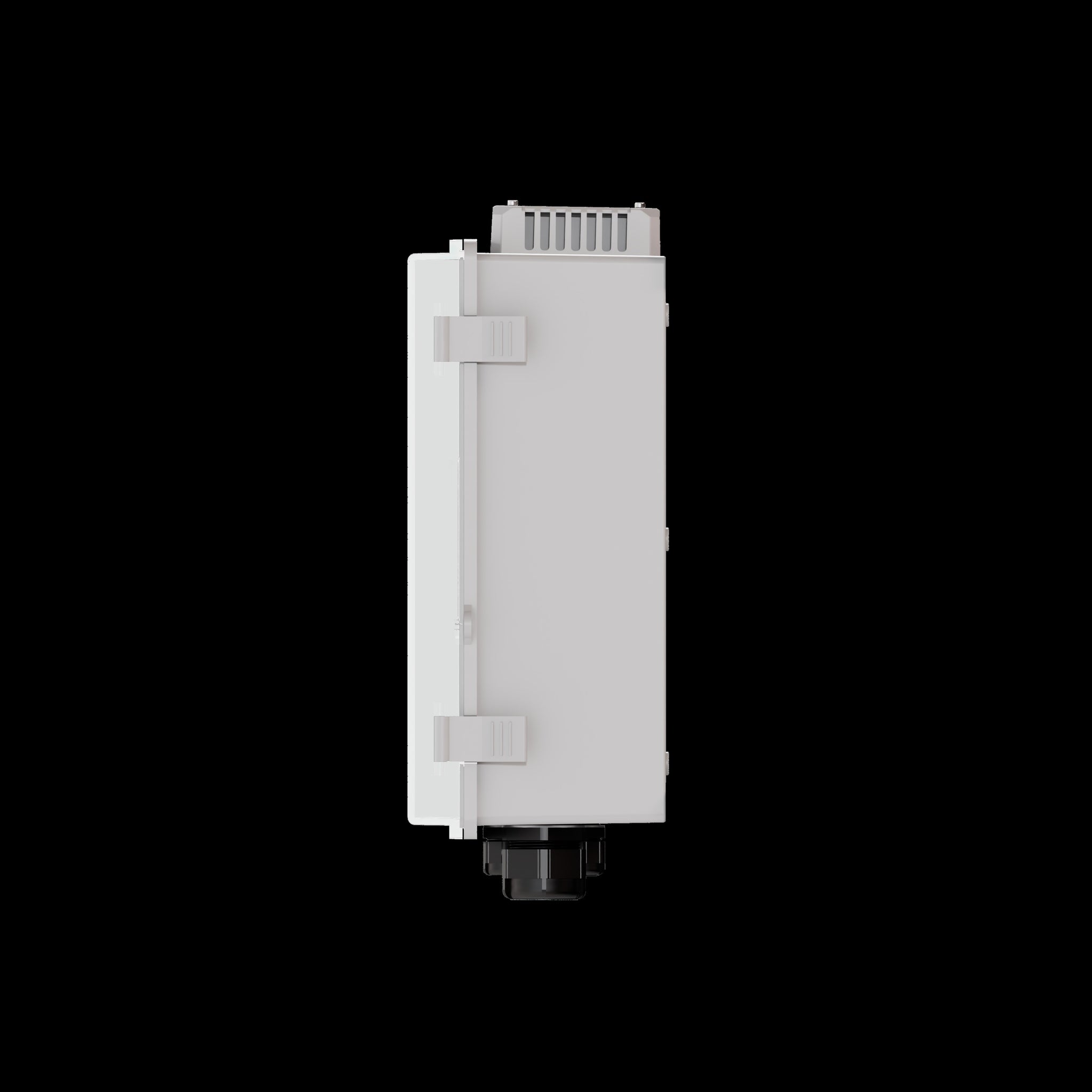

Intelligent Fan Speed Control
Smart fan management dynamically adjusts cooling speed based on internal cabinet temperature to protect components.
⚡
Up to 6 DSR-1 Relay Stations
Houses up to six DSR-1 Relay Device Stations for consolidated control of lights, HVAC, and CO2.
🔌
Built-In RJ12 Splitter Boards
Three onboard splitter boards (17 total ports) distribute controller signals without needing messy external adapters.
🔋
Wide Voltage Input
Accepts 100–277V~ at 50/60 Hz with 60A maximum output, making it compatible with commercial and residential grids.
🗂️

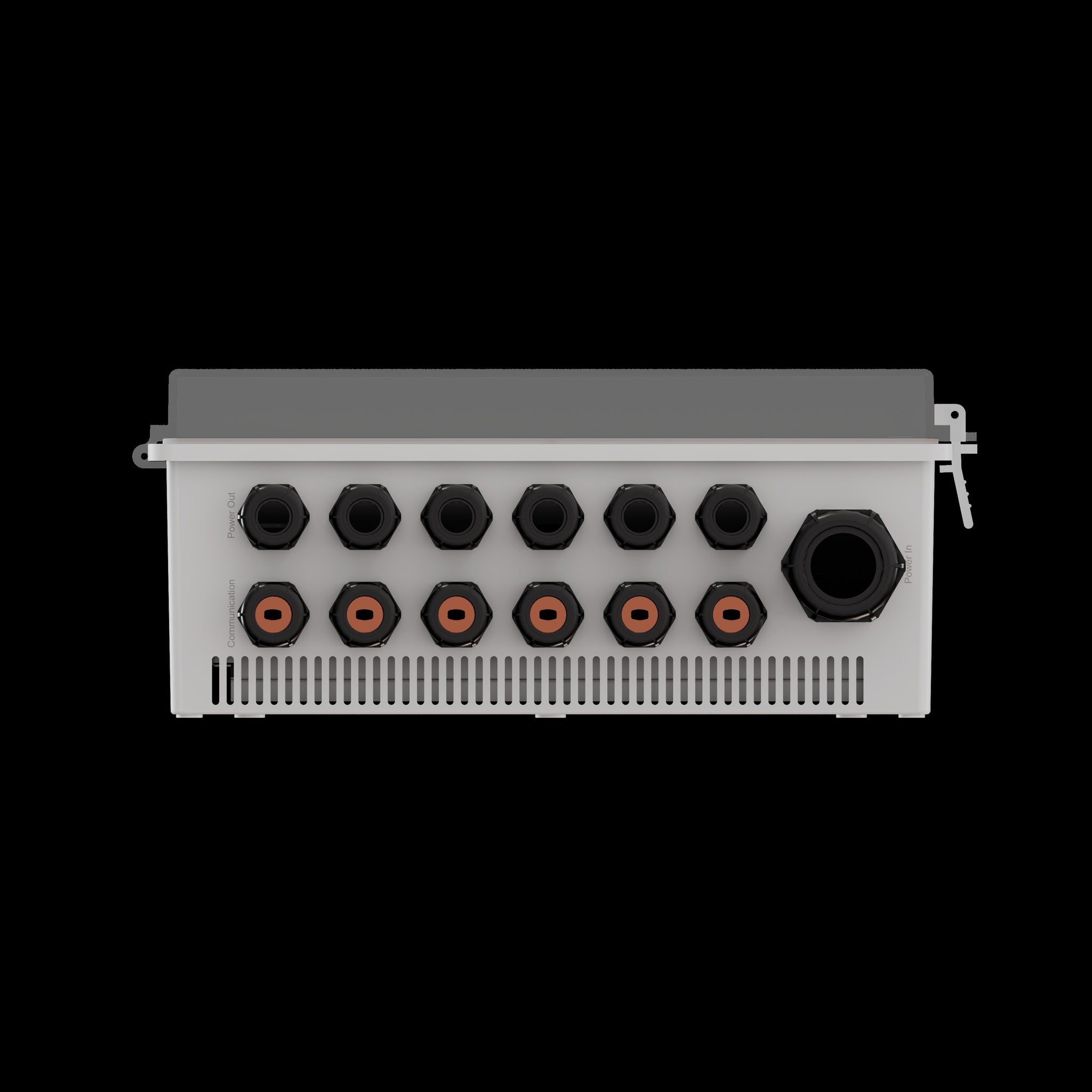

Clean Cable Management
Integrated routing channels keep power and signal cables separated, reducing clutter and accidental disconnection risks.
📐
Expandable Modular Layout
Modular internal layout supports reconfiguration as your system grows, accommodating up to six relay units.
🔧
Easy Assembly & Servicing
Clearly arranged connection points and accessible layout make initial wiring and ongoing maintenance straightforward.
✅
Multi-Controller Compatible
Compatible with Green-X, Hydro-X, Aqua-X, Carbon-X, and Tent-X controllers.
TrolMaster SCC-4 Specifications
| Specification | Value |
|---|---|
| Input Voltage | 100–277V~, 50/60 Hz |
| Maximum Output Current | 60A |
| IP Rating | IP53 |
| DSR-1 Capacity | Up to 6 stations |
| RJ12 Splitter Board — Group 1 | 6 Ports |
| RJ12 Splitter Board — Group 2 | 6 Ports |
| RJ12 Splitter Board — Group 3 | 5 Ports |
| Compatible Controllers | GCS-1, HCS-1, NFS-1, CDA-1, TCS-1 |
| Working Environment | Temperature 32–104°F (0–40°C), Humidity ≤90% |
| Package Dimensions | 15.55" × 15.55" × 6.69" |
| Gross Weight | 9.04 lbs (4.1 kg) |
Support & Manuals
Warranty
TrolMaster backs the SCC-4 with a 3-year warranty from the original date of purchase, covering all mechanical and electronic components under normal operating conditions. Components that fail due to abnormal or improper usage are excluded from this coverage.
FAQs
Which TrolMaster controllers are compatible with the SCC-4?
How many DSR-1 Relay Device Stations can the SCC-4 hold?
The SCC-4 accommodates up to six DSR-1 Relay Device Stations within its enclosure, providing centralized relay control for up to six independent device channels in a single cabinet.
What are the built-in RJ12 splitter boards for?
The SCC-4 includes three onboard RJ12 splitter boards providing 17 total distribution ports. These distribute controller signals to multiple devices and relay stations without requiring external adapters, keeping internal cable routing clean.
Is the SCC-4 compatible with 240V commercial facility wiring?
Yes. The SCC-4 accepts input voltages from 100–277V~ at 50/60 Hz, covering both standard 120V residential and 208/240V commercial configurations. With a maximum output of 60A, it is well-suited for larger facility installations.
How does the intelligent fan speed control work?
The SCC-4's integrated fan automatically adjusts its speed based on the internal temperature. It runs slower and quieter under low loads and ramps up during high internal heat to maintain safe operating temperatures for the electronics.
