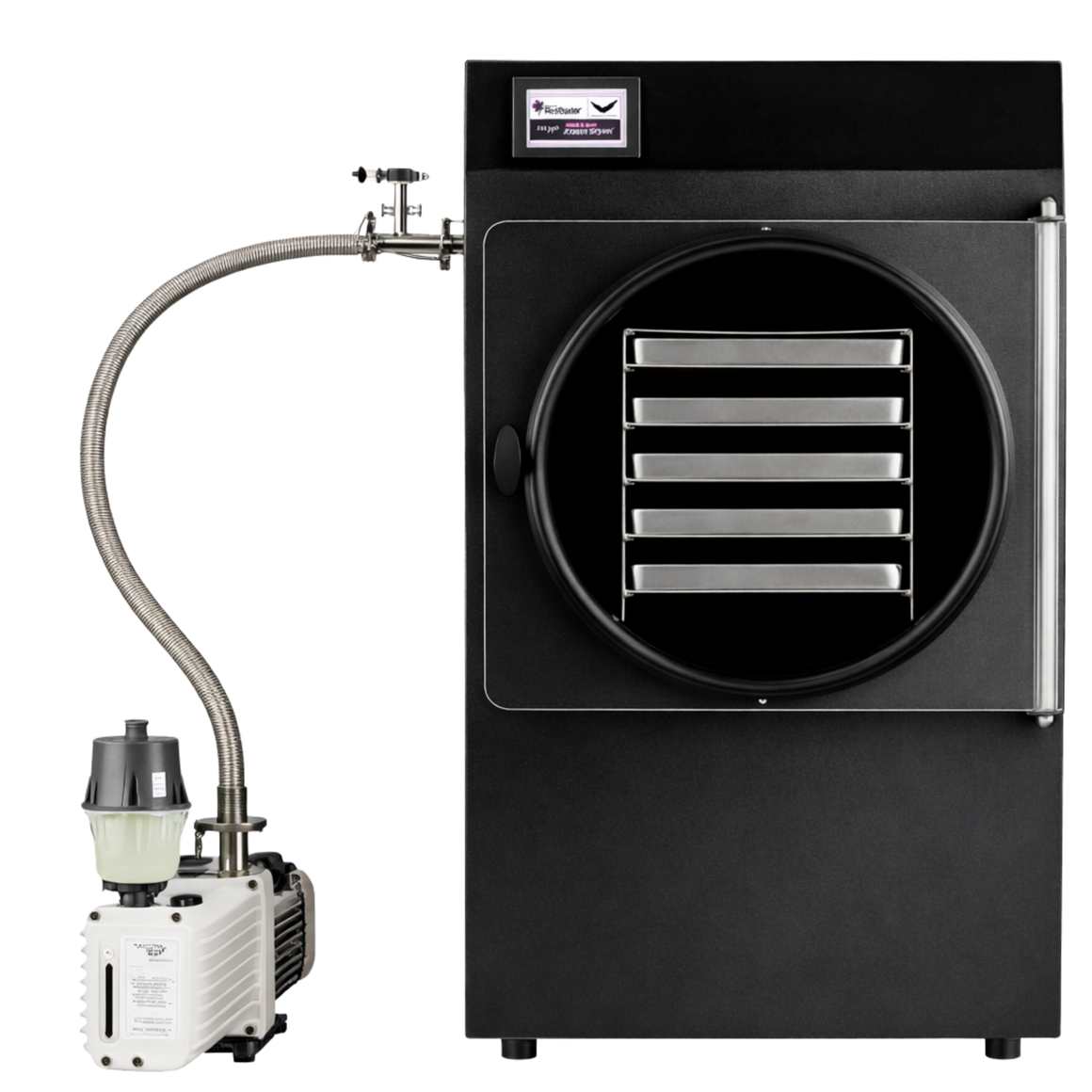

A Resinator large HiLyph Bud Dryer with vacuum pump and hose, black and white machine with stainless steel trays.

The Original Resinator HiLyph Large Bud Dryer | 4-5 lb Capacity

Official Resinator Dealer Model: HLY-BUD-LG
$8,995.00 USD$8,500.00 USD$8,995.00 USD
 $8,995.00 USD
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
Looking to finance equipment under your corporation? Learn more about Business Financing
  • 4 to 5 lbs wet weight capacity per cycle
  • 7.42 sq ft total tray area across five trays
  • Requires 110V power with a NEMA 5-20 outlet
  • 2-year top-to-bottom warranty covering parts and workmanship
  • View More Details
Order today. Ships between Nov 17 and Dec 3

Earn 8,500 points for shopping and get $85.00 off your next order. Join Harvest Club for free.
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
(360) 800-5535 Live Chat Available now
Free Shipping On Most Items* To the lower 48
Transparent Pricing Backed w/ price match guarantee
4.8/5 average Top Quality Store on Google
Secure Checkout SSL encrypted payments

Questions? Talk to a specialist.

Mon to Fri, 9am to 5pm PST

Call (360) 800-5535
  • Free Shipping On Most Items*To the lower 48
  • Transparent PricingBacked w/ price match guarantee
  • 4.8/5 Top Quality Store on Google
  • Secure CheckoutSSL encrypted payments

Send Us a Message

Are you looking for a quote?
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Highlights

  • You are scaling up your harvest batches because the unit handles four to five pounds of wet loading weight per cycle.
  • You are upgrading your drying workflow because the tabletop footprint bridges the medium and extra large models.

  • The fan-assisted defrost clears the ice condenser efficiently between production runs.
  • The included industrial pump and oil mister filter provide a complete setup right out of the box.

  • Growers scaling up to commercial production say the 18 to 24 hour turnaround keeps their harvest schedule on track
  • Operators running large batches say the pre-loaded recipes take the guesswork out of moisture targets

The Original Resinator HiLyph Large Bud Dryer | 4-5 lb Capacity

Managing large harvest batches requires consistent moisture removal without sacrificing structural integrity. The Original Resinator HiLyph Large Bud Dryer is specifically engineered for precision lyophilization, terpene retention, and industrial cannabis production. As a tabletop unit engineered for whole flower drying and structure preservation, it handles 4 to 5 lbs of wet loading weight, bridging the gap between the HiLyph Medium Bud Dryer and the high-capacity HiLyph XL Bud Dryer.

The HiLyph Large Bud Dryer is pre-programmed with the award-winning Crop-to-Cure® recipe and supports user-defined recipes with load weight, moisture targets, and temperature parameters. For those specializing in solventless extracts, the HiLyph Large Hash Dryer offers the same footprint with settings tuned for resin. This Large model includes 5 trays across 7.42 sq ft of area with 2-inch shelf spacing to accommodate large buds. Built with fan-assisted defrost, integrated vapor pressure control, three-zone shelf heating, and an included 7.2 CFM industrial vacuum pump ($1,295 value), the Large model is engineered for efficient commercial production.

Features

⏱️
18–24 Hour Turnaround

Processes 4–5 lbs of wet load into 1–1.25 lbs of dry output per cycle.

🌀
Fan-Assisted Defrost

Equipped with fan-assisted defrost to clear the 25 lb ice condenser efficiently.

📏
2-Inch Shelf Spacing

Five trays with 7.42 sq ft total area offer 2 inches of vertical clearance for large buds.

🌿
Crop-to-Cure® Presets

Pre-loaded with Crop-to-Cure® recipes and customizable load, moisture, and temperature controls.

🎯
Precision Drying Control

Includes vapor pressure control, three-zone shelf heating, and RTD temperature sensors.

💨
Industrial Pump Included

Comes standard with a 7.2 CFM vacuum pump ($1,295 value) and oil mister filter.

What's Included

  • 1x HiLyph Large Bud Dryer Chamber
  • 5x Drying Trays
  • 1x 7.2 CFM Industrial Vacuum Pump
  • 1x Oil Mister Filter

Specifications

Specification Value
Shelf Temperature Range -40°F to 55°F
Ice Capacity 25 lbs
Trays 5 trays, 7.42 sq ft total tray area
Load Capacity (Wet Weight) 4-5 lbs
Cycle Time 18-24 hours
Water Loss ~75%
Dry Output per Cycle 1-1.25 lbs
Machine Dimensions 22″W × 29″D × 34.5″H
Weight (Pump Excluded) 224 lbs
Electrical Requirements 110V, NEMA 5-20 outlet, 20A service required

Included Vacuum Pump Specifications

Specification Value
Flow Rate 7.2 CFM
Oil Mister Filter Dimensions 4″ × 4″ × 6″
Pump Weight 55 lbs
Pump Overall Dimensions 6.5″ × 20″ × 9″

Warranty

The HiLyph Large Bud Dryer includes a 2-year top-to-bottom warranty covering parts and workmanship. Product registration must be completed within 60 days of delivery to activate coverage.

Frequently Asked Questions

How long does a drying cycle take? +

A full cycle runs 18-24 hours and removes approximately 75% of the moisture from the load. Cycle time can vary slightly based on the recipe and starting moisture content.

How much wet flower can the Large Bud Dryer hold? +

The Large Bud Dryer holds 4-5 lbs of wet, freshly harvested flower per cycle across its 5 trays. Since drying removes roughly 75% of the weight, expect around 1-1.25 lbs of finished dry flower per run.

Does the Large Bud Dryer have fan-assisted defrost? +

Yes, the Large Bud Dryer includes built-in fan-assisted defrost, which speeds up chamber turnaround between cycles for faster back-to-back runs.

Does the Large Bud Dryer come with a vacuum pump? +

Yes. It ships with a 7.2 CFM industrial vacuum pump — a $1,295 value — and integrated vapor pressure control, so it's plug-and-play. This same industrial-grade setup is used across the range, including the HiLyph XL Hash Dryer for high-throughput resin processing.

What electrical service do I need? +

The Large Bud Dryer requires 110V power with a NEMA 5-20 outlet on a dedicated 20 amp circuit.

Is a warranty included? +

Yes, the Large Bud Dryer includes a 2-year top-to-bottom warranty. Coverage requires product registration within 60 days of delivery.
