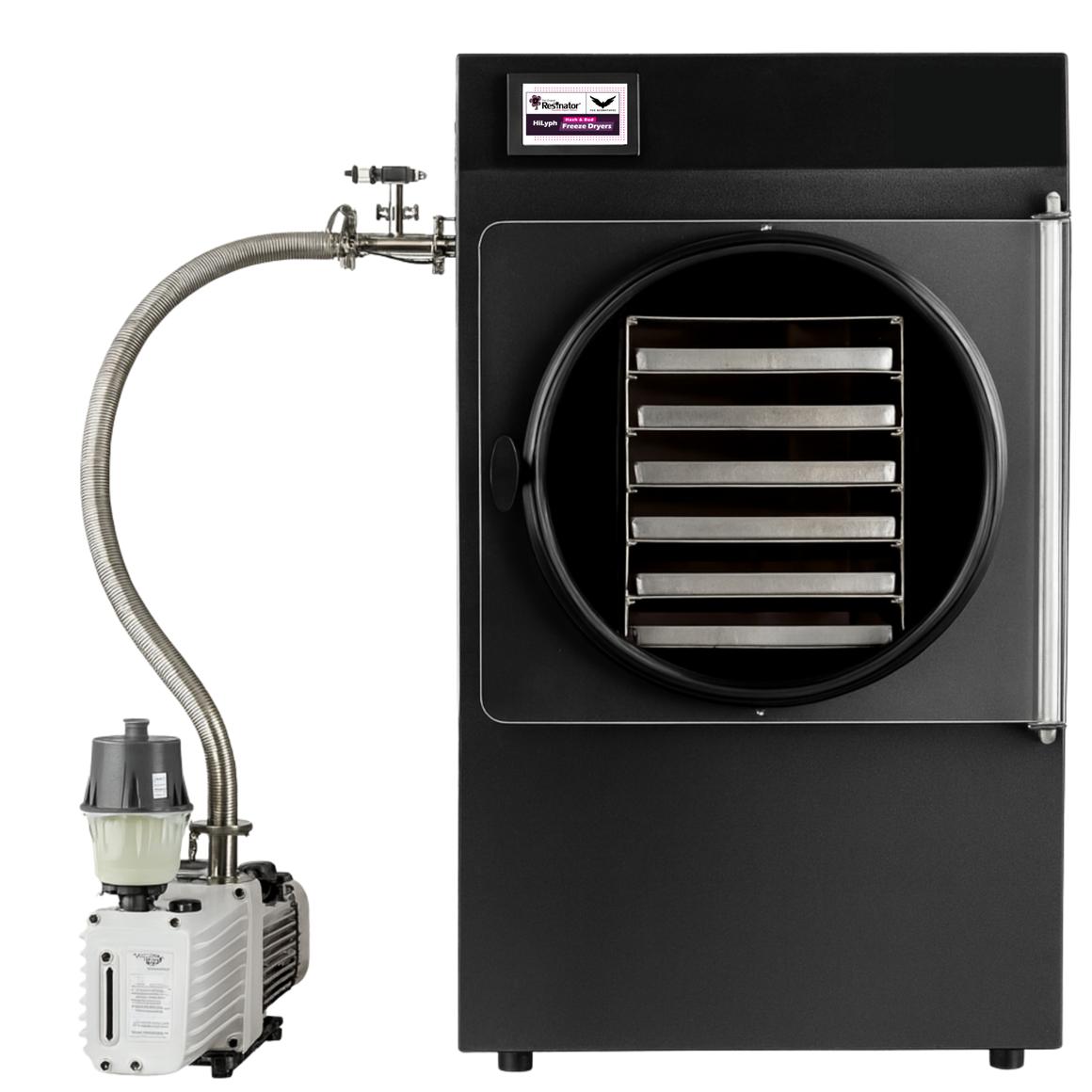

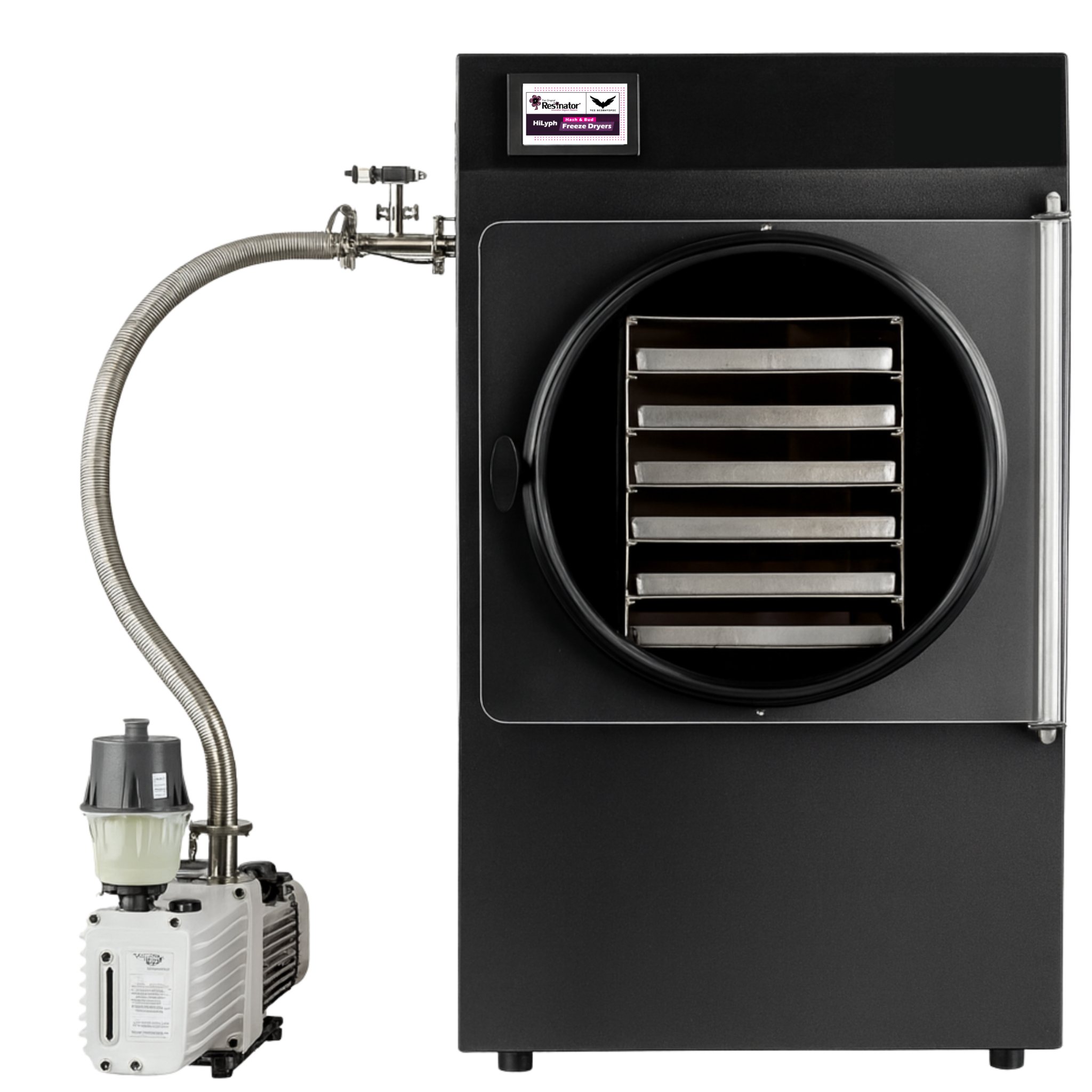

Resinator XL HiLyph freeze dryer with vacuum pump and flexible hose.
Ask Sage about this product

The Original Resinator HiLyph XL Bud Dryer | 8-10 lb Capacity

Official Resinator Dealer Model: HLY-BUD-XL
$9,995.00 USD$9,400.00 USD$9,995.00 USD
 $9,995.00 USD
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
Looking to finance equipment under your corporation? Learn more about Business Financing
  • Processes 8-10 lbs of wet material into 2-2.5 lbs of dry output within 18-24 hours
  • Six trays provide 12.03 square feet of shelf area with 2-inch spacing for thicker flowers
  • Includes a 7.2 CFM industrial vacuum pump with an oil mister filter
  • 2-year warranty on parts and workmanship
  • View More Details
Order today, ships between September 15 - September 29, 2026

Earn 9,400 points for shopping and get $94.00 off your next order. Join Harvest Club for free.
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
(360) 800-5535 Live Chat Available now
Free Shipping On Most Items* To the lower 48
Transparent Pricing Backed w/ price match guarantee
4.8/5 average Top Quality Store on Google
Secure Checkout SSL encrypted payments

Send Us a Message
Ask Sage about this product
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Hands-On Evaluation

  • You are investing in rapid processing capacity because manual drying times are creating a bottleneck in your harvest rotation
  • You are moving to lyophilization because you need to retain specific terpene profiles that traditional air drying destroys

  • We appreciate the fan-assisted defrost because it saves significant time when you are running back-to-back cycles
  • The internal shelf heating is consistent enough that we see less variation across the trays than with air drying

  • Users report that moving to this machine cut their total processing time by more than half compared to their old rack system
  • Operators say they stopped worrying about humidity spikes during the drying cycle because the machine handles the environment

The Original Resinator HiLyph XL Bud Dryer | 8-10 lb Capacity

High-volume commercial processing requires high capacity and rapid cycle turnaround without sacrificing product quality. The Original Resinator HiLyph XL Bud Dryer is specifically engineered for precision lyophilization, terpene retention, and industrial cannabis production. Designed as a tabletop unit for whole flower drying and structure preservation, the XL handles 8 to 10 lbs of wet loading weight to produce 2 to 2.5 lbs of dry output in 18 to 24 hours.

The HiLyph XL Bud Dryer is pre-programmed with the award-winning Crop-to-Cure® recipe and enables operators to define custom profiles for load weight, moisture targets, and temperature parameters. It features 6 trays offering 12.03 sq ft of total tray area with 2-inch shelf spacing for large buds. Equipped with a 40 lb ice capacity condenser, fan-assisted defrost, three-zone shelf heating, vapor pressure control, and an included 7.2 CFM industrial vacuum pump ($1,295 value), the XL provides maximum drying capacity.

Features

⚡
High Capacity Output

Processes 8–10 lbs wet loading weight into 2–2.5 lbs dry output in 18–24 hours.

🌀
Fan-Assisted Defrost

Includes fan-assisted defrost designed to manage the unit's 40 lb ice capacity condenser.

📏
12.03 Sq Ft Tray Area

Six trays with 2-inch vertical spacing preserve the structure of large buds.

🌿
Crop-to-Cure® System

Pre-loaded with Crop-to-Cure® recipes and customizable load, moisture, and temperature settings.

🎯
Precision Drying Control

Equipped with vapor pressure control, three-zone shelf heating, and RTD temperature sensors.

💨
Industrial Pump Included

Includes a 7.2 CFM industrial vacuum pump ($1,295 value) with an oil mister filter.

Features

🌿
Crop-to-Cure® Pre-Programmed Recipe

Runs the award-winning Crop-to-Cure® profile out of the box, or build custom recipes with your own weight, moisture, and temperature targets.

🔌
Plug-and-Play Vapor Pressure Control

Integrated vapor pressure control manages the entire vacuum cycle automatically, so there's no third-party monitoring hardware to source or wire in.

❄️
Fan-Assisted Defrost

Built-in fan-assisted defrost clears the chamber faster between runs, cutting downtime on high-volume production schedules.

🌡️
Three-Zone Shelf Heating

RTD temperature sensors and three-zone shelf heating hold precise, even temperatures from -40°F to 55°F across every tray.

🛡️
Industrial Stainless Steel Build

Stainless steel construction, replaceable heater relays, and an oil contamination prevention valve are built for continuous commercial production.

💨
Industrial Vacuum Pump Included

Ships complete with a 7.2 CFM industrial vacuum pump — a $1,295 value — so the XL Bud Dryer runs without sourcing separate pump hardware.

What's Included

  • 1x HiLyph XL Bud Dryer Chamber
  • 6x Drying Trays
  • 1x 7.2 CFM Industrial Vacuum Pump
  • 1x Oil Mister Filter

Specifications

Specification Value
Shelf Temperature Range -40°F to 55°F
Ice Capacity 40 lbs
Trays 6 trays, 12.03 sq ft total tray area
Load Capacity (Wet Weight) 8-10 lbs
Cycle Time 18-24 hours
Water Loss ~75%
Dry Output per Cycle 2-2.5 lbs
Machine Dimensions 25.25″W × 33.5″D × 37.5″H
Weight (Pump Excluded) 268 lbs
Electrical Requirements 110V, NEMA 5-20 outlet, 20A service required

Included Vacuum Pump Specifications

Specification Value
Flow Rate 7.2 CFM
Oil Mister Filter Dimensions 4″ × 4″ × 6″
Pump Weight 55 lbs
Pump Overall Dimensions 6.5″ × 20″ × 9″

Warranty

The HiLyph XL Bud Dryer includes a 2-year top-to-bottom warranty covering parts and workmanship. Product registration must be completed within 60 days of delivery to activate coverage.

Frequently Asked Questions

How long does a drying cycle take? +

A full cycle runs 18-24 hours and removes approximately 75% of the moisture from the load. Cycle time can vary slightly based on the recipe and starting moisture content.

How much wet flower can the XL Bud Dryer hold? +

The XL Bud Dryer holds 8-10 lbs of wet, freshly harvested flower per cycle across its 6 trays. Since drying removes roughly 75% of the weight, expect around 2-2.5 lbs of finished dry flower per run.

Does the XL Bud Dryer have fan-assisted defrost? +

Yes, the XL Bud Dryer includes built-in fan-assisted defrost, which speeds up chamber turnaround between cycles to support high-volume production schedules.

Does the XL Bud Dryer come with a vacuum pump? +

Yes. It ships with a 7.2 CFM industrial vacuum pump — a $1,295 value — and integrated vapor pressure control, so it's plug-and-play with no third-party hardware needed.

What electrical service do I need? +

The XL Bud Dryer requires 110V power with a NEMA 5-20 outlet on a dedicated 20 amp circuit.

Is a warranty included? +

Yes, the XL Bud Dryer includes a 2-year top-to-bottom warranty. Coverage requires product registration within 60 days of delivery.
