The Original Resinator HiLyph XL Hash Dryer | 9-15 lb Capacity
High-volume commercial solventless production demands maximum drying throughput without risking terpene degradation, trichome damage, or extended cycle times. While smaller labs might utilize the

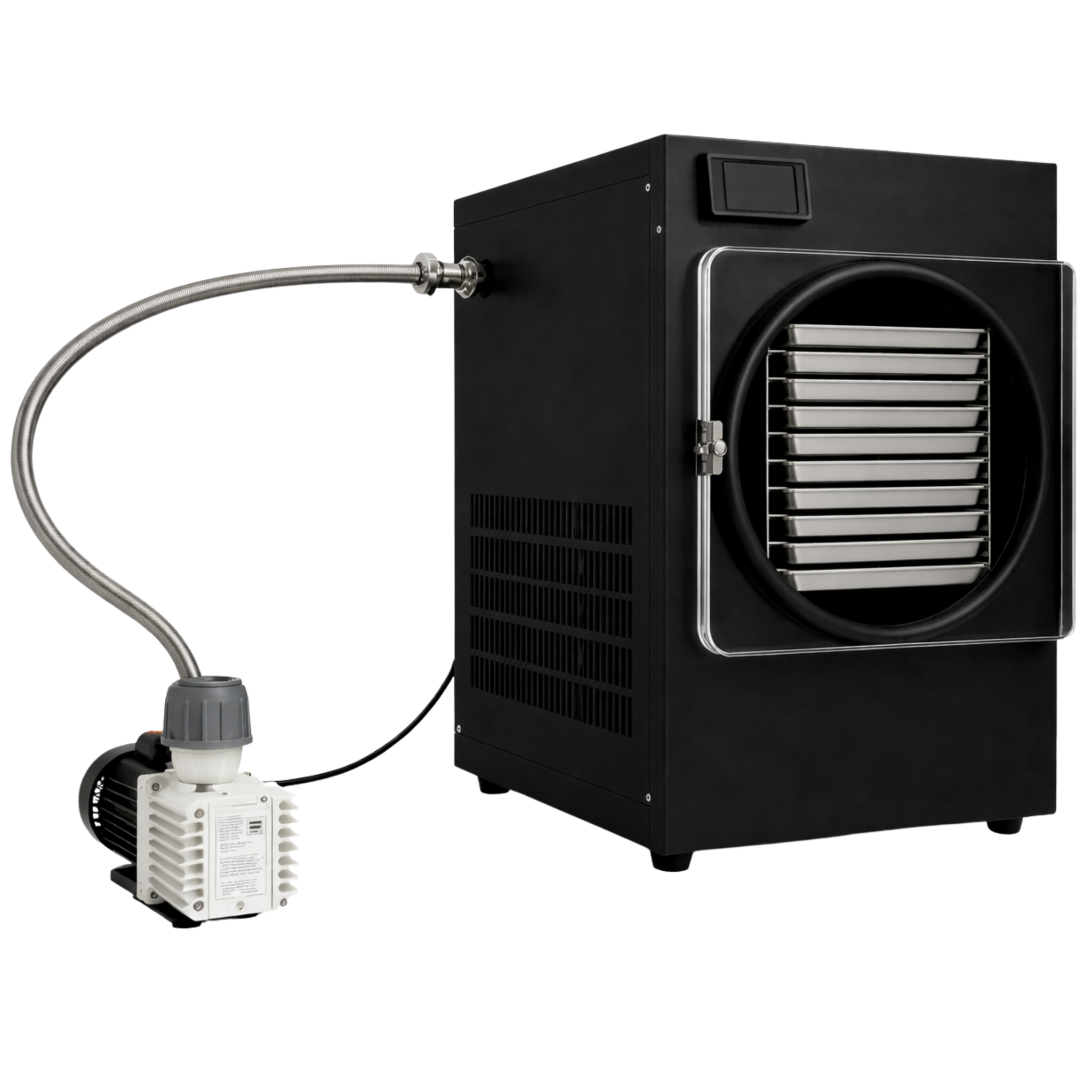

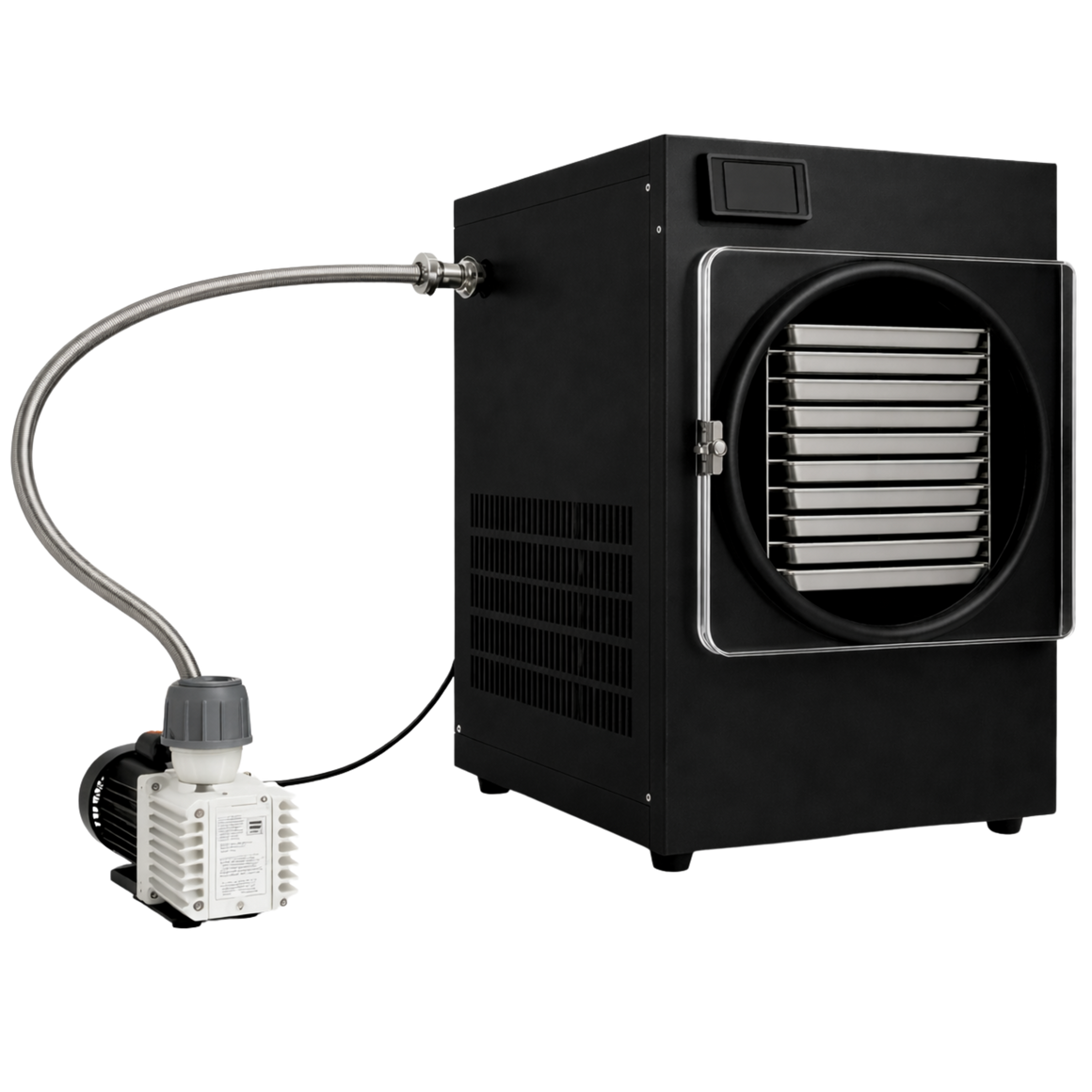

HiLyph Medium Hash Dryer for boutique batches, the Original Resinator HiLyph XL Hash Dryer is built to meet industrial demands, delivering precision lyophilization, complete terpene retention, and high-capacity cannabis processing in a tabletop design. Engineered specifically for high moisture sublimation loads, this dedicated drying unit handles everything from bubble hash to live sift, providing the consistent moisture control required for premium full melt, live rosin, and solventless extracts.
To maximize production per batch, the HiLyph XL Hash Dryer utilizes tight shelf spacing across 10 trays, delivering 20.05 sq ft of usable tray surface area—significantly more volume than the
HiLyph Large Hash Dryer. Assuming an optimal 1/8" to 1/4" loading layer, it accommodates 9 to 15 lbs of wet Ice Water Extract (18–24 hr cycle, 40–70% water loss, 2.5–4.5 lbs dry yield) or 8 to 10 lbs of live sift (12–16 hr cycle, 25–40% water loss, 3–4.5 lbs dry yield). The unit operates between −40°F and 55°F with three-zone shelf heating, RTD temperature sensors, rapid chamber cooling, staged vacuum control, and fan-assisted defrost for its heavy-duty 40 lb ice condenser. Built with durable stainless steel and upgradable with Vapor Pressure Control, it comes complete with an industrial 7.2 CFM vacuum pump ($1,295 value) and oil mister filter on a dedicated 110V 20 Amp NEMA 5-20 circuit.
