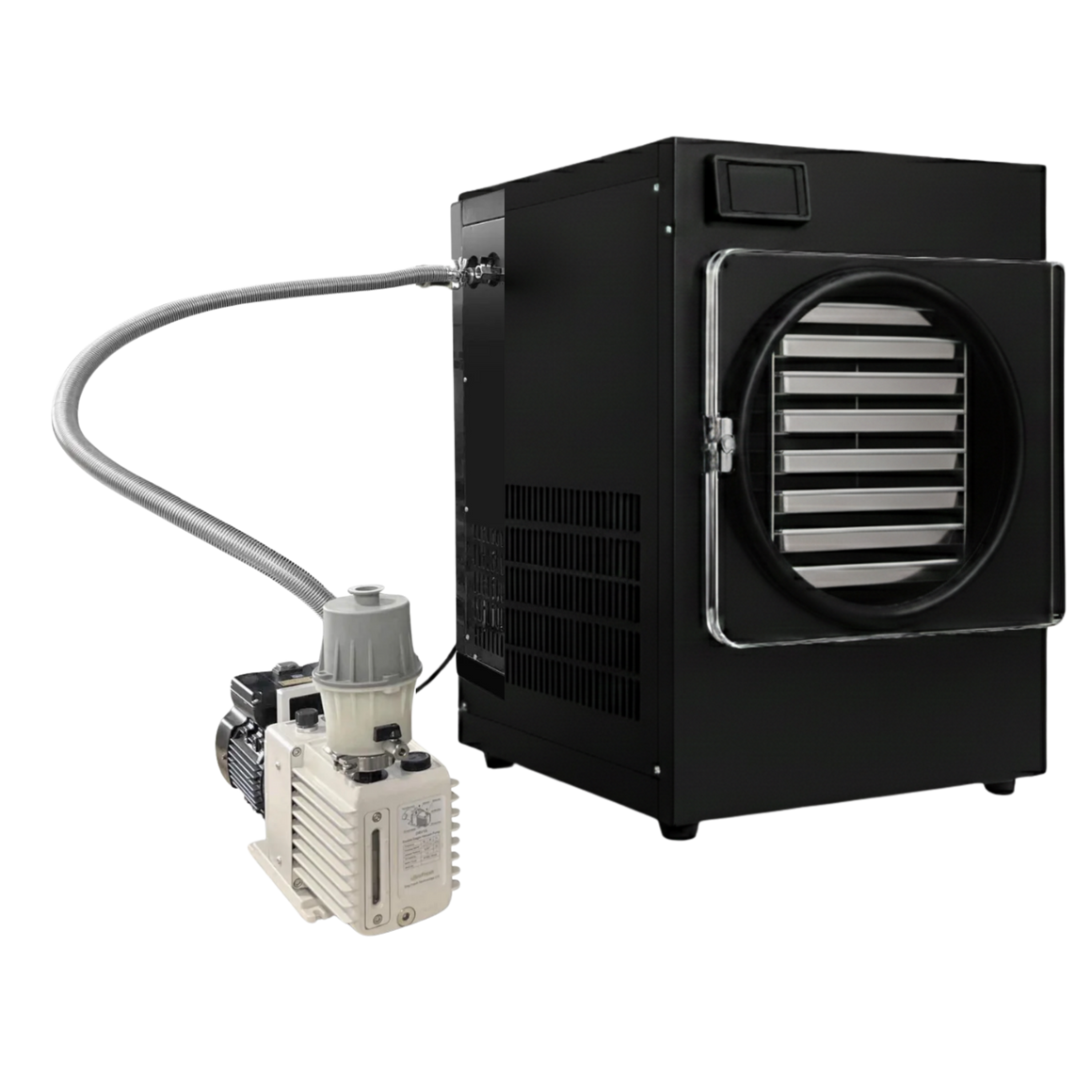

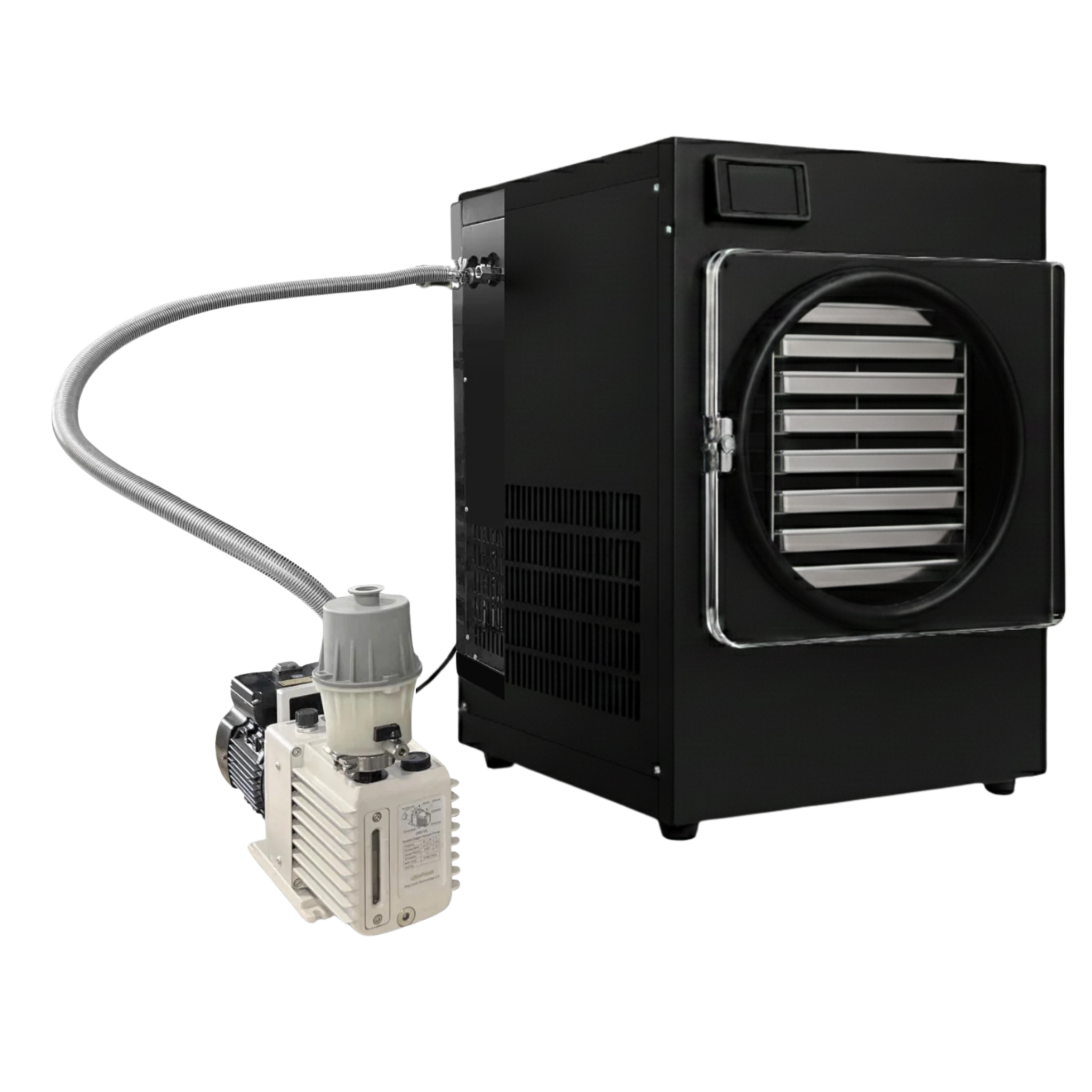

Black freeze dryer with a vacuum pump connected by a silver hose.
Ask Sage about this product

The Original Resinator HiLyph Large Hash Dryer | 5-9 lb Capacity

Official Resinator Dealer Model: HLY-HASH-LG
$7,995.00 USD$7,550.00 USD$7,995.00 USD
 $7,995.00 USD
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
Looking to finance equipment under your corporation? Learn more about Business Financing
  • Processes 5 to 9 lbs of wet extract or 4.5 to 6 lbs of live sift per cycle.
  • Three-zone shelf heating with RTD sensors provides precise temperature control.
  • Operates on a standard 110V 20 Amp NEMA 5-20 circuit.
  • 2-year top-to-bottom warranty
  • View More Details
Order today, ships between October 6 - October 20, 2026

Earn 7,550 points for shopping and get $75.50 off your next order. Join Harvest Club for free.
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
(360) 800-5535 Live Chat Available now
Free Shipping On Most Items* To the lower 48
Transparent Pricing Backed w/ price match guarantee
4.8/5 average Top Quality Store on Google
Secure Checkout SSL encrypted payments

Send Us a Message
Ask Sage about this product
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Hands-On Evaluation

  • You are scaling up your solventless processing because manual drying methods create bottlenecks in your production flow.
  • You are investing in dedicated lyophilization hardware because your existing drying space lacks the moisture control needed for high-melt quality.

  • The 11.88 square feet of shelf space is the real winner here for throughput efficiency.
  • The fan-assisted defrost saves you significant downtime between cycles compared to waiting for natural ice melt.

  • Processors using this unit for live sift report they cut their cycle times to less than 16 hours.
  • Operations that switched to this setup claim they significantly increased their output of high-grade rosin.

The Original Resinator HiLyph Large Hash Dryer | 5-9 lb Capacity

Scaling up solventless processing often leads to drying room backlogs, uneven moisture removal, and the risk of terpene loss. While smaller labs might start with the Medium Hash Dryer, the Original Resinator HiLyph Large Hash Dryer is engineered specifically to eliminate these bottlenecks for higher volume facilities, delivering precision lyophilization, exceptional terpene retention, and industrial-grade cannabis production. Purpose-built to handle high moisture sublimation loads in commercial solventless operations, this tabletop system dries everything from bubble hash to live sift, preserving delicate trichome heads for making premium full melt, live rosin, and more.

To maximize production per run, the HiLyph Large Hash Dryer features tight shelf spacing across 8 trays, delivering 11.88 sq ft of usable tray area. For those who need to scale even further, the XL Hash Dryer offers a significant increase in capacity. If you are processing flower instead of concentrate, consider the Large Bud Dryer, which is specifically configured for flower density. The unit operates between −40°F and 55°F with three-zone shelf heating, RTD temperature sensors, rapid chamber cooling, staged vacuum control, and fan-assisted defrost to clear its 25 lb ice condenser quickly between cycles. Constructed from durable stainless steel and upgradable with Vapor Pressure Control, it comes complete with an industrial 7.2 CFM vacuum pump ($1,295 value) and oil mister filter on a dedicated 110V 20 Amp NEMA 5-20 circuit.

Features

💧
High Moisture Sublimation

Designed for solventless production, drying bubble hash to live sift for full melt and live rosin.

⏱️
Fast Cycle Times

Completes Ice Water Extract runs in 18–24 hours and Live Sift runs in 12–16 hours.

🌀
Fan-Assisted Defrost

Equipped with fan-assisted defrost to clear the 25 lb ice condenser quickly between cycles.

📏
Tight Shelf Spacing

Configured with 8 trays across 11.88 sq ft of surface area to maximize batch production.

🎯
Precision Lyophilization

Features three-zone shelf heating, RTD temperature sensors, and staged vacuum control.

💨
Industrial Vacuum Pump

Includes a 7.2 CFM industrial pump ($1,295 value) with an oil mister filter.

What's Included

  • 1x HiLyph Large Hash Dryer Chamber
  • 8x Drying Trays
  • 1x 7.2 CFM Industrial Vacuum Pump
  • 1x Oil Mister Filter

Specifications

Specification Value
Shelf Temperature Range −40°F to 55°F
Ice Capacity 25 lbs
Trays 8 trays, 11.88 sq ft total tray area
Load Capacity: Ice Water Extract (IWE) 5 – 9 lbs (assumes optimal 1/8–1/4″ layer)
Load Capacity: Live Sift 4.5 – 6 lbs (assumes optimal 1/8–1/4″ layer)
Cycle Time: Ice Water Extract (IWE) 18 – 24 hours
Cycle Time: Live Sift 12 – 16 hours
Water Loss: Ice Water Extract (IWE) 40% – 70%
Water Loss: Live Sift 25% – 40%
Dry Output per Cycle: Ice Water Extract (IWE) 2.5 – 4.5 lbs
Dry Output per Cycle: Live Sift 3 – 4.5 lbs
Defrost Type Fan-assisted defrost
Machine Dimensions 22″W × 29″D × 34.5″H
Weight (Pump Excluded) 224 lbs
Electrical Requirements 110V 20 Amp service with NEMA 5-20 outlet required

Included Vacuum Pump Specifications

Specification Value
Flow Rate 7.2 CFM
Oil Mister Filter Dimensions 4″ × 4″ × 6″
Pump Weight 55 lbs
Pump Overall Dimensions 6.5″ × 20″ × 9″

Warranty

The HiLyph Large Hash Dryer includes a 2-Year Top-to-Bottom Warranty. Coverage requires product registration within 60 days of delivery.

Frequently Asked Questions

What is the load capacity and yield for Ice Water Extract (IWE) on the Large model? +

The Large Hash Dryer holds 5 to 9 lbs of wet Ice Water Extract across its 8 trays (assuming a 1/8–1/4" layer). With an estimated 40% to 70% water loss, the dry output is 2.5 to 4.5 lbs per 18–24 hour cycle.

What is the load capacity and cycle time for Live Sift on the Large model? +

For Live Sift, the Large unit holds 4.5 to 6 lbs per load and completes drying in 12 to 16 hours. With an estimated 25% to 40% water loss, dry output is 3 to 4.5 lbs per run.

How many trays are included in the Large Hash Dryer? +

The Large Hash Dryer includes 8 trays providing a total tray surface area of 11.88 sq ft. It utilizes tight shelf spacing to maximize surface area and batch production for solventless hash processing. For lower volume needs, the Medium Hash Dryer provides a more compact alternative.

What electrical service is required for the Large model? +

The Large model requires a dedicated 110V 20 Amp service with a NEMA 5-20 outlet.

Does the Large Hash Dryer feature fan-assisted defrost? +

Yes, the Large model is equipped with fan-assisted defrost to quickly melt the 25 lb ice condenser between production runs.

Is the vacuum pump included with the machine? +

Yes, the unit ships with an industrial 7.2 CFM vacuum pump ($1,295 value) and an oil mister filter measuring 4" x 4" x 6".

Can the Large Hash Dryer be upgraded with Vapor Pressure Control? +

Yes, the HiLyph Hash Dryer can be upgraded with Vapor Pressure Control to enhance precision drying profiles.

What are the warranty terms? +

The system includes a 2-Year Top-to-Bottom Warranty. Product registration must be completed within 60 days of delivery to activate warranty coverage.
