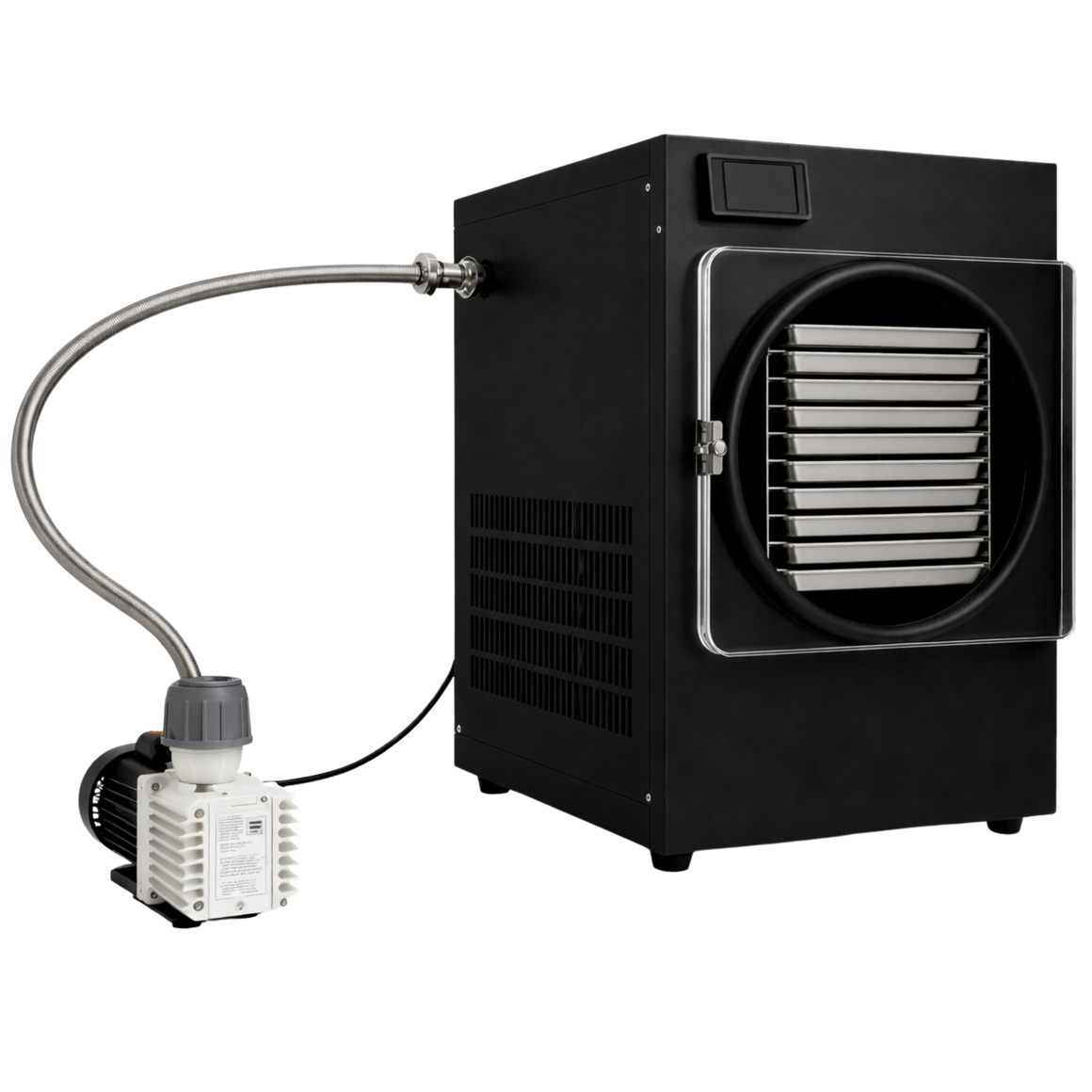

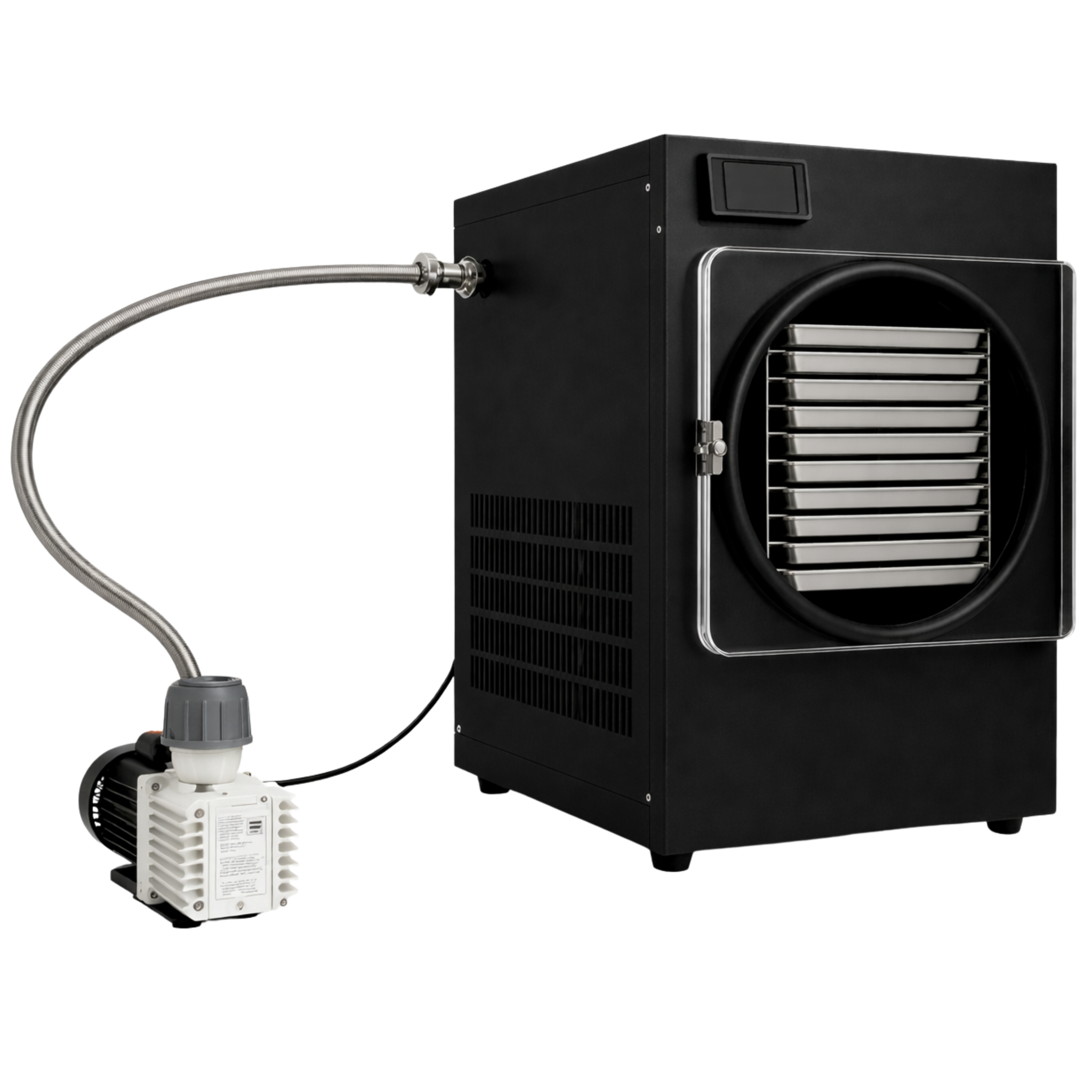

Resinator medium hi-lyph hash dryer with vacuum pump and flexible hose.
Ask Sage about this product

The Original Resinator HiLyph Medium Hash Dryer | 3.5-6 lb Capacity

Official Resinator Dealer Model: HLY-HASH-MD
$6,995.00 USD$6,600.00 USD$6,995.00 USD
 $6,995.00 USD
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
Looking to finance equipment under your corporation? Learn more about Business Financing
  • Processes 3.5 to 6 lbs of wet material per 18 to 24 hour cycle.
  • Seven trays provide 7.78 square feet of drying surface area.
  • Standard 120V power operation with included 7.2 CFM industrial vacuum pump.
  • 2-year Top-to-Bottom warranty
  • View More Details
Order today, ships between October 6 - October 20, 2026

Earn 6,600 points for shopping and get $66.00 off your next order. Join Harvest Club for free.
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
(360) 800-5535 Live Chat Available now
Free Shipping On Most Items* To the lower 48
Transparent Pricing Backed w/ price match guarantee
4.8/5 average Top Quality Store on Google
Secure Checkout SSL encrypted payments

Send Us a Message
Ask Sage about this product
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Hands-On Evaluation

  • You are upgrading your extraction process because manual drying methods create bottlenecks that cause terpene loss.
  • You are moving to precision lyophilization because you need to stop losing melt quality during your drying cycles.

  • The three-zone shelf heating is a game changer for getting that specific, consistent texture every single time.
  • We found the vacuum control is much more stable than standard units when handling high moisture loads.

  • Producers who switched to this unit report they finally hit their target yields without sacrificing full melt quality.
  • Operators who dealt with oxidation issues in their end product say the sealed process eliminated that frustration.

The Original Resinator HiLyph Medium Hash Dryer | 3.5-6 lb Capacity

Drying high-moisture solventless extracts using conventional methods often creates extended bottlenecks while risking terpene oxidation and loss of melt quality. The Original Resinator HiLyph Medium Hash Dryer is purpose-built to eliminate these issues, delivering precision lyophilization, complete terpene retention, and industrial cannabis production in a compact tabletop footprint. While this model is optimized for high-moisture extracts, those processing whole flower should consider the The Original Resinator HiLyph Medium Bud Dryer | 2-3 lb Capacity.

Designed to maximize production per batch, the HiLyph Medium Hash Dryer utilizes tight shelf spacing across 7 trays (7.78 sq ft total tray area) to accommodate 3.5 to 6 lbs of wet Ice Water Extract (18–24 hr cycle, 1.5–3 lbs dry output). For operations requiring higher throughput, we also offer the HiLyph Large Hash Dryer or the industrial-scale HiLyph XL Hash Dryer for maximum output. The unit operates between −40°F and 55°F with three-zone shelf heating, RTD temperature sensors, rapid chamber cooling, and staged vacuum control. Built with durable stainless steel and upgradable with Vapor Pressure Control, it comes complete with an industrial 7.2 CFM vacuum pump ($1,295 value) and oil mister filter for ready operation on standard 120V power.

Features

💧
High Moisture Sublimation

Designed for solventless production, drying bubble hash to live sift for full melt and live rosin.

⏱️
Fast Cycle Times

Completes Ice Water Extract runs in 18–24 hours and Live Sift runs in 12–16 hours.

📏
Tight Shelf Spacing

Configured with 7 trays across 7.78 sq ft of surface area to maximize production per batch.

🎯
Precision Lyophilization

Features three-zone shelf heating, RTD temperature sensors, and staged vacuum control.

🛡️
Industrial Reliability

Built with stainless steel construction, replaceable heater relays, and an oil contamination valve.

💨
Industrial Vacuum Pump

Includes a 7.2 CFM industrial pump ($1,295 value) with an oil mister filter.

What's Included

  • 1x HiLyph Medium Hash Dryer Chamber
  • 7x Drying Trays
  • 1x 7.2 CFM Industrial Vacuum Pump
  • 1x Oil Mister Filter

Specifications

Specification Value
Shelf Temperature Range −40°F to 55°F
Ice Capacity 14 lbs
Trays 7 trays, 7.78 sq ft total tray area
Load Capacity: Ice Water Extract (IWE) 3.5 – 6 lbs (assumes optimal 1/8–1/4″ layer)
Load Capacity: Live Sift 3 – 4 lbs (assumes optimal 1/8–1/4″ layer)
Cycle Time: Ice Water Extract (IWE) 18 – 24 hours
Cycle Time: Live Sift 12 – 16 hours
Water Loss: Ice Water Extract (IWE) 40% – 70%
Water Loss: Live Sift 25% – 40%
Dry Output per Cycle: Ice Water Extract (IWE) 1.5 – 3 lbs
Dry Output per Cycle: Live Sift 2 – 3 lbs
Machine Dimensions 20″W × 26″D × 31″H
Weight (Pump Excluded) 165 lbs
Electrical Requirements 120V, NEMA 5-15 plug, 15 or 20 Amp service recommended

Included Vacuum Pump Specifications

Specification Value
Flow Rate 7.2 CFM
Oil Mister Filter Dimensions 4″ × 4″ × 6″
Pump Weight 55 lbs
Pump Overall Dimensions 6.5″ × 20″ × 9″

Warranty

The HiLyph Medium Hash Dryer includes a 2-Year Top-to-Bottom Warranty. Coverage requires product registration within 60 days of delivery.

Frequently Asked Questions

What is the load capacity and yield for Ice Water Extract (IWE)? +

The Medium Hash Dryer holds 3.5 to 6 lbs of wet Ice Water Extract across its 7 trays (assuming a 1/8–1/4" layer). With an estimated 40% to 70% water loss, the dry output is 1.5 to 3 lbs per 18–24 hour cycle.

What is the load capacity and cycle time for Live Sift? +

For Live Sift, the unit holds 3 to 4 lbs per load and completes drying in 12 to 16 hours. For cultivators focusing on whole-plant material, the HiLyph Large Bud Dryer and the HiLyph XL Bud Dryer provide optimized environments for flower-specific drying cycles.

How many trays are included in the Medium Hash Dryer? +

The Medium Hash Dryer includes 7 trays providing a total tray surface area of 7.78 sq ft. It utilizes tight shelf spacing to maximize surface area and batch production for solventless hash processing.

What electrical service is required? +

The unit runs on standard 120V power with a NEMA 5-15 plug. A 15 or 20 Amp electrical service is recommended.

Is the vacuum pump included with the machine? +

Yes, the unit ships with an industrial 7.2 CFM vacuum pump ($1,295 value) and an oil mister filter measuring 4" x 4" x 6".

Can the Medium Hash Dryer be upgraded with Vapor Pressure Control? +

Yes, the HiLyph Hash Dryer can be upgraded with Vapor Pressure Control to enhance precision drying profiles.

What are the warranty terms? +

The system includes a 2-Year Top-to-Bottom Warranty. Product registration must be completed within 60 days of delivery to activate warranty coverage.
