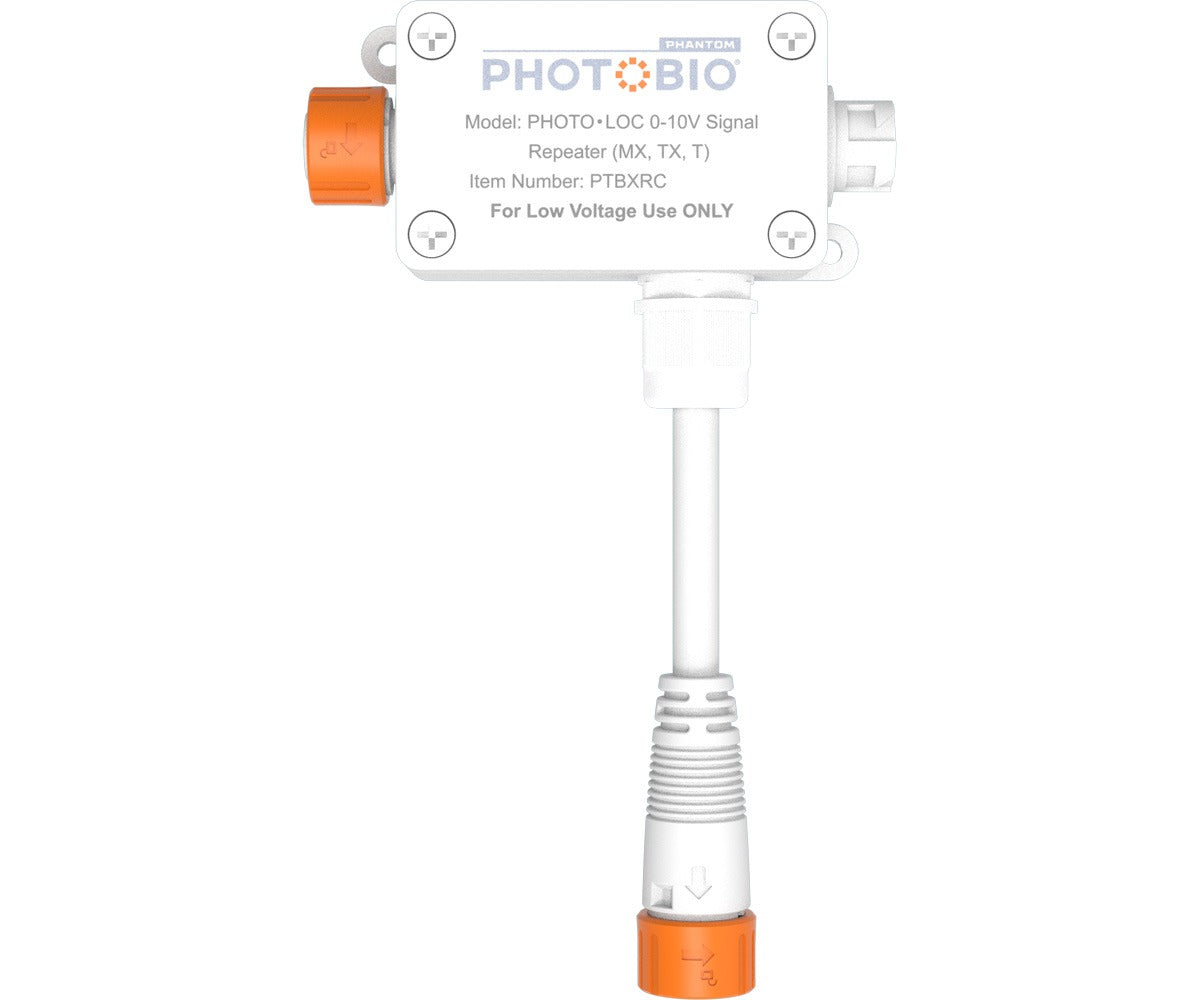

PHOTO•BIO 0-10V signal repeater with white casing, orange dial, and white cable.

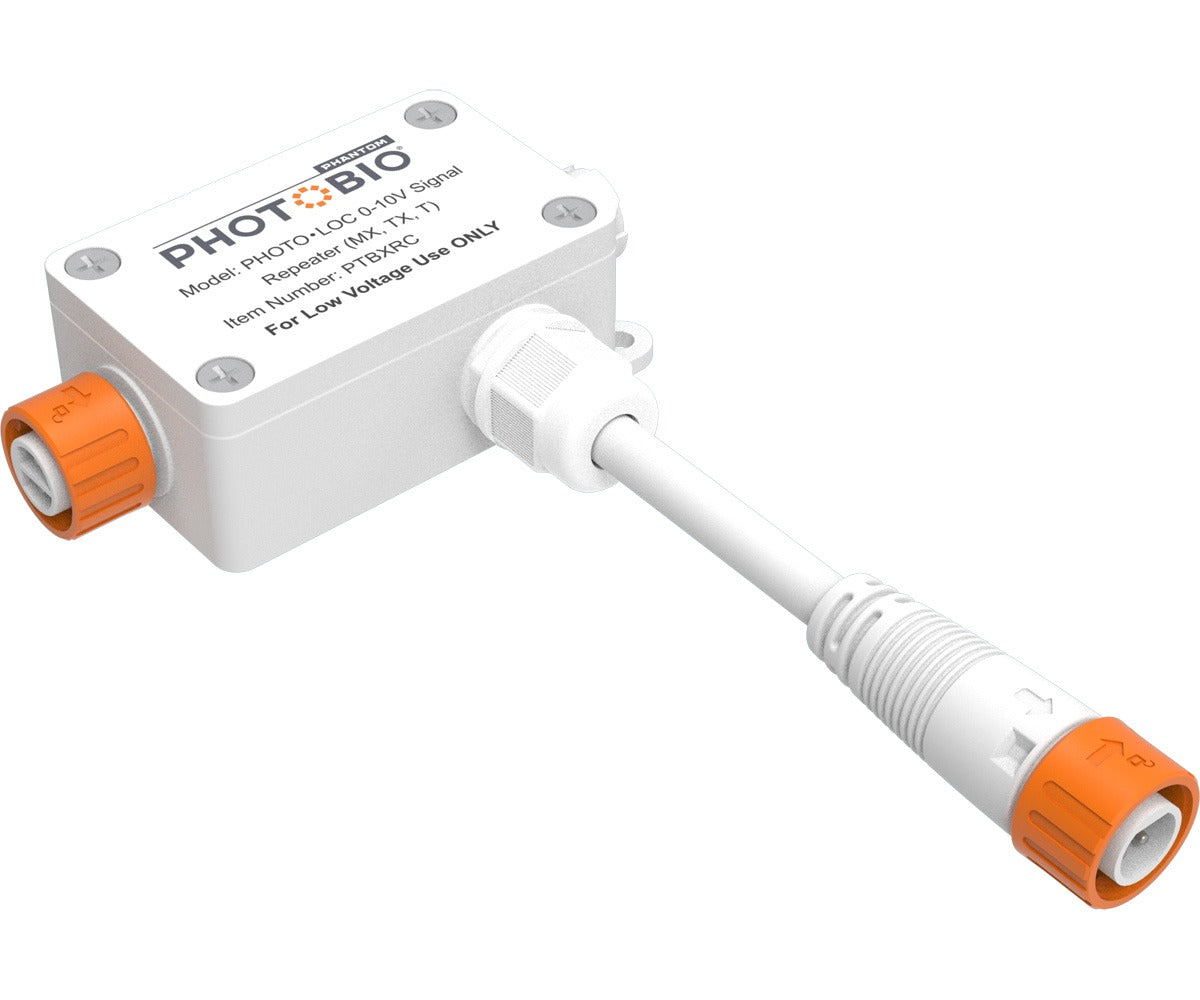

White PHOTOBIO 0-10V signal repeater with orange connectors and cable.

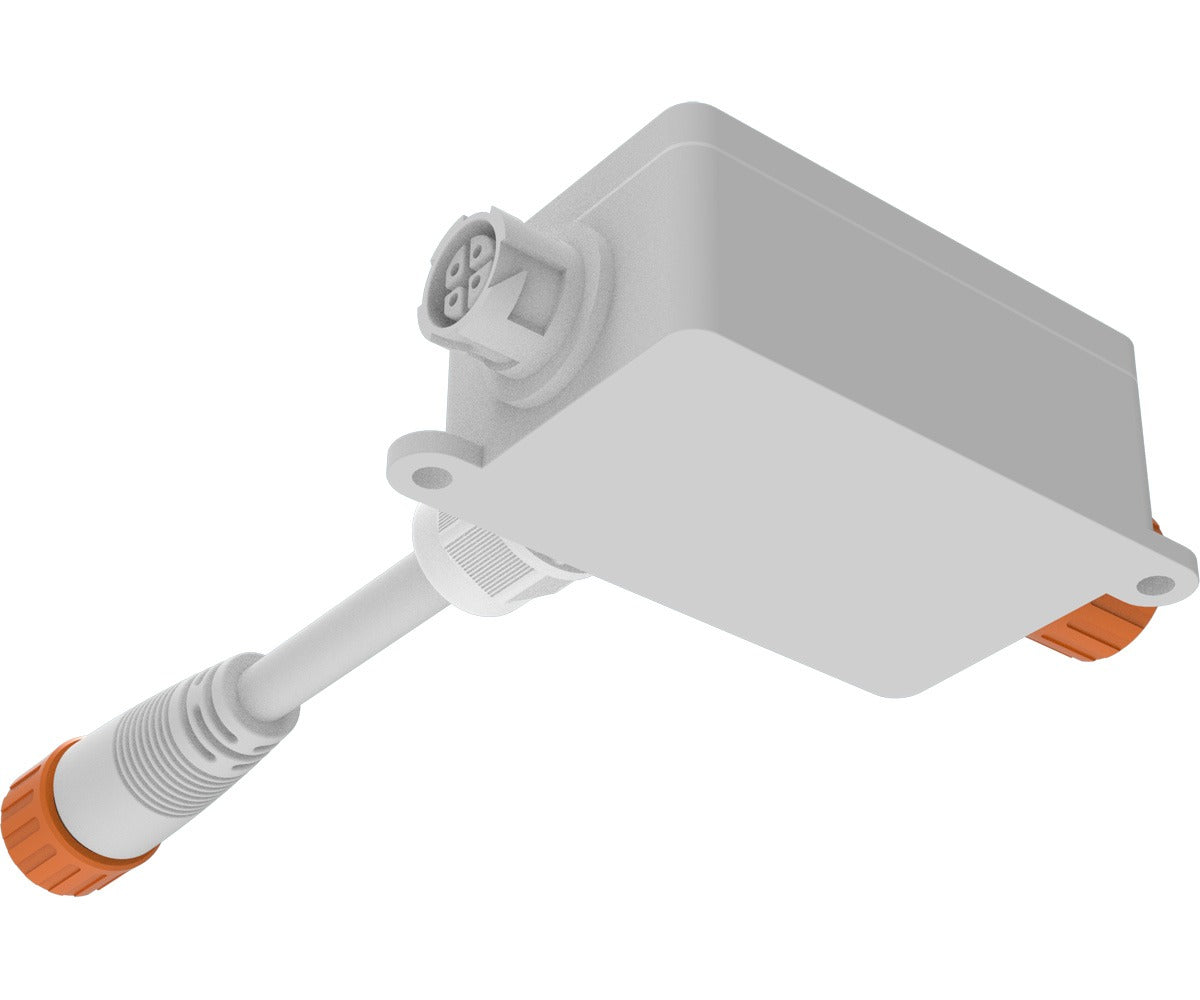

White signal repeater with orange connectors and grey housing, featuring a multi-pin connector.

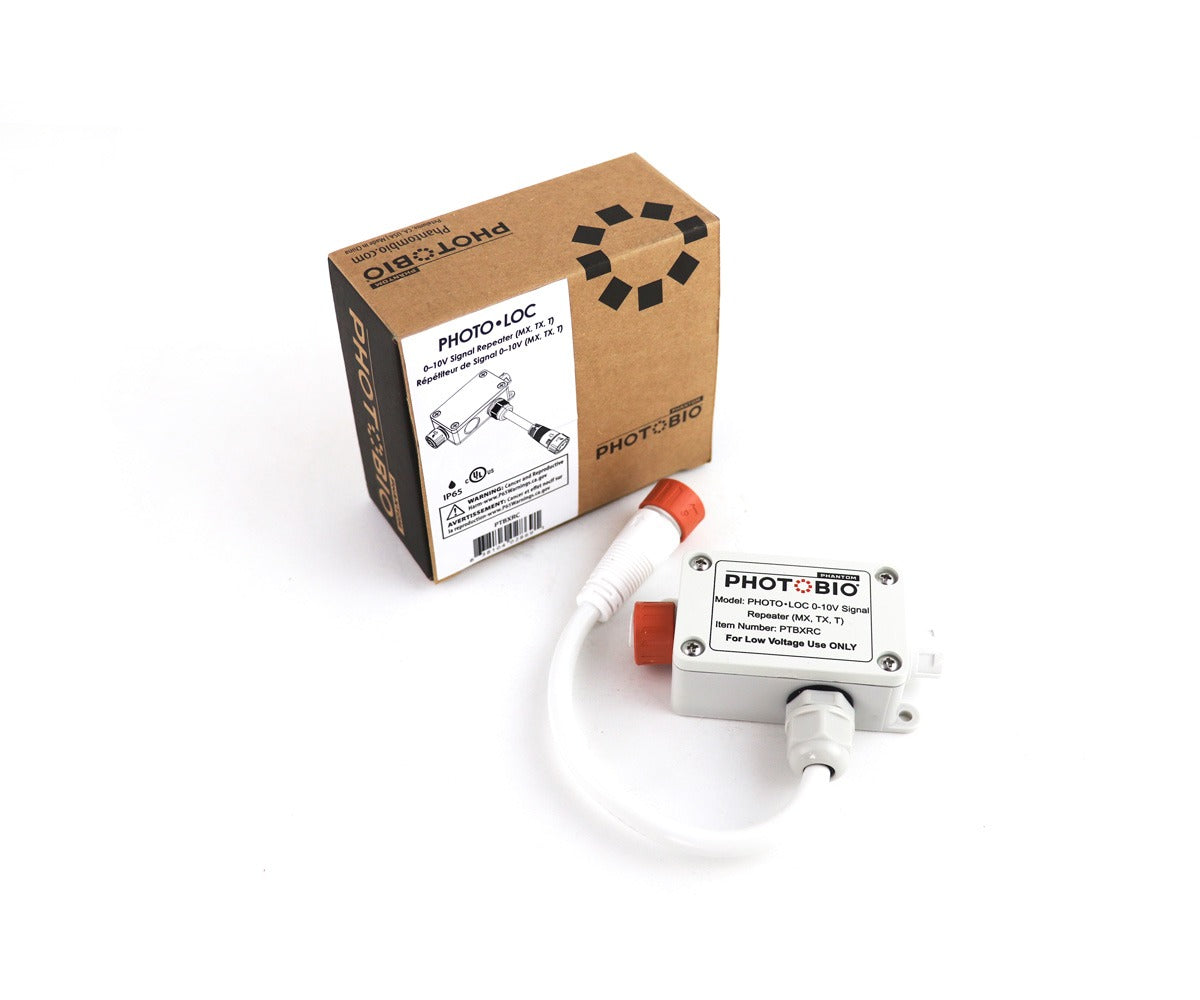

PHOTOBIO PHOTO-LOC 0-10V signal repeater (PTBXR) with cable and box on white background.
PHOTO•BIO 0-10V signal repeater with white casing, orange dial, and white cable.
White PHOTOBIO 0-10V signal repeater with orange connectors and cable.
White signal repeater with orange connectors and grey housing, featuring a multi-pin connector.
PHOTOBIO PHOTO-LOC 0-10V signal repeater (PTBXR) with cable and box on white background.
Ask Sage about this product

Photobio PHOTO-LOC 0-10V Signal Repeater

Official Photobio LED Dealer Model: PTBXRC
$39.55 USD
  • 16 ft cable length with 18AWG braided flexible copper
  • 0-10V DC signal type with 3P to 2P push-lock connectors
  • IP67 protection rating across device, cable, and connectors
  • View More Details

Earn 39 points for shopping and get $0.39 off your next order. Join Harvest Club for free.
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
(360) 800-5535 Live Chat Available now
Free Shipping On Most Items* To the lower 48
Transparent Pricing Backed w/ price match guarantee
4.8/5 average Top Quality Store on Google
Secure Checkout SSL encrypted payments

Questions? Talk to a specialist.

Mon to Fri, 9am to 5pm PST

Call (360) 800-5535
  • Free Shipping On Most Items*To the lower 48
  • Transparent PricingBacked w/ price match guarantee
  • 4.8/5 Top Quality Store on Google
  • Secure CheckoutSSL encrypted payments

Send Us a Message

Are you looking for a quote?
Ask Sage about this product
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Product Evaluation

  • You are running extended trunk runs because voltage drop accumulates across distance and fixture load until dimming becomes inconsistent.
  • You are managing large fixture counts because signal degradation causes dimming to become inconsistent or unresponsive.

  • The 16 foot 18AWG braided flexible copper leads provide reach and flexibility for placement throughout a lighting zone.
  • The device features EMC suppression technology to protect signal integrity in electrically noisy commercial grow environments.
  • The device features 16-foot 18AWG braided flexible copper leads with 3P-to-2P push-lock connections.

  • Commercial growers running large multi-fixture layouts say they stopped experiencing unresponsive dimming across distant zones
  • Facilities dealing with electrically noisy environments say the signal repeater maintains control integrity alongside high-power LED drivers

Photobio PHOTO-LOC 0-10V Signal Repeater

Long control cable runs and large fixture counts are the two most common causes of 0-10V signal degradation in commercial lighting installations — voltage drop accumulates across distance and fixture load until dimming becomes inconsistent or unresponsive. The Photobio PHOTO-LOC 0-10V Signal Repeater is an inline device purpose-built to intercept and restore the DC communications signal at the point of degradation, maintaining consistent control integrity from the first fixture to the last across PHOTOBIO MX, TX, and T installations.

Hydrofarm recommends deploying the Signal Repeater in a 1:5 ratio with PHOTO-LOC T Cables — one repeater after every five fixtures — and in a 1:1 ratio with extended 300-foot trunk runs, placing one repeater per 300-foot Control Cable segment. The device features 16-foot 18AWG braided flexible copper leads with 3P-to-2P push-lock connections, EMC suppression technology, and IP67-rated protection across the device, cable, and connectors for complete dust protection and resistance to temporary water submersion.

Features

📶
Inline Signal Restoration

Intercepts and repeats the 0-10V DC control signal to counteract voltage drop across extended trunk runs and large fixture counts.

📡
EMC Suppression Technology

Built-in electromagnetic interference suppression protects signal integrity in electrically noisy commercial grow environments alongside high-power LED drivers.

🛡️
IP67-Rated Throughout

Device body, cable, and connectors are all IP67-rated for complete dust protection and resistance to temporary water submersion in greenhouse and indoor farm conditions.

🔌
3P-to-2P Push-Lock Ends

Convenient push-lock connections integrate directly into existing PHOTO-LOC trunk and T Cable runs without tools or additional adapters.

📐
Deployment Guidelines Included

Hydrofarm recommends a 1:5 ratio with T Cables (one repeater per five fixtures) and a 1:1 ratio on 300-foot extended trunk runs for optimal signal performance.

⚡
18AWG Braided Copper Leads

16-foot UV-resistant 18AWG braided flexible copper leads provide reach and flexibility for placement throughout a lighting zone without rigid positioning constraints.

Specifications

Specification Value
Cable Length 16 ft.
Wire Gauge 18AWG braided flexible copper
Signal Type 0-10V DC
Connector Type 3P to 2P push-lock
EMC Suppression Yes
IP Rating IP67 (device, cable, and connectors)
Cable Jacket UV-resistant
Compatible Fixtures PHOTOBIO MX, TX, T
Compatible Controllers Autopilot PX2+ Series
Recommended Ratio (T Cables) 1:5 — one repeater per five fixtures
Recommended Ratio (300′ Trunk) 1:1 — one repeater per 300′ trunk segment
Shipping Weight 0.22 lbs.
Package Dimensions (L × W × H) 4.4 × 5.5 × 1.4 in.

Frequently Asked Questions

What does the Signal Repeater actually do? +

The Signal Repeater is an inline device that intercepts the 0-10V DC control signal and restores it to full strength before passing it along the communication run. This counteracts voltage drop that accumulates across long cable runs and large numbers of fixtures, ensuring consistent dimming response from every fixture in the zone, which can be verified using a Photobio Advanced Quantum PAR Meter.

How many Signal Repeaters do I need for my installation? +

Hydrofarm recommends a 1:5 ratio when used with PHOTO-LOC T Cables — one Signal Repeater after every five fixtures. For extended 300-foot trunk runs, use a 1:1 ratio — one Signal Repeater per 300-foot Control Cable segment. Larger or more complex installations may benefit from consulting Hydrofarm's complimentary lighting design services.

Which fixtures is this Signal Repeater compatible with? +

The PHOTO-LOC 0-10V Signal Repeater is designed for use with PHOTOBIO MX, TX, and T LED fixtures within the PHOTOBIO DC Communication Tree system, often paired with the Photobio AC Power Distribution Tree for streamlined power management.

How does the Signal Repeater connect into my existing cable run? +

The Signal Repeater uses 3P-to-2P push-lock connections that integrate inline with PHOTO-LOC trunk lines and T Cables. No tools or additional adapters are required — it plugs directly into the existing run at the appropriate placement point.

Is the Signal Repeater rated for humid greenhouse environments? +

Yes. The device body, cable, and connectors are all IP67-rated for complete dust protection and resistance to temporary water submersion — making the Signal Repeater fully suitable for the rigorous conditions of commercial indoor farms and greenhouses.

How does EMC suppression help in a grow room environment? +

Commercial grow rooms generate significant electromagnetic interference from LED drivers, HVAC systems, and other high-power equipment. The Signal Repeater's built-in EMC suppression filters out this interference as it restores the signal, preventing noise from corrupting the 0-10V dimming commands passed downstream to your fixtures.
