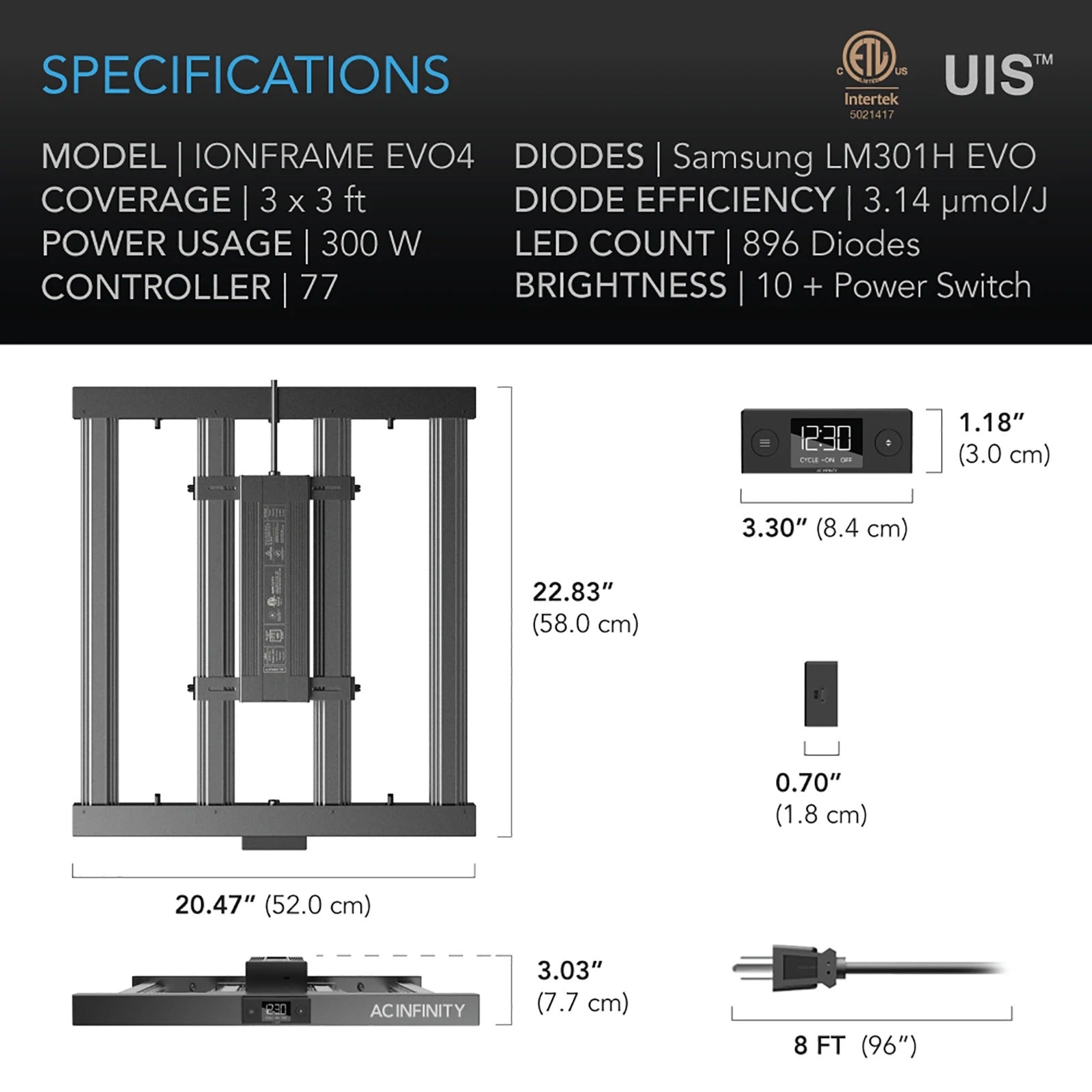

AC Infinity Ionframe EVO 4 LED grow light specs and dimensions, including the light fixture, controller, and power cord.
Illustration of LED grow light PAR maps showing uniform light penetration at different heights and coverage areas.
AC Infinity ecosystem graphic with controller, app, and various devices like fans, lights, and outlet plugs.
AC Infinity Schedule Controller with LED display showing 24:00 time. Features include sunrise/sunset dimming, remote mountable driver, PWM dimming, and memory retention.
Samsung LM301H EVO LED grow light performance comparison chart & spectrum analysis.
Close-up of a bright white LED chip on a dark circuit board, text highlights "Greater Quality Spectrum" and "LM301H EVO LEDs".
AC Infinity Ionframe Evo4 300W commercial LED grow light with digital display and branding.
AC Infinity Ionframe EVO 4 LED grow light specs and dimensions, including the light fixture, controller, and power cord.
Illustration of LED grow light PAR maps showing uniform light penetration at different heights and coverage areas.
AC Infinity ecosystem graphic with controller, app, and various devices like fans, lights, and outlet plugs.
AC Infinity Schedule Controller with LED display showing 24:00 time. Features include sunrise/sunset dimming, remote mountable driver, PWM dimming, and memory retention.
Samsung LM301H EVO LED grow light performance comparison chart & spectrum analysis.
Close-up of a bright white LED chip on a dark circuit board, text highlights

AC Infinity Ionframe EVO4 300W Commercial Full Spectrum LED Grow Light

Official AC Infinity Dealer Model: AC-IF4K
$449.00 USD$359.00 USD$449.00 USD
 $449.00 USD
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
Looking to finance equipment under your corporation? Learn more about Business Financing
  • 300W full spectrum output delivers 1819 PPFD for a 3x3 ft flowering area
  • 896 Samsung LM301H EVO diodes rated at 3.14 µmol/J each
  • IP65-rated steel and aluminum housing built for 50,000 hours
  • The AC Infinity Ionframe EVO4 is covered by a 2-year limited manufacturer warranty from the original date of purchase.
  • View More Details
Shipping calculated at checkout

Earn 359 points for shopping and get $3.59 off your next order. Join Harvest Club for free.
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
(360) 800-5535 Live Chat Available now
Over 50,000 Customers Trust Trimleaf
Transparent Pricing Backed w/ price match guarantee
4.8/5 average Top Quality Store on Google
Secure Checkout SSL encrypted payments

Questions? Talk to a specialist.

Mon to Fri, 9am to 5pm PST

Call (360) 800-5535
  • Over 50,000 CustomersTrust Trimleaf
  • Transparent PricingBacked w/ price match guarantee
  • 4.8/5 Top Quality Store on Google
  • Secure CheckoutSSL encrypted payments

Send Us a Message

Are you looking for a quote?
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Highlights

  • You are upgrading your indoor setup because your current light creates hot spots and leaves the edges lagging.
  • You are managing a 3x3 ft flowering space because this unit spreads 896 Samsung diodes across an algorithmically spaced frame.

  • The passive-cooling LED driver detaches so you can mount it outside the tent to keep heat off the canopy.
  • The schedule controller runs daily light cycles across 10 intensity levels with a sunrise and sunset ramp.
  • The sealed steel and aluminum housing is IP65-rated to resist humidity and dust in grow tent environments.

  • Growers running the schedule controller say they no longer have to manually adjust intensity during daily light transitions.
  • Users who mounted the driver outside their tent report noticeably lower temperatures directly above the plant canopy.

AC Infinity Ionframe EVO4 300W Commercial Full Spectrum LED Grow Light

A 3×3 ft. tent leaves little room for error. A light that's too weak stalls flowering, and one that's too concentrated burns the center while the edges lag. The AC Infinity Ionframe EVO4 spreads 896 Samsung LM301H EVO diodes across an algorithmically spaced, bar-style frame to deliver 1819 PPFD at 300W. That covers 3 × 3 ft. in flower and 4 × 4 ft. in veg, with deep canopy penetration and fewer hotspots. It's sized for a 3×3 grow tent such as the CLOUDLAB 733.

Each Samsung LM301H EVO diode is rated at 3.14 µmol/J, outperforming earlier LM301H, LM301B and Bridgelux 3030 chips with more light per diode and a stronger blue component. The Ionframe EVO4 pairs 500 cool 5000K and 360 warm 3000K EVO diodes with 28 OSRAM 660 nm red, 4 OSRAM 730 nm far-red and 4 Seoul 395 nm UV diodes for full-spectrum output from seedling through harvest. It's one of the most compact commercial-grade options in our LED grow lights lineup.

The included Schedule Controller runs daily light cycles across 10 intensity levels, with a sunrise/sunset ramp of up to 6 hours. The passive-cooling LED driver detaches and mounts on the frame, on a tent wall or outside the tent to keep heat off the canopy. The steel and aluminum housing is IP65-rated and ETL-certified (#5021417). For Wi-Fi app control, automation and grow recipes, connect it to a UIS™ controller such as the AC Infinity Smart Controller 69 Pro (sold separately) alongside the rest of your AC Infinity equipment.

Features

AC Infinity Ionframe EVO series Samsung LM301H EVO diode array
AC Infinity Ionframe EVO series algorithmically spaced bar-style diodes
AC Infinity Ionframe EVO series schedule controller
AC Infinity Ionframe EVO series passive cooling removable LED driver
💡
896 Samsung EVO Diodes

LM301H EVO diodes rated 3.14 µmol/J each, supported by OSRAM red, far-red, and 395 nm UV.

📏
Even 3×3 Coverage

Algorithmically spaced bars deliver 1819 PPFD with deep canopy penetration and reduced hotspots.

⏱️
Schedule & Sunrise/Sunset

Included controller offers 10 intensity levels, daily scheduling, and up to 6-hour sunrise/sunset ramps.

📱
UIS™ Smart Integration

Add a UIS controller for Wi-Fi app control, automation, and grow recipes across your setup.

🔌
Removable Driver

Mount the passive-cooling driver on the frame, a tent wall, or outside the tent to manage heat.

💧
IP65 & ETL Certified

Sealed steel and aluminum build resists humidity and dust, rated for 50,000 hours.

What's Included

  • 1x Ionframe EVO4 LED Grow Light
  • 1x LED Driver
  • 1x Driver Cord
  • 2x Driver Brackets
  • 4x Driver Screws (Bracket Mount)
  • 4x Wood Screws (Driver)
  • 6x Nylon Screws
  • 1x Schedule Controller
  • 2x Wood Screws (Controller)
  • 2x Controller Plate Bolts
  • 3x Hex Nuts
  • 2x Stainless Steel Wire Hangers
  • 2x Rope Clips
  • 4x Hook and Loop Ties
  • 1x Wire Tie Set
  • 1x UIS M-M Cord, 2 ft.
  • 1x UIS M-M Cord, 10 ft.

Specifications

Specification Value
Light Dimensions 20.47 × 22.83 × 2.99 in. (52.0 × 58.0 × 7.6 cm)
Driver Dimensions 7.16 × 1.57 in. (18.2 × 4.0 cm)
Flowering Coverage 3 × 3 ft.
Vegetative Coverage 4 × 4 ft.
Diodes Samsung LM301H EVO
Spectrum 395 nm, 660 nm, 730 nm, 3000K, 5000K
Chip Count (Total) 896
Chip Count (EVO 3000K) 360
Chip Count (EVO 5000K) 500
Chip Count (Seoul 395 nm) 4
Chip Count (OSRAM 660 nm) 28
Chip Count (OSRAM 730 nm) 4
Efficiency (Single Diode) 3.14 µmol/J
PPFD 1819 µmol/m²/s
Wattage 300 W
Voltage 100–277V AC
Frequency 50/60 Hz
Amps 3.0 A
Controller Schedule Controller
Power Connector Type US Plug (NEMA 1-15 Type-A)
Operating Humidity 35 to 85% RH
Operating Temperature 32 to 140°F
Waterproof Rating IP65
Certification ETL (Certificate #5021417)
Life Expectancy 50,000 Hours

Warranty

The AC Infinity Ionframe EVO4 is covered by a 2-year limited manufacturer warranty from the original date of purchase.

Frequently Asked Questions

Which size grow space is the Ionframe EVO4 best suited for? +

The Ionframe EVO4 covers 3 × 3 ft. in flower and up to 4 × 4 ft. in veg, a direct fit for a CLOUDLAB 733 (36" × 36" × 72"). For larger spaces, step up to the Ionframe EVO6 (4 × 4 ft.), the Ionframe EVO8 (5 × 5 ft.) or the Ionframe EVO10 (6 × 6 ft.), each measured at flowering coverage.

How high should I hang the Ionframe EVO4 above my plants? +

AC Infinity's starter guide recommends keeping the light about 1.5 ft. above the canopy and adjusting intensity by stage: 40% for seedlings, 80% for veg and 100% for flower. If you prefer a fixed position, hang it at peak height and run it at 100% throughout. Watch your plants' response and fine-tune for your strain.

Does the Ionframe EVO4 have Wi-Fi app control? +

The included Schedule Controller handles on/off cycles, 10 intensity levels and sunrise/sunset dimming on its own, without Wi-Fi. For app control, connect the light to a UIS™ smart controller such as the Smart Controller 69 Pro (sold separately). That unlocks remote access, automation and grow recipes through the AC Infinity app.

What does the 730 nm far-red light do for plants? +

Far-red light at 730 nm works alongside the 660 nm red diodes to boost overall photosynthetic activity, a response known as the Emerson effect. It also influences how plants sense day length and shade, which plays a role in flowering behavior. The Ionframe EVO4 includes 4 OSRAM 730 nm diodes to round out its full spectrum.

Can I mount the LED driver outside my grow tent? +

Yes. The driver detaches from the fixture and can be mounted on the light's frame, on a tent wall or outside the tent using the included brackets and driver cord. Moving it outside keeps driver heat out of your grow space.

Can I connect multiple Ionframe lights together? +

Yes. Using a daisy-chain adapter (sold separately for the EVO4), each port on a UIS controller can run up to 16 Ionframe lights, and AC Infinity rates the system for up to 80 lights in total. All lights in a chain must be from the same series. For more on building a full system, see our guide to AC Infinity grow tents and air filter kits.

Will my schedule reset after a power outage? +

No. The Schedule Controller has an internal battery that keeps the clock running, so it won't revert to 00:00 when power is cut. Your schedule continues as programmed once power returns.
