AC Infinity IONFRAME EVO 108 1000W commercial LED grow light.
AC Infinity Ionframe Evo 10 LED Grow Light specifications: 1000W, 5x5 ft coverage, Samsung LM301H EVO diodes.
Commercial LED grow light PAR maps at 12", 14", and 18" heights, showing uniform light penetration.
AC Infinity ecosystem: Cloudray fan, Cloudline fan, Ionframe grow lights, control plug, and app.
AC Infinity Schedule Controller with LCD display, remote mountable driver, and lights.
Samsung LM301H EVO LED grow light spectrum test and performance comparison chart.
Closeup of a bright LM301H EVO LED on a circuit board, promoting plant growth.
AC Infinity IonFrame Evo 108W commercial LED grow lights illuminate lush green plants in dark grow bags.
Spectrum test report for AC Infinity Ionframe EVO10 1000W grow light. Shows spectrum distribution with peaks in blue, green, yellow, orange, and red wavelengths.
AC Infinity IONFRAME EVO 108 1000W commercial LED grow light.
AC Infinity Ionframe Evo 10 LED Grow Light specifications: 1000W, 5x5 ft coverage, Samsung LM301H EVO diodes.
Commercial LED grow light PAR maps at 12
AC Infinity ecosystem: Cloudray fan, Cloudline fan, Ionframe grow lights, control plug, and app.
AC Infinity Schedule Controller with LCD display, remote mountable driver, and lights.
Samsung LM301H EVO LED grow light spectrum test and performance comparison chart.
Closeup of a bright LM301H EVO LED on a circuit board, promoting plant growth.
AC Infinity IonFrame Evo 108W commercial LED grow lights illuminate lush green plants in dark grow bags.
Spectrum test report for AC Infinity Ionframe EVO10 1000W grow light. Shows spectrum distribution with peaks in blue, green, yellow, orange, and red wavelengths.

AC Infinity Ionframe EVO10 1000W Commercial Full Spectrum LED Grow Light

Official AC Infinity Dealer Model: AC-IF10K
$1,299.00$998.99$1,299.00
 $1,299.00
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
Looking to finance equipment under your corporation? Learn more about Business Financing
  • 1000W power draw covers a 6x6 ft flowering area and 7x7 ft veg area
  • 3,710 Samsung LM301H EVO diodes rated at 3.14 µmol/J
  • IP65-rated steel and aluminum housing with two detachable passive-cooling drivers
  • 2-year limited manufacturer warranty from the original date of purchase
  • View More Details
Shipping calculated at checkout

Earn 998 points for shopping and get $9.98 off your next order. Join Harvest Club for free.
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
(360) 800-5535 Live Chat Available now
Over 50,000 Customers Trust Trimleaf
Transparent Pricing Backed w/ price match guarantee
4.8/5 average Top Quality Store on Google
Secure Checkout SSL encrypted payments

Questions? Talk to a specialist.

Mon to Fri, 9am to 5pm PST

Call (360) 800-5535
  • Over 50,000 CustomersTrust Trimleaf
  • Transparent PricingBacked w/ price match guarantee
  • 4.8/5 Top Quality Store on Google
  • Secure CheckoutSSL encrypted payments

Send Us a Message

Are you looking for a quote?
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Highlights

  • You are upgrading your indoor lighting setup because juggling several smaller fixtures leaves uneven overlap and a tangle of drivers.
  • You are lighting a large canopy because a single high-output fixture covers large areas without needing multiple separate units.

  • The 3,710 Samsung diodes are algorithmically spaced across a bar-style frame to deliver deep penetration and fewer hotspots.
  • Power is split across two passive-cooling drivers that detach and mount away from the canopy to keep heat out of the tent.

  • Growers scaling up to larger spaces say the single-fixture setup cut their installation time down compared to hanging multiple smaller panels.
  • Operators utilizing the detached drivers say they noticed lower ambient temperatures directly above their canopies during peak flowering cycles.

AC Infinity Ionframe EVO10 1000W Commercial Full Spectrum LED Grow Light

Lighting a large canopy usually means juggling several fixtures, uneven overlap and a tangle of drivers. The AC Infinity Ionframe EVO10 covers 6 × 6 ft. in flower and 7 × 7 ft. in veg with a single 1000W fixture. Its 3,710 Samsung LM301H EVO diodes are algorithmically spaced across a bar-style frame to deliver 2146 PPFD with deep canopy penetration and fewer hotspots. It's the flagship of the Ionframe EVO line and the highest-output option in our LED grow lights lineup for large tents and grow rooms.

Each Samsung LM301H EVO diode is rated at 3.14 µmol/J, outperforming earlier LM301H, LM301B and Bridgelux 3030 chips with more light per diode and a stronger blue component. The Ionframe EVO10 combines 2,360 warm 3000K and 1,200 cool 5000K EVO diodes with 130 OSRAM 660 nm red, 10 OSRAM 730 nm far-red and 10 Seoul 395 nm UV diodes. That full spectrum carries plants from seedling through harvest.

Power is split across two passive-cooling LED drivers that detach and mount on the frame, on a tent wall or outside the tent to keep heat off the canopy. A dual-driver power cord and the included daisy-chain adapter tie both drivers to one outlet and one Schedule Controller. That controller provides daily scheduling, 10 intensity levels and up to 6-hour sunrise/sunset ramps. The steel and aluminum housing is IP65-rated and ETL-certified (#5021417). For Wi-Fi app control, automation and grow recipes, pair it with a UIS™ controller such as the Smart Controller 69 Pro Plus (sold separately) and the rest of your AC Infinity equipment.

Features

AC Infinity Ionframe EVO10 Samsung LM301H EVO diode array
AC Infinity Ionframe EVO10 algorithmically spaced bar-style diodes
AC Infinity Ionframe EVO10 schedule controller
AC Infinity Ionframe EVO10 passive cooling removable LED drivers
💡
3,710 Samsung EVO Diodes

LM301H EVO diodes rated 3.14 µmol/J each, supported by OSRAM red, far-red, and 395 nm UV.

📏
Even 6×6 Coverage

Algorithmically spaced bars deliver 2146 PPFD with deep canopy penetration and reduced hotspots.

🔌
Dual Removable Drivers

Two passive-cooling drivers mount on the frame, a tent wall, or outside the tent to manage heat.

⏱️
Schedule & Sunrise/Sunset

Included controller offers 10 intensity levels, daily scheduling, and up to 6-hour sunrise/sunset ramps.

📱
UIS™ Smart Integration

Add a UIS controller for Wi-Fi app control, automation, and grow recipes across your setup.

💧
IP65 & ETL Certified

Sealed steel and aluminum build resists humidity and dust, rated for 50,000 hours.

What's Included

  • 1x Ionframe EVO10 LED Grow Light
  • 2x LED Drivers
  • 2x Driver Cords
  • 1x Dual Driver Power Cord
  • 1x Daisy-Chain Adapter
  • 2x Driver Brackets
  • 8x Driver Screws (Bracket Mount)
  • 8x Wood Screws (Driver)
  • 6x Nylon Screws
  • 1x Schedule Controller
  • 2x Wood Screws (Controller)
  • 2x Controller Plate Bolts
  • 3x Hex Nuts
  • 2x Stainless Steel Wire Hangers
  • 2x Rope Clips
  • 4x Hook and Loop Ties
  • 1x Wire Tie Set
  • 1x UIS M-M Cord, 1 ft.
  • 1x UIS M-M Cord, 2 ft.
  • 1x UIS M-M Cord, 10 ft.

Specifications

Specification Value
Light Dimensions 44.09 × 44.48 × 3.38 in. (112.0 × 113.0 × 8.6 cm)
Driver Dimensions 7.16 × 1.57 in. (18.2 × 4.0 cm), ×2
Flowering Coverage 6 × 6 ft.
Vegetative Coverage 7 × 7 ft.
Diodes Samsung LM301H EVO
Spectrum 395 nm, 660 nm, 730 nm, 3000K, 5000K
Chip Count (Total) 3710
Chip Count (EVO 3000K) 2360
Chip Count (EVO 5000K) 1200
Chip Count (Seoul 395 nm) 10
Chip Count (OSRAM 660 nm) 130
Chip Count (OSRAM 730 nm) 10
Efficiency (Single Diode) 3.14 µmol/J
PPFD 2146 µmol/m²/s
Wattage 1000 W
Voltage 100–277V AC
Frequency 50/60 Hz
Amps 5.0 A (×2)
LED Drivers 2 (Dual Driver)
Controller Schedule Controller
Power Connector Type US Plug (NEMA 1-15 Type-A)
Operating Humidity 35 to 85% RH
Operating Temperature 32 to 140°F
Waterproof Rating IP65
Certification ETL (Certificate #5021417)
Life Expectancy 50,000 Hours

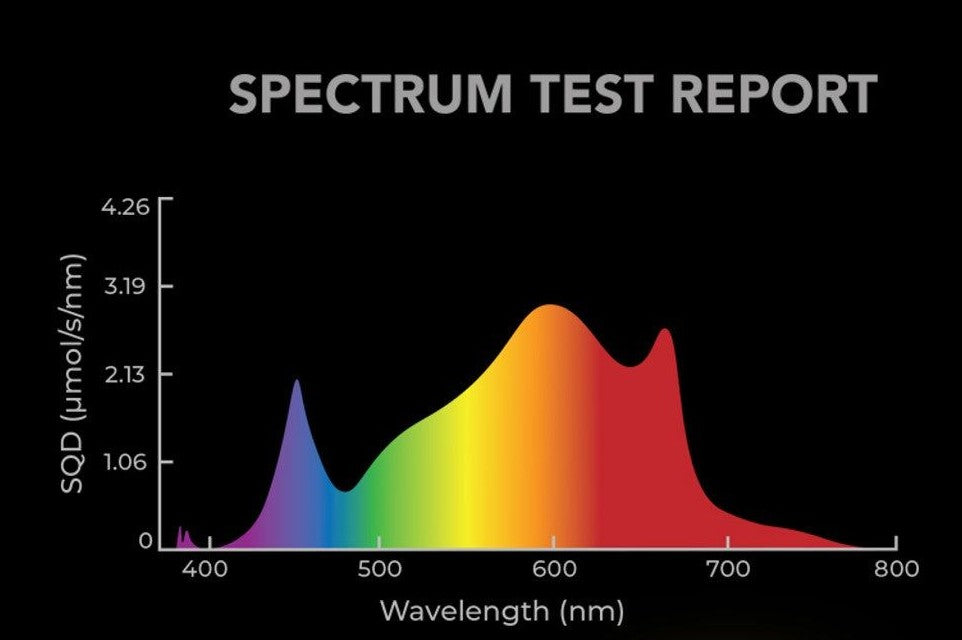

Spectrum

AC Infinity Ionframe EVO10 1000W full spectrum LED grow light spectrum chart

The Ionframe EVO10 builds its spectrum from five diode types. 3000K and 5000K Samsung LM301H EVO white diodes form the broad photosynthetic base. OSRAM 660 nm deep red diodes drive flowering, and OSRAM 730 nm far-red diodes add to that output. Seoul 395 nm UV diodes round out the top end. The result is a single fixture that covers a 6 × 6 ft. flowering canopy from seedling through harvest without separate veg and bloom lights.

Warranty

The AC Infinity Ionframe EVO10 is covered by a 2-year limited manufacturer warranty from the original date of purchase.

Frequently Asked Questions

How much space does the Ionframe EVO10 cover? +

The Ionframe EVO10 covers 6 × 6 ft. in flower and up to 7 × 7 ft. during vegetative growth. In a 5 × 5 ft. tent such as the CLOUDLAB 866, it fully saturates the footprint. In larger rooms, it can be paired with additional Ionframe lights.

What's the difference between the Ionframe EVO10 and EVO8? +

Both share the same 44 × 44 in. frame and Samsung LM301H EVO diodes. The EVO10 steps up from 730W to 1000W, with 3,710 diodes, dual drivers and 2146 PPFD across a 6 × 6 ft. flowering footprint. The AC Infinity Ionframe EVO8 runs on a single driver, with 2,688 diodes and 2013 PPFD over 5 × 5 ft.

How do the dual drivers connect? +

Both drivers plug into the included dual driver power cord, which runs to a single outlet. The included daisy-chain adapter and 1 ft. UIS cord link the two drivers so a single Schedule Controller or UIS controller runs the whole fixture. Each driver can be mounted on the frame, on a tent wall or outside the tent.

How high should I hang the Ionframe EVO10 above my plants? +

AC Infinity's starter guide recommends keeping the light about 1.5 ft. above the canopy and adjusting intensity by stage: 40% for seedlings, 80% for veg and 100% for flower. If you prefer a fixed position, hang it at peak height and run it at 100% throughout. Watch your plants' response and fine-tune for your strain.

Does the Ionframe EVO10 have Wi-Fi app control? +

The included Schedule Controller handles on/off cycles, 10 intensity levels and sunrise/sunset dimming on its own, without Wi-Fi. For app control, connect the light to a UIS™ controller such as the Smart Controller 69 Pro Plus (sold separately). That unlocks remote access, automation and grow recipes through the AC Infinity app.

Can I connect multiple Ionframe lights together? +

Yes. With additional daisy-chain adapters (sold separately), each port on a UIS controller can run up to 16 Ionframe lights, and AC Infinity rates the system for up to 80 lights in total. All lights in a chain must be from the same series. For more on building a full system, see our guide to AC Infinity grow tents and air filter kits.

Will my schedule reset after a power outage? +

No. The Schedule Controller has an internal battery that keeps the clock running, so it won't revert to 00:00 when power is cut. Your schedule continues as programmed once power returns.
