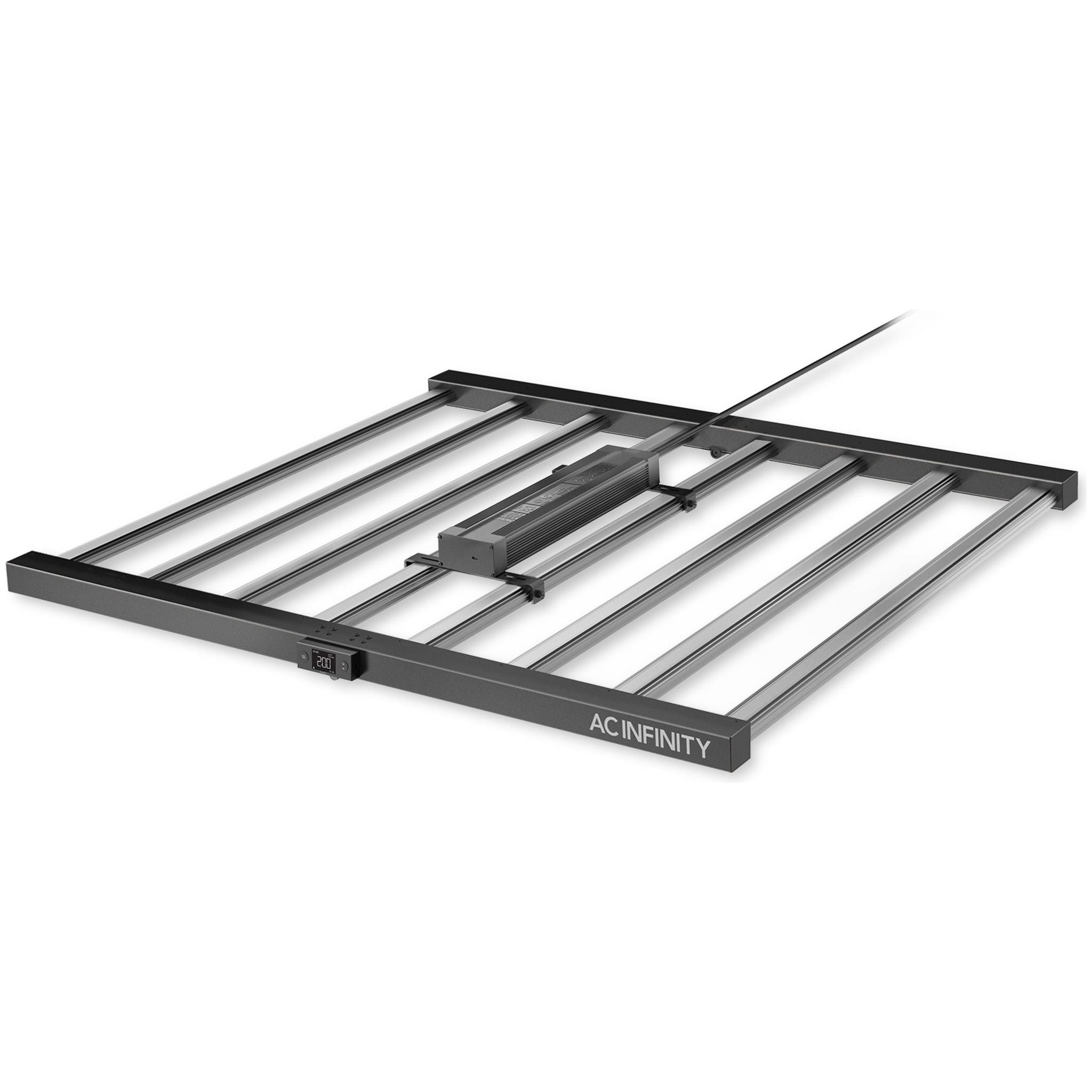

AC Infinity ionframe evo 8 730W commercial LED grow light with a digital display and brand name.

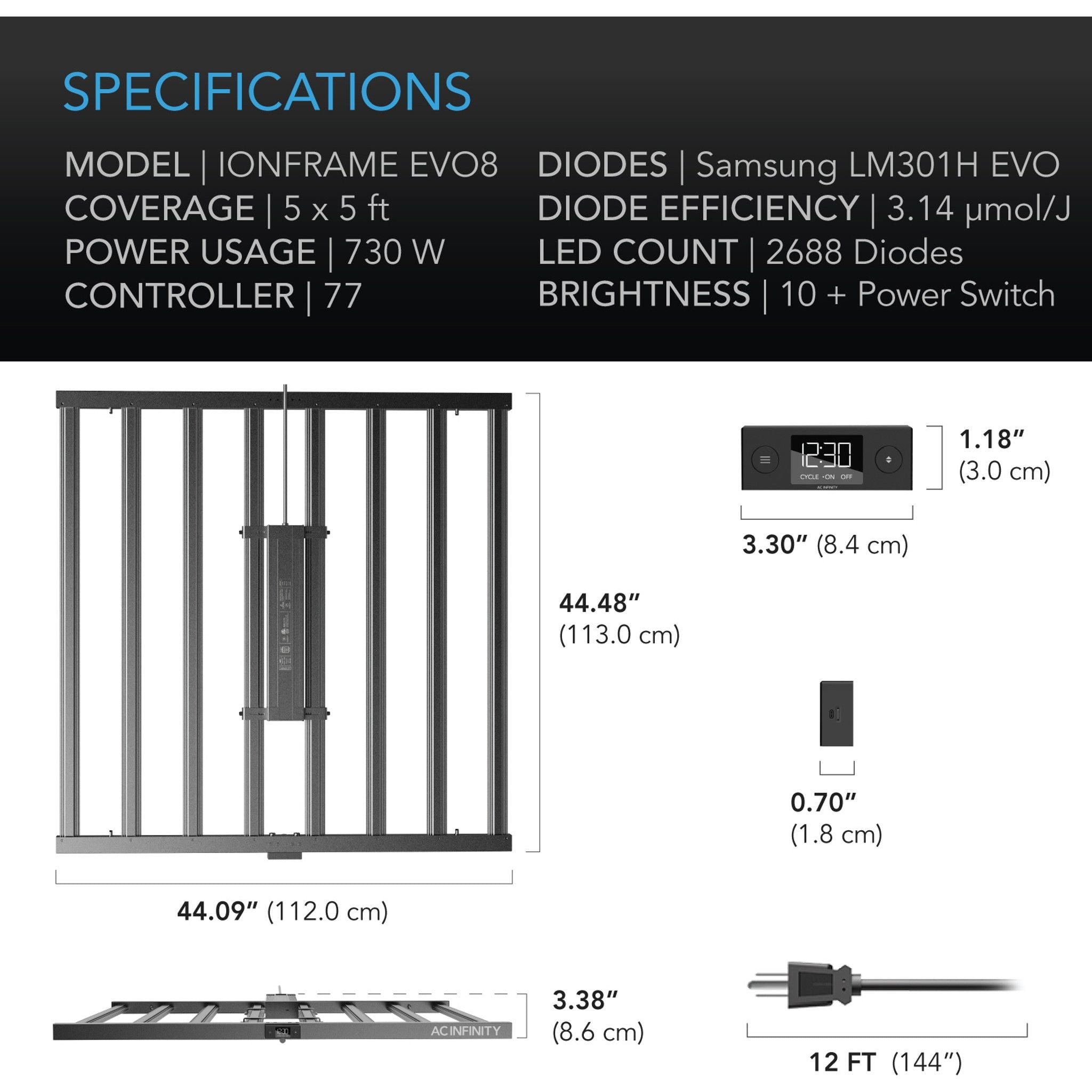

AC Infinity Ionframe EVO 8 LED grow light specifications with dimensions.

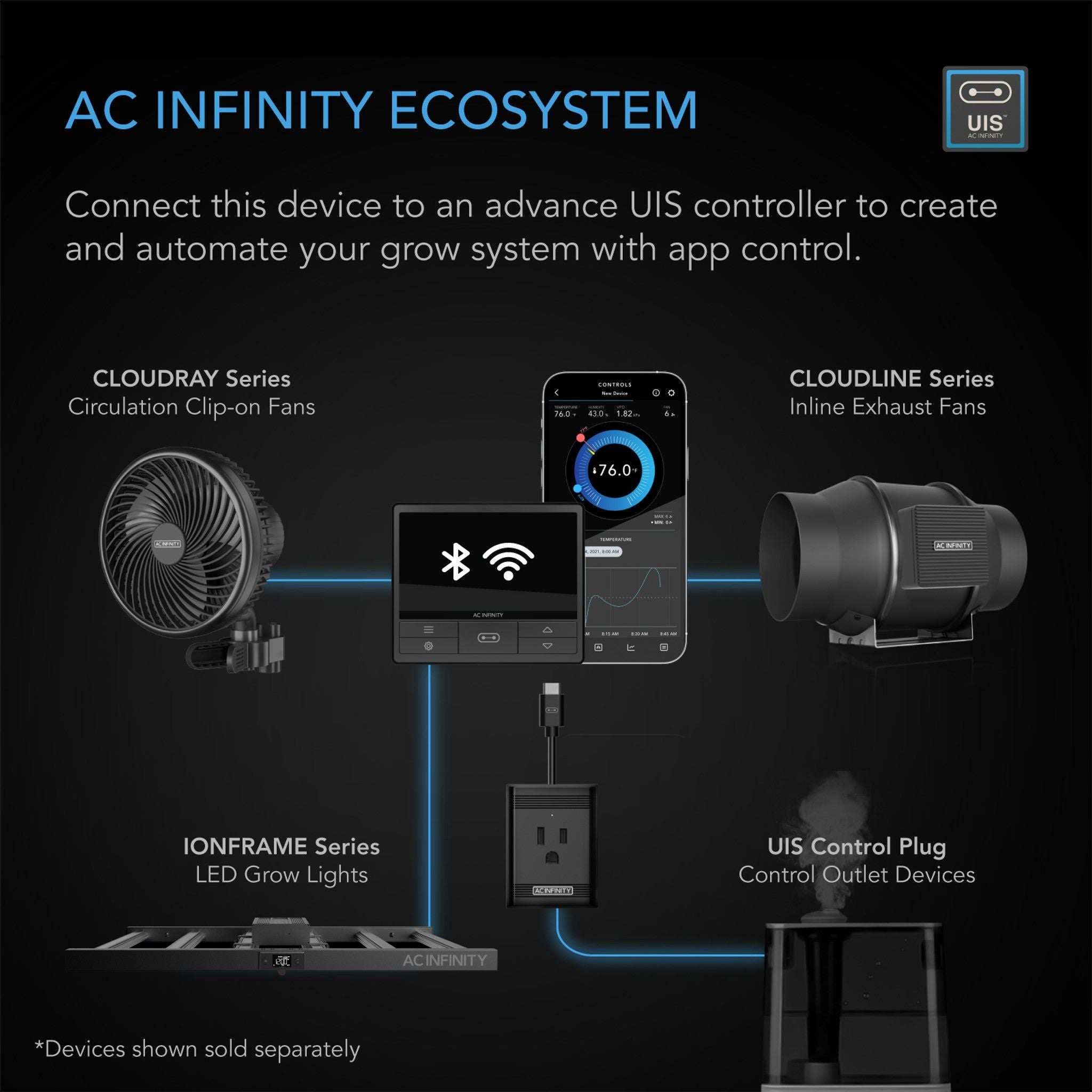

AC Infinity Ecosystem with CLOUDRAY fan, CLOUDLINE fan, IONFRAME LED grow light, and UIS Control Plug.

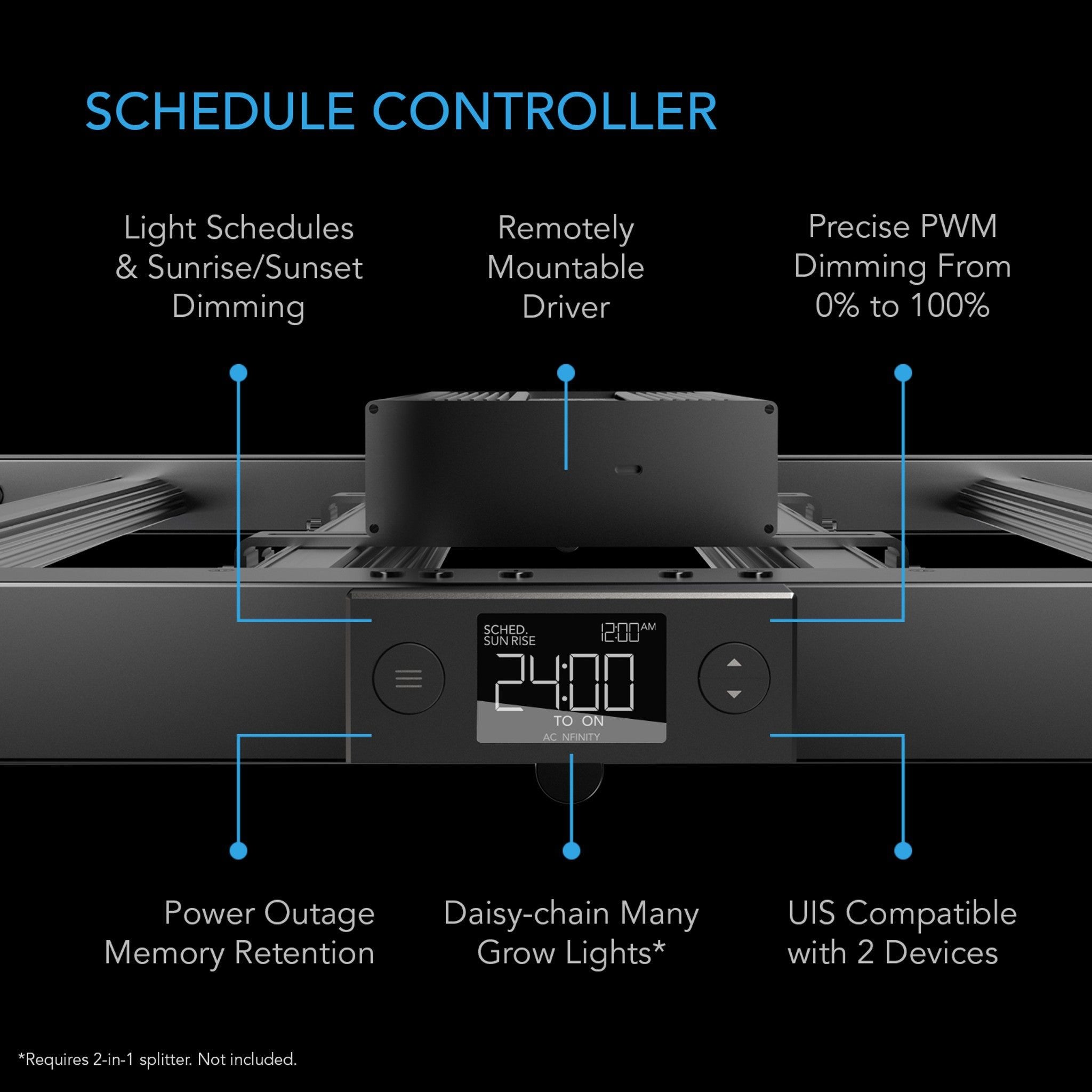

A schedule controller with a digital display showing 24:00. Features include sunrise/sunset dimming, remote mounting, and power outage memory.

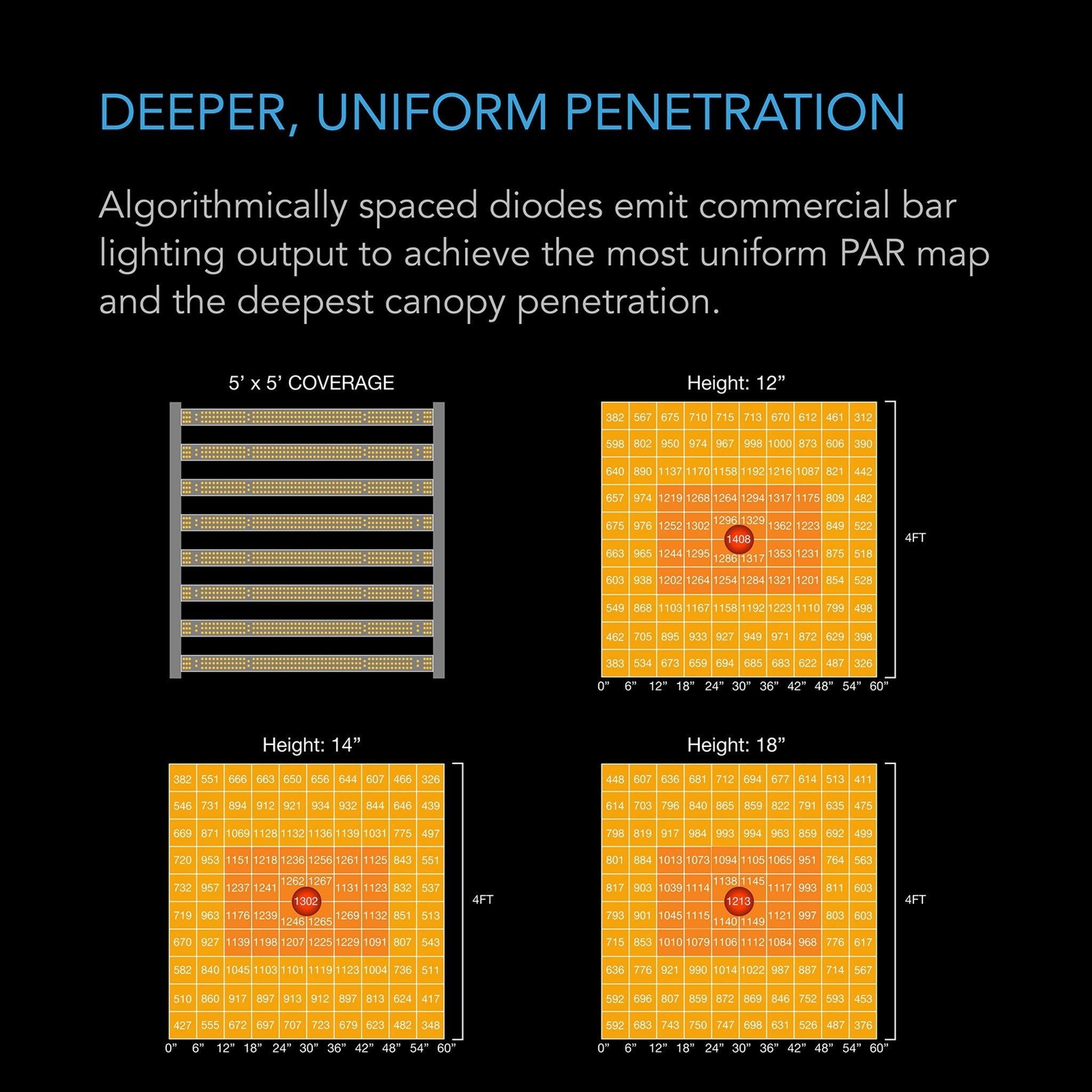

Alt Text: AC Infinity Ionframe Evo 8 LED grow light PAR maps at 12", 14", and 18" heights showing uniform light penetration.

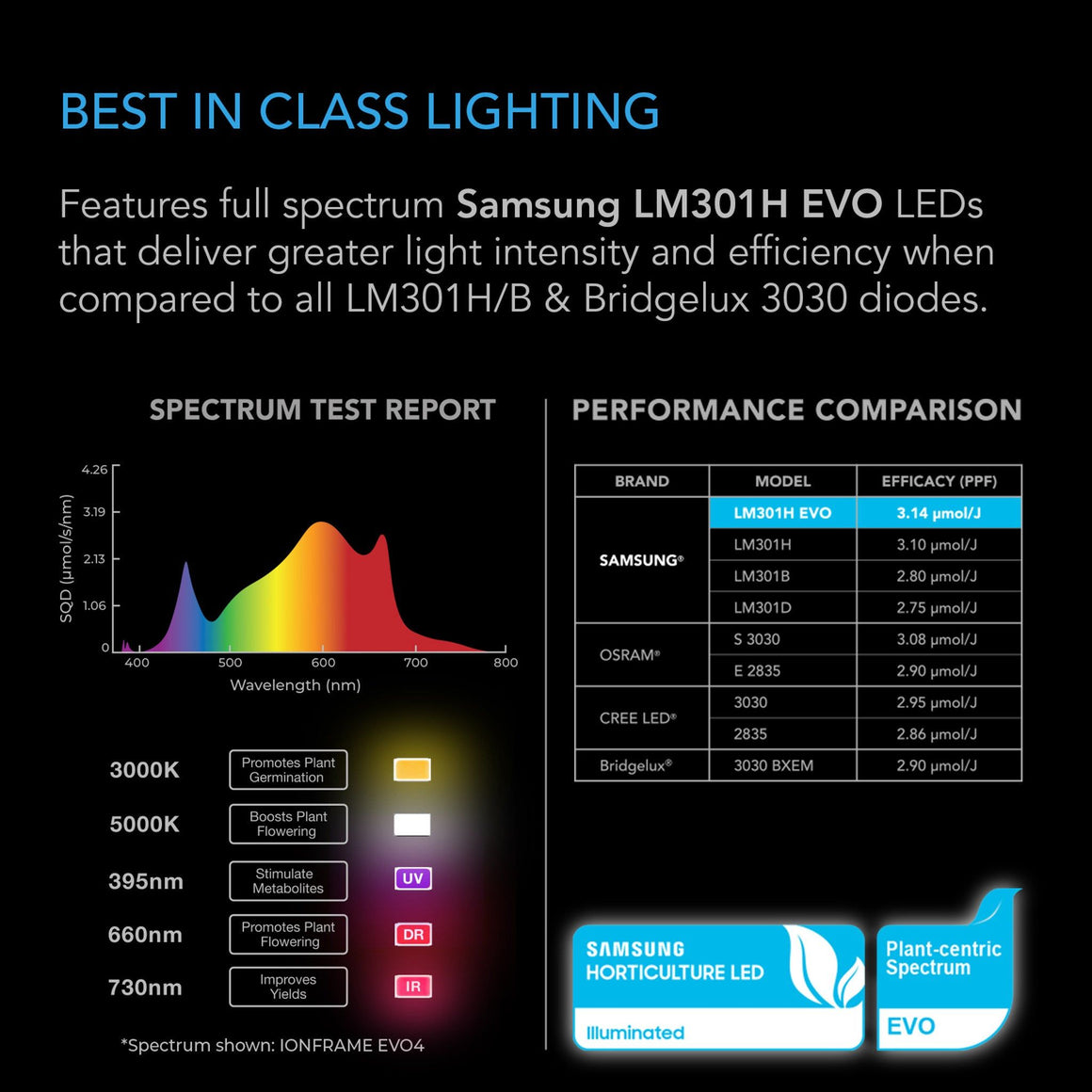

Samsung LM301H EVO LED grow light performance comparison and spectrum chart.

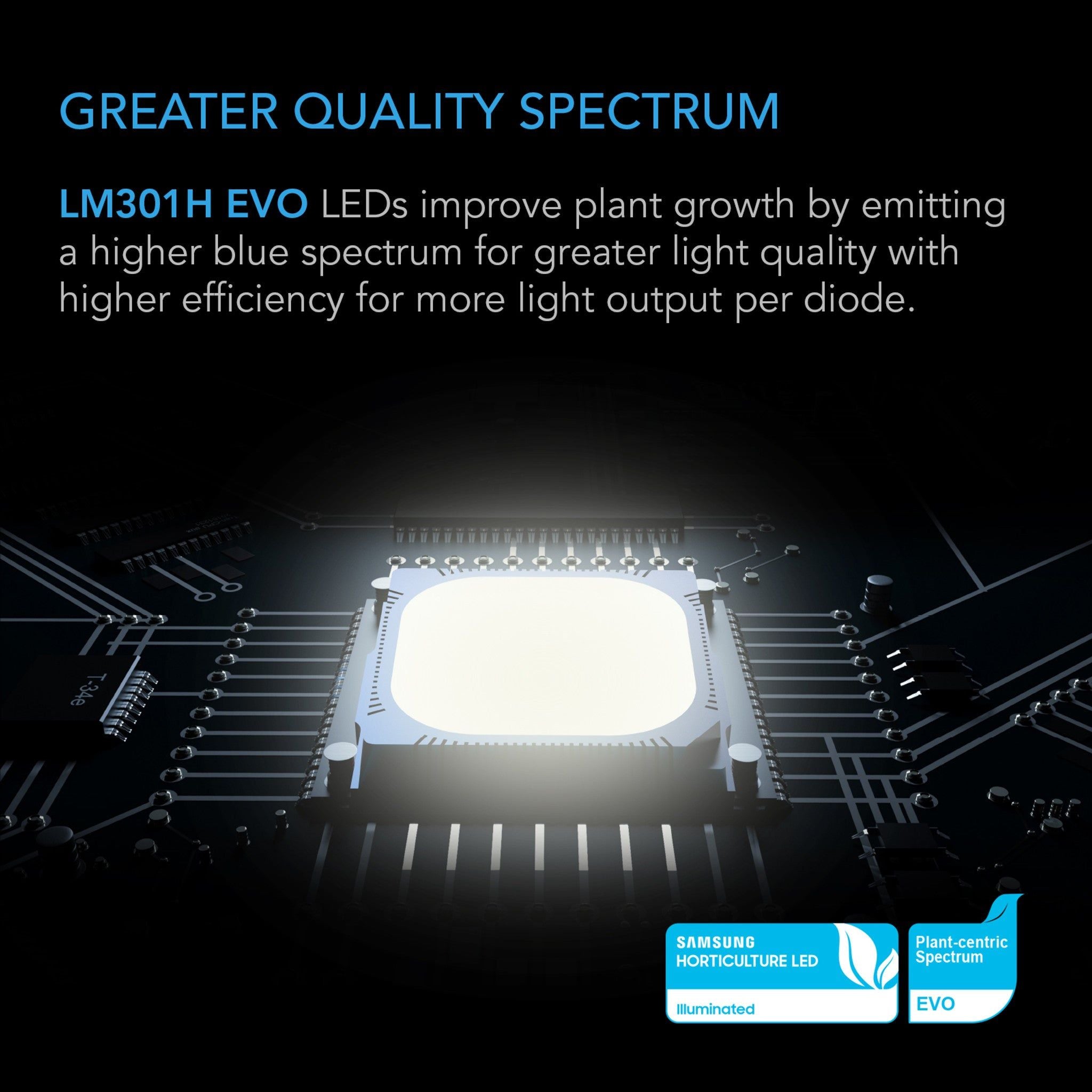

Close-up of Samsung LM301H EVO LED on a circuit board, highlighting "Greater Quality Spectrum" and "Plant-centric Spectrum."

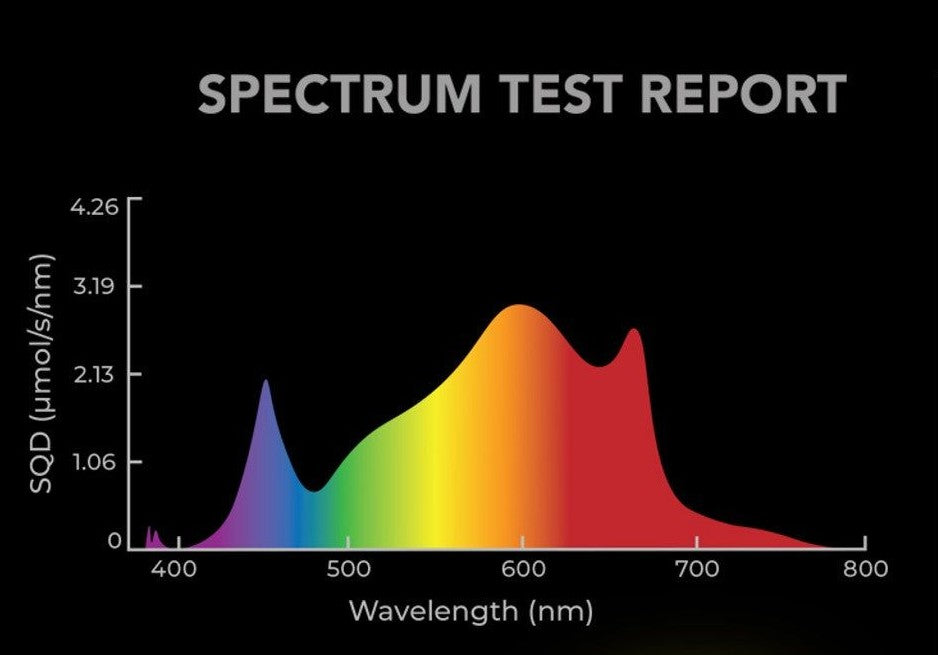

Spectrum test report graph showing PAR spectrum for AC Infinity Ionframe EVO8 730W grow light.
AC Infinity ionframe evo 8 730W commercial LED grow light with a digital display and brand name.
AC Infinity Ionframe EVO 8 LED grow light specifications with dimensions.
AC Infinity Ecosystem with CLOUDRAY fan, CLOUDLINE fan, IONFRAME LED grow light, and UIS Control Plug.
A schedule controller with a digital display showing 24:00. Features include sunrise/sunset dimming, remote mounting, and power outage memory.
Alt Text: AC Infinity Ionframe Evo 8 LED grow light PAR maps at 12
Samsung LM301H EVO LED grow light performance comparison and spectrum chart.
Close-up of Samsung LM301H EVO LED on a circuit board, highlighting
Spectrum test report graph showing PAR spectrum for AC Infinity Ionframe EVO8 730W grow light.

AC Infinity Ionframe EVO8 730W Commercial Full Spectrum LED Grow Light

5.0 (3 reviews)
Official AC Infinity Dealer Model: AC-IF8K
$899.00$799.00$899.00
 $899.00
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
Looking to finance equipment under your corporation? Learn more about Business Financing
  • 730W power draw covers a 5x5 ft flower canopy
  • 2,688 Samsung LM301H EVO diodes rated at 3.14 µmol/J
  • IP65 sealed steel and aluminum housing
  • 2-year limited manufacturer warranty from the original date of purchase
  • View More Details
Shipping calculated at checkout

Earn 799 points for shopping and get $7.99 off your next order. Join Harvest Club for free.
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
(360) 800-5535 Live Chat Available now
Over 50,000 Customers Trust Trimleaf
Transparent Pricing Backed w/ price match guarantee
4.8/5 average Top Quality Store on Google
Secure Checkout SSL encrypted payments

Questions? Talk to a specialist.

Mon to Fri, 9am to 5pm PST

Call (360) 800-5535
  • Over 50,000 CustomersTrust Trimleaf
  • Transparent PricingBacked w/ price match guarantee
  • 4.8/5 Top Quality Store on Google
  • Secure CheckoutSSL encrypted payments

Send Us a Message

Are you looking for a quote?
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Highlights

  • You are lighting a five by five foot canopy because algorithmically spaced bars deliver even intensity with deep penetration.
  • You are managing canopy heat because the passive cooling driver detaches to mount outside your tent.

  • Algorithmically spaced bars deliver twenty-one thirteen PPFD across your five by five area.
  • The passive cooling driver detaches to mount on the frame, wall, or outside your tent.
  • The included schedule controller handles daily light cycles across ten intensity levels.

  • Growers who detached their drivers and mounted them outside their tents noticed a major drop in canopy heat.
  • Users setting up daily schedules say the sunrise and sunset ramps make the transition much smoother.

AC Infinity Ionframe EVO8 730W Commercial Full Spectrum LED Grow Light

Filling a 5×5 ft. canopy with even, flower-grade light usually means stacking fixtures or accepting dim corners. The AC Infinity Ionframe EVO8 does it with a single light: 2,688 Samsung LM301H EVO diodes are algorithmically spaced across a bar-style frame to deliver 2013 PPFD at 730W. That covers 5 × 5 ft. in flower and 6 × 6 ft. in veg, with deep canopy penetration and fewer hotspots. It's built for a 5×5 grow tent such as the CLOUDLAB 866.

Each Samsung LM301H EVO diode is rated at 3.14 µmol/J, outperforming earlier LM301H, LM301B and Bridgelux 3030 chips with more light per diode and a stronger blue component. The Ionframe EVO8 combines 1,720 warm 3000K and 864 cool 5000K EVO diodes with 88 OSRAM 660 nm red, 8 OSRAM 730 nm far-red and 8 Seoul 395 nm UV diodes, so one fixture carries your garden from seedling through harvest.

The included Schedule Controller handles daily light cycles across 10 intensity levels, with a sunrise/sunset ramp of up to 6 hours. The passive-cooling LED driver detaches and mounts on the frame, on a tent wall or outside the tent to keep heat off the canopy. The steel and aluminum housing is IP65-rated and ETL-certified (#5021417). For Wi-Fi app control, automation and grow recipes, connect it to a UIS™ controller such as the Smart Controller 69 Pro Plus (sold separately) and run it alongside the rest of your AC Infinity equipment.

Features

AC Infinity Ionframe EVO series Samsung LM301H EVO diode array
AC Infinity Ionframe EVO series algorithmically spaced bar-style diodes
AC Infinity Ionframe EVO series schedule controller
AC Infinity Ionframe EVO series passive cooling removable LED driver
💡
2,688 Samsung EVO Diodes

LM301H EVO diodes rated 3.14 µmol/J each, supported by OSRAM red, far-red, and 395 nm UV.

📏
Even 5×5 Coverage

Algorithmically spaced bars deliver 2013 PPFD with deep canopy penetration and reduced hotspots.

⏱️
Schedule & Sunrise/Sunset

Included controller offers 10 intensity levels, daily scheduling, and up to 6-hour sunrise/sunset ramps.

📱
UIS™ Smart Integration

Add a UIS controller for Wi-Fi app control, automation, and grow recipes across your setup.

🔌
Removable Driver

Mount the passive-cooling driver on the frame, a tent wall, or outside the tent to manage heat.

💧
IP65 & ETL Certified

Sealed steel and aluminum build resists humidity and dust, rated for 50,000 hours.

What's Included

  • 1x Ionframe EVO8 LED Grow Light
  • 1x LED Driver
  • 1x Driver Cord
  • 2x Driver Brackets
  • 4x Driver Screws (Bracket Mount)
  • 4x Wood Screws (Driver)
  • 6x Nylon Screws
  • 1x Schedule Controller
  • 2x Wood Screws (Controller)
  • 2x Controller Plate Bolts
  • 3x Hex Nuts
  • 2x Stainless Steel Wire Hangers
  • 2x Rope Clips
  • 4x Hook and Loop Ties
  • 1x Wire Tie Set
  • 1x UIS M-M Cord, 2 ft.
  • 1x UIS M-M Cord, 10 ft.

Specifications

Specification Value
Light Dimensions 44.09 × 44.48 × 3.38 in. (112.0 × 113.0 × 8.6 cm)
Driver Dimensions 7.16 × 1.57 in. (18.2 × 4.0 cm)
Flowering Coverage 5 × 5 ft.
Vegetative Coverage 6 × 6 ft.
Diodes Samsung LM301H EVO
Spectrum 395 nm, 660 nm, 730 nm, 3000K, 5000K
Chip Count (Total) 2688
Chip Count (EVO 3000K) 1720
Chip Count (EVO 5000K) 864
Chip Count (Seoul 395 nm) 8
Chip Count (OSRAM 660 nm) 88
Chip Count (OSRAM 730 nm) 8
Efficiency (Single Diode) 3.14 µmol/J
PPFD 2013 µmol/m²/s
Wattage 730 W
Voltage 100–277V AC
Frequency 50/60 Hz
Amps 7.3 A
Controller Schedule Controller
Power Connector Type US Plug (NEMA 1-15 Type-A)
Operating Humidity 35 to 85% RH
Operating Temperature 32 to 140°F
Waterproof Rating IP65
Certification ETL (Certificate #5021417)
Life Expectancy 50,000 Hours

Spectrum

AC Infinity Ionframe EVO8 730W full spectrum LED grow light spectrum chart

The Ionframe EVO8 builds its spectrum from five diode types. 3000K and 5000K Samsung LM301H EVO white diodes form the broad photosynthetic base. OSRAM 660 nm deep red diodes drive flowering, and OSRAM 730 nm far-red diodes add to that output. Seoul 395 nm UV diodes round out the top end. The result is a single fixture that carries plants from seedling through harvest without separate veg and bloom lights.

Warranty

The AC Infinity Ionframe EVO8 is covered by a 2-year limited manufacturer warranty from the original date of purchase.

Frequently Asked Questions

How much space does the Ionframe EVO8 cover? +

The Ionframe EVO8 covers a 5 × 5 ft. footprint in flower and up to 6 × 6 ft. during vegetative growth. That makes it a direct fit for a 5×5 grow tent like the CLOUDLAB 866 (60" × 60" × 80").

What's the difference between the Ionframe EVO8 and EVO10? +

The EVO8 is a 730W fixture covering 5 × 5 ft. in flower and 6 × 6 ft. in veg. The AC Infinity Ionframe EVO10 steps up to 1000W with dual drivers, covering 6 × 6 ft. in flower and 7 × 7 ft. in veg. Both use the same Samsung LM301H EVO diodes and bar-style design.

How high should I hang the Ionframe EVO8 above my plants? +

AC Infinity's starter guide recommends keeping the light about 1.5 ft. above the canopy and adjusting intensity by stage: 40% for seedlings, 80% for veg and 100% for flower. If you prefer a fixed position, hang it at peak height and run it at 100% throughout. Watch your plants' response and fine-tune for your strain.

Does the Ionframe EVO8 have Wi-Fi app control? +

The included Schedule Controller handles on/off cycles, 10 intensity levels and sunrise/sunset dimming on its own, without Wi-Fi. For app control, connect the light to a UIS™ smart controller such as CONTROLLER 69 PRO (sold separately). That unlocks remote access, automation and grow recipes through the AC Infinity app.

What is the benefit of the detachable LED driver? +

The driver detaches from the fixture and can be mounted on the light's frame, on a tent wall or outside the tent using the included brackets and driver cord. Moving it outside keeps driver heat out of your grow space and eases the load on ventilation such as an AC Infinity Cloudline T8 fan.

Can I connect multiple Ionframe lights together? +

Yes. Using a daisy-chain adapter (sold separately for the EVO8), each port on a UIS controller can run up to 16 Ionframe lights, and AC Infinity rates the system for up to 80 lights in total. All lights in a chain must be from the same series. For more on building a full system, see our guide to AC Infinity grow tents and air filter kits.

Will my schedule reset after a power outage? +

No. The Schedule Controller has an internal battery that keeps the clock running, so it won't revert to 00:00 when power is cut. Your schedule continues as programmed once power returns.
