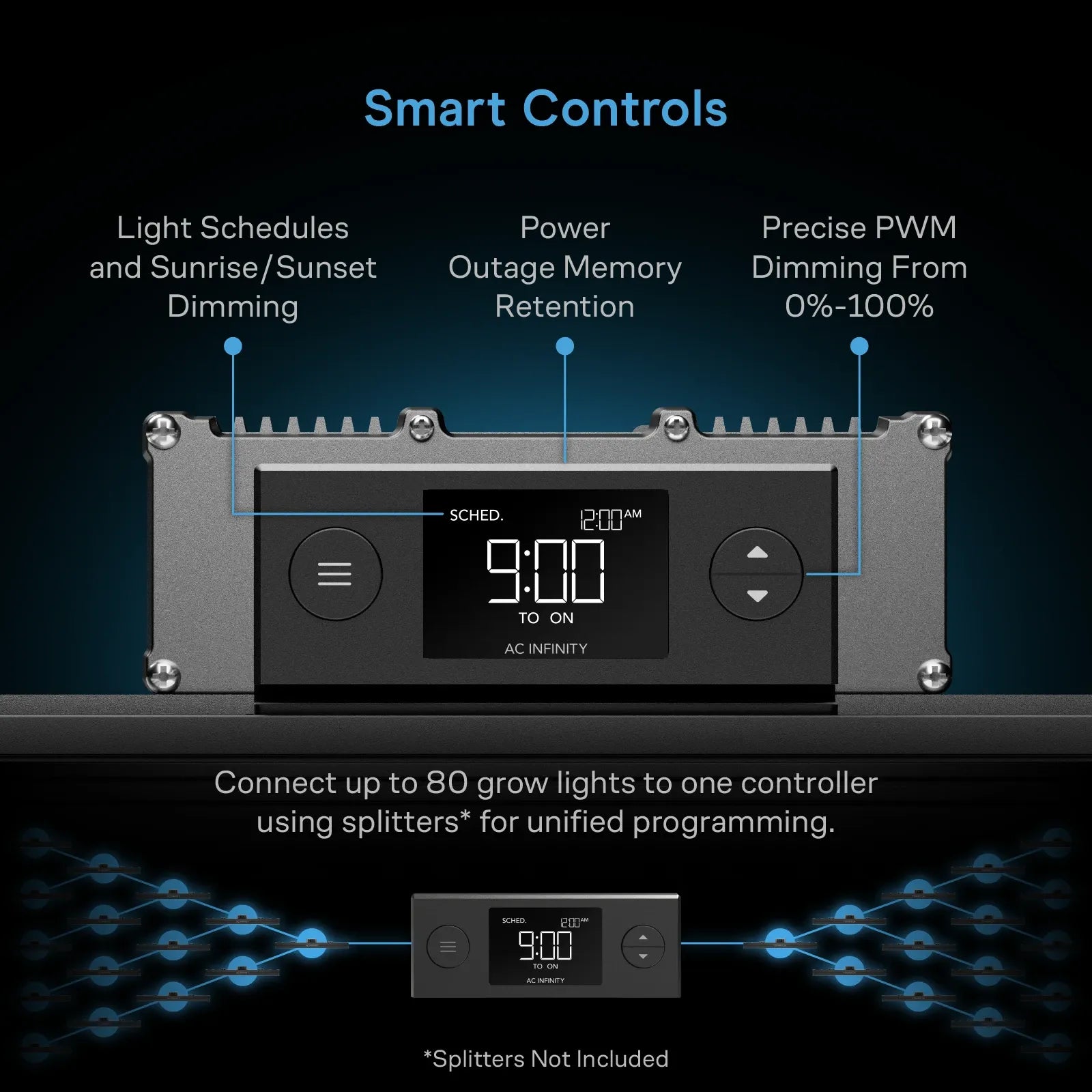

AC Infinity Ionprime 6 controller with digital display showing "9:00 TO ON" and illuminated plant lights connected.
AC Infinity Ionboard 6: Daisy-chain multiple grow lights from one power source.
AC Infinity Ionprime 6 500W LED grow light with a black frame and multiple light panels.
AC Infinity Ionprime 6: 500W LED grow light specs & dimensions. Features 4'x4' coverage, 2312 diodes.
AC Infinity Ionboard 6 500W LED grow light with optimized spectrum for plant growth: flowering, germination, yields.
AC Infinity Ionprime 6 500W LED grow light PAR map with numbers showing light intensity at different heights.
AC Infinity Ionprime 6 LED grow light with adjustable bars for targeted vs. dispersed light on plants.
AC Infinity Ionprime 6 500W LED grow light with full-spectrum, customizable coverage, and smart controls.
AC Infinity Ionprime 6 controller with digital display showing
AC Infinity Ionboard 6: Daisy-chain multiple grow lights from one power source.
Ask Sage about this product

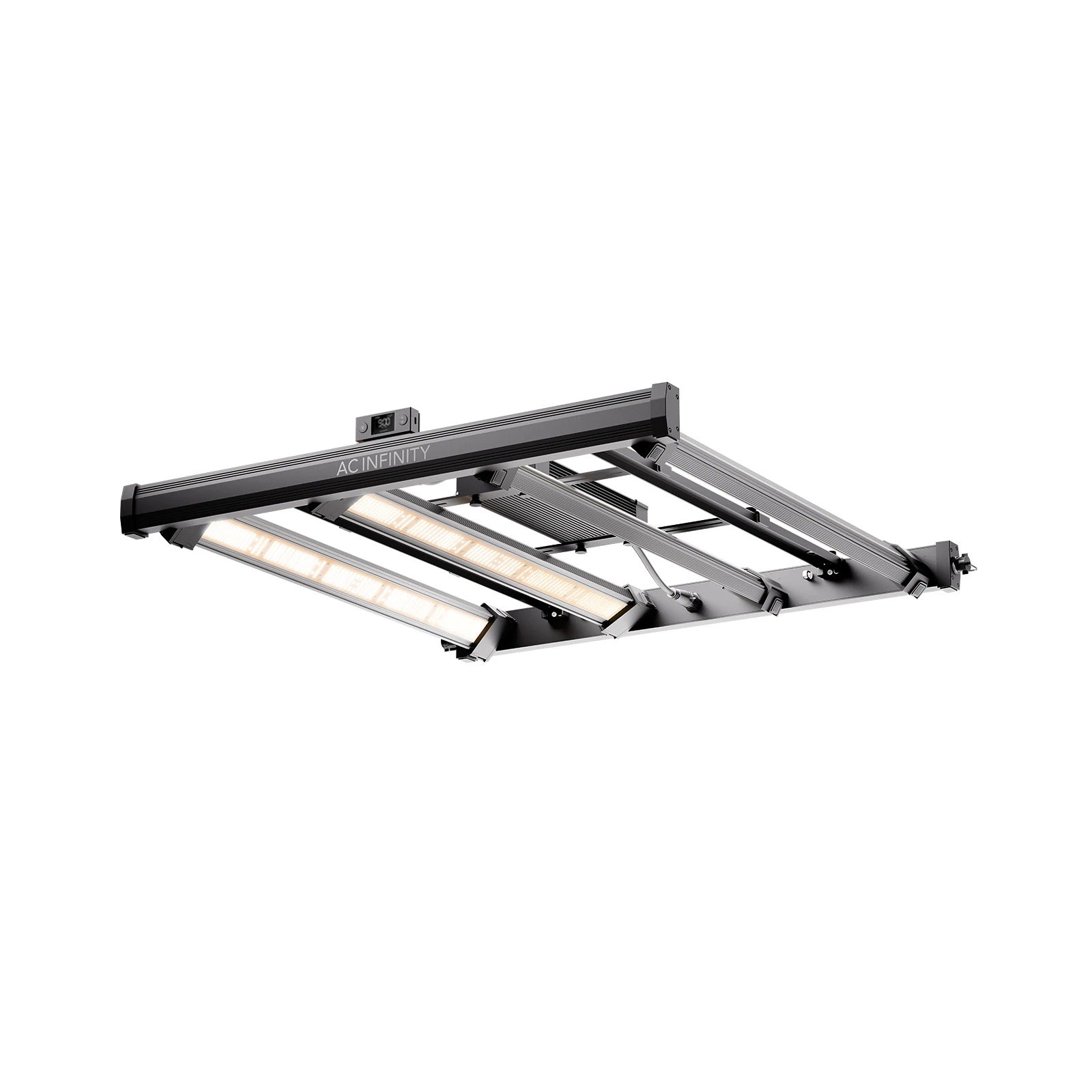

AC Infinity Ionprime 6 500W Full Spectrum LED Grow Light

Official AC Infinity Dealer Model: AC-IF6P
$599.00 USD
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
Looking to finance equipment under your corporation? Learn more about Business Financing
  • Delivers 2,123 µmol/m²/s at center and 1,250+ µmol/m²/s across the mid-canopy at 12 inches.
  • Four-bar design with 180-degree adjustability for direct light targeting.
  • Full-spectrum output includes 395nm UV, 660nm deep red, and 730nm far red diodes.
  • View More Details

Earn 599 points for shopping and get $5.99 off your next order. Join Harvest Club for free.
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
(360) 800-5535 Live Chat Available now
Free Shipping On Most Items* To the lower 48
Transparent Pricing Backed w/ price match guarantee
4.8/5 average Top Quality Store on Google
Secure Checkout SSL encrypted payments

Send Us a Message
Ask Sage about this product
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Hands-On Evaluation

  • You are planning a 4' x 4' canopy layout because your current fixed-bar light leaves your tent corners dim and underlit.
  • You are upgrading to integrated dimming and scheduling because manual timer swaps keep disrupting your light cycles.

  • The 180 degree bar adjustment is the only way to get true edge-to-edge coverage in a 4x4 area without hot spots.
  • We like that the individual bars are replaceable since it saves you from replacing a whole fixture if one bar fails.

  • Growers who swapped from fixed frames report they no longer see stunted outer edges in their flowering canopy.
  • Users with limited power capacity appreciate the ability to daisy-chain multiple units on a single source.

AC Infinity Ionprime 6 500W Full Spectrum LED Grow Light

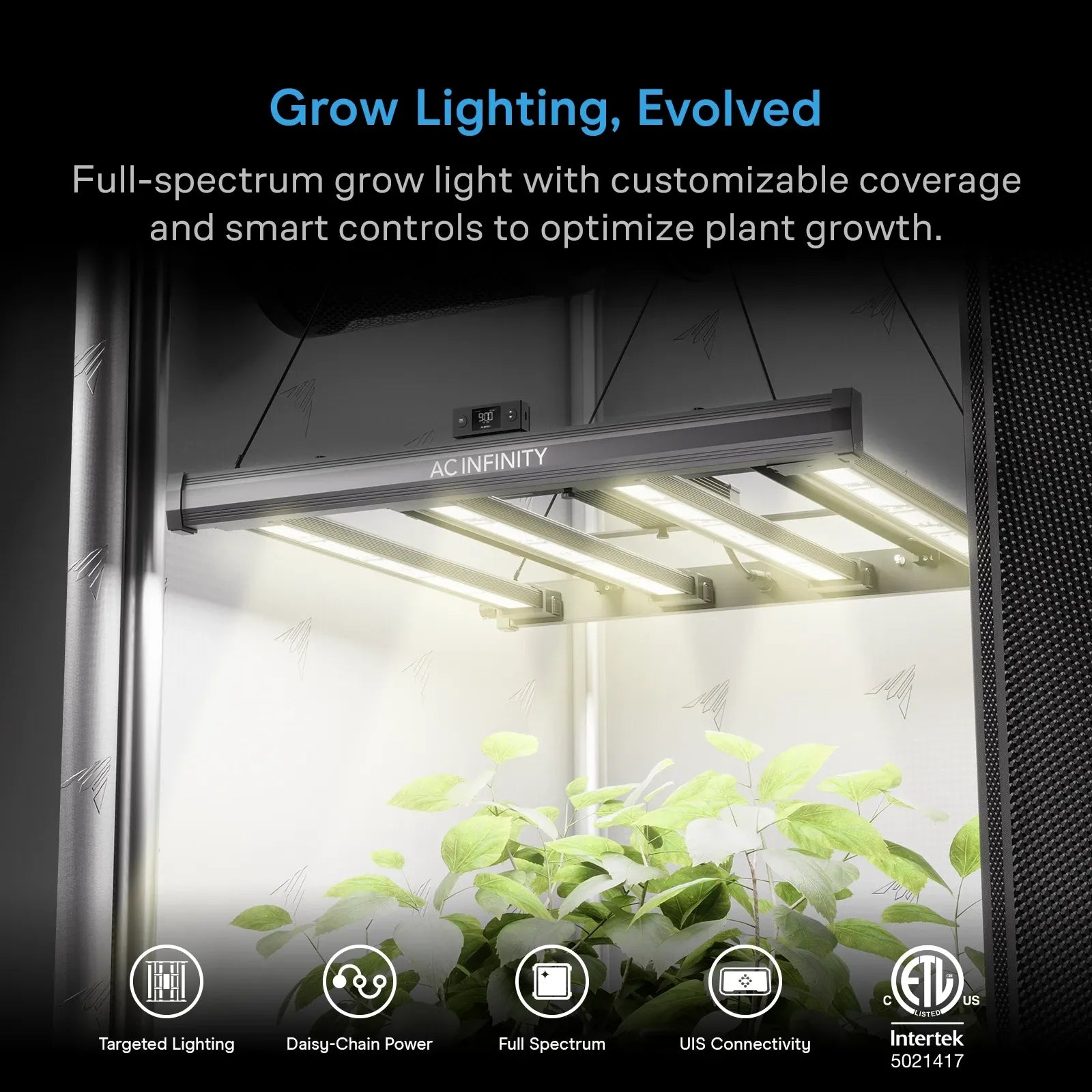

Fixed-bar LED fixtures put their output wherever the frame puts it, which leaves tent corners underlit and the center prone to hot spots. The AC Infinity Ionprime 6 fixes that at the bar level: each of its four LED bars tilts up to 180°, so you can angle light toward the edges of a 4' × 4' flowering canopy instead of raising or lowering the whole fixture. At 12" above the canopy, the Ionprime 6 delivers 2,123 µmol/m²/s at center and holds 1,250+ µmol/m²/s across the mid-canopy.

The Ionprime 6 draws 500W through 2,312 diodes in a five-band spectrum: 3000K and 5000K white for full-cycle growth, 660nm deep red for flowering, 730nm far red for yield, and 395nm UV to stimulate secondary metabolites. Algorithmically spaced diodes and individually replaceable bars keep output even, and a single failed bar never takes down the whole light.

An onboard Schedule Controller handles 0–100% PWM dimming, custom schedules, sunrise/sunset transitions, and power-outage memory out of the box. Connect a UIS controller for Wi-Fi app control, or scale up by daisy-chaining as many as 80 lights to one controller through UIS splitters and adapters. Detachable drivers let multiple fixtures run from a single power source.

Features

AC Infinity Ionprime 6 500W LED grow light with adjustable-angle light bars
AC Infinity Ionprime 6 light bars angled for even 4x4 canopy coverage
AC Infinity Ionprime 6 onboard schedule controller with dimming and sunrise/sunset settings
AC Infinity Ionprime 6 daisy-chain setup with detachable driver
📐

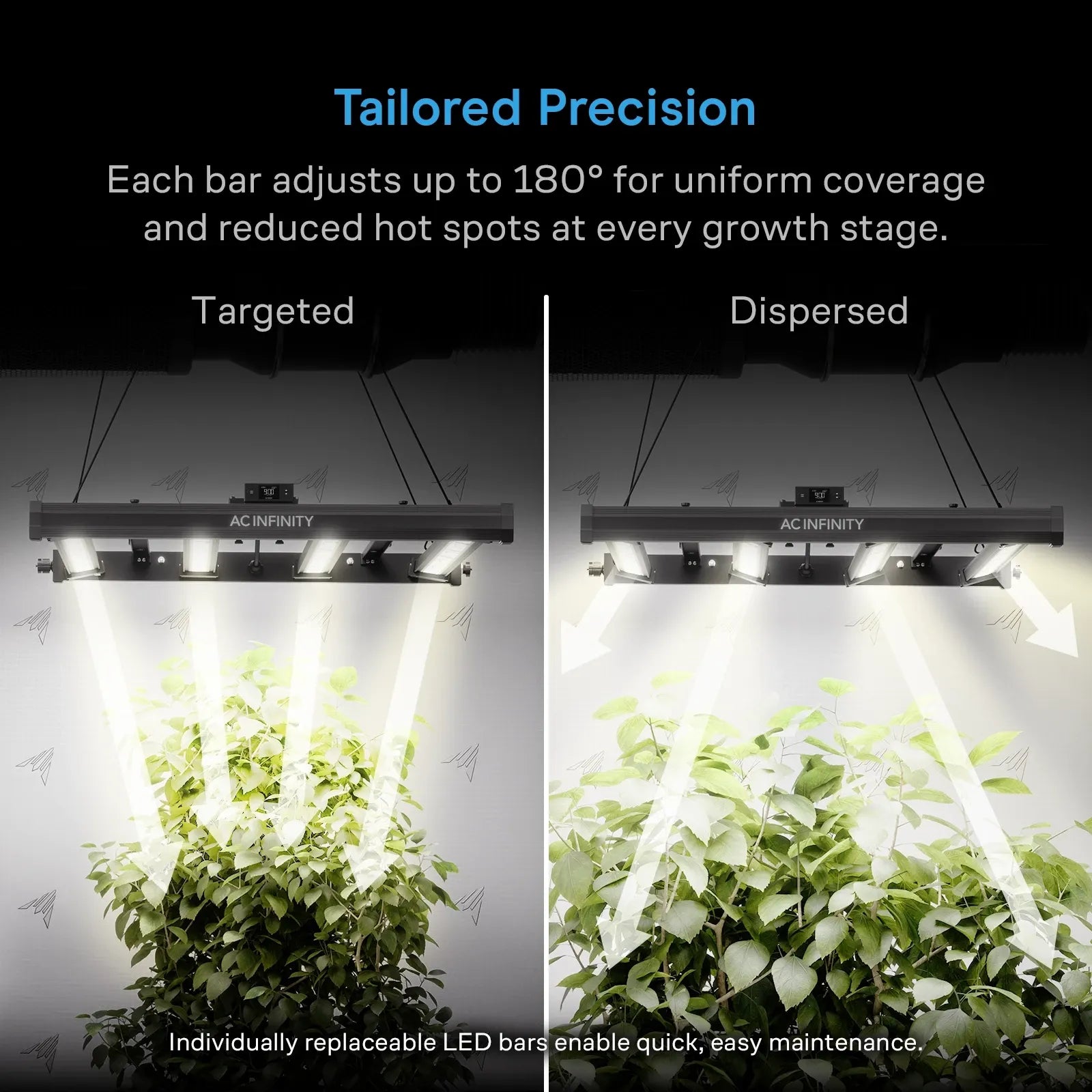

180° Adjustable Bars

Angle each of the four bars independently to push light to the edges and eliminate hot spots.

🎯
Uniform PAR Map

Algorithmically spaced diodes reach 2,123 µmol/m²/s at center from 12" with deep canopy penetration.

🌈
Five-Band Spectrum

3000K and 5000K white plus 395nm UV, 660nm deep red, and 730nm far red.

⏱️
Onboard Scheduling

0–100% PWM dimming, custom schedules, sunrise/sunset transitions, and power-outage memory included.

📱
UIS Smart Integration

Pair with an AC Infinity UIS controller for remote Wi-Fi app control and automation.

🔗
Scales to 80 Lights

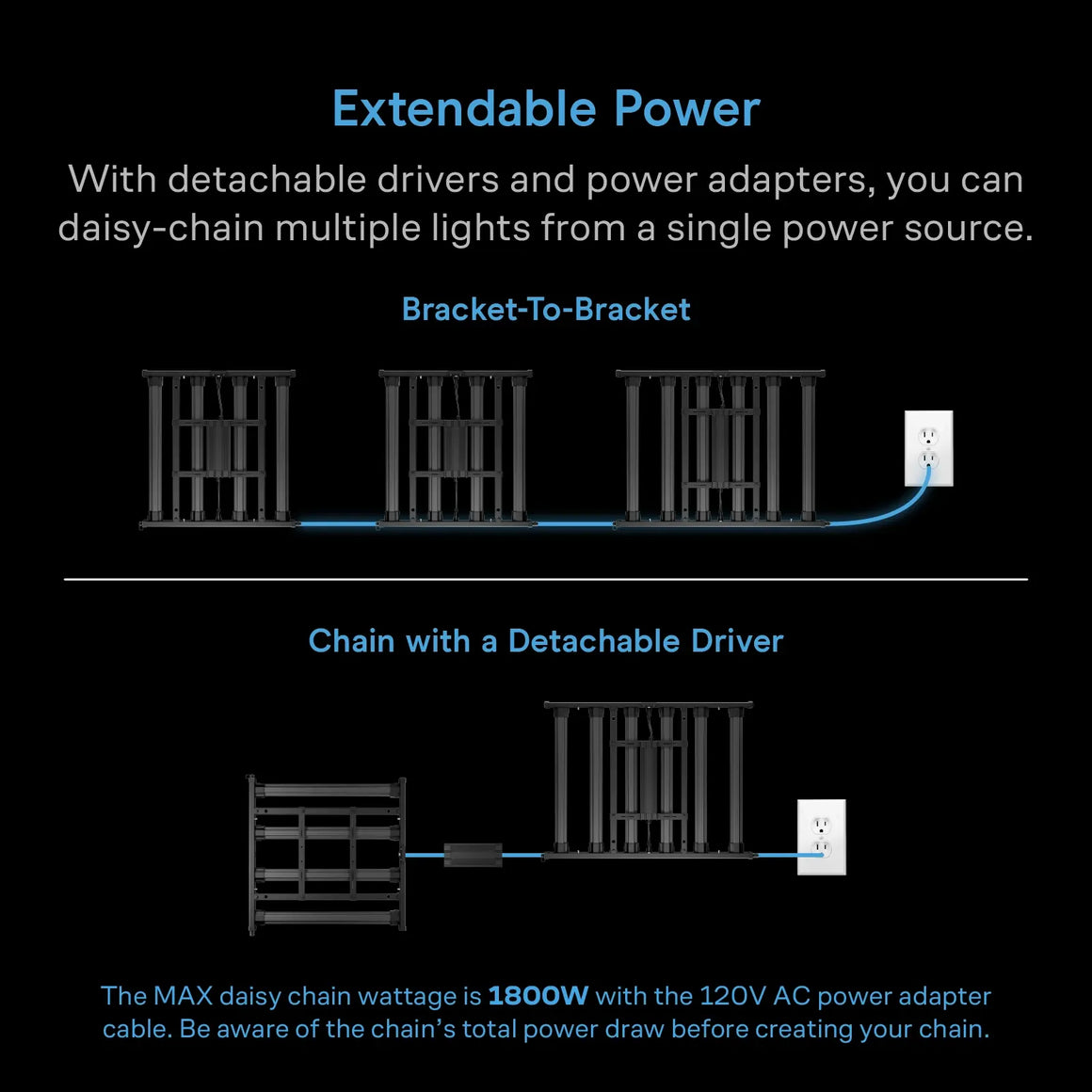

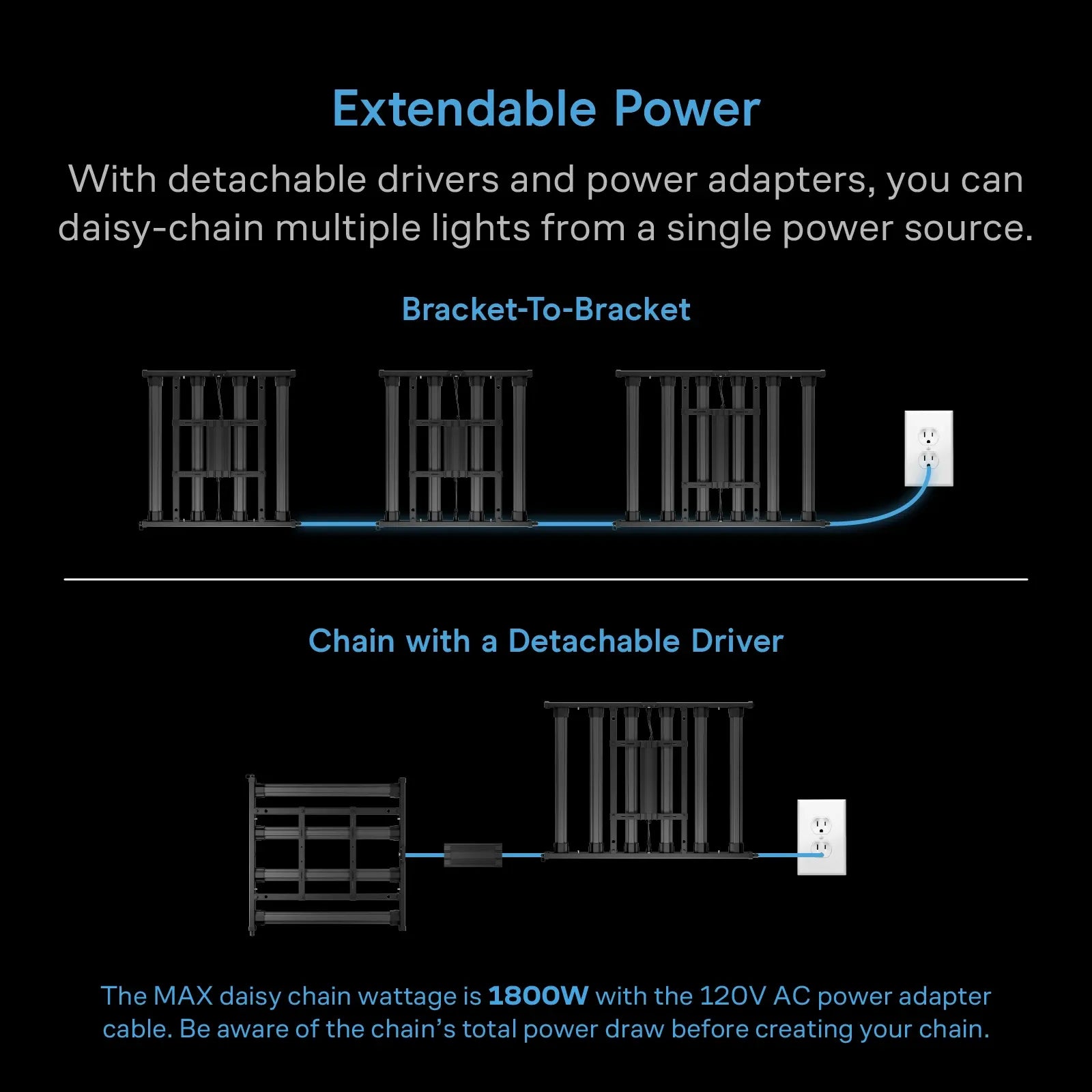

Daisy-chain through UIS splitters and adapters; detachable drivers run multiple lights from one source.

What's Included

  • 4x LED Bars
  • 1x AC Bracket
  • 1x DC Bracket
  • 2x Short Driver Brackets
  • 2x Long Driver Brackets
  • 1x LED Driver
  • 1x Schedule Controller
  • 1x Controller Bracket
  • 1x 120V AC Power Cable
  • 1x AC Extension Cable
  • 1x DC Extension Cable
  • 1x UIS M-M Cord, 10 ft
  • 1x UIS M-M Cord, 2 ft
  • 2x Rope Clips
  • 2x Stainless-Steel Wire Hangers
  • 4x M5×8 Driver Screws (Round Head)
  • 8x M4×6 Driver Screws (Round Head)
  • 4x M4×6 Driver Screws (Flat Head)
  • 4x Wood Screws (Driver)
  • 2x M3×6 Controller Bolts (Flat Head)
  • 2x Controller Plate Bolt Sets
  • 2x Wood Screws (Controller)
  • 4x Hook and Loop Ties
  • 1x Wire Tie

Specifications

Specification Value
Wattage 500W
Coverage (Flowering) 4' × 4' (122 × 122 cm)
Coverage (Vegetative) 5' × 5'
Coverage (Supplemental CO₂, 1200+ PPM) 3' × 3'
PPFD (Center, 12" Height) 2,123 µmol/m²/s
Efficiency (Single Diode) 2.81 µmol/J
Spectrum 3000K, 5000K, 395nm, 660nm, 730nm
Total Diodes 2,312
Diode Breakdown 1,280 × 3000K; 992 × 5000K; 32 × Everlight 660nm; 4 × Seoul 395nm; 4 × Bridgelux 730nm
LED Bars 4 (individually replaceable)
Bar Angle Adjustment Up to 180°
Dimming 0–100% PWM
Controller Schedule Controller (UIS compatible)
Input Voltage 100–277V AC
Frequency 50/60 Hz
Power Connector US Plug (NEMA 1-15 Type-A)
Power Cable Max Load 1,800W (120V AC)
Power Cable Length 2 ft (up to 12 ft with extension cord)

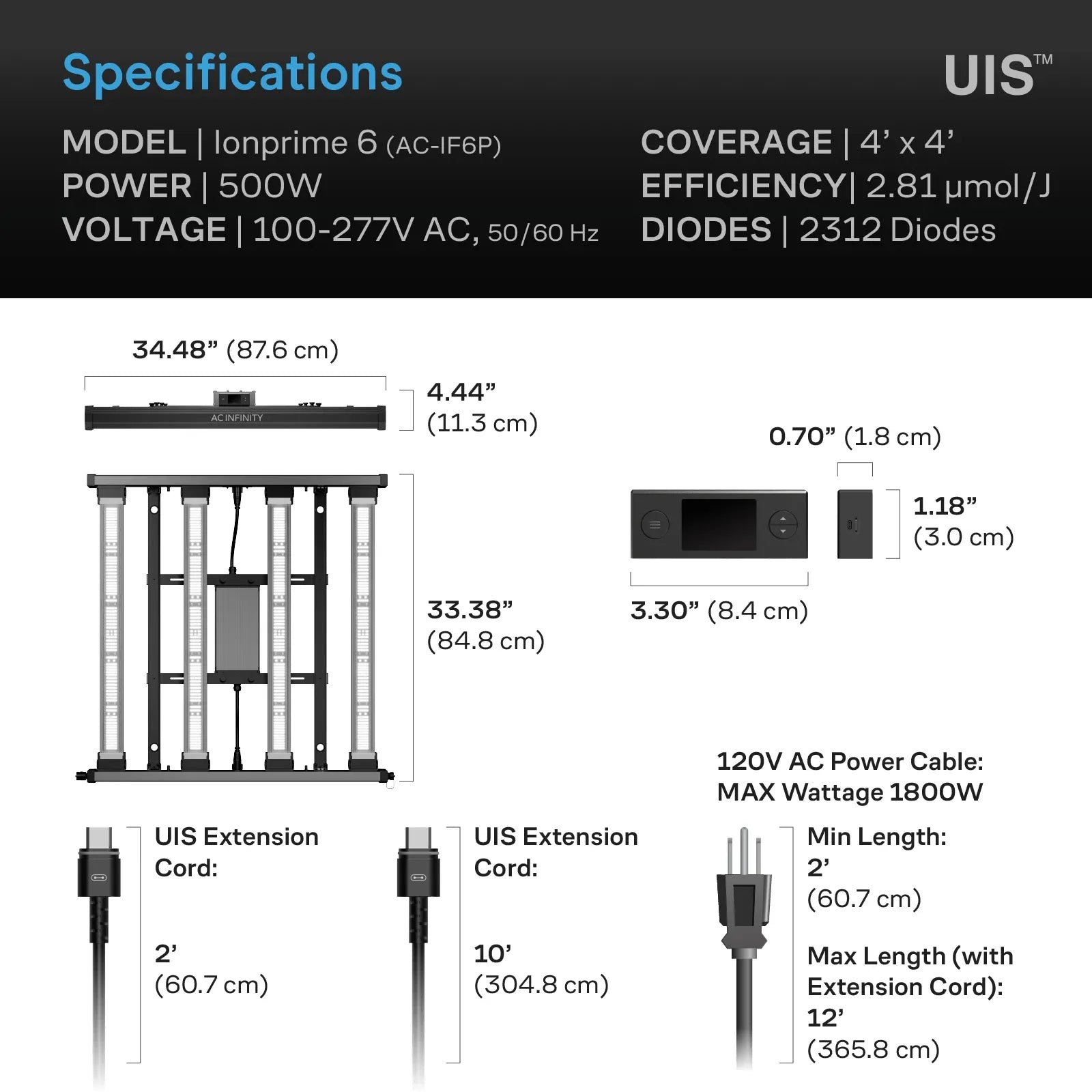

Light Dimensions 33.38 × 34.48 × 4.44 in. (84.8 × 87.6 × 11.3 cm)
Controller Dimensions 3.30 × 1.18 × 0.70 in. (8.4 × 3.0 × 1.8 cm)
Operating Temperature 32–140°F
Operating Humidity 35–85% RH

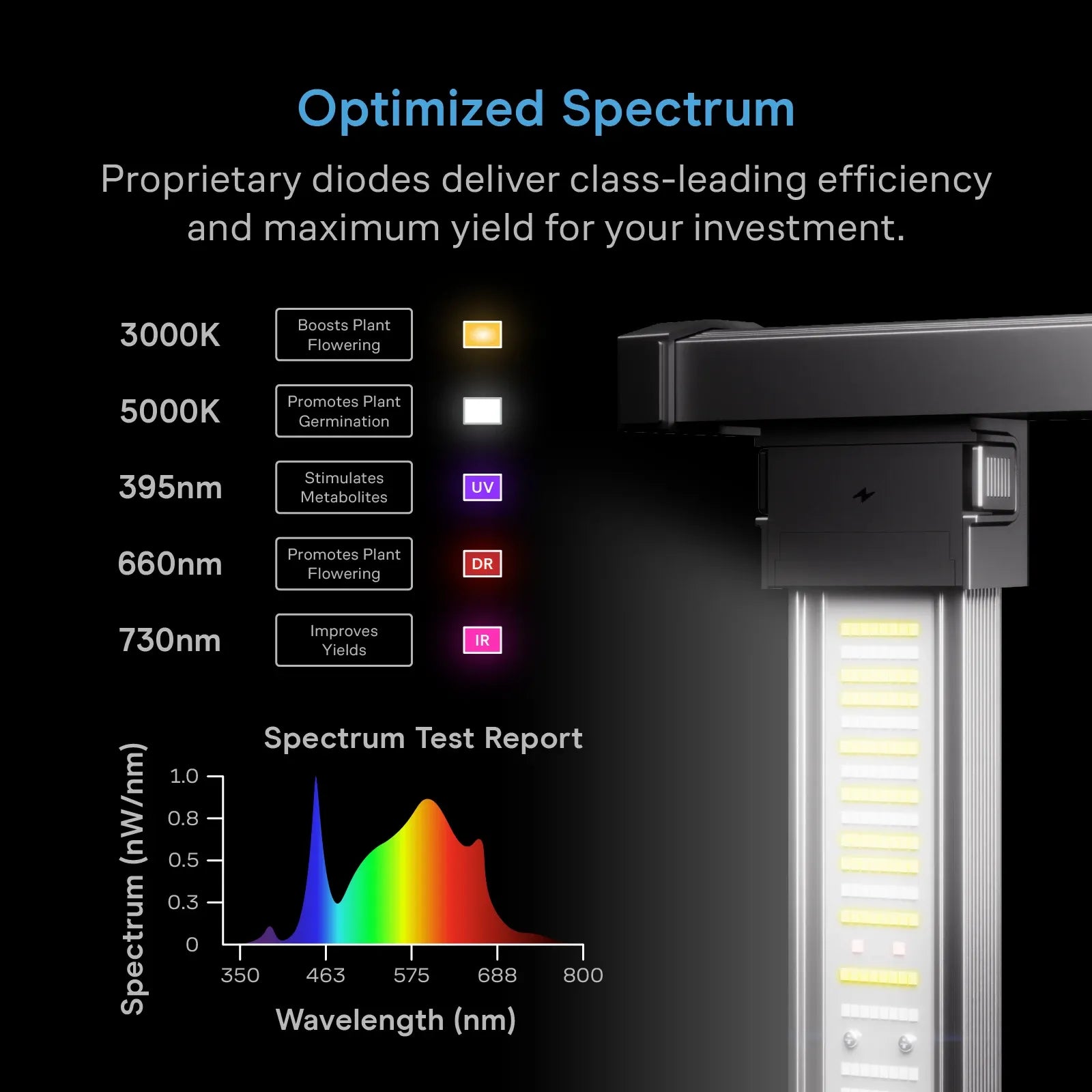

Spectrum Analysis

1.0 0.75 0.5 0.25 0 350 450 550 650 750 Wavelength (nm) Relative Intensity
3000K – Flowering 5000K – Germination & Veg 395nm UV – Metabolites 660nm Deep Red – Flowering 730nm Far Red – Yield

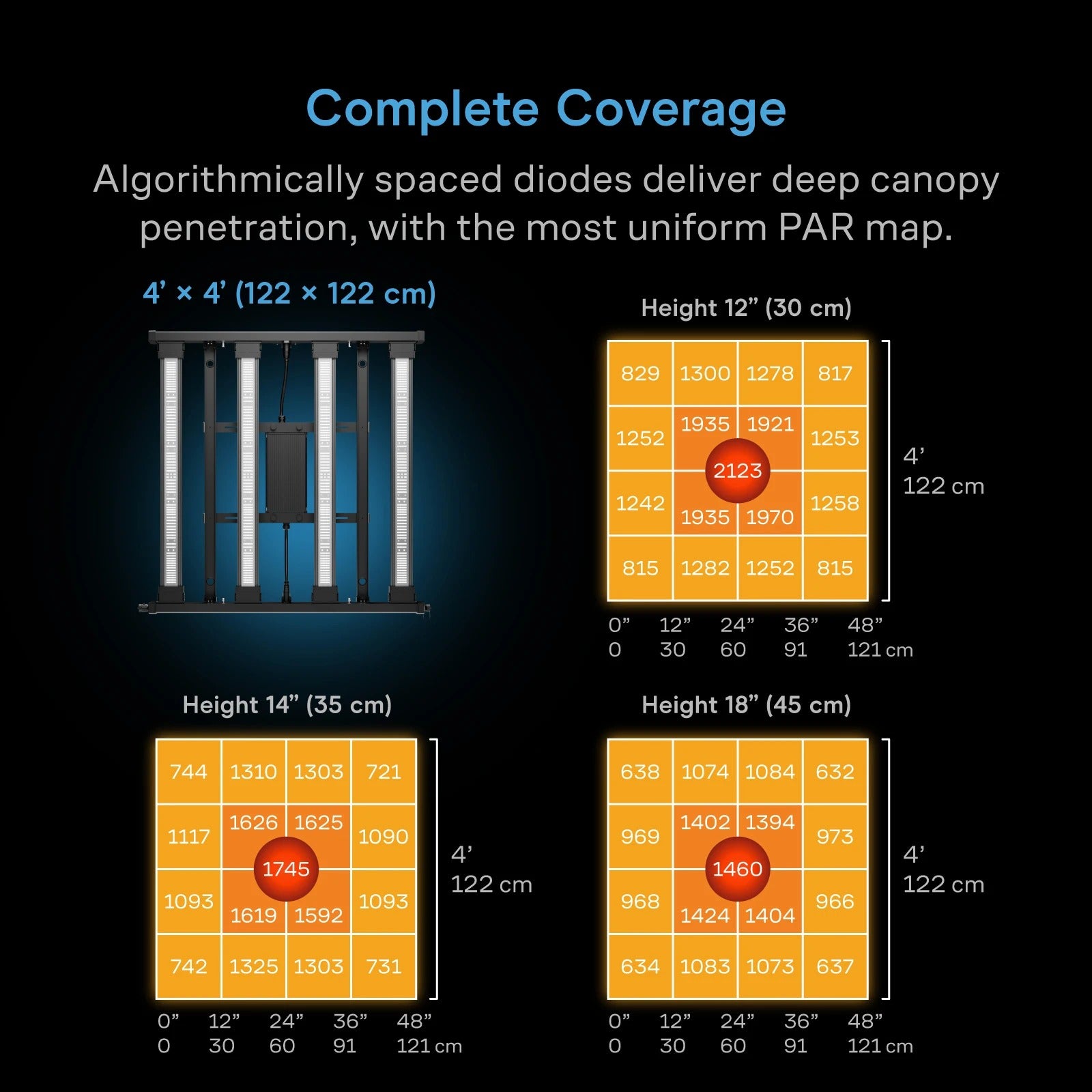

PPFD Map

Height 12" (30 cm)

829
1,300
1,278
817
1,252
1,935
1,921
1,253
1,242
1,935
1,970
1,258
815
1,282
1,252
815
2,123

Center: 2,123  |  16-point avg: 1,322

Height 14" (35 cm)

744
1,310
1,303
721
1,117
1,626
1,625
1,090
1,093
1,619
1,592
1,093
742
1,325
1,303
731
1,745

Center: 1,745  |  16-point avg: 1,190

Height 18" (45 cm)

638
1,074
1,084
632
969
1,402
1,394
973
968
1,424
1,404
966
634
1,083
1,073
637
1,460

Center: 1,460  |  16-point avg: 1,022

PPFD in µmol/m²/s across a 4' × 4' (122 × 122 cm) footprint at 100% output.

Warranty

The AC Infinity Ionprime 6 is covered by a 2-year limited manufacturer warranty from the original date of purchase.

Frequently Asked Questions

What size grow space does the Ionprime 6 cover? +

The Ionprime 6 covers a 4' × 4' area in flowering and up to 5' × 5' in the vegetative stage. In sealed rooms running CO₂ enrichment at 1200+ PPM, AC Infinity recommends a 3' × 3' footprint to take advantage of the higher light demand.

How high should I hang the Ionprime 6 above my plants? +

AC Infinity's starter guide suggests about 1.5 ft from the canopy, running 40% intensity for seedlings, 80% in veg, and 100% in flower. For reference, center PPFD measures 2,123 µmol/m²/s at 12", 1,745 at 14", and 1,460 at 18". Adjust for your strain and how the plants respond.

Why do the light bars adjust, and how do I use that? +

Each bar tilts up to 180°, so you can direct light where the canopy needs it rather than moving the whole fixture. Angling the outer bars outward helps fill tent corners and edges, while keeping them straight concentrates intensity in the center and reduces hot spots on uneven canopies.

Can I control the Ionprime 6 from my phone? +

The included Schedule Controller handles dimming, schedules, and sunrise/sunset transitions directly on the light, but it does not connect to Wi-Fi. For app control and automation, connect the Ionprime 6 to an AC Infinity UIS controller (sold separately).

How many Ionprime lights can I connect together? +

Up to 80 grow lights can be linked to a single controller using UIS splitters and adapters. Lights can be daisy-chained bracket-to-bracket or driver-to-driver, and the detachable drivers let multiple fixtures share one power source. The included 120V power cable is rated for a maximum combined load of 1,800W.

What do the UV and far-red diodes do? +

The 395nm UV diodes stimulate secondary metabolite production, and the 730nm far-red diodes support higher yields. They work alongside 660nm deep red for flowering and a 3000K/5000K white base that covers the full growth cycle from germination through harvest.

Can the Ionprime 6 run on 208–277V power? +

The Ionprime 6 driver accepts 100–277V AC at 50/60 Hz. The power cable included in the box is a 120V US plug, so contact our team to confirm the correct cord before connecting to a higher-voltage circuit.
