AC Infinity Ionframe A7 700W Commercial Full Spectrum LED Grow Light

Official AC Infinity Dealer Model: AC-IF7X
$499.00 USD
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
Looking to finance equipment under your corporation? Learn more about Business Financing
  • Covers a 4 ft by 5 ft area with an average 1,270 µmol/m²/s intensity across a 4 ft by 4 ft footprint.
  • Uses an IP67-rated bar design to handle up to 85% relative humidity in demanding commercial rooms.
  • Operates via RJ11 daisy-chaining for synchronized room control from a single controller.
  • View More Details

Earn 499 points for shopping and get $4.99 off your next order. Join Harvest Club for free.
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
(360) 800-5535 Live Chat Available now
Free Shipping On Most Items* To the lower 48
Transparent Pricing Backed w/ price match guarantee
4.8/5 average Top Quality Store on Google
Secure Checkout SSL encrypted payments

Send Us a Message
Ask Sage about this product
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Hands-On Evaluation

  • You are scaling up your canopy because manual intensity adjustments on multiple fixtures are burning too many hours.
  • You are switching to a daisy-chain setup because your current wiring makes it impossible to run one program for the room.

  • The detached driver setup is a life-saver for keeping canopy temperatures in check without extra ducting.
  • The daisy-chaining is simple because the RJ11 standard allows for a direct link to your existing smart controllers.

  • Managers who moved to this light say they stopped dealing with heat spikes in their mid-summer crop cycles.
  • Facility operators who linked these to a central controller say they saved hours each week on manual light scheduling.

AC Infinity Ionframe A7 700W Commercial Full Spectrum LED Grow Light

Commercial rooms are hard on lighting: constant humidity, heat buildup, and dozens of fixtures that all need to run on the same program. The AC Infinity Ionframe A7 is built for that environment. It packs 700W and 1,808 diodes into a single 42.91" IP67-rated bar that covers up to 4' × 5' per light. At 12" it delivers 2,951 µmol/m²/s at center and averages 1,270 µmol/m²/s across a 4' × 4' footprint.

The Ionframe A7 runs a deliberately efficient three-band spectrum: 1,400 white 5000K diodes, 280 warm 3000K diodes, and 128 660nm deep red diodes. That mix supports germination while driving a strong red peak for flowering, at 2.8 µmol/J per diode. A thick aluminum heatsink and a detached driver keep heat off the diodes, and the light is rated for 50,000 hours and operation up to 85% RH.

Scaling a room is straightforward. Ionframe A7 fixtures daisy-chain over RJ-11, the commercial market standard, using the included RJ11 adapter and extension cord, so every light in the chain shares one program. The included RJ11-UIS adapter connects the Ionframe A7 to AC Infinity smart controllers for app-based automation, scheduling, and climate data.

Features

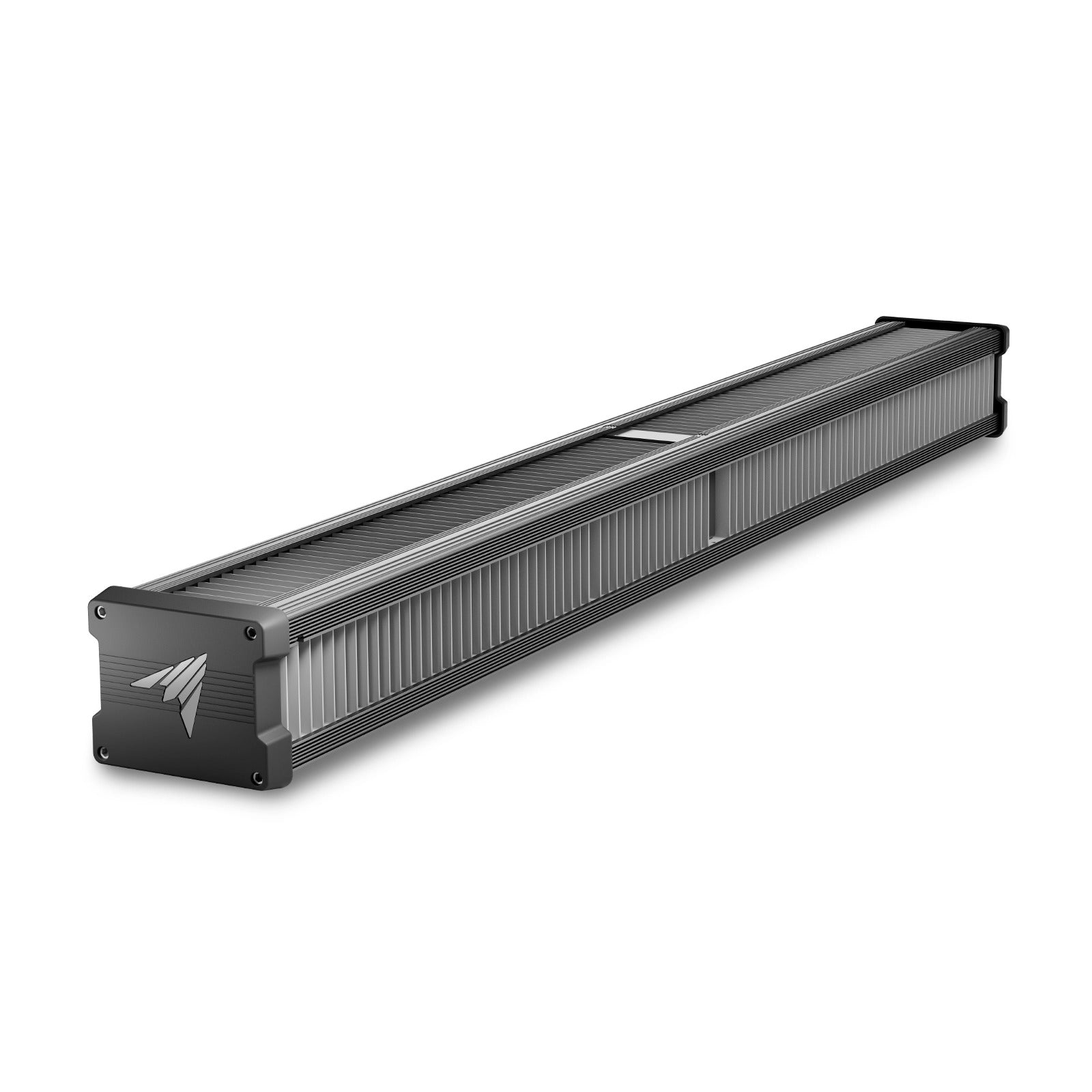

AC Infinity Ionframe A7 700W commercial LED bar grow light
AC Infinity Ionframe A7 IP67 bar light with aluminum heatsink
AC Infinity Ionframe A7 RJ-11 daisy-chain connection
AC Infinity Ionframe A7 LED grow light with detached driver
💡

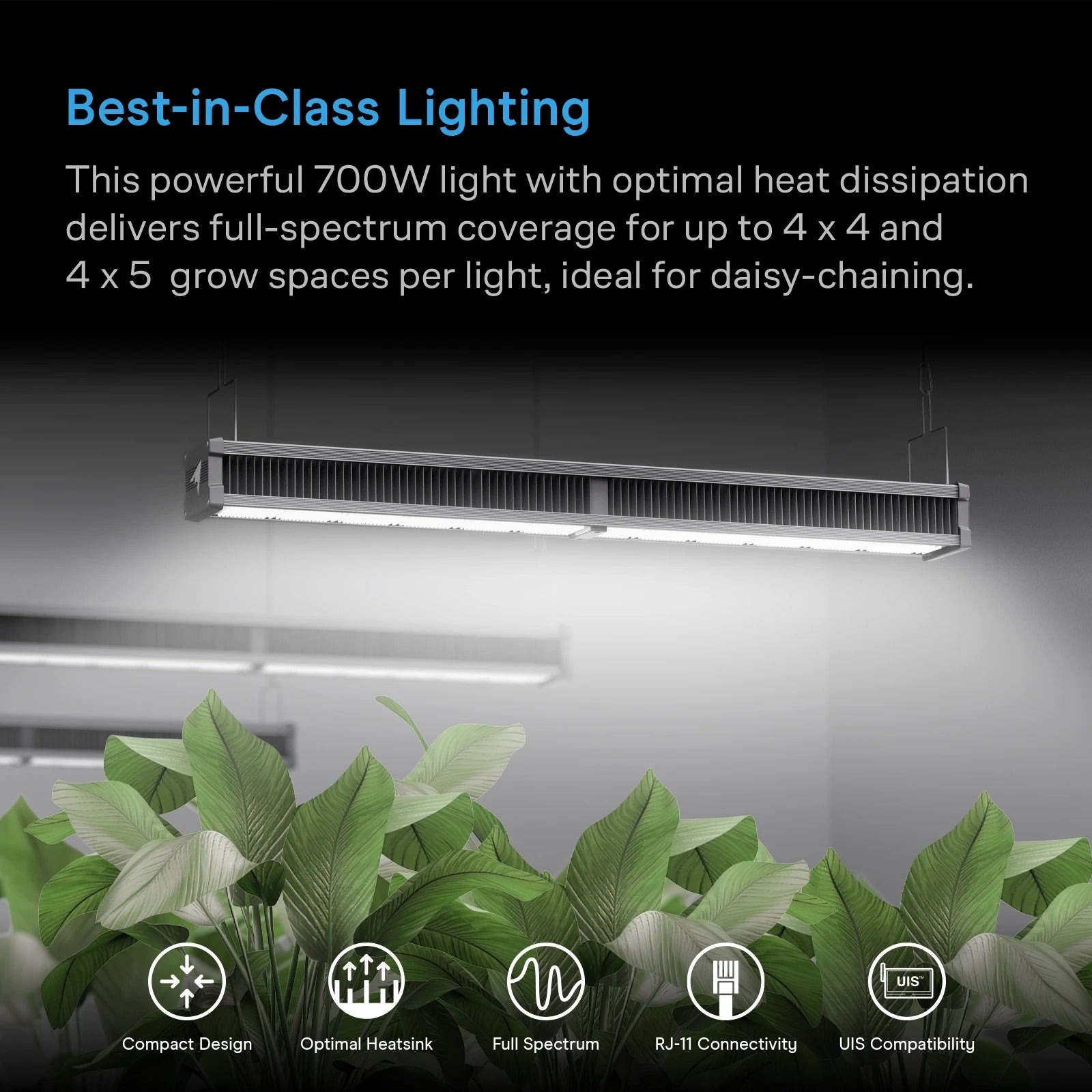

Up to 4' × 5' Per Light

700W and 1,808 diodes reach 2,951 µmol/m²/s at center from 12".

💧

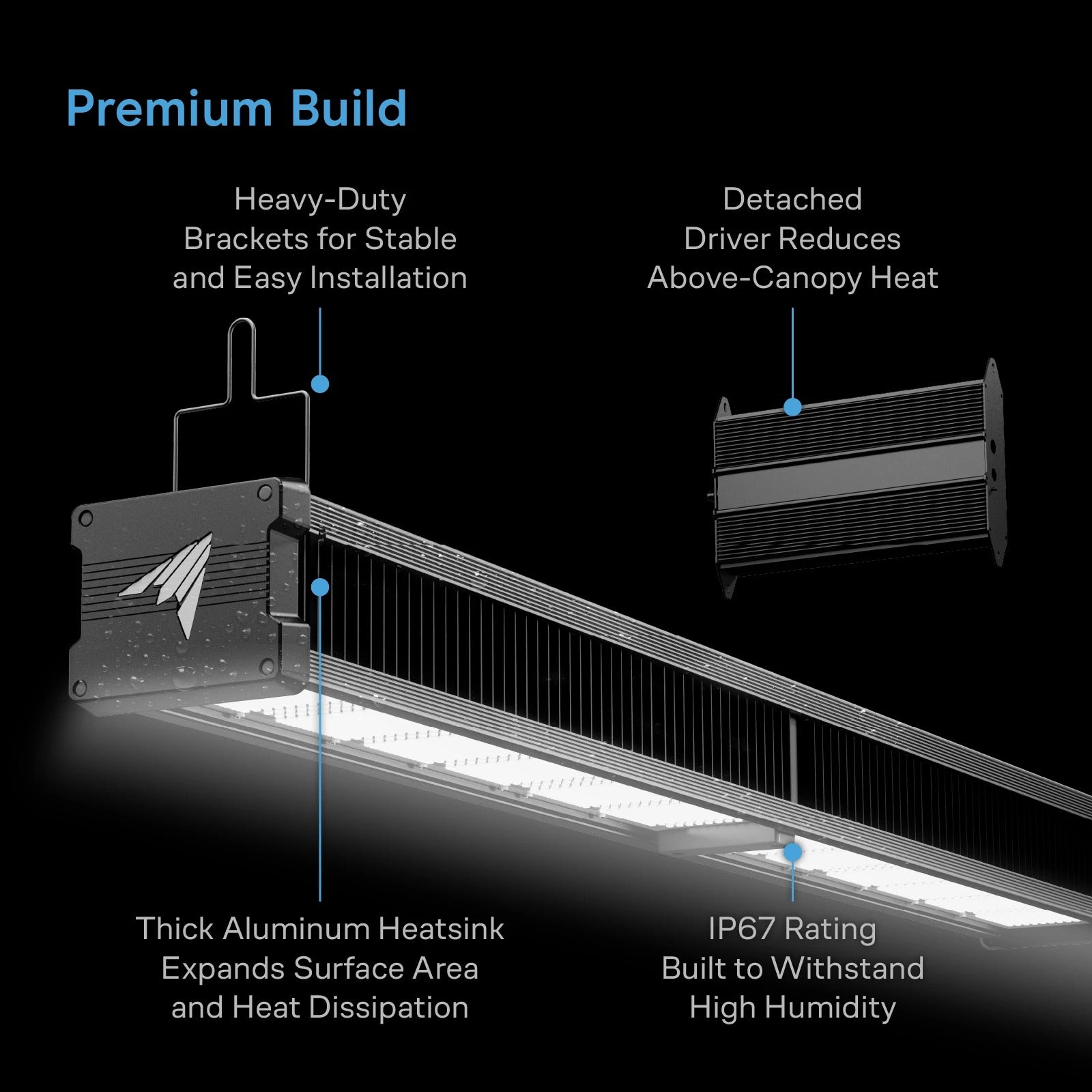

IP67-Rated Build

Sealed construction stands up to high-humidity grow rooms up to 85% RH.

🌡️
Thermal-First Design

Thick aluminum heatsink and detached driver reduce heat stress for a 50,000-hour lifespan.

🌱
Red-Forward Spectrum

5000K and 3000K white with a dominant 660nm deep red peak at 2.8 µmol/J.

🔗

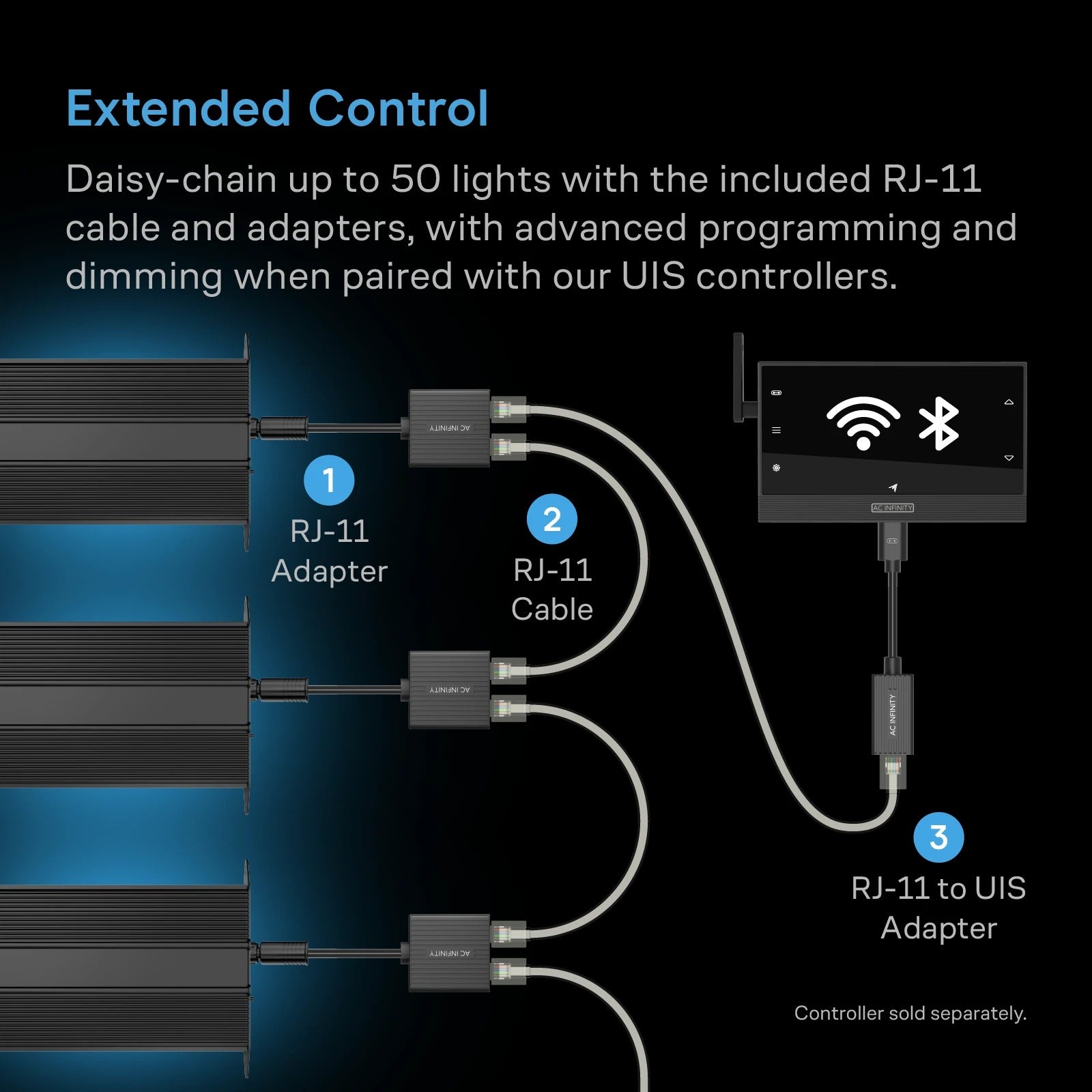

RJ-11 Daisy Chain

Connect fixtures in series on the commercial standard and run a whole room on one program.

📱
UIS Adapter Included

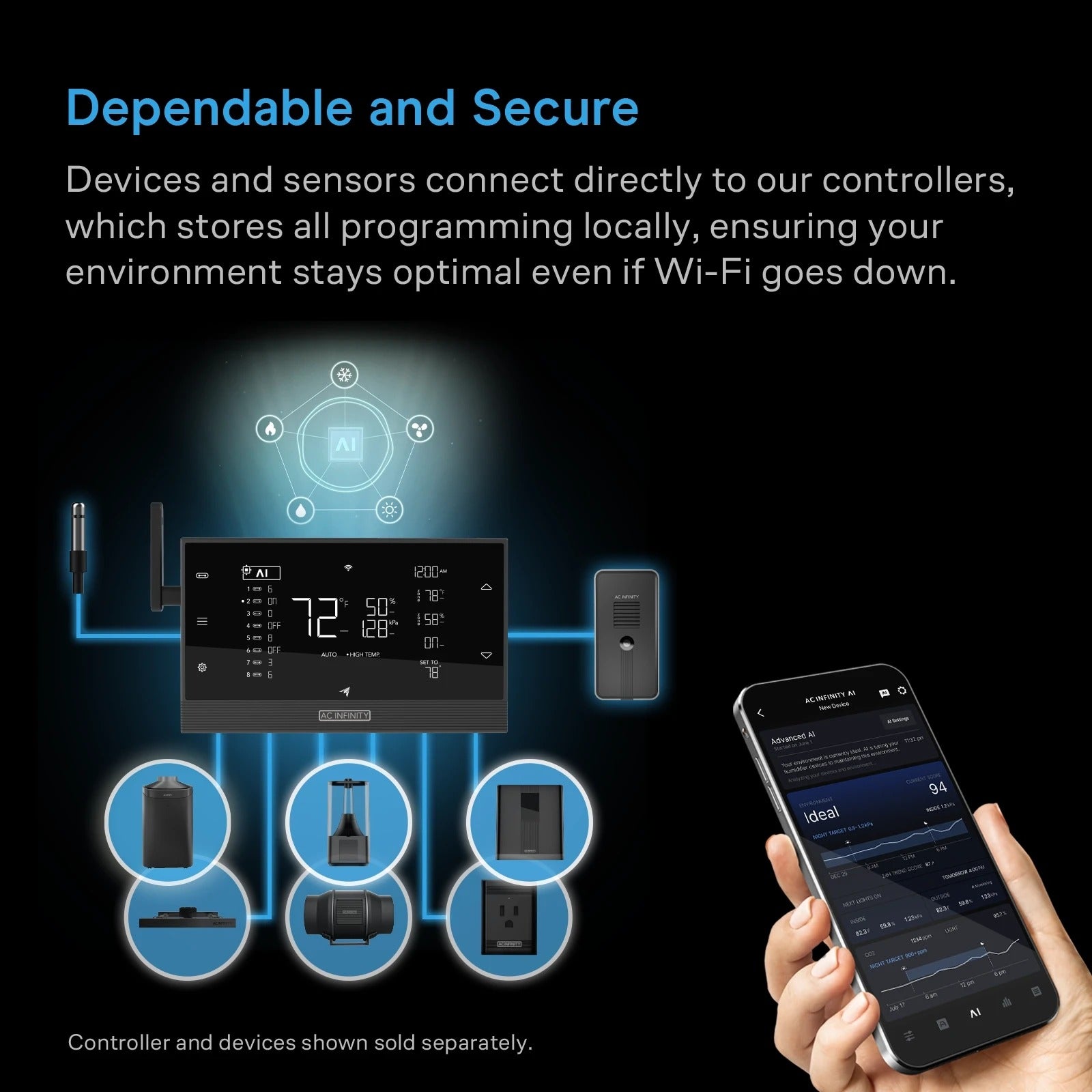

Link to AC Infinity smart controllers for app automation, scheduling, and climate data.

What's Included

  • 1x Bar Light
  • 1x LED Driver
  • 1x Driver Cord
  • 1x RJ11 Adapter
  • 1x RJ11 Extension Cord, 10 ft
  • 1x RJ11-UIS Adapter
  • 2x Hanging Hooks (A)
  • 2x Hanging Hooks (B)
  • 4x Rope Clips
  • 4x Wire Ties
  • 4x Hook and Loop Ties

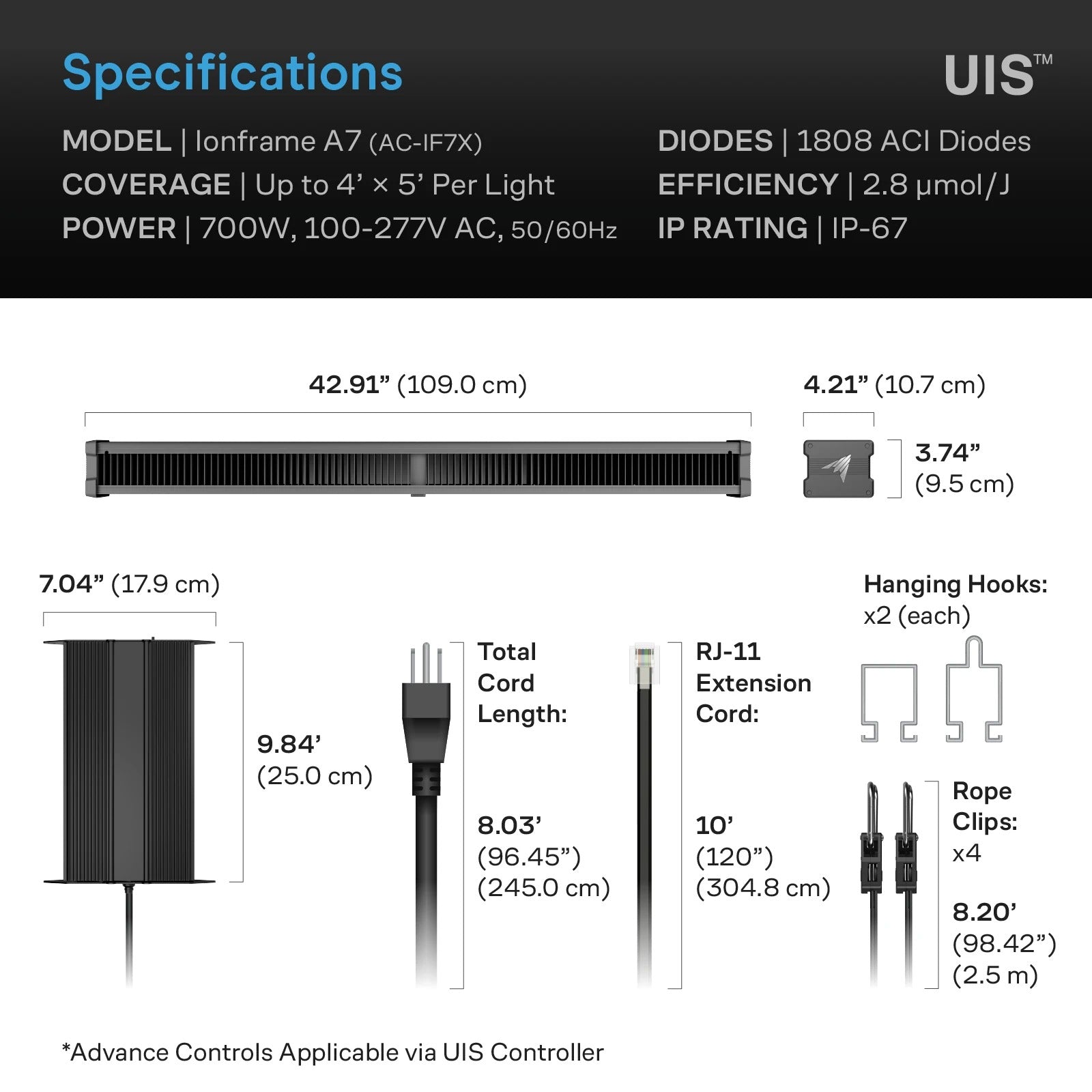

Specifications

Specification Value
Wattage 700W
Coverage Up to 4' × 5' per light
PPFD (Center, 12" Height, 4' × 4') 2,951 µmol/m²/s
Efficiency (Single Diode) 2.8 µmol/J
Diodes Proprietary ACI Diodes
Spectrum 3000K, 5000K, 660nm
Total Diodes 1,808
Diode Breakdown 1,400 × 5000K; 280 × 3000K; 128 × 660nm
Daisy-Chain Connection RJ-11 (same series only)
Controller Compatibility AC Infinity UIS controllers (RJ11-UIS adapter included); RJ-11 controllers
Input Voltage 100–277V AC
Frequency 50/60 Hz
Power Connector US Plug (NEMA 1-15 Type-A)
Total Power Cord Length 8.03 ft (245.0 cm)
RJ-11 Extension Cord Length 10 ft (304.8 cm)
Rope Clip Length 8.20 ft (2.5 m)
Waterproof Rating IP67
Life Expectancy 50,000 hours
Light Dimensions 42.91 × 4.21 × 3.74 in. (109.0 × 10.7 × 9.5 cm)
Driver Dimensions 7.04 × 9.84 in. (17.9 × 25.0 cm)
Operating Temperature 32–140°F
Operating Humidity 35–85% RH

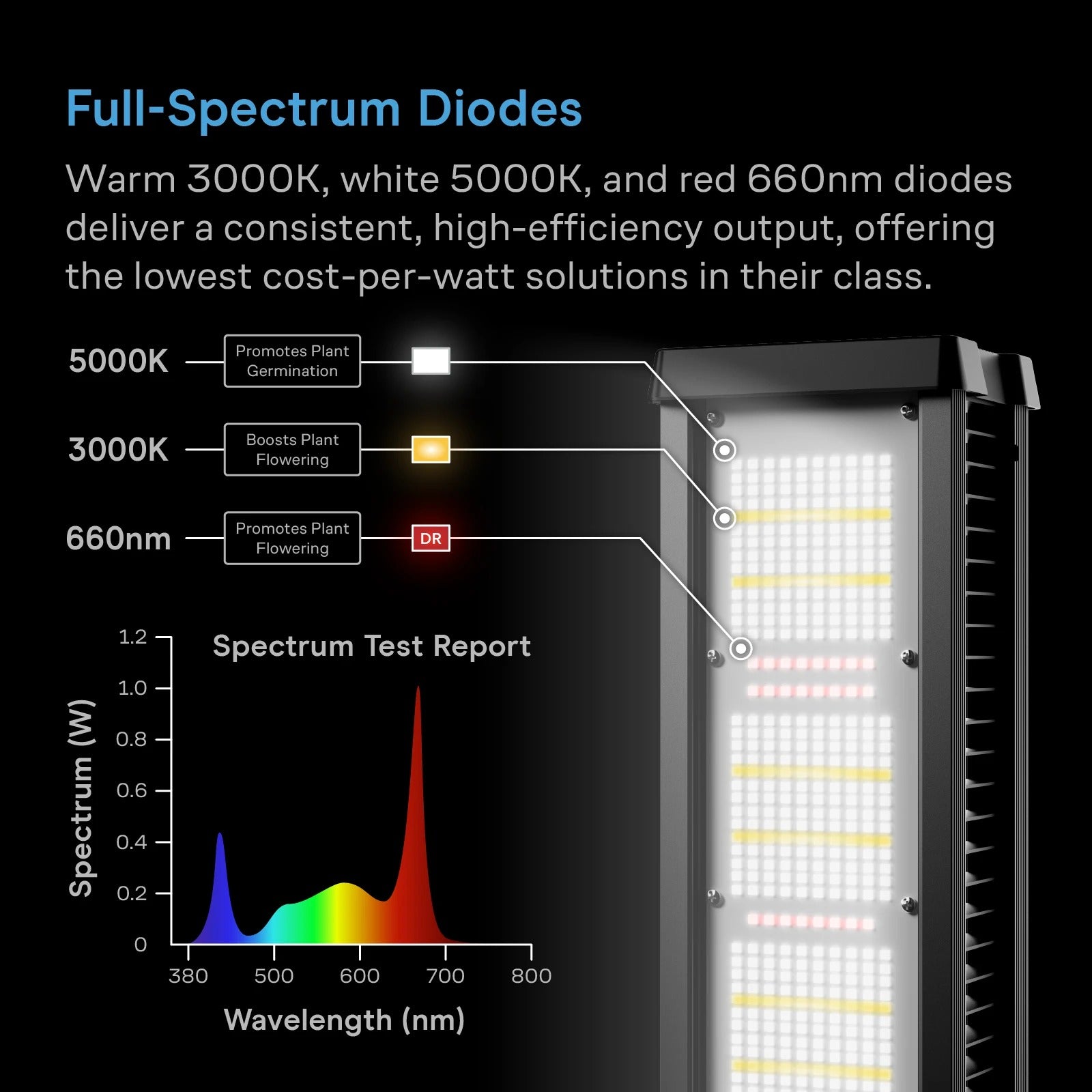

Spectrum Analysis

1.2 1.0 0.8 0.6 0.4 0.2 0 380 500 600 700 800 Wavelength (nm) Relative Intensity
5000K – Germination 3000K – Flowering 660nm Deep Red – Flowering

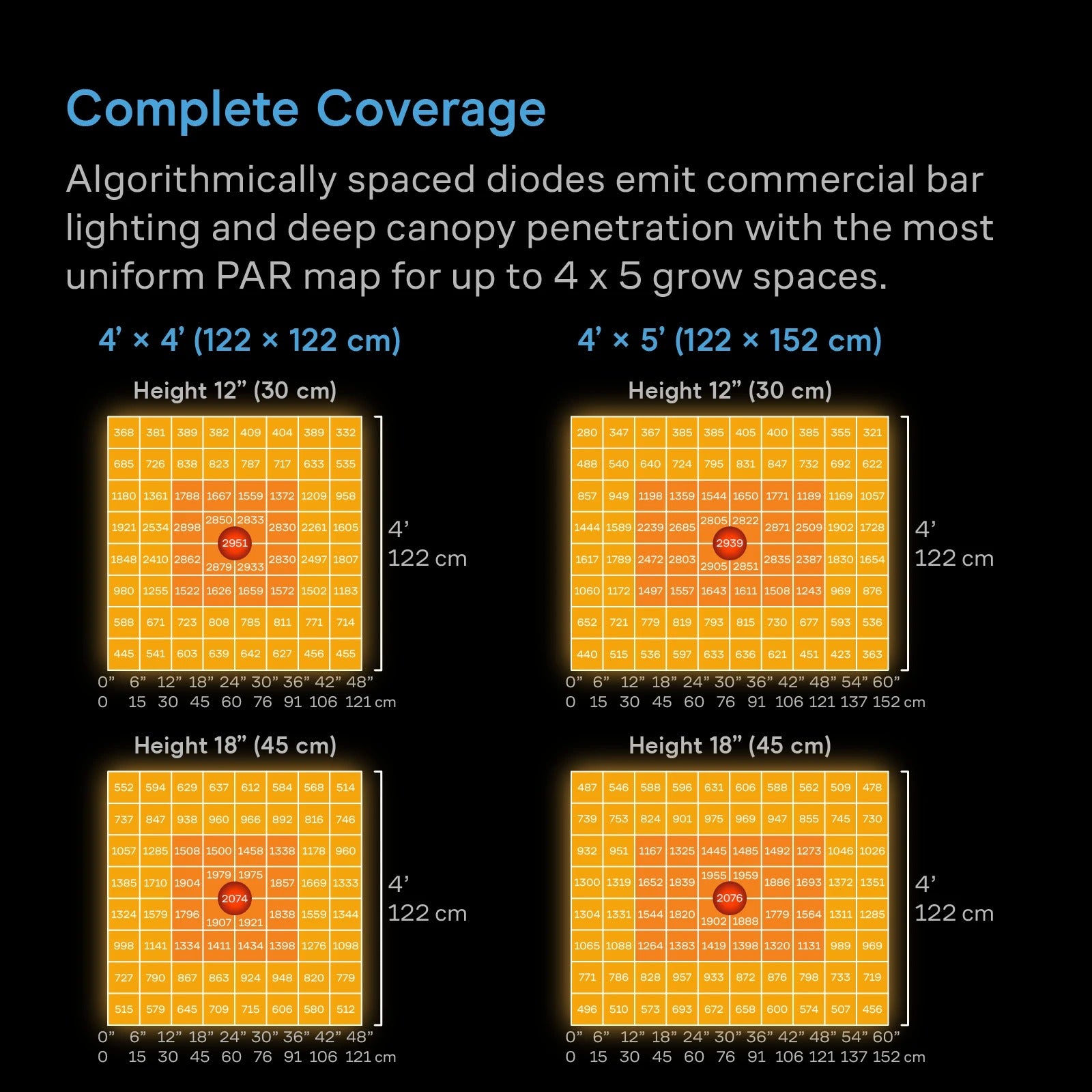

PPFD Map

4' × 4' (122 × 122 cm)

Height 12" (30 cm)

368
381
389
382
409
404
389
332
685
726
838
823
787
717
633
535
1,180
1,361
1,788
1,667
1,559
1,372
1,209
958
1,921
2,534
2,898
2,850
2,833
2,830
2,261
1,605
1,848
2,410
2,862
2,879
2,933
2,830
2,497
1,807
980
1,255
1,522
1,626
1,659
1,572
1,502
1,183
588
671
723
808
785
811
771
714
445
541
603
639
642
627
456
455
2,951

Center: 2,951  |  64-point avg: 1,270

Height 18" (45 cm)

552
594
629
637
612
584
568
514
737
847
938
960
966
892
816
746
1,057
1,285
1,508
1,500
1,458
1,338
1,178
960
1,385
1,710
1,904
1,979
1,975
1,857
1,669
1,333
1,324
1,579
1,796
1,907
1,921
1,838
1,559
1,344
998
1,141
1,334
1,411
1,434
1,398
1,276
1,098
727
790
867
863
924
948
820
779
515
579
645
709
715
606
580
512
2,074

Center: 2,074  |  64-point avg: 1,104

4' × 5' (122 × 152 cm)

Height 12" (30 cm)

280
347
367
385
385
405
400
385
355
321
488
540
640
724
795
831
847
732
692
622
857
949
1,198
1,359
1,544
1,650
1,771
1,189
1,169
1,057
1,444
1,589
2,239
2,685
2,805
2,822
2,871
2,509
1,902
1,728
1,617
1,789
2,472
2,803
2,905
2,851
2,835
2,387
1,830
1,654
1,060
1,172
1,497
1,557
1,643
1,611
1,508
1,243
969
876
652
721
779
819
793
815
730
677
593
536
440
515
536
597
633
636
621
451
423
363
2,939

Center: 2,939  |  80-point avg: 1,181

Height 18" (45 cm)

487
546
588
596
631
606
588
562
509
478
739
753
824
901
975
969
947
855
745
730
932
951
1,167
1,325
1,445
1,485
1,492
1,273
1,046
1,026
1,300
1,319
1,652
1,839
1,955
1,959
1,886
1,693
1,372
1,351
1,304
1,331
1,544
1,820
1,902
1,888
1,779
1,564
1,311
1,285
1,065
1,088
1,264
1,383
1,419
1,398
1,320
1,131
989
969
771
786
828
957
933
872
876
798
733
719
496
510
573
693
672
658
600
574
507
456
2,076

Center: 2,076  |  80-point avg: 1,053

PPFD in µmol/m²/s from a single Ionframe A7 at 100% output, measured at 6" grid intervals.

Warranty

The AC Infinity Ionframe A7 is covered by a 5-year limited manufacturer warranty from the original date of purchase.

Frequently Asked Questions

How much space does one Ionframe A7 cover? +

Each Ionframe A7 covers up to a 4' × 5' area. At 12" above the canopy it averages about 1,270 µmol/m²/s across a 4' × 4' footprint and about 1,180 µmol/m²/s across 4' × 5', so it delivers higher intensity when used over a 4' × 4' space.

Does the Ionframe A7 have a built-in controller? +

No. Out of the box, you connect the bar to its driver and plug the driver into an outlet to power it on. Advanced controls like dimming and scheduling require a compatible controller (not included), such as an AC Infinity UIS smart controller using the included RJ11-UIS adapter, or an RJ-11 commercial controller.

How high should I hang the Ionframe A7? +

AC Infinity suggests hanging the light about 1.5 ft above the canopy and adjusting intensity by stage: 40% for seedlings, 80% for veg, and 100% for flower (intensity control requires a compatible controller). The included hanging hooks and 8.2 ft rope clips make height adjustments easy as plants grow.

How do I daisy-chain multiple Ionframe A7 lights? +

Connect each driver to its included RJ11 adapter, then run the RJ-11 extension cord from one adapter's OUT port to the next light's IN port. All lights in a chain must be from the same series, and every connected fixture shares the same programming.

Can the Ionframe A7 handle a high-humidity grow room? +

Yes. The Ionframe A7 carries an IP67 rating and is built to operate between 35% and 85% relative humidity. Its thick aluminum heatsink and detached driver also help manage heat in densely packed commercial rooms.

Why is the Ionframe A7's spectrum so heavy in red? +

The Ionframe A7's 128 660nm deep red diodes create a dominant red peak to promote flowering, while 5000K and 3000K white diodes provide the broad base for germination and vegetative growth. It focuses on these efficient core wavelengths and does not include UV or far-red diodes.

Will the Ionframe A7 run on 208–277V power? +

The Ionframe A7 driver accepts 100–277V AC at 50/60 Hz. The listed power connector is a US plug, so contact our team to confirm the correct cord before connecting to a higher-voltage circuit.
