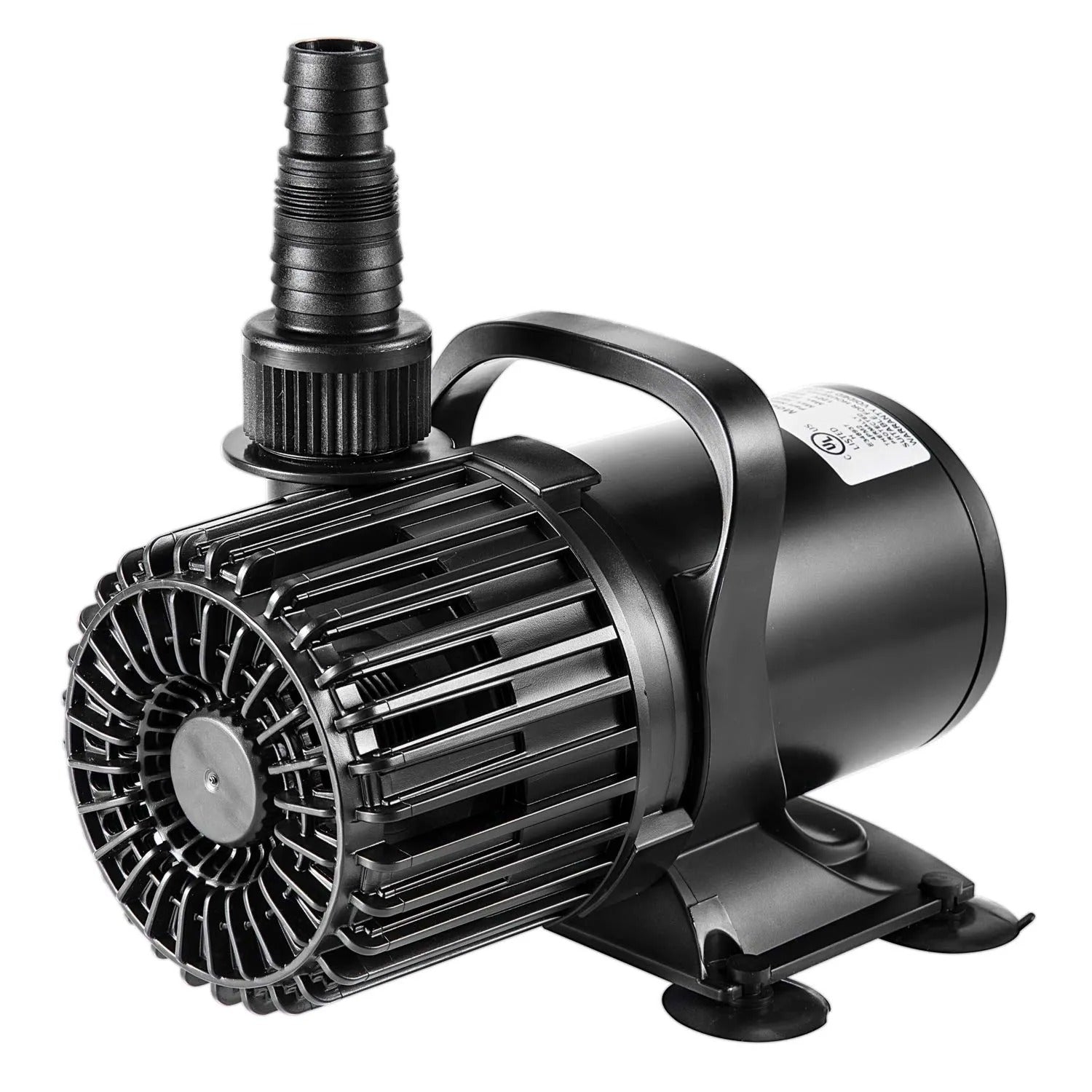

Black Vivosun 310W submersible water pump with ribbed outlet, handle, and suction cup base.

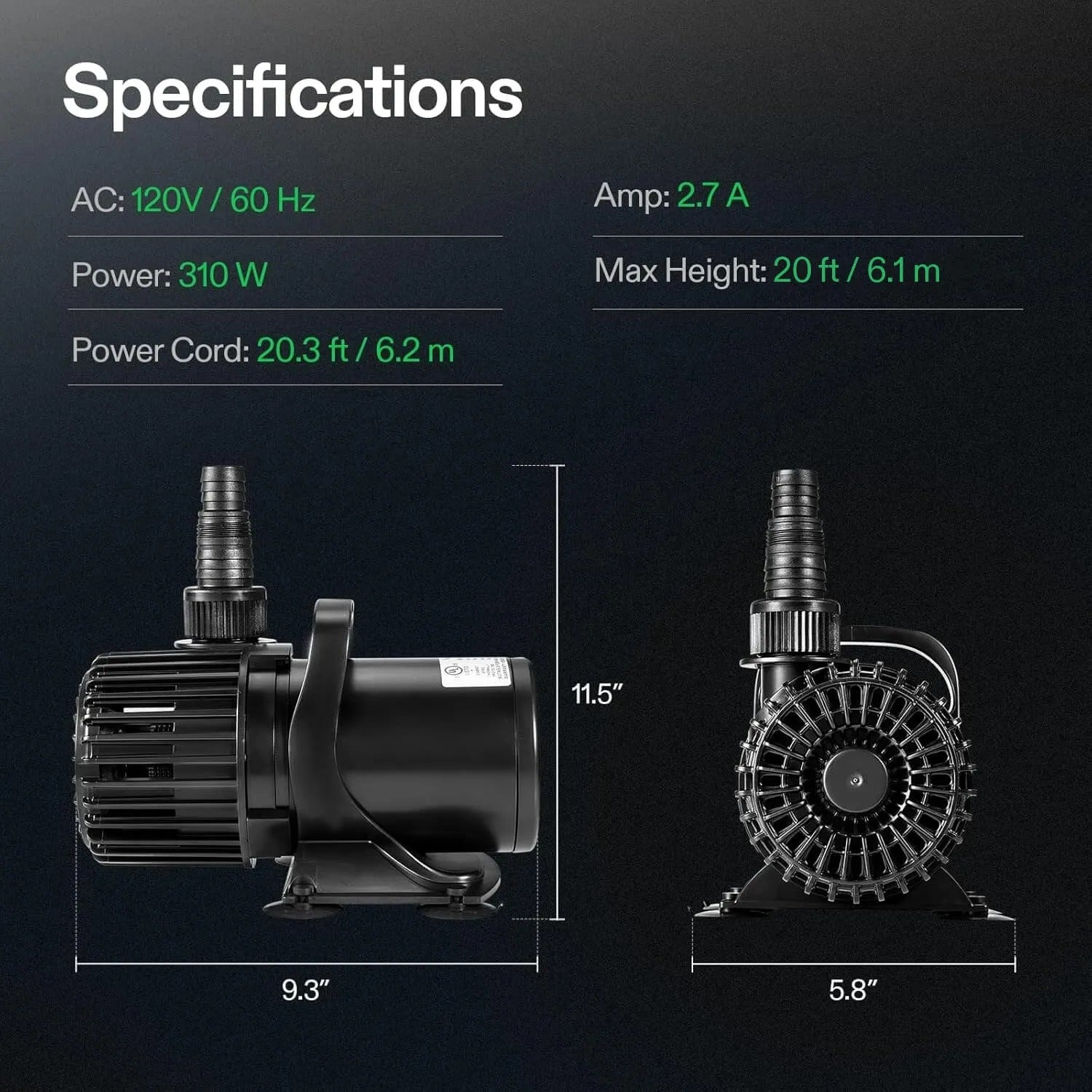

Vivosun 310W submersible water pump with dimensions and electrical specifications.

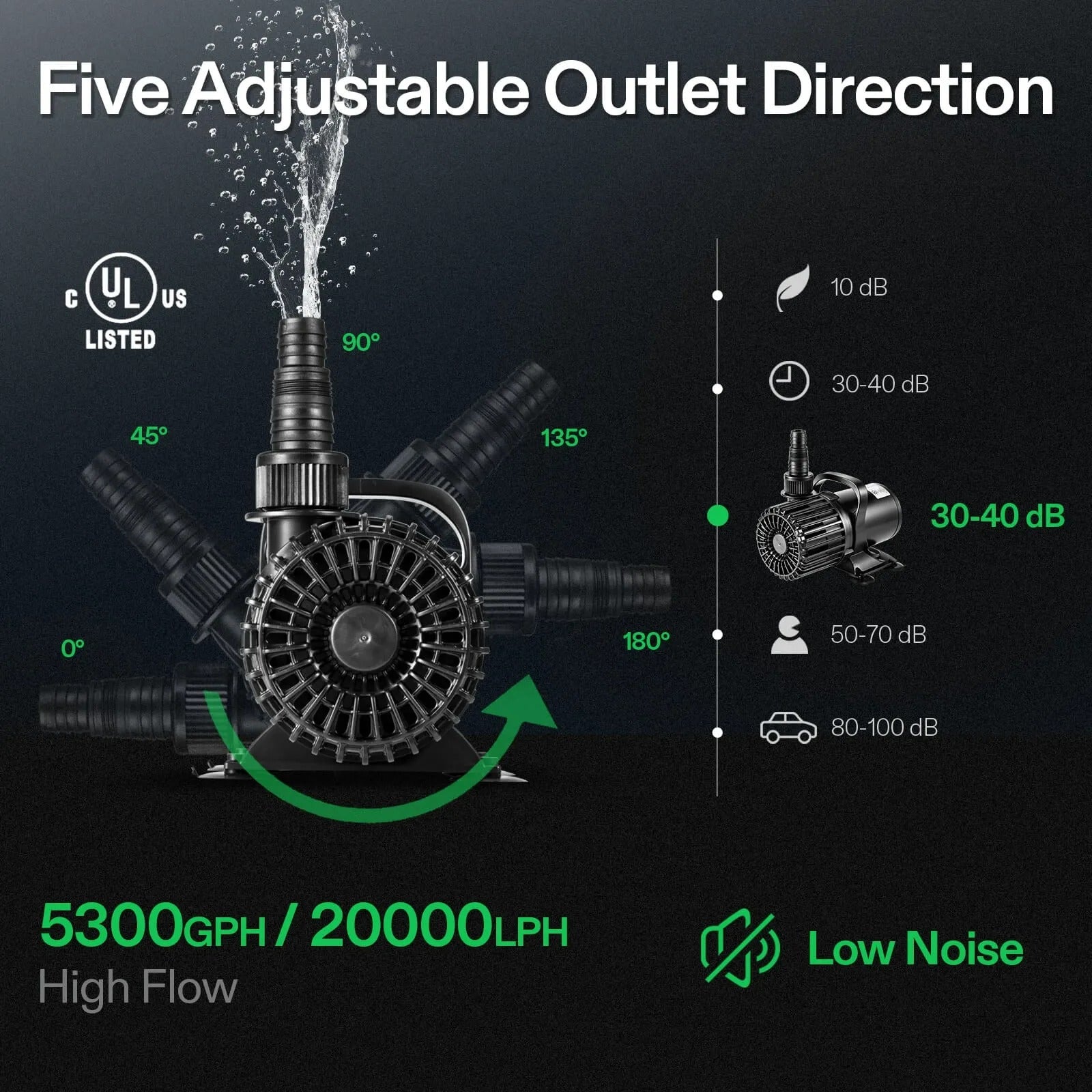

Vivosun submersible water pump with 5 adjustable outlet directions, 5300 GPH flow, and low noise.

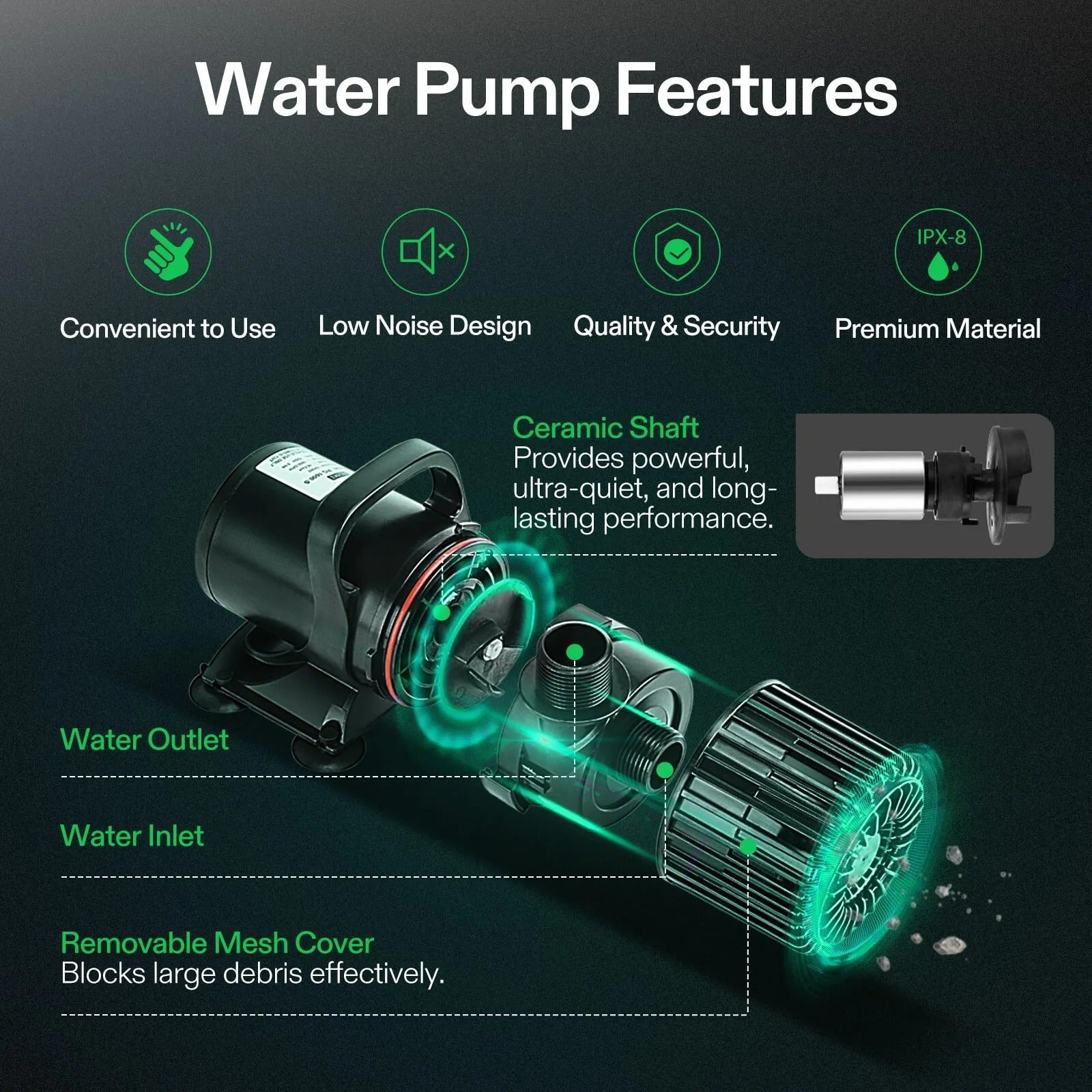

A Vivosun submersible water pump with ceramic shaft, water inlet/outlet, and removable mesh cover.

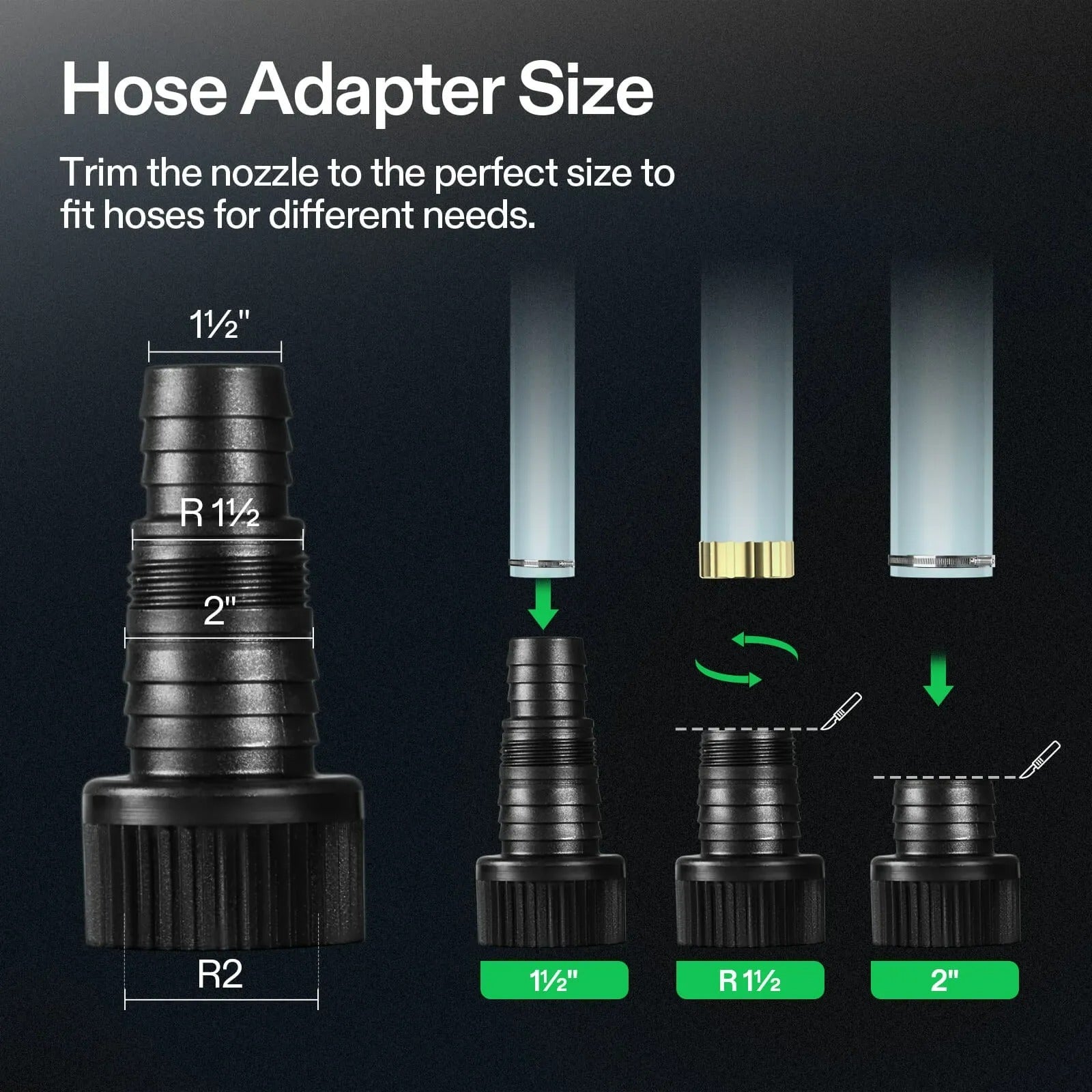

Black hose adapter with dimensions 1 1/2", R 1 1/2", 2", showing trimming instructions for different hose sizes.

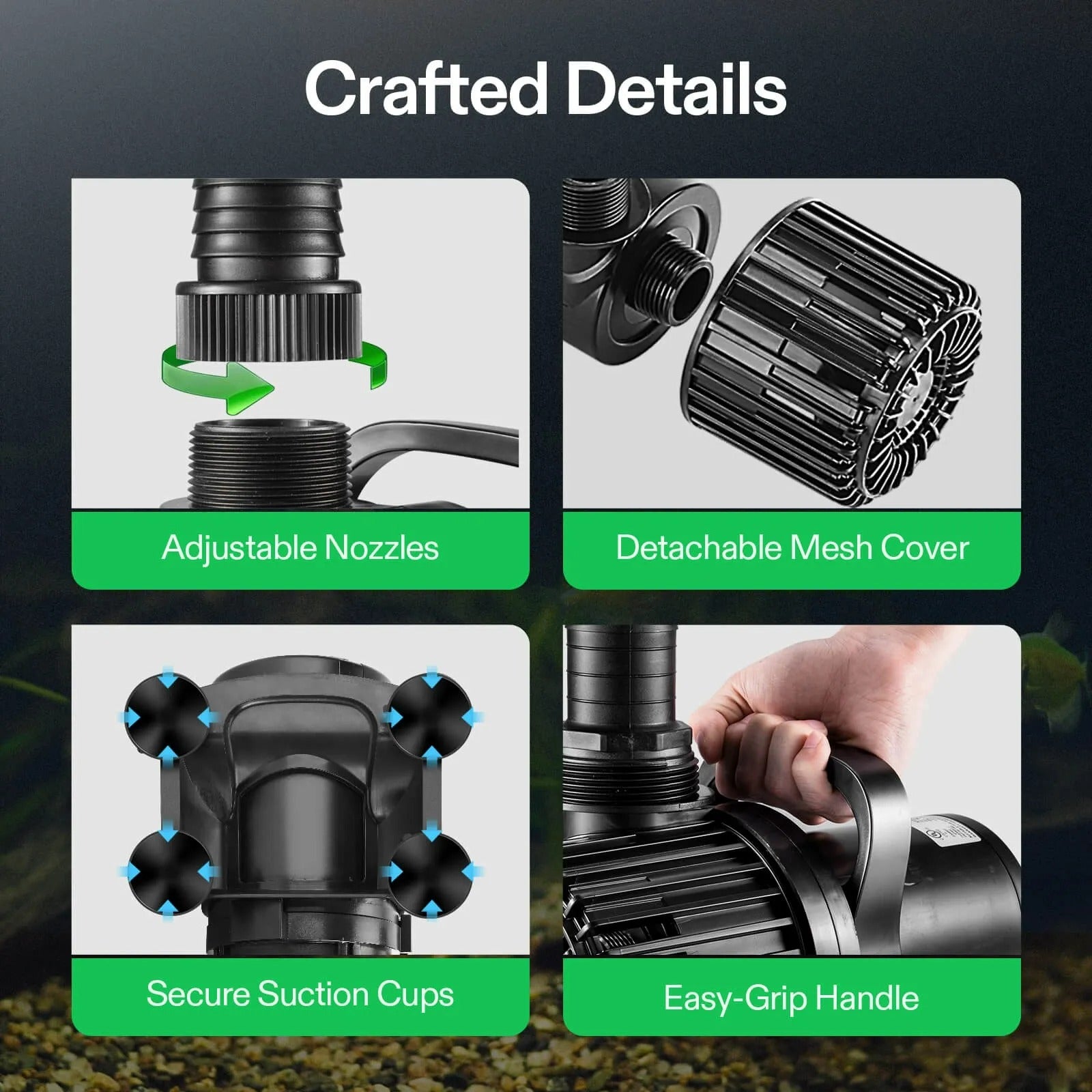

Vivosun submersible water pump with adjustable nozzles, detachable mesh cover, secure suction cups, and easy-grip handle.
Vivosun submersible water pump: IPX8 rated, ideal for ponds, fountains, irrigation, hydroponics, and aquariums.
Black Vivosun 310W submersible water pump with ribbed outlet, handle, and suction cup base.
Vivosun 310W submersible water pump with dimensions and electrical specifications.
Vivosun submersible water pump with 5 adjustable outlet directions, 5300 GPH flow, and low noise.
A Vivosun submersible water pump with ceramic shaft, water inlet/outlet, and removable mesh cover.
Black hose adapter with dimensions 1 1/2
Vivosun submersible water pump with adjustable nozzles, detachable mesh cover, secure suction cups, and easy-grip handle.
Vivosun submersible water pump: IPX8 rated, ideal for ponds, fountains, irrigation, hydroponics, and aquariums.

Vivosun 310W Submersible Water Pump (5300GPH)

Official VIVOSUN Dealer Model: WEB-332569J
$129.99
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
Looking to finance equipment under your corporation? Learn more about Business Financing
  • Peak flow rate of 5,300 GPH for high volume water features
  • Internal silicon carbide ceramic shaft and drive ring reduce wear
  • Rotatable discharge outlet allows for five positions from 0 to 180 degrees
  • 1-year limited warranty
  • View More Details

Earn 129 points for shopping and get $1.29 off your next order. Join Harvest Club for free.
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
(360) 800-5535 Live Chat Available now
Free Shipping On Most Items* To the lower 48
Transparent Pricing Backed w/ price match guarantee
4.8/5 average Top Quality Store on Google
Secure Checkout SSL encrypted payments

Questions? Talk to a specialist.

Mon to Fri, 9am to 5pm PST

Call (360) 800-5535
  • Free Shipping On Most Items*To the lower 48
  • Transparent PricingBacked w/ price match guarantee
  • 4.8/5 Top Quality Store on Google
  • Secure CheckoutSSL encrypted payments

Send Us a Message

Are you looking for a quote?
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Highlights

  • You are upgrading to a high-flow pump because your current unit cannot push enough volume up to your water feature spillway.
  • You are routing a complex filtration loop because you need to orient the discharge without fighting with extra elbows.

  • The five-position outlet is a major time-saver because you can route the discharge without needing extra plumbing parts.
  • The wet rotor design runs cooler, which helps with longevity if you are running it submerged for a long duration.

  • Users with large waterfall spillways report that this pump maintains the visual volume they expect at the top of the feature.
  • Operators with high-traffic setups say the low operating noise allows them to keep the feature near seating areas.

Vivosun 310W Submersible Water Pump (5300GPH)

A stream or wide waterfall needs volume at height, not just a high number at zero head. Most pond pumps lose that volume fast as the lift increases. While the Vivosun 2600 GPH pump is excellent for medium features, the Vivosun 310W Submersible Water Pump (model PG5300-S) holds its output for much larger projects. It moves 4,042 GPH at 6.6 ft and 3,197 GPH at 9.8 ft, and still delivers 1,717 GPH at 14.8 ft. Peak flow is 5,300 GPH from a 310W motor that runs at 30–40 dB.

The Vivosun 310W Submersible Water Pump fits the same 9.3″ × 5.8″ × 11.5″ footprint as the Vivosun 220W model but delivers about 18% more peak flow. That makes it a straightforward upgrade when your pond or water feature grows. Its 1-1/2″ inlet and outlet accept 1-1/4″ or 1-1/2″ ID tubing. Five outlet positions from 0° to 180° let you route the discharge without added elbows.

The pump uses a cool-running wet rotor/wet bearing motor and a silicon carbide ceramic shaft and drive ring that resist wear. Its IPX8 housing is built for continuous submersion, and a removable pre-filter screen protects the impeller. Rated for ponds up to roughly 840 gallons, it runs submerged or inline to power large ponds, streams, filtration loops, and deep water culture reservoirs or commercial irrigation systems. It's designed for fresh water only.

Features

Vivosun 310W 5300 GPH submersible water pump
Vivosun 5300 GPH pump in a pond stream application
Vivosun 310W pump adjustable outlet and pre-filter
Vivosun 310W water pump specifications and dimensions
🌊
5,300 GPH Peak Flow

Volume for large ponds, streams, and wide waterfall spillways up to 840 gallons.

📈
Strong Flow at Height

Still moves 3,197 GPH at 9.8 ft, with a maximum lift of 24 ft.

📦
Compact Upgrade

Same footprint as the 220W model with roughly 18% more peak output.

🔇
30–40 dB Operation

Cool-running wet rotor motor keeps noise low near decks and patios.

🔄
5-Position Outlet

Rotate the discharge from 0° to 180° to fit any plumbing layout.

⚙️
Wear-Resistant Internals

Silicon carbide shaft, IPX8 housing, and a removable debris pre-filter.

What's Included

  • Vivosun 310W Submersible Water Pump
  • Hose Insert Fittings (multiple sizes)
  • Suction Cups

Specifications

Specification Value
Max Flow Rate 5,300 GPH
Max Head Height 24 ft
Max Pressure 0.063 MPa
Power 310W
Horsepower 0.42 HP
Voltage 120V, 60Hz
Amperage 2.7A
Inlet / Outlet 1-1/2″
Compatible Tubing 1-1/4″ or 1-1/2″ ID
Outlet Positions 5 (0° to 180°)
Noise Level 30–40 dB
Waterproof Rating IPX8
Installation Submersible or Inline (Wet or Dry)
Shaft Material Silicon Carbide Ceramic
Power Cord Length 20.3 ft (6.2 m)
Dimensions (L × W × H) 9.3″ × 5.8″ × 11.5″
Weight 10.1 lb
Recommended Pond Size Up to 840 gallons
Water Type Fresh water only
Certification cULus Listed

Flow Rate by Head Height

Head Height (ft) Flow Rate (GPH)
0.0 5,300
1.6 5,020
3.3 4,756
4.9 4,412
6.6 4,042
8.2 3,620
9.8 3,197
11.5 2,721
13.1 2,219
14.8 1,717
16.4 1,189
18.0 793
19.7 476
21.3 238
24.0 0

Warranty

The Vivosun 310W Submersible Water Pump is covered by a 1-year limited manufacturer warranty from the original date of purchase.

Frequently Asked Questions

How does the 310W model compare to the 220W pump?+

Both share a 9.3″ × 5.8″ × 11.5″ body, but the 310W model delivers 5,300 GPH peak flow versus the 4,500 GPH of the Vivosun 220W waterfall pump. It also holds more volume at height: 3,197 GPH at 9.8 ft compared with 1,783 GPH. Choose the 310W for ponds up to about 840 gallons or features with significant lift.

What flow should I expect at my outlet height?+

Measure the vertical rise from the pond surface to the outlet and find it in the Flow Rate by Head Height table above. For example, the Vivosun 310W Submersible Water Pump delivers about 4,042 GPH at 6.6 ft and 2,219 GPH at 13.1 ft. For smaller applications, you might consider the Vivosun 300W pump instead.

Can I run it outside the pond as an inline pump?+

Yes. The pump supports both wet (submerged) and dry (inline) installations and works alongside pond filter systems. Connect it with 1-1/4″ or 1-1/2″ ID flexible tubing using the included insert fittings.

How do I reposition the outlet?+

Set the pump flat, then rotate the body within the handle/stand and lock it at Notch A, B, or C for the three middle positions. For the two outer positions, remove the impeller chamber cover and turn it by hand. Diagrams are in the user manual.

How do I clean or replace the impeller?+

Unplug the pump and rotate the front housing counter-clockwise to expose the impeller, then rinse out debris with a garden hose. To remove the impeller assembly, gently unlock it with needle-nose pliers as shown in the manual. Lubricate the shaft and O-ring with silicone before reinstalling.

Can I use this pump in saltwater?+

No. The Vivosun 310W Submersible Water Pump is designed for fresh water only. Keep it away from sand and fine grit, which can damage the water-lubricated rotor assembly.

What should I check if flow drops or the pump stops?+

Confirm the circuit breaker is working and try another GFCI outlet. Then inspect the inlet screen, tubing, and discharge for clogs. Make sure the impeller spins freely by hand with the cover removed.
