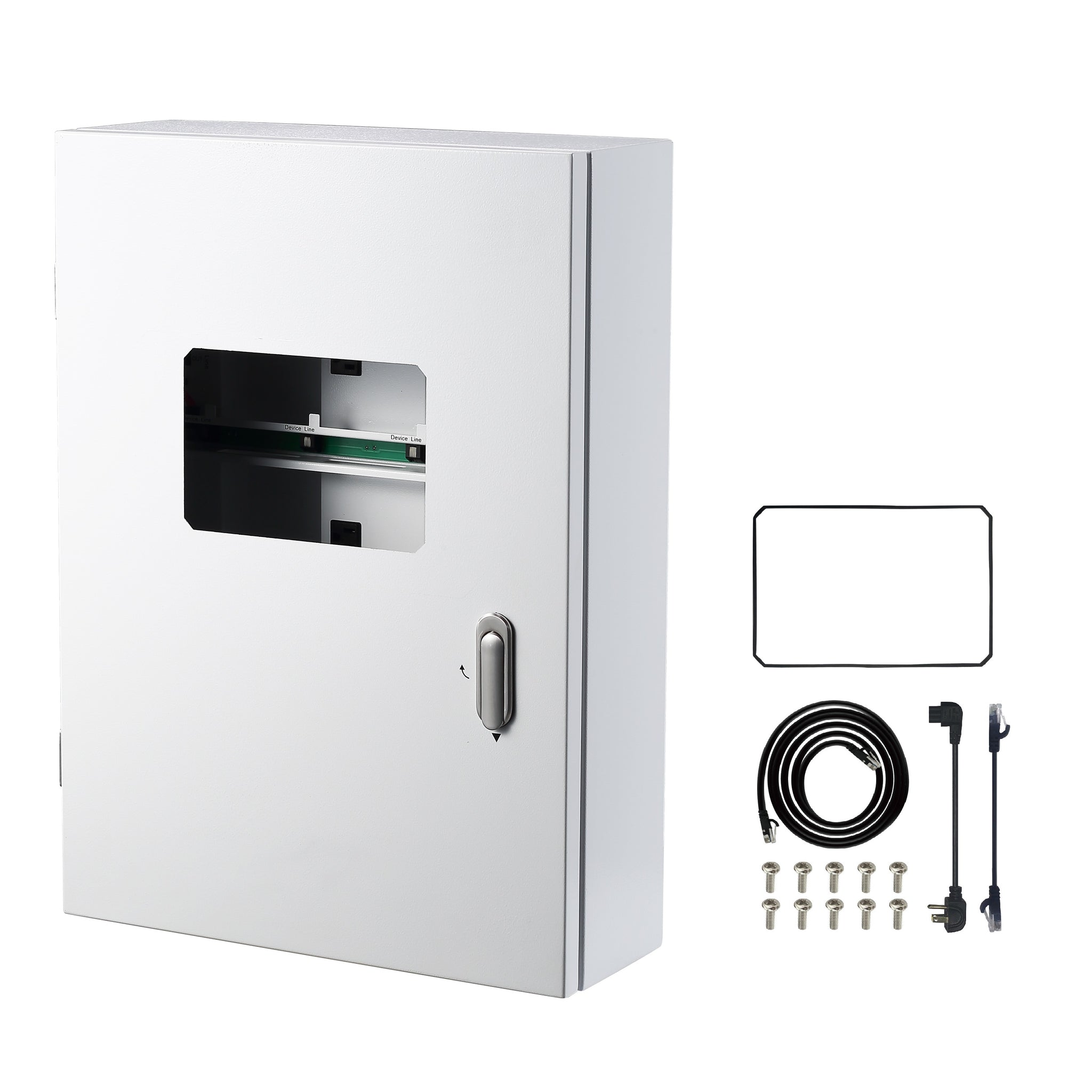

- 1x SCC-3 Controller Cabinet
- 4x Long RJ12 Cables
- 16x Short RJ12 Cables
- 4x Power Cables (for OA6-24/OA6-110)
- 1x OA6-24/OA6-110 Screw Set (10-piece)
- 1x Installation Manual
Ask Sage about this product
TrolMaster SCC-3 25-Inch Controller Cabinet
starting from 0% interest financing from
/mo.
- 47 total internal ports across five splitter boards
- IP56 ingress protection rating equivalent to NEMA 4X
- 120V input voltage at 15A max amperage
- Three-year warranty on mechanical and electronic components under normal operating conditions.
- View More Details
Shipping calculated at checkout
Earn 996 points for shopping and get $9.96 off your next order. Join Harvest Club for free.
Over 50,000 Customers
Trust Trimleaf
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
Questions? Talk to a specialist.
Mon to Fri, 9am to 5pm PST
- Over 50,000 CustomersTrust Trimleaf
- Transparent PricingBacked w/ price match guarantee
- 4.8/5 Top Quality Store on Google
- Secure CheckoutSSL encrypted payments
Ask Sage about this product
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
- You are organizing a multi-unit setup because the enclosure provides a clean and professional housing for your command center.
- You are protecting sensitive electronics because the enclosure keeps device stations clean and dry.
- The cabinet carries an IP56 rating, which is equivalent to NEMA 4X protection.
- You must use the provided controller rubber gasket to achieve the IP56 standard.
- The modular enclosure offers a centralized and rugged housing for your facility.
- Growers who consolidated their controllers into this cabinet say they spend significantly less time tracing cable faults during harvests.
- Users who dealt with recurring controller failures report that housing the units in this sealed enclosure eliminated their moisture issues entirely.

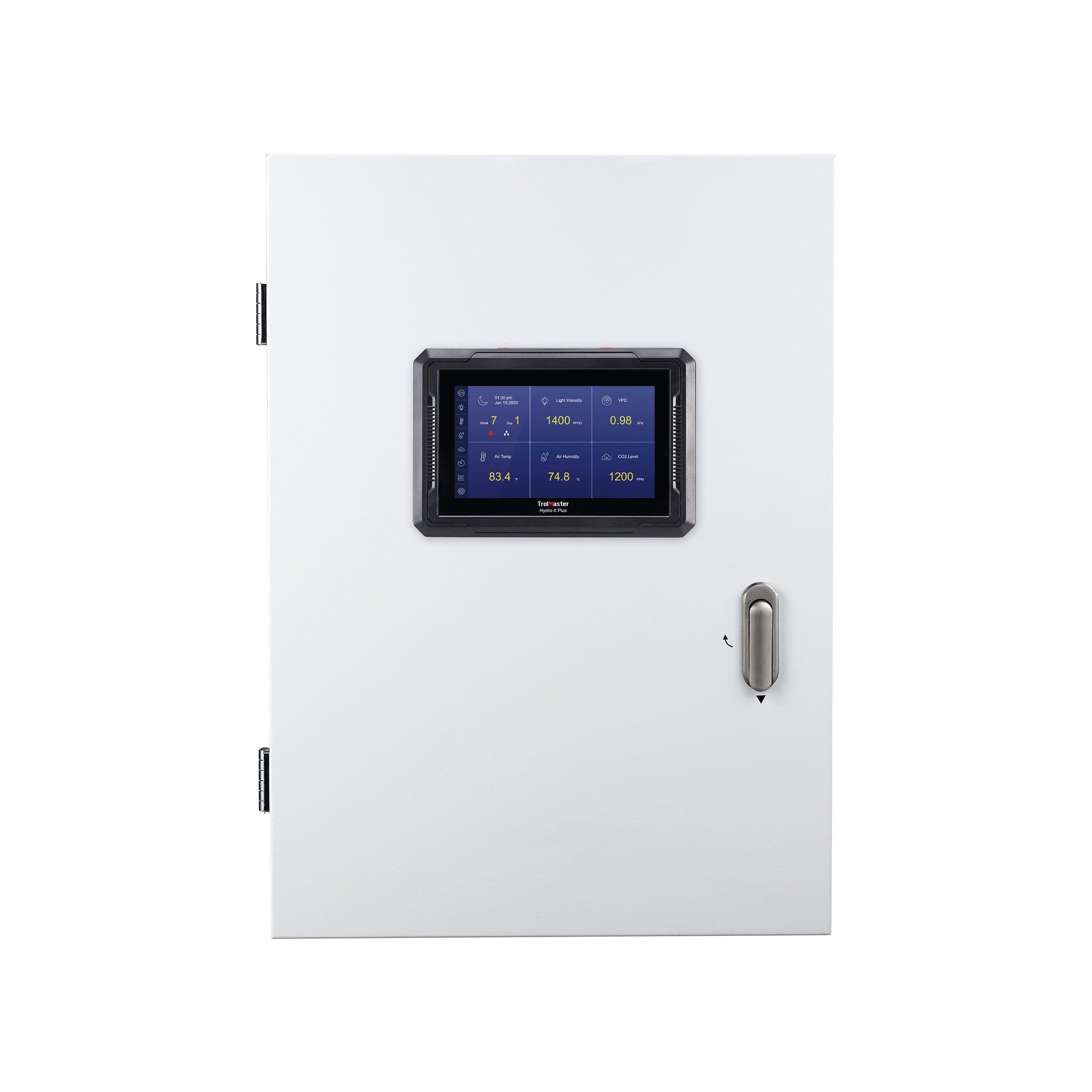

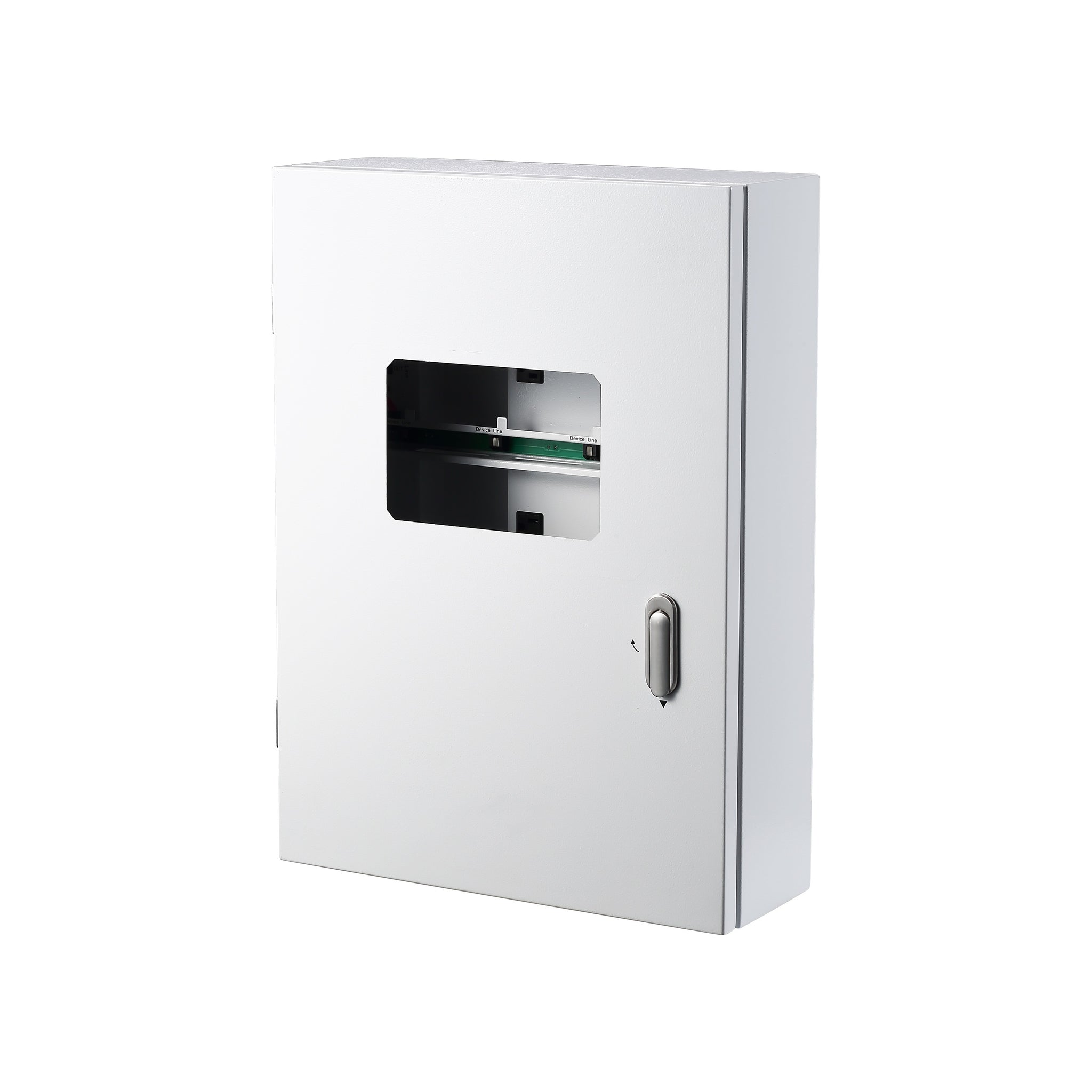

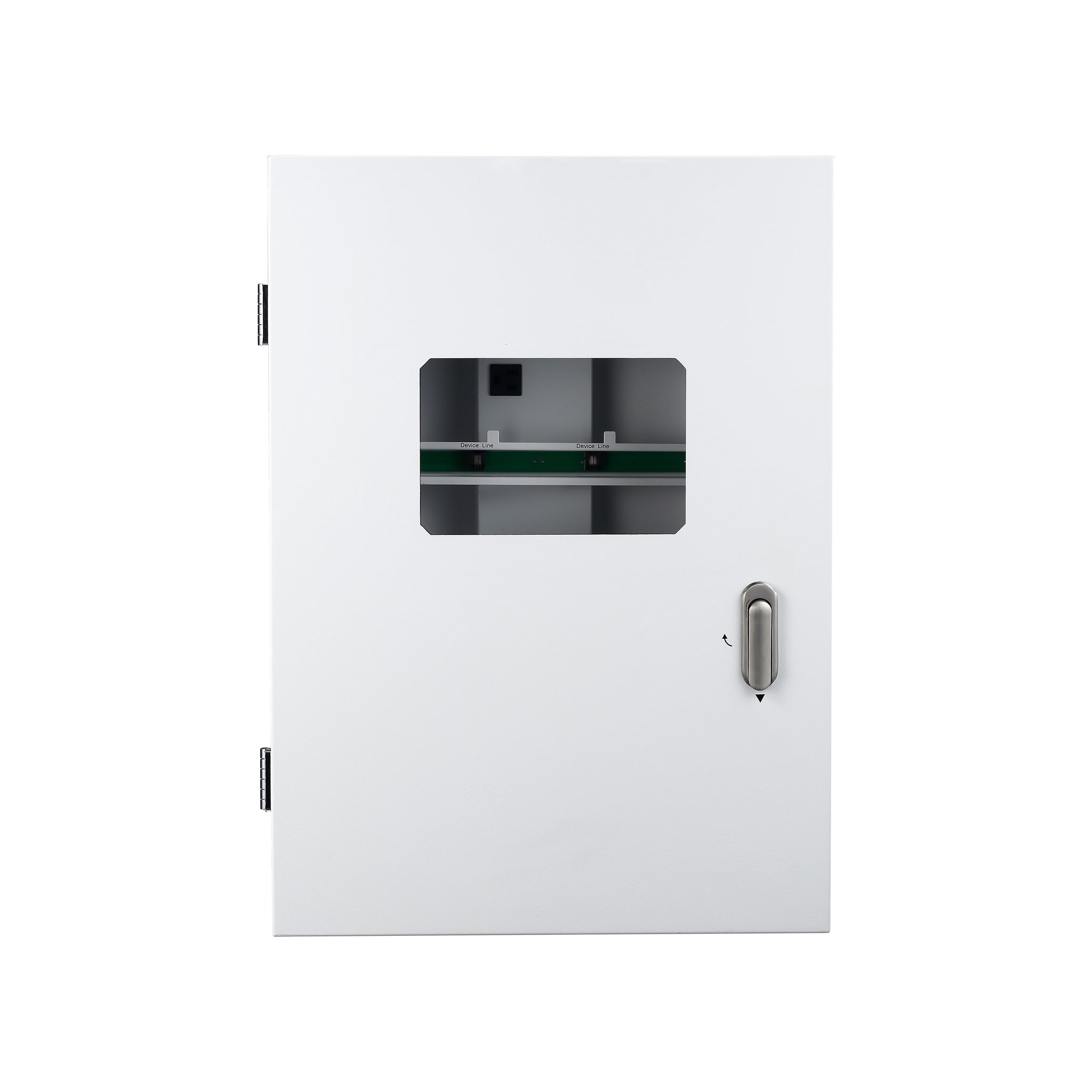

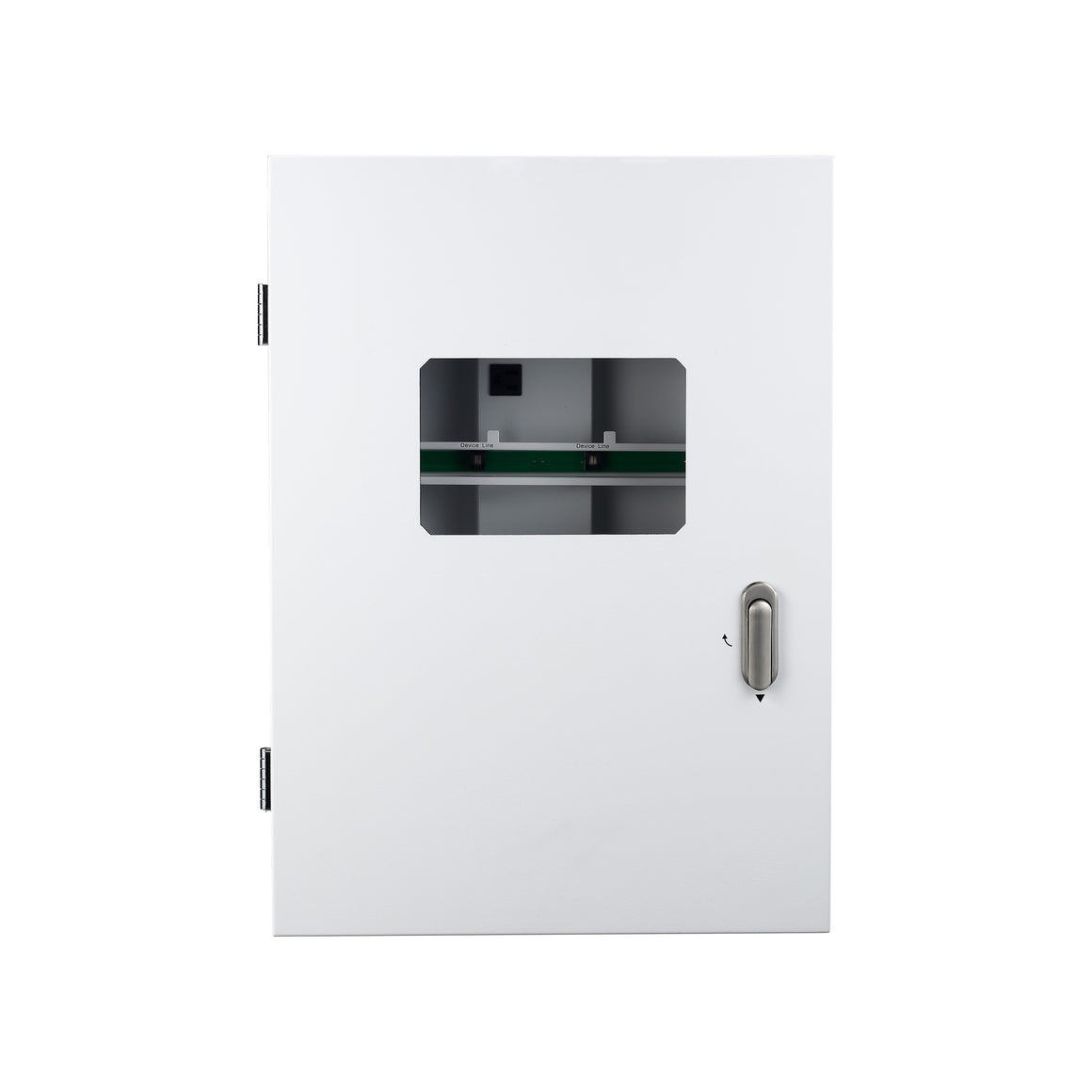

TrolMaster SCC-3 25-Inch Controller Cabinet
Managing complex grow environments often leads to a "spaghetti" of wires and exposed controllers, leaving sensitive electronics vulnerable to high humidity and accidental splashes. The TrolMaster SCC-3 25-inch Controller Cabinet is the professional solution, offering a centralized, organized, and rugged housing for your facility's command center.
Engineered for the TrolMaster Hydro-X Plus and Aqua-X Plus systems, this modular enclosure eliminates clutter while providing industrial-grade protection. Whether you are scaling a commercial facility or refining a boutique setup, the SCC-3 ensures your environmental controllers remain dry, secure, and easily accessible.
Compatibility: Specifically optimized for TrolMaster Hydro-X Plus and Aqua-X Plus systems. Also compatible with standard and Pro models.
All Sales Final
What's Included
Features
💧
IP56 Waterproof
Industrial-rated protection equivalent to NEMA 4X, keeping device stations clean and dry.
🗄️
Modular Enclosure
All-in-one housing for controllers and modules, allowing for professional, centralized installation.
🔌
Smart Wire Management

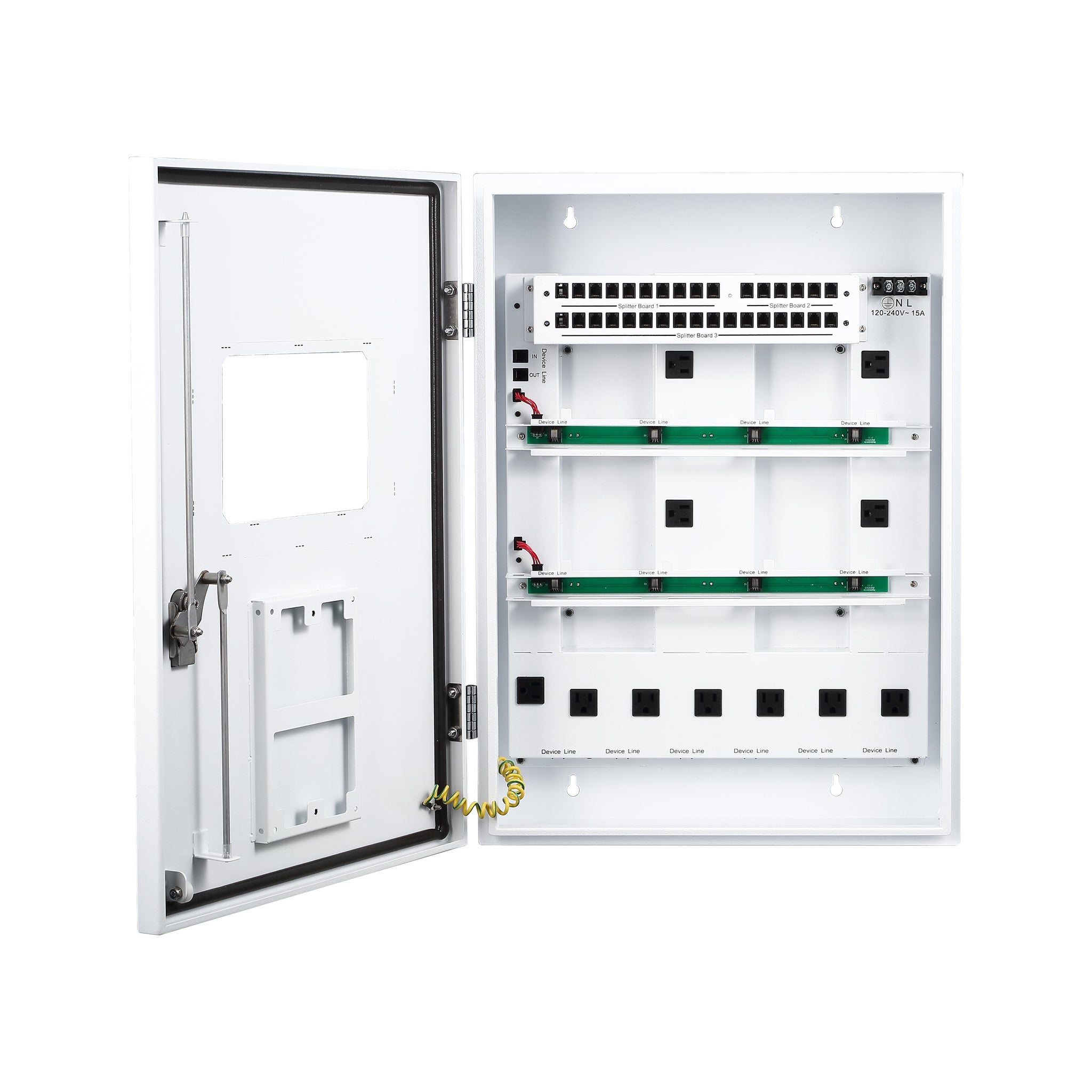

Customize your cabinet layout using bi-directional RJ12 cables and 47 total internal ports.
🛡️
Superior Safety
Ensures power supplies are securely mounted, reducing risks of accidental damage or fire.
Specifications
| Specification | Value |
|---|---|
| Dimensions | 25" (L) x 18" (W) x 6.26" (H) |
| Enclosure Rating | IP56 (NEMA 4X equivalent) |
| Input Voltage / Amps | 120V / 15A Max |
| Splitter Port Capacity | 47 Ports (Total across 5 Boards) |
| Power Outlets | 4 + 1 + 6 Configuration |
| Operating Temp | 32° - 104°F |
Support & Manuals
FAQs
What makes the SCC-3 ideal for the Hydro-X Plus?
The SCC-3 provides the specific spacing and modularity required to house the Hydro-X Plus and Aqua-X Plus systems along with their multiple device modules in one professional, waterproof enclosure.
Is the SCC-3 cabinet waterproof?
Yes, it carries an IP56 rating (equivalent to NEMA 4X), meaning it is protected against dust and high-pressure water jets, perfect for keeping electronics safe during room wash-downs.
How many modules can I fit inside?
With 47 RJ12 ports across five splitter boards and 11 power outlets, the SCC-3 can house several device stations, power supplies, and your main controller comfortably.
Does this cabinet include the controller?
No, the SCC-3 is an enclosure system. The Hydro-X Plus or Aqua-X Plus controllers and device modules must be purchased separately.
What is the maximum amperage allowed?
The cabinet is rated for a maximum amperage of 15A at 120V, providing sufficient power for your entire control network.
