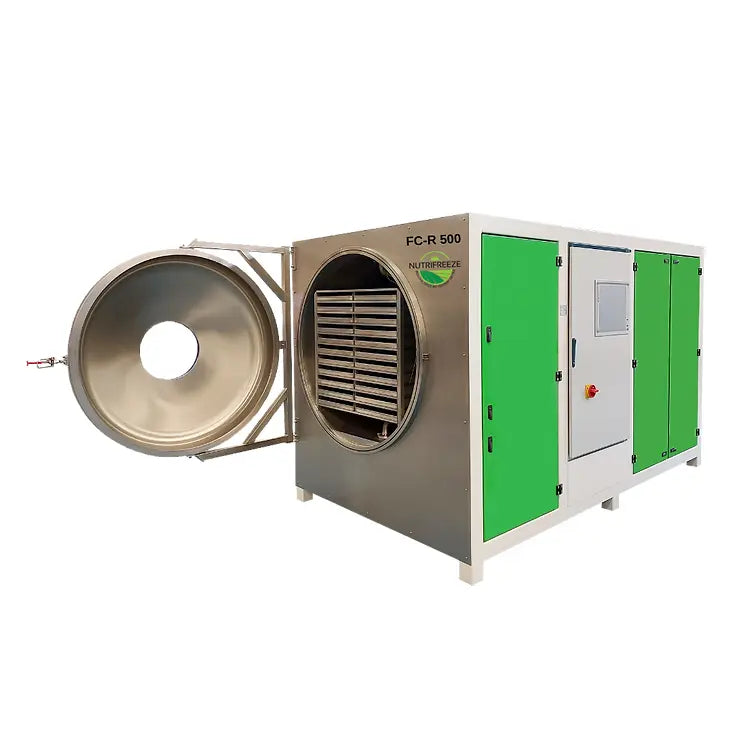

NutriFreeze FC-R 500 Freeze Dryer and Chiller
- Processes up to 1100 lbs of total material capacity across 144 stainless steel trays.
- Conductive heat energy transforms ice to vapor without using excessive and damaging shelf temperatures.
- Massive 538 square foot tray area requires a dedicated facility space and 120 KW chiller system.
- 12-month warranty from date of delivery, covering parts and labor
- View More Details
Free Shipping
To the lower 48
Transparent Pricing
Backed w/ price match guarantee
4.8/5 Rating
1938+ verified reviews
Secure Checkout
SSL encrypted payments
More in this Series
Who This Is For
- You are upgrading to industrial freeze drying because your current batch sizes cannot keep up with peak harvest volume.
- You are investing in a trolley-based system because hand-loading hundreds of trays is killing your labor efficiency.
What We Found
- The 19-inch touchscreen is not just for show, it makes programming complex drying curves much easier for the operator.
- We found the included trolley is essential since moving 144 loaded trays by hand would be impossible for one person.
What Users Say
- Operators who scaled up from the 100 model say they cut their weekly labor hours in half by processing larger batches.
- Facilities running 24-hour cycles report that the automated PLC curves remove the guesswork from their final moisture.
NutriFreeze FC-R 500 Freeze Dryer and Chiller
Commercial food preservation demands precision and scale. The NutriFreeze FC-R 500 is the ultimate solution for high-volume operations, bridging the gap between laboratory accuracy and industrial-scale throughput. This system is designed for businesses that require consistent, high-quality results for large batches of perishables or sensitive botanical materials.
Utilizing advanced conductive heat energy, this system efficiently transforms ice crystals into water vapor without the need for excessive shelf temperatures. This gentle yet powerful process ensures that your products retain their nutritional profile, color, and texture, making it a staple in professional commercial freeze dryer setups. For those needing smaller solutions, we also offer the NutriFreeze FC-R 250 Freeze Dryer and Chiller and the NutriFreeze FC-R 100 Freeze Dryer and Chiller.
With a massive 144-tray capacity, the FC-R 500 can process over half a ton of material in a single 24-hour cycle. It offers a user-friendly 19-inch touchscreen interface with fully programmable controls, allowing you to customize drying curves for specific products. Explore the full range of NutriFreeze high-performance systems to find the perfect fit for your facility.
What's Included
Features
📦
Half-Ton Capacity
Process up to 550 lbs of material per batch across 144 trays.
⚡
Quick Process
Preserve food and nutrients within a rapid 24-hour cycle.
⚙️
Programmable Control
Complete control over drying settings via an intuitive touchscreen.
🛡️
Food Grade
High-quality stainless steel construction prevents contamination.
Highlights
- Freeze-dries in 24 hours
- 144 Trays included
- 1100 lbs total capacity
- 538 square feet total tray area
- 3.15-inch tray spacing
- 19-inch touchscreen interface
- Vacuum and Temperature readout
- Programmable Logic Control
- Food-grade stainless steel build
- Trolley included for easy loading
Specifications
| Specification | Value |
|---|---|
| CONTROL SYSTEM | Fully Programmable |
| ICE CONDENSER CAPACITY | Continuous Defrost |
| ICE CONDENSER TEMPERATURE | -67°F / -55°C |
| DEFROSTING | Continuous Cold Stream |
| NUMBER OF TRAYS | Shelves 24 (144 Trays) |
| LOADING SYSTEM | Cassette / Trolley |
| TOTAL SHELF AREA | 538 Square Feet |
| SHELF TEMPERATURE | Up to +266°F / +130°C |
| REFRIGERATION | Screw Compressor x 2 |
| REFRIGERANT | R-404A (NON-CFC) |
| COOLING SYSTEMS | 120 KW Chiller Water/Glycol |
| VACUUM SYSTEM | Pfeiffer HENA + Pfeiffer OKTA |
| ELECTRICAL SPECIFICATIONS | 460/480 Volt, 60 Cycle, 3 Phase |
| AMPERAGE | 250 Amp Dedicated Line |
| UNIT DIMENSIONS | 236 x 91 x 83 Inches (L x W x H) |
| WEIGHT | 22,050 Lbs |
Warranty
12 months from date of delivery, covering parts and labor. Please note that service charges for travel time are not covered under the standard warranty terms.
FAQs
What is the total tray area?
The NutriFreeze FC-R 500 features a massive total tray area of 538 square feet distributed across 144 stainless steel trays.
How fast is the drying cycle?
Most commercial loads are fully preserved within a 24-hour cycle, depending on the moisture content and type of material being processed.
What electrical setup is required?
This unit requires a 460/480 Volt, 60 Cycle, 3 Phase electrical connection with a 250 Amp dedicated line.
Is it suitable for cannabis?
Yes, it is an excellent freeze dryer for cannabis due to its precise temperature controls and high-volume capacity for commercial curing.
Does it include a chiller?
Yes, the FC-R 500 comes equipped with a dedicated 120 KW Water/Glycol chiller system for optimal temperature management.
How is the unit loaded?
The system uses a professional Cassette and Trolley loading system (trolley included) to facilitate easy handling of the 144 trays.
