- NutriFreeze FC-R 100 Freeze Dryer Unit
- 30 KW Chiller (Water/Glycol)
- Pfeiffer Duo 65 Vacuum System
- Cassette/Trolley Loading System
- 27 Stainless Steel Trays
- 19-inch Touchscreen Control Interface

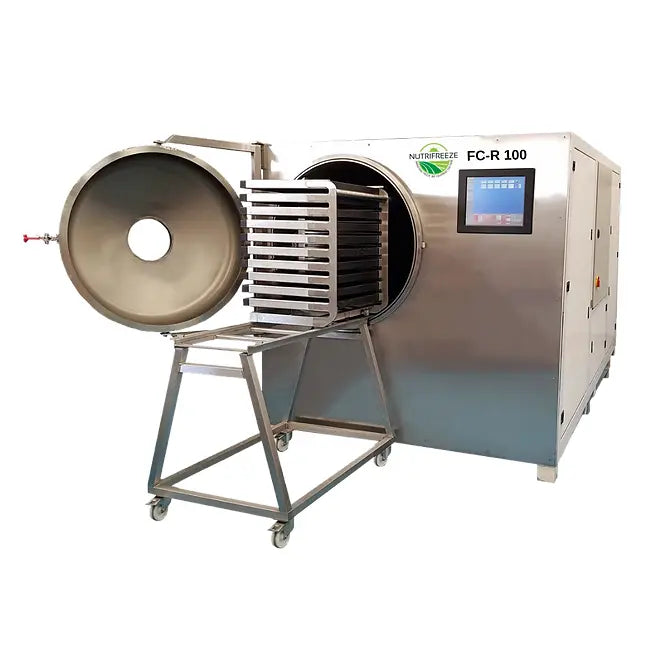

NutriFreeze FC-R 100 Freeze Dryer and Chiller
- Ice condenser performance of 286 lbs per 24 hours
- 460/480 Volt, 60 Cycle, 3 Phase + Neutral electrical requirement
- 12-month warranty covering parts and labor
- View More Details
Free Shipping
To the lower 48
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
Questions? Talk to a specialist.
Mon to Fri, 9am to 5pm PST
- Free ShippingTo the lower 48
- Transparent PricingBacked w/ price match guarantee
- 4.8/5 Top Quality Store on Google
- Secure CheckoutSSL encrypted payments
- You are expanding your commercial kitchen because you need to scale your food preservation workflows without compromising quality.
- You are upgrading your laboratory because traditional drying methods create a bottleneck in your processing capacity.
- The 19-inch touchscreen control interface provides total oversight of your preservation cycle.
- The included trolley and cassette system make loading and unloading its 27 trays seamless.
- The unit utilizes advanced conductive heat energy to efficiently drive ice crystals into water vapor without high shelf temperatures.
- Operators handling heavy processing volume say the 220-lb capacity lets them process massive batches without splitting loads across multiple runs.
- Facilities running large production schedules say the rapid 24-hour cycle time helps them maintain steady output and preserve flavor quality.
NutriFreeze FC-R 100 Freeze Dryer and Chiller
The NutriFreeze FC-R 100 Programmable Freeze Dryer and Chiller is the ultimate solution for industrial-scale food preservation. Designed to handle demanding workflows, this unit eliminates the bottleneck of traditional drying methods, allowing your business to scale without compromising quality. Whether you are expanding your laboratory or upgrading your commercial kitchen, this system delivers consistent, shelf-stable results every time.
Utilizing advanced conductive heat energy, the FC Range efficiently drives ice crystals into water vapor without the need for high shelf temperatures. This gentle yet powerful process preserves the cellular structure and nutritional profile of your goods. For even larger industrial requirements, explore the NutriFreeze FC-R 250 or the massive NutriFreeze FC-R 500.
Equipped with a 19-inch touchscreen and a fully programmable control system, the FC-R 100 provides total oversight of your preservation cycle. The included trolley and cassette system make loading and unloading its 27 trays seamless, ensuring maximum uptime for your operation. Browse the full NutriFreeze collection to find the perfect fit for your needs.
What's Included
Features
⚖️
220-lb Capacity
Handle massive batches with 220 lbs of material distributed across 27 trays.
⏱️
Quick Process
Preserve nutrients and flavor within a rapid 24-hour cycle time.
⚙️
Programmable Control
Customizable settings allow you to optimize the drying process for any material.
🛡️
Food Grade
Constructed with high-quality stainless steel to prevent contamination.
Specifications
| Specification | Value |
|---|---|
| Control System | Fully Programmable Touchscreen |
| Ice Condenser Capacity | 330 Pounds |
| Ice Condenser Performance | 286 Lbs / 24 Hrs |
| Ice Condenser Temp | -67°F / -55°C |
| Defrosting Method | Hot Gas |
| Number of Shelves | 9 Shelves (27 Trays) |
| Total Shelf Area | 108 Square Feet |
| Loading System | Cassette / Trolley |
| Shelf Temperature | Up to +266°F / +130°C |
| Refrigeration | Two Stage Compressor |
| Refrigerant | R-404A (non-CFC) |
| Cooling System | 30 KW Chiller (Water/Glycol) |
| Vacuum System | Pfeiffer Duo 65 |
| Electrical | 460/480 Volt, 60 Cycle, 3 Phase + Neutral |
| Amperage | 75 Amp Dedicated Line |
| Dimensions | 126 x 71 x 79 Inches (L x W x H) |
| Weight | 5512 Lbs |
Warranty
The NutriFreeze FC-R 100 comes with a 12-month warranty from the date of delivery covering parts and labor. Please note that service charges for travel time are not covered under this warranty.
FAQs
What is the total drying capacity per run?
The FC-R 100 is designed to handle up to 220 lbs of material per cycle, distributed across its 27 stainless steel trays.
How long does a typical freeze-drying cycle take?
Most cycles are completed within 24 hours, depending on the moisture content and type of material being preserved.
Does this unit include a vacuum pump?
Yes, the system is equipped with a high-performance Pfeiffer Duo 65 vacuum system to ensure deep and consistent sublimation.
What are the electrical requirements for installation?
This unit requires a 460/480 Volt, 60 Cycle, 3 Phase + Neutral connection with a 75 Amp dedicated line.
Is the loading trolley included with the purchase?
Yes, a specialized cassette and trolley system is included to facilitate easy loading and unloading of the 27 trays.
