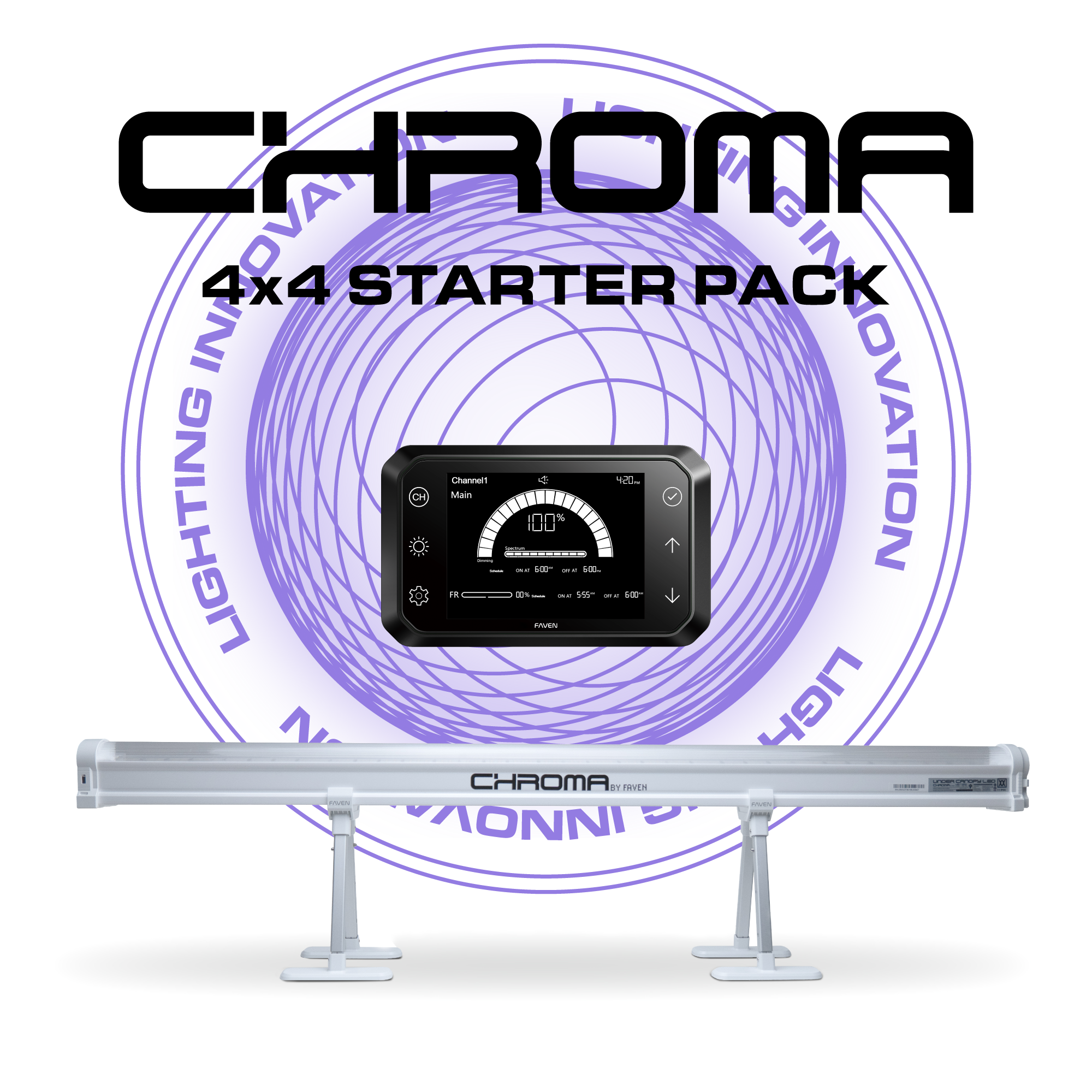

Faven Lighting Chroma Under Canopy 4' x 4' Starter Pack

$652.00 USD
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
  • Covers a 4x4 ft footprint with 120W primary output and 15W independent far-red
  • Adjustable R4-R9 spectrum recipes with a standalone controller for up to 150 lights
  • Runs on 120V to 277V circuits with an IP66 waterproof rating for wet environments
  • 5-year warranty on all mechanical and electronic components
  • View More Details
Shipping Calculated at Checkout
Order today, ships between July 16 - August 6, 2026

Earn 599 points for shopping and get $5.99 off your next order. Join Harvest Club for free.

Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
Over 50,000 Customers Trust Trimleaf
Transparent Pricing Backed w/ price match guarantee
4.8/5 Rating 1938+ verified reviews
Secure Checkout SSL encrypted payments

Send Us a Message

REBATE PROGRAM

Commercial Rebate Program

Licensed operations may qualify for up to a 60% rebate on qualifying equipment.

Rebate & Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Hands-On Evaluation

Who This Is For

  • You are adding under-canopy light because your lower branches produce too many smalls that take forever to trim.
  • You are switching to adjustable bars because fixed-spectrum lights do not let you trigger specific far-red responses.

What We Found

  • The far-red channel is the real secret here, letting you trigger specific plant responses without changing the base.
  • Most under canopy lights are flimsy, but these IP66 bars actually survive high-pressure spray and daily humidity.
  • We noticed that using the R8 spectrum during late flower really tightens up the density on those lower branches.

What Users Say

  • Growers report that their ROI was fully covered in just one harvest due to the significant increase in premium flower.
  • Facilities using these bars found they could stop aggressive pruning since the lower sites now produce high-value buds.

Faven Lighting Chroma Under Canopy 4' x 4' Starter Pack

Struggling with inconsistent yields and disappointing lower canopy development? The Faven Chroma Under Canopy Starter Pack delivers 20-30% yield increases with over 85% of growers reporting a single-run return on investment. This 4x4 coverage kit includes everything needed to transform your grow: 2 Chroma lights with adjustable R4-R9 spectrum, CX2 controller, power cord, jumper cable, and adjustable mounting stands.

The Chroma Under Canopy Light combines 120W primary output with an independent 15W far-red channel, allowing precise spectrum control throughout your growth cycle. The included CX2 controller supports up to 100-150 lights with manual dimming, spectrum adjustment, and far-red scheduling capabilities. At 2.9 µmol/j efficacy with IP66 waterproof rating, these under canopy lights are built for demanding commercial environments while remaining accessible for home growers seeking professional results.

Beyond yield increases, Faven lighting reduces labor-intensive under-clearing, decreases low-value smalls and B-grade buds, and produces more uniform color throughout the canopy. The system is ETL, DLC, CE, and FCC certified, qualifies for electrical rebates, and is backed by a comprehensive 5-year warranty on all mechanical and electronic components.

Features

📈
Proven ROI Performance

85% of customers report single-run return on investment with 20-30% yield increases documented.

🎨
Adjustable R4-R9 Spectrum

120W output with independent 15W far-red channel for precise spectrum control throughout growth stages.

🎮
Complete CX2 Control System

Standalone controller supports 100-150 lights with manual dimming, spectrum tuning, and far-red scheduling.

💧
IP66 Waterproof Rated

Commercial-grade protection with internal driver and 2.9 µmol/j efficiency for demanding grow environments.

Full Certification Package

ETL, DLC, CE, and FCC certified with electrical rebate qualification and 5-year warranty coverage.

🌿
Reduced Labor & Waste

Decreases under-clearing work, eliminates smalls and B-grade buds, creates uniform canopy color throughout.

Adjustable Spectrum Control

The Chroma Under Canopy Light features six programmable spectrum recipes (R4-R9) plus an independent far-red channel, allowing you to optimize light quality for every growth stage. From high-energy red peaks in R8 and R9 for flowering intensity, to balanced full-spectrum outputs in R4 and R5 for vegetative growth, each recipe is engineered to maximize photosynthetic efficiency and plant response. The independent far-red channel can run separately or alongside any spectrum recipe, triggering shade avoidance responses and accelerating flowering transitions.

Faven Chroma Adjustable Spectrum R4-R9
Faven Chroma Independent Far Red Channel

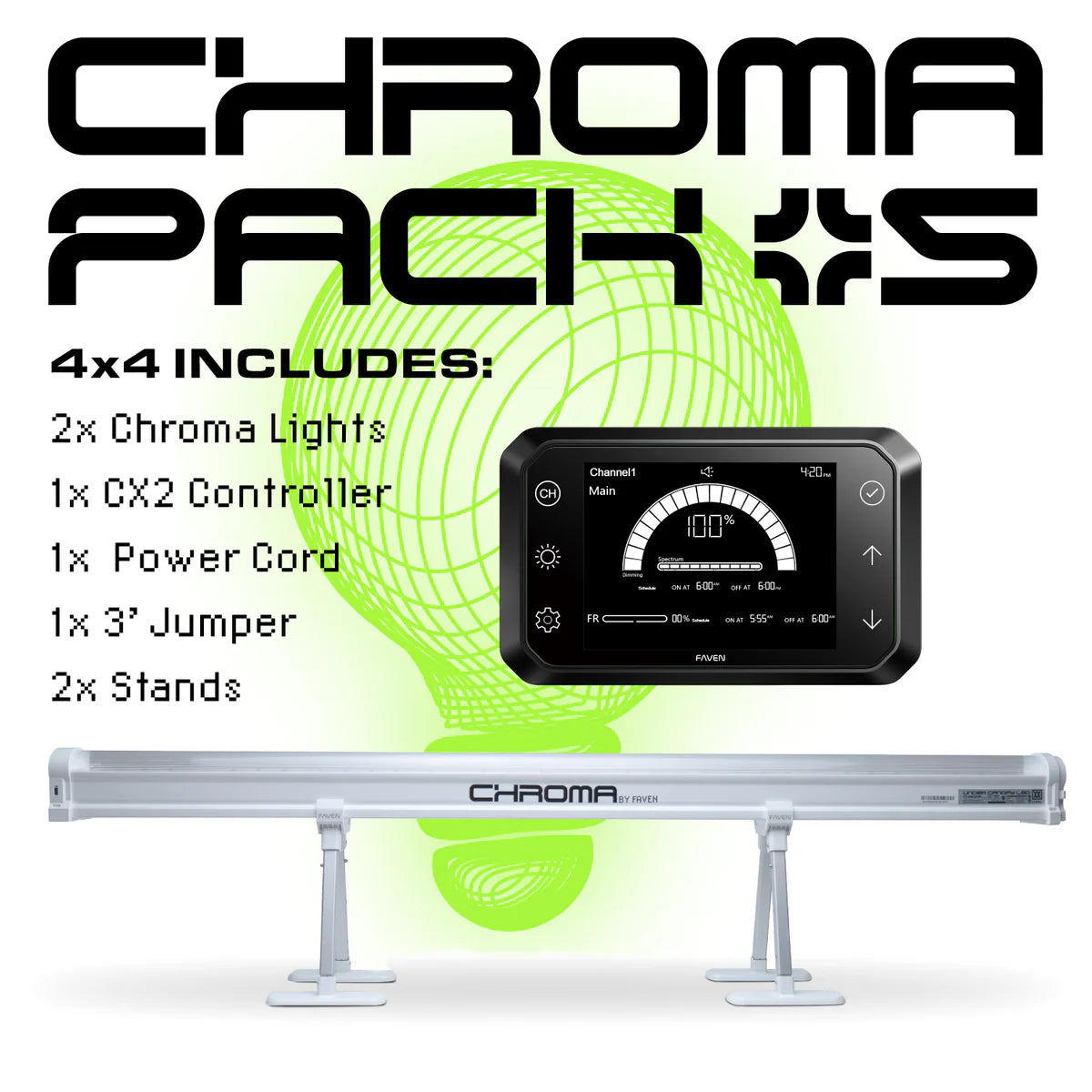

What's Included

Specifications

Specification Value
Power Output 120W + 15W Far Red LED
Efficacy (PPE) Up to 2.9 µmol/J
Photon Flux (PPF) Up to 380 µmol/s
Spectrum Range Adjustable R4-R9 Red & White with Independent Far Red Channel
Input Voltage 120V, 240V, or 277V
Input Current 1.0A @ 120V | 0.5A @ 240V | 0.43A @ 277V
Frequency 50-60Hz
Dimming Range 40% - 100% Off
Light Distribution 120°
Waterproof Rating IP66
Driver Type Internal
Thermal Management Passive
Operating Temperature 95°F / 35°C Max
Fixture Dimensions 45.67"L × 2.9"W × 3.3"H (116cm × 7.5cm × 8.5cm)
Weight 5.72 lbs / 2.6 kg
Lifetime >50,000 Hours
Coverage Area 4' × 4' (2 lights included)
Daisy-Chain Capacity 120V: 10 units | 240V: 17 units | 277V: 20 units | 480V: 35 units
Control Compatibility GrowFlux, CX2, RS485 Adapters, 0-10V Systems
CX2 Controller Capacity 100-150 Lights per Unit
Certifications ETL (Intertek 4009588), DLC, CE, FCC
Warranty 5 Years

Warranty

Faven warrants all mechanical and electronic components of this product against defects in materials and workmanship for five (5) years from the original date of purchase when used under normal operating conditions. This comprehensive coverage protects your investment and ensures long-term reliability in commercial growing environments.

FAQs

How quickly can I expect to see ROI with the Chroma system? +

Over 85% of Faven customers report recovering their investment within a single grow cycle. Typically, a 20% yield increase alone covers the cost of the lights, but additional benefits like reduced labor, fewer low-grade products, and more uniform canopy color further accelerate your return on investment.

What's the difference between the CX2 controller and GrowFlux? +

The CX2 controller is a standalone unit ideal for smaller grows or first-time Chroma users, offering manual dimming, spectrum adjustment, and far-red scheduling for up to 100-150 lights. GrowFlux provides wireless, app-based control with advanced features like multi-zone management, complex lighting recipes, and remote access—perfect for large commercial facilities managing up to 99 lights per dimmer across multiple zones.

Which voltage option should I choose for my facility? +

Select the voltage that matches your facility's electrical system: 120V for standard residential or small commercial setups, 240V for most commercial grows, or 277V for large commercial facilities with high-voltage infrastructure. If you're unsure, consult with your electrician to determine your facility's voltage before ordering.

Can I expand my system beyond the 4x4 starter pack? +

Absolutely. The system is fully expandable. You can add more individual lights as needed, or start with a larger kit like the Chroma 4' x 8' Starter Pack. The included CX2 controller supports 100-150 lights, ensuring all components work seamlessly together.

How does adjustable spectrum control improve my yields? +

The R4-R9 adjustable spectrum allows you to optimize light quality for different growth stages, a critical factor for boosting indoor plant growth. The independent 15W far-red channel triggers specific photomorphogenic responses, and this precise control increases canopy penetration, improves lower bud development, enhances color uniformity, and ultimately drives the 20-30% yield increases Faven customers consistently report.

Will these lights work in high-humidity environments? +

Yes. The Chroma lights carry an IP66 waterproof rating, meaning they're fully protected against dust and powerful water jets. Combined with the internal driver design, these lights are built specifically for demanding grow environments with high humidity, frequent cleaning, and temperature fluctuations.

Does this system qualify for any rebates or incentives? +

Yes, Faven Chroma lights are DLC certified and qualify for electrical rebates in many regions. The specific rebate amount varies by location and utility provider, so contact your local utility company or energy efficiency program to determine available incentives for your facility.

What happens if I need technical support during setup? +

Faven provides comprehensive documentation including the CX2 Controller Manual and Growing with Faven Guide (linked above in Support & Manuals). For additional assistance, Faven's technical support team is available to help with installation questions, spectrum programming, and optimization strategies to ensure you maximize your system's performance.
