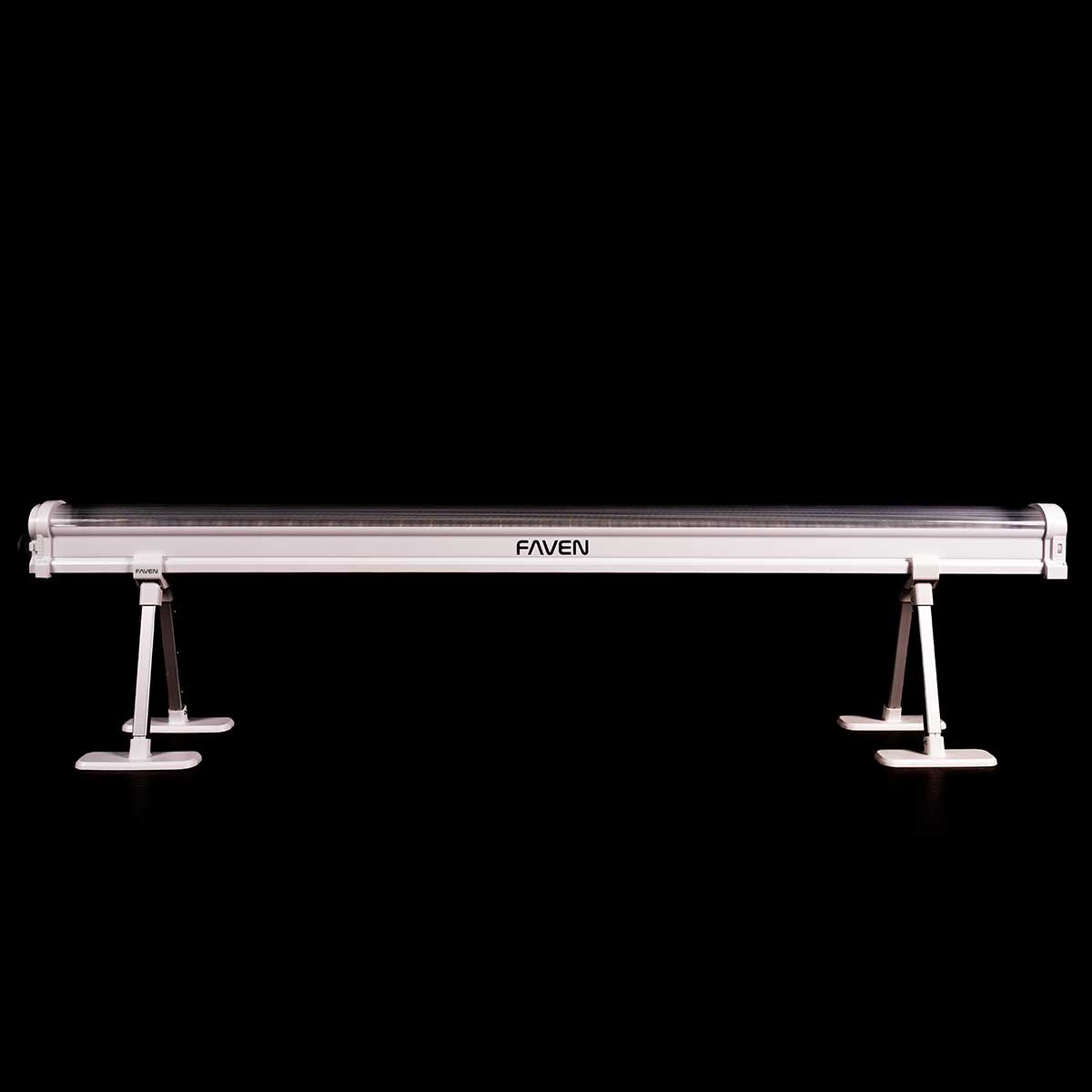

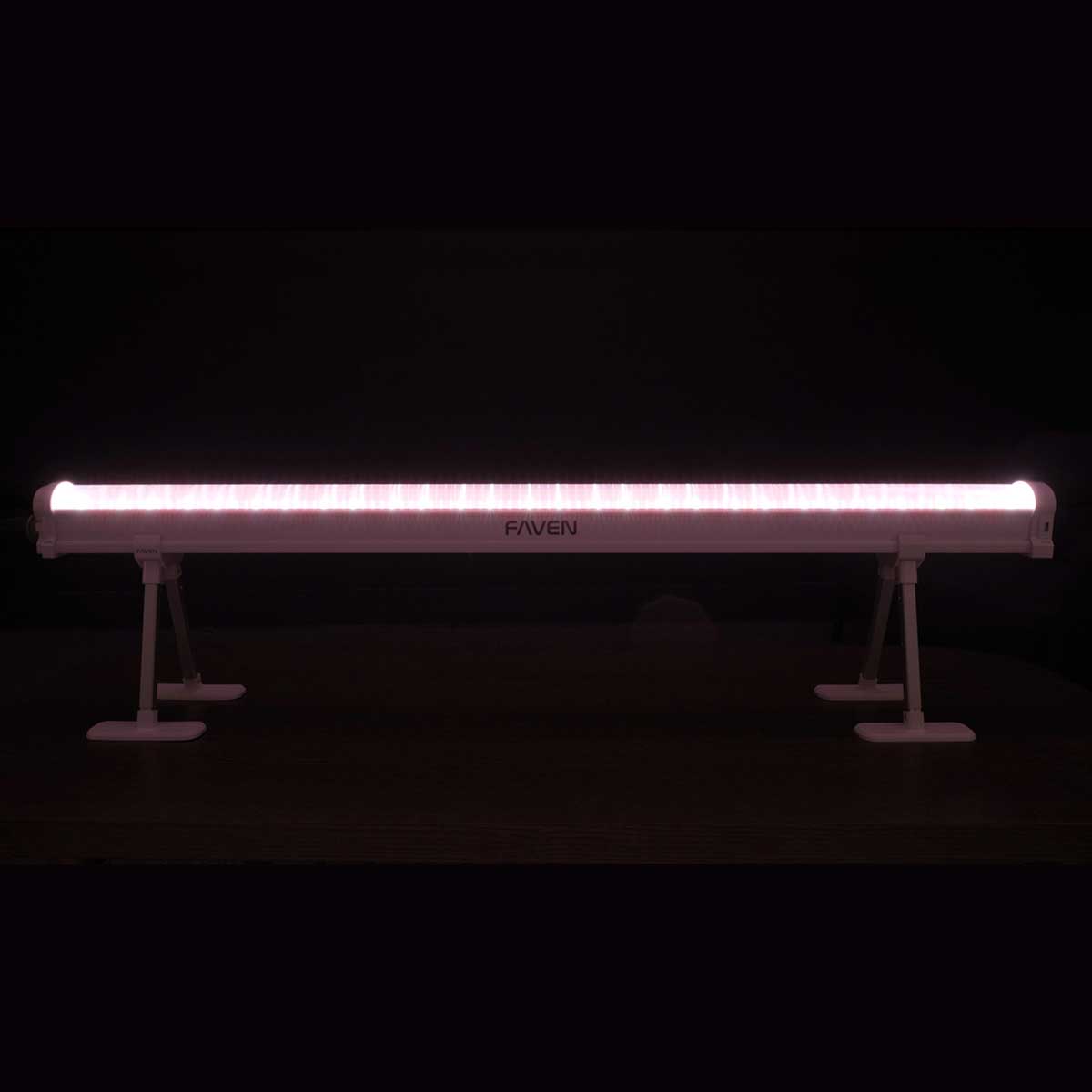

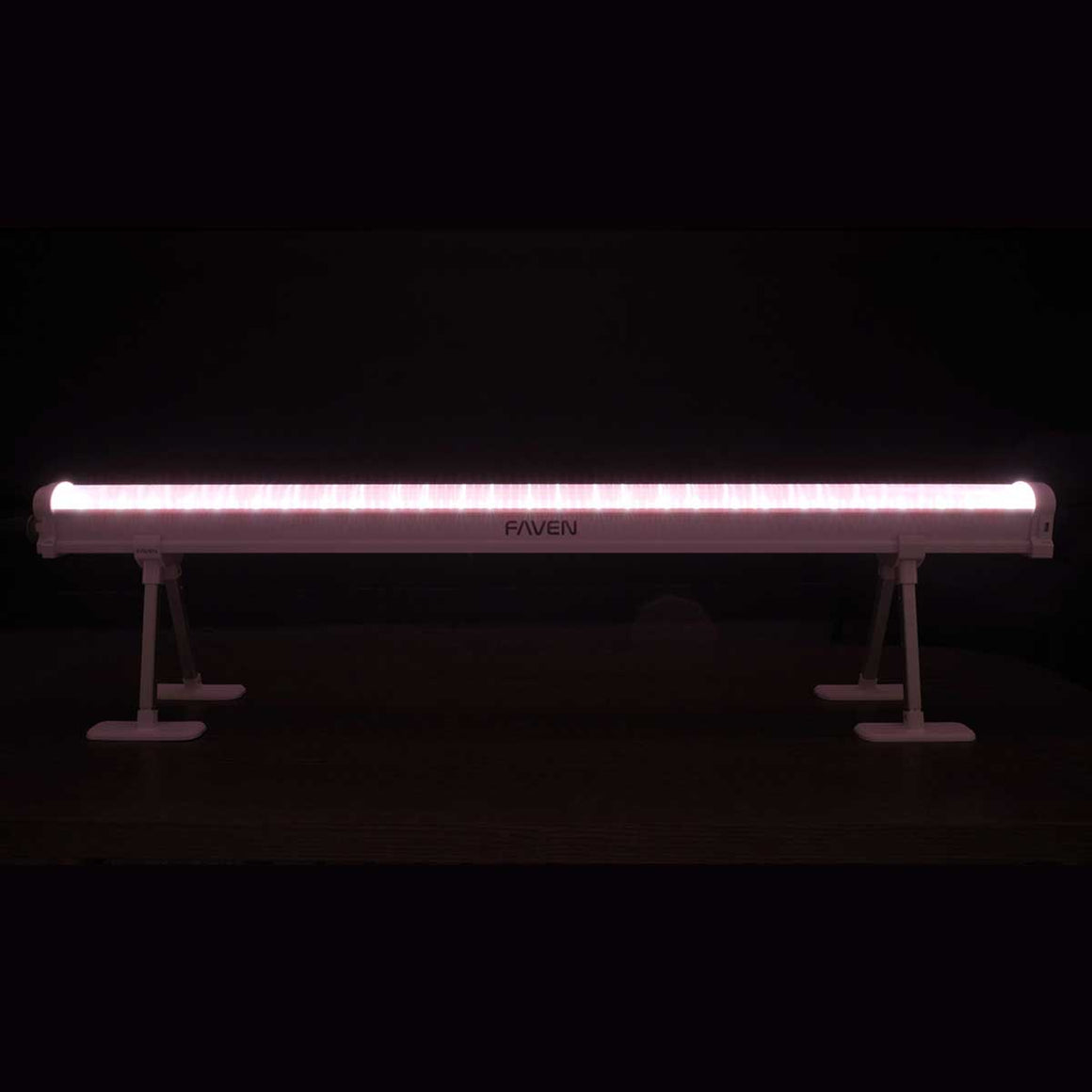

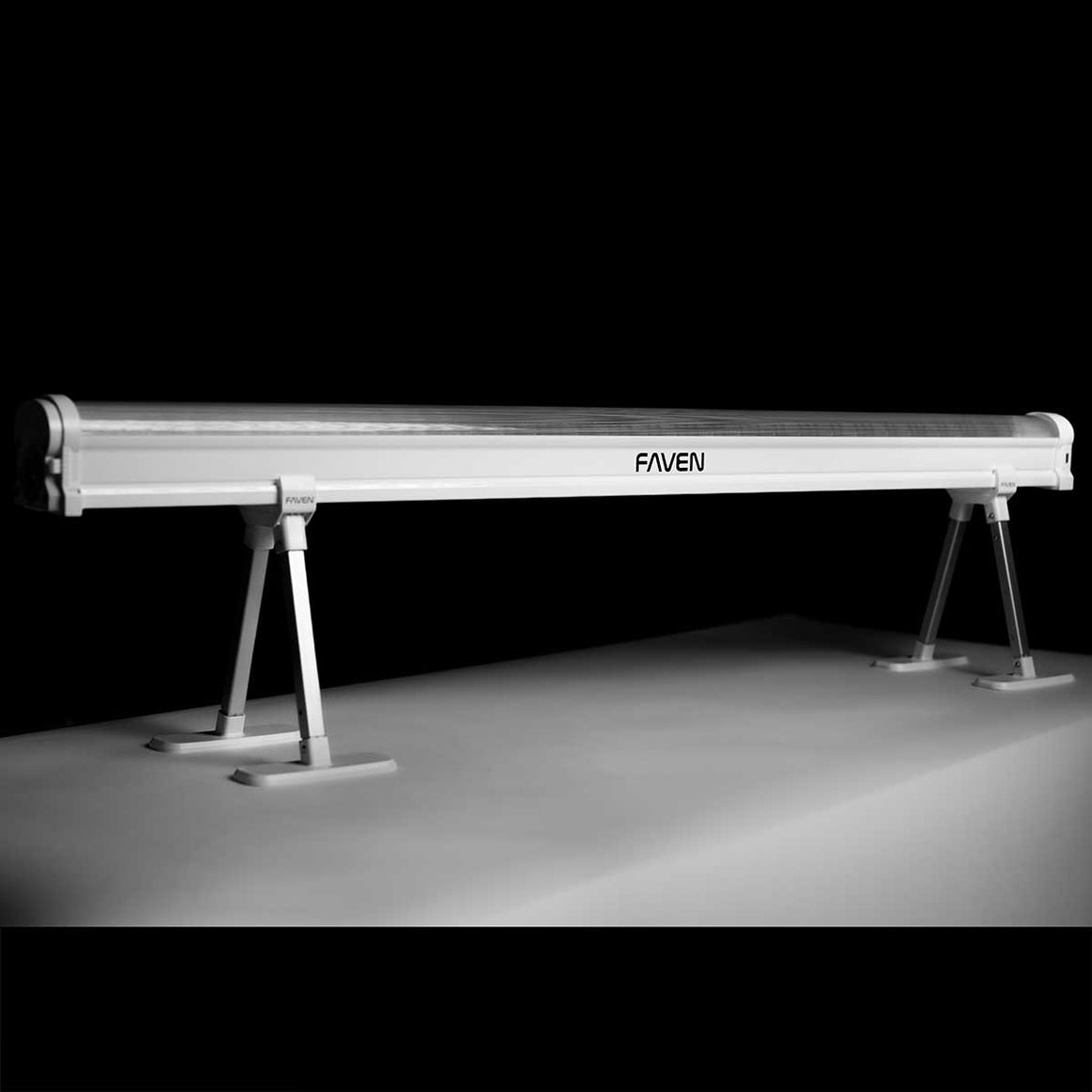

Faven Lighting R6/R8 120W LED Under Canopy Light

Faven R6/R8 Under Canopy LED Light

Lower canopy shading costs you 20-30% of potential revenue while creating labor-intensive trimming and low-value product. The Faven R6/R8 is a powerful under canopy LED light that delivers targeted spectrum optimization to penetrate dense canopies, driving 20-30% average yield increases with over 85% of customers achieving single-run ROI.

The R6/R8 series features spectrum-specific engineering: R6 for HPS top-lit environments and R8 for rooms with LED grow lights and in greenhouses. After years of commercial trials, Faven Lighting developed these targeted spectrums to balance your existing top light, maximizing photosynthetic efficiency throughout the entire canopy rather than just the upper tier. This precision approach increases usable canopy depth while improving color uniformity, bud density, and trichome development from top to bottom.

The 120W dimmable fixture delivers up to 2.9 μmol/j efficacy in a low-profile design (46.14"L × 2.9"W × 3.3"H) with IP66 waterproof rating for reliable performance in high-humidity cultivation environments. Daisy-chain connectivity, facilitated by optional Faven jumper cables, supports up to 35 units on a single circuit at 0.25A, simplifying installation across commercial operations. ETL, DLC, CE, and FCC certified with a 5-year warranty.

Note: Power cords, the R6/R8 mini controller, and mounting accessories are sold separately.

Features

💰

Single-Run ROI

Over 85% of customers achieve complete return on investment in one harvest cycle with 20-30% average yield increases.

🌈

Spectrum-Specific Engineering

R6 optimized for HPS rooms, R8 designed for LED and greenhouse environments to perfectly balance your top light spectrum.

📊

Superior Canopy Uniformity

Increases usable canopy depth while improving color consistency, bud density, and maturity throughout entire plant structure.

⚙️

High-Efficiency Performance

Up to 2.9 μmol/j efficacy with dimmable 120W output and IP66 waterproof rating for demanding cultivation environments.

🔗

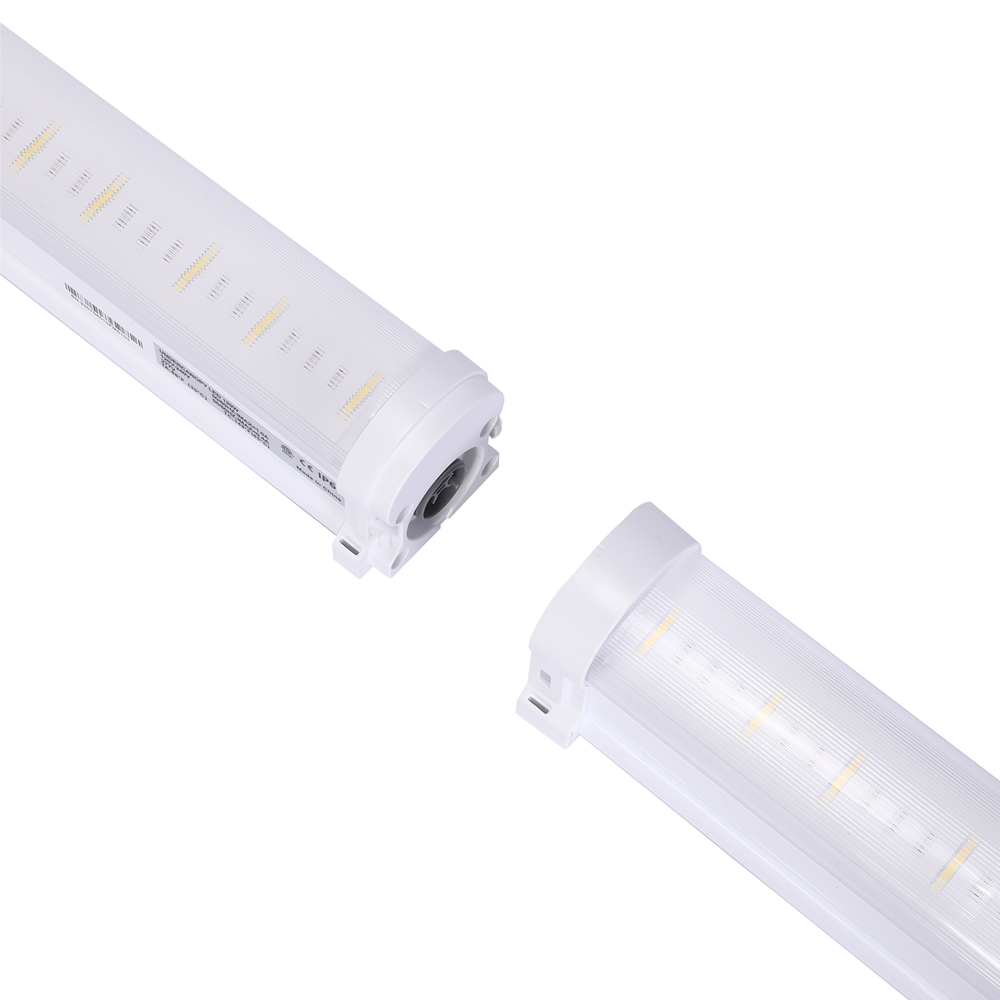

Scalable Installation

Daisy-chain up to 35 fixtures on a single circuit, simplifying commercial-scale deployment and electrical infrastructure.

✂️

Reduced Labor Costs

Decreases under-clearing and post-production labor while minimizing low-value smalls and B-grade product.

Adjustable Spectrum Technology

Faven R6W and R8W Spectrum Distribution Charts

The spectral distribution charts above illustrate how each model targets specific wavelength ranges to optimize photosynthetic response. The R6W spectrum concentrates energy in the red spectrum (600-700nm) with supporting blue wavelengths to complement HPS's existing output. The R8W spectrum provides a broader distribution across the photosynthetically active range (400-700nm), filling gaps in LED and natural light sources common in greenhouse applications.

Specifications

Specification	Value
Input Power	120W
Efficacy	Up to 2.9 μmol/j (R6), Up to 3.58 μmol/j (R8)
Input Current	1.0A, 0.5A, 0.43A, 0.25A
Voltage	120V, 240V, 277V, 480V
Frequency	50-60Hz
Daisy-Chain Capacity	10 units @ 1.0A, 17 units @ 0.5A, 20 units @ 0.43A, 35 units @ 0.25A
Fixture Dimensions	46.14"L × 2.9"W × 3.3"H (117.2cm × 7.5cm × 8.5cm)
Weight	5.72 lb / 2.6 kg
Thermal Management	Passive
Operating Temperature	95°F / 35°C Max
Light Distribution	120°
Dimming Range	40% - 100% Off
Rated Lifetime	>50,000 Hours
IP Rating	IP66 Waterproof
Certifications	ETL, DLC, CE, FCC
Driver Type	Internal
Available Spectrums	R6W (HPS Rooms), R8W (LED/Greenhouse)

Support & Manuals

📄 Faven R6/R8 Specifications Sheet

Warranty

Faven backs the R6/R8 Under Canopy LED Light with a comprehensive 5-year manufacturer warranty covering defects in materials and workmanship. This industry-leading warranty reflects the commercial-grade construction and reliability expected in professional cultivation environments.

FAQ

How do I choose between the R6 and R8 spectrum? +

Select the R6 spectrum if you're using HPS top lighting in your grow room. Choose the R8 spectrum for facilities using LED top lights or greenhouse environments. Each spectrum is specifically engineered to balance and complement your existing lighting infrastructure for optimal photosynthetic response throughout the canopy. For more details on choosing the right fixture, consult our LED grow light buying guide.

How many fixtures can I connect together on one circuit? +

The daisy-chain capacity depends on your amperage setting: 10 units at 1.0A, 17 units at 0.5A, 20 units at 0.43A, or up to 35 units at 0.25A. This flexibility allows you to scale your under canopy lighting across commercial operations without extensive electrical modifications.

What kind of yield increase can I realistically expect? +

Commercial growers consistently report 20-30% yield increases when implementing Faven under canopy lighting. Beyond raw yield, you'll also see improved bud quality, reduced labor costs from less larf removal, and more uniform color throughout your product. Over 85% of customers achieve complete ROI within their first harvest cycle.

Does this fixture work in high-humidity environments? +

Yes, the Faven R6/R8 features an IP66 waterproof rating, making it fully protected against dust ingress and powerful water jets. This rating ensures reliable operation in the humid conditions common in flowering rooms and ensures the fixture can handle routine cleaning and sanitation protocols.

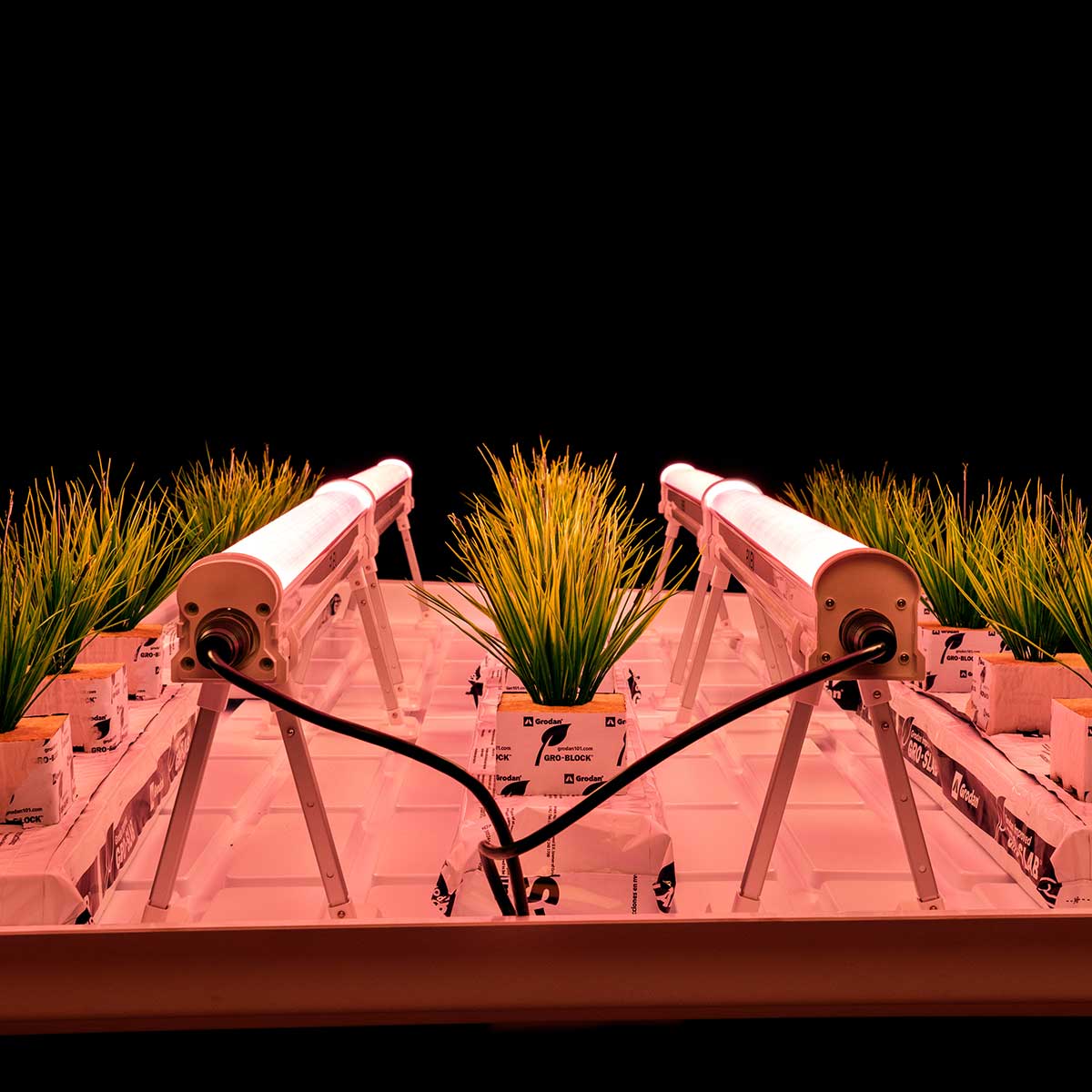

How do I install and position these lights in my canopy? +

Mount the fixtures horizontally below your main canopy level, typically in the middle third of your plant structure where light penetration is weakest. The 120° light distribution provides effective coverage, and the low-profile design (2.9" width) minimizes obstruction. Refer to the specifications sheet for detailed mounting recommendations based on your canopy density and structure.

Are cords and connection accessories included with the fixture? +

No, power cords and daisy-chain connection accessories are sold separately. This allows you to customize your installation with the appropriate cord lengths and configurations for your specific facility layout and electrical infrastructure.

Does the Faven R6/R8 qualify for energy rebates? +

Yes, the Faven R6/R8 is DLC certified, which qualifies the fixture for energy efficiency rebates in many jurisdictions. Check with your local utility provider to determine specific rebate amounts and eligibility requirements in your area, as these programs can significantly offset initial equipment costs.

What maintenance does this fixture require? +

The Faven R6/R8 uses passive thermal management with no fans or moving parts, eliminating common maintenance issues. Simply keep the fixture exterior clean for optimal light output and heat dissipation. The >50,000 hour rated lifetime and 5-year warranty provide long-term reliability with minimal upkeep requirements.
