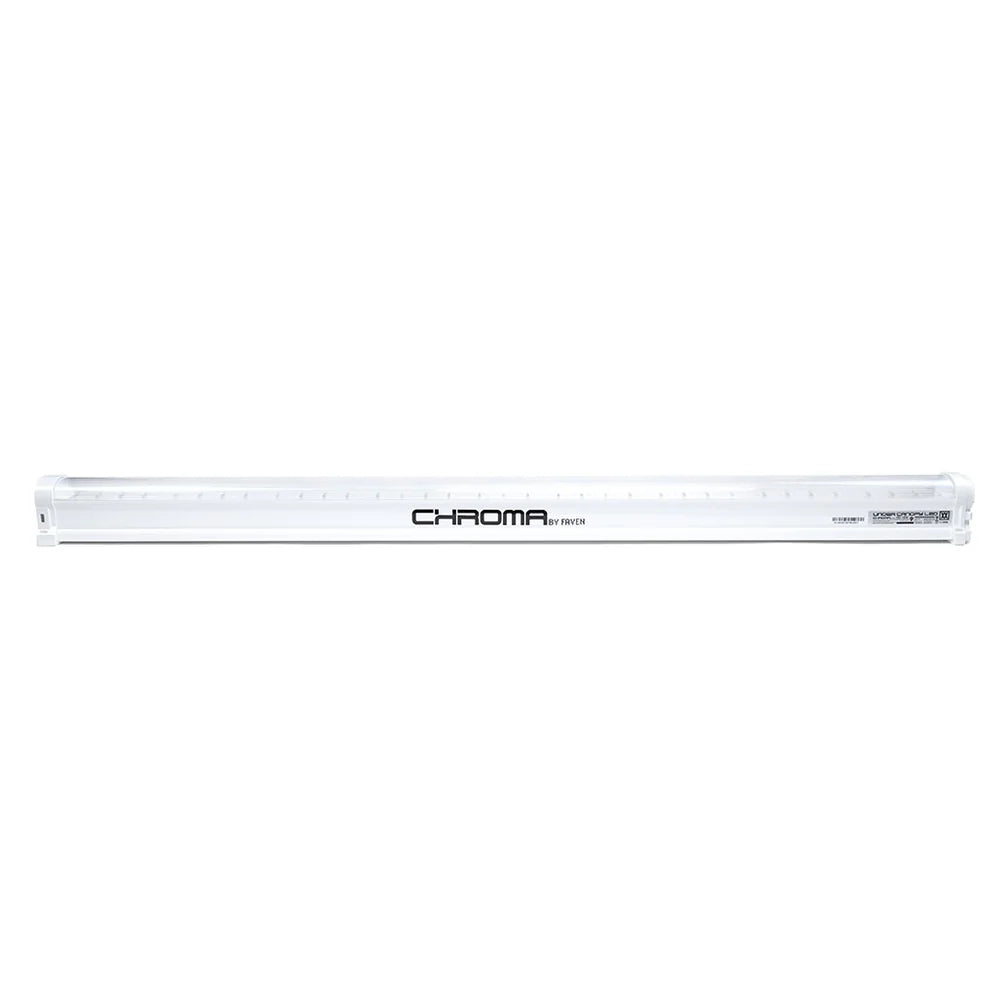

Faven Lighting Chroma Under Canopy Light

Struggling with underdeveloped lower canopy and disappointing bud quality below the top tier? The Faven Chroma is a powerful under canopy light that delivers 20-30% yield increases with over 85% of growers reporting single-run ROI. This professional-grade fixture combines 120W primary output with an independent 15W far-red channel, featuring six adjustable spectrum recipes (R4-R9) that allow precise light quality optimization for every growth stage and cultivar requirement.

The Chroma fixture achieves up to 2.9 µmol/j efficacy while maintaining IP66 waterproof protection for demanding grow environments. The adjustable spectrum control lets you shift from balanced full-spectrum outputs (R4-R5) for vegetative growth to high-energy red peaks (R8-R9) for flowering intensity. The independent far-red channel runs separately or alongside any spectrum recipe, triggering shade avoidance responses and accelerating flowering transitions for improved canopy uniformity and reduced harvest time.

Compatible with GrowFlux wireless control, the CX2 standalone controller, RS485 adapters, and standard 0-10V dimming systems, the Chroma integrates seamlessly into existing infrastructure or scales up to complex multi-zone operations. Beyond significant yield improvements, growers report decreased labor-intensive under-clearing, reduction of low-value smalls and B-grade material, and more uniform color throughout the finished product. The fixture is ETL, DLC, CE, and FCC certified, qualifies for electrical rebates, and includes a comprehensive 5-year warranty.

Note: Power cords, controllers, and mounting accessories are sold separately.

Features

📈

Proven ROI Performance

85% of customers report single-run return on investment with 20-30% yield increases documented.

🎨

Adjustable R4-R9 Spectrum

Six programmable spectrum recipes optimize light quality from vegetative to flowering stages.

🔴

Independent Far Red Channel

15W far-red operates separately or with any spectrum for enhanced flowering response.

💧

IP66 Waterproof Rated

Commercial-grade protection with internal driver and 2.9 µmol/j efficiency for demanding environments.

🔌

Universal Control Compatibility

Works with GrowFlux, CX2, RS485 adapters, and 0-10V dimming systems.

✅

Full Certification & Rebates

ETL, DLC, CE, FCC certified with electrical rebate qualification and 5-year warranty.

Adjustable Spectrum Control

The Chroma Under Canopy Light features six programmable spectrum recipes (R4-R9) plus an independent far-red channel, allowing you to optimize light quality for every growth stage. From high-energy red peaks in R8 and R9 for flowering intensity, to balanced full-spectrum outputs in R4 and R5 for vegetative growth, each recipe is engineered to maximize photosynthetic efficiency and plant response. The independent far-red channel can run separately or alongside any spectrum recipe, triggering shade avoidance responses and accelerating flowering transitions.

Faven Chroma Independent Far Red Channel

Lighting Control Compatibility

The Chroma fixture integrates with multiple control systems to match your operation's needs and complexity. Choose GrowFlux for wireless, app-based control with spectrum tuning, scheduling, and remote access—ideal for large commercial facilities with multiple zones and complex lighting recipes supporting up to 99 lights per dimmer. Alternatively, the CX2 controller offers simple, standalone operation for smaller grows or first-time Chroma users with manual dimming, spectrum adjustment, and far-red scheduling for up to 100-150 lights per unit. The fixture also supports approved digital RS485 adapters and standard 0-10V dimming systems.

What's Included

1x Chroma Under Canopy Light

Note: Power cords, controllers, and mounting accessories like Faven Adjustable Stands are sold separately.

Specifications

Specification	Value
Power Output	120W + 15W Far Red LED
Efficacy (PPE)	Up to 2.9 µmol/J
Photon Flux (PPF)	Up to 380 µmol/s
Spectrum Range	Adjustable R4-R9 Red & White with Independent Far Red Channel
Input Voltage	120V, 240V, or 277V (Cord Sold Separately)
Input Current	1.0A @ 120V \| 0.5A @ 240V \| 0.43A @ 277V
Frequency	50-60Hz
Dimming Range	40% - 100% Off
Light Distribution	120°
Waterproof Rating	IP66
Driver Type	Internal
Thermal Management	Passive
Operating Temperature	95°F / 35°C Max
Fixture Dimensions	45.67"L × 2.9"W × 3.3"H (116cm × 7.5cm × 8.5cm)
Weight	5.72 lbs / 2.6 kg
Lifetime	>50,000 Hours
Daisy-Chain Capacity	120V: 10 units \| 240V: 17 units \| 277V: 20 units \| 480V: 35 units
Control Compatibility	GrowFlux, CX2, RS485 Adapters, 0-10V Systems
Certifications	ETL (Intertek 4009588), DLC, CE, FCC
Warranty	5 Years

Support & Manuals

📄 Chroma Specifications

Warranty

Faven warrants all mechanical and electronic components of the Chroma Under Canopy Light against defects in materials and workmanship for five (5) years from the original date of purchase when used under normal operating conditions. This comprehensive coverage protects your investment and ensures long-term reliability in commercial growing environments.

FAQs

What accessories do I need to purchase separately? +

The Chroma fixture requires a power cord (available in 120V, 240V, or 277V options), a controller (CX2 or GrowFlux), jumper cables for daisy-chaining multiple fixtures, and mounting stands or hardware. Starter packs that include all necessary accessories are available for 4x4 and 4x8 coverage areas.

How do I choose between CX2 and GrowFlux control? +

Choose CX2 for straightforward manual control in smaller operations (up to 150 fixtures) without remote access needs. Select GrowFlux for wireless app-based control, multi-zone management, complex automated recipes, and remote monitoring—ideal for commercial facilities managing hundreds of fixtures across multiple rooms or requiring sophisticated scheduling capabilities.

How many Chroma lights do I need for my grow space? +

Coverage depends on your canopy density and desired light intensity. As a general guideline, use 2 fixtures for a 4x4 space or 4 fixtures for a 4x8 space, and our guide on how many LED grow lights you need can provide a more detailed breakdown. Faven also offers starter packs sized for these common configurations that include all necessary components.

Can I mix different spectrum recipes in the same grow room? +

Yes, when using a dual-channel controller like the CX2 or multi-zone GrowFlux system. This allows you to run different spectrum recipes simultaneously—for example, maintaining R4-R5 vegetative spectrum in one zone while using R8-R9 flowering spectrum in another, or applying different intensities to plants at varying growth stages.

What's the best spectrum recipe for my growth stage? +

Start with R4-R5 balanced full-spectrum outputs during vegetative growth for healthy plant development. Transition to R6-R7 during early flowering, then R8-R9 high-energy red peaks during peak flowering for maximum bud density and maturity. Use the independent far-red channel during flowering transitions and end-of-day treatments to enhance flowering response and reduce harvest time. To learn more about how spectrum impacts plant development, read our guide on how the grow light spectrum influences cannabis growth.

Will these lights work in high-humidity environments? +

Yes. The Chroma lights carry an IP66 waterproof rating, meaning they're fully protected against dust and powerful water jets. Combined with the internal driver design and passive thermal management, these fixtures are built specifically for demanding grow environments with high humidity, frequent cleaning, and temperature fluctuations up to 95°F (35°C).

Does this system qualify for electrical rebates? +

Yes, Faven Chroma lights are DLC certified and qualify for electrical rebates in many regions. The specific rebate amount varies by location and utility provider, so contact your local utility company or energy efficiency program to determine available incentives for your facility.

How quickly can I expect ROI with Chroma lights? +

Over 85% of Faven customers report recovering their investment within a single grow cycle. Typically, a 20% yield increase alone covers the fixture cost, but additional benefits like reduced labor for under-clearing, fewer low-value smalls and B-grade products, and more uniform canopy color further accelerate your return on investment.
