EcoPlus® Convertible Bottom Draw Submersible Only Water Pump 585 GPH

Struggling with water pumps that can't reach the last inch of your reservoir? The EcoPlus Convertible Bottom Draw Water Pump 585 GPH solves this with a patented bottom draw inlet that operates in less than 1/2 inch of water, eliminating waste and maximizing efficiency. This first-of-its-kind hydroponic pump delivers 585 gallons per hour while offering interchangeable outlet fittings that adapt to virtually any hydroponic application.

The EcoPlus Convertible Bottom Draw Pump features a unique convertible outlet system that switches between horizontal and vertical configurations, giving you complete control over water flow direction. The interchangeable fitting design ensures compatibility across different system types, from deep water culture to nutrient film technique setups. With US Patent Pending technology, this pump represents a genuine innovation in hydroponic water management.

Built for reliability in continuous-operation environments, the 585 GPH model handles both reservoir circulation and nutrient delivery duties. The bottom draw design prevents sediment buildup and ensures consistent flow even as water levels drop during feeding cycles.

Features

EcoPlus Bottom Draw Inlet Design and Convertible Outlet Configurations

Bottom Draw Inlet Technology

Operates in less than 1/2 inch of water depth, eliminating dry-run failures and ensuring consistent circulation even in shallow reservoirs.

EcoPlus Eco 290 Performance Chart and Specifications

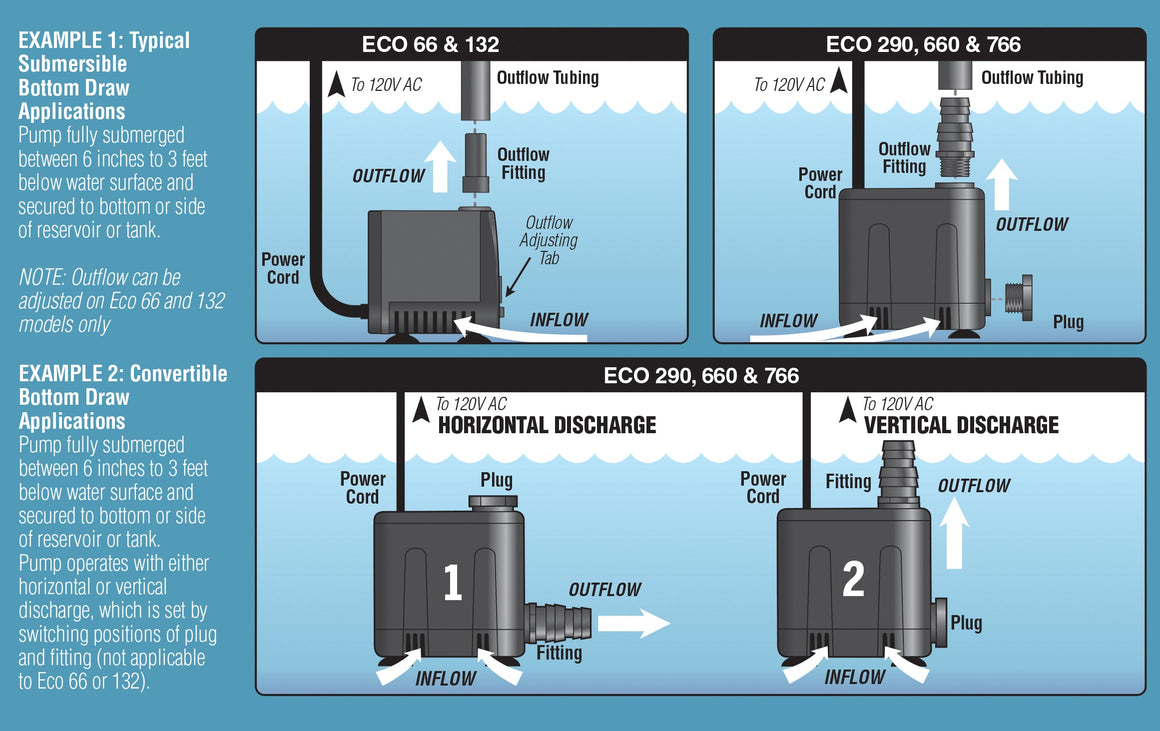

Convertible Outlet System

Patent-pending interchangeable fitting switches between horizontal and vertical discharge, providing installation flexibility for any hydroponic application.

💧

585 GPH Flow Rate

Delivers consistent circulation for small to medium hydroponic systems with energy-efficient operation.

🔧

Universal Fitting Compatibility

Interchangeable outlet fittings accommodate standard tubing sizes for seamless integration into existing setups.

🌊

Submersible Design

Fully submersible construction operates quietly underwater while maintaining prime during water level fluctuations.

⚙️

Patent-Pending Innovation

First hydroponic pump with convertible outlet technology, offering unmatched versatility for diverse growing systems.

What's Included

EcoPlus Convertible Bottom Draw Water Pump 585 GPH

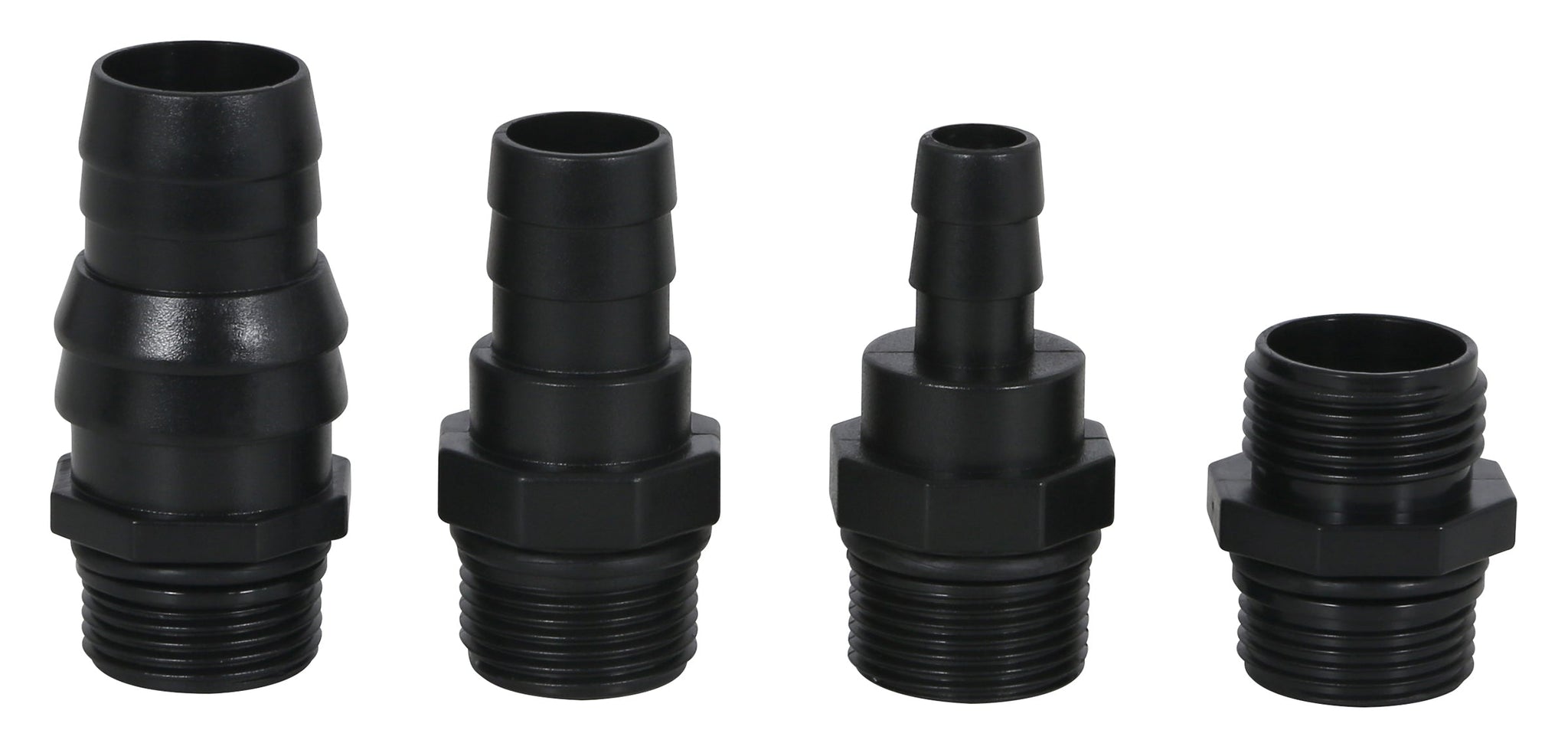

Interchangeable Outlet Fittings
Power Cord

Specifications

Specification	Value
Flow Rate	585 GPH
Pump Type	Submersible Only
Inlet Type	Bottom Draw
Minimum Water Depth	Less than 1/2 inch
Outlet Configuration	Convertible (Horizontal/Vertical)
Patent Status	US Patent Pending No. 14/642,557
Volume (cf)	0.110
Dim Weight (in³/lb)	1.303
Weight (lb)	3.550
Length (in)	6.000
Width (in)	5.250
Height (in)	5.750

Support & Manuals

📄 Installation Instructions 📄 Fitting Guide 🎥 Product Video

Frequently Asked Questions

How does the bottom draw inlet work in shallow water? +

The bottom draw inlet is positioned at the base of the pump, allowing it to pull water from the very bottom of your reservoir. This design enables operation in less than 1/2 inch of water, ensuring you can utilize nearly all available water without the pump losing prime or running dry.

How do I switch between horizontal and vertical outlet configurations? +

The convertible outlet uses interchangeable fittings that can be repositioned to direct water flow either horizontally or vertically. Simply detach the fitting, rotate it to your desired orientation, and reattach it securely. Refer to the included fitting guide for detailed instructions on proper installation.

What size reservoir is the 585 GPH model best suited for? +

The 585 GPH flow rate is ideal for small to medium hydroponic systems, typically reservoirs ranging from 20 to 100 gallons. It provides sufficient circulation for nutrient distribution and oxygenation in DWC, ebb and flow, and NFT systems. For larger commercial setups, consider higher GPH models in the EcoPlus line.

Can I use this pump inline or must it be fully submerged? +

This model is designed as a submersible-only pump and must remain fully underwater during operation. It is not rated for inline use outside of the reservoir. The submersible design ensures quiet operation and efficient cooling through water contact.

What fittings are included with the pump? +

The pump includes a set of interchangeable outlet fittings designed to accommodate standard hydroponic tubing sizes. The fitting guide PDF provides detailed specifications on compatible tubing diameters and installation instructions for each fitting type included in the package.

How often should I clean the pump to maintain performance? +

Regular cleaning every 2-4 weeks is recommended to prevent mineral buildup and maintain optimal flow rates. Disassemble the pump according to the instruction manual, rinse all components with fresh water, and remove any debris from the impeller and intake. Frequency may increase if using heavily mineralized nutrient solutions.

Is this pump suitable for continuous 24/7 operation? +

Yes, the EcoPlus Convertible Bottom Draw Pump is designed for continuous operation in hydroponic systems. The submersible design keeps the motor cool through constant water contact, allowing for reliable 24/7 performance. Ensure the pump remains fully submerged at all times during operation.

What makes this pump different from standard submersible pumps? +

The patented bottom draw inlet and convertible outlet system set this pump apart from conventional designs. While most pumps require several inches of water to operate effectively, this model works in less than 1/2 inch, maximizing water usage. The convertible outlet provides installation flexibility not found in fixed-outlet pumps.
