EcoPlus Convertible Bottom Draw Water Pump

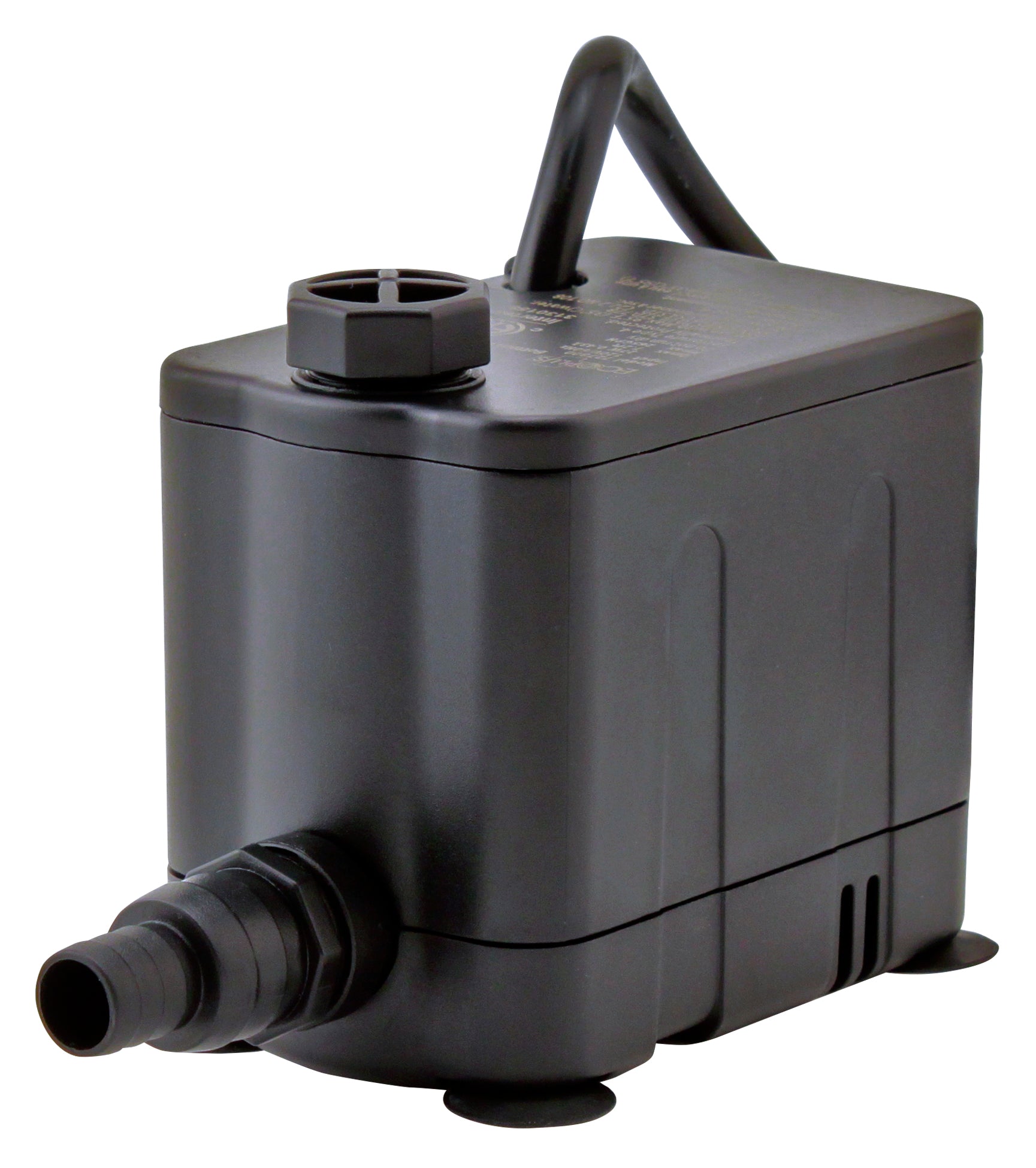

EcoPlus® Convertible Bottom Draw Submersible Only Water Pump - 265 GPH

Running a hydroponic system in shallow reservoirs or tight spaces? The EcoPlus Convertible Bottom Draw Water Pump solves the common problem of pumps failing in low water conditions. With its innovative bottom draw inlet design, this pump operates efficiently in less than 1/2 inch of water—eliminating dry-run failures and extending equipment life. The 265 GPH flow rate delivers reliable circulation for small to medium hydroponic setups while the interchangeable outlet fitting adapts to virtually any configuration.

The EcoPlus Convertible Bottom Draw Pump represents a first-of-its-kind design in hydroponic water circulation. The patent-pending convertible outlet system (US Patent Pending No. 14/642,557) allows users to switch between horizontal and vertical water flow directions without purchasing multiple pumps. This eliminates the guesswork of choosing the right pump orientation and provides maximum installation flexibility whether you're setting up DWC systems, nutrient film technique (NFT) channels, or recirculating drip systems.

Built for the demanding conditions of continuous hydroponic operation, this submersible pump combines energy efficiency with consistent performance. The bottom draw inlet ensures the pump captures water from the lowest point in your reservoir, maintaining prime even as water levels fluctuate during feeding cycles. The interchangeable fittings accommodate standard tubing sizes, making integration into existing systems straightforward for both hobbyist growers and commercial operations.

Features

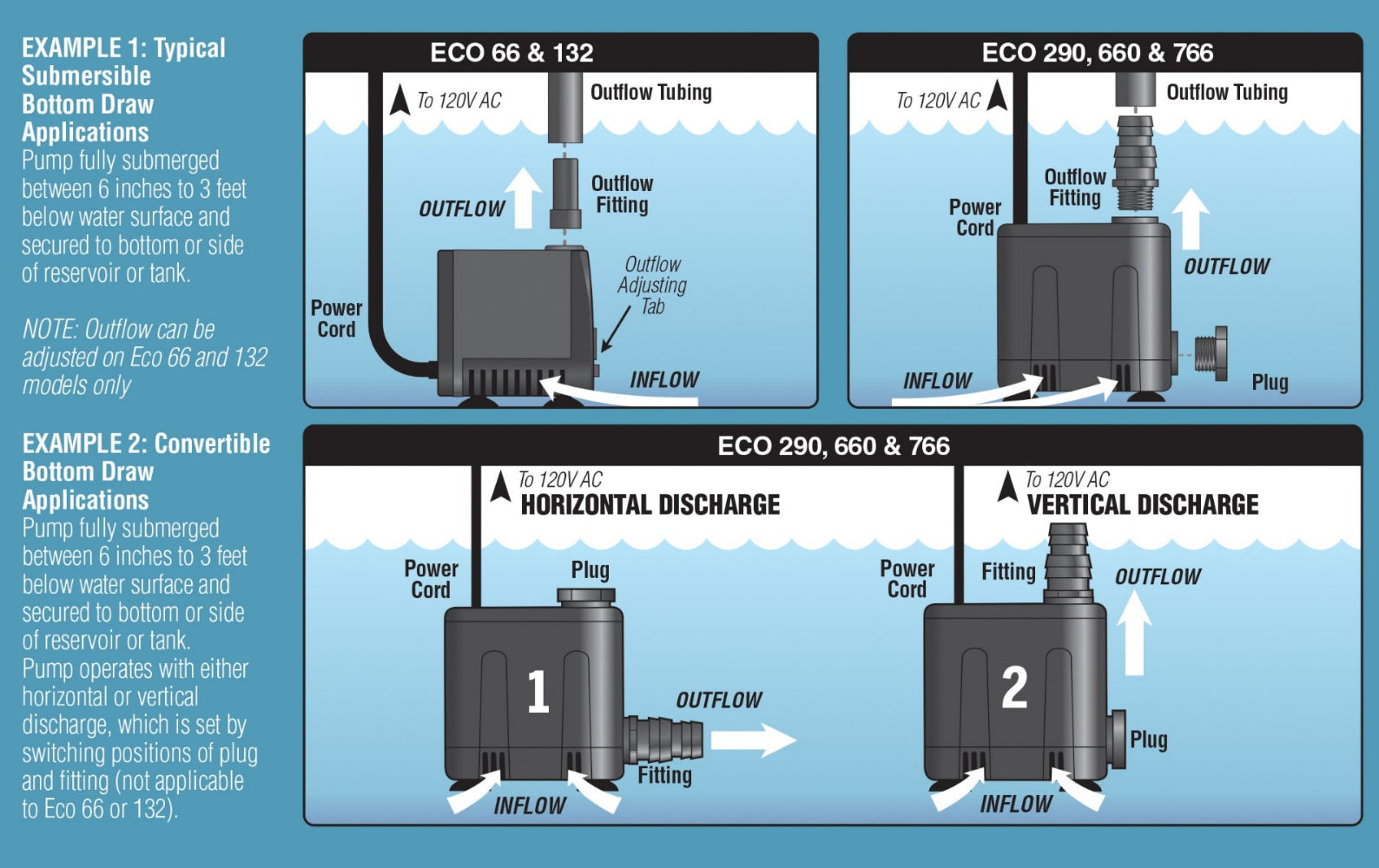

EcoPlus Bottom Draw Inlet Design and Convertible Outlet Configurations

Bottom Draw Inlet Technology

Operates in less than 1/2 inch of water depth, eliminating dry-run failures and ensuring consistent circulation even in shallow reservoirs.

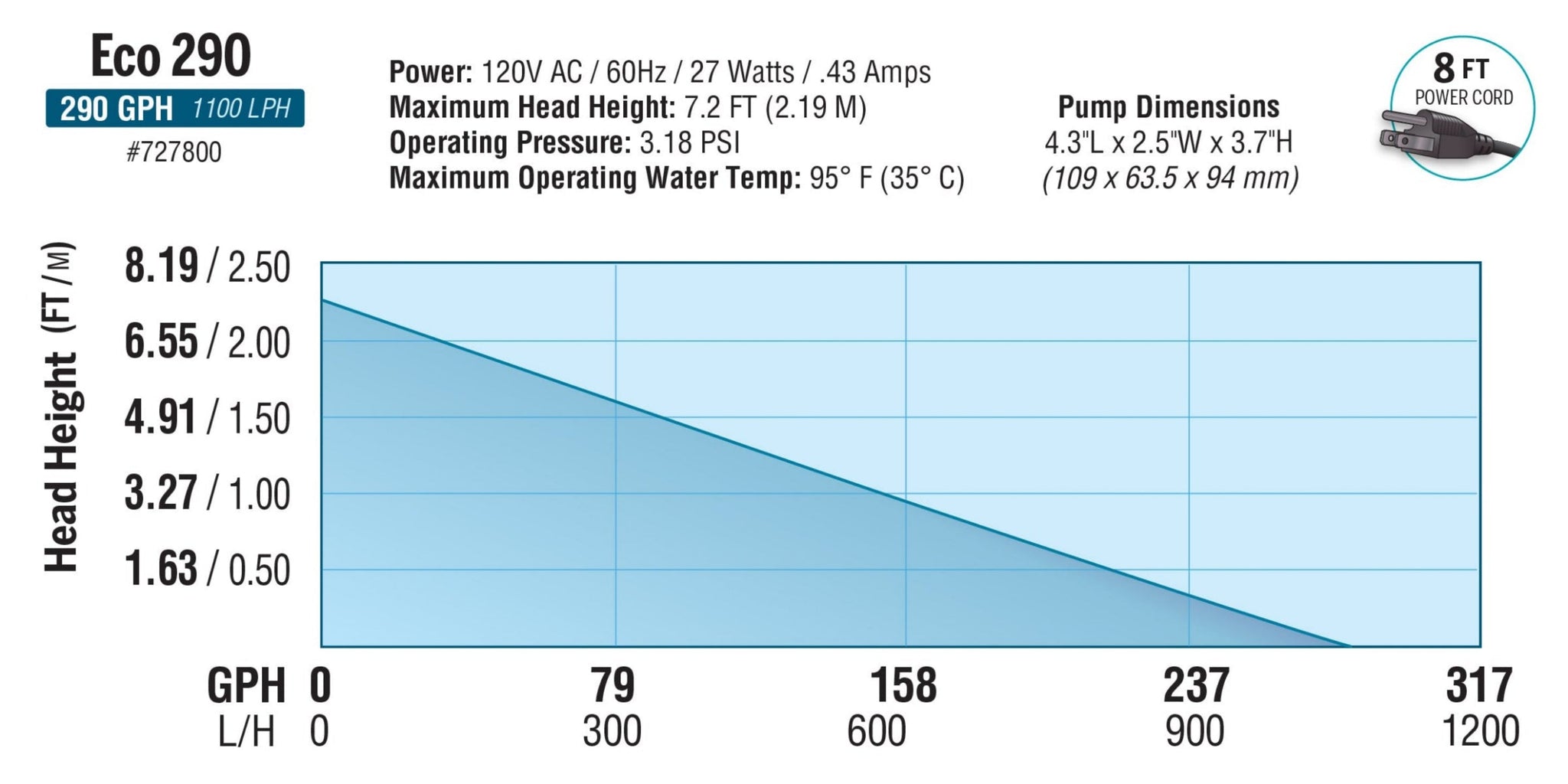

EcoPlus Eco 290 Performance Chart and Specifications

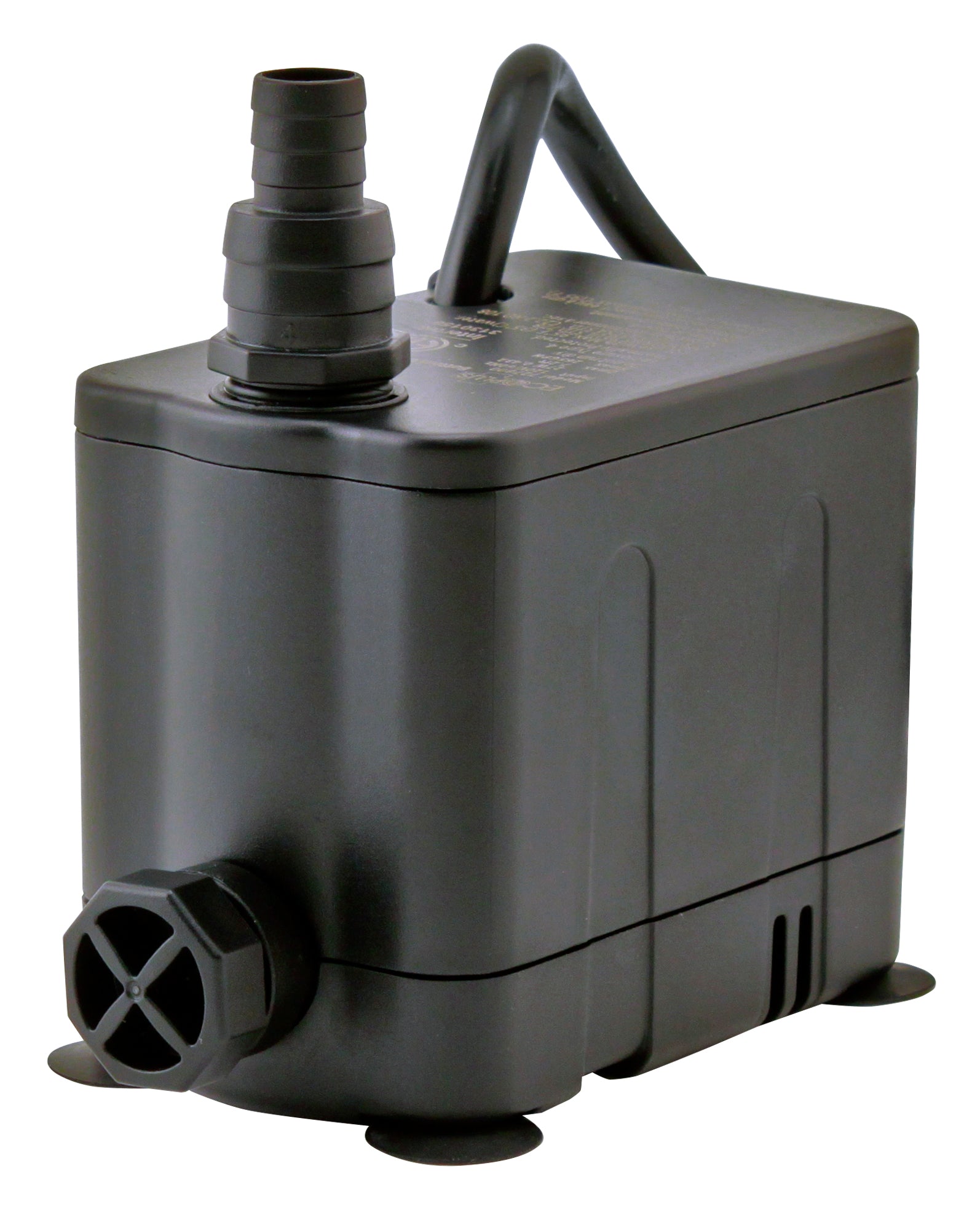

Convertible Outlet System

Patent-pending interchangeable fitting switches between horizontal and vertical discharge, providing installation flexibility for any hydroponic application.

💧

265 GPH Flow Rate

Delivers consistent circulation for small to medium hydroponic systems with energy-efficient operation.

🔧

Universal Fitting Compatibility

Interchangeable outlet fittings accommodate standard tubing sizes for seamless integration into existing setups.

🌊

Submersible Design

Fully submersible construction operates quietly underwater while maintaining prime during water level fluctuations.

⚙️

Patent-Pending Innovation

First hydroponic pump with convertible outlet technology, offering unmatched versatility for diverse growing systems.

What's Included

EcoPlus Convertible Bottom Draw Water Pump - 265 GPH

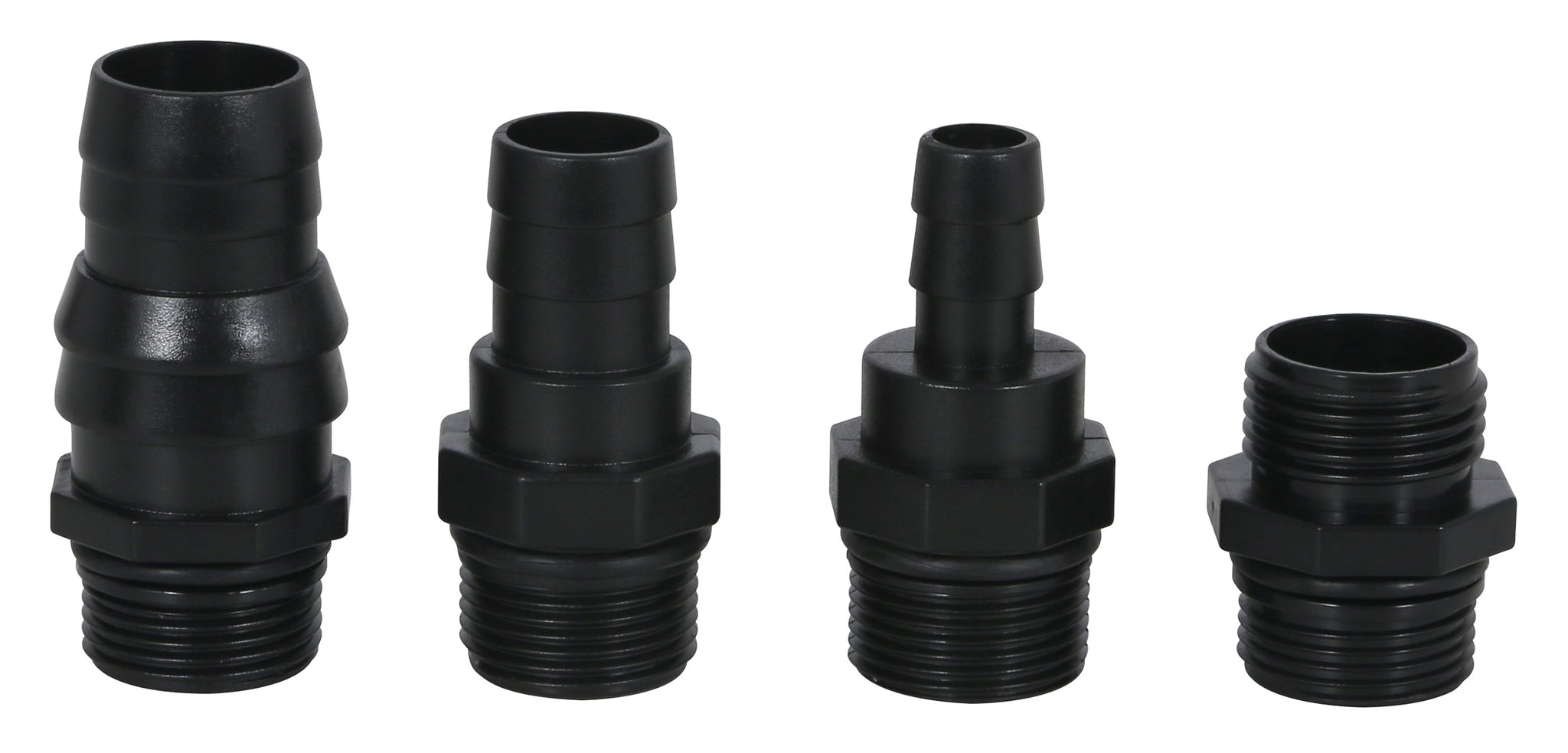

Interchangeable Outlet Fitting Kit
Power Cord

Specifications

Specification	Value
Flow Rate	265 GPH
Minimum Operating Depth	Less than 1/2 inch
Pump Type	Submersible Only
Outlet Configuration	Convertible (Horizontal or Vertical)
Patent Status	US Patent Pending No. 14/642,557
Volume (cf)	0.068
Dim Weight (in³/lb)	0.849
Weight (lb)	2.100
Length (in)	4.300
Width (in)	6.100
Height (in)	4.500

Support & Manuals

📄 Installation Instructions 📄 Fitting Guide

Frequently Asked Questions

How do I switch between horizontal and vertical outlet configurations? +

The convertible outlet fitting can be repositioned by removing the existing fitting and rotating it to your desired orientation before reattaching. Detailed step-by-step instructions with diagrams are provided in the included Fitting Guide manual. The process takes less than a minute and requires no special tools.

Can this pump run continuously in my hydroponic system? +

Yes, the EcoPlus Convertible Bottom Draw Pump is designed for continuous submersible operation in hydroponic systems. The energy-efficient motor and durable construction support 24/7 operation when fully submerged. Ensure the pump remains underwater during use and maintain adequate water levels above the minimum 1/2 inch requirement for optimal performance.

What size tubing fits the outlet fittings? +

The interchangeable outlet fittings accommodate standard hydroponic tubing sizes commonly used in nutrient delivery systems. Refer to the Fitting Guide manual for specific diameter measurements and compatibility charts. The universal design ensures compatibility with most common hydroponic tubing available from major suppliers.

Will this pump work in a shallow reservoir or flood table? +

Absolutely—this is exactly what the bottom draw inlet design was created for. The pump operates efficiently in less than 1/2 inch of water, making it ideal for shallow flood-and-drain tables, low-profile reservoirs, and systems where water levels fluctuate significantly. The bottom draw inlet ensures the pump continues circulating water even when levels drop below what traditional pumps require.

How does the 265 GPH flow rate compare to my system needs? +

The 265 GPH flow rate is well-suited for small to medium hydroponic setups including DWC buckets, small NFT channels, and recirculating drip systems with 1-6 plant sites. For larger commercial operations or systems requiring higher circulation rates, consider the higher GPH models in the EcoPlus Convertible Bottom Draw series. Calculate your system's total volume and desired turnover rate to determine if this pump meets your circulation requirements.

Is this pump suitable for use with nutrient solutions? +

Yes, the EcoPlus Convertible Bottom Draw Pump is designed specifically for hydroponic applications and handles standard nutrient solutions without issue. The pump materials are compatible with common fertilizer formulations used in hydroponic growing. Regular maintenance including periodic cleaning helps ensure longevity when circulating nutrient-rich water.

What maintenance does this pump require? +

Routine maintenance includes inspecting and cleaning the inlet screen monthly to prevent debris buildup that could restrict flow. Periodically remove the pump from the reservoir and rinse away any salt deposits or organic matter that may accumulate. For detailed maintenance schedules and procedures, consult the Installation Instructions manual included with your pump.

Can I use this pump inline or must it be submerged? +

This model is designed for submersible operation only and must remain fully underwater during use. The motor cooling and lubrication systems depend on water submersion for proper function. Operating this pump out of water will cause overheating and permanent damage not covered by warranty.
