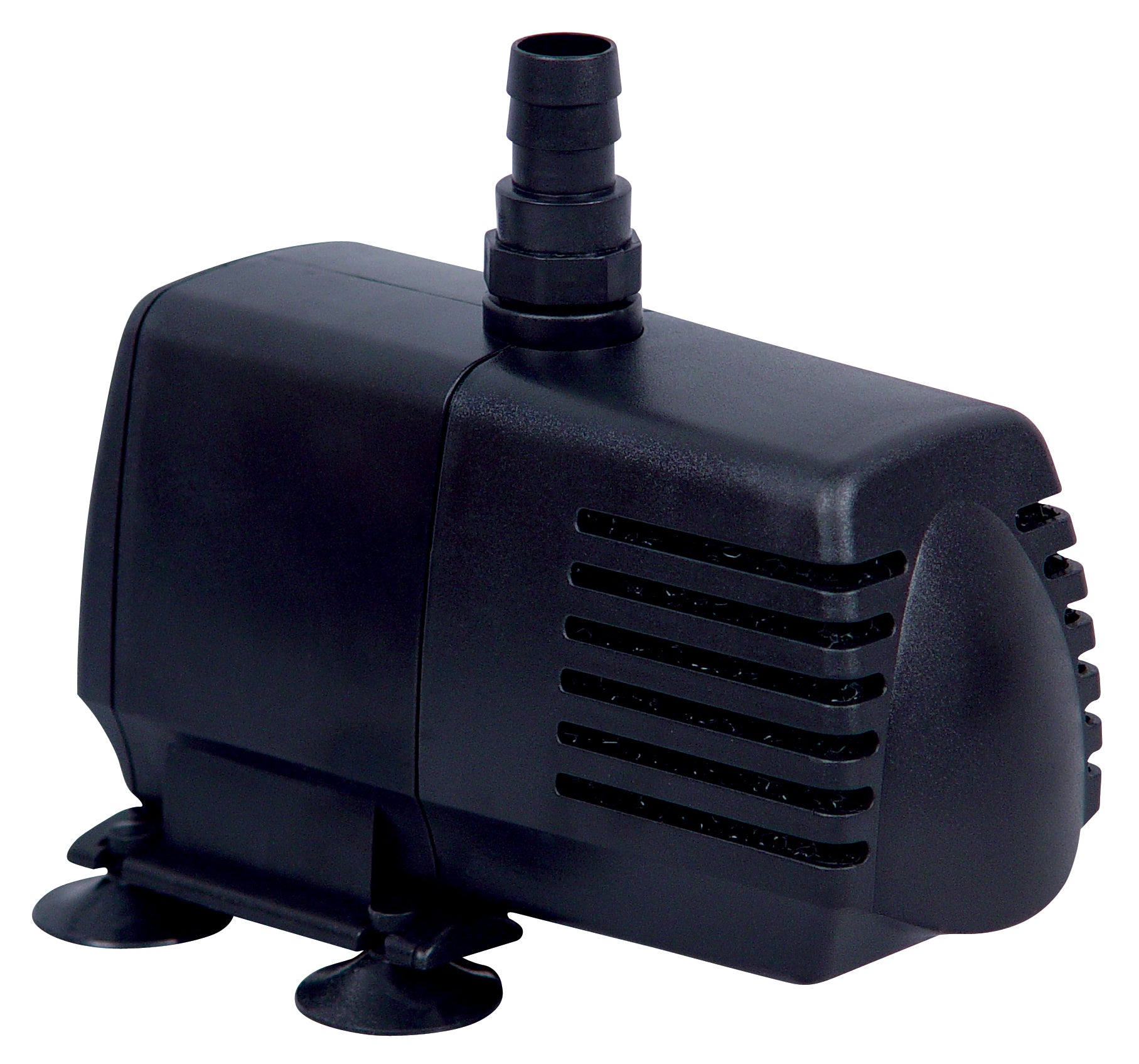

EcoPlus Eco 633 Fixed Flow Submersible/Inline Pump (594 GPH)

EcoPlus Eco 633 Fixed Flow Submersible/Inline Pump 594 GPH

Running a larger system where inadequate flow causes temperature stratification, dead zones, and compromised water quality? The EcoPlus Eco 633 eliminates these issues with powerful 594 gallons per hour circulation, driven by advanced magnetic technology that maintains consistent flow without the mechanical degradation plaguing conventional pumps. Built around a premium rare earth rotor magnet and ceramic shaft impeller, this high-capacity pump handles both submersible and inline configurations across large-scale hydroponics, substantial aquariums, and pond installations.

The Eco 633's magnetic drive system completely eliminates shaft seals—the weak point responsible for most pump failures. The ceramic shaft impeller resists corrosion from freshwater, saltwater, and aggressive nutrient solutions, while oil-free operation protects water purity in organic cultivation and sensitive aquatic ecosystems. Multiple attachment fittings included with each pump provide installation versatility for different tubing diameters and system architectures without requiring additional adapters.

UL certification demonstrates this pump's adherence to stringent safety protocols for indoor and outdoor installations. The dual-stage strainer and foam filter system captures debris before it reaches pump internals, reducing maintenance demands and preventing damage from particulate contamination. Ultra-quiet magnetic drive operation makes the Eco 633 suitable for residential environments where mechanical noise disrupts living spaces, while the compact footprint maximizes usable space in equipment-intensive setups.

Features

EcoPlus Eco 633 high-capacity pump with magnetic drive and professional fittings

The Eco 633 delivers professional-grade 594 GPH performance with magnetic efficiency and adaptable mounting

🧲

Industrial Magnetic Drive

Premium rare earth rotor magnet provides unwavering 594 GPH flow with maximum efficiency and minimal heat generation.

🌊

Professional Installation Versatility

Seamlessly configures for submersible or inline operation with comprehensive fitting assortment for complex system integration.

💧

Absolute Zero Contamination

Oil-free ceramic shaft design maintains pristine water chemistry for certified organic operations and high-value aquatic specimens.

🔄

Universal Application Range

Corrosion-immune ceramic impeller thrives in freshwater, saltwater, and concentrated nutrient solutions without performance loss.

🛡️

Engineered Protection System

Multi-stage strainer and foam filter combination prevents debris damage while extending service intervals significantly.

✅

Third-Party Validated Safety

UL certification confirms compliance with stringent electrical and mechanical safety requirements for all environments.

What's Included

EcoPlus Eco 633 Pump

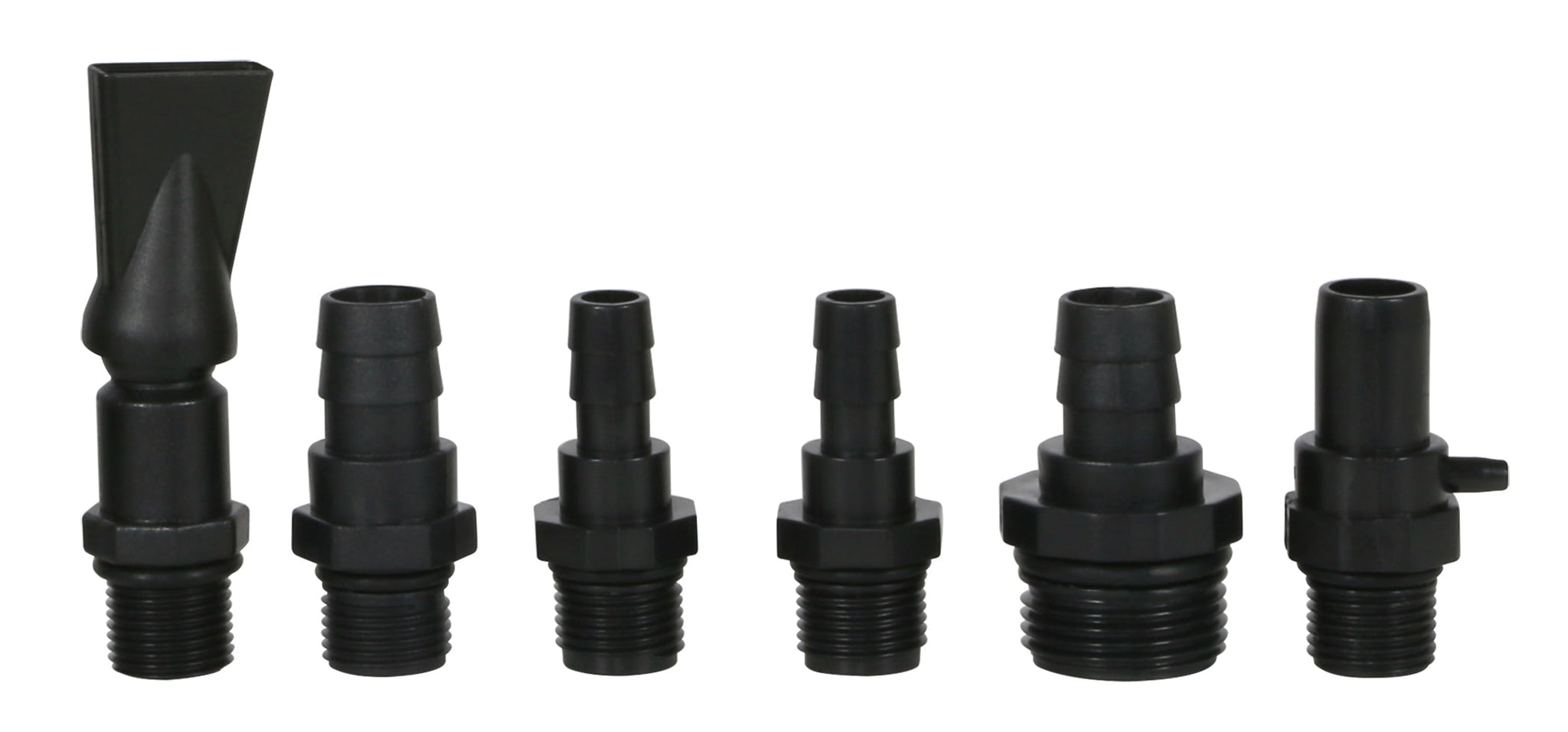

Multiple Attachment Fittings
Strainer
Foam Filter

Specifications

Specification	Value
Flow Rate	594 GPH
Drive Type	Magnetic (Rare Earth Rotor Magnet)
Impeller Material	Ceramic Shaft
Installation	Submersible or Inline
Water Type	Fresh or Saltwater
Location	Indoor or Outdoor
Certification	UL Listed
Volume (cf)	0.143
Dim Weight (in³/lb)	1.748
Weight (lb)	4.256
Length (in)	8.300
Width (in)	6.100
Height (in)	4.800

Support & Manuals

📄 EcoPlus Fixed Flow Submersible Pumps Instructions

Frequently Asked Questions

What's the ideal system size for 594 GPH flow? +

The Eco 633 excels in large systems requiring substantial circulation. It effectively manages hydroponic reservoirs up to 200 gallons, aquariums ranging from 150-200 gallons, and medium to large pond installations. This pump provides 3-4 complete water turnovers per hour in most applications, ensuring optimal dissolved oxygen levels and temperature distribution.

Can I run multiple Eco 633 pumps together for increased flow? +

Yes, running multiple Eco 633 pumps in parallel effectively increases total system flow for very large installations. This approach also provides redundancy—if one pump requires maintenance, others continue circulation. Ensure adequate electrical capacity and consider staggering pump placement to eliminate dead zones and create comprehensive water movement throughout your system.

How does this pump handle thick nutrient solutions? +

The ceramic shaft impeller and powerful magnetic drive handle standard hydroponic nutrient concentrations without issue. However, extremely viscous solutions or those with heavy particulate matter may reduce flow rate and increase wear. Maintain the strainer and foam filter diligently when pumping nutrient-dense solutions to prevent buildup and ensure consistent performance.

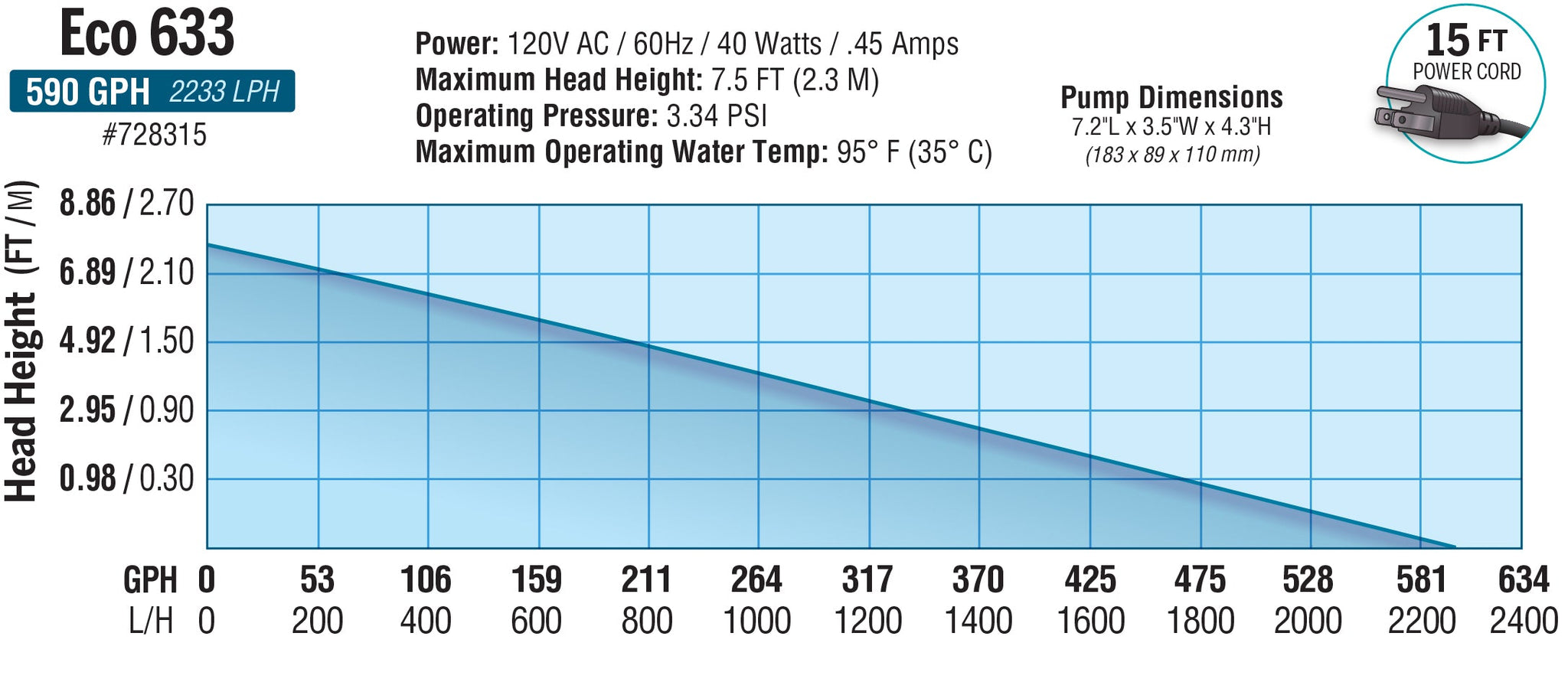

What's the maximum vertical lift for inline installation? +

Maximum head height (vertical lift capacity) depends on total system resistance including tubing length, diameter, and fittings. Consult the instruction manual's performance curve charts for specific head height ratings. Flow rate decreases as elevation increases, so position the pump as low as possible relative to your destination for optimal performance in inline configurations.

How often should I service the Eco 633 in commercial applications? +

For commercial operations, inspect and clean the foam filter weekly and examine the strainer bi-weekly. Monthly, remove the pump from service for thorough cleaning of all accessible components. The magnetic drive design requires minimal internal maintenance, but preventive care of filters and strainers maximizes uptime and extends the operational lifespan significantly in demanding commercial environments.

Will this pump create too much flow for my aquarium fish? +

The 594 GPH output suits larger aquariums with fish that tolerate moderate to strong current. For delicate species or heavily planted tanks, consider directing flow against tank walls or using spray bars to diffuse output. You can also partially restrict outlet flow with a valve, though this reduces efficiency. Match pump selection to your inhabitants' natural habitat preferences.

Can I use this pump with a protein skimmer? +

Yes, the Eco 633 works well as a feed pump for protein skimmers in saltwater aquarium systems. The ceramic impeller resists saltwater corrosion, and the oil-free design prevents contamination that would compromise skimmer efficiency. Verify that the 594 GPH flow rate matches your skimmer's recommended input specifications for optimal performance.

What happens if debris clogs the intake strainer? +

If the strainer becomes clogged, flow rate will decrease noticeably, and the pump may work harder without delivering adequate circulation. The magnetic drive design provides some protection against damage from brief blockages, but prolonged operation with restricted intake can overheat the motor. Clean strainers immediately when you observe reduced flow to prevent pump damage and maintain system health.
