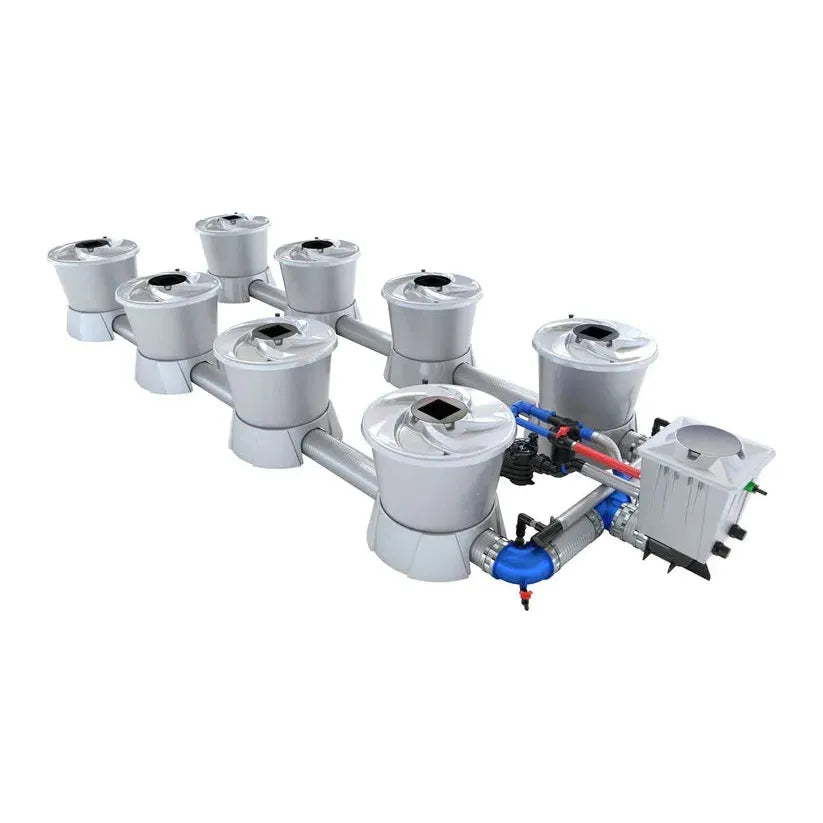

Eight-pot hydroponics system with stacked, cylindrical grow chambers connected by pipes.

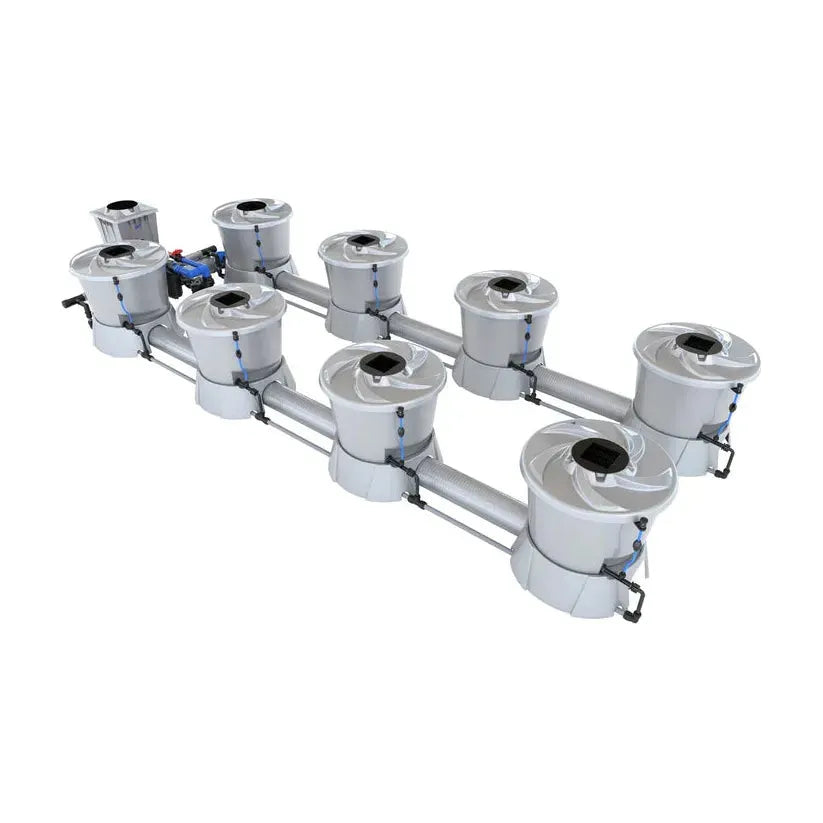

8-pot hydroponics system with two rows of cylindrical planters connected by blue pipes and a central manifold.

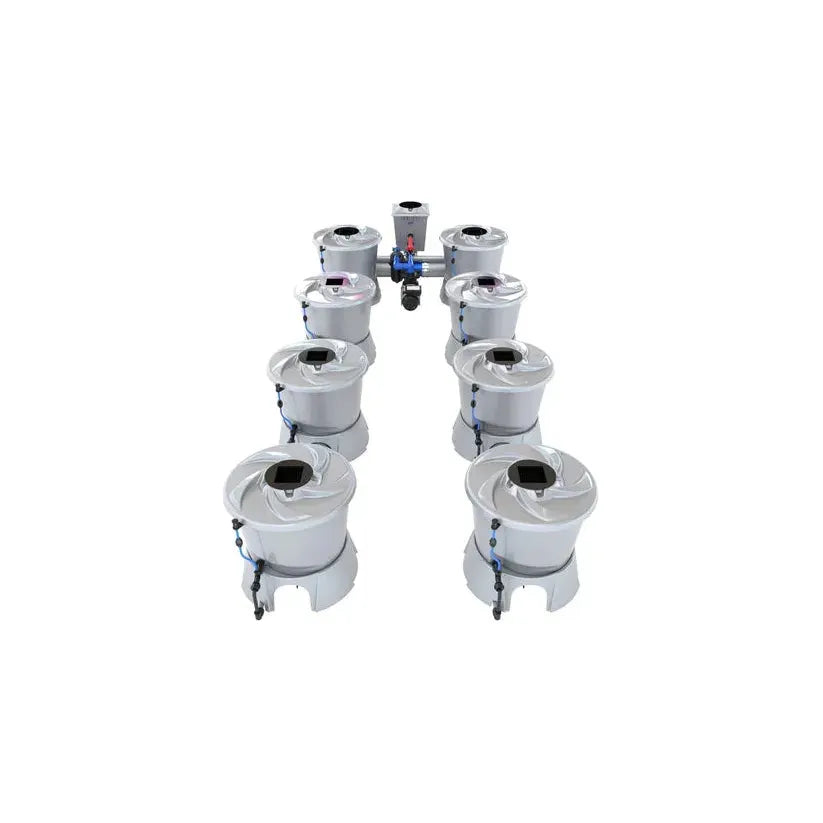

8-pot hydroponics system with multiple tanks, pipes, and a pump.

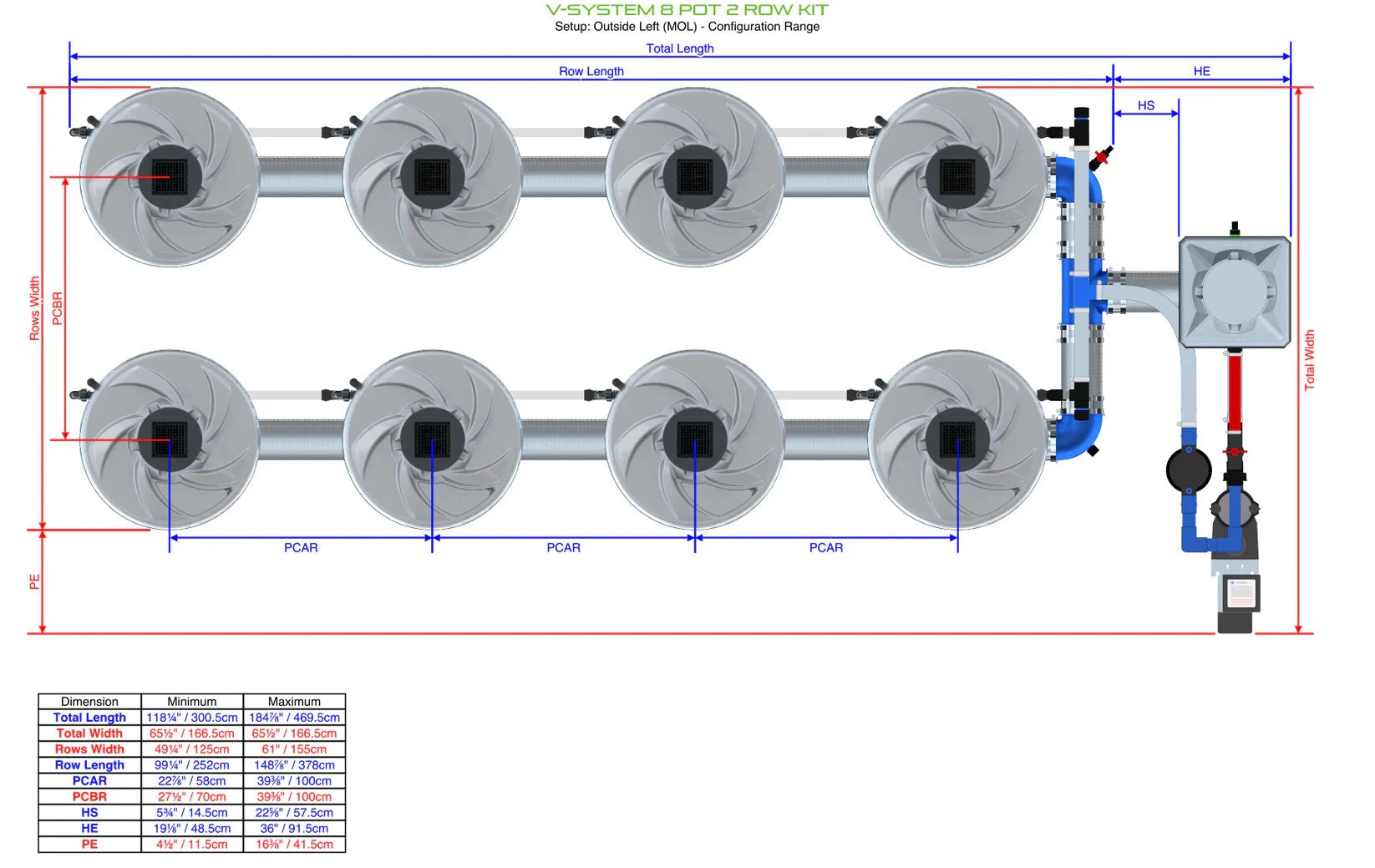

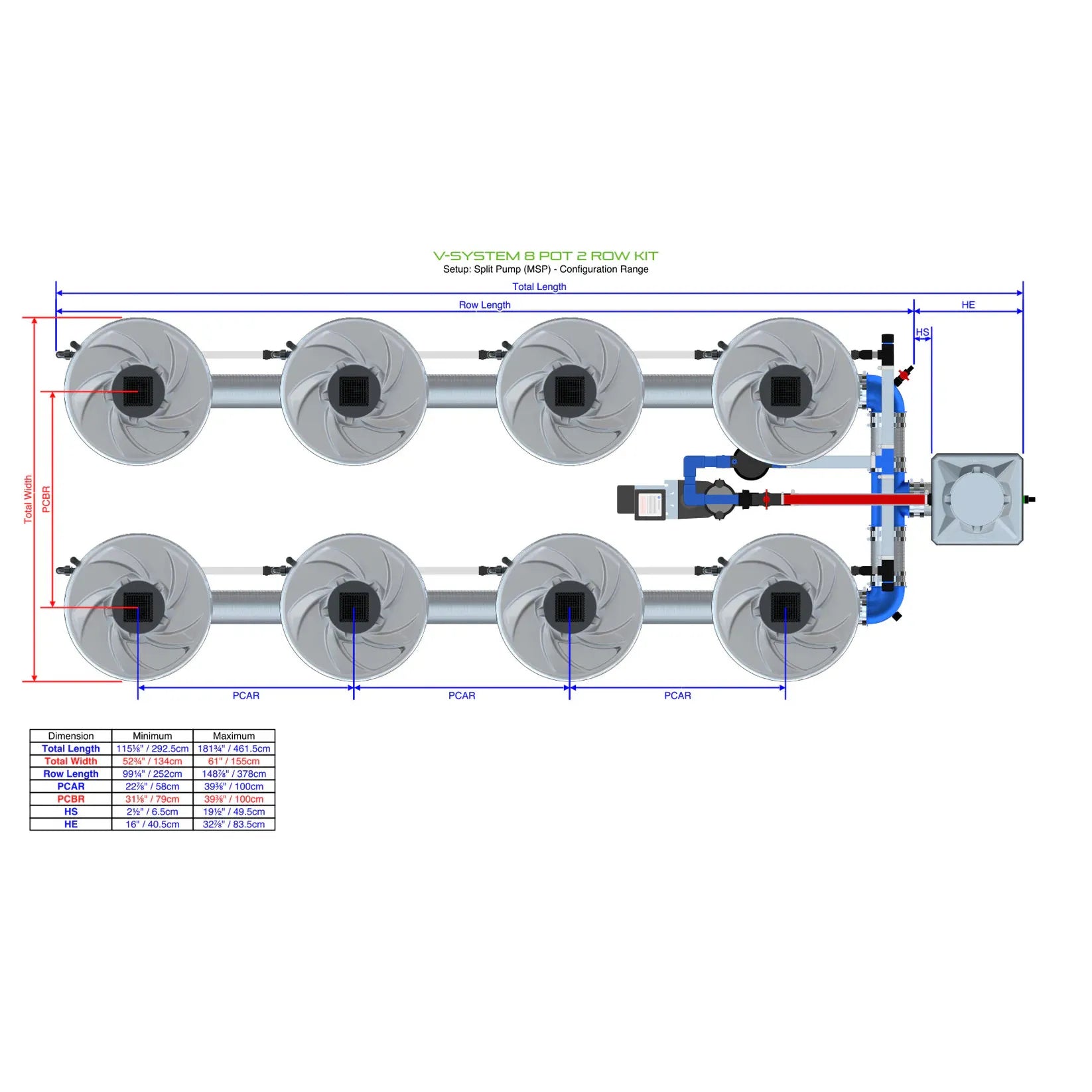

Alien Hydroponics V-System 8 Pot 2 Row DWC kit layout, overhead view. Shows 8 pots in two rows, split pump, and dimension table.

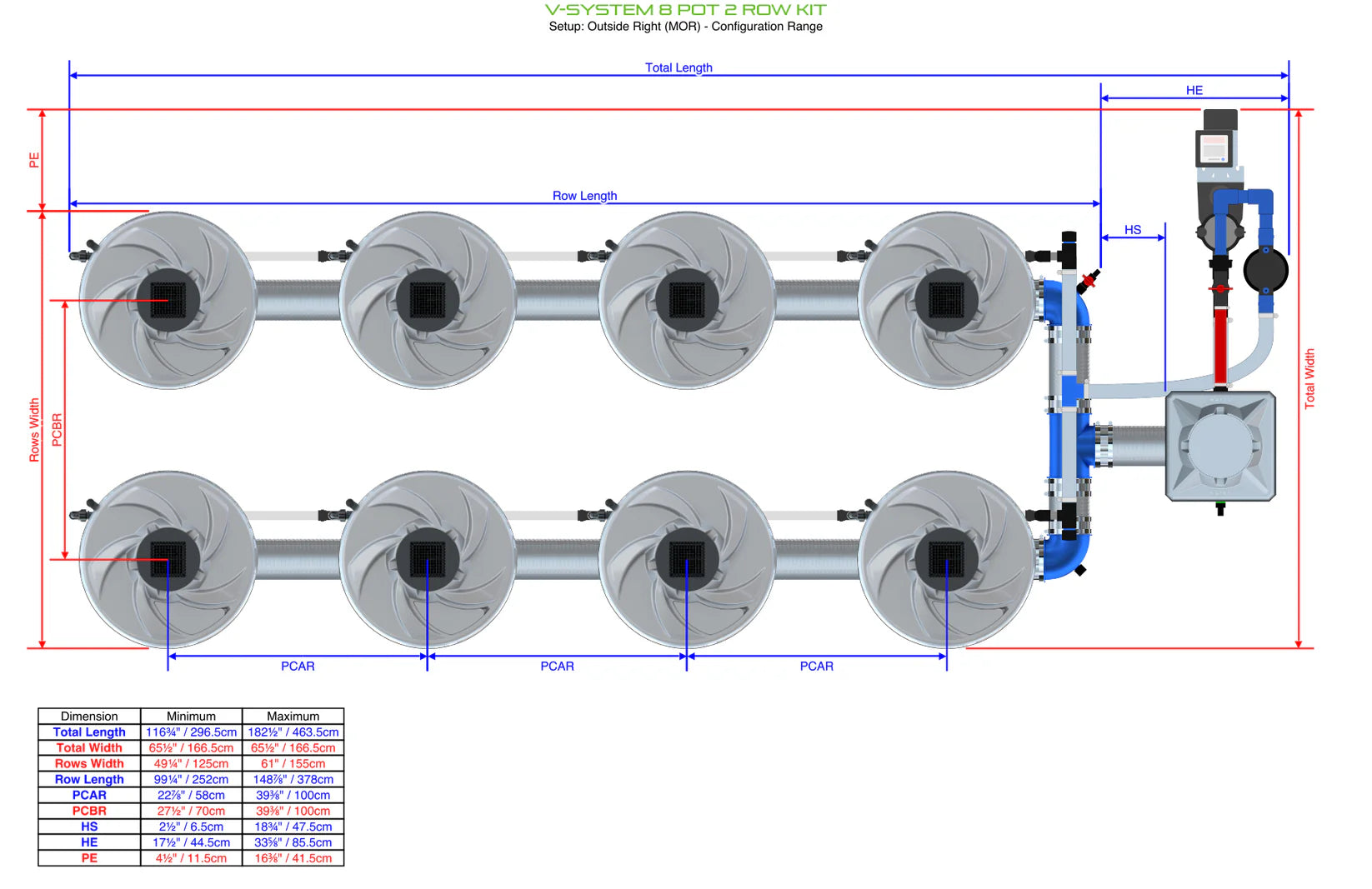

Technical diagram of V-SYSTEM 8 Pot 2 Row DWC hydroponics kit, showing layout, pots, plumbing, control unit & dimensions.

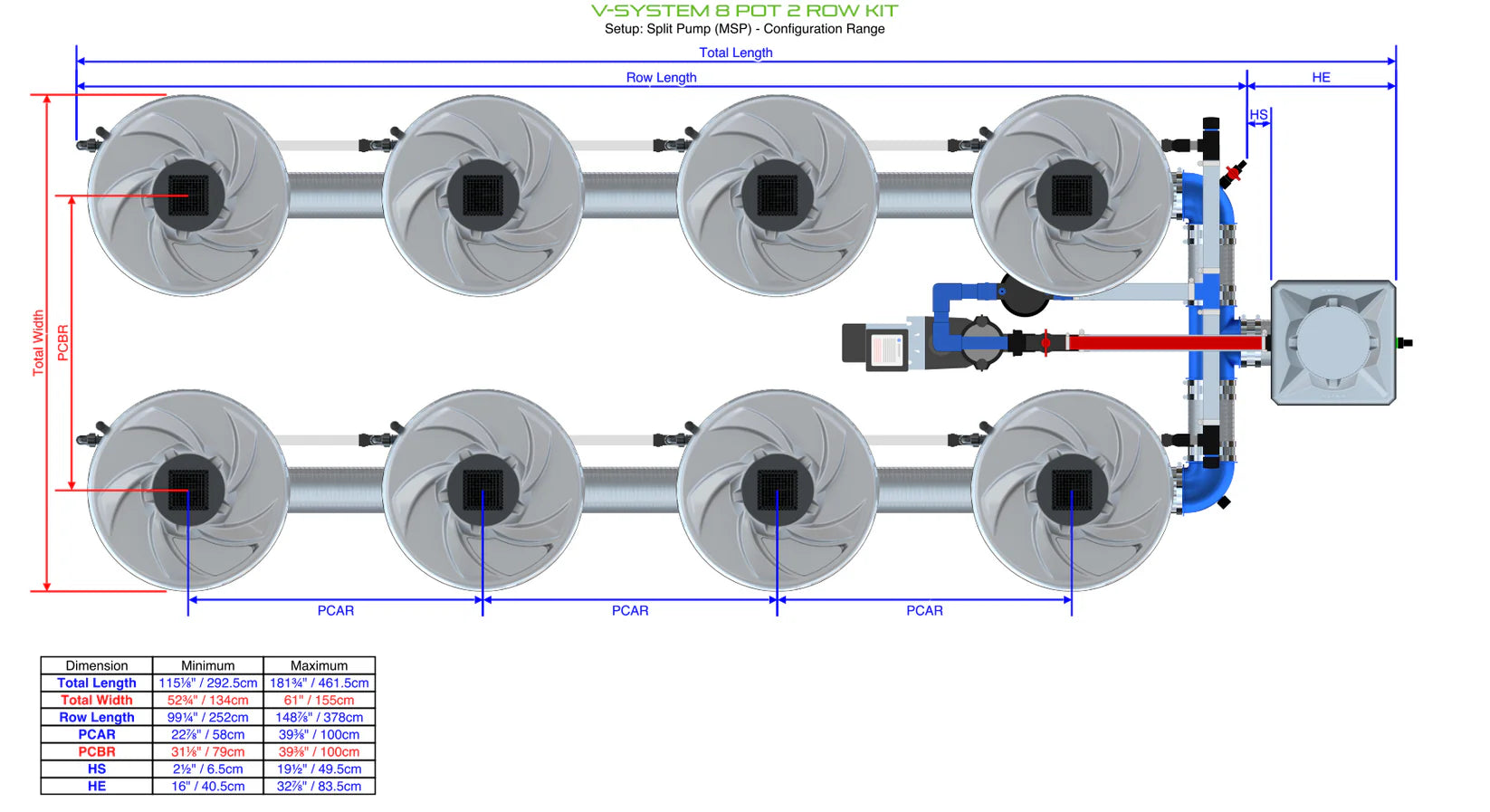

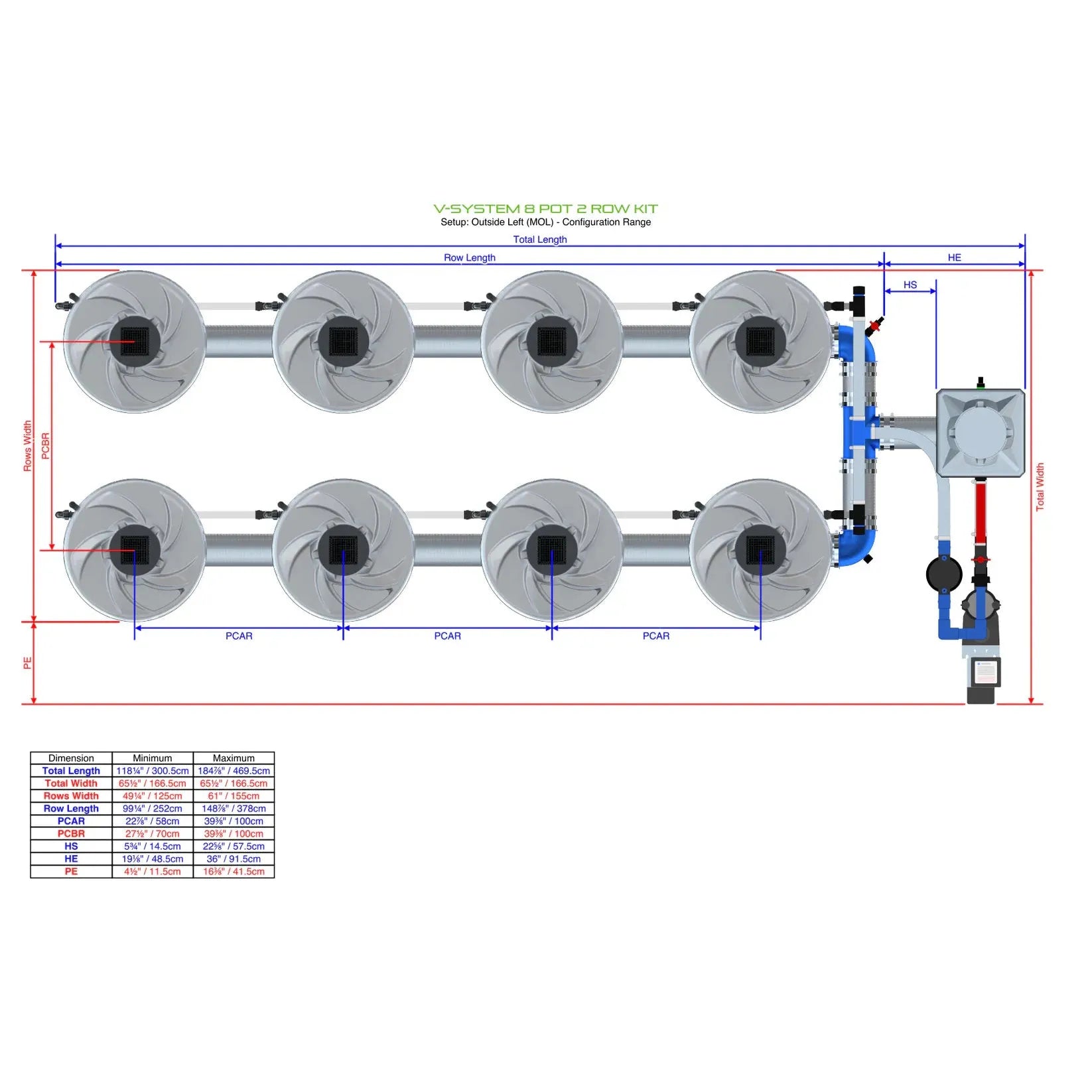

Top-down diagram of Alien Hydroponics V-System DWC 8-pot, 2-row kit, showing layout, plumbing, and dimensions table.

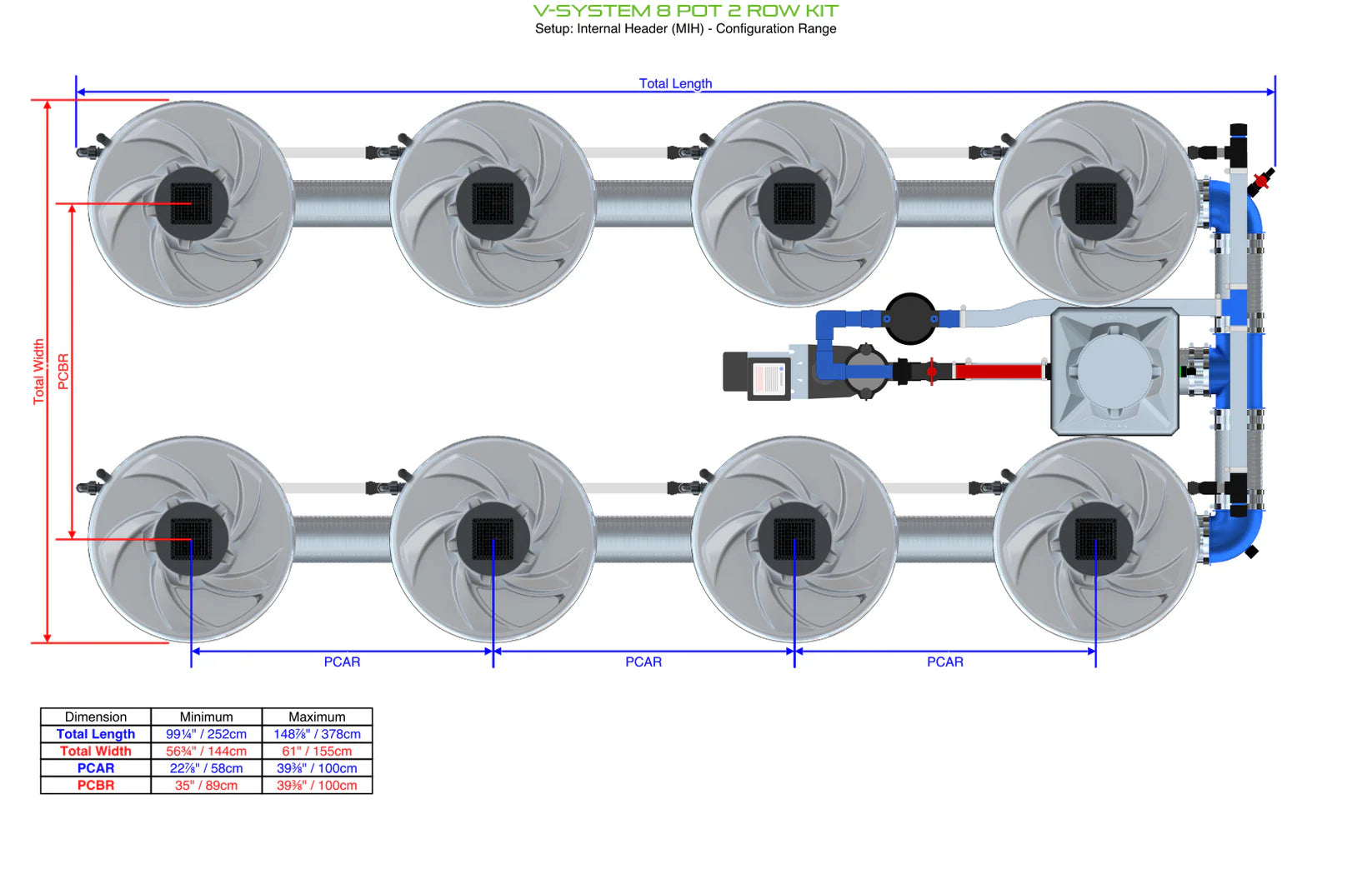

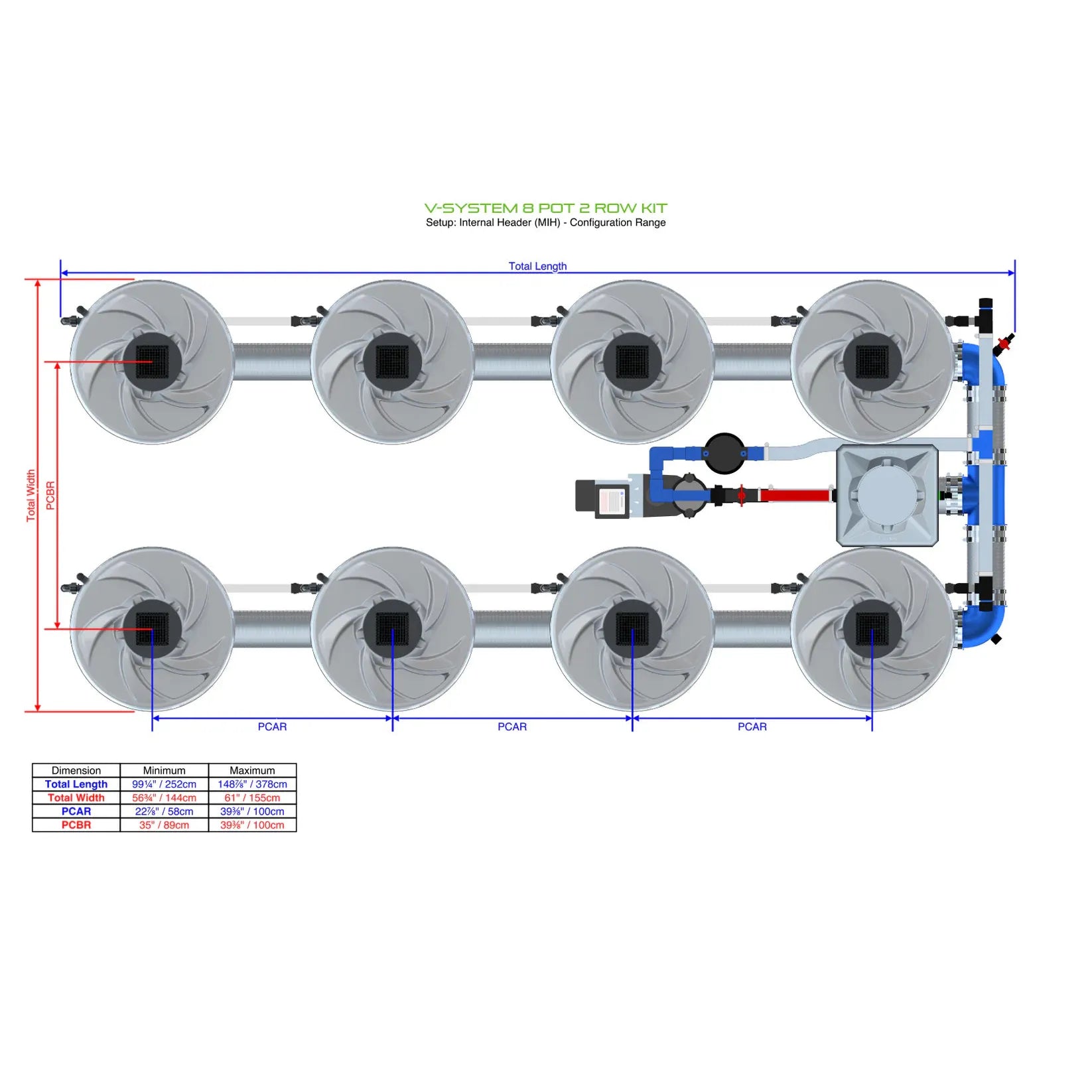

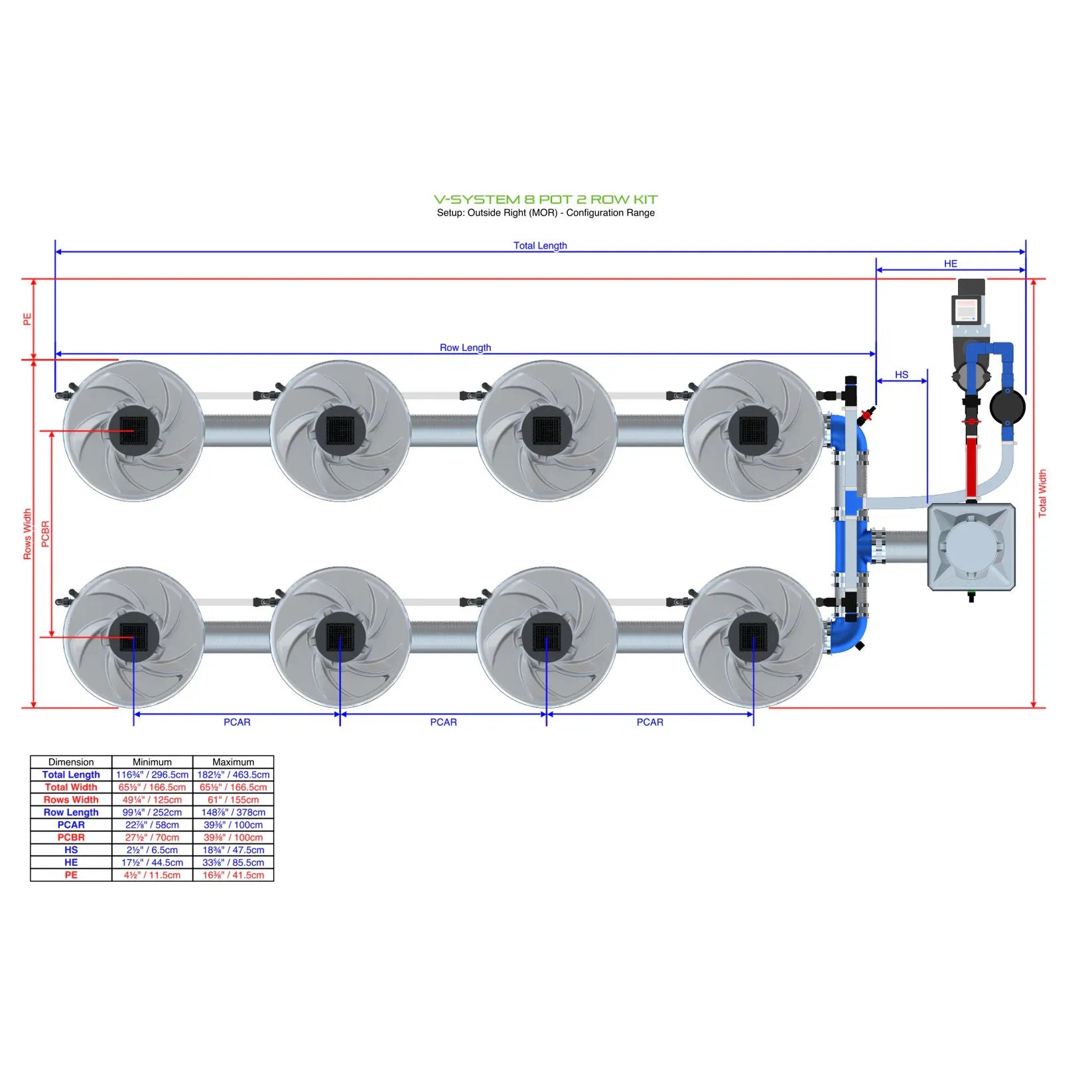

Top-down view of an 8 pot 2 row V-System DWC hydroponics kit with central reservoir, piping, and dimension table.
Eight-pot hydroponics system with stacked, cylindrical grow chambers connected by pipes.
8-pot hydroponics system with two rows of cylindrical planters connected by blue pipes and a central manifold.
8-pot hydroponics system with multiple tanks, pipes, and a pump.
Alien Hydroponics V-System 8 Pot 2 Row DWC kit layout, overhead view. Shows 8 pots in two rows, split pump, and dimension table.
Technical diagram of V-SYSTEM 8 Pot 2 Row DWC hydroponics kit, showing layout, pots, plumbing, control unit & dimensions.
Top-down diagram of Alien Hydroponics V-System DWC 8-pot, 2-row kit, showing layout, plumbing, and dimensions table.
Top-down view of an 8 pot 2 row V-System DWC hydroponics kit with central reservoir, piping, and dimension table.

Alien Hydroponics V-System DWC - 8 Pot 2 Row

Reduced Price:
$3,381.30 USD $3,043.17 USD$3,381.30 USD
Or
Pay as little as
$304317/mo
for a term that suits you, up to 36 months. Learn More
Standard shipping rates apply to this item

🍃 Earn 3,44 points for shopping and get $30.43 off your next order. Join Harvest Club for free

To calculate 10 percent of a number, simply divide it by 10 or move the decimal point one place to the left. For example, 10 percent of 230 is 230 divided by 10, or 23.
pricePoints: 3043.17
3,44
2
percentage: $30.43
rt:

🍃 Earn # points for shopping and get $30.43 off your next order. Join Harvest Club for free

MODEL: BD100-0208
Need help deciding?

Expert (human) help, just a click away!

Call an Expert Live Chat

Alien Hydroponics V-System DWC - 8 Pot 2 Row

Tired of managing complex air pumps, clogged air stones, and inconsistent nutrient delivery in your DWC setup? The Alien Hydroponics V-System 8 Pot Kit is engineered to solve these problems, delivering explosive growth through revolutionary water-flow technology. This is not just another kit; it's a complete, high-performance DWC hydroponics solution designed for serious growers.

At its core, the V-System eliminates the need for a separate air pump by using innovative Venturi Valve Technology. As the powerful Jet-Stream Vortex pump circulates the nutrient solution, the Venturi injectors create a powerful negative pressure that draws in massive amounts of air, creating a swirling vortex in each pot. This process super-saturates the water with dissolved oxygen, promoting incredibly healthy and expansive root zones for faster growth and heavier yields. The system's modular design offers excellent flexibility; if your needs change, you can easily adapt the layout or explore other configurations like the 6-pot V-System or the larger 10-pot V-System.

What's Included

  • 1x V-SYSTEM Vortex Water Pump (370W, 120V, 13200 l/h)
  • 8x 15-Gallon (58L) V-Pots with Bases, Lids, and Inspection Covers
  • 8x Square Net Pots & V-Pot Clips
  • 8x Venturi Air Filters, Silencers, and Fittings
  • 9x 5" Nuts & Green Silicone Washers
  • 22x 5" Stainless Steel Clamps
  • All required piping, fittings, manifolds, and connectors
  • Tools: Pipe Cutter, Wrenches, Screwdriver, Socket
  • 2x Food-Grade Silicone Grease

Features

💨
No Air Pump Needed

Venturi Valve Technology injects oxygen directly into the water stream, eliminating the need for air pumps and stones.

🌀
Vortex Nutrient Flow

Creates a powerful whirlpool in each pot, ensuring an even distribution of nutrients and oxygen to all plants.

❄️
Cooler Temperatures

The constant, rapid circulation of water helps maintain lower temperatures, reducing the risk of root rot.

🧩
Modular & Expandable

Easily customize your layout or expand the system with additional pots and rows as your garden grows.

Specifications

Specification Value
Number of Pots 8
Number of Rows 2
Total Fluid Volume 129.2 gallons (489 L)
Minimum Assembled Length 8' 3.6" (2530 mm)
Minimum Assembled Width 3' 11.2" (1200 mm)
Pump Model V-SYSTEM Vortex 370W
Pump Wattage 370 watts
Pump Flow Rate 3487 gal/hr (13200 L/hr)
Recommended Chiller Capacity 198 gallons (750 L) minimum

Warranty

Alien Hydroponics provides a 3-year warranty for all parts and a standard 1-year warranty for pumps.

FAQs

What makes the V-System different from other DWC systems?+

The key difference is its use of Venturi Valve Technology. Instead of relying on separate air pumps and porous air stones that can clog, the V-System uses the flow of water itself to draw in massive amounts of oxygen. This creates a highly oxygenated, constantly moving nutrient solution that promotes healthier roots and more vigorous growth than many traditional systems. It's a signature innovation across the Alien Hydroponics product line.

Do I need to buy a separate air pump or air stones?+

No. The V-System is an all-in-one solution that does not require any additional air pumps or air stones. The included Jet-Stream Vortex pump and Venturi injectors handle the entire oxygenation process, simplifying your setup and reducing potential points of failure.

Is this system expandable?+

Absolutely. The V-System is fully modular. You can rearrange the pots, extend the rows, or add more pots as your needs evolve. This 8-pot system is a great starting point, but you can also find other configurations like the 4-pot kit for smaller spaces or the 12-pot V-System for larger operations.

What size grow space is recommended for the 8-pot system?+

For the 8-pot system, a grow space of at least 4' x 8' is recommended to give your plants adequate room to flourish. The minimum footprint is about 8.2' x 3.9', but you will need extra space for plant canopy and access to the system.

How does the system help prevent root diseases?+

Root diseases like Pythium thrive in warm, stagnant water with low oxygen levels. The V-System directly combats this by creating an environment hostile to pathogens. The constant, rapid circulation keeps the water temperature cooler, and the Venturi technology ensures the solution is always super-saturated with dissolved oxygen, protecting your roots.
